Allison 1000 width sander wide belt sanding machine high quality sander machine for wood and furniture polishing
- Category: >>>
- Supplier: Qingdao Allison Machinery Technology Co. Ltd.
Share on (1601062391653):
Product Overview
Description
Product Overview
FEATURES AT A GLANCE
Woodworking Sander R-RP1000 Woodworking Heavy-duty Broadband Sander Metal Sanding Grinding Machine Sand Planer
* The machine can be customized including functional color brand model and so on.*

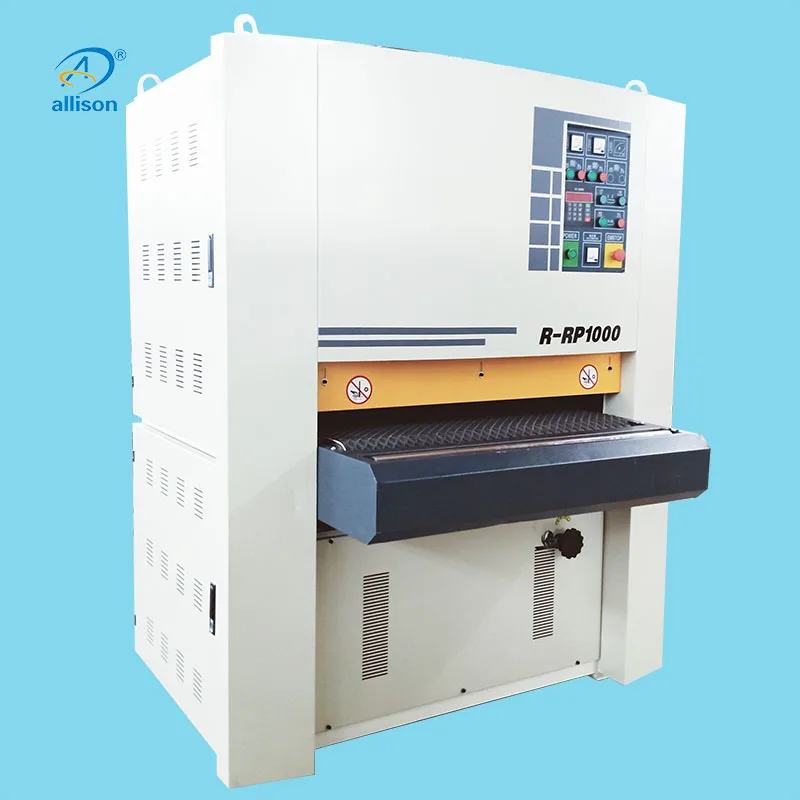

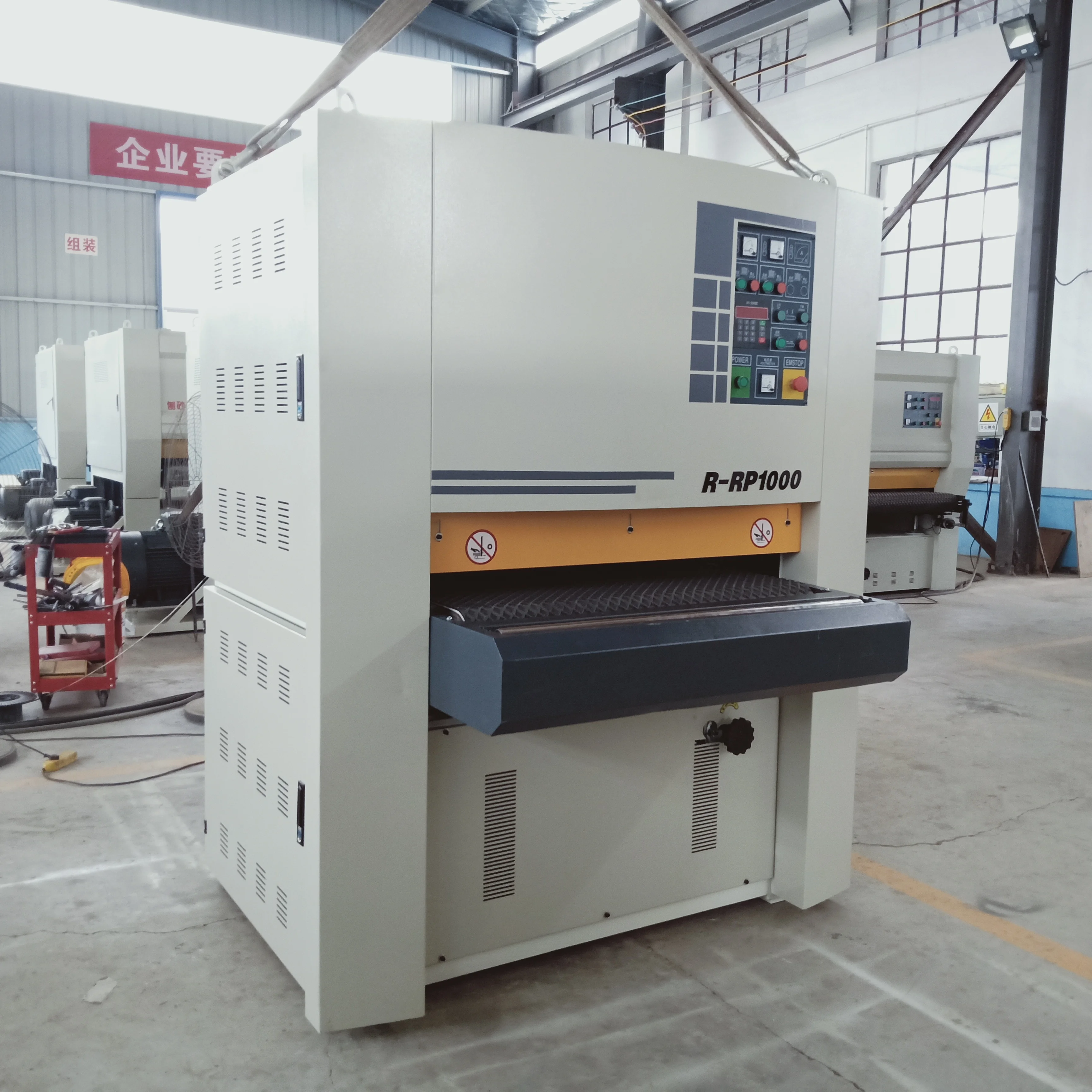

Front View
Configuration View
Back View
Control panel: touch screen control panel, simple and clear self-reset control button, intelligent temperature controller with high control precision, complete functions, simple and clear.

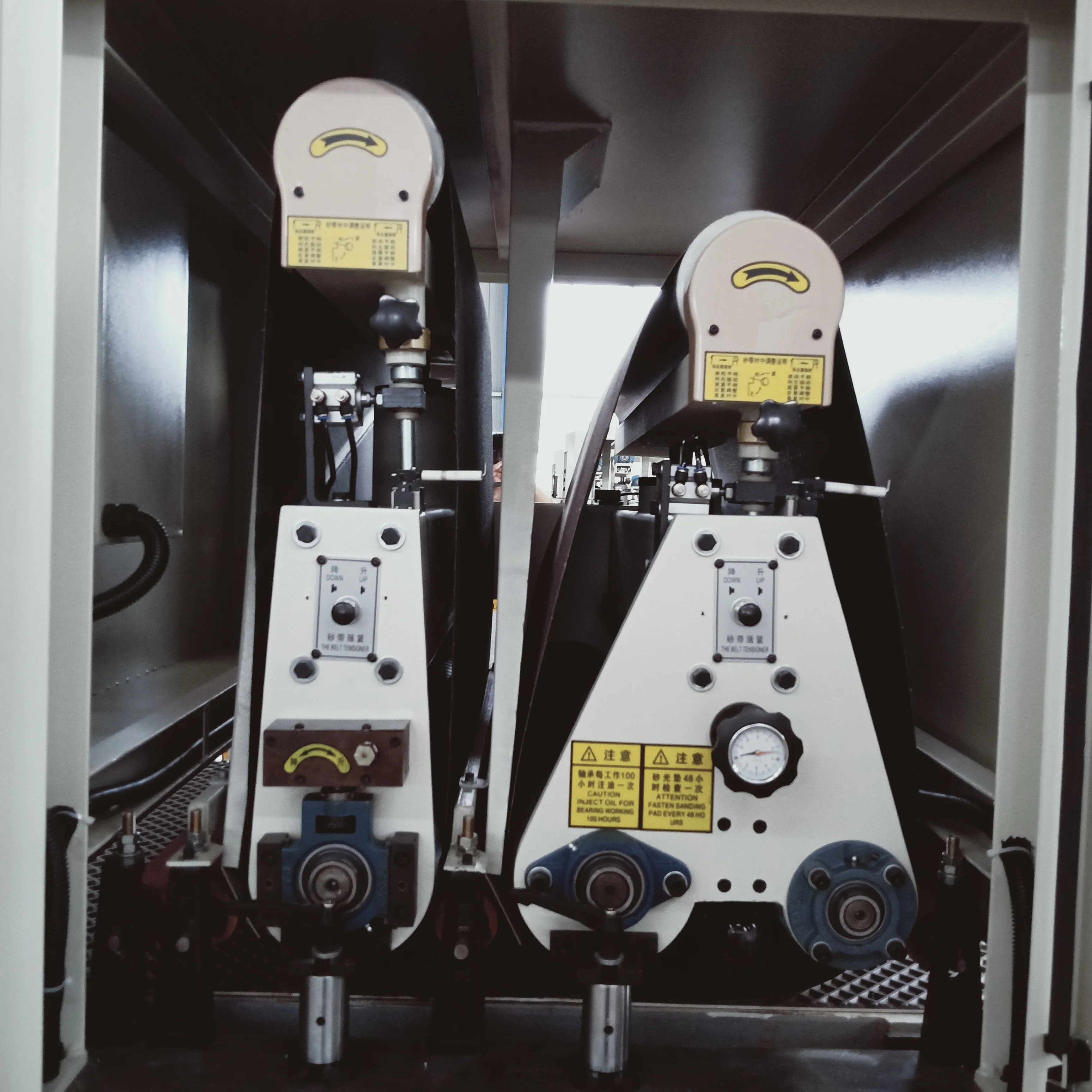

Double sand roller for fine grinding board, sanding components, suitable for all kinds of board sanding and fine polishing. Four-sided blade, spiral knife shaft so the wood scarring planing effect is good, no pit and planing noise is small.

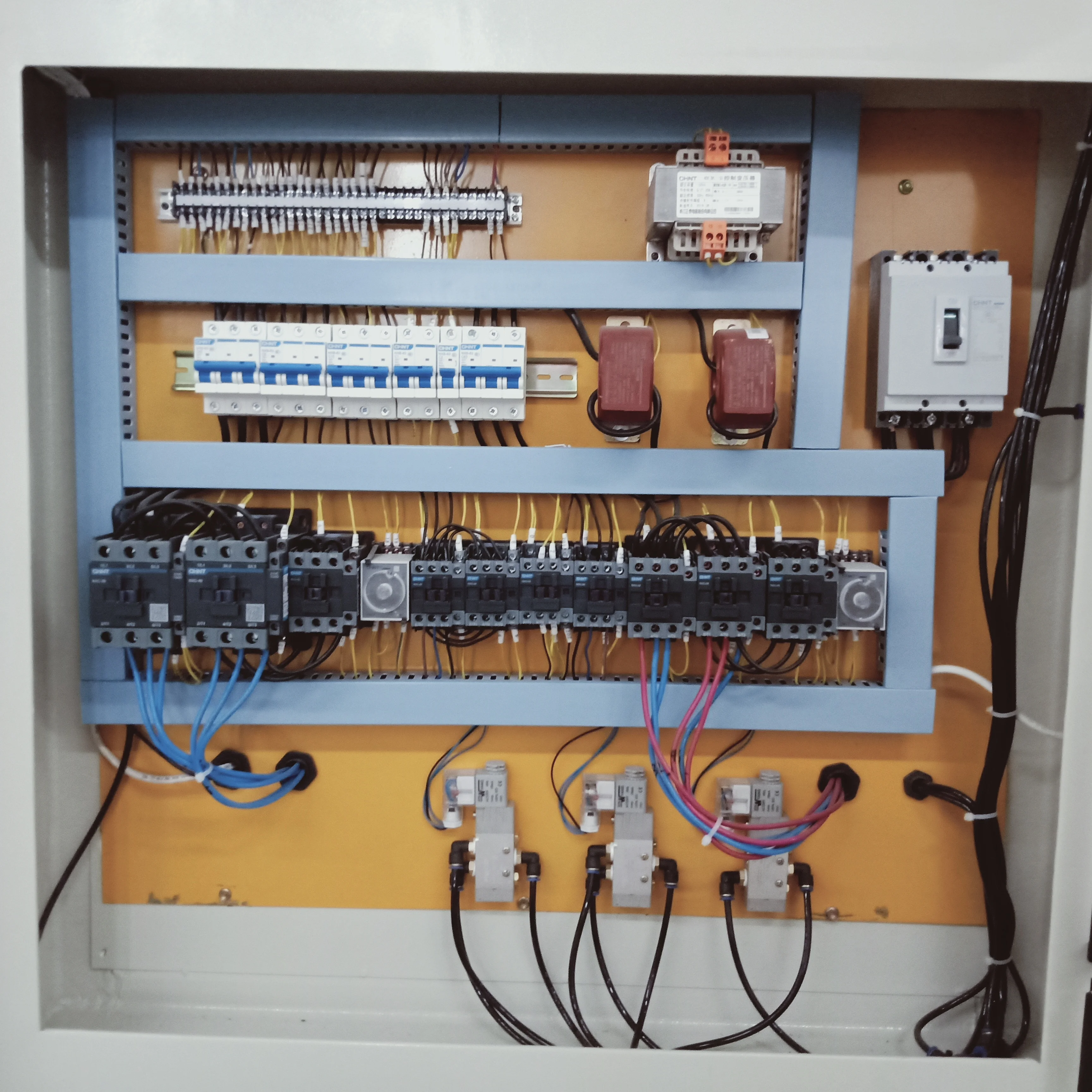

Electrical control box, new contactor, start sound is small, start more sensitive and more stable operation. Electrical components are safe and durable with guaranteed quality.
Diamond grid conveyor belt: five-layer superposition material conveyor belt, long-term use will not appear deviation, high temperature resistance, not afraid of rain and sun, long service life.
High quality reducer: conveyor belt stepless speed regulating motor 6-30m/min, grinding speed can be controlled according to grinding needs.
Oil-water separator: oil-water separator equipment to ensure the separation and treatment of water vapor formed by the machine during long-term operation to ensure the stability of the machine.
All copper motor: The use of all copper motor to provide strong power for the machine. The motor within one year for non-human damage, free replacement are provided.
Reinforced fuselage: The platform is made of thickened international channel steel, the frame structure is stable, the whole machine is sprayed, strong and beautiful, not easy to rust, and the service life is longer.

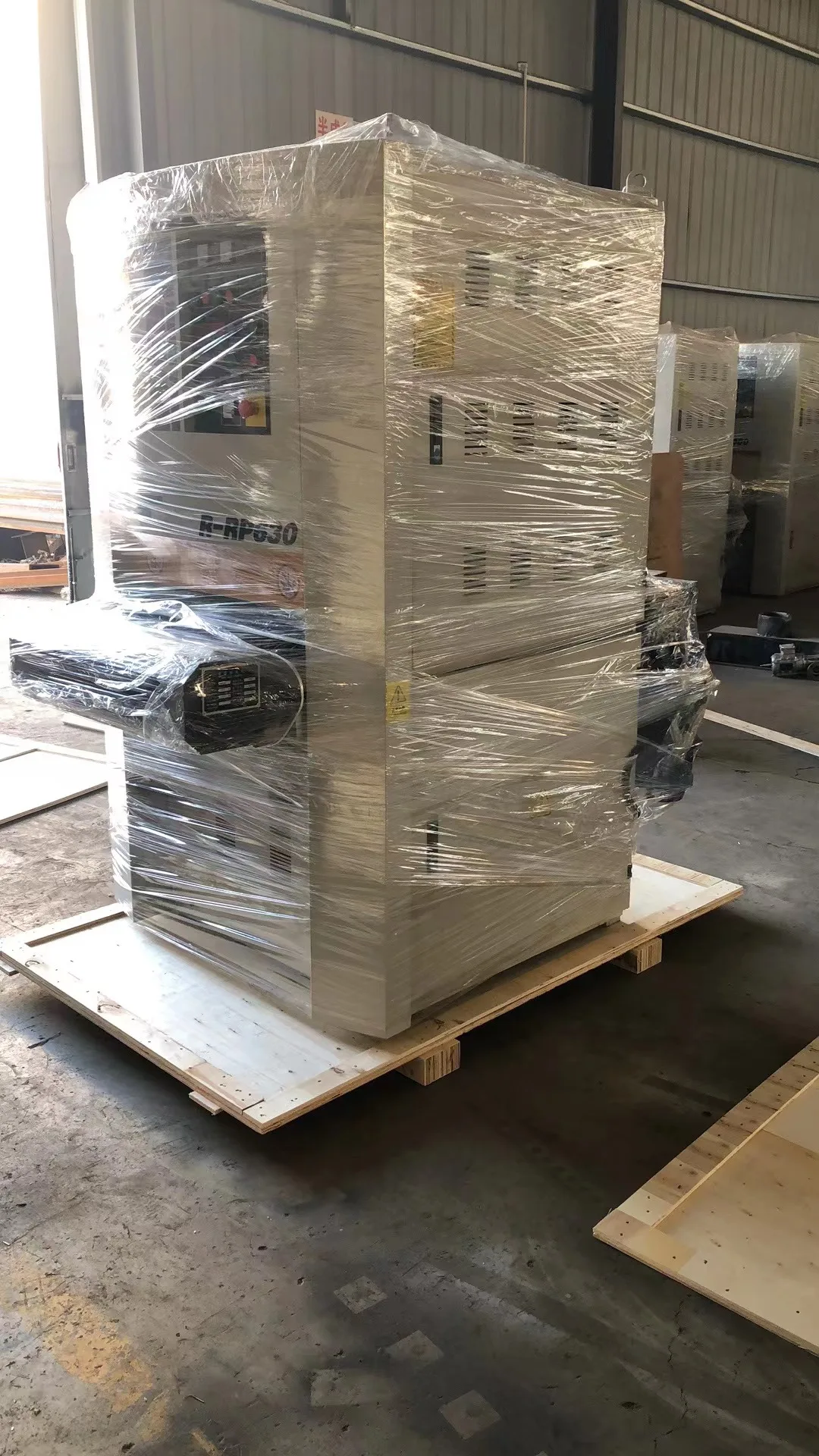

Flexible packaging

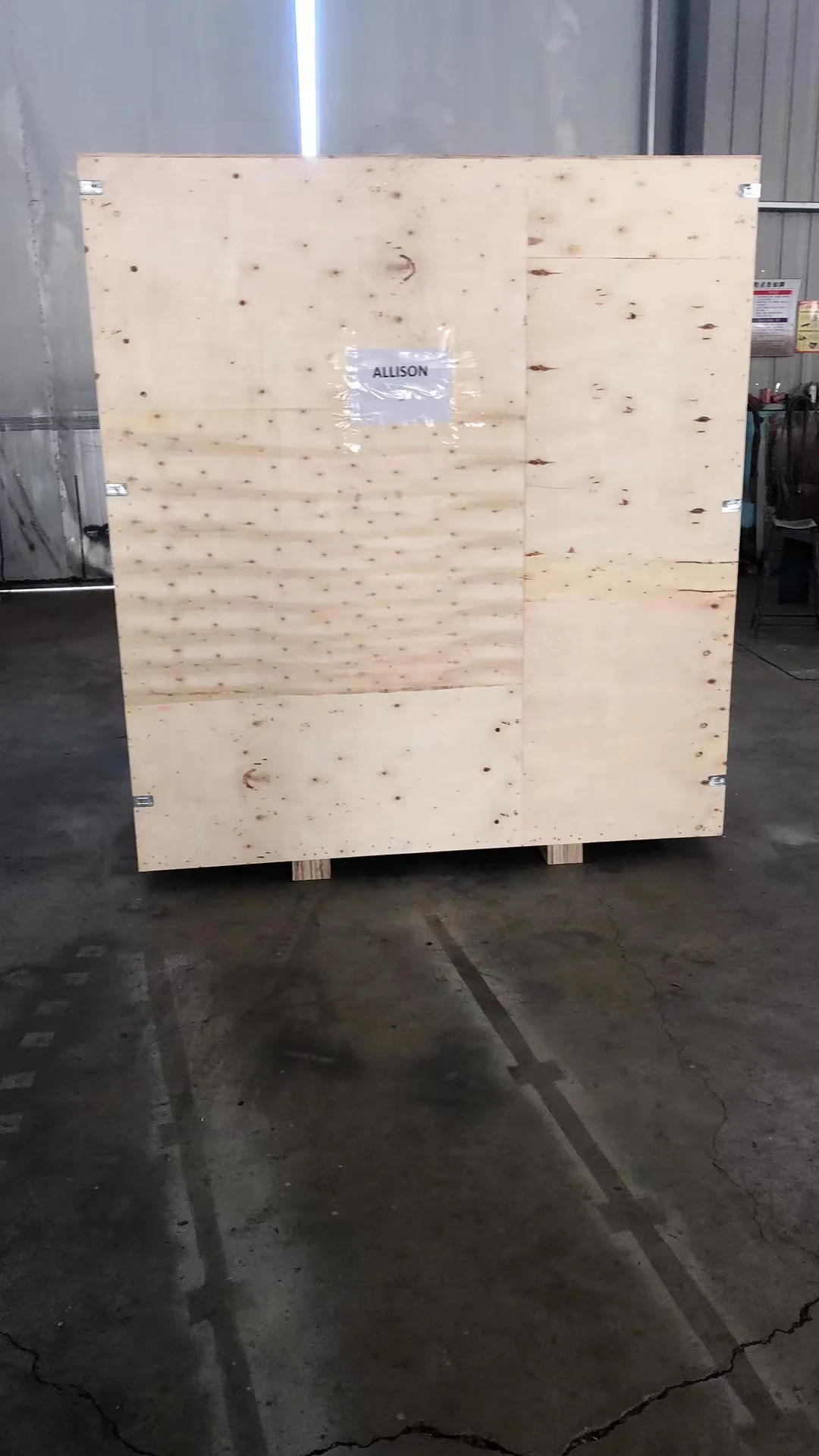

Ship out the goods
PRODUCT SPECIFICATIONS
No | Item | Data |
1 | Max working width | 1000mm |
2 | The shortest processing length | 500mm |
3 | Maximum processing thickness | 110mm |
4 | Conveyor speed | 6-30m/min |
5 | Total power | 35.25Kw |
6 | First frame motor power | 15Kw |
7 | Second sand frame motor power | 18.5Kw |
9 | Conveyor motor wattage | 1.5Kw |
10 | Lifting motor power | 0.25Kw |
11 | First sand frame steel roller diameter | 190mm |
12 | Second sander roller diameter | 190mm |
13 | Abrasive belt size | 1020x2000mm |
14 | Working pressure | 0.6Mpa |
15 | Dust collection | 8000m3/h |
16 | Outline dimension | 1900×1600×2100mm |
17 | Weight | 2000kg |
Application
Adopt imported planer roll, fixed thickness roll and soft rubber roll (or combined sand frame), planing sand and polishing
process, high efficiency and energy saving. The casting stop device is used to avoid the rebound of the plate in the process of processing.
The plate is rough and punctured before processing
After planing, the board becomes fine and smooth after sanding
