Mixing Machine Manufacturer Double Planetary Paddle Mixer Vacuum
- Category: >>>
- Supplier: Qinhuangdao Yushun Intelligent Technology Co. Ltd.
Share on (1601062445700):
Product Overview
Description
Our Company
Yushun Intelligent Technology Co., LTD
Yushun established in 1995, it has 30 years experience, conchttps://qhdyshb.en.alibaba.com/company_profile.htmlentrating on the equipment of wet grinding, dispersing, mixing and production line. Yushun offers the services ODM & OEM, with the professional departments which includes R&D, manufacture and marketing. Currently.
Product Description

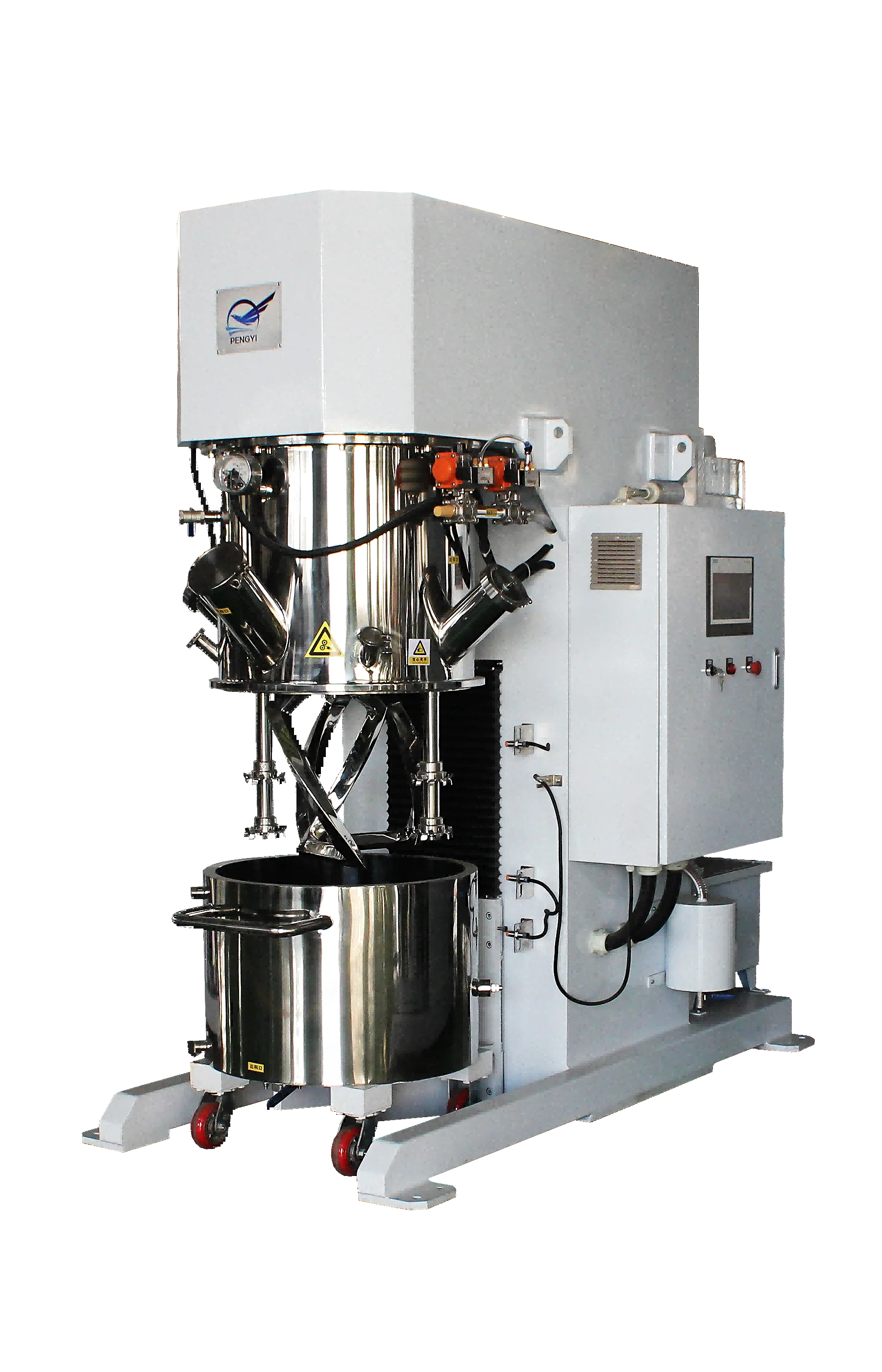

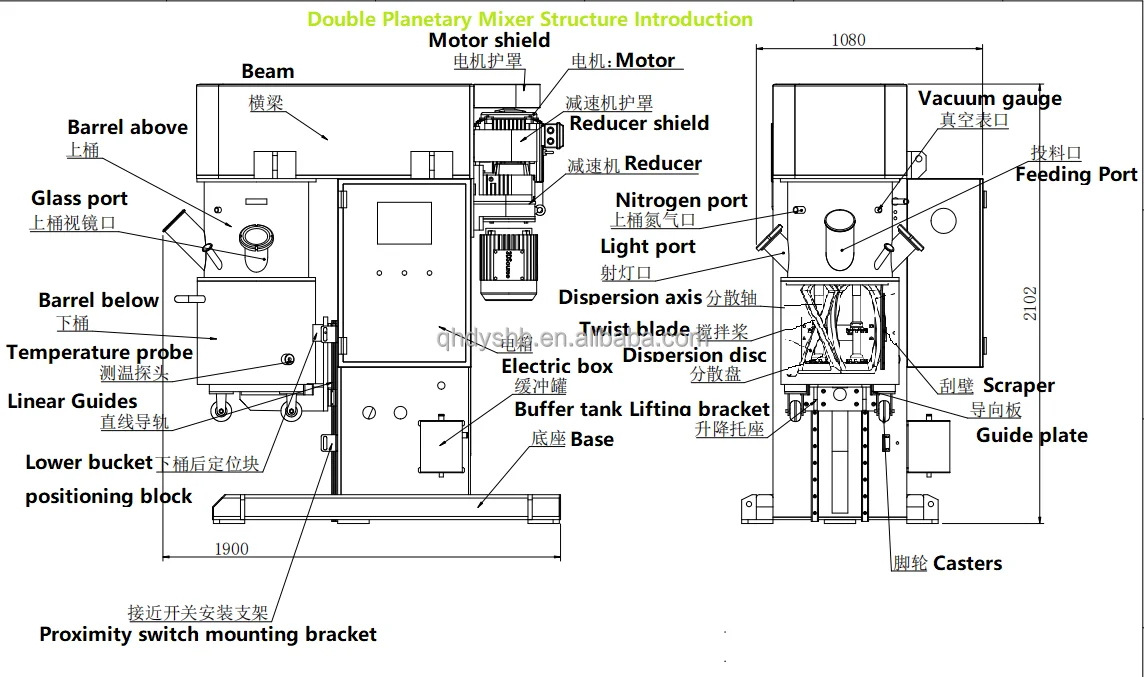

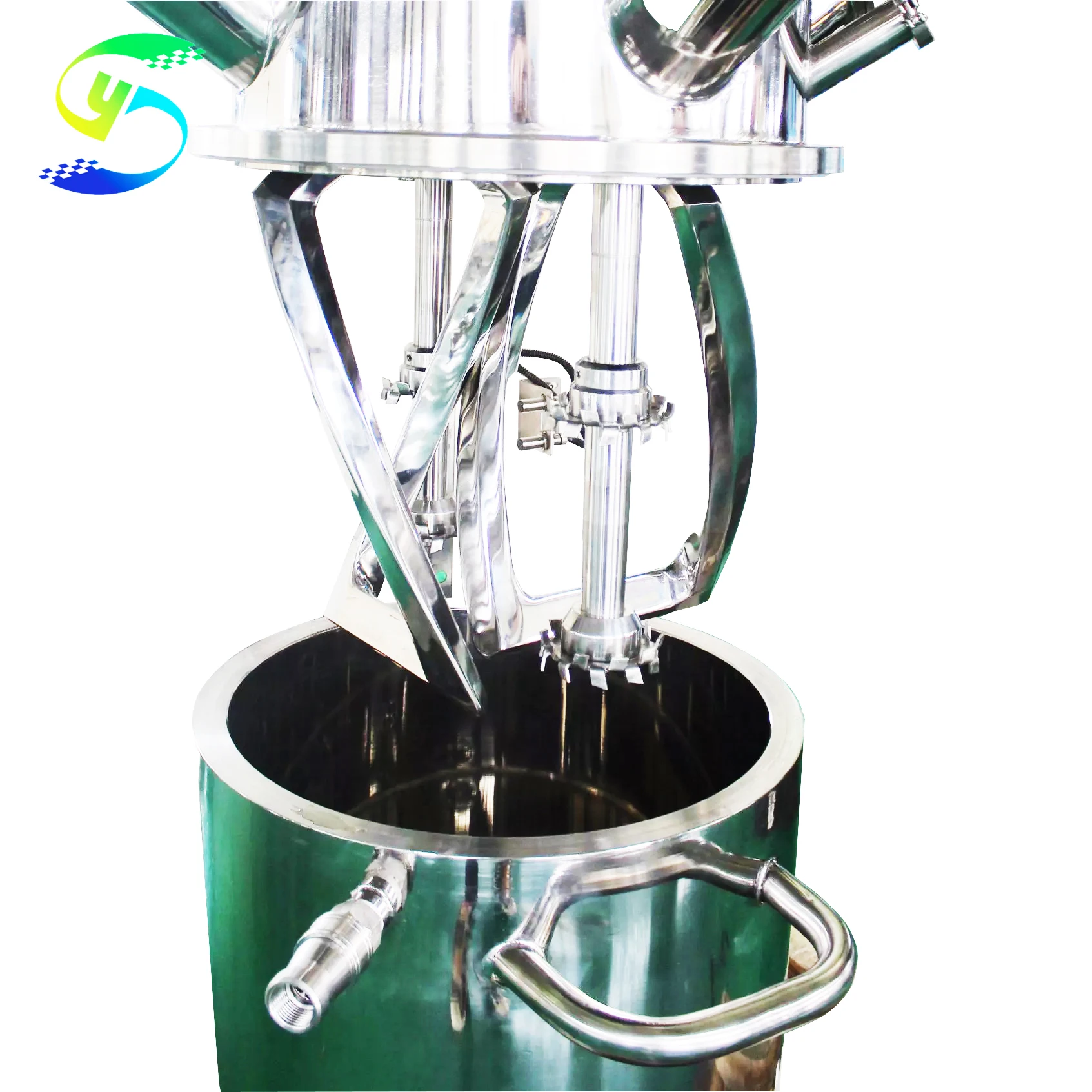

Double Planetary Mixer
Double planetary mixer is a kind of mixing equipment which integrates planetary mixing and strong dispersion, and has high production efficiency. In operation, the stirring device rotates and rotates, can be mixed or dispersed at low speed alone, or mixed and dispersed at the same time, so that the material does complex movement and is subject to strong cutting and kneading.
The equipment is uniquely sealed and can be pressurized or vacuumed during production.
Items Model | 2L | 5L | 10L | 20L | |||
Tank working Capacity/L | 2L | 5L | 10L | 20L | |||
Tank Design Size/L | 3L | 7.4L | 14L | 29L | |||
Tank Size/mm | 180*120 | 250*150 | 300*200 | 350*300 | |||
Revolution Motor/Kw | 0.75 | 1.5 | 2.2 | 2.2 | |||
Revolution Speed/rpm | 0-51 | 0-51 | 0-48 | 0-48 | |||
Mix Speed/rpm | 0-112 | 0-104 | 0-100 | 0-84 | |||
Disperse Motom/Kw | 0.75 | 1.5 | 2.2 | 4 | |||
Disperse Speed/rpm | 0-9500 | 0-9500 | 0-7000 | 0-4600 | |||
Disperse plate linear Velocity(m/s) | 0-18 | ||||||
Suttle/Kg | 303 | 420 | 550 | 960 | |||
Measurement/mm (L*W*H) | 1100*660*1300 | 1250*770*1500 | 1350*800*1750 | 1550*950*1800 | |||
Product Features
Main Features
1. High line speed: The line speed can reach to 25m/s, shorten the dispersing time. The particle size of battery slurry is small and high uniformity, solve the problem of polymerization;
2. It adopts SKF Sweden import angular contact ball bearing, which can bear higher rotating speed, large increase the mixing speed and using life( The using life is more than 3 years under 21m/s and continuous 24hr working);
3. 0-0 assembling: precision assemble, the process tolerance of core parts is less than 30um, the running is more stable , the noisy outside I m rang is lower than 70 db(A);
4. High tightness, no air leakiness and oil leakiness: 2 sets of mechanical seal plus soft.hard seals etc. to keep the non load vacuum keeps above -0.095 in 24 hours, ensure that no air leakiness and oil leakiness during the mixing
5. The gap between tank and paddles, paddles to paddles, paddles to tank wall, paddles to tank bottom is less than 3-5mm;
6. Large torsion output: precision casting mixing paddles SS316 stainless steel (adopts special steel for machines bigger than 650L, the material can restore itself there is micro deformation.

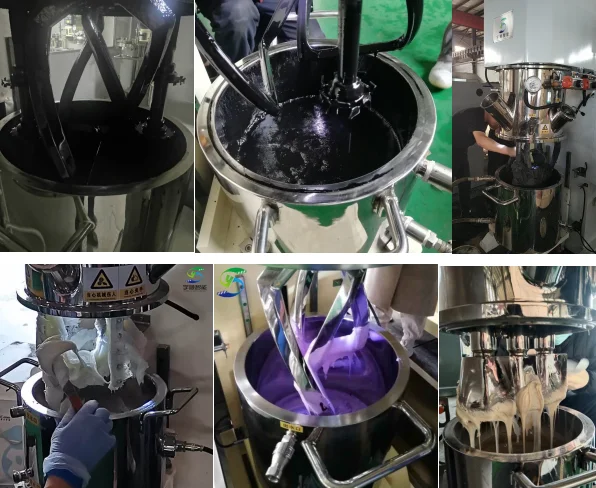

Application
Material viscosity | ≤ 1,000,000 cps |
Production capacity | 2-3000L (working volume) |
Application industry | It is suitable for dispersing and mixing materials in high viscosity slurry, like Engineering Adhesives, New Energy, Electric Slurry Paste, Chemical Paste. |
Applicable materials | All kinds of paste with viscosity less than 1,000,000 cps, solid content under 90%, such as lithium battery paste, solder paste, ceramic paste, silicone ink, sealant, structural adhesive, ointment, Composite filling material, Phase Change Material, Dental Paste, etc. |

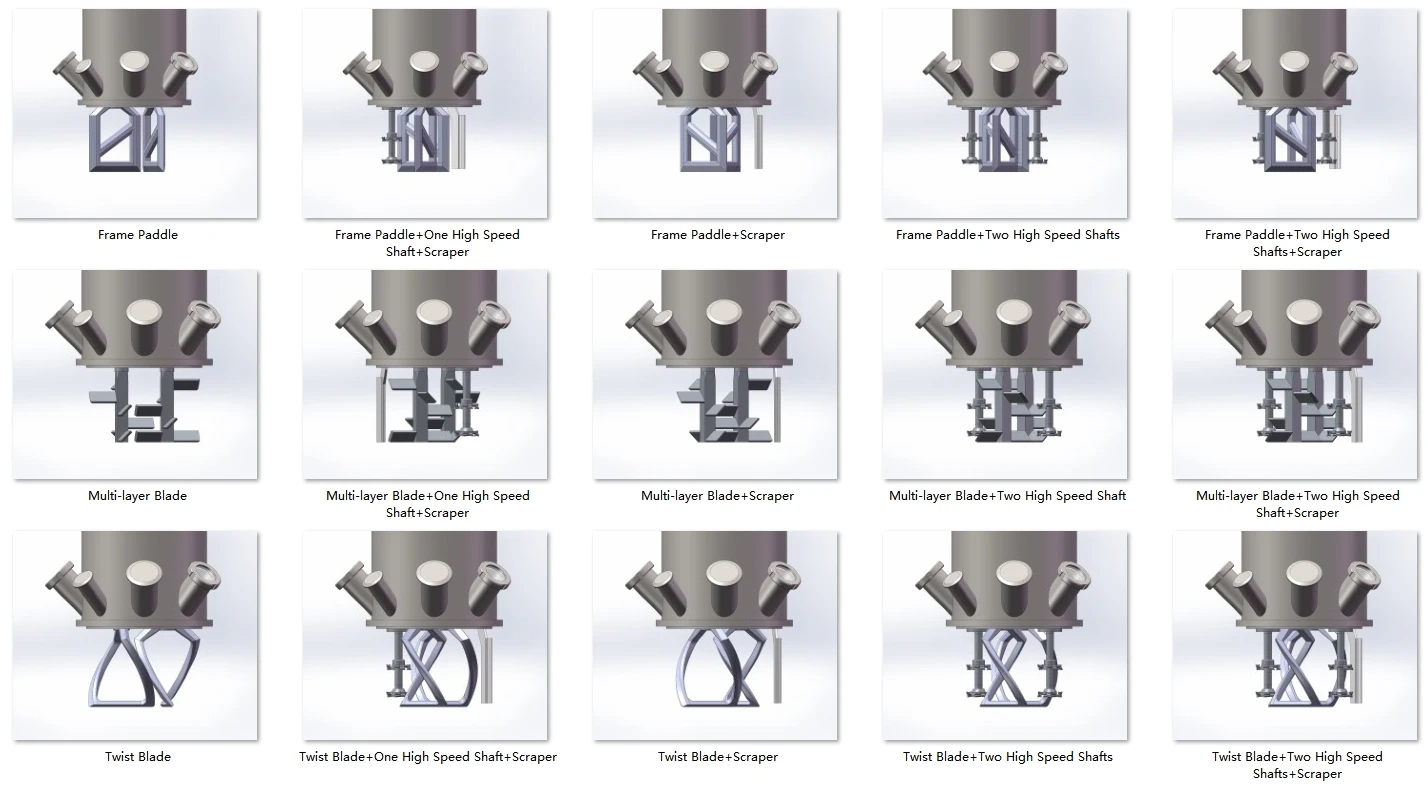

Feature | Various types of blades can be selected according to the viscosity and characteristics of the material; It is equipped with pressing equipment for discharging and can be equipped with vacuum systems and heating systems. |
Related Products
Why Choose Us
Exhibition
FAQ
What is Foreign Trade-Express?
Foreign Trade Express is a one-stop intelligent foreign trade network marketing SaaS system platform.
There are many kinds of devices on the website. What are they used for?
1) Dispersion mixing equipment for solid and liquid high viscosity slurry, suitable for coating, adhesive, new energy (lithium battery slurry), rocket propellant and other industries;
2) Equipment for ultrafine dispersion grinding and crushing of materials, used for grinding new materials such as coatings, paints, inks, pharmaceutical preparations, lithium battery anode and cathode materials, ceramic materials, etc.
3) Other related equipment for coating, adhesive, lithium battery slurry production line.
How to choose the right mixing machine for your material?
Please describe the information of your material, including the name, viscosity, solid content, additives, the purpose to be achieved and the state of the material. Our technicians will recommend the suitable mixer based on this information.
Your product details page does not have the type of paddle I want?
We have a strong technical team that can customize the mixing paddle you want according to your requirements.
Do double planets have vacuum pumps?
The double planet experimental mixer (2L-30L) will be equipped with a vacuum pump, and the production mixer larger than 30L will not be equipped with a vacuum pump, because we default that the production workshop will have a vacuum source, if we need to bring a vacuum pump, please inform us in advance.
Can double planets heat/cool materials?
The barrel of the double-planet mixer is jacketed, and water or oil can be added to heat or cool the material.
How to choose the right type of grinding machine for your material?
Please tell us the material you need to make, feed fineness, discharge fineness, temperature requirements, capacity requirements, we will help you recommend the matching model and the size of the grinding medium.
Do our materials contain flammable and explosive substances?
We can do motor explosion-proof (electrical cabinet remote control non-explosion-proof) and the whole machine explosion-proof, to ensure safe production.
How to install and debug the equipment when it arrives at our factory?
Most of our equipment is the whole machine directly transported, with the opportunity to come with the manual and the circuit manual, as long as the circuit manual is connected to the power can be turned on, and then according to the manual can be operated and used, if special treatment is required, our engineers will be able to provide remote video guidance.
Payment method？
T/T, D/P, Cash/ Alibaba online trade
