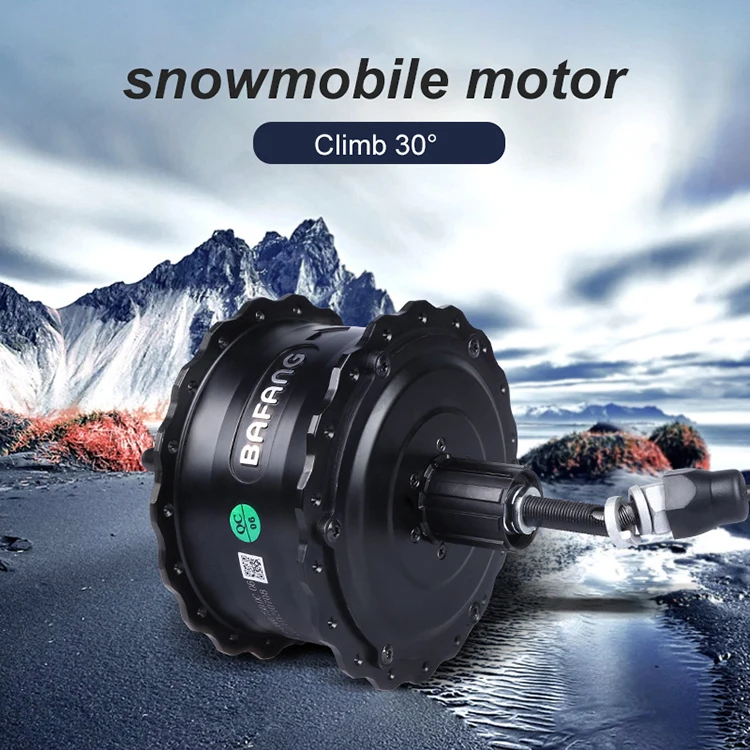

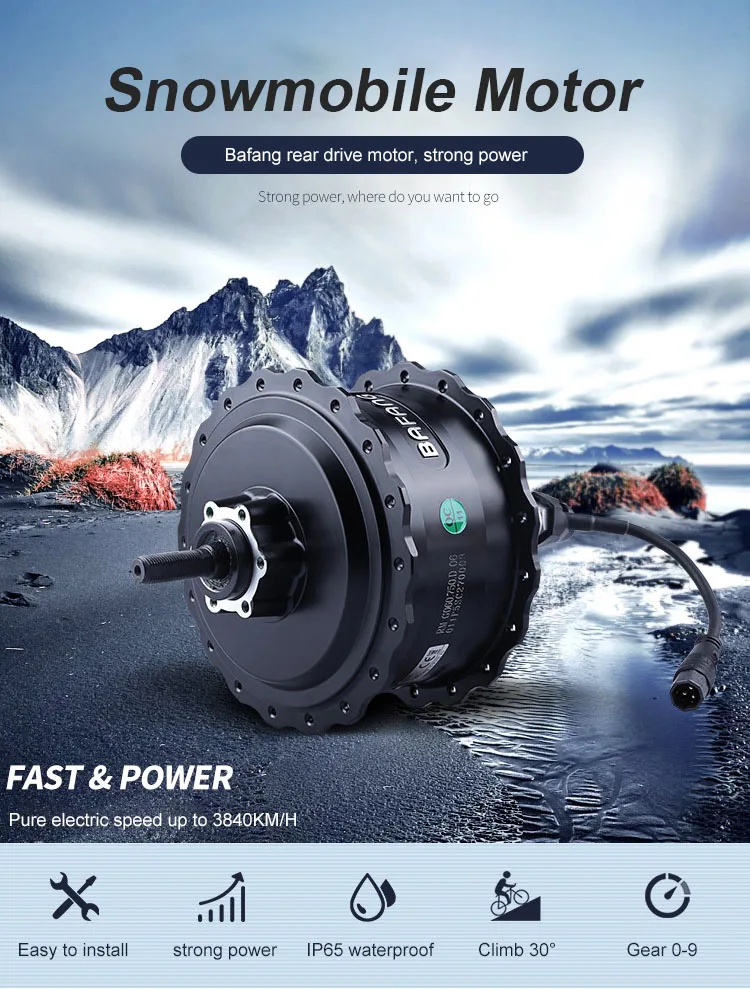

High Quality E bike 48v 500w 750w 1000w Bafang Rear hub Drive Motor conversion kit for Fat Tire Electric Bike
- Category: >>>
- Supplier: Jinhua Ximei Technology Co. Ltd
Share on (1601062495940):
Product Overview
Description
Product Specifications | ||||||
lnstallation location | Rear motor | Wheel diameter (inch) | 20/26 | |||
Structure | gear drive | Rated voltage (DCV) | 36/48 | |||
No-load speed (Rpm) | 325;245 | Rated power (W) | 350 | |||
Load speed (Rpm) | 290;205 | Maximum torque | 80N.m | |||
Effectiveness(%) | ≥80 | Colour | Black | |||
Weight(kg) | 4.1 | Noise (dB) | <55 | |||
Operating temperature | -20-45℃ | Brake | Disc brake | |||

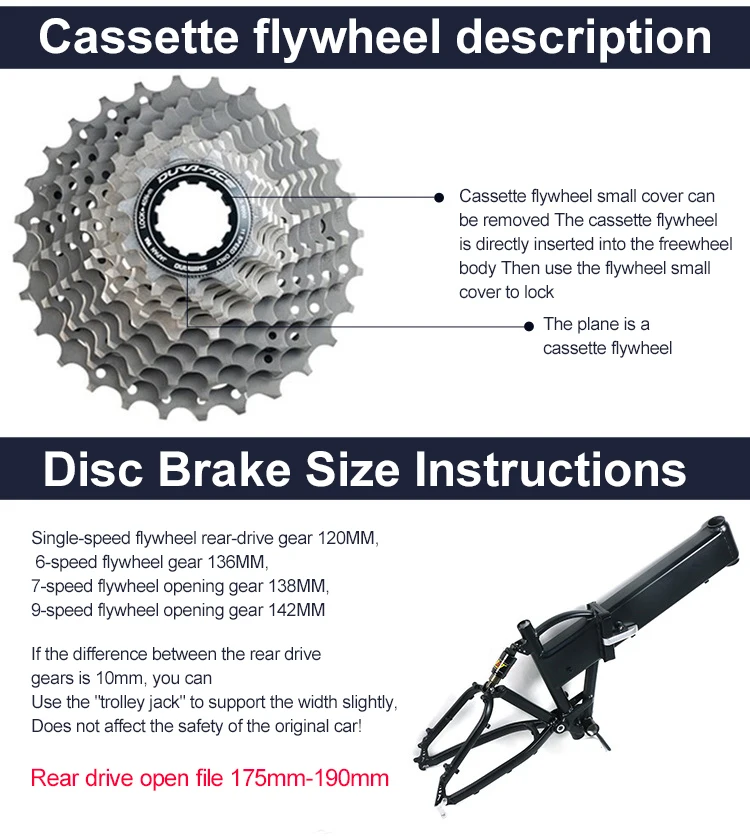

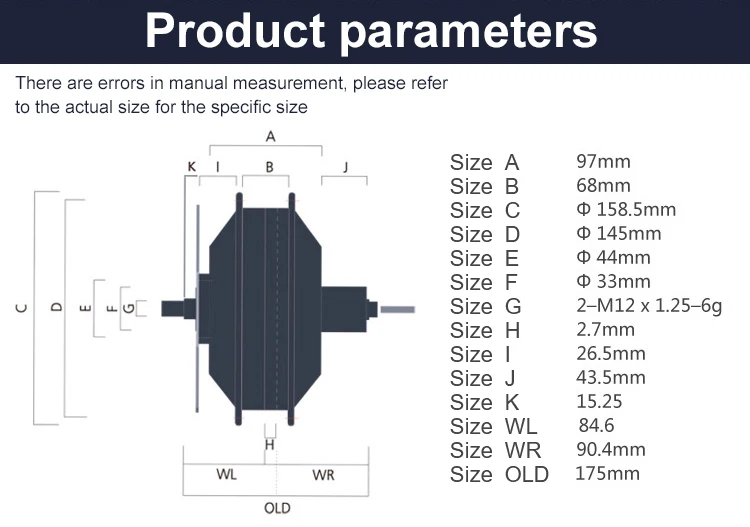

Open file size (mm/OLD) | 175 | Maximum outer diameter (mm) | 158.5 | |||
Outlet position | Right out of the central axis | Outgoing cable length (mm) | 250 | |||
Wiring type | G9.1 | Variable speed | kaki | |||

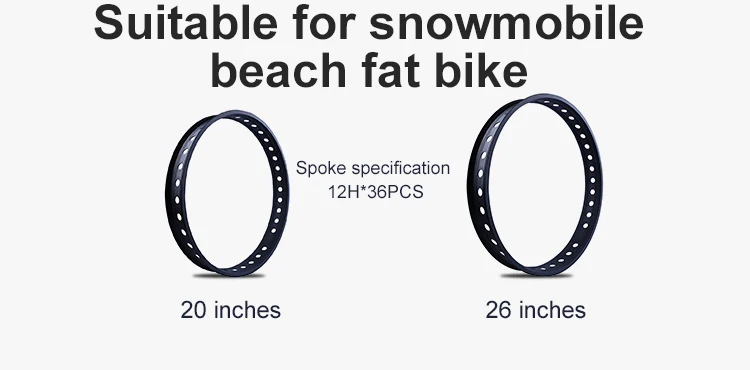

Spoke Specifications | 36H*12G | Number of magnets (pulses/cycle) | 6 | |||
Reduction ratio | 1:5 | Number of motor poles (2P) | 20 | |||

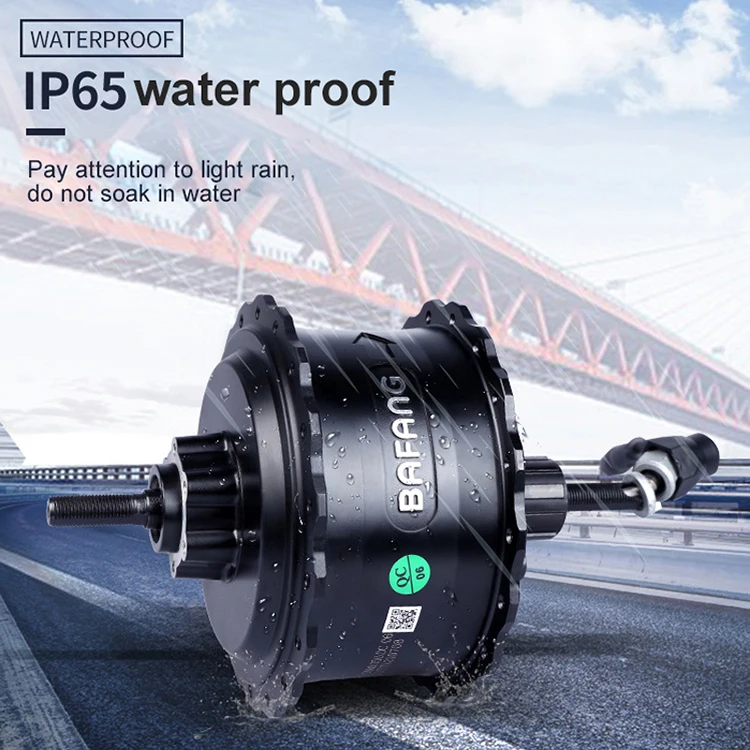

Waterproof level | IP65 | Certification | ROHS/CE | |||
Anti-corrosion level (hours) | 96 | |||||

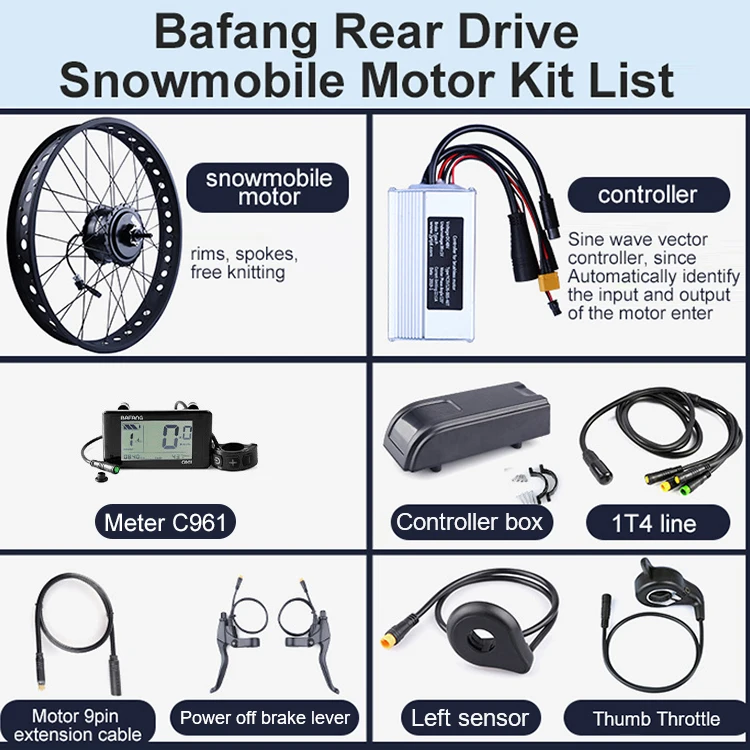

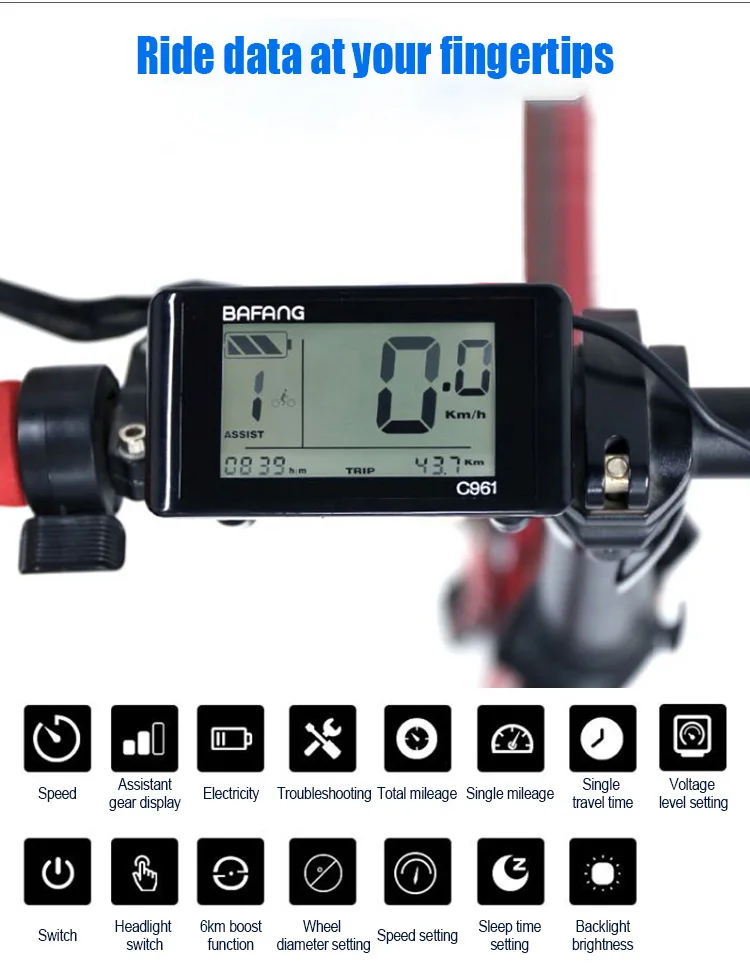

C961 Parameters | ||||||
Model | C961 | Backlight brightness | Level 1-8 | |||
Gear mode | 0-9 | Boost mode | 6km to help promote | |||
Voltage | 36/43/48(V) | Speed mode | Realtime | |||
Product shell | ABS | Mileage Mode | Trip/Odometer | |||
Note: We send the standard manual, different versions have different functions | ||||||
Since the weight data are all measured manually,there may be some deviations, please refer to the actual data | ||||||
Company Profile
CEMOTO LTD was founded in 2008 in Jinhua, a beautiful city 300km from Shanghai and 150km from Ningbo. CEMOTO is a professional manufacturer of electric bike, electric scooter, electric tricycle and mobility scooter & wheelchair.

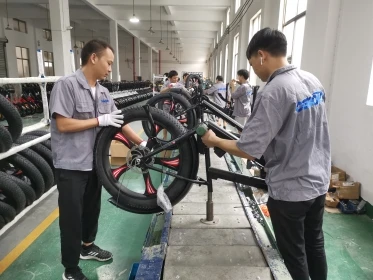

CEMOTO currently have 30 employees and own 8000 square meters factory with the modern office, standard workroom, production line and testing equipments.
