low surface temperature 1400 C Compact Mini oven Furnace Ceramic muffle Furnaces
- Category: >>>
- Supplier: Henan Pyrocore Corporation
Share on (1601062548656):
Product Overview
Description
Muffle furnace is one of the most common heat treatment equipment, widely used in ceramics, metallurgy, electronics, glass, chemical industry, machinery, refractory materials, new materials development, special materials preparation and other industries, is a laboratory research and industrial production of essential equipment.

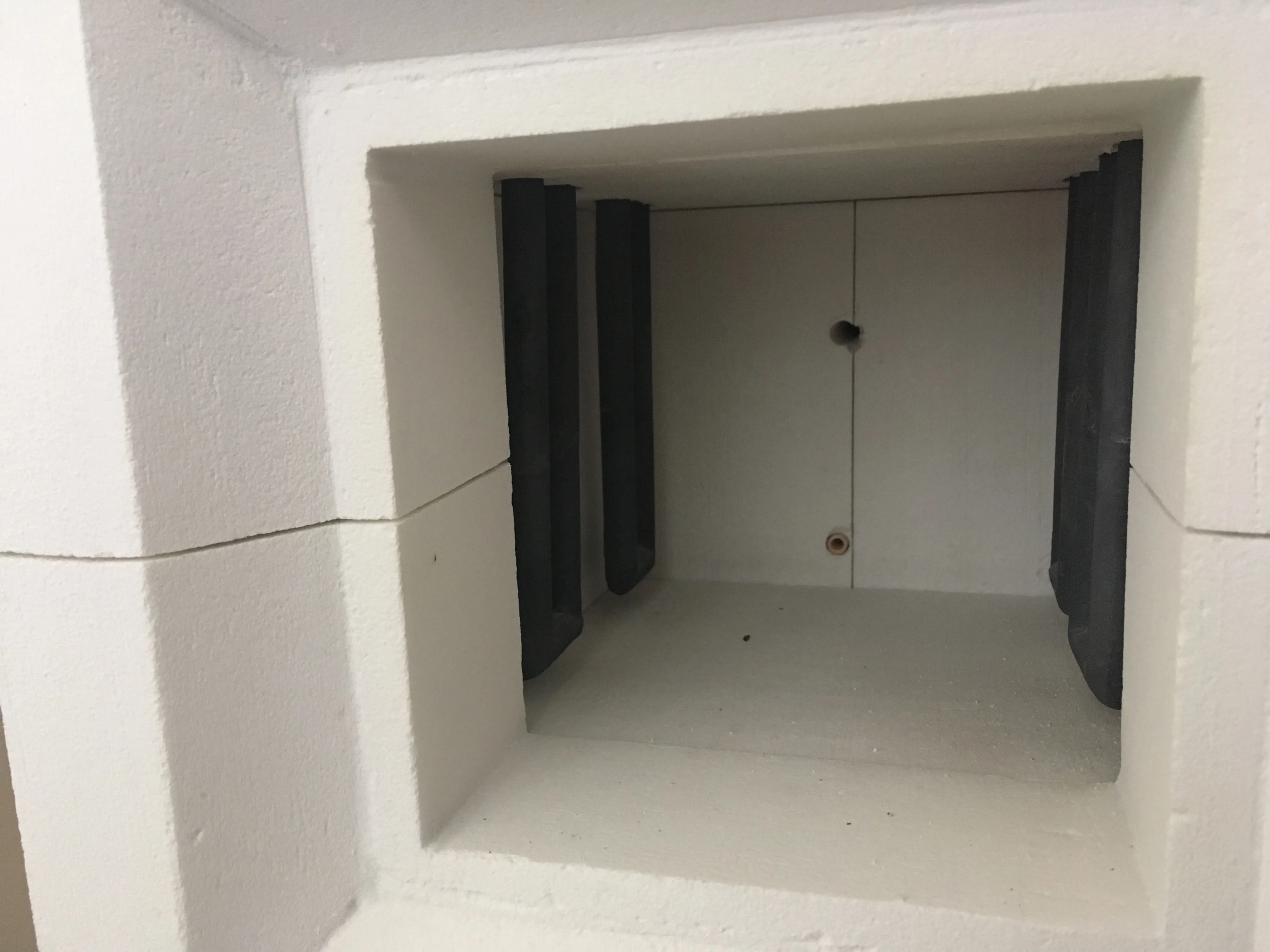

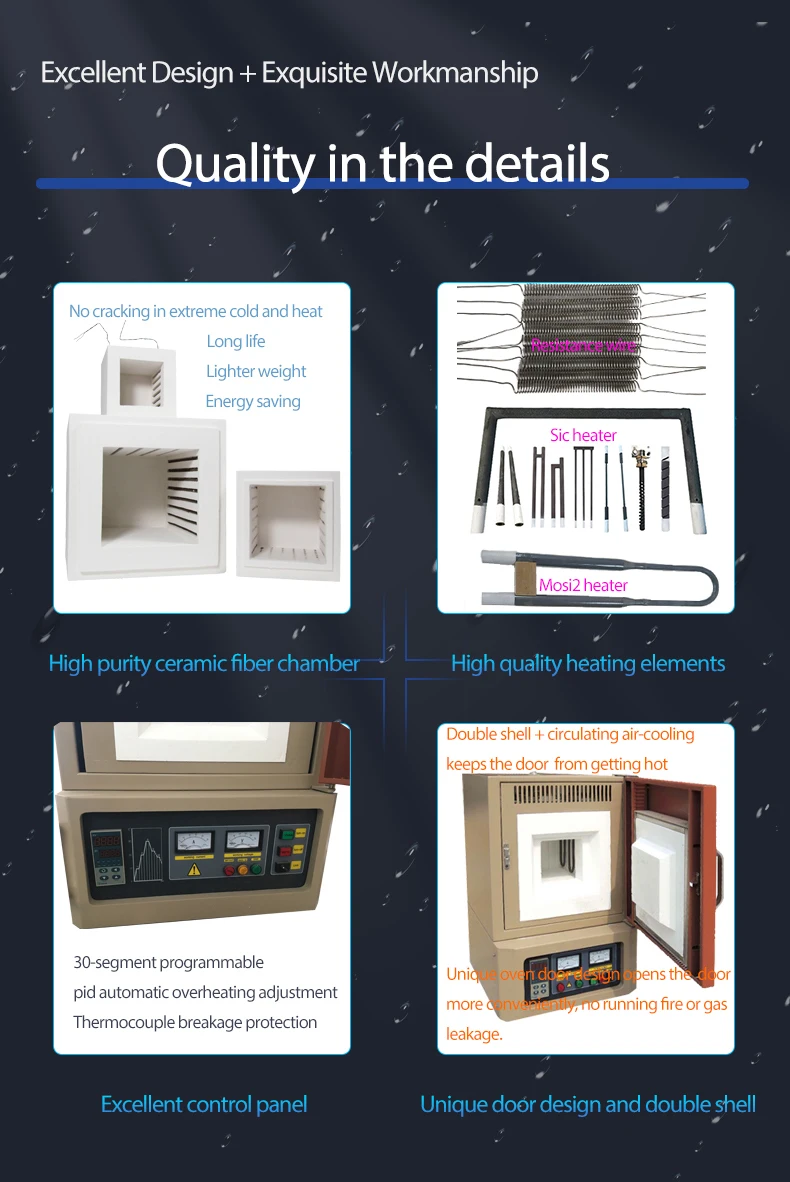

Our muffle furnace compared to the traditional muffle furnace has a full range of upgrades, the traditional muffle furnace using refractory bricks to form the chamber, we use high-purity insulating ceramic fibre material to form the furnace chamber, which makes the furnace as a whole in the furnace to become lighter and more durable at the same time more energy-saving and heat preservation, but also will not be and the product of the chemical reaction caused by pollution.
In terms of heating elements, we adopt quality-tested heating elements, resistance wire through the integrated moulding with the furnace chamber, which greatly reduces the probability of the furnace chamber cracking and damage to the resistance wire, and the heating elements of silicon carbon rods and silicon molybdenum rods are also more durable.

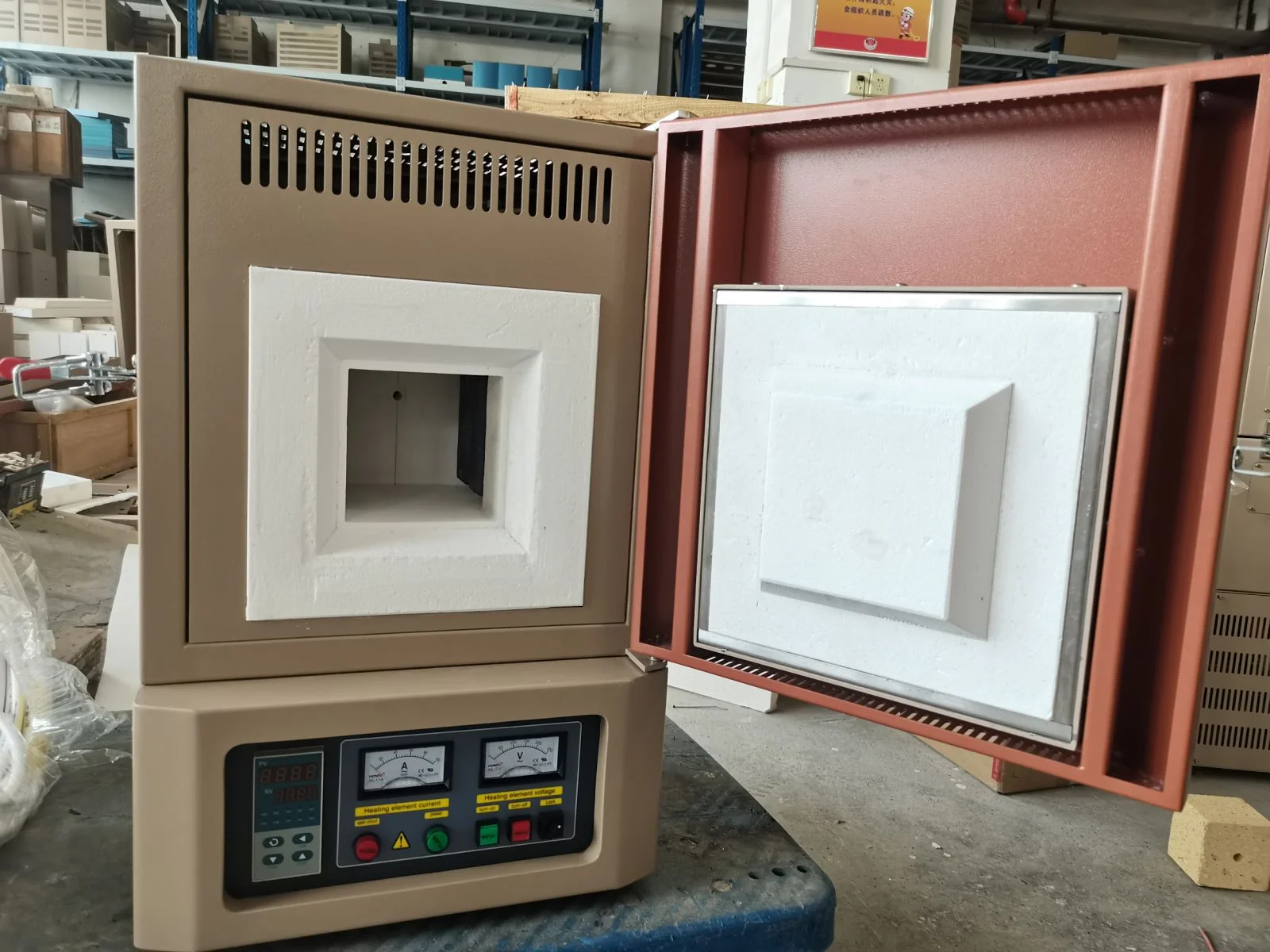

In terms of furnace body design, we adopt double-layer stainless steel shell + circulating air-cooled fan design, in the case of not affecting the internal heating rate, so that the temperature of the furnace body shell is always maintained at a temperature that can be touched by human beings, which greatly reduces the danger.
At the same time, we also use the best parts and procedures, our muffle furnace are using PID control system and high quality thermocouples, to ensure that the temperature control accuracy in ± 1, and with 30 segments of programmable temperature control, you can arbitrarily design the temperature rise curve. And the furnace itself with broken thermocouple protection function and over-temperature protection, to ensure your use of safety.
Our muffle furnace compared to the traditional muffle furnace has a full range of upgrades, the traditional muffle furnace using refractory bricks to form the chamber, we use high-purity insulating ceramic fibre material to form the furnace chamber, which makes the furnace as a whole in the furnace to become lighter and more durable at the same time more energy-saving and heat preservation, but also will not be and the product of the chemical reaction caused by pollution.
In terms of heating elements, we adopt quality-tested heating elements, resistance wire through the integrated moulding with the furnace chamber, which greatly reduces the probability of the furnace chamber cracking and damage to the resistance wire, and the heating elements of silicon carbon rods and silicon molybdenum rods are also more durable.
In terms of furnace body design, we adopt double-layer stainless steel shell + circulating air-cooled fan design, in the case of not affecting the internal heating rate, so that the temperature of the furnace body shell is always maintained at a temperature that can be touched by human beings, which greatly reduces the danger.
At the same time, we also use the best parts and procedures, our muffle furnace are using PID control system and high quality thermocouples, to ensure that the temperature control accuracy in ± 1, and with 30 segments of programmable temperature control, you can arbitrarily design the temperature rise curve. And the furnace itself with broken thermocouple protection function and over-temperature protection, to ensure your use of safety.

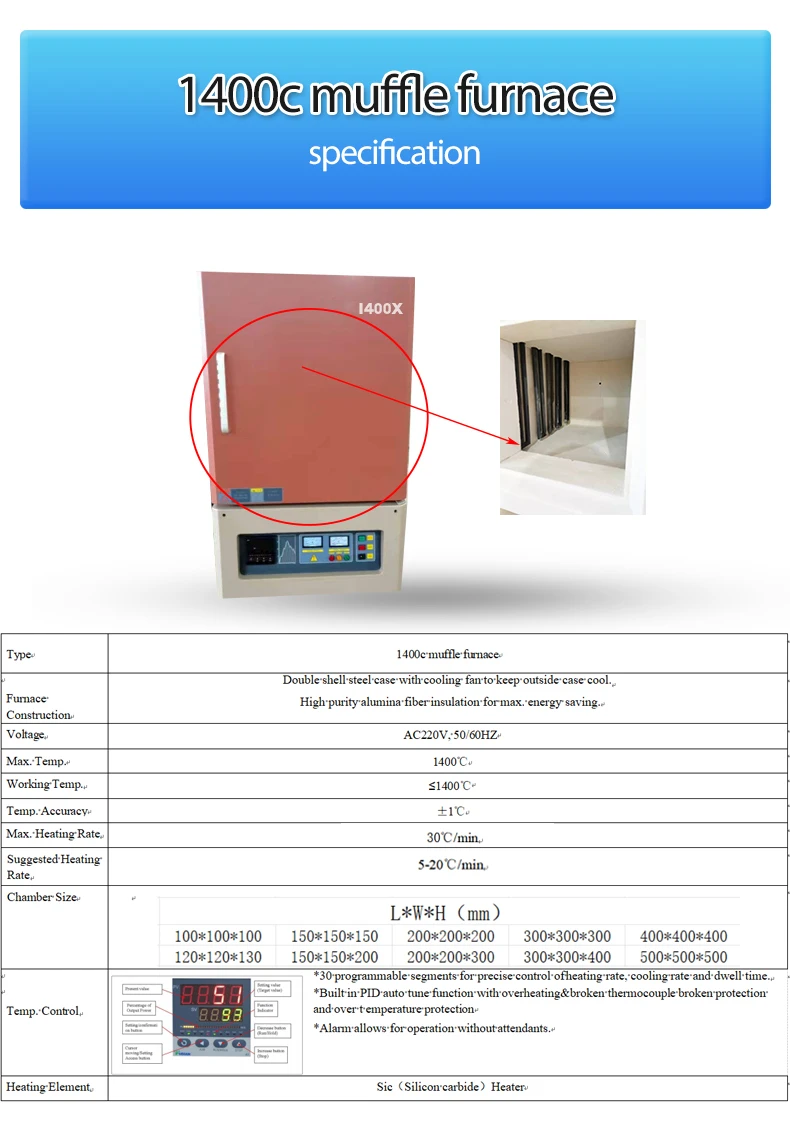

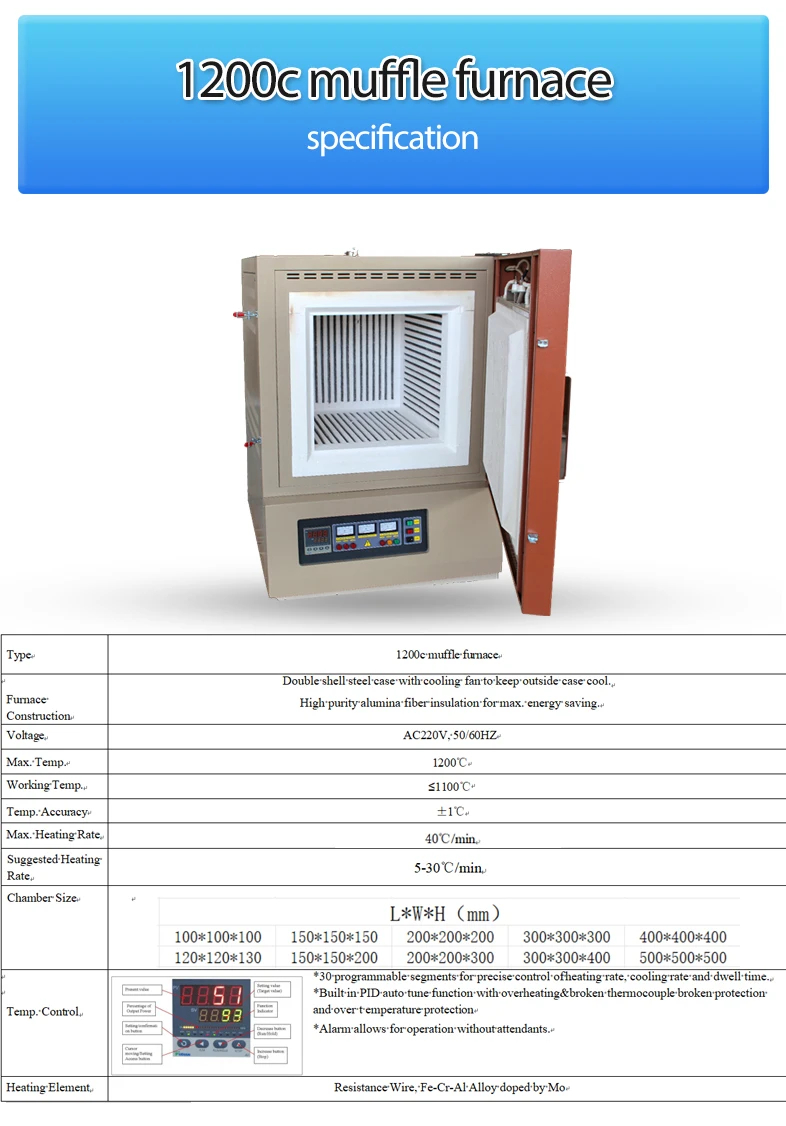

Temperature level | 1200 muffle furnace | 1400 muffle furnace | 1800 muffle furnace | ||
Max.temperature | 1200℃ | 1400℃ | 1700℃ | ||
Working temperature | 1100℃ | 1350℃ | 1650℃ | ||
Temp. Accuracy | ±1 | ||||
Max. Heating Rate | 40℃/Min | 30℃/Min | 20℃/Min | ||
Suggested Heating Rate | 5-30℃/Min | 5-20℃/Min | ≤10℃/Min | ||
Chamber Size | 100x100x100 120x120x130 150x150x150 150x150x200 200x200x200 200x200x300 300x300x300 300x300x400 400x400x400 500x500x500mm | ||||
Temp. Control | *30 programmable segments for precise control of heating rate, cooling rate and dwell time. *Built in PID auto tune function with overheating&broken thermocouple broken protection and over t emperature protection *Alarm allows for operation without attendants. | ||||
Heating Element | Resistance wire | Sic Heater | Mosi2 Heater | ||

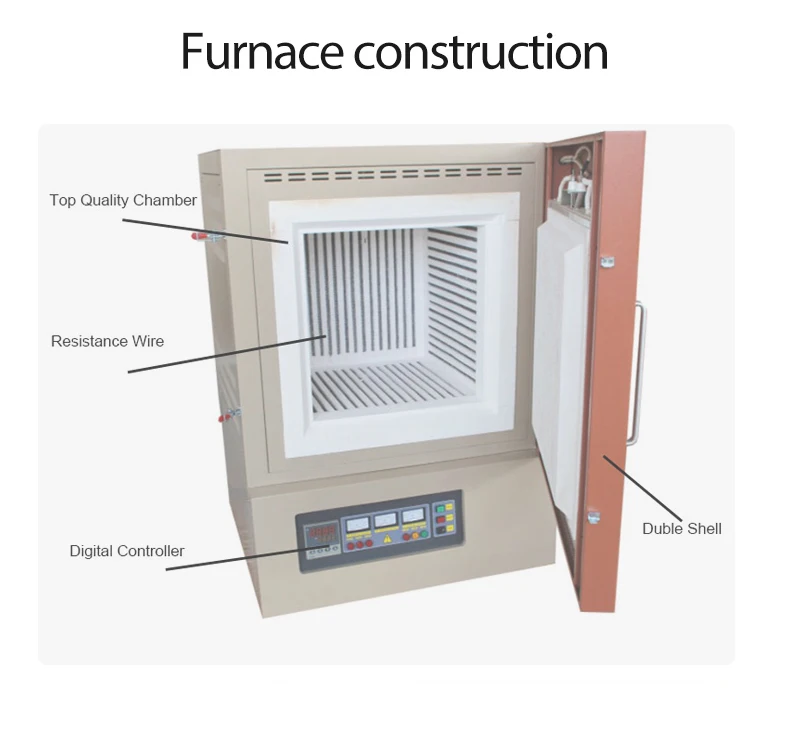

Furnace Construction | Double shell steel case with cooling fan to keep outside case cool. High purity alumina fiber insulation for max. energy saving | ||||
Product Description
Specification
Purpose：
Widely used in sintering and annealing in lab, sintering for ceramics, used in denture processing industry for heating,
presintering for Zirconium.
Feature：
Maximum Temperature: 1200℃
Five Heating Surfaces (Left, Right, Front ,Back, Bottom) can achieve a more uniform of the chamber temperature
K type thermocouple
Double layer steel case with air cooling keeps exterior safe to touch.
Ventilation opening on the top of furnace, to discharge the corrosive gas and water, to enhance the service life of heating
element.
Widely used in sintering and annealing in lab, sintering for ceramics, used in denture processing industry for heating,
presintering for Zirconium.
Feature：
Maximum Temperature: 1200℃
Five Heating Surfaces (Left, Right, Front ,Back, Bottom) can achieve a more uniform of the chamber temperature
K type thermocouple
Double layer steel case with air cooling keeps exterior safe to touch.
Ventilation opening on the top of furnace, to discharge the corrosive gas and water, to enhance the service life of heating
element.
Purpose：
Widely used in sintering and annealing in lab, sintering for ceramics, used in denture processing industry for heating,
presintering for Zirconium.
Feature：
Maximum Temperature: 1400℃
Two Heating Surfaces (Left, Right) can achieve a more uniform of the chamber temperature
SiO2 Heating Element
S type thermocouple
Double layer steel case with air cooling keeps exterior safe to touch.
Ventilation opening on the top of furnace, to discharge the corrosive gas and water, to enhance the service life of heating
element.
Widely used in sintering and annealing in lab, sintering for ceramics, used in denture processing industry for heating,
presintering for Zirconium.
Feature：
Maximum Temperature: 1400℃
Two Heating Surfaces (Left, Right) can achieve a more uniform of the chamber temperature
SiO2 Heating Element
S type thermocouple
Double layer steel case with air cooling keeps exterior safe to touch.
Ventilation opening on the top of furnace, to discharge the corrosive gas and water, to enhance the service life of heating
element.

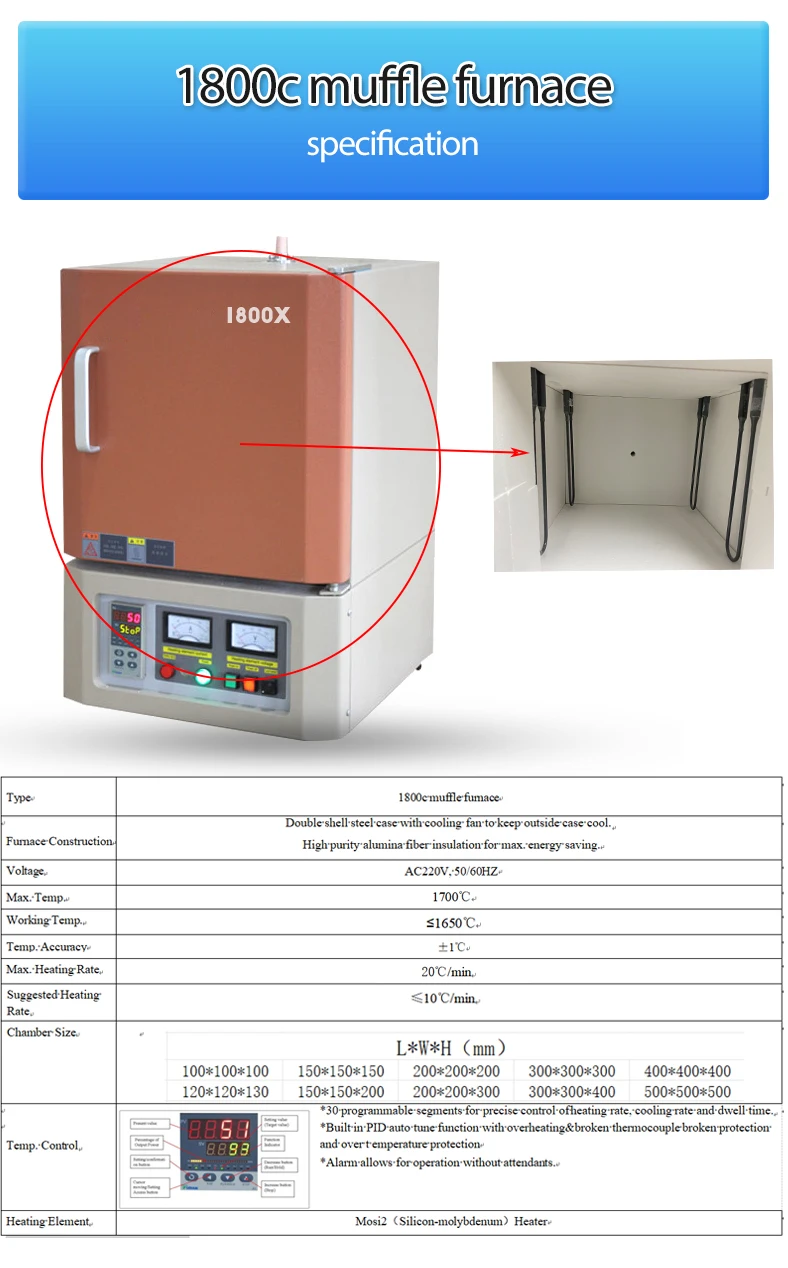

Purpose：
Widely used in sintering and annealing in lab, sintering for ceramics, used in denture processing，especially for technical ceramic
(ceramic dental bridge)
Feature：
Maximum Temperature: 1750℃
Material of Chamber: Al2O3 Fiber
Two Heating Surfaces (Left, Right) can achieve a more uniform of the chamber temperature
MoSi2 Heating Element
B type thermocouple
Double layer steel case with air cooling keeps exterior safe to touch.
Ventilation opening on the top of furnace, to discharge the corrosive gas and water, to enhance the service life of heating
element.
Widely used in sintering and annealing in lab, sintering for ceramics, used in denture processing，especially for technical ceramic
(ceramic dental bridge)
Feature：
Maximum Temperature: 1750℃
Material of Chamber: Al2O3 Fiber
Two Heating Surfaces (Left, Right) can achieve a more uniform of the chamber temperature
MoSi2 Heating Element
B type thermocouple
Double layer steel case with air cooling keeps exterior safe to touch.
Ventilation opening on the top of furnace, to discharge the corrosive gas and water, to enhance the service life of heating
element.
Company Profile

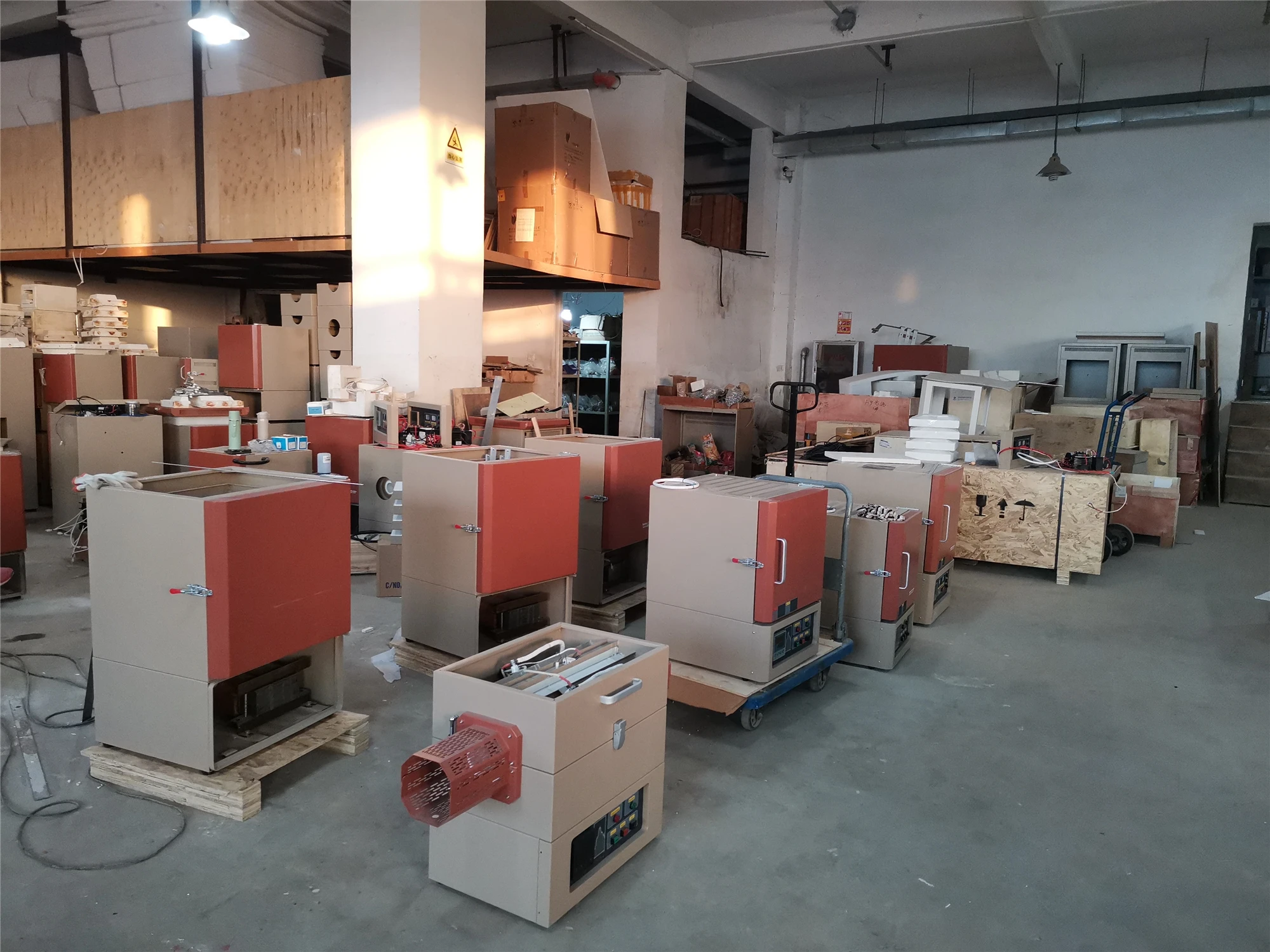

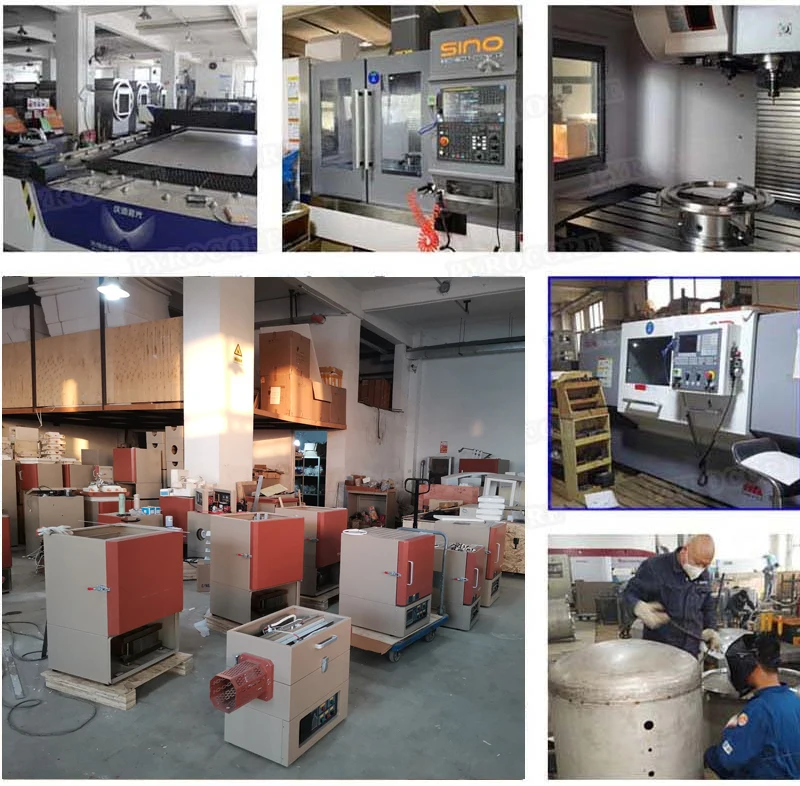

Our Factory

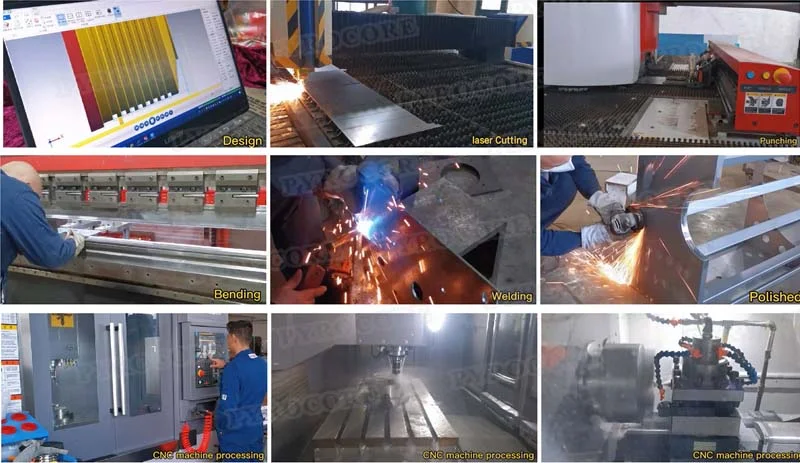

We have a complete set of mechanical equipment and senior technicians with rich production experience in the production of heating equipment. We can design and complete heating equipment for you according to your needs in the shortest cycle. Welcome to consult us.
We have been engaged in high-temperature heating equipment for more than ten years, and have been focusing on the R&D, design, and production of heating equipment. Especially in the rotary tube furnace and high-temperature vacuum furnace with rich production experience. We have the ability to tailor-made for you according to your production process requirements and customize a heating device that meets your requirements. If you have this need, please contact us.
Over the years, we have focused on providing customers with heating equipment solutions, and customer satisfaction is also our goal. If you need heating equipment, please contact us.

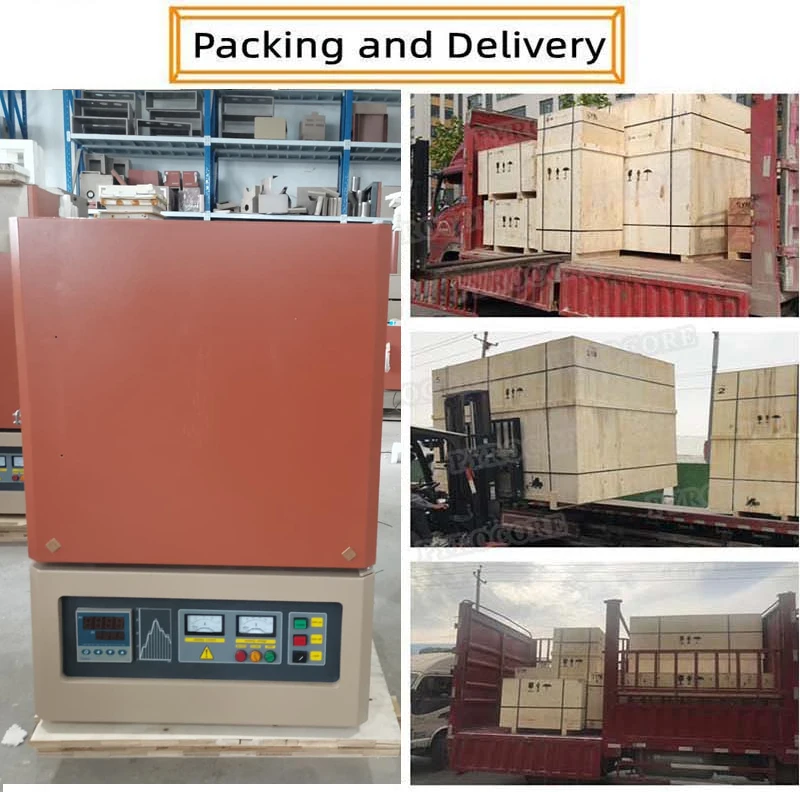

Packing & Delivery
Package:
To ensure that customers receive the stove and accessories without any damage, we pack the stove in three layers.
First, the stove is wrapped in clear plastic paper, and then the gaps are filled with Styrofoam. Finally packed in wooden boxes and reinforced with steel straps.
Shipping:
1. By express, such as DHL, UPS, FEDEX, etc. It usually takes 3-4 days to arrive.
2. It usually takes 5-7 days to arrive by air to the air port.
3. By sea to seaport, it usually takes 15-30 days to arrive. (depending on the voyage)
4. If your delivery time is urgent, we suggest you choose express or air freight.
5. If it is not very urgent, we recommend you to choose sea freight, which is very cheap.
To ensure that customers receive the stove and accessories without any damage, we pack the stove in three layers.
First, the stove is wrapped in clear plastic paper, and then the gaps are filled with Styrofoam. Finally packed in wooden boxes and reinforced with steel straps.
Shipping:
1. By express, such as DHL, UPS, FEDEX, etc. It usually takes 3-4 days to arrive.
2. It usually takes 5-7 days to arrive by air to the air port.
3. By sea to seaport, it usually takes 15-30 days to arrive. (depending on the voyage)
4. If your delivery time is urgent, we suggest you choose express or air freight.
5. If it is not very urgent, we recommend you to choose sea freight, which is very cheap.
FAQ
1.Can you customize a product without a design solution?
We have a professional team of designers who can provide design solutions and process according to customer requirements for equipment.
2.How to ensure the quality of products?
Before delivery, we will test each function of the equipment, and issue a test report for customer inspection, and then deliver the goods after confirmation.
3.How long will it take to ship?
Generally 25-40 days, depending on your specific requirements for equipment.
4.Are we unprofessional in the operation and installation of your machine?
We will provide product instructions and installation instructions, and if necessary, we can provide video instructions for
installation. Also, we have professional engineers who can solve all problems.
5.How to ship?
We support sea, air, rail transportation, etc., you can choose according to your needs. Of course you can also arrange the
transport yourself.
We have a professional team of designers who can provide design solutions and process according to customer requirements for equipment.
2.How to ensure the quality of products?
Before delivery, we will test each function of the equipment, and issue a test report for customer inspection, and then deliver the goods after confirmation.
3.How long will it take to ship?
Generally 25-40 days, depending on your specific requirements for equipment.
4.Are we unprofessional in the operation and installation of your machine?
We will provide product instructions and installation instructions, and if necessary, we can provide video instructions for
installation. Also, we have professional engineers who can solve all problems.
5.How to ship?
We support sea, air, rail transportation, etc., you can choose according to your needs. Of course you can also arrange the
transport yourself.
