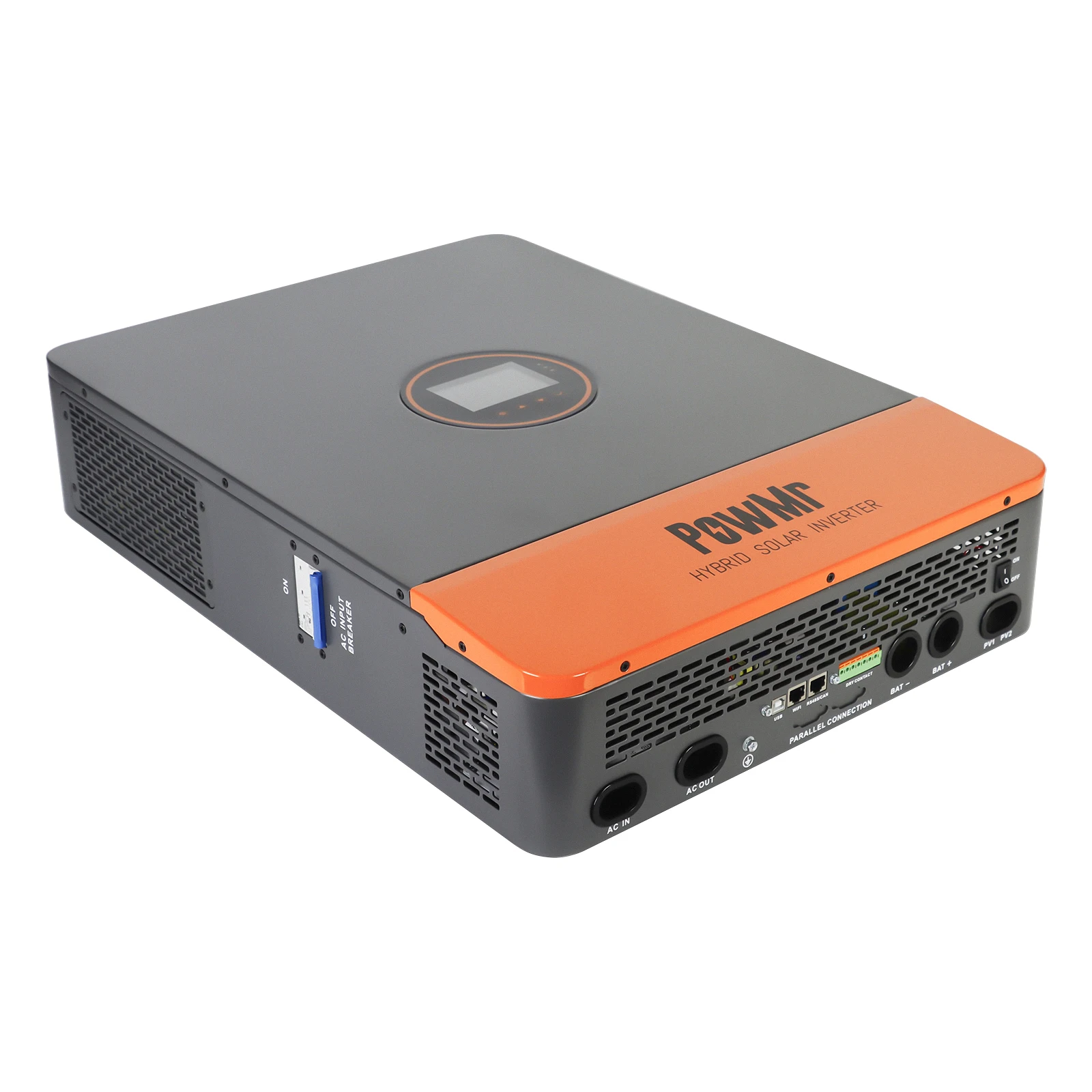

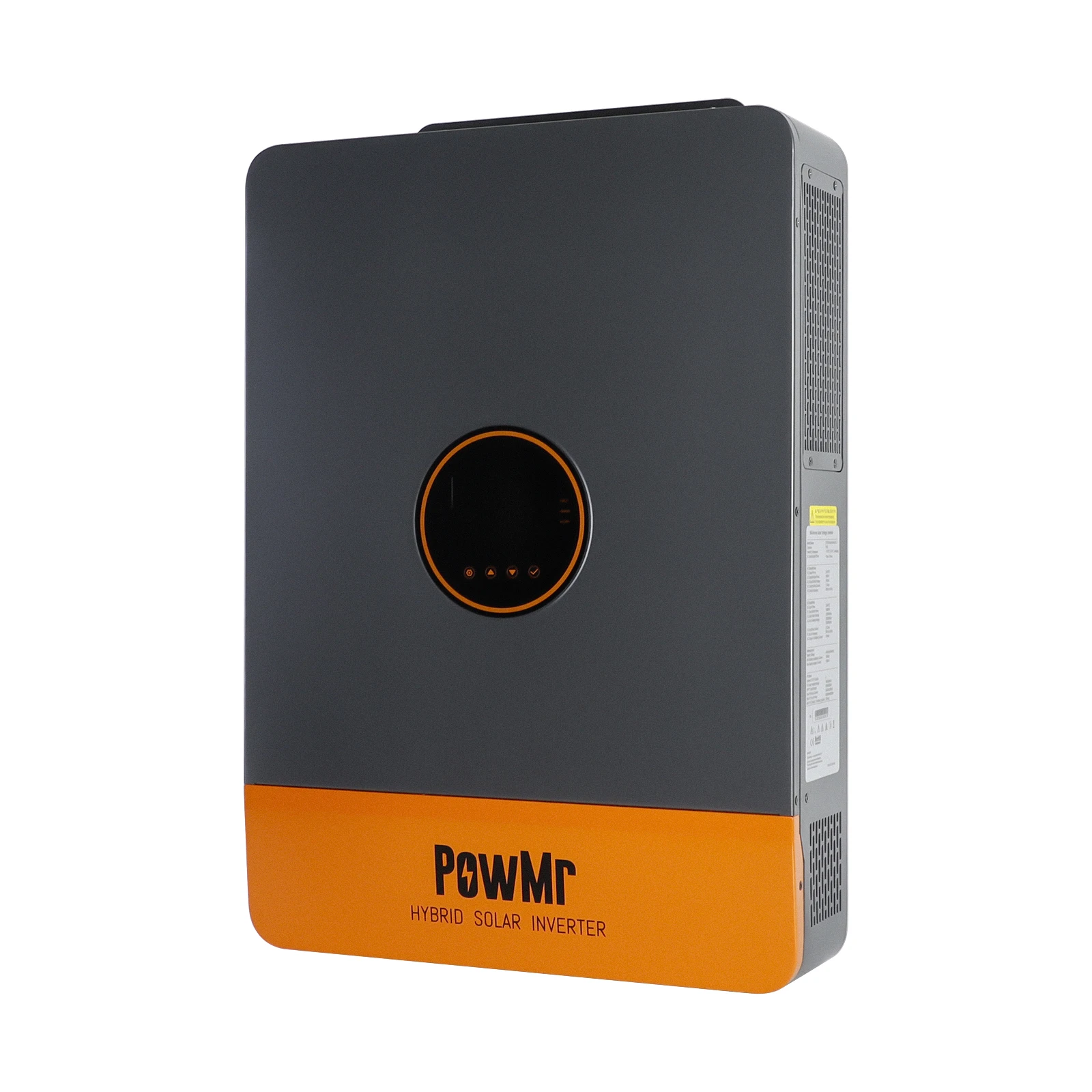

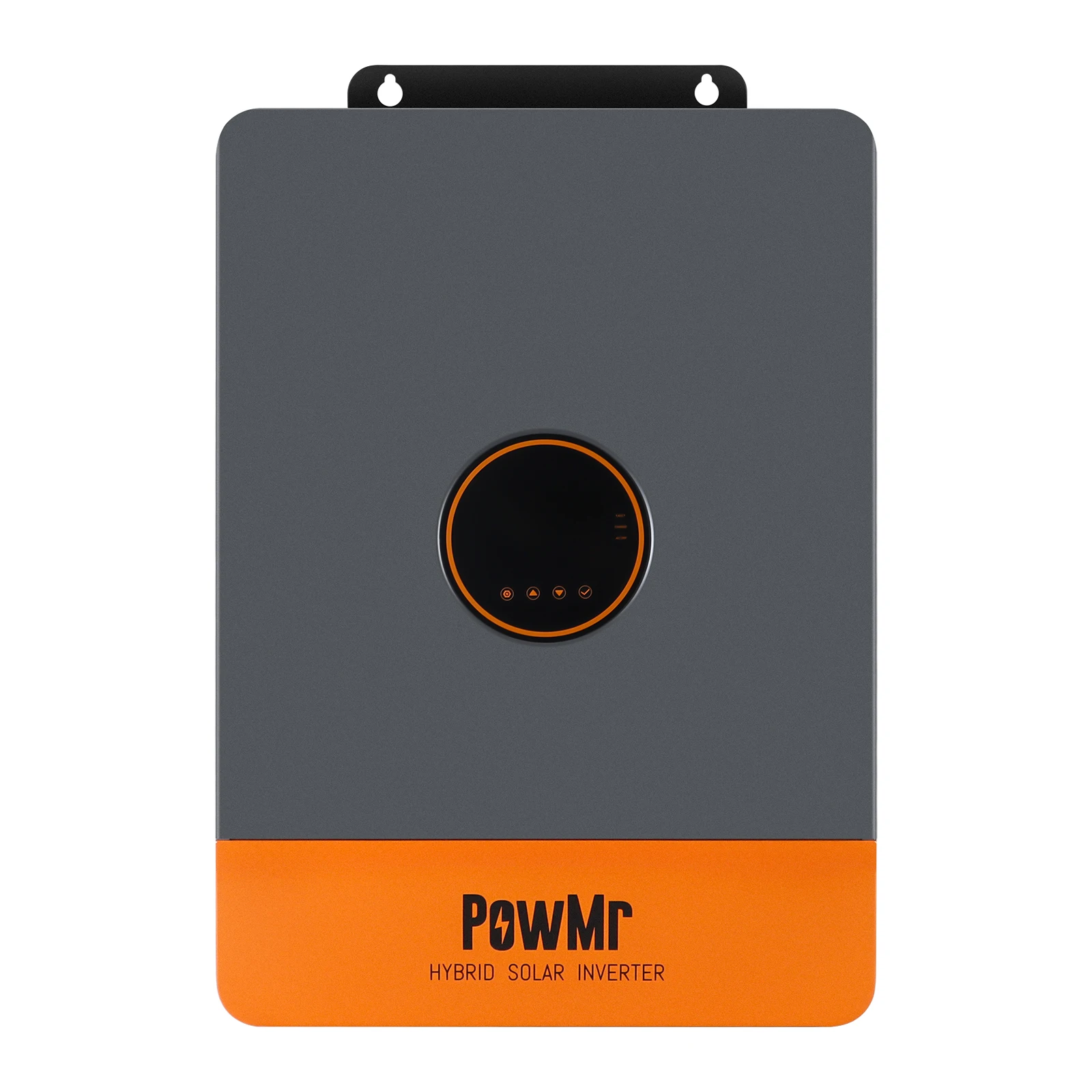

PowMr 5KW 10KW 8KW 12KW 48V Pure Sine Wave Hybrid Inverter 110V/230V/400V On/off Grid Hybrid Solar Inverter
PowMr 5KW 10KW 8KW 12KW 48V Pure Sine Wave Hybrid Inverter 110V/230V/400V On/off Grid Hybrid Solar Inverter
PowMr 5KW 10KW 8KW 12KW 48V Pure Sine Wave Hybrid Inverter 110V/230V/400V On/off Grid Hybrid Solar Inverter
PowMr 5KW 10KW 8KW 12KW 48V Pure Sine Wave Hybrid Inverter 110V/230V/400V On/off Grid Hybrid Solar Inverter
PowMr 5KW 10KW 8KW 12KW 48V Pure Sine Wave Hybrid Inverter 110V/230V/400V On/off Grid Hybrid Solar Inverter
PowMr 5KW 10KW 8KW 12KW 48V Pure Sine Wave Hybrid Inverter 110V/230V/400V On/off Grid Hybrid Solar Inverter
PowMr 5KW 10KW 8KW 12KW 48V Pure Sine Wave Hybrid Inverter 110V/230V/400V On/off Grid Hybrid Solar Inverter

PowMr 5KW 10KW 8KW 12KW 48V Pure Sine Wave Hybrid Inverter 110V/230V/400V On/off Grid Hybrid Solar Inverter

Share on (1601062559079):


Price:

Quantity:


Product Overview

Description



Product Description




Feature
* Supports lead acid battery and li-ion battery connections.
* With a dual activation function when the li-ion battery is dormant; either mains/photovoltaic power supply access can trigger the activation of the li-ion battery.
* Support three-phase pure sine wave output (350~415V)
* Supports phase voltage adjustment in the range of 200, 208, 220, 230, 240Vac.
* Supports two PV inputs, with the function of simultaneously tracking the maximum power charging or carrying capacity of two MPPT.
* Dual MPPT with 99.9% efficiency and maximum 22A current in a single circuit, perfectly adapted to high
power modules.
* 4 charging modes are available: solar only, mains priority, solar priority, and mixed mains/PV charging.
* With time-slot charging and discharging setting function, it helps users to take advantage of peak and valley tariffs and save electricity costs.
* Energy saving mode function to reduce no-load energy losses.
* With two output modes of utility bypass and inverter output, with uninterrupted power supply function.
* LCD large screen dynamic flow diagram design, easy to understand the system data and operation
status.
* 360° protection with complete short circuit protection, over current protection, over under voltage
protection, overload protection, backfill protection, etc.
* Support CAN, USB, and RS485 communication.


Specification


POW-SunSmart
INVERTER OUTPUT
Rated Output Power
8,000W
12000W
10000W
10000W
5000W
Max. Peak Power
16,000W
24000W
20000W
20000W
10000W
Rated Output Voltage
230/400Vac (three-phase)
230/400Vac (three-phase)
120/240Vac
120/240Vac
110/120Vac
Rated Frequency
50/60Hz
50/60Hz
50/60Hz
50/60Hz
50/60Hz
Output Waveform
pure sine wave
pure sine wave
pure sine wave
pure sine wave
pure sine wave
Switching Time
10ms
10ms
10ms
10ms
10ms
BATTERY





Rated Battery Voltage
48Vdc
48Vdc
48Vdc
48Vdc
48Vdc
Max. PV Charging Current
180A
260A
200A
200A
100A
Max. Hybrid Charging Current
180A
260A
200A
200A
100A
PV INPUT





No. of MPPT
2
2
2
2
1
Max. Input Power
6000W/6000W
9000W/9000W
11,000W
11,000W
5500W
Max. Input Current
22/22A
22/22A
22/22A
22/22A
22/22A
Max. Open-circuit Voltage
800Vdc
800Vdc
500Vdc
500Vdc
500Vdc
MPPT Operating Voltage Range
200-650Vdc/200-650Vdc
200-650Vdc
125-425Vdc
125-425Vdc
120-500Vdc
EFFICIENCY





European Efficiency
97.2%
97.5%
99.9%
99.9%
>95%
GENERAL





Dimensions
620*445*130mm
620*445*130mm
620*445*130mm
620*445*130mm
446.9*350*133mm
Weight
27kg
27kg
27kg
27kg
14Kg
COMMUNICATION





Internal Interface
RS485 / CAN / USB / Dry contact
RS485 / CAN / USB / Dry contact
RS485 / CAN / USB / Dry contact
RS485 / CAN / USB / Dry contact
USBIRS485/Dry contact control
External Module (optional)
Wi-Fi / GPRS
Wi-Fi / GPRS
Wi-Fi / GPRS
Wi-Fi / GPRS
Wi-Fi / GPRS
CERTIFICATION





Safety
IEC62109-1, IEC62109-2, UL1741
IEC62109-1, IEC62109-2, UL1741
IEC62109-1, IEC62109-2, UL1741
IEC62109-1, IEC62109-2, UL1741
CE(IEC62109-1)
EMC
EN61000-6-1, EN61000-6-3, FCC 15 class B
EN61000-6-1, EN61000-6-3, FCC 15 class B
EN61000-6-1, EN61000-6-3, FCC 15 class B
EN61000-6-1, EN61000-6-3, FCC 15 class B
EN61000
RoHS
Yes
Yes
Yes
Yes
Yes


Recommend Products










FAQ
Q1: How to insatll and use the solar inverter?
A1: We have the English teaching manual and videos; All the videos about every stepof machine Disassembly, assembly, operation will be sent to our customers.
Q2: What if I don't have export experience ?

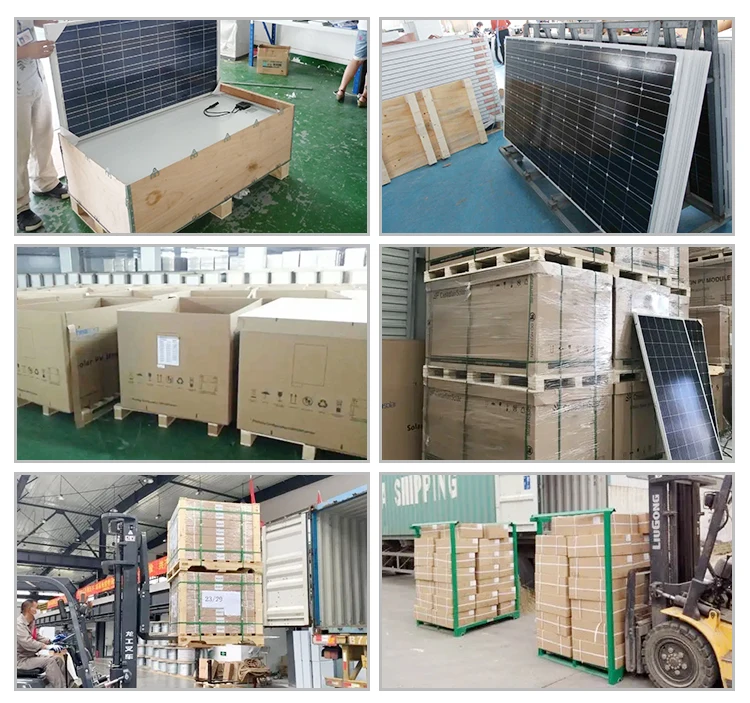

A2: Wehave reliable forwarder agent which can ship items to you by sea/air/Express to your doorstep.Any way, we will help you choose themost suitable shipping service.
