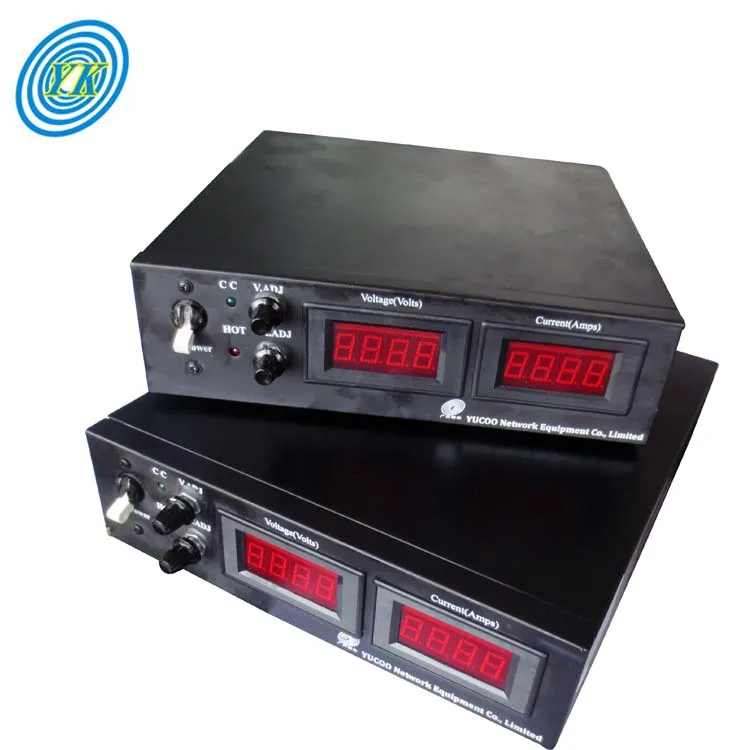

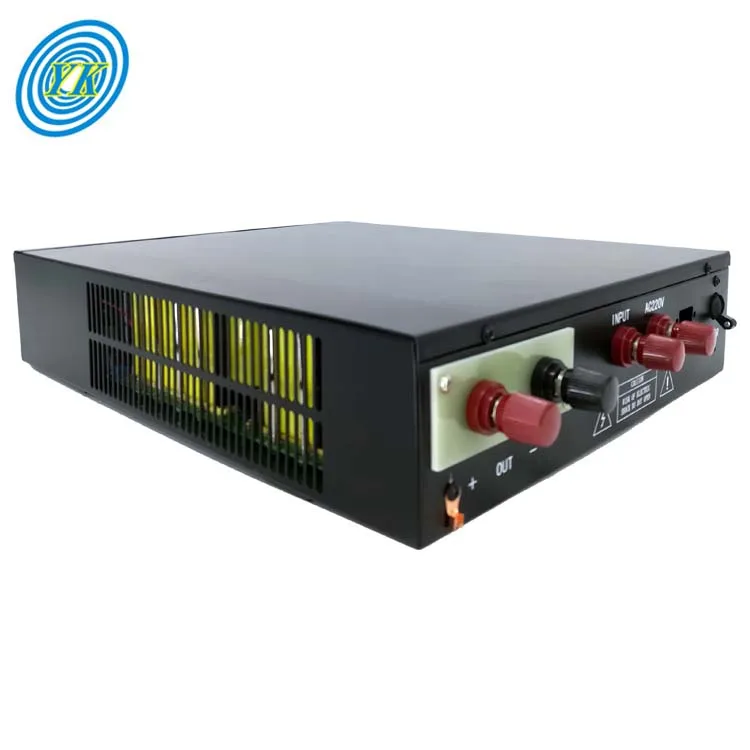

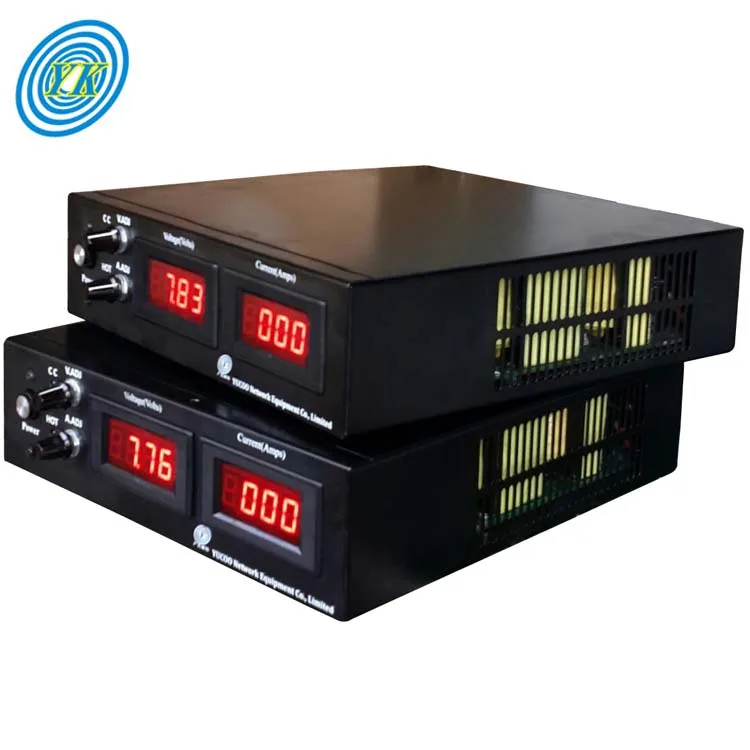

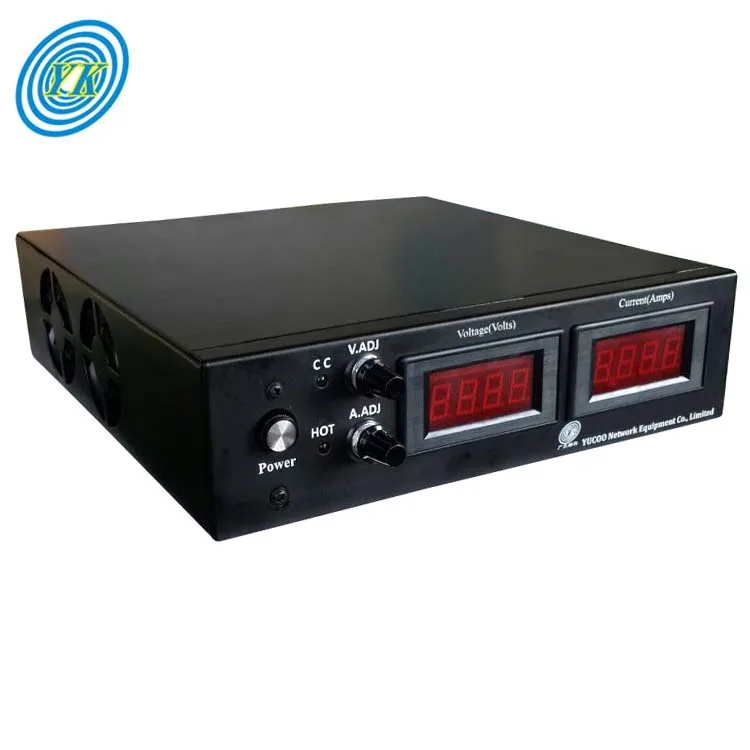

regulated DC power supply variable constant current regulator 1000v 1a 1000w
- Category: >>>
- Supplier: Yucoo Network Equipment Co. Limited
Share on (1601062636611):
Product Overview
Description
Products Description
Introduction of power inverter:
1.. Constant voltage value and constant current value can be continuously adjustable within the range 0~100%
2.. Digital display output voltage and output current.
3.. Temperature control fan, over-temperature automatic protection; output overvoltage, over-current and short-circuit protection;
start up delay soft starting can avoid the overshoot voltage when start up.
4.. Simple operation, convenient use
5.. Store temperature: (-40～70)℃, Working temperature: (-20～50)℃
6.. Relative humidity: 90% (40±2℃), atmospheric pressure (70-106)kPa
2.. Digital display output voltage and output current.
3.. Temperature control fan, over-temperature automatic protection; output overvoltage, over-current and short-circuit protection;
start up delay soft starting can avoid the overshoot voltage when start up.
4.. Simple operation, convenient use
5.. Store temperature: (-40～70)℃, Working temperature: (-20～50)℃
6.. Relative humidity: 90% (40±2℃), atmospheric pressure (70-106)kPa
Customize Range & Application Regards the Variable DC power supply,
Regards the Variable DC power supply,
We can customize different kind of specification according to your request. Such as
Such as:
1.0-1500V variable or appointed
2.0-2000A variable or appointed
It is widely used in electric power DC screen system, engineering control, communication, scientific research, charge of storage battery, and other equipments.
We can customize different kind of specification according to your request. Such as
Such as:
1.0-1500V variable or appointed
2.0-2000A variable or appointed
It is widely used in electric power DC screen system, engineering control, communication, scientific research, charge of storage battery, and other equipments.
Product Parameters
Brand | YUCOO | ||||||
Model | YK-AD10001 | ||||||
Output range | 0-1000vdc 0-1A | ||||||
Power | 1000W | ||||||
Output mode | Constant voltage (or appointed) variable/adjustable Constant current (or appointed) variable/adjustable | ||||||

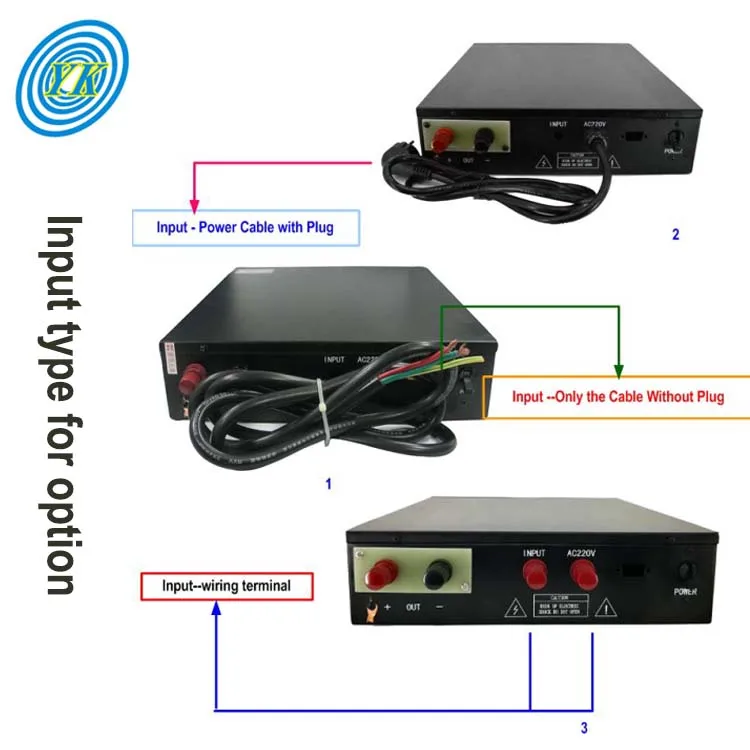

AC wide input | 1phase AC220V±15% 50/60Hz | ||||||
Rack Mount | Tower type | ||||||
Source Voltage Regulation | constant voltage ≤0.2％ | ||||||
Load Regulation | constant voltage ≤1％； constant current≤2％ | ||||||
Line regulation: | constant voltage ≤0.3% | ||||||
Ripple Voltage | total ripple Vpp≤2% (max voltage)(60V*2%=1.2V) 100Hz Ripple: Vpp≤0.5%(max voltage)(60V*0.5%=0.3V) | ||||||
Operation Environment temperature | (-10～45)℃ | ||||||
Efficiency | ≥89％ | ||||||
Digital meter | voltage meter and current meter | ||||||
Digital display | Precision of output voltage±1.5% Precision of output current±2.0% | ||||||
Insulating resistance | Input-Output：≥20MΩ/Input— Shell：≥20MΩ/Output-Shell：≥80MΩ | ||||||
Imbalance of equalized current | ≤5％＋2.5A | ||||||
Protection | Temperature control fan, over-temperature automatic protection; output overvoltage, over-current and short-circuit protection; switch-on delay soft starting can avoid the over swung output voltage when switching on. | ||||||
over-temperature protection | (70～80)℃ | ||||||
MTTF | ≥50000h | ||||||
Radiating wind hole | Internal radiating wind hole | ||||||
Dimension | 240*68*210mm | ||||||
NW | 4kg | ||||||
