Hot Sale Used LONG Bus Coach 10 Meters 60 Seats Luxury Passenger HigerAnd Second Hand Sightseeing Coaches
- Category: >>>
- Supplier: Liangshan Xuandong Automobile Trading Co. Ltd.
Share on (1601062675573):
Product Overview
Description
Products Description
Dump truck is one of the most important tools used in the mine to transport raw ore blocks to refining or crushing places.For different mines, we have different configurations of dump trucks. this difference is mainly reflected in cargo box. some ores are in large chunks and have a high density,which mean that the quantity is very heavy. we know that dump trucks are generally used in conjunction with front loaders and excavators. During the loading process,it will inevitably have an impact on the dump box body,so the material of the cargo body needs to be adjusted for different minerals.A cargo body with high strength and good toughness will determine the service life of this dump truck. Currently, high tensile and wear-resistant materials are used to make in the cargo body ,like T700,NM450,HARDOX, etc.Meanwhile ,there are some techniques adopted to prevent direct collision between the cargo body bottom plate and ores chunks, for instance ,anti-crushed high tensile rails or bars are often welded onto the bottom plate to provide baffles,the bottom plate of the cargo box is largely protected.

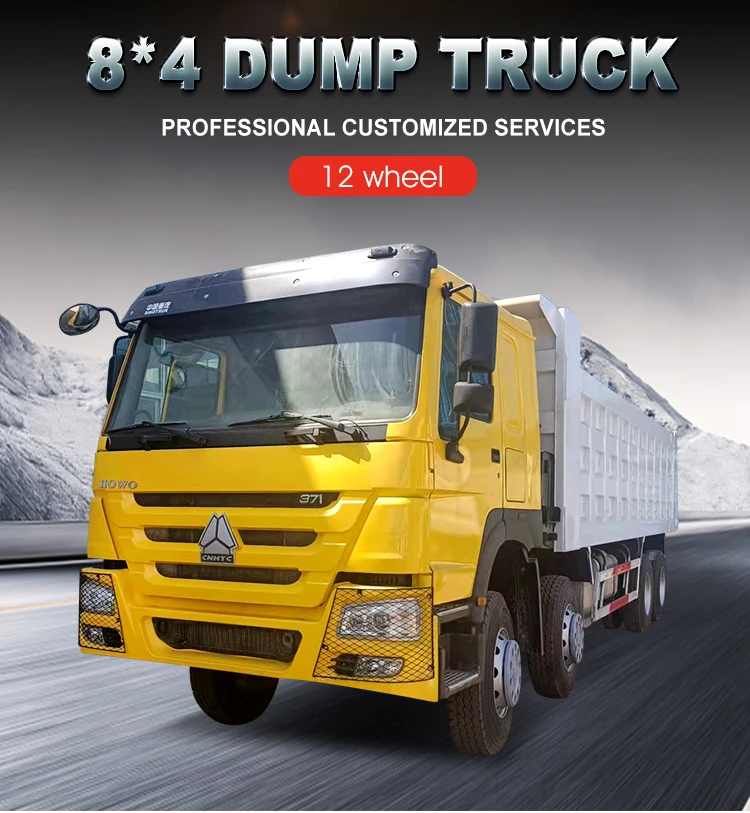

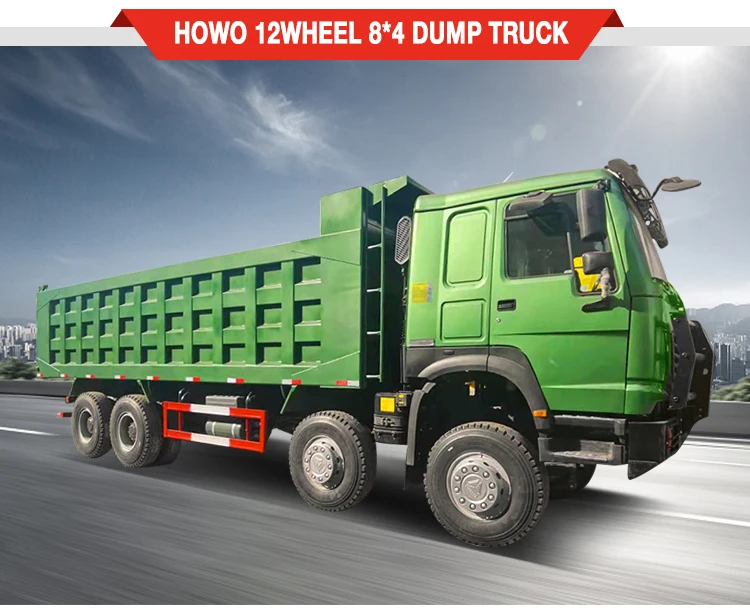

Name | HOWO DUMP TRUCK | ||||
Drive Type | 8×4 | ||||
Kerb Mass (kg) | 15800 | ||||
Rated Loading Capacity(kg) | --- | ||||
Total Mass(kg) | 31000 | ||||
Max. Speed (km/h) | 75 | ||||
Min. Turning Circle (m) | 18 | ||||
Approach/departure(°) | 16/70 | ||||
Max. Gradeability (％) | 60 | ||||
Appearance Dimensions (mm) | 10150×2500×3450 | ||||
Wheel Base (mm) | 3800+1350 | ||||
Engine | CNHTC Engine，WD615.47，371hp E-II | ||||
Rated Output Power | 309kw | ||||
Torque(n.m R. P. M) | 1820/1100-1500 | ||||
Displacement(l) | 9.726L | ||||
Fuel Tank Capacity (l) | 300L | ||||
Tyre | 12.00R20 12+1pc | ||||
Clutch | φ430 diaphragm spring | ||||
Gearbox | Transmission | HW19710, 10 forward&2 reverse Manual | |||
Front Axle | VGD95 | ||||
Drive Axle | HC16 ratio 5.73 | ||||
Steering | ZF8118 （left-hand drive） | ||||
Brake | Service Brake | With dual-circuit compressed air brake | |||
Park Brake | Power spring brake acting on front & rear wheel | ||||
Auxiliary Brake | Engine exhaust valve brake | ||||
Cab | HW76 Cab with Single sleeper A/C With Wind scooper and air guide sleeve | ||||
Battery | 165AH | ||||
Carriage Internal Dimensions | 7300×2300x 1600mm | ||||
Steel thickness of Carriage | Floor: 8mm, Side:6mm， Chinese front lift | ||||
Colour | White | ||||

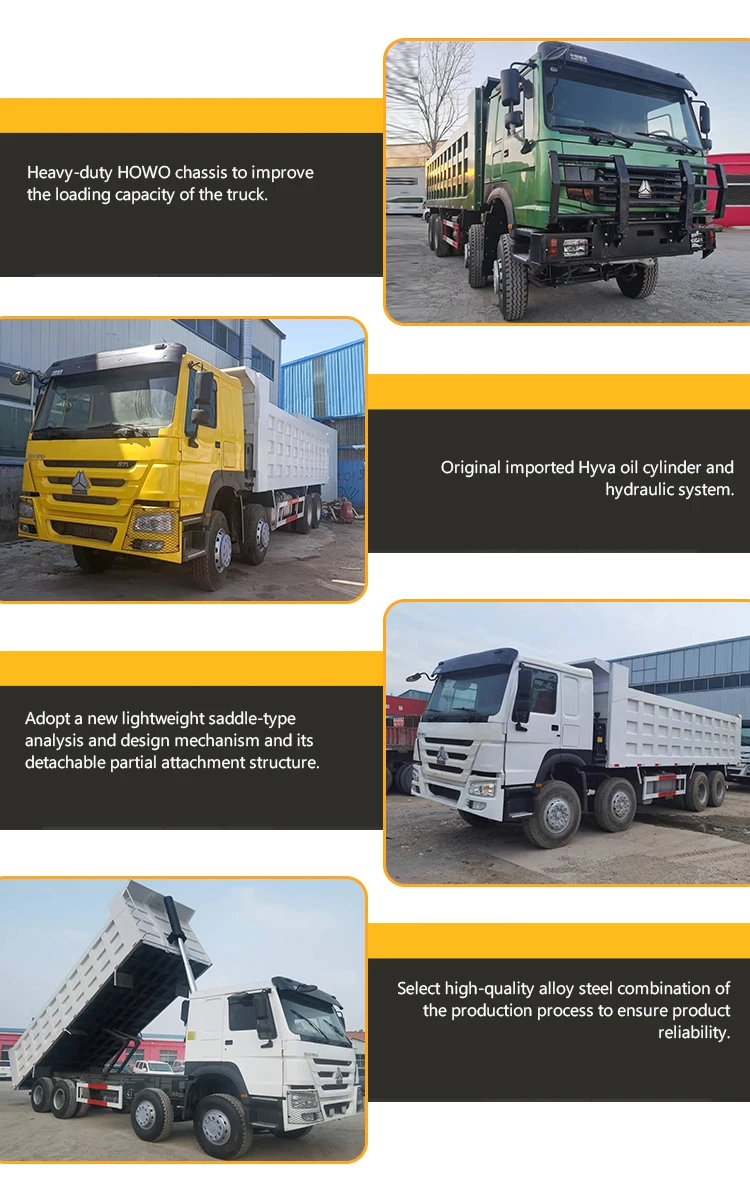

Details Images

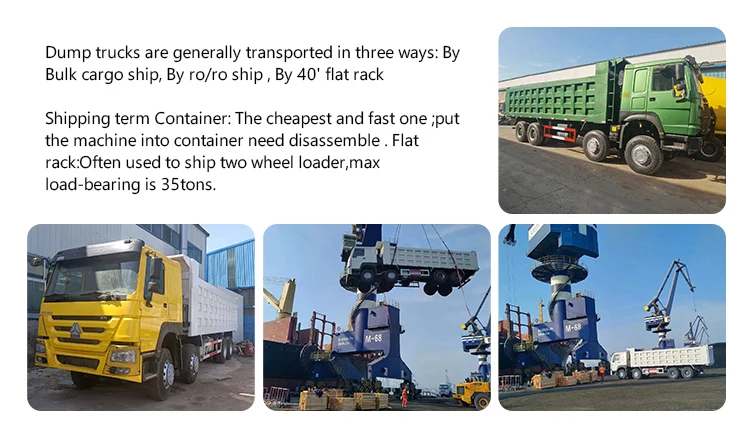

Product packaging

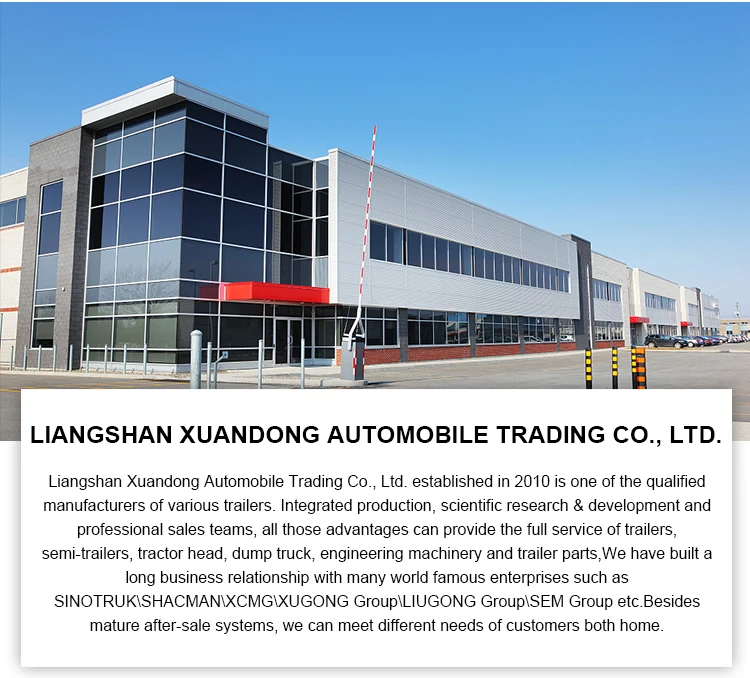

Company Profile
FAQ
Q1. What's your MOQ?
A1.One unit trailer or truck.
Q2. Can you satisfy my special requirement?
A2.Definitely! We are direct manufacturer and we have strong producing capacity and R&D capacity!
Q3.How about your product quality?
A3.High quality has always been our advantage.We all use high quality brand materials with 100% quality assurance.Established a procedure to check products at all stages of the manufacturing process,raw materials,process materials,validated or tested materials finished goods ect.
Q4. How can I get the price of your truck?
A4.You can contact with us through any of the following contact information. Our personalized service person will respond you within 24 hours.
Q5. Is it available to print our own brand on the truck?
A5.Totally acceptable as you wish.
Q6.What's the delivery time?
A6.The delivery time is within 30-50 working days after receiving your advance payment.
Q 7:How do you transport the truck?
A7.We transport the vehicle by bulk or container. Our factory possess long -term cooperation with ship agency which can provide you lowest shipping fee.
Q8.Can you supply some quick-wear truck or truck parts?
A8.Yes, we can supply truck and truck, parts as your request.
A1.One unit trailer or truck.
Q2. Can you satisfy my special requirement?
A2.Definitely! We are direct manufacturer and we have strong producing capacity and R&D capacity!
Q3.How about your product quality?
A3.High quality has always been our advantage.We all use high quality brand materials with 100% quality assurance.Established a procedure to check products at all stages of the manufacturing process,raw materials,process materials,validated or tested materials finished goods ect.
Q4. How can I get the price of your truck?
A4.You can contact with us through any of the following contact information. Our personalized service person will respond you within 24 hours.
Q5. Is it available to print our own brand on the truck?
A5.Totally acceptable as you wish.
Q6.What's the delivery time?
A6.The delivery time is within 30-50 working days after receiving your advance payment.
Q 7:How do you transport the truck?
A7.We transport the vehicle by bulk or container. Our factory possess long -term cooperation with ship agency which can provide you lowest shipping fee.
Q8.Can you supply some quick-wear truck or truck parts?
A8.Yes, we can supply truck and truck, parts as your request.
