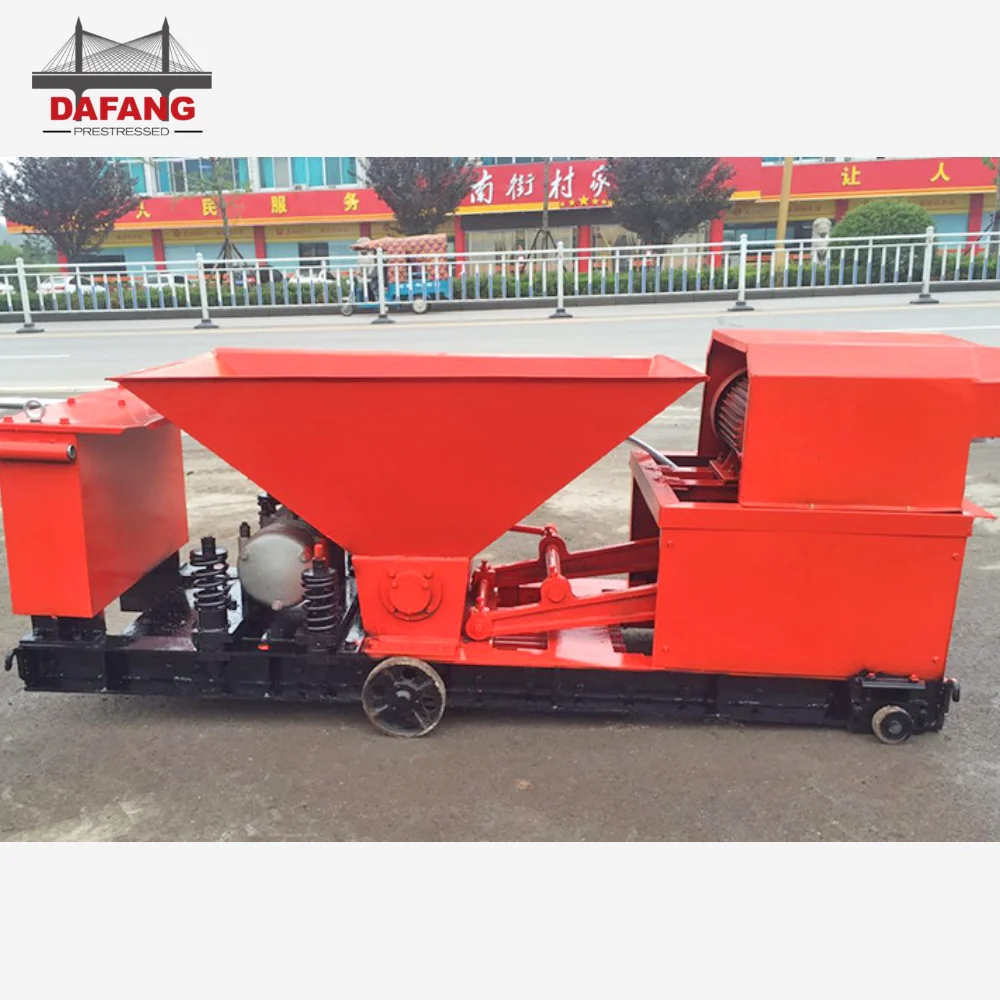

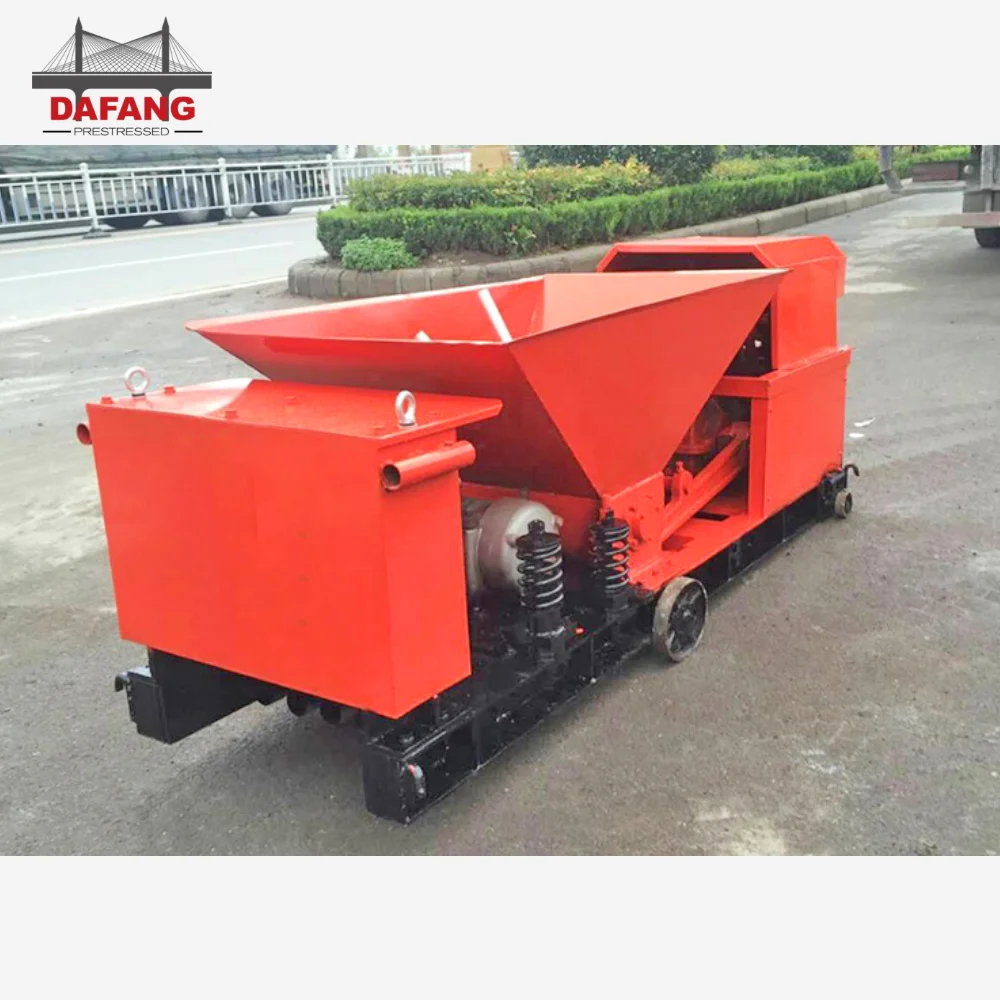

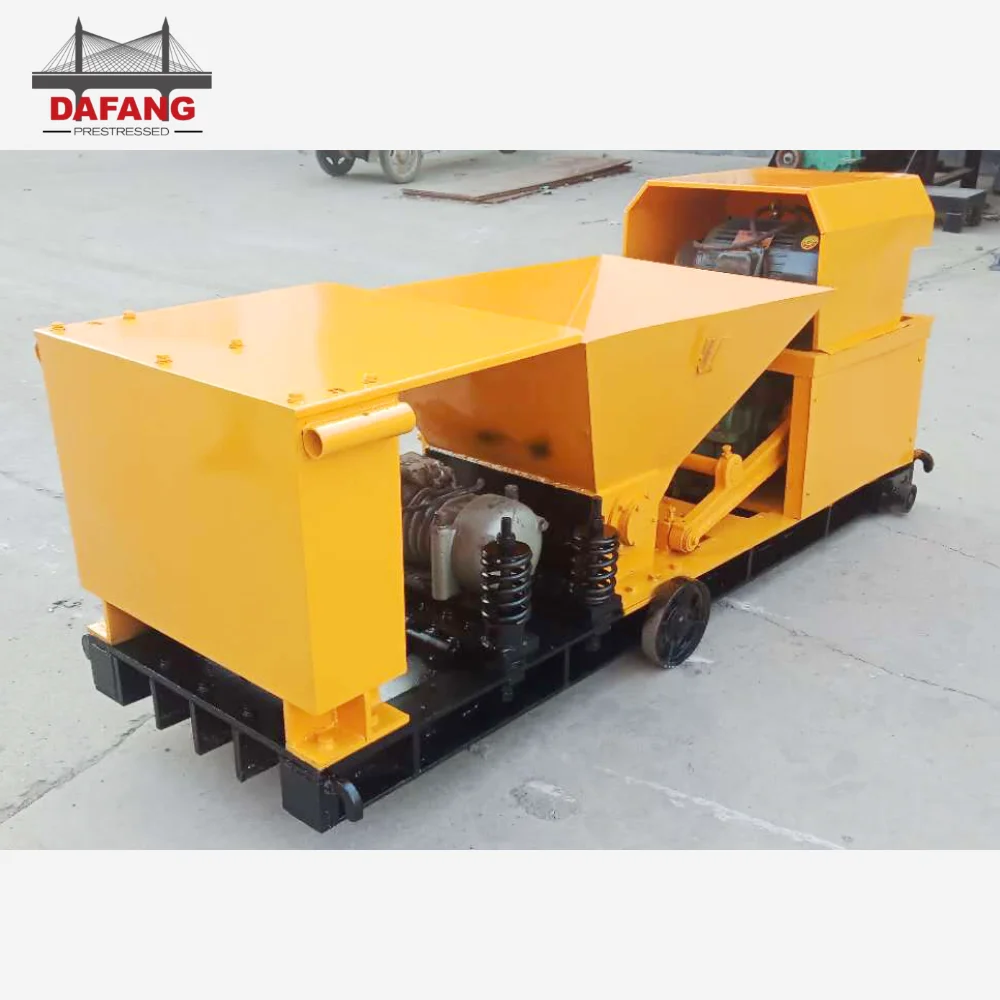

Precast Concrete Slab Boundary Wall Panel Forming Concrete Lintel Hollow Core Slab Cement Slab Machine
- Category: >>>
- Supplier: Kaifeng Dafang Prestressed Co. Ltd.
Share on (1601062827360):
Product Overview
Description

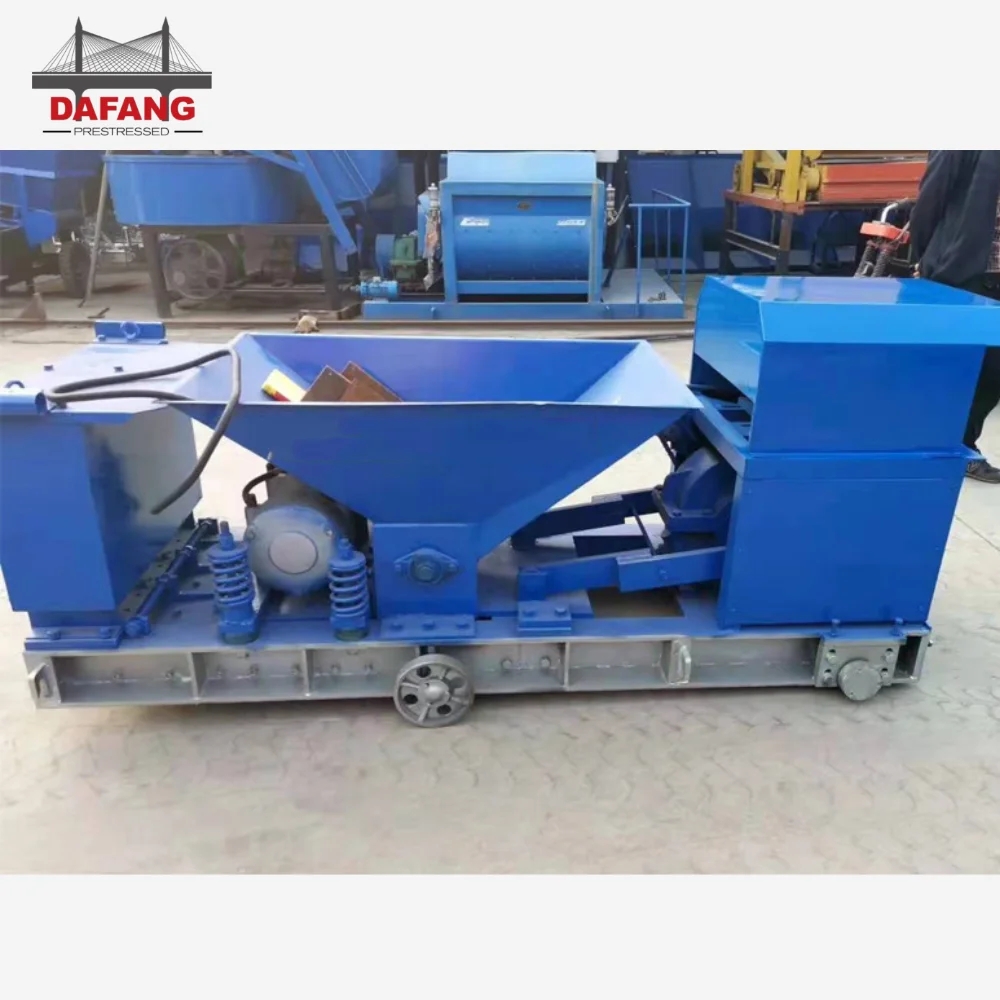

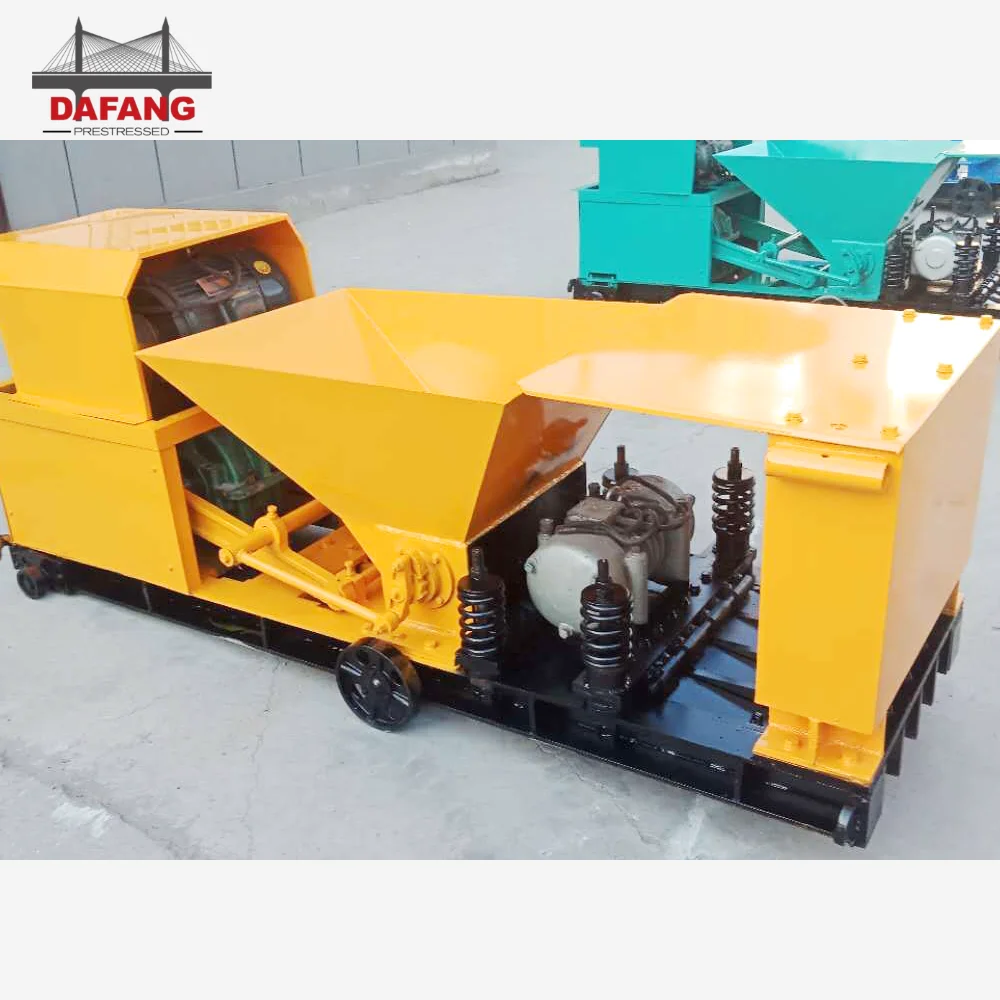

Concrete slab machine precast lightweight concrete wall panel making machine
Product Description
Product name | Prestressed concrete slab machine | ||||
Model | 90*600 | 120*600 | 180*600 | ||
Width (mm) | 600 | 600 | 600 | ||
Backness (mm) | 90 | 120 | 180 | ||
Number of holes/diameter (mm) | 7 Hole | 5Hole | 3Hole | ||
Plate-making speed (m/min) | >1.8 | >1.8 | >1.8 | ||
Main motor (kw) | 5.5KW | 5.5KW | 5.5KW | ||
Vibrator (kw) | ZW5A-0.8 | ZW5A-0.8 | ZW5A-1.1 | ||

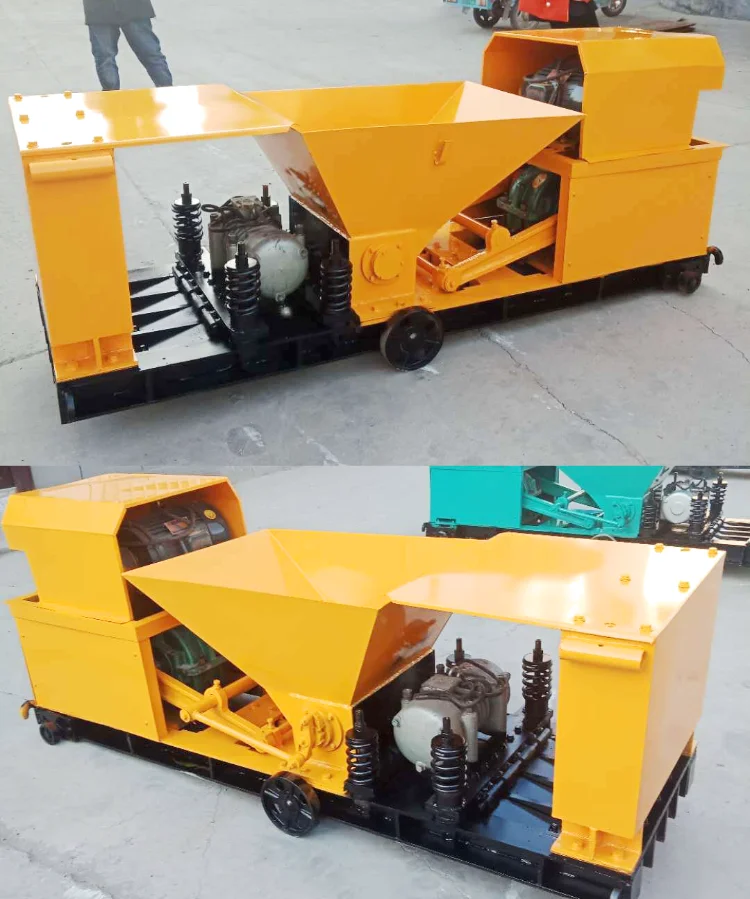

Concrete plate machine Features:
1, simultaneous production of 4-6 hollow, solid, reinforced and non-reinforced cement products
1, simultaneous production of 4-6 hollow, solid, reinforced and non-reinforced cement products
2, than pulling the mold, demolding and other methods of production efficiency can be increased by 3-5 times.
3, vibrator characteristics: the use of good vibrators, vibration force, smooth operation, continuous operation without failure.
4, motor characteristics: ad hoc explosion-proof motor, power standards, smooth operation.
5, produced a variety of concrete components of good strength, good quality, smooth surface, geometric dimensional accuracy.
3, vibrator characteristics: the use of good vibrators, vibration force, smooth operation, continuous operation without failure.
4, motor characteristics: ad hoc explosion-proof motor, power standards, smooth operation.
5, produced a variety of concrete components of good strength, good quality, smooth surface, geometric dimensional accuracy.

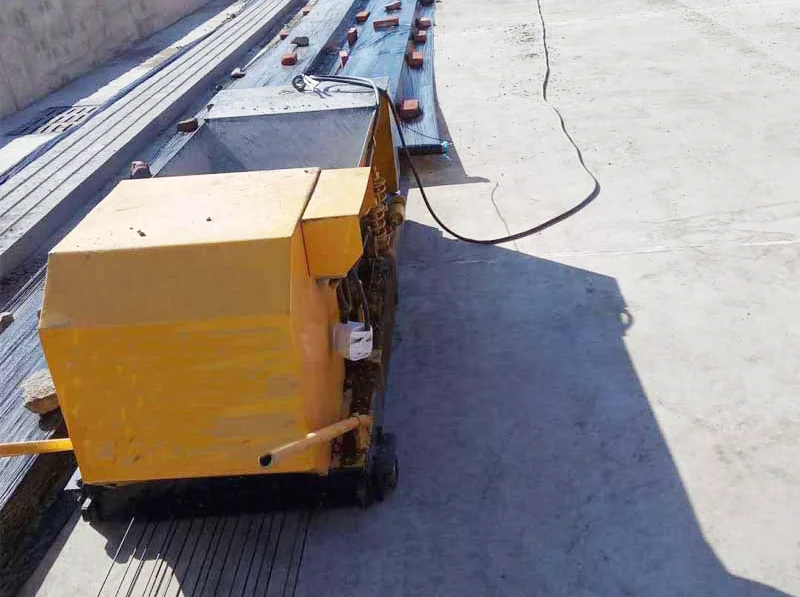

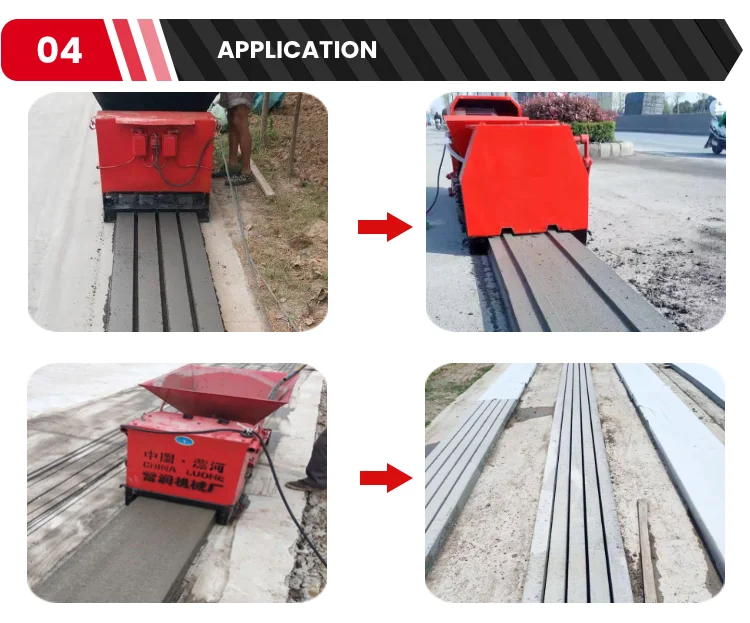

Working principle of floor forming machine

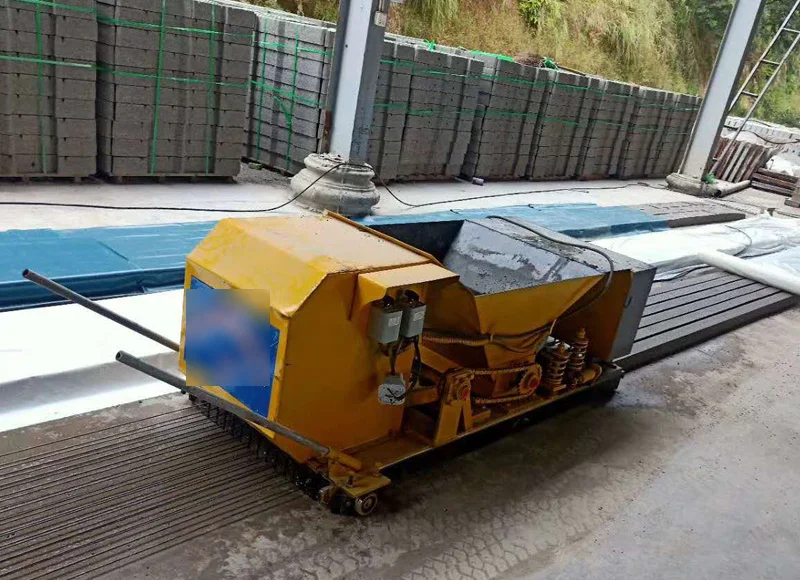

Push the extruded floor molding machine is working on the concrete platform, it uses the pre-stressing steel bars to do the guidance, the power of the motor through the reducer deceleration drives the connecting rod reciprocating motion, through the push plate, push the material will be free falling in the silo of the concrete material squeezed into the mold channel, combined with the upper part of the vibrator's vibration force, extrusion vibration molding, and at the same time, using the back of the push back of the material of the reaction force, so that the whole machine to overcome the friction with ground contact, along the prestressing steel bars, intermittent walking forward, behind the machine will be formed by the regularity of the pre-fabricated products, and then by the curing and maintenance of the length of the cut to the finished product according to the requirements of the length of the finished product.
