PTFE extruded tubing 12x 8mm extruded granular PTFE tubing
- Category: >>>
- Supplier: Shenzhen Dechengwang Technology Co. Ltd.
Share on (1601062859236):
Product Overview
Description
OUR PTFE Semi-Finished Products
Do you manufacturer PTFE parts yourself or are you looking for PTFE semi-finished products? As an expert in PTFE filed, we could recommend the suitable material size and guarantee quality for you.
PTFE TUBE Description
PTFE tubes can be delivered in various diameters and lengths.
* PTFE Flexible tube: Diameter from 2 to 25mm are flexiable PTFE tubing.
* PTFE Molded Tube: Larger diameters up to approx 950 mm will be molded. Maximum length depends on the diameter and ranges from 100 mm to 300 mm.

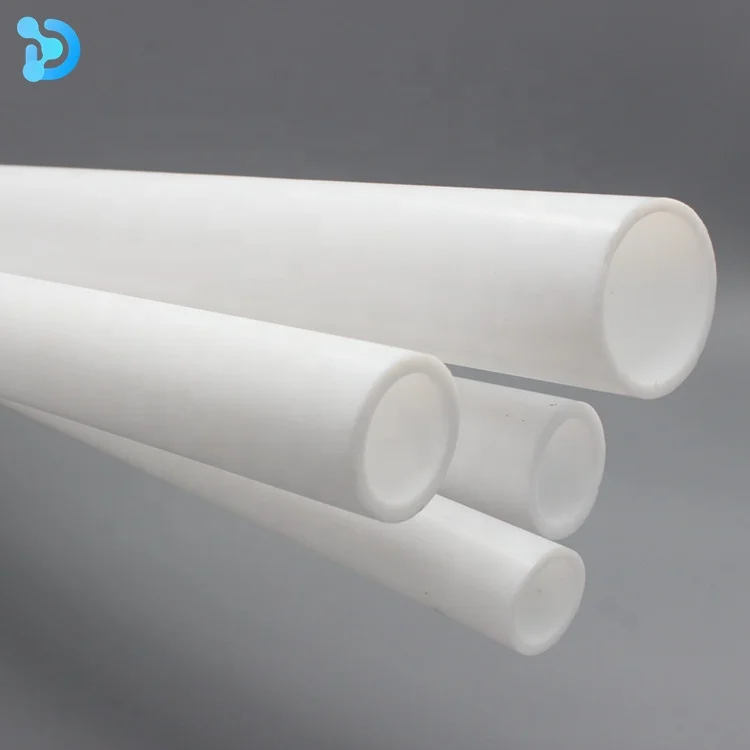

* PTFE Extruded Tube: Up to diameter 260 mm we can supply standard extruded lengths of 1000 and 2000 mm.
* PTFE Flexible tube: Diameter from 2 to 25mm are flexiable PTFE tubing.
* PTFE Molded Tube: Larger diameters up to approx 950 mm will be molded. Maximum length depends on the diameter and ranges from 100 mm to 300 mm.
* PTFE Extruded Tube: Up to diameter 260 mm we can supply standard extruded lengths of 1000 and 2000 mm.
PTFE tube Type | OD Range | Length Range | Material Option |
PTFE Flexible tube | 2 to 25mm | 100 M to 500 M each roll | PTFE Modified PTFE |
PTFE Molded Tube | Up to 950mm | 100 mm to 300 mm | PTFE Modified PTFE PTFE Compound |
PTFE Extruded Tube | Up to 260mm | 1000, 2000 mm | PTFE Modified PTFE |

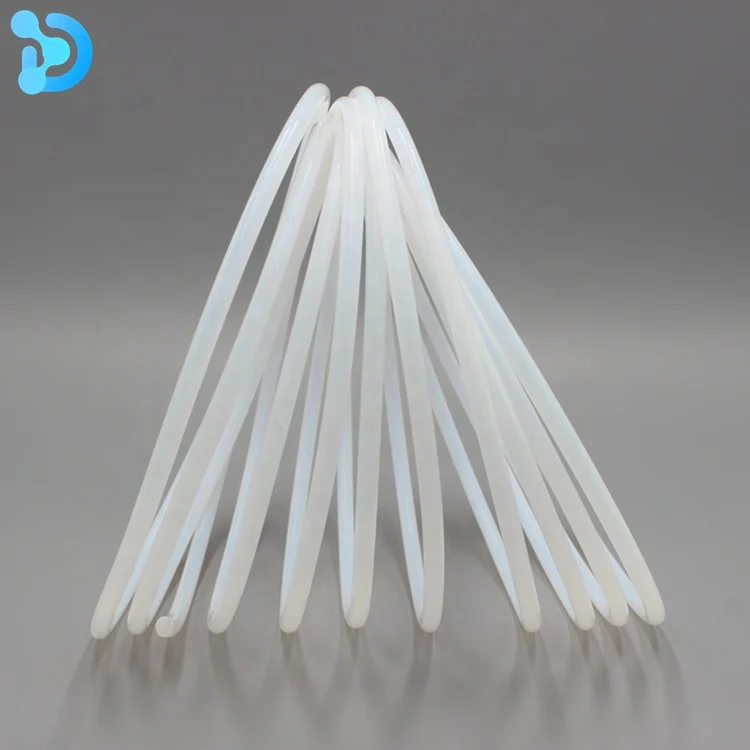

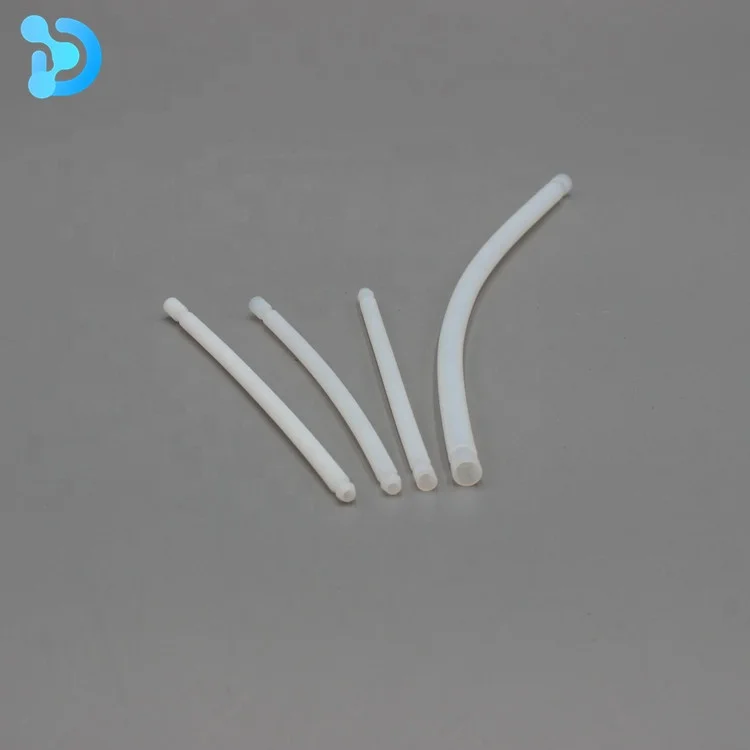

PTFE Flexible tube

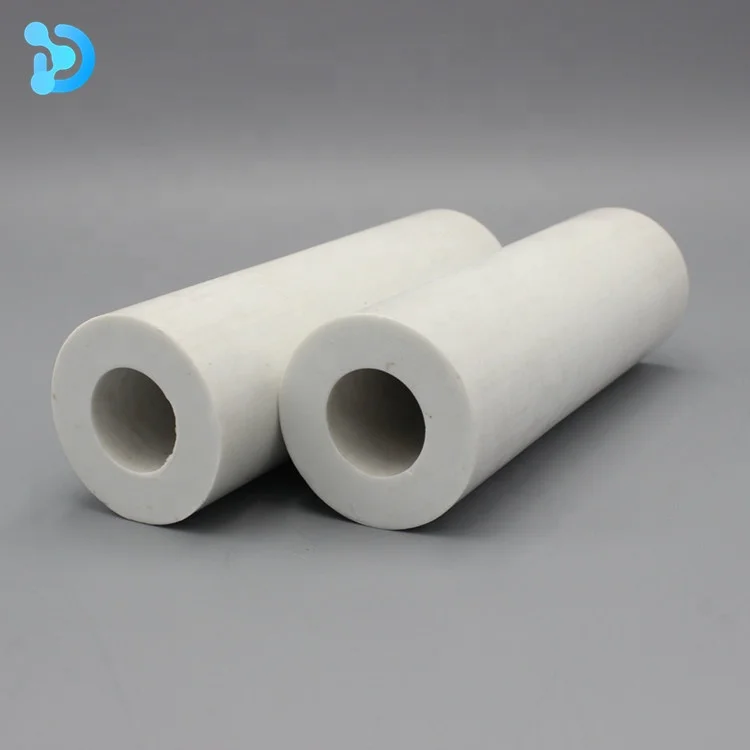

Glass fiber filled PTFE Tube

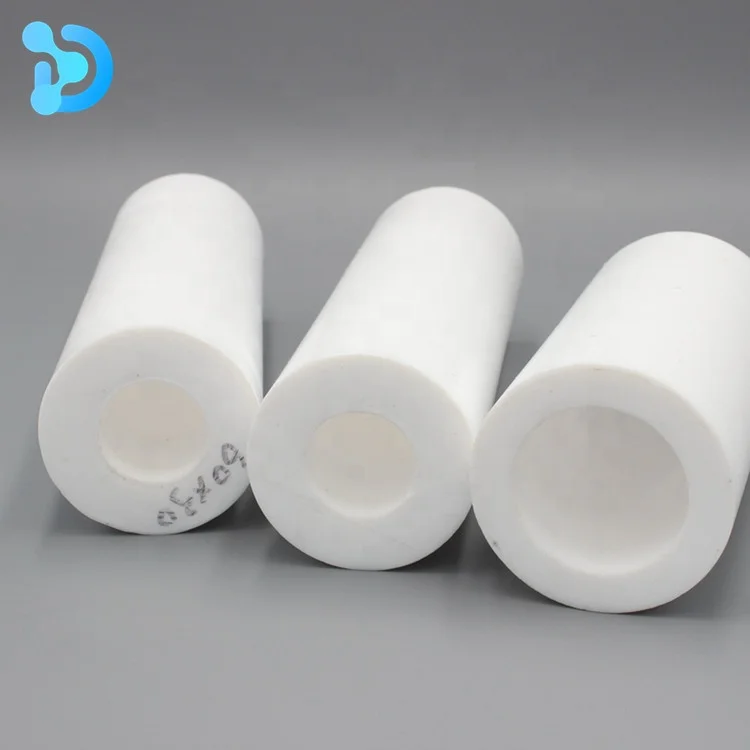

PTFE molded Tube
FLOW CHART
OUR MATERIALS
Material Name | Main Properties | Compliant | Temperature Range |
PTFE | This synthetic fluoropolymer of tetrafluoroethylene is known for being one of the most versatile plastics available. Being hydrophobic, non-wetting, high density and resistant to high temperatures, it is a material with a wide variety of applications across a range of different industries. | FOOD CONTACT AVAILABLE, RoHS, REACH | -180°C to 260°C |
Modified PTFE | Modified PTFE or TFM, is a high-density copolymerized material. It has low gas permeation and reduces cold flow. Often used in the medical field and in other applications where biocompatibility is required. | FOOD CONTACT AVAILABLE, RoHS, REACH | -180°C to 260°C |
PTFE Compounds | PTFE compounded with fillers like glass fibers, carbon, graphite, bronze, MoS2, PEEK etc. to improve physical, mechanical, thermal, wearing, electrical and chemical properties. | FOOD CONTACT AVAILABLE, RoHS, REACH | -70°C to 250°C |
PEEK | PEEK is a high-performance engineering plastic with outstanding chemical resistance, excellent mechanical strength and dimensional stabilization. | FOOD CONTACT AVAILABLE, RoHS, REACH | -70°C to 250°C |
PEEK Compounds | Standard PEEK virgin grade is suitable for laboratory and medical use. After being reinforced with glass fibers and carbon, its expansion rate is significantly reduced and the flexural module is increased. This makes it ideal for applications requiring increased stability, strength and rigidity at temperatures above 300°F. | FOOD CONTACT AVAILABLE, RoHS, REACH | -70°C to 250°C |
PFA | PFA has most of the physical and chemical properties of PTF, which is commonly used as material for piping and fittings, as well as corrosion-resistant lining of vessels. | FOOD CONTACT AVAILABLE, RoHS, REACH | -200°C to 260°C |
PVDF | PVDF is a special material in fluoropolymer. Maximum purity, strength, and resistance to solvents, acids, bases and heat, all those characteristics make PVDF popular in some critical applications. | FOOD CONTACT AVAILABLE, RoHS, REACH | -50°C to 150°C |
PCTFE | PCTFE (polychlorotrifluoroethylene) is a fluoropolymer material with exceptional strength, rigidity and stability in dimensions. | FOOD CONTACT AVAILABLE, RoHS, REACH | -400°C to 150°C |
DCW PRODUCTION EQUIPMENT
INSPECTION STANDARD
TOP 5 Advantage of DCW
PACKAGE
