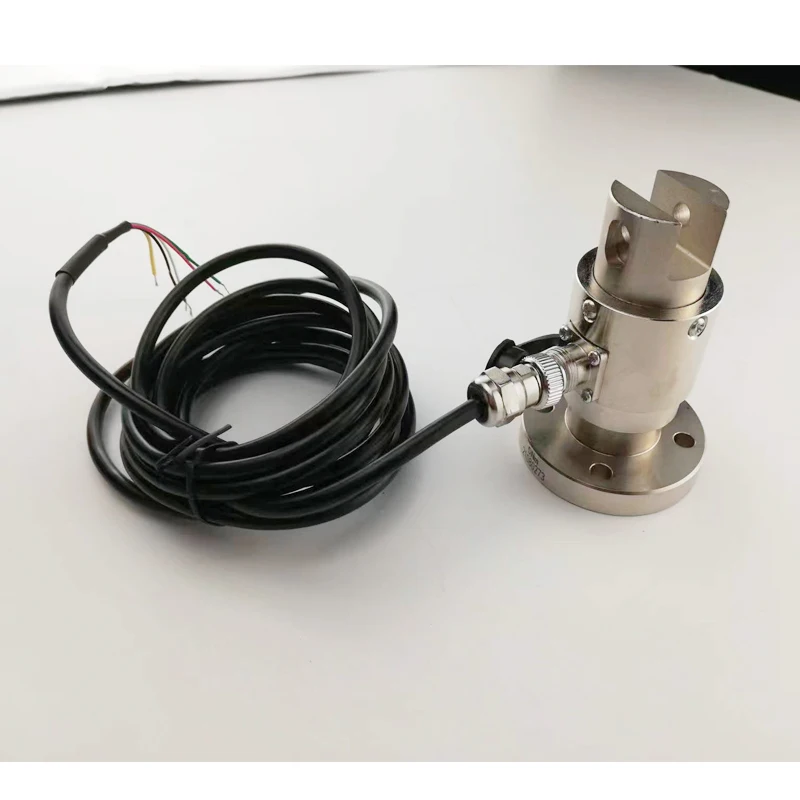

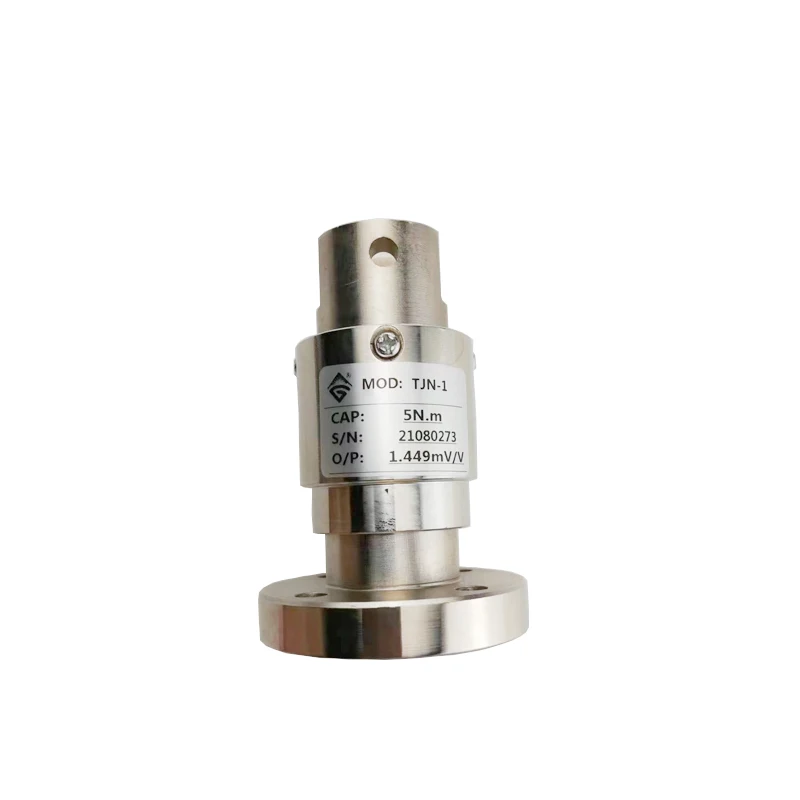

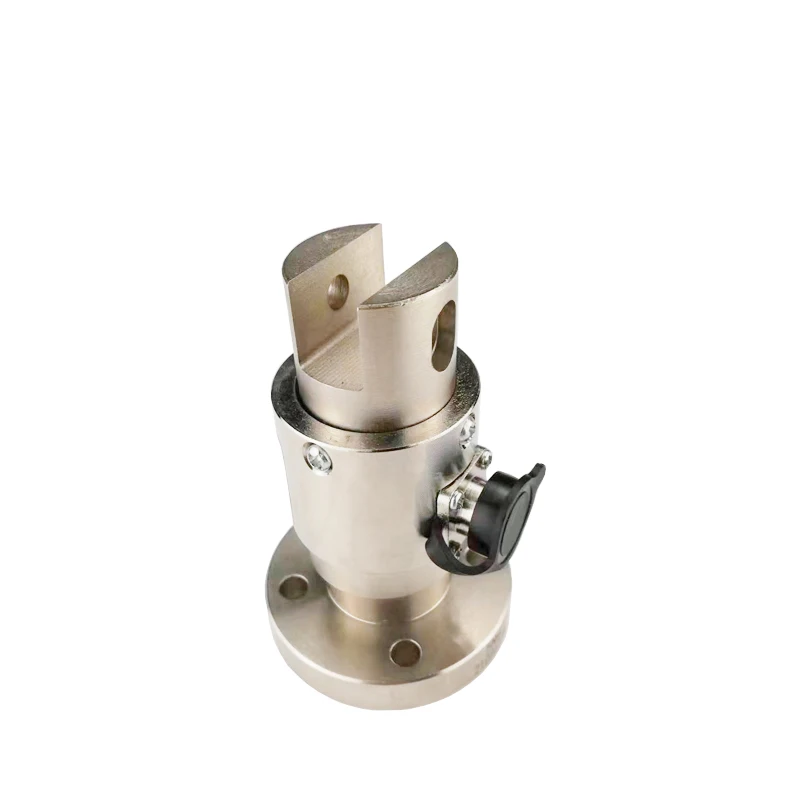

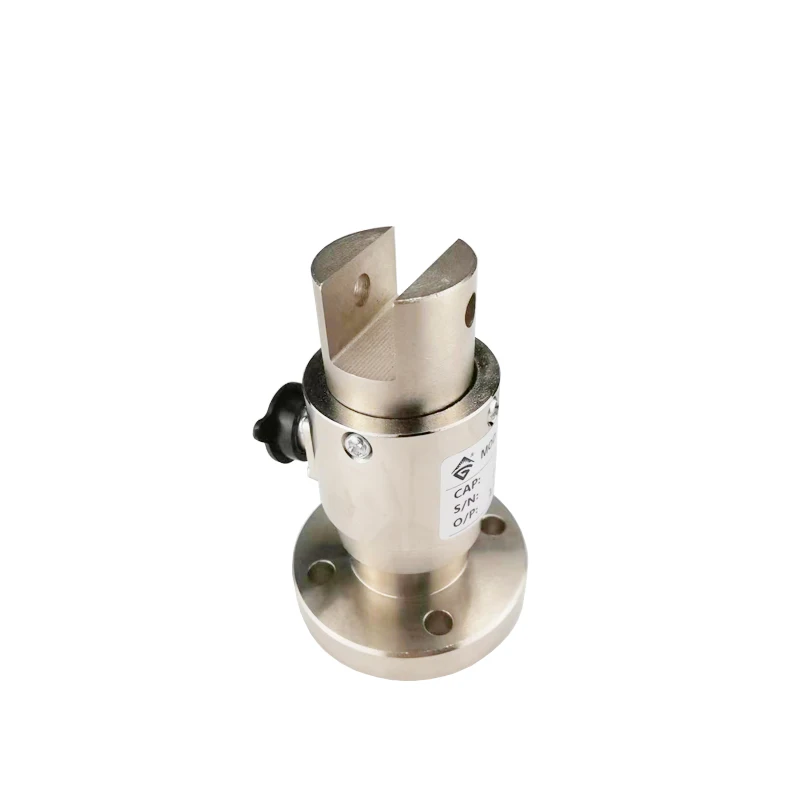

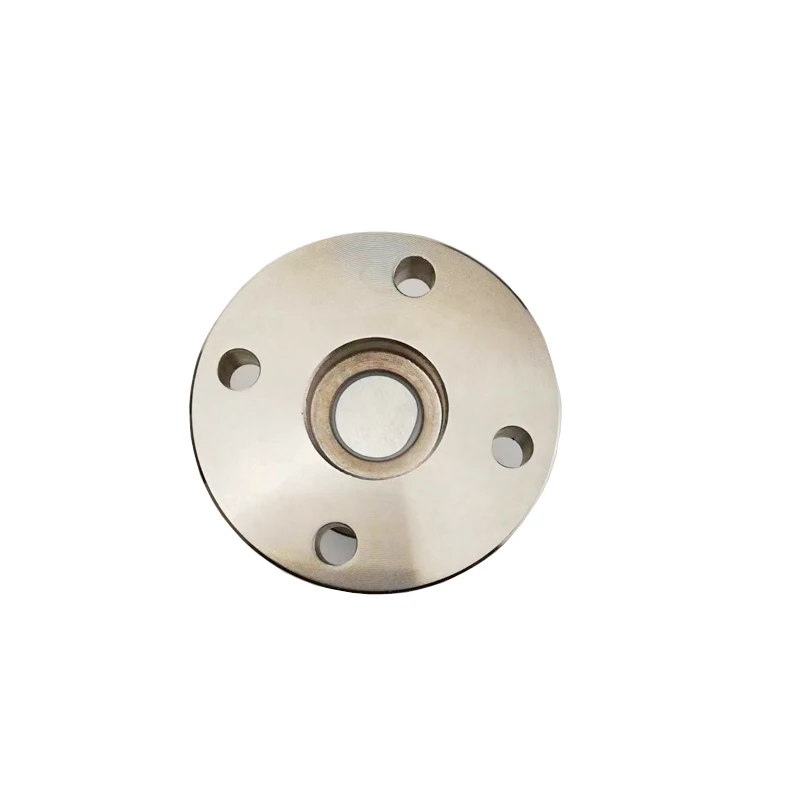

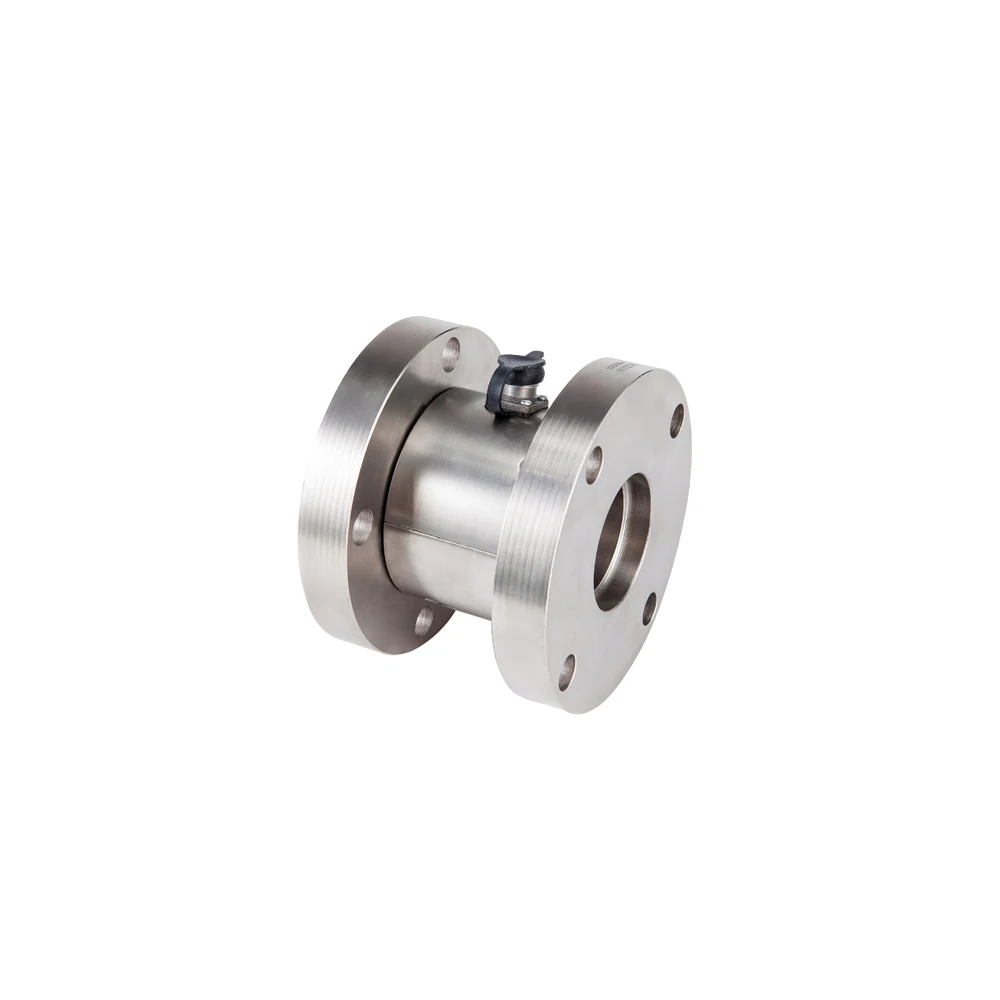

TJN 1 2Nm low cost inline bicycle torque force sensor road bike
- Category: >>>
- Supplier: Anhui Tianguang Sensor Co. Ltd.
Share on (1601062863167):
Product Overview
Description
Product Description
Product Name | Static Torque Sensor |
Accuracy | 0.1-0.5%FS |
Sensitivity | 1.0-1.5mV/V |
Relative creep over 30 min | ±0.1-±0.3%FS |
Temp. influence on zero | ±0.1-±0.3%FS/10℃ |
Temp. influence on out put | ±0.1-±0.3%FS/10℃ |
Zero output | ±1.0%FS |
Input resistance | 750±30Ω |
Output resistance | 700± 5Ω |
Insulation resistance | >5000 MΩ |
Operating temperature range | -20~+65℃ |
Reference temperature | 23℃ |
Bridge voltage | advise 10V DC |
Limit force | 150%FS |
Breaking force | >300% |
Material | Alloy Steel |
Mode of connection | Input+ : Red, Input- : Black, Output+ : Green, Output- : White |
1. Rated Force Range: 1Nm,2Nm,5Nm,10Nm,20Nm,50Nm,100Nm,200Nm
2. Cable length: 3-6m
3. OEM: Acceptable
4. Certification: ISO9001/CE
5.Packing: See the details
2. Cable length: 3-6m
3. OEM: Acceptable
4. Certification: ISO9001/CE
5.Packing: See the details
Process Flowchart
Our Company
Anhui Tianguang Sensor Co., Ltd. was founded in 1991, covers an area of 22,000 square meters, registered capital of 16 million.Main research and development, production and sales: load cell, ice coating detection sensors, torque sensors, tension sensors,shaft pin sensors, pressure sensors, tension and pressure sensors, oil field load sensors and related monitoring and control instruments and other products. Over the past 30 years tianguang constantly draws on domestic and foreign advanced technology, the introduction of foreign advanced equipment and technology, learning and absorbing the concept of modern enterprise management, has developed, produced more than 100 kinds of load cell sensors and ancillary instruments, the products are widely used in military.

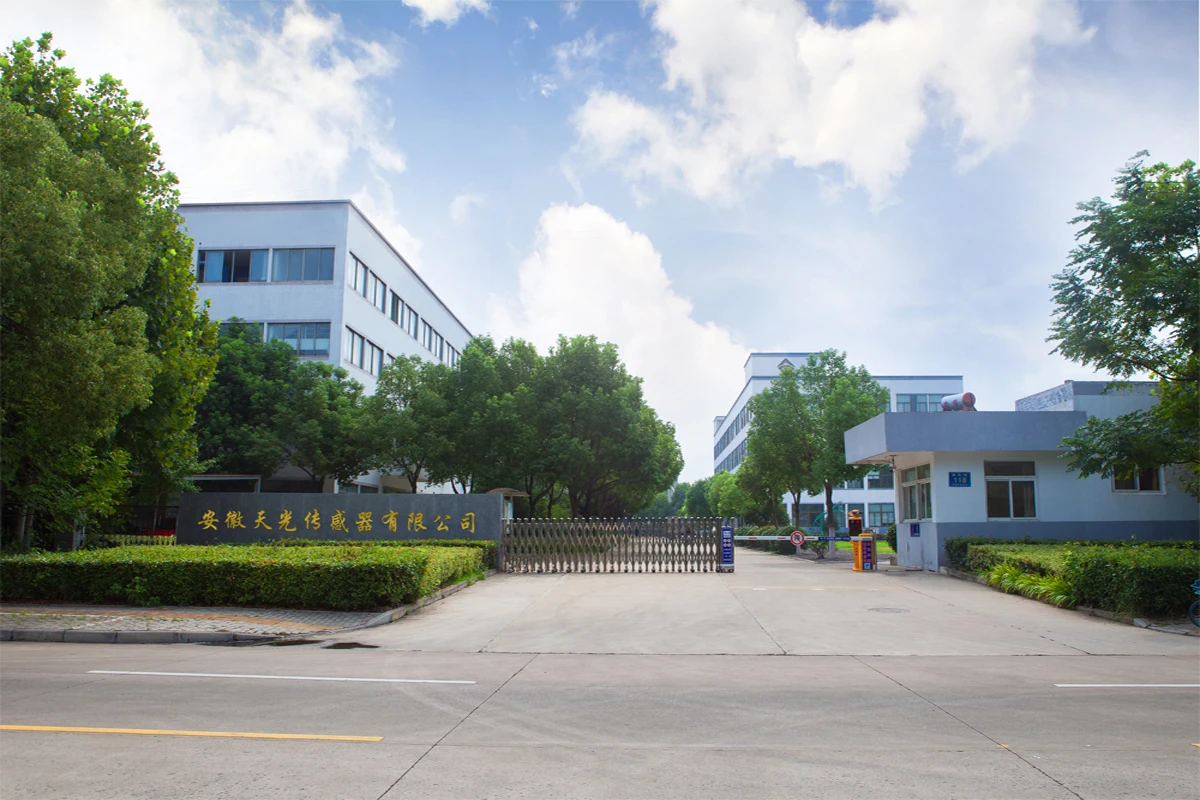

Factory
