ED 630U Rechargeable Hydraulic Pliers Electric Hydraulic Crimping Rechargeable Crimping Tool Crimping Pliers cable lug press
- Category: >>>
- Supplier: Chengdu Jianxi Import and Export Co. LTD
Share on (1601062879543):
Product Overview
Description
Specification
* Micro computer control systerm-automatically detectes the pressure when in crimping with double safety protect

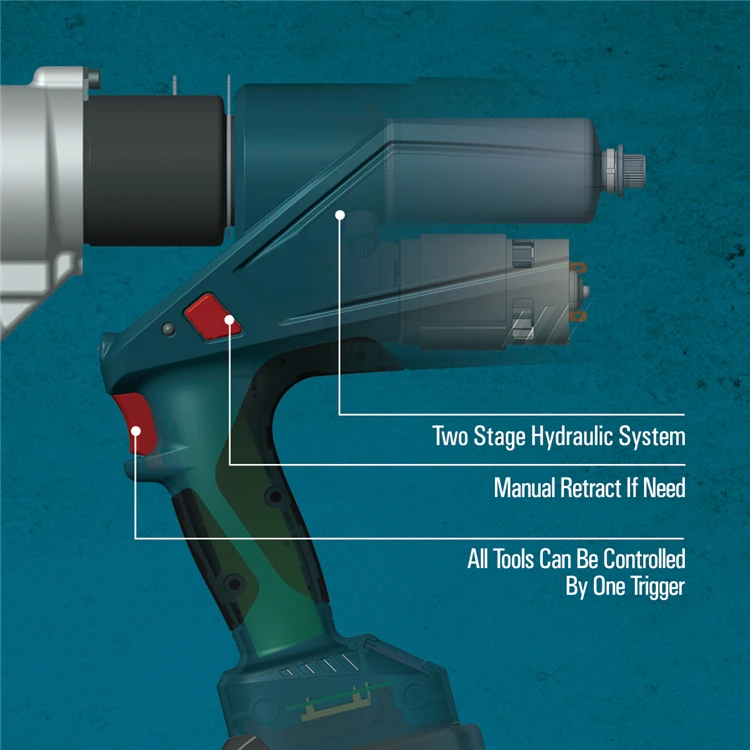

* The tool is equipped with a double piston pump which characterized with a fast approach towards the connecting material and transfer to high pressure automatically by slow crimping

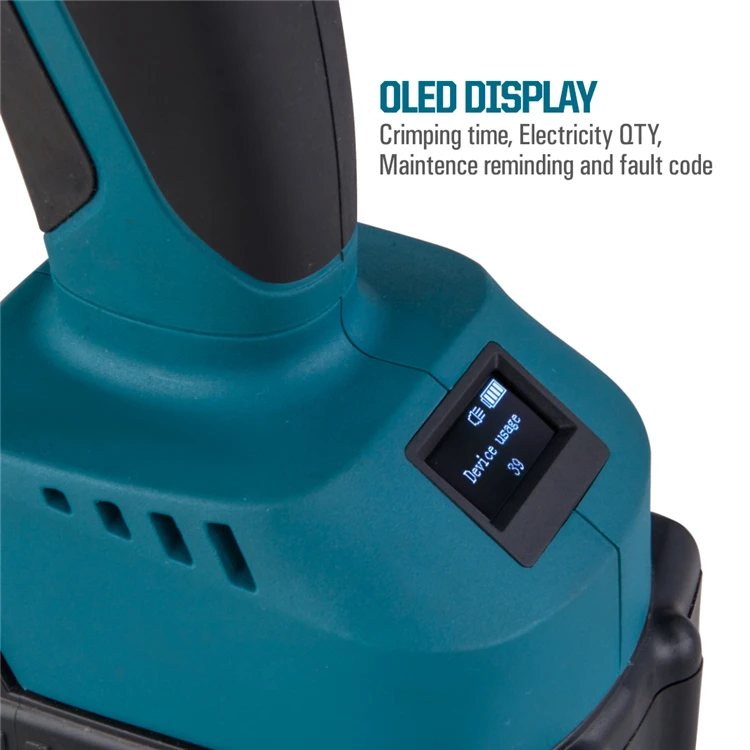

* If a deviation from the set operation pressure or low battery charges is identified, an acoustic signal sounds and a red display flashes.
* One key control-press the trigger to start working, half loosing the trigger means stop forcing pressure, loosing fully means piston return to the original position
* A temperature sensor makes the total
stop working automatically whenthe temperature is over 60℃ under long time working, the fault signal sounds, it means the tool can't continue to work until temperature reduced to the normal
stop working automatically whenthe temperature is over 60℃ under long time working, the fault signal sounds, it means the tool can't continue to work until temperature reduced to the normal
Technical data | ED-630U |
Rated pressure: | 180KN |
Stroke: | 27.5mm |
Crimping range: | Cu 16-630mm²/Al 10-500mm² |
Time/work: | 7-15s(depend on the dia of cable) |
Cycles/charger: | 130cycles(Cu 150mm²) |
Voltage/capacity: | 18V/4.0Ah |
Charging time: | Approx.80mins |
Charging voltage: | AC 100V～240V ;50～60Hz |
Package: | Plastic box |
Ambient temperature | -10～40℃ |
Weight: | 8.7kgs |
Size of tool: | 425x343x84mm |
ACCESSORIES | |
Crimping dies: | 16,25,35,50,70,95,120,150,185,240, 300,400,500,630 mm² |
Battery: | 2pcs |
Charger: | 1pc |
Sealing ring of cylinder: | 1set |
Sealing ring of safety valve: | 1set |
