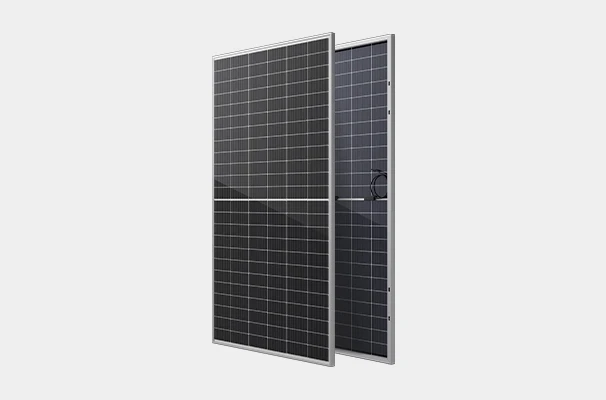

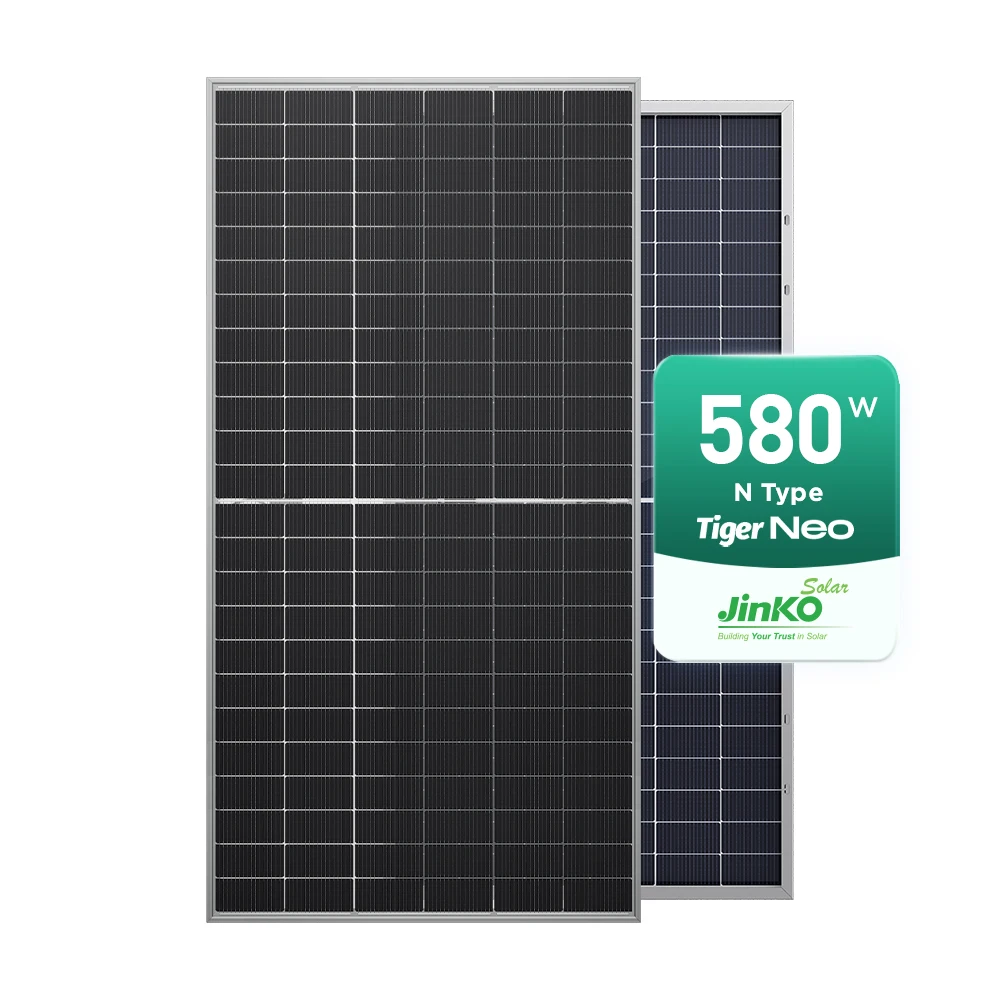

Bifacial Solar Panels Jinko Topcon Tech 570W 580W 590W PID Resistance Photovoltaic Modules
- Category: >>>
- Supplier: Sunpal Power Co. Ltd.
Share on (1601062917062):
Product Overview
Description
Product Description

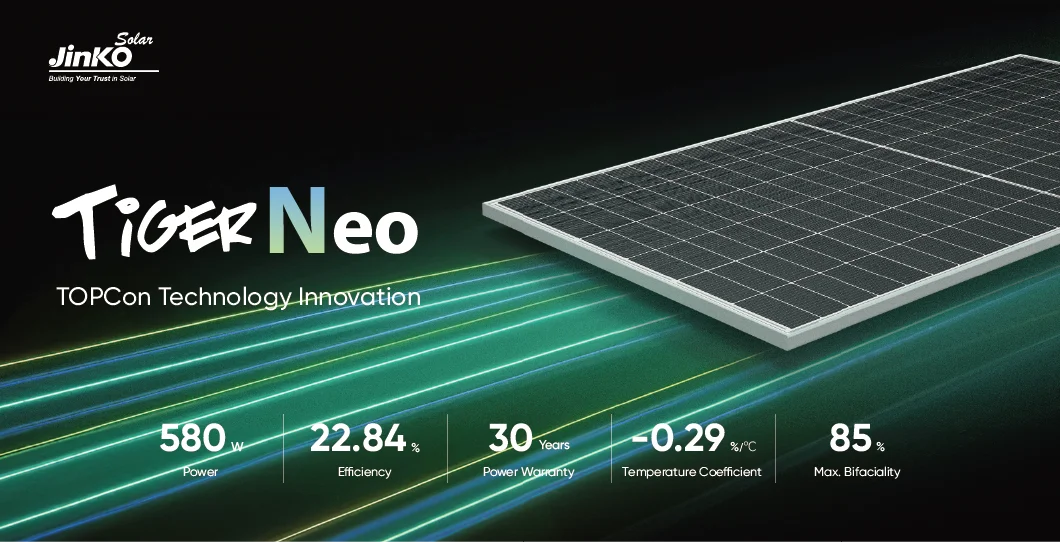

Advantages of Tiger Neo Module
① Ultra-high Power Generation
② Higher Bifacial Gain
③ Enhanced Reliability
④ Lower LID / LETID
⑤ High Compatibility
⑥ Optimized Temperature Coefficient
⑦ Lower Operating Temperature
⑧ Optimized Degradation
⑨ Outstanding Low Light Performance
⑩ Exceptional PID Resistance
Specification
Maximum Power - Pmax [Wp] | 570 | 575 | 580 | 585 | 590 | ||||
Maximum Power Voltage - Vmp [V] | 43.58 | 43.73 | 43.88 | 44.02 | 44.17 | ||||
Maximum Power Current - Imp [A] | 13.08 | 13.15 | 13.22 | 13.29 | 13.36 | ||||
Open-circuit Voltage - Voc [V] | 52.10 | 52.30 | 52.50 | 52.70 | 52.90 | ||||
Short-circuit Current - Isc [A] | 13.83 | 13.89 | 13.95 | 14.01 | 14.07 | ||||
Module Efficiency STC [%] | 22.07 | 22.26 | 22.45 | 22.65 | 22.84 | ||||
Power Tolerance | 0 ~ + 3 % | ||||||||
Temperature Coefficients of Pmax | -0.29 %/°C | ||||||||
Temperature Coefficients of Voc | -0.25 %/°C | ||||||||
Temperature Coefficients of Isc | 0.045 %/°C | ||||||||

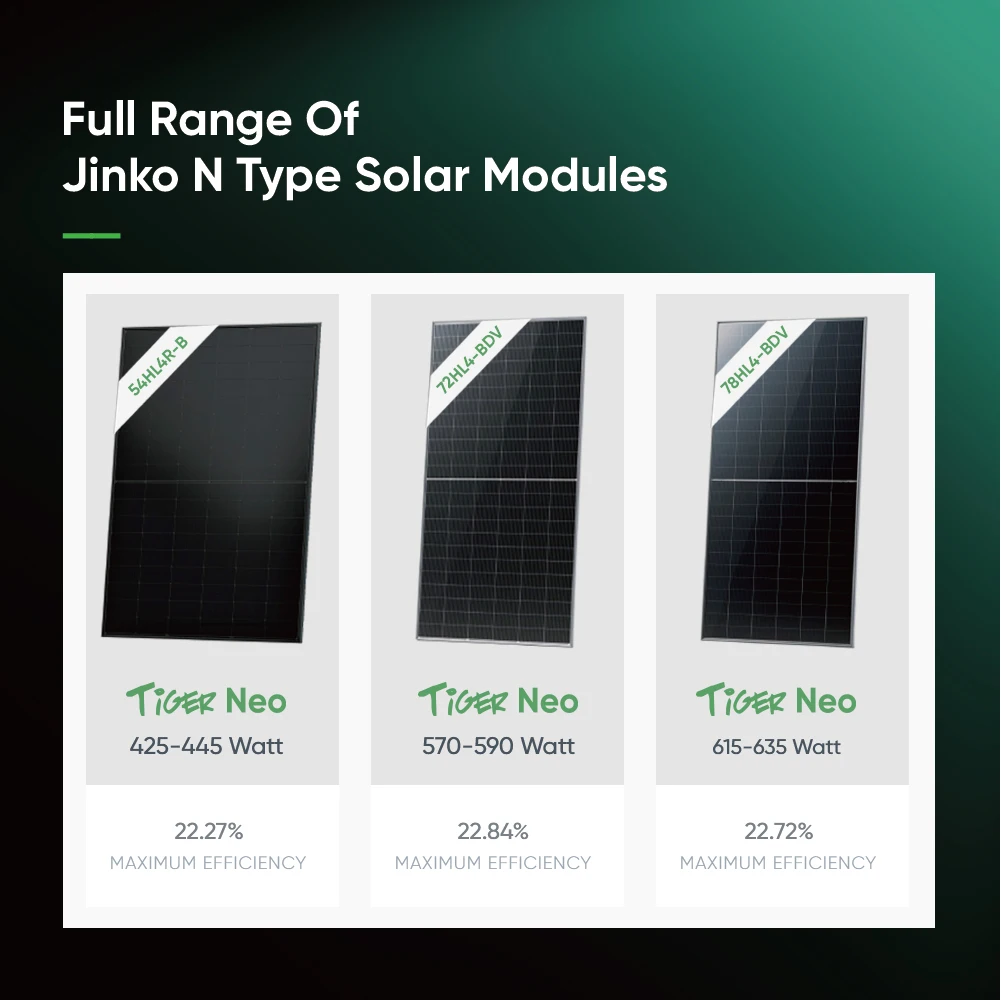

Full Range Of Jinko N TYPE Solar Modules

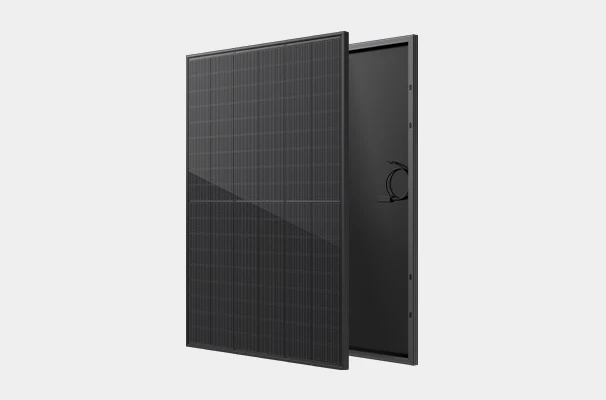

425W-445W All Black
JKM-54HL4R-B
No. of Cells: 108 cells
Dimension: 1762×1134×30mm
Weight: 21 kg
Modules per box: 36pcs
Modules per 40' container: 936pcs
Dimension: 1762×1134×30mm
Weight: 21 kg
Modules per box: 36pcs
Modules per 40' container: 936pcs

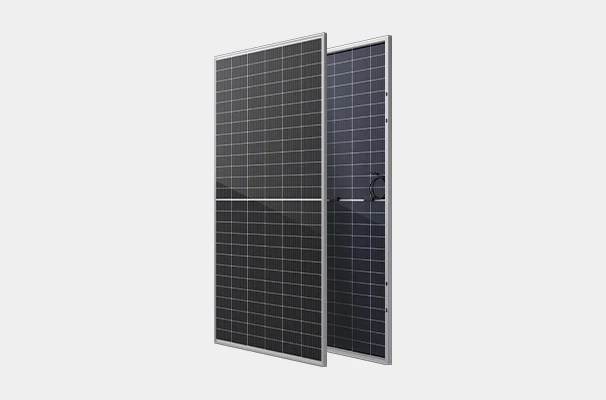

JKM-72HL4-BDV
No. of Cells: 144 cells
Dimension: 2278×1134×30mm
Weight: 31 kg
Modules per box: 36pcs
Modules per 40' container: 720pcs
Dimension: 2278×1134×30mm
Weight: 31 kg
Modules per box: 36pcs
Modules per 40' container: 720pcs
JKM-78HL4-BDV
No. of Cells: 156 cells
Dimension: 2465×1134×30mm
Weight: 34 kg
Modules per box: 36pcs
Modules per 40' container: 576pcs
Dimension: 2465×1134×30mm
Weight: 34 kg
Modules per box: 36pcs
Modules per 40' container: 576pcs
Tier 1 Solar Module

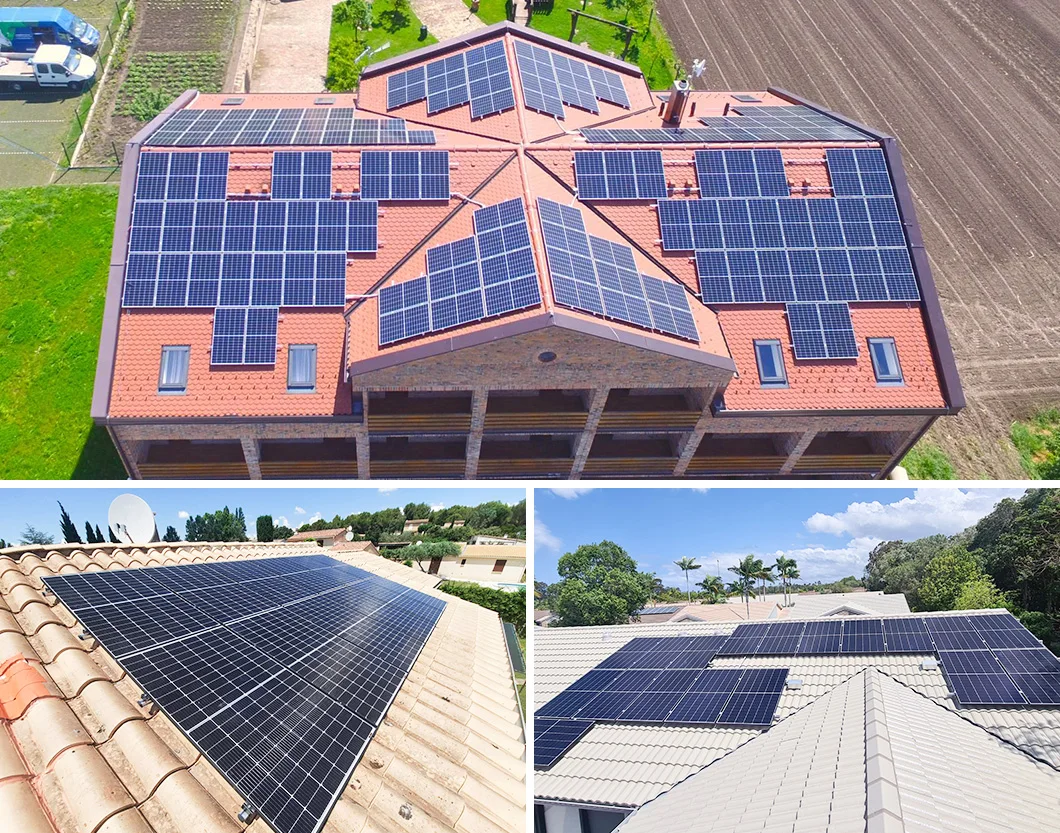

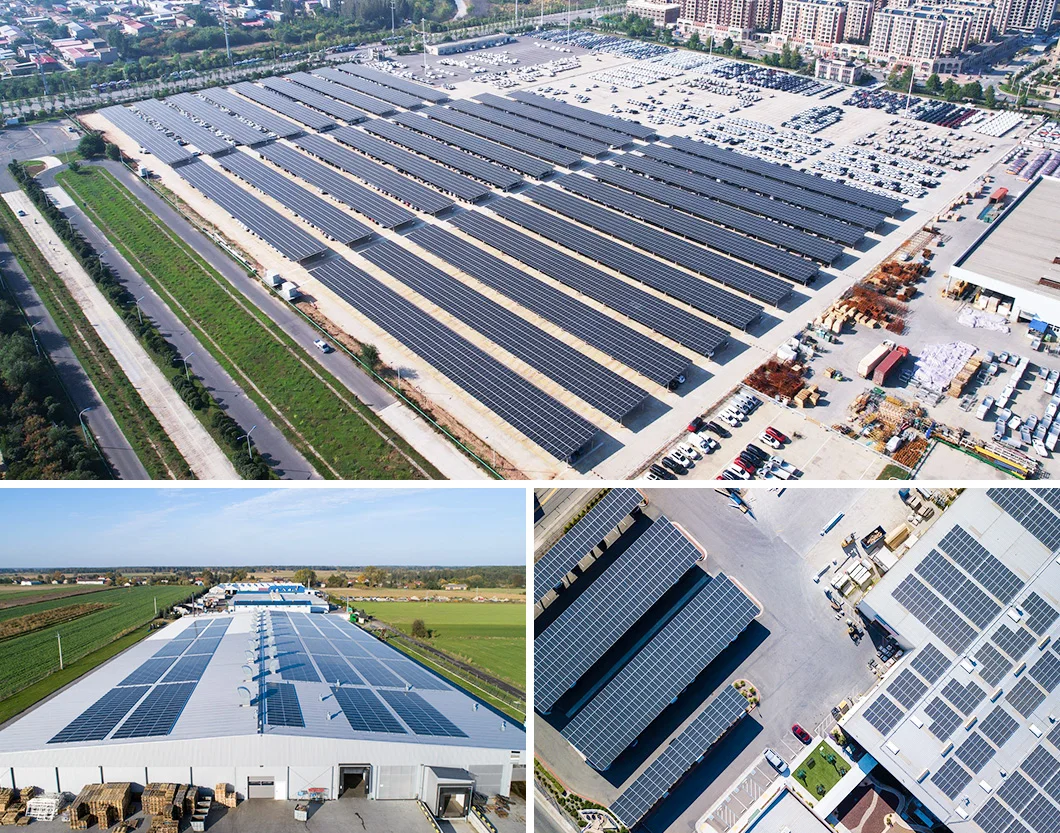

Project Case
Exhibition Photos
