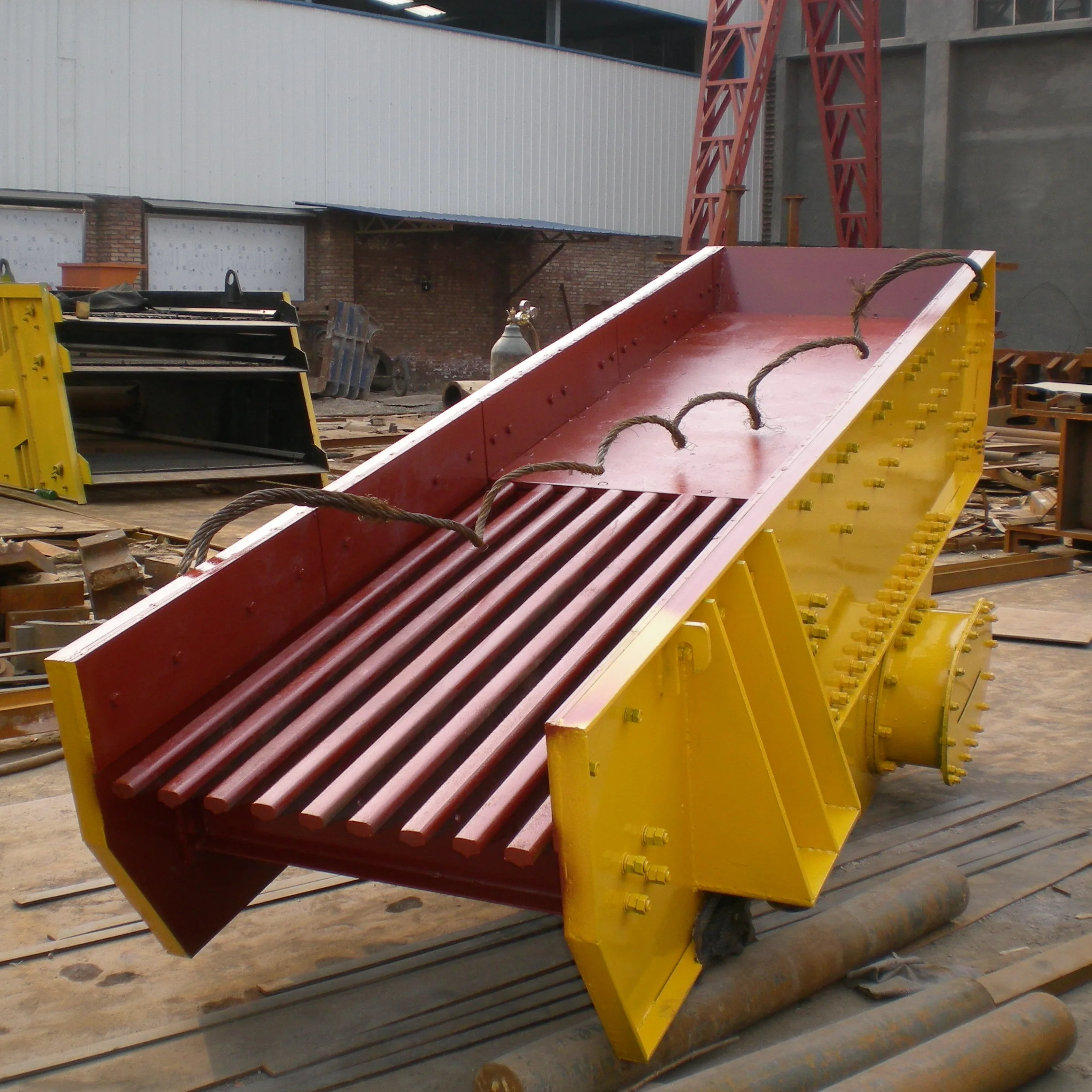

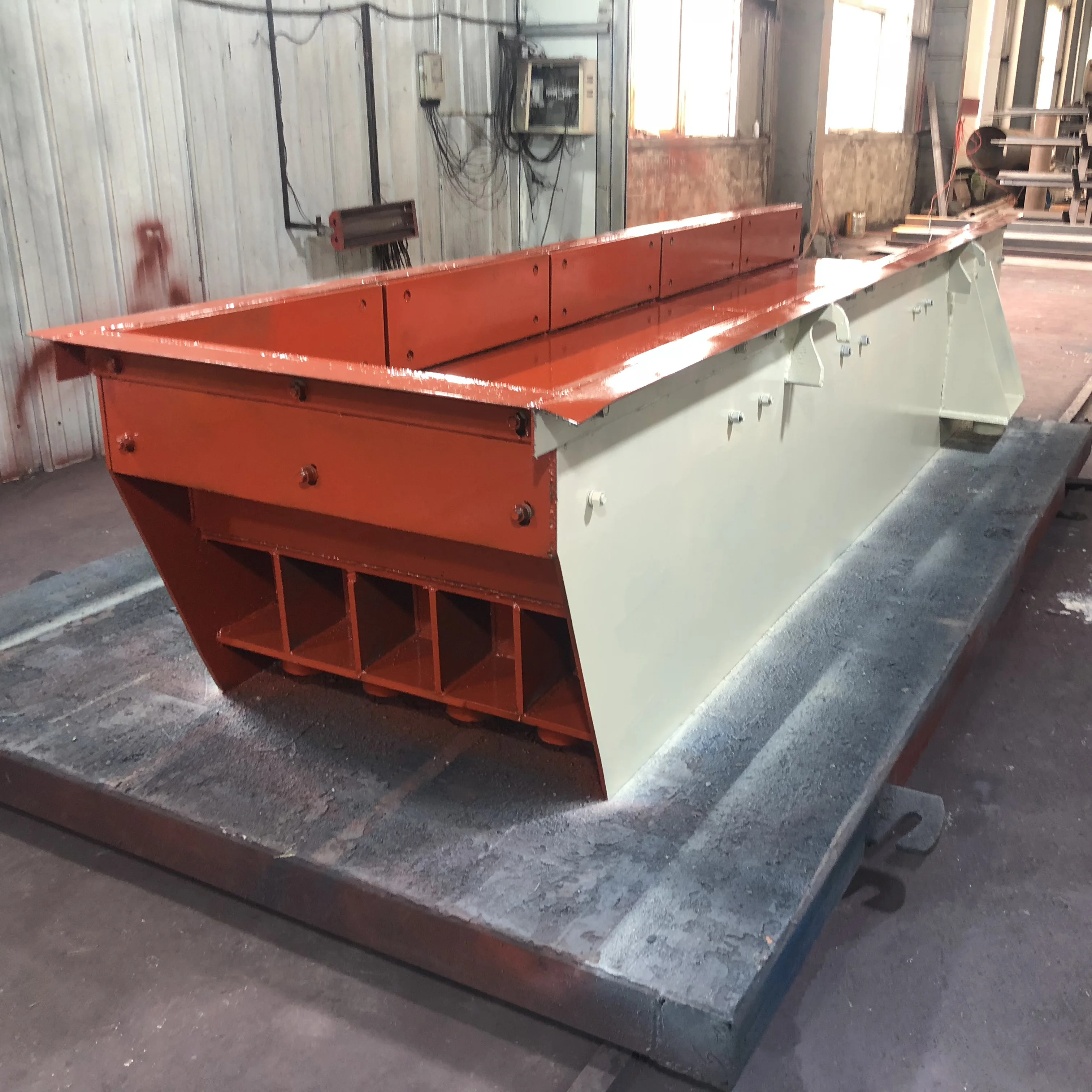

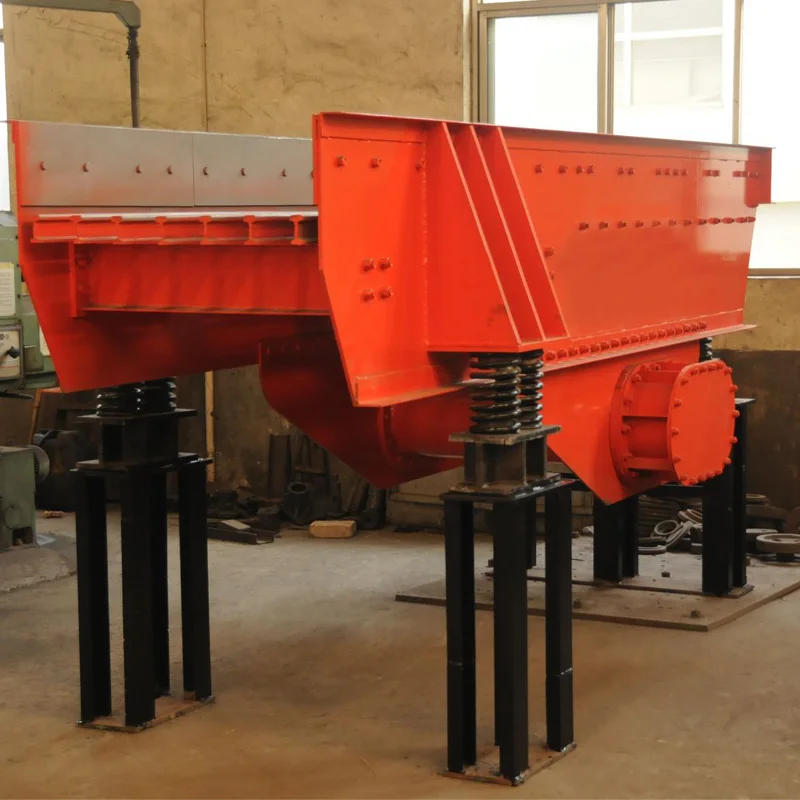

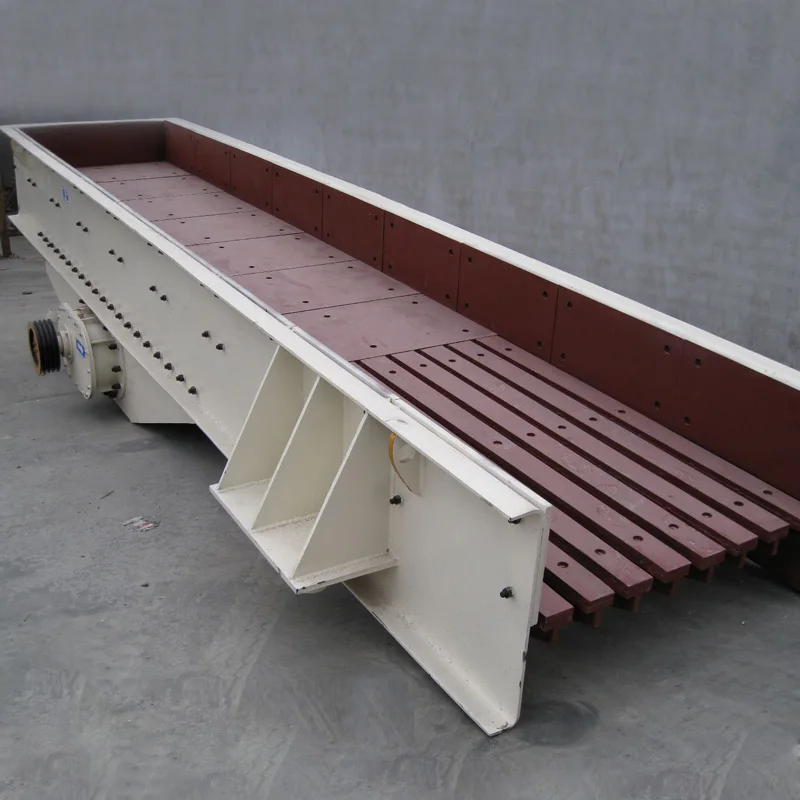

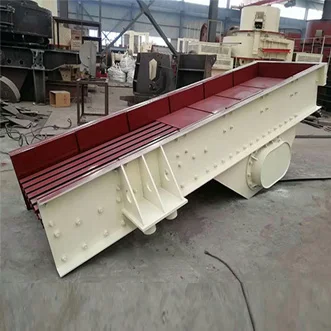

small vibrating feeder hopper electromagnetic vibrating feeder vibration feeder hopper
- Category: >>>
- Supplier: Henan Gaoda Machinery Manufacturing Co. Ltd.
Share on (1601063266005):
Product Overview
Description
Vibrating Feeder Product Introduction:
Vibrating feeder, also known as vibrating feeder, refers to a kind of equipment that can evenly and continuously feed lumpy and granular materials from the storage bin to the receiving device. In the sand and gravel production line, it can be continuously and evenly fed for crushing machinery, and coarse screening of materials, which is widely used in crushing and screening combined equipment in metallurgy, coal mine, mineral processing, building materials, chemical industry, abrasives and other industries.
Vibrating feeder features:
1. Stable vibration: high reliability during operation, able to provide a stable vibration environment.
2. Reliable work: compact structure, low maintenance cost and long service life.
3. The parts are made of high-quality materials, and the structure is reasonable, which can effectively extend the service life of the equipment.
4. Convenient and stable adjustment: the flow rate can be changed and controlled at any time by adjusting the excitation force, and the operation is simple.
5. Low noise: low power consumption, good adjustment performance, no flushing phenomenon.
6. Wide range of application: it can handle a variety of materials, such as coal, ore, sand, cement, etc.
7. High conveying efficiency: it can meet the needs of large-scale production and improve work efficiency.
1. Stable vibration: high reliability during operation, able to provide a stable vibration environment.
2. Reliable work: compact structure, low maintenance cost and long service life.
3. The parts are made of high-quality materials, and the structure is reasonable, which can effectively extend the service life of the equipment.
4. Convenient and stable adjustment: the flow rate can be changed and controlled at any time by adjusting the excitation force, and the operation is simple.
5. Low noise: low power consumption, good adjustment performance, no flushing phenomenon.
6. Wide range of application: it can handle a variety of materials, such as coal, ore, sand, cement, etc.
7. High conveying efficiency: it can meet the needs of large-scale production and improve work efficiency.
Working principle of vibrating feeder:
The vibrating feeder uses the eccentric block in the vibrator to rotate to generate centrifugal force, so that the movable parts such as the screen box and the vibrator make a forced continuous circle or approximate circle movement. The vibrating feeder is composed of a feeding trough body, an exciter, a spring bearing, a transmission device, etc. The vibration source of the tank vibrating feeding is the exciter, the exciter is composed of two eccentric shafts (main and passive) and the gear pair, the motor drives the active shaft through the V-belt, and then the gear on the active shaft meshes the passive shaft to rotate, and the main and passive shafts rotate in reverse rotation at the same time, so that the tank vibrates, so that the material flows continuously and continuously, so as to achieve the purpose of conveying the material.
The vibrating feeder uses the eccentric block in the vibrator to rotate to generate centrifugal force, so that the movable parts such as the screen box and the vibrator make a forced continuous circle or approximate circle movement. The vibrating feeder is composed of a feeding trough body, an exciter, a spring bearing, a transmission device, etc. The vibration source of the tank vibrating feeding is the exciter, the exciter is composed of two eccentric shafts (main and passive) and the gear pair, the motor drives the active shaft through the V-belt, and then the gear on the active shaft meshes the passive shaft to rotate, and the main and passive shafts rotate in reverse rotation at the same time, so that the tank vibrates, so that the material flows continuously and continuously, so as to achieve the purpose of conveying the material.
Model | Maximum feed size (mm) | Capacity (t/h) | Motor power (kw) | Installation inclination (°) | Tank size (mm) |
GZD-650×2300 | 300 | 80-100 | 2×1.1 | 10-20 | 650×2300 |
GZD-750×2500 | 350 | 100-130 | 2×1.1 | 10-20 | 750×2500 |
GZD-850×3000 | 400 | 120-150 | 2×3 | 10-20 | 850×3000 |
GZD-1000×3600 | 500 | 150-200 | 2×3.7 | 10-20 | 1000×3600 |
GZD-1100×3600 | 580 | 240-300 | 2×3.7 | 10-20 | 1100×3600 |
GZD-1300×3600 | 650 | 450-600 | 2×5.5 | 10-20 | 1300×3600 |
GZD-1500×3600 | 1050 | 450-1000 | 2×7.5 | 10-20 | 1500×3600 |
GZD-2000×3600 | 1200 | 550-1000 | 2×10 | 10-20 | 2000×3600 |
GZD-2500×5000 | 1500 | 650-1500 | 2×18 | 10-20 | 2500×5000 |
ZSW-380×95 | 500 | 100-280 | 8p 11 | 0-5-10-15 | 3800×960 |
ZSW-490×110 | 630 | 150-400 | 6p 15 | 0-5-10 | 4900×1100 |
ZSW-490×130 | 750 | 400-700 | 6p 22 | 0-5-10 | 4900×1300 |
ZSW-600×130 | 750 | 400-700 | 4p 22 | 0-5-10 | 6000×1300 |

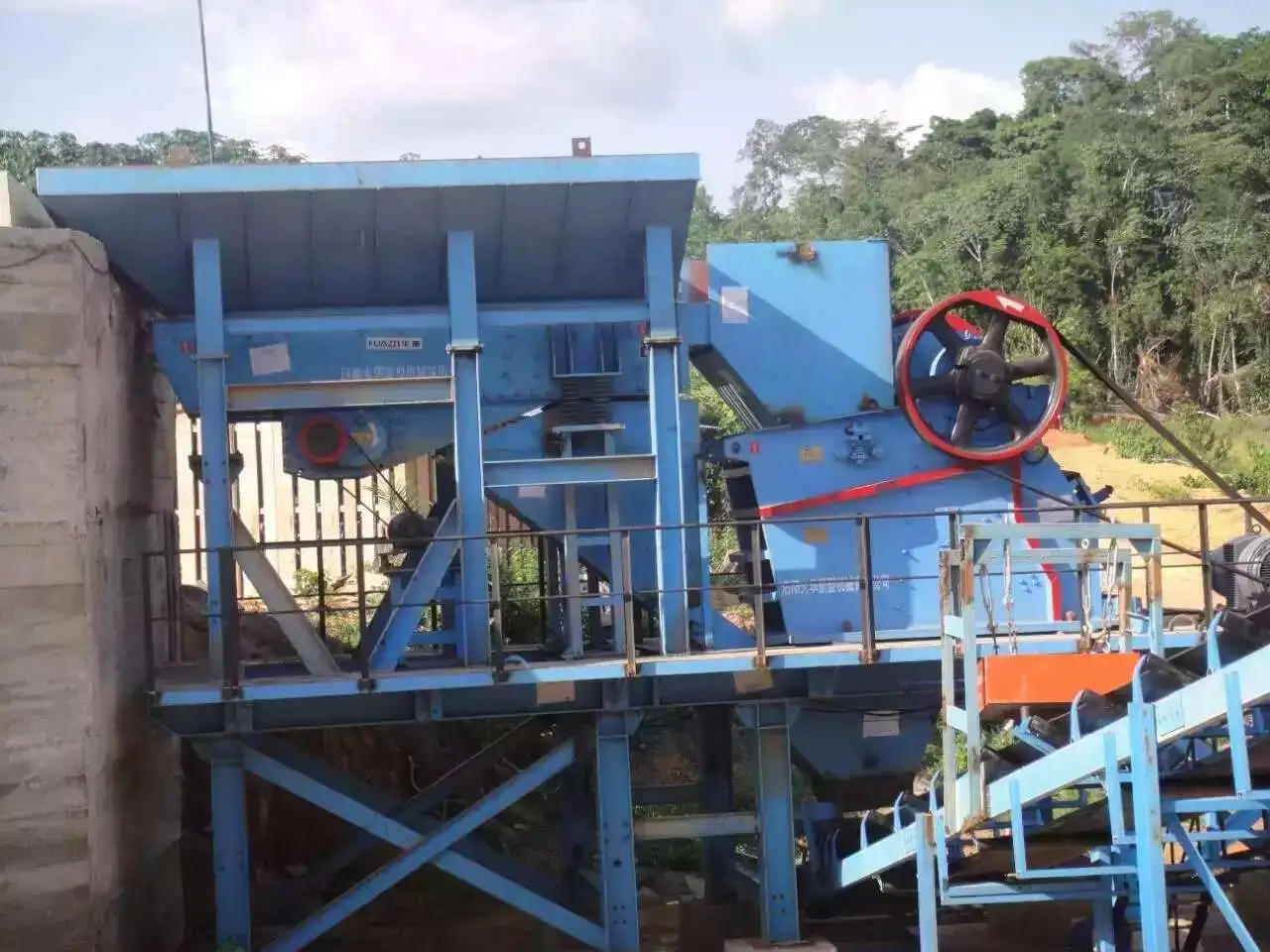

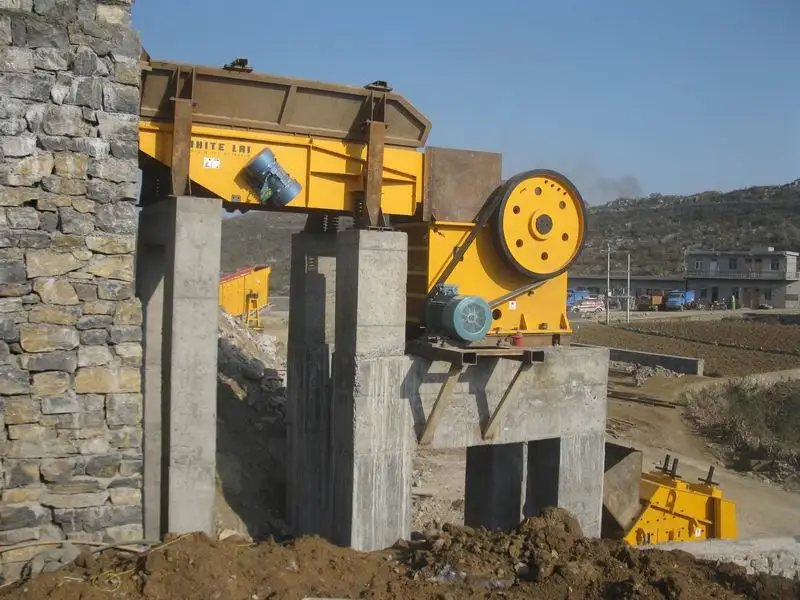

Guangxi Liuzhou Powder Production Line
African gold mine washing project
Indonesian tailings washing complete process
Q: How long is your delivery time?
A: 7-10 days for the stock, 15-30 days for the mass production.
Q: How long is the warranty? Does your company supply the spare parts?
A: One year. Spare parts for you at lowest cost.
Q: If I need the complete crushing plant can you help us to build it?
A: Yes, we can help you set up a complete production line and give you related professional advice. We had already build many mining projects in China & Overseas.
Q: What are the special advantages of the Jaw crusher equipment?
A: These Jaw crushers have features of a deep, symmetrical crushing chamber, easy settings adjustment, a large feed opening for its size, and an ideal nip angle that offers smooth material flow and high reduction efficiency.
A: 7-10 days for the stock, 15-30 days for the mass production.
Q: How long is the warranty? Does your company supply the spare parts?
A: One year. Spare parts for you at lowest cost.
Q: If I need the complete crushing plant can you help us to build it?
A: Yes, we can help you set up a complete production line and give you related professional advice. We had already build many mining projects in China & Overseas.
Q: What are the special advantages of the Jaw crusher equipment?
A: These Jaw crushers have features of a deep, symmetrical crushing chamber, easy settings adjustment, a large feed opening for its size, and an ideal nip angle that offers smooth material flow and high reduction efficiency.
