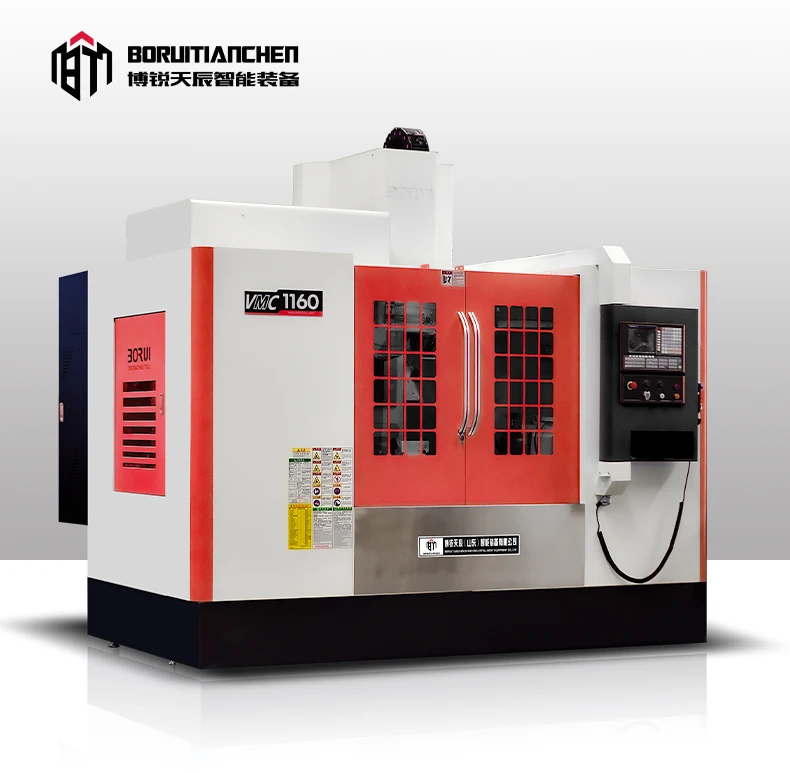

BRTC VMC1160 5 Axis Machine Cnc Metal Milling Center Cnc Machining Center Siemens 828D
- Category: >>>
- Supplier: Borui Tianchen (Shandong) Intelligent Equipment Co. Ltd.
Share on (1601063574612):
Product Overview
Description
Products Description
Application:
This Machine is suitable for mechanical processing and mold making .And it can adapt to the processing requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling,tapping,boring ,etc.
This Machine is suitable for mechanical processing and mold making .And it can adapt to the processing requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling,tapping,boring ,etc.
Features:
High quality resin sand
Taiwan spindle
Taiwan ball screw and locking nut
Taiwan pressure cylinder
Japanese NSK bearing germany R+W coupling
Automatic lubrication system
Chip conveyor at optional
Taiwan spindle
Taiwan ball screw and locking nut
Taiwan pressure cylinder
Japanese NSK bearing germany R+W coupling
Automatic lubrication system
Chip conveyor at optional
Product Parameters
specifications | unit | VMC1060 | VMC1160 |
Table size | mm | 1200x600 | 1200x600 |
Table maximum load | kg | 800 | 800 |
X/Y/Z axis travel | mm | 1000x600x600 | 1100x600x600 |
Distance between spindle center and column surface | mm | 650 | 650 |
Distance between spindle end face and worktable surface | mm | 120-720 | 120-720 |
X/Y/Z rapid feed | m/min | 36/36/36 | 24/24/20 |
Cutting feed | m/min | 1-10000 | 1-10000 |

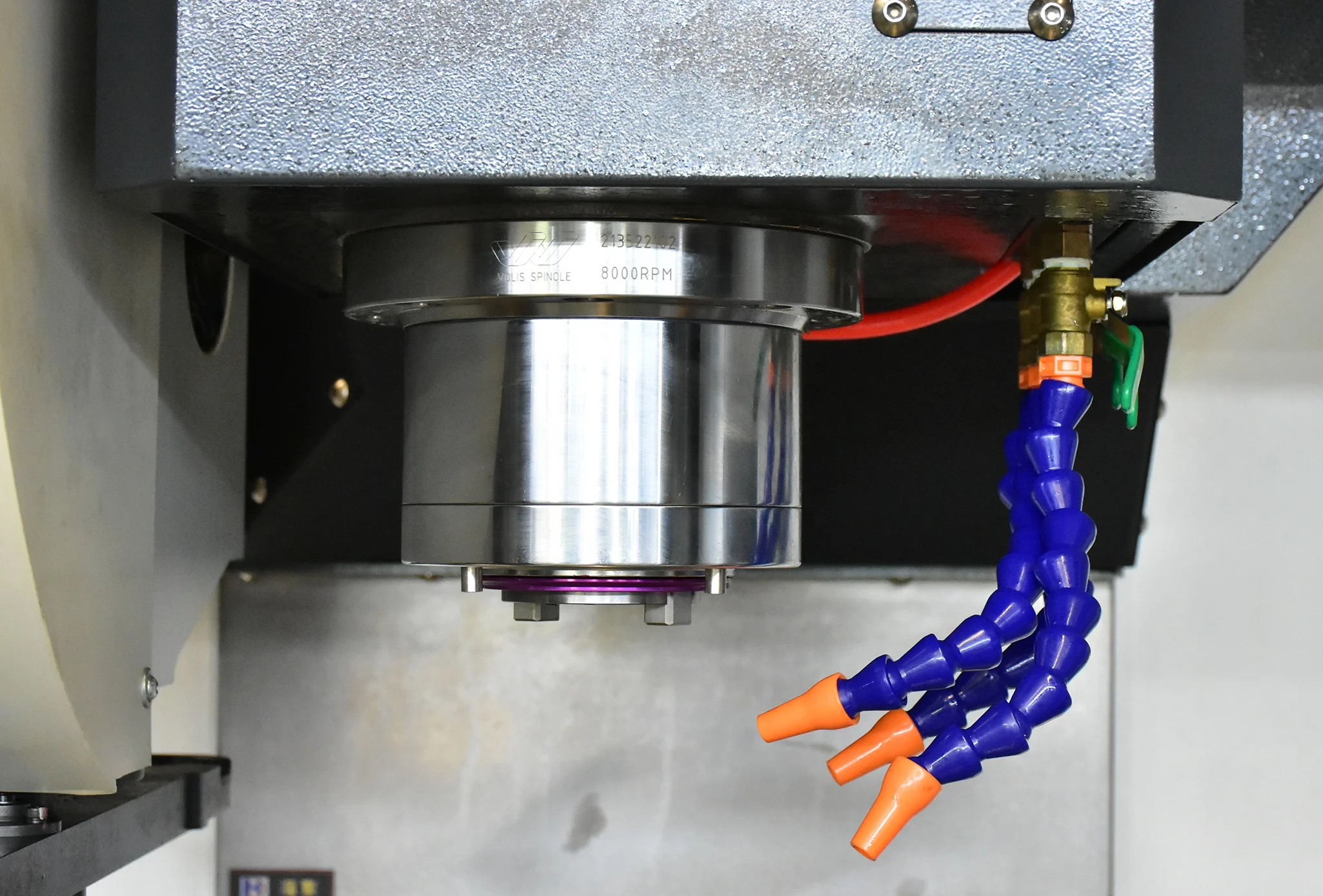

Max. spindle speed | r/min | 8000 | 8000 |
Spindle taper | BT40 | BT40 | |
Spindle motor | kw | 11 | 11 |
X/Y/Z axis servo motor | kw | 3/3/4.5 | 3/3/4.5 |
X/Y/Z guide rail form | linear rail | linear rail | |

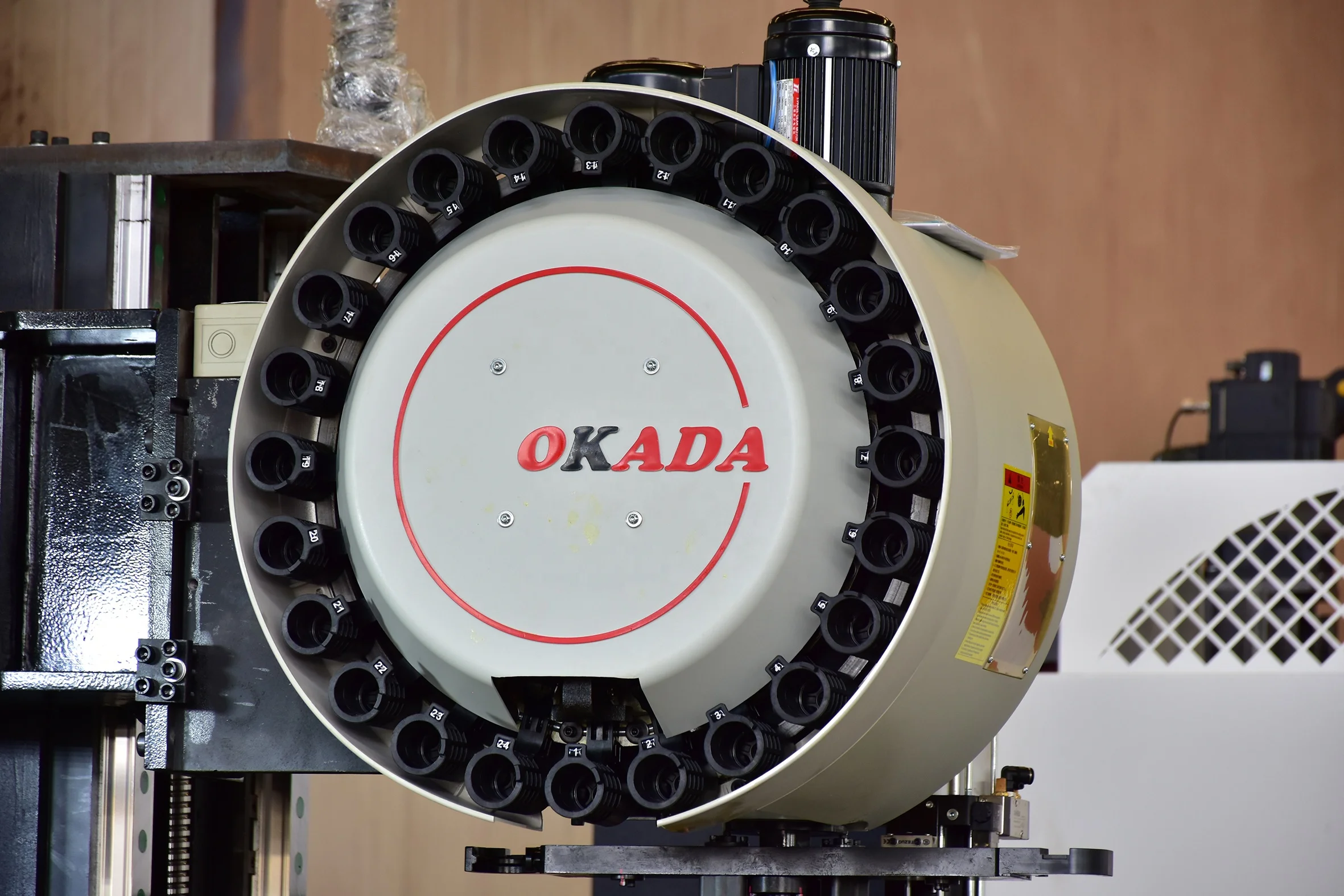

Tools type | Arm 24 | Arm 24 | |
Machine dimension | mm | 3340x2800x2700 | 3540x2800x2700 |
Machine weight | kg | 7000 | 7400 |
Details Images
Company Profile
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine,gear hobbing machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ; Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine,gear hobbing machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ; Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
