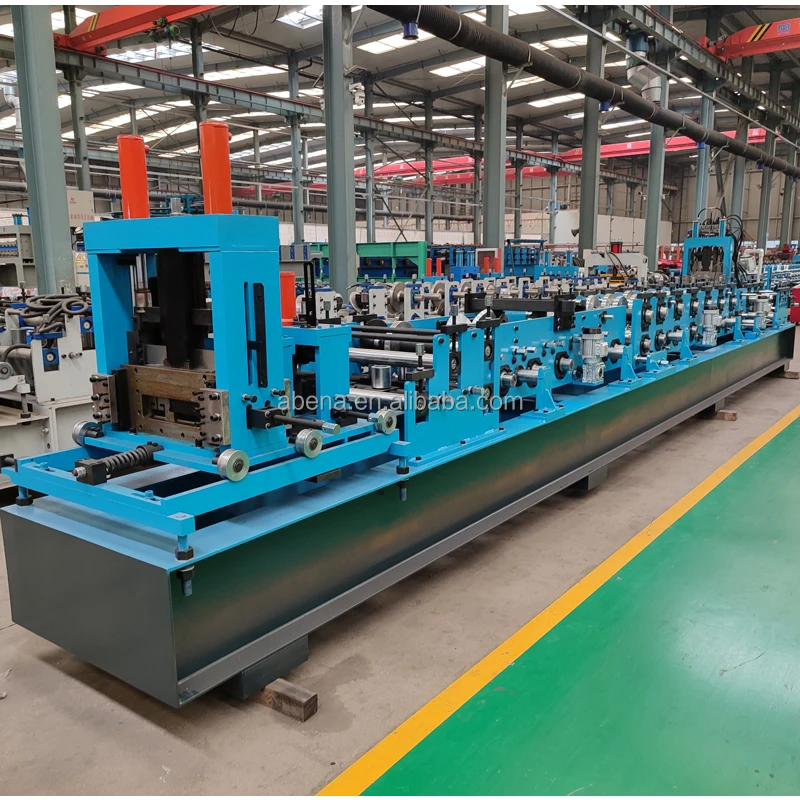

Purlin Roll Forming Machine Purlin Machine CZPurlin Roll Forming Machine
- Category: >>>
- Supplier: Cangzhou Abena Industry Co. Ltd.
Share on (1601063699481):
Product Overview
Description
Product Description
Video Description

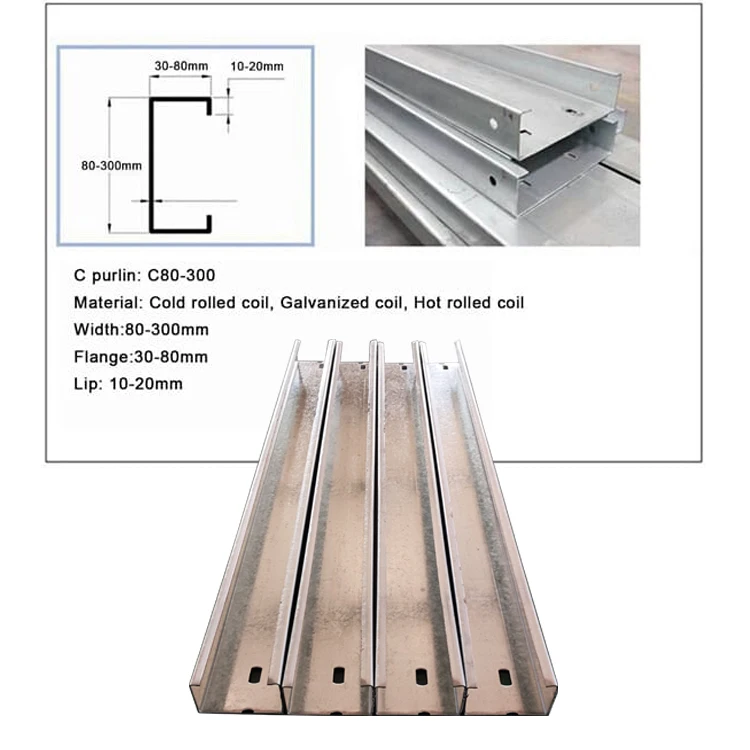

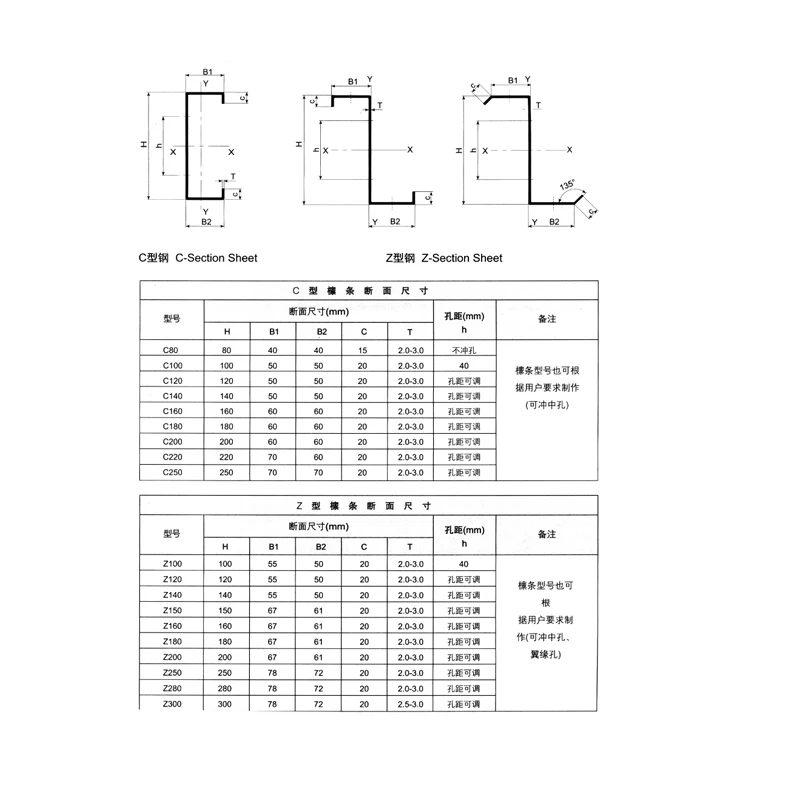

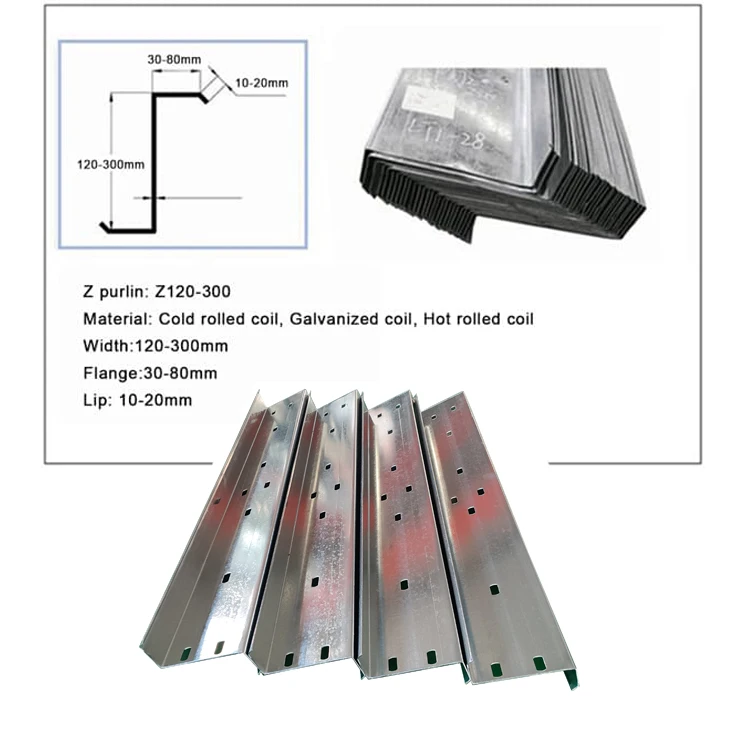

Profile drawing for reference:
Standard sepcification: Width from 80-300 mm(3-11 inch) , Thickness from 1-3mm( 15-9 gauge ) , other specail size we can also
customized.
customized.
No. | Item | Specification |
Material | Raw material | Galvanized steel or PPGI |
Thickness | 0.3-0.6mm | |
Machine | Roller station | 16 roller stations or depend on customer' drawing |
Shaft diameter | 75mm | |
Solid shaft material | High grade 45# steel with Cr12 mov coated, quenching & tempering & treatment | |
Roller material hardness 30-40 HRC | Cr12 | |
Machine dimension | 11500*1350*1750mm | |
Machine weight | About 3.0T | |
Working speed | 25-35m/min | |
Cutter | Hardness | 50-65 HRC |
Cutting tolerance | ± 1mm | |
Material | Cr12 | |
Operate | Hydraulic cutting | |
Power | Driving way | Chain 1 inch |
Main motor | 4KW | |
Pump motor for cutter | 3 KW | |
Voltage | 380v,50hz ,3ph or Customized as customer' request | |
Control system | PLC brand | Touchable screen |
Screen | Touchable screen | |
Language | Chinese and English or add customer need language | |
Decoiler | Operation | Manual |
Weight capacity | 5 Tons | |
Price | Free as gift | |
Receive table | Operation | Manual |
Length | 3m | |
Price | Free as gift |
C&Z purlin roll forming machine is a piece of industrial equipment used in the manufacturing of C and Z-shaped purlins. Purlins are horizontal structural members used in the construction of buildings to support the roof or walls. C and Z purlins are two common types of purlins, and they have different shapes and applications.
Processing Flow

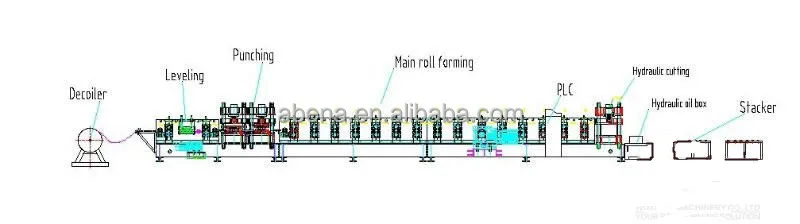

Uncoiling---(Pre-cutting system)---Leveling & guiding---Main roll forming machine---Hydraulic punching---Hydraulic universal cutting---Runout table

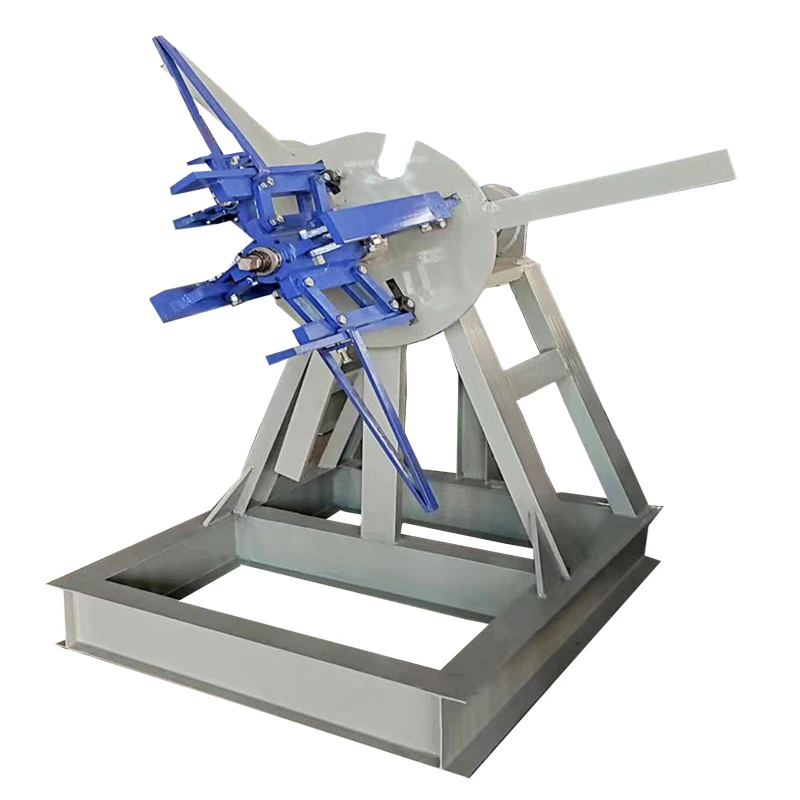

Capacity:5 tons Coil inner diameter:450-550mm Feeding width: max 500mm
Structure: welded by the steel plates and profiled bar.
The shrink and expand of coil is automatic , Drive by Hydralic power.
Transmission Device
processing
heat treatment to HRC: 58-60 ,finish

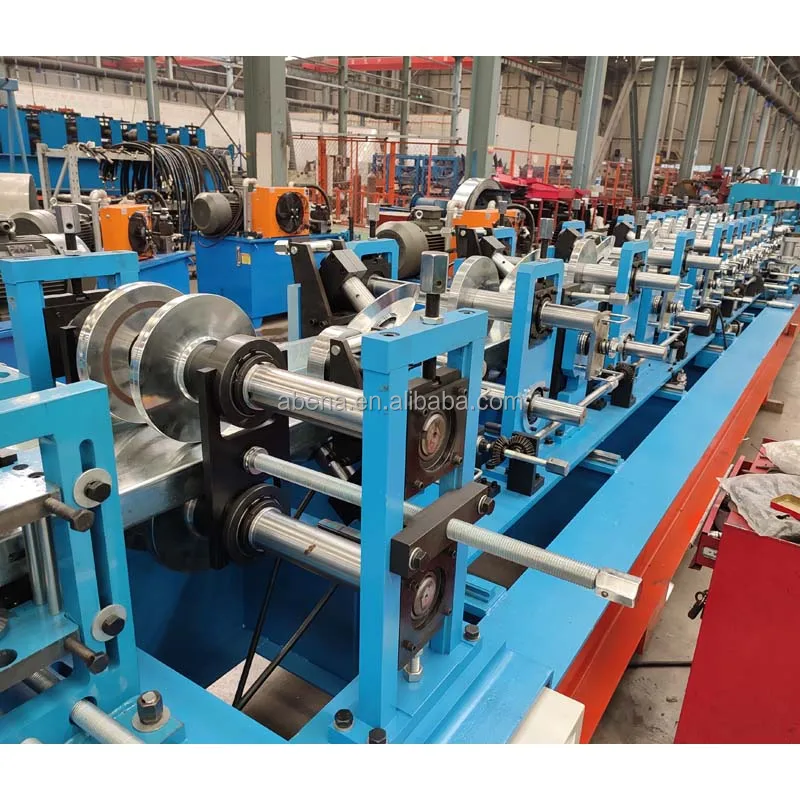

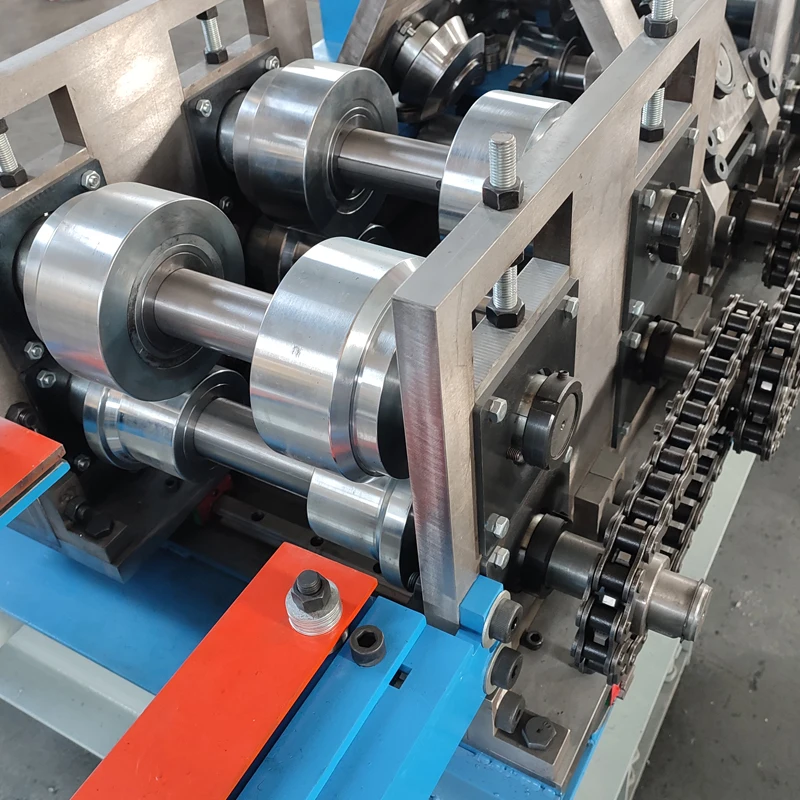

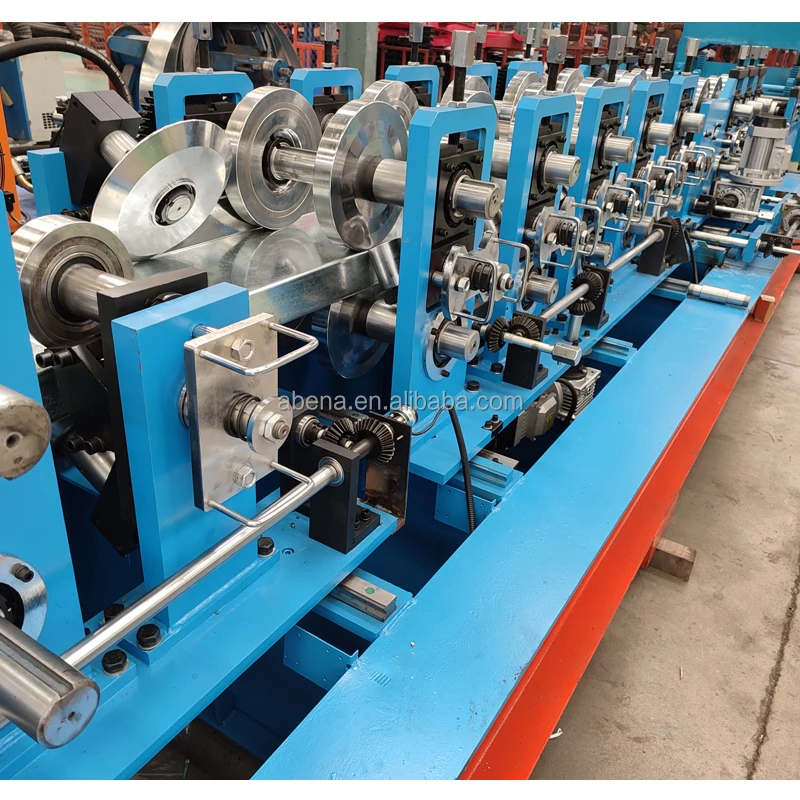

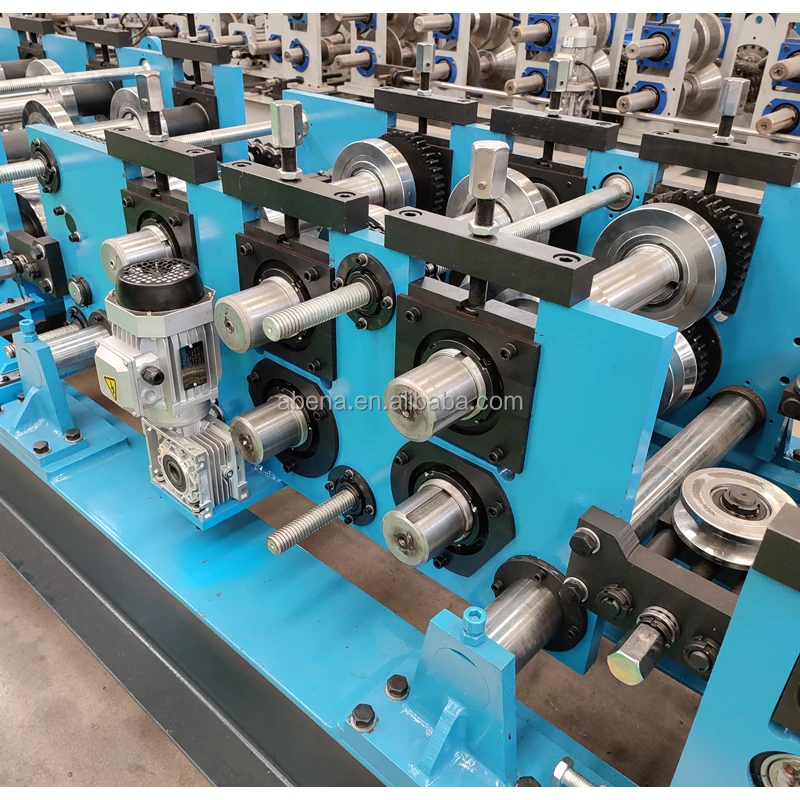

turning Roller stations: 21 rows , 12 unit roller
stations for C and Z changing. Shaft material:Shaft material: 40 Cr CNC processing HRC28-32 ,finish turning and electroplate Drive

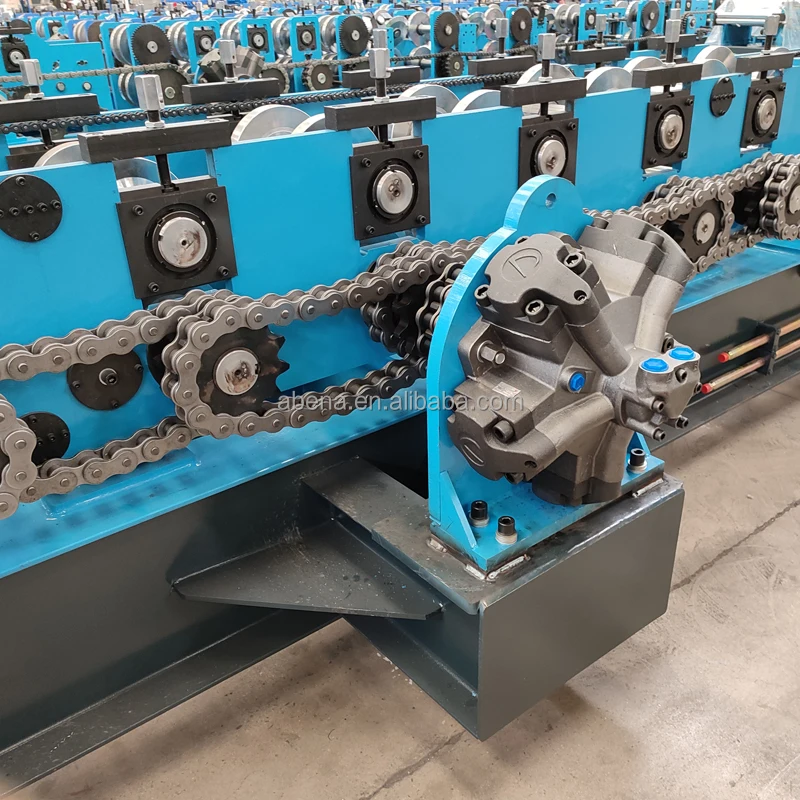

by Heavy duty chains: 1.5 inch
stations for C and Z changing. Shaft material:Shaft material: 40 Cr CNC processing HRC28-32 ,finish turning and electroplate Drive
by Heavy duty chains: 1.5 inch

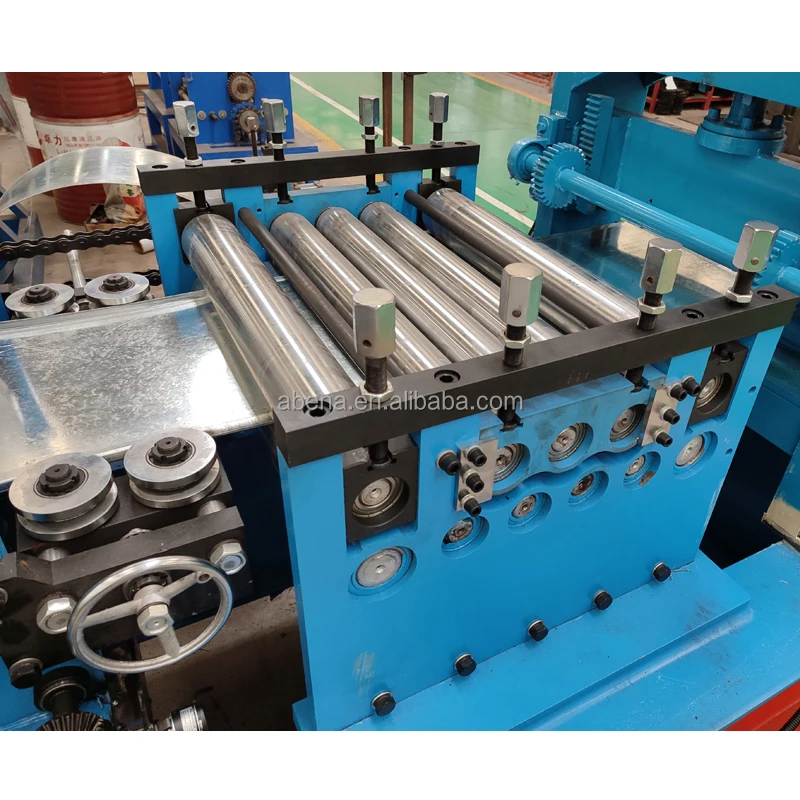

Leveling rollers: 3 up 4 down Roller material:Cr15 Roller
diameter: 75mm Feeding width adjustment: automatic by button Make sure inputted steel sheet straight and neat and then
roll forming process could be made accurate
roll forming process could be made accurate
Length measuring: automatic encoder measuring,Tolerance of length is 3000mm+- 1.0mm

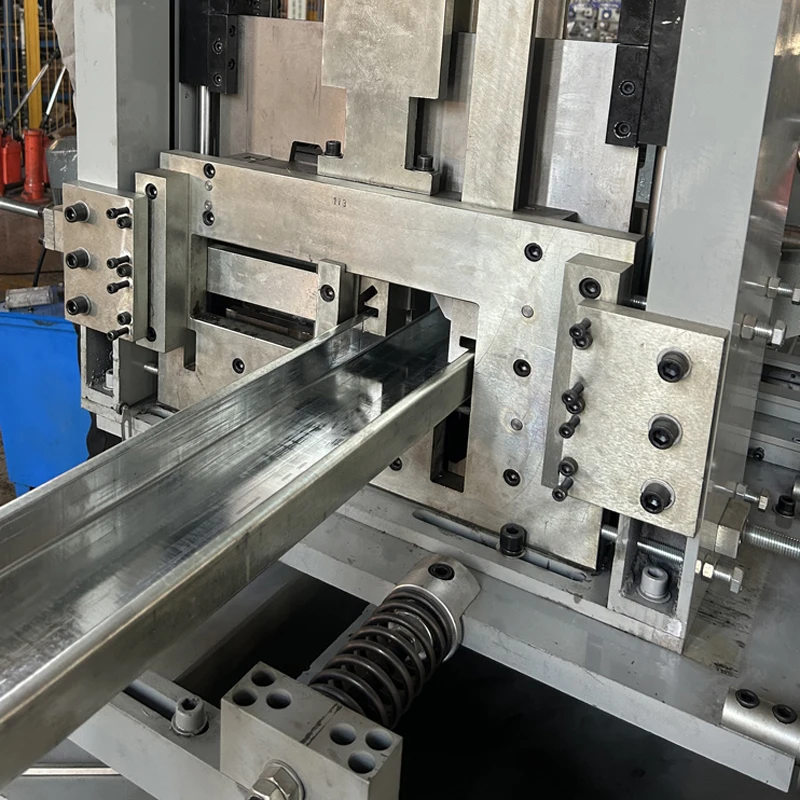

You can manually adjust the cutter to cut different sizes of c/z purlin. You do not need to change new blade and this cutter is easy to operate.
You can manually adjust the cutter to cut different sizes of c/z purlin. You do not need to change new blade and this cutter is easy to operate.
● Operating language:English and Chinese(or as requested)

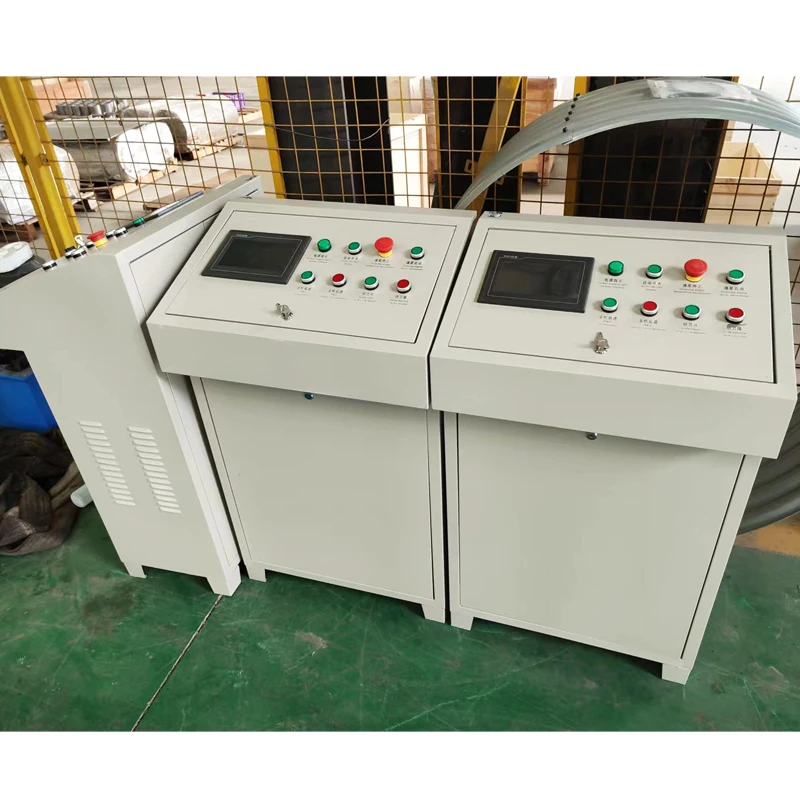

You can set the orders on this part,changing product length and quantity,it is really easy to operate,and there are aviation plugs to make it much easier to install the machine while it arrived.
