Whole House New Arrival Home 2000watts 8000w Solar Power Inverter Backup Generator 5 Kva for a Whole House Household Fridge
- Category: >>>
- Supplier: Guangdong Xindun Power Technology Co. Ltd.
Share on (1601063719977):
Product Overview
Description
Product Description
1.Convenient installation, integrating solar controller, inverter and battery all in one machine.
2.Compact and elegant design, unique art design and convenient output connection port.
3.Flexible energy storage capacity, supporting three charging methods: solar power, Petrol and diesel generator, and grid power.
4.Support wifi or app monitoring,
5.With over voltage, over temperature, overload,battery BMS report and comprehensive protection.
Highlight

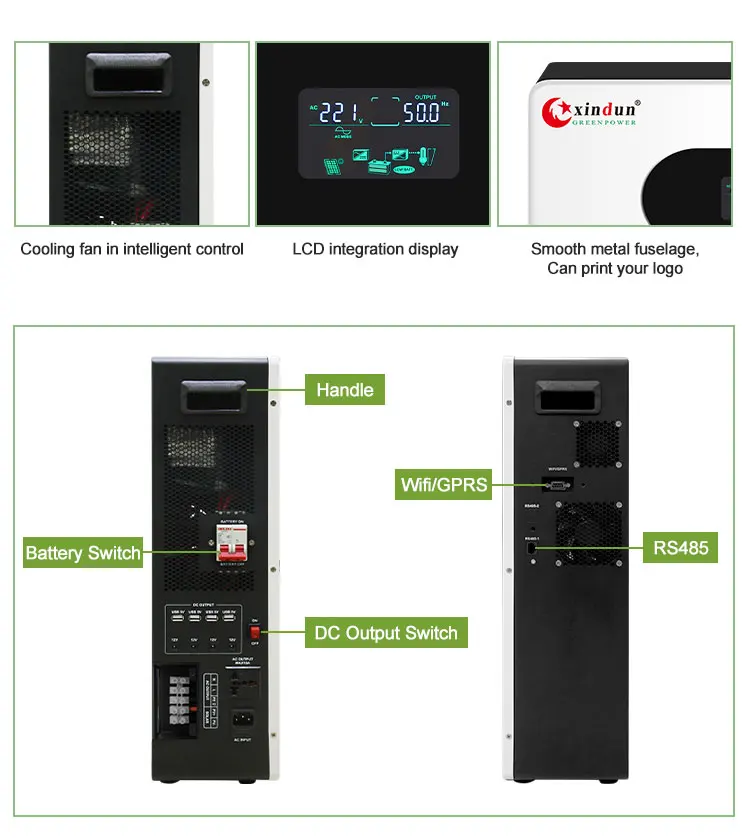

Product Detail
Specification
Model ESS-Li | 301H/A | 601H/A | 122H | 222H | 302H | 502H | 602H | 702H | ||||||||
Power | ||||||||||||||||
Rated Power | 300W | 600W | 1200W | 2200W | 3000W | 5000W | 6000W | 7000W | ||||||||
Battery | ||||||||||||||||
Standard Battery Voltage | 12.8VDC | 25.6VDC | 51.2VDC | |||||||||||||
Battery Type | LiFePO4 Battery | |||||||||||||||
Battery Capacity | 50AH | 100AH | 200AH | |||||||||||||
Max Charge Current (utility grid+solar) | 25A | 30A | 30A | 60A | 55A | 90A | 110A | 110A | ||||||||
Max utility grid/solar charge current | 20A/5A | 20A/10A | 20A/10A | 40A/20A | 40A/15A | 60A/30A | 80A/30A | 80A/30A | ||||||||
AC Input | ||||||||||||||||
AC Input Voltage | 110VAC/120VAC/220VAC/230VAC/240VAC | |||||||||||||||
AC Input Frequency | 45Hz~55Hz（50Hz），55Hz~65Hz（60Hz） | |||||||||||||||
AC Output | ||||||||||||||||
Output Wave | Pure sine wave | |||||||||||||||
Conversion efficiency(INV mode) | >85% | |||||||||||||||
Output Voltage/Frequency (INV mode) | 110VAC/120VAC/220VAC/230VAC/240VAC / 50Hz±1%,60Hz±1% (Can be set) | |||||||||||||||
MPPT Solar Charge Controller | ||||||||||||||||
Max PV Input Voltage（Voc) (At The Lowest Temperature) | 120VDC | 120VDC | 120VDC | 180VDC | 180VDC | 180VDC | 180VDC | |||||||||
PV Array Maximum Power | 280W | 560W | 1120W | 2240W | 3360W | 4480W | 4480W | |||||||||
MPPT Tracking Voltage Range | 15V-80CDV | 30VDC-100VDC | 30VDC-100VDC | 60VDC-140VDC | ||||||||||||
Other | ||||||||||||||||
Protection | Battery undervoltage protection/Battery overvoltage protection/Battery overvoltage recovery voltage/Overload power protection/Short circuit protection/Overtemperature protection | |||||||||||||||
Protection Degree | IP20 | |||||||||||||||
Display | LCD | |||||||||||||||
Cooling method | Cooling fan in intelligent control | |||||||||||||||
Communication | RS485, Mobile APP（WIFI or GPRS monitor）（optional） | |||||||||||||||
Working Mode | Mains priority/PV priority | |||||||||||||||
Operating Temperature | -15 ℃ ~40 ℃ | |||||||||||||||
Relative Humidity | 0%-95% (No condensation) | |||||||||||||||
Size | ||||||||||||||||
Product Size(L*W*Hmm) | 560*380*150 | 630*430*219 | 525*245*938 | 540*325*1157 | ||||||||||||
Package Size(L*W*Hmm) | 610*435*225 | 680*485*295 | 585*305*1100 | 600*385*1285 | ||||||||||||
N.W.(kg)(excluding battery) | 7 | 10 | 15 | 20.5 | 37 | 40 | 54.5 | 57.5 | ||||||||
G.W.(kg)(excluding battery) | 8.5 | 11.5 | 16.5 | 22.5 | 45 | 48 | 64.5 | 67.5 | ||||||||

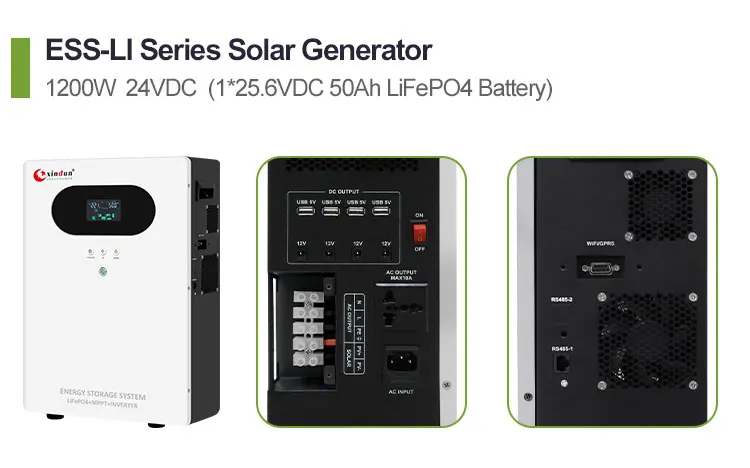

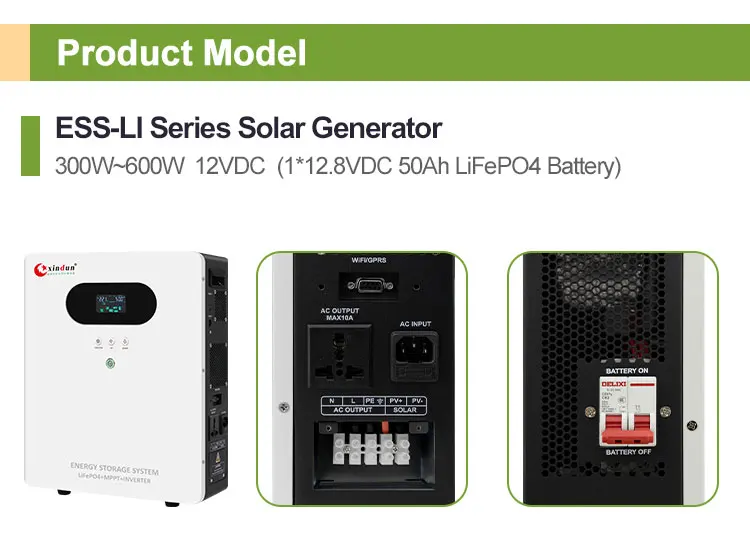

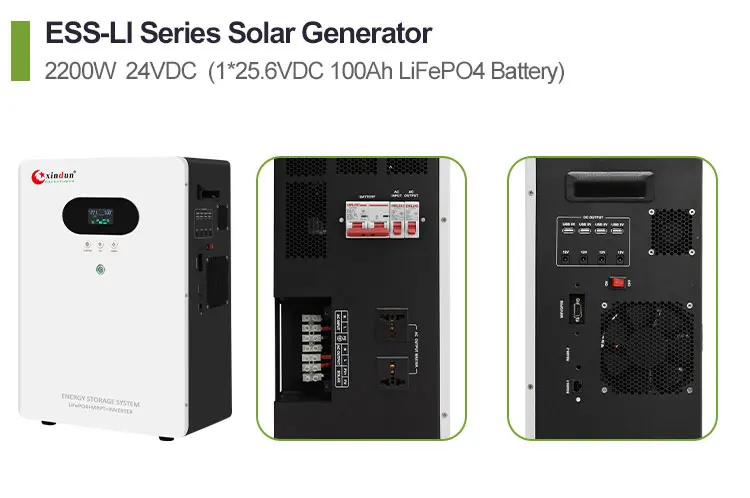

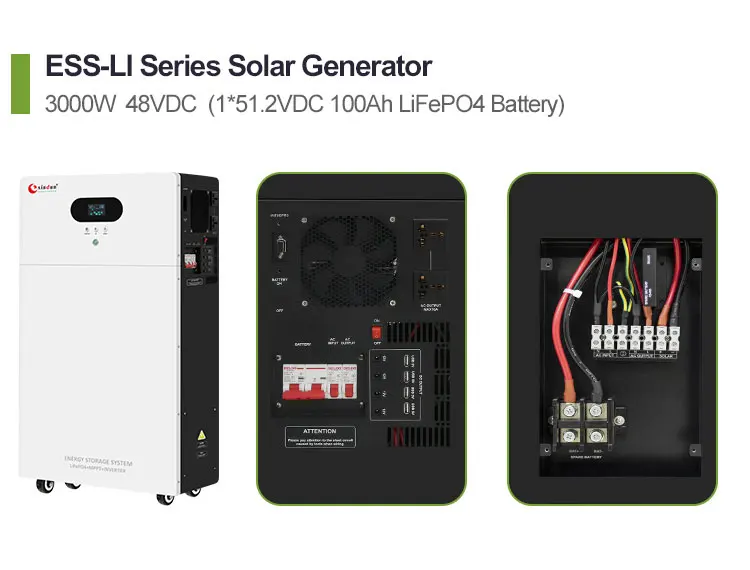

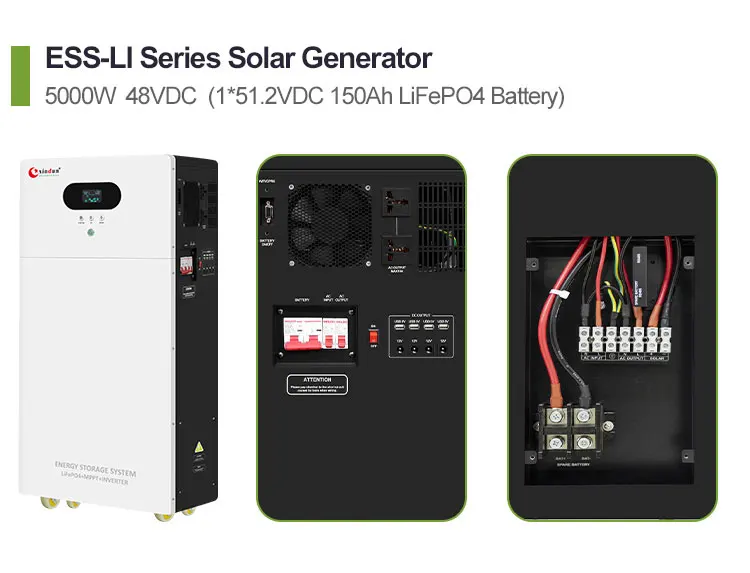

ESS-Li Model

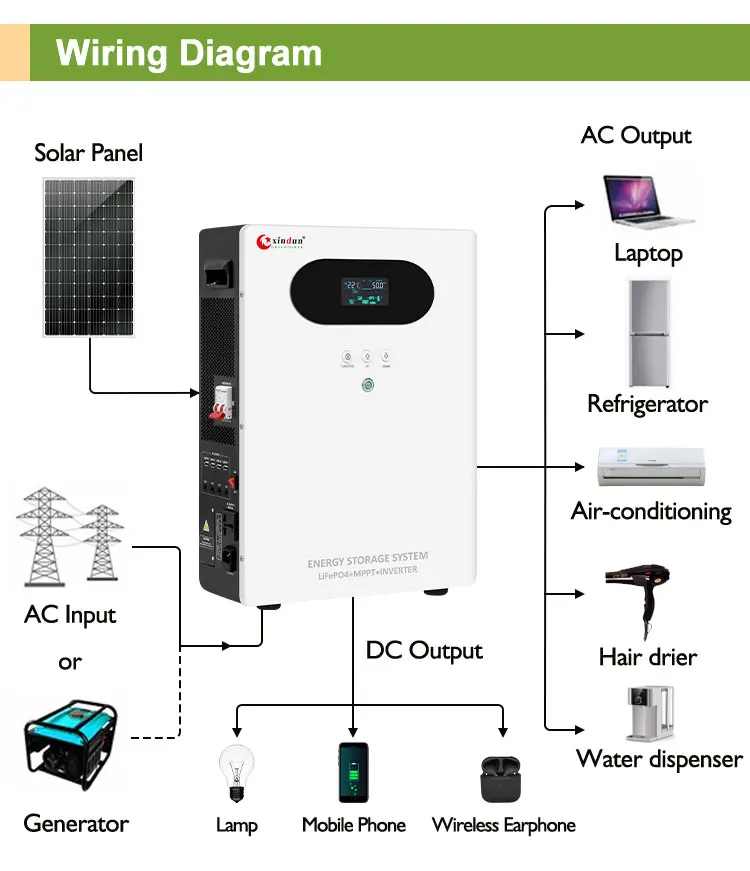

Wiring Diagram

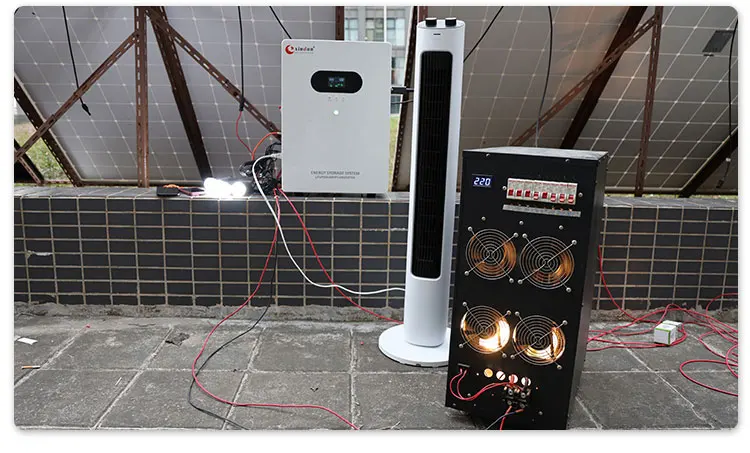

Application

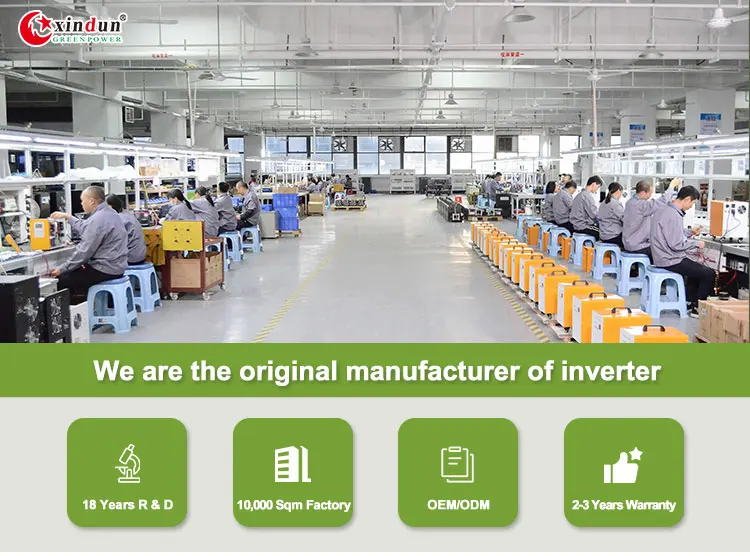

Company Profile
Guangdong Xindun Power Technology Co.,Ltd | ||
Factory Location | Foshan,Guangdong,China | |
Product Range | solar inverter, hybrid inverter, ups, solar charge controller, solar power system, mini solar dc system | |
Main Market | Africa, Middle East, Asia & South America. (Ukraine, Russia, Vietnam, Pakistan, Nigeria, Kenya, South Afriac, Ghana, Thailand, Philippines, etc.) | |

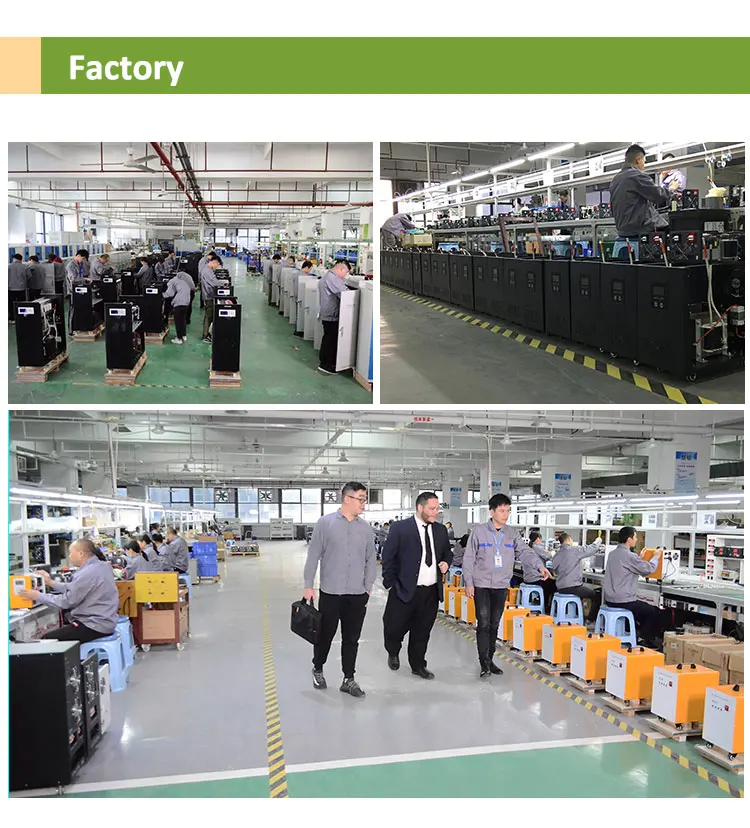

Factory | 7000 Square Meters, 100+ workers | |
Department | R&D, Production, Sales, Marketing, Purchasing, QA, After-sale service department | |
Certificate | ISO 14001:2015, CE, IEC, TUV etc. | |
Patent | Software Paten, Design Patent, Project Pantent | |
