Vacuum tube stand solar heating system 500 l solar hot water heater for apartment
- Category: >>>
- Supplier: Zhejiang Dingxin Electric Appliance Co. Ltd.
Share on (1601063920501):
Product Overview
Description
Product Description
Specification

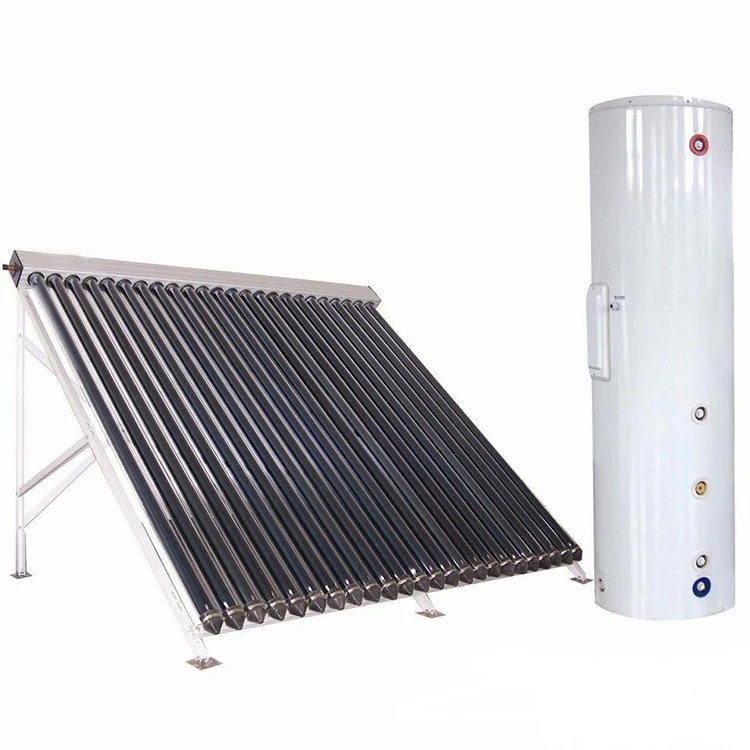

Split pressurized solar water heater features
1. The upright tank can make the water temperature to a high level. It can hot the water instantly.
2. The tank inside the building, the hot water loses less energy than the normal one .

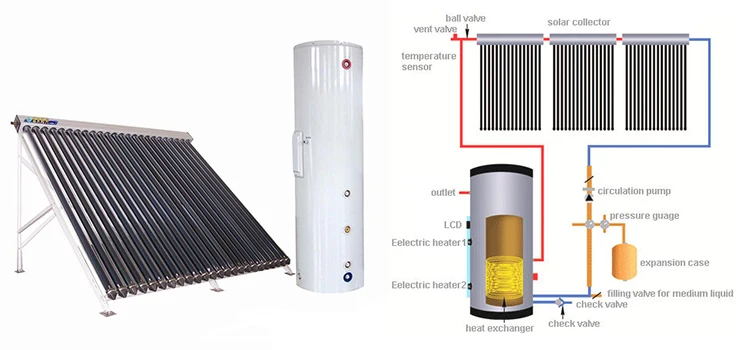

3. The pressurized solar water heater collector and the split solar water heater tank is separated,
that makes the system combine with the building perfectly, which will reduce the sightseeing for the
building and environment around .

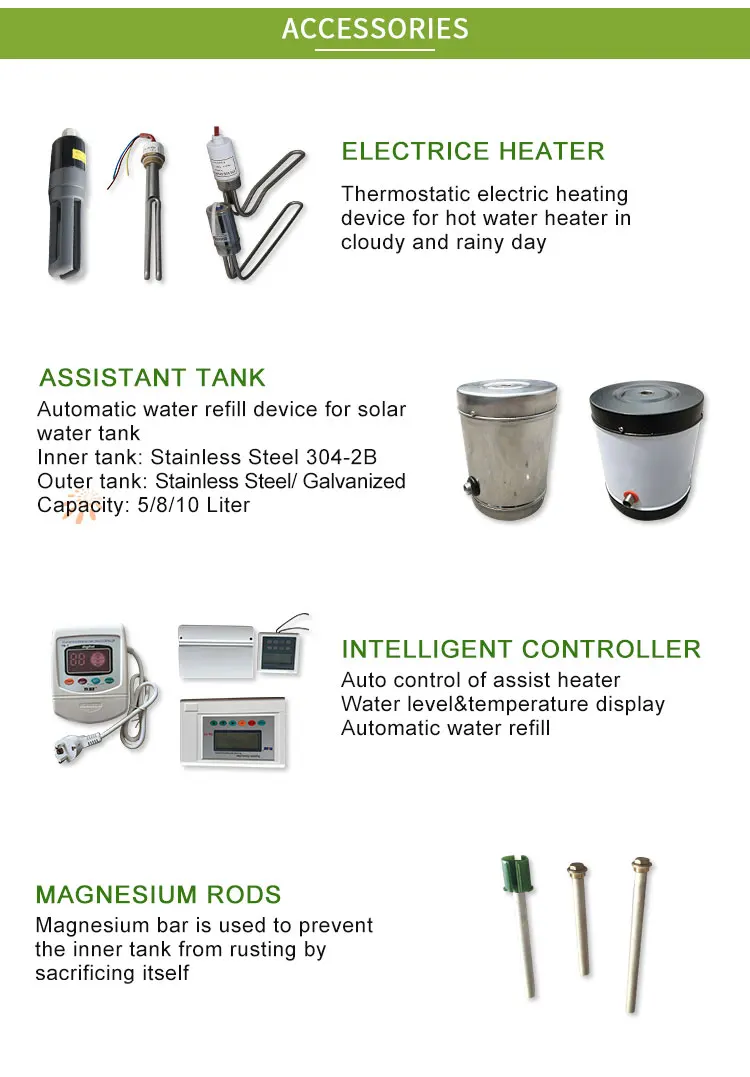

4. Back up with electric heater so that in the day without sunshine hot water can also be used.
5. Can be combined with gas or electric heater
6. Max. Pressure: 12bar; Operating Pressure: 6 bar
7. It can be used for other function, such as warming
Descripition Split pressurized solar water heating system
Material of out manifold 0.55mm thickness color steel/ fluorine carbon steel
0.55mm thickness color steel/ fluorine carbon steel SUS304 stainless steel
Tank insulating layer 50mm 45kg/m³ high-density polyurethane foamed
Inlet and outlet hole Male G3/4
Max pressure 0.6 Mpa
Solar collector tube 3.3 Borosilicate glass with N/Al coating
Thickness of glass tube 1.6mm
Vacuum tube tightness P≤0.005 Pa
Absorption as=0.93-0.96 (AM1.5)
Idle sunning property parameters Y=220~260m2.C/KW
Average heat loss coefficient ULT=0.6~0.7W/(m2.C)
Bracket: 2.0mm thickness aluminum alloy
Welding: Argon arc welding
Fastening pieces: Made of stainless steel screw
Tank capacity 200L
Solar collector 1pcs 58x1800x20tube solar collector
Absorber area 1.875m²
Working station Normal pump station
Heat exchanger length 18m
Idle sunning property parameters Y=220~260m2.C/KW
1. The upright tank can make the water temperature to a high level. It can hot the water instantly.
2. The tank inside the building, the hot water loses less energy than the normal one .
3. The pressurized solar water heater collector and the split solar water heater tank is separated,
that makes the system combine with the building perfectly, which will reduce the sightseeing for the
building and environment around .
4. Back up with electric heater so that in the day without sunshine hot water can also be used.
5. Can be combined with gas or electric heater
6. Max. Pressure: 12bar; Operating Pressure: 6 bar
7. It can be used for other function, such as warming
Descripition Split pressurized solar water heating system
Material of out manifold 0.55mm thickness color steel/ fluorine carbon steel
0.55mm thickness color steel/ fluorine carbon steel SUS304 stainless steel
Tank insulating layer 50mm 45kg/m³ high-density polyurethane foamed
Inlet and outlet hole Male G3/4
Max pressure 0.6 Mpa
Solar collector tube 3.3 Borosilicate glass with N/Al coating
Thickness of glass tube 1.6mm
Vacuum tube tightness P≤0.005 Pa
Absorption as=0.93-0.96 (AM1.5)
Idle sunning property parameters Y=220~260m2.C/KW
Average heat loss coefficient ULT=0.6~0.7W/(m2.C)
Bracket: 2.0mm thickness aluminum alloy
Welding: Argon arc welding
Fastening pieces: Made of stainless steel screw
Tank capacity 200L
Solar collector 1pcs 58x1800x20tube solar collector
Absorber area 1.875m²
Working station Normal pump station
Heat exchanger length 18m
Idle sunning property parameters Y=220~260m2.C/KW
Descripition | Split pressurized solar water heating system |
Material of out manifold | 0.55mm thickness color steel/ fluorine carbon steel |
0.55mm thickness color steel/ fluorine carbon steel | Food grade 1.5mm thickness SUS304 stainless steel |
Tank insulating layer | 50mm 45kg/m³ high-density polyurethane foamed |
Inlet and outlet hole | Male G3/4 |
Max pressure | 0.6 Mpa |
Solar collector tube | 3.3 Borosilicate glass with N/Al coating |
Thickness of glass tube | 1.6mm |
Vacuum tube tightness | P≤0.005 Pa |
Absorption | as=0.93-0.96 (AM1.5) |
Idle sunning property parameters | Y=220~260m2.C/KW |
Average heat loss coefficient | ULT=0.6~0.7W/(m2.C) |
Bracket: | 2.0mm thickness aluminum alloy |
Welding: | Argon arc welding |
Fastening pieces: | Made of stainless steel screw |
Tank capacity | 200L |
Solar collector | 1pcs 58x1800x20tube solar collector |
Absorber area | 1.875m² |
Working station | Normal pump station |
Heat exchanger length | 18m |
Idle sunning property parameters | Y=220~260m2.C/KW |
Pipe Technical Data
Item | Measured value |
Heat conduction coefficient | >99% |
Axial heat transition auantity | 0.93-2.49kw/cm² |
Heat conduction speed | >200mm/s |
Axial temperature difference | 1-2centi-degree/m |
Starting temperature | 20centi-degree |
Starting speed | 2min |
Working temperature range | 30centi-degree~300centi-degree |
Resistance to low temperature | -35C |
Life | >10years |
FAQ
Q: Is your company a trading company or a factory ?
A: We are a professional factory manufacturing electric water heaters.
Q: Where is your company ?
A: Our company quarter is located in Shengzhou,shaoxing China.But plant in both Zhejiang and Guangdong.
Q: What certification do you have ?
Q: What is your sample policy ?
A: Sample and freight is paid temporarily and will be returned back to you based on your normal order.
Q: Can I have my own brand on product ?
A: Yes, that's ok.
Q: How about delivery time ?
A:Normal order within 30 days, trial order within 15 days, sample order within 7 days.
Q:What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons.
Q:What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery or 70% irrevocable L/C at sight.
We'll show you the photos of the products and packages before you pay the balance.
Q:Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
A: We are a professional factory manufacturing electric water heaters.
Q: Where is your company ?
A: Our company quarter is located in Shengzhou,shaoxing China.But plant in both Zhejiang and Guangdong.
Q: What certification do you have ?
A: CE, CB, ROHS, and CCC.
Q: What is your sample policy ?
A: Sample and freight is paid temporarily and will be returned back to you based on your normal order.
Q: Can I have my own brand on product ?
A: Yes, that's ok.
Q: How about delivery time ?
A:Normal order within 30 days, trial order within 15 days, sample order within 7 days.
Q:What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons.
Q:What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery or 70% irrevocable L/C at sight.
We'll show you the photos of the products and packages before you pay the balance.
Q:Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
