High Rate of Rebuy IQF (Individual Quick Freezer) blast / fast fluidized / spiral / tunnel freezing machine for vegetable fruit

Product Overview

Description

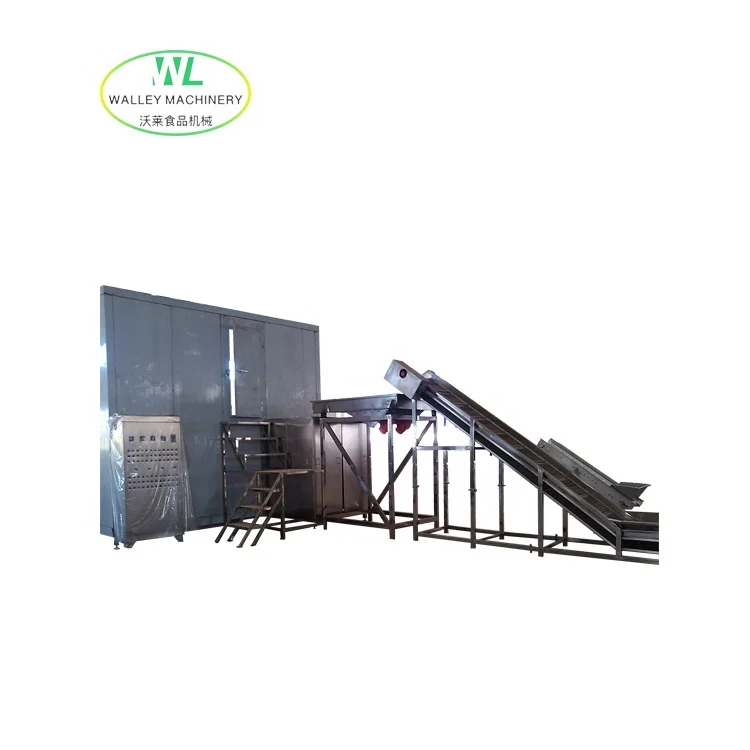

SLD fluidized quick freezer is a new product developed by our company, combining the latest technology of same products from Sweden, Americ and Canada. It is practical and efficent, realizing a real fluidized IQF effect.

SSF Spiral freezer is a high efficient quick freezing machine with small floor space and large capacity. It is mainly suitable for bread fermentation and cooling; freezing aquatic products, flour products, meat, poultry, bagged condiment, dairy products and ice cream, etc. The capacity is 300kg/hr~3000kg/hr.

According to the rotary drum quantity, it can be divided into two types: DSF single-drum spiral freezer and SSF double-drum spiral freezer.

SSD tunnel freezer is an effecient quick freezing machine which has simple structure, steady performance and wide application. According to the different types of conveyor, it can be divided into SSD-W mesh belt tunnel freezer amd SSD-B plate belt tunnel freezer. SSD-W mesh belt tunnel freezer is mainly suitable for freezing seafood, poultry, flour product, vegetarian diet and condiments, etc. SSD-B plate belt tunnel freezer is mainly suitable for large water content and soft food such as fish fillet, scallop, cuttlefish and shelled shrimp, etc.

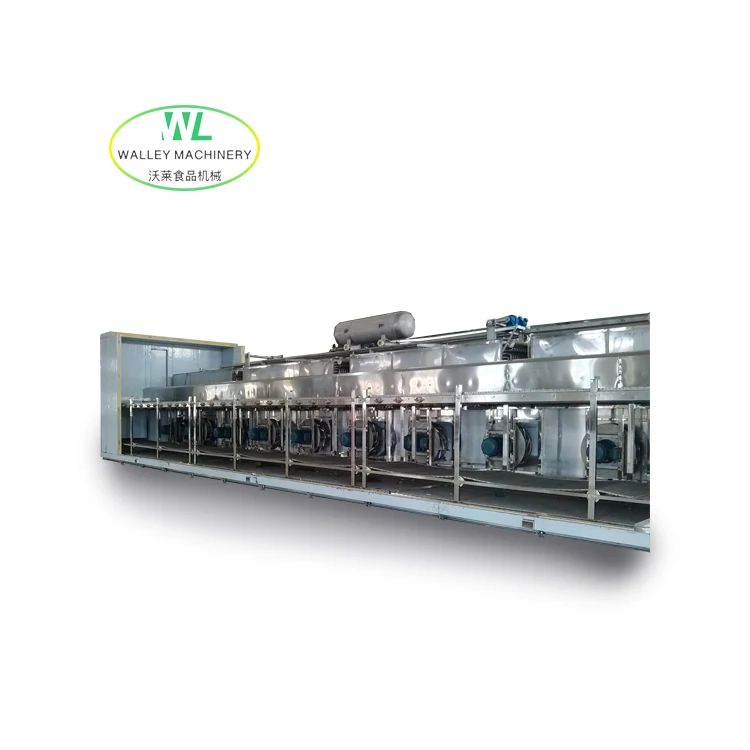

SLD Fluidized Freezer

Model	SLD-0.5	SLD-1.0	SLD-1.5	SLD-2.0	SLD-3.0	SLD-4.0	SLD-5.0
Capacity Kg/Hr	500	1000	1500	2000	3000	4000	5000
Dimension m	7.2x3.8x3.8	8.2x4.4x3.8	10.2x4.4x3.8	11.2x4.4x3.8	13.2x4.7x4.4	16.2x4.7x4.4	20.2x4.7x4.4
Freezer Length m	5	6	8	9	11	14	18
Belt Width mm	1000	1200	1200	1200	1300	1300	1300
Input Temp. °C	+15
Output Temp. °C	-18
Freezing Temp. °C	-36+/-2
Freezing Time Min	5-50 Continually Adjustable
Coolant	R717/R22/R404A
Cold Load KW	115	165	256	320	460	615	750
Power Kw	28	42	57	66	99	105	129

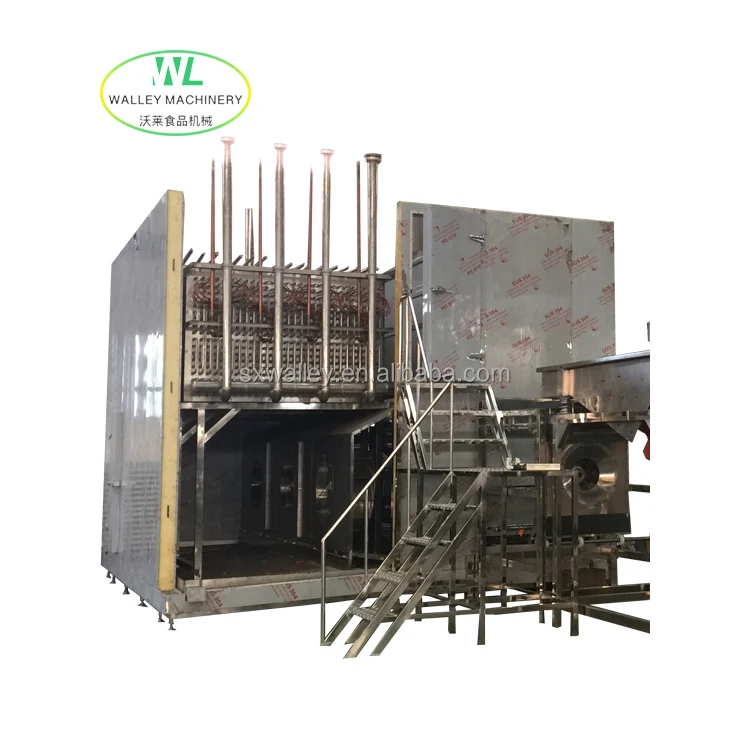

SSF Spiral Freezer

Model	SSF-1000	SSF-1500	SSF-2000	SSF-2500	SSF-3000
Capacity Kg/Hr	1000	1500	2000	2500	3000
Dimension m	12.5X4.6X3.1	13.1X5.0X3.6	16.1X5.1X3.9	16.1X5.3X4.3	17.6X6.0X4.8
Freezer Size m	9.3x4.6x2.4	9.9x5.0x2.9	12.9x5.1x3.2	12.9x5.3x3.6	14.4x6.0x4.1
Belt Width mm	620	700	700	750	750
Input Temp. °C	+15
Output Temp. °C	-18
Freezing Temp. °C	-36+/-2
Freezing Time Min	15-90 Continually Adjustable
Coolant	R717/R22/R404A
Cold Load Kw	165	220	300	360	400
Power KW	20	24	32	40	46

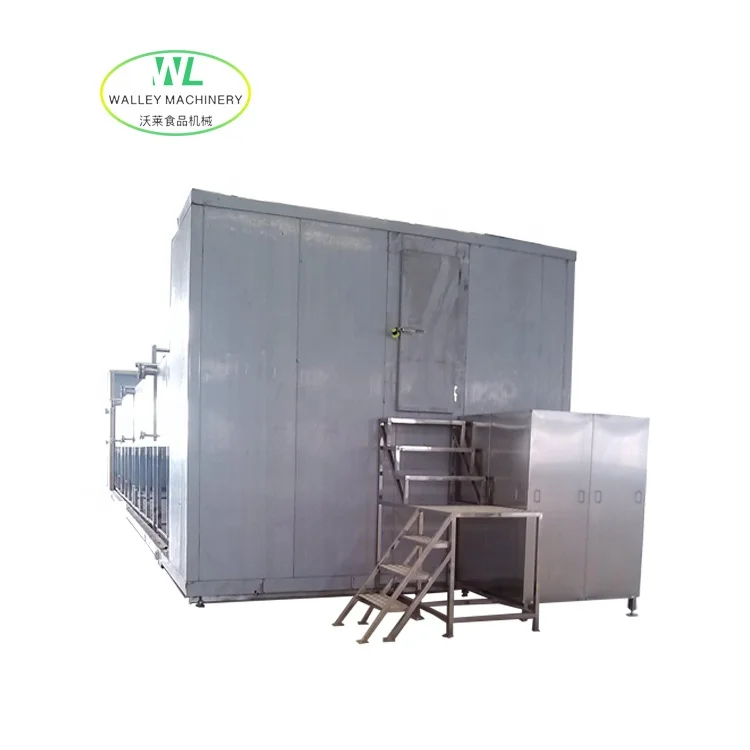

SSD Tunnel Freezer

Model	SSD-W-300	SSD-W-500	SSD-W-750	SSD-W-1000	SSD-W-1500
Capacity Kg/Hr	300	500	750	1000	1500
Cold Load Kw	70	110	140	180	270
Freezer Length m	7	8	10	13	16
Dimension m	9.3x3.3x2.2	10.3x3.3x2.2	12.3x3.7x2.2	15.3x3.7x2.2	18.3x4.3x2.2
Power KW	11	12	15	22	32
Input Temp. °C	+15
Output Temp. °C	-18
Freezing Temp. °C	-36+/-2
Freezing Time Min	10-50 Continuous Adjustable
Coolant	R717/R22/R404a

Note: 1, capacity based on dumplings; 2, working condition of cold load: +35/-40°C; 3, power required excludes refrigeration system.
