ELP AF USB Camera Module 48MP Ultra HD Autofocus 70 Degree Webcam Module Fast Focus Video Camera for PC Raspberry Pi Jetson Nano
- Category: >>>
- Supplier: Shenzhen Ailipu Technology Co. Ltd.
Share on (1601064311549):
Product Overview
Description
ELP Ultra HD 48MP Fast Autofocus USB Camera Module 8000*6000 UVC Free Driver USB Webcam Module with 70 degree Mini Lens for Document Scanning,Industrial Inspection
Product Description
This High Resolution 48MP Autofocus USB Camera is based on big size 1/2” GM1 image sensor, Auto Focus, USB 2.0 UVC compliant camera. No extra drivers needed, the native UVC drivers of Windows, Linux, Android and Mac shall be compatible with this camera. Fast auto focus about 200ms, quickly shoot the images or record videos with super Image reality, real color reproduction. Its ultra 8000*6000 resolution can be used in a wide range of applications where high-resolution images and videos with autofocus capabilities are required.
Specifications
1.Ultra HD 8000X6000 High Resolution 48MP USB Camera.
2.Fast autofocus 48 megapixel usb camera, 200ms autofocus speed.
3.Wide angle no distortion lens, HFOV about 70 degree, DFOV about 82 degree.
4.With industrial grade high quality sensor S5KGM1ST03-FG9.
5.Super Image reality, real color reproduction, without interpolation.
6.UVC Free Driver , Plug and Play, easily used on different systems.
7.Support Windows, Linux, Android, Mac OS, Ubuntu, Raspberry Pi...
8. OTG Support, can be used on Android smartphone, recommended app "USB Camera".
9.Wide Application: Well used for industrial camera, Video Conferencing,Live Streaming, Security, Medical device, Industrial Inspection,Scientific research and development , Education and Training, High Resolution Document Scan, High-speed photographic apparatus, Photo scanner... and so on.
Model | ELP-USB48MP01-AF70 |
Sensor | S5KGM1ST03-FG9 |
Max. Resolution | 8000 (H) *6000 (V) |
Lens Size | 1/2 inch (4:3) |
Compression Format | MJPEG / YUY2 (YUYV) |
Resolution & Frame Rate | 8000x6000 @ 5fps MJPEG / 4000x3000 @ 15fps MJPEG |
Surface Mount Technology | SMT |
Focus | Auto |
Focus Speed | Fast About 200ms |
Central Definition | 1000LW/PH (Center) |
S/N Ratio | 36dB |
Dynamic Range | 82dB |
Sensitivity | 1.4V/lux-sec@550nm |
Min illumination | 0.3lux |
Shutter Type | Electronic rolling shutter / Frame exposure |
Connecting Port Type | USB2.0 High Speed |
AEC | Support |
AWB | Support |

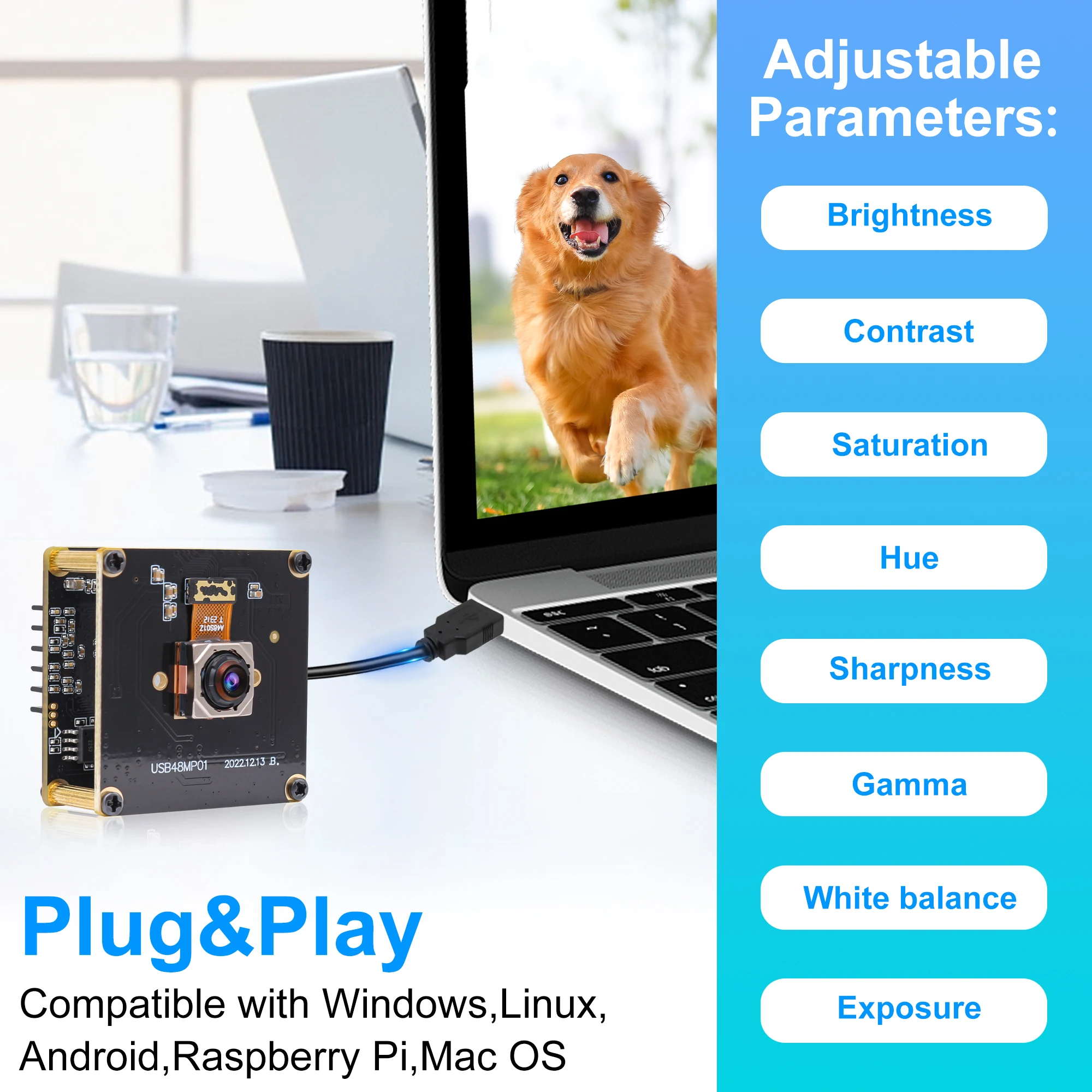

Adjustable Parameters | Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, |
White balance, Exposure | |
Lens Parameter | Size 1/2” |
Power Supply | USB BUS POWER 4P-2.0mm Socket |
Operating Voltage | DC5V |
Working Current | 550mA- 610mA |

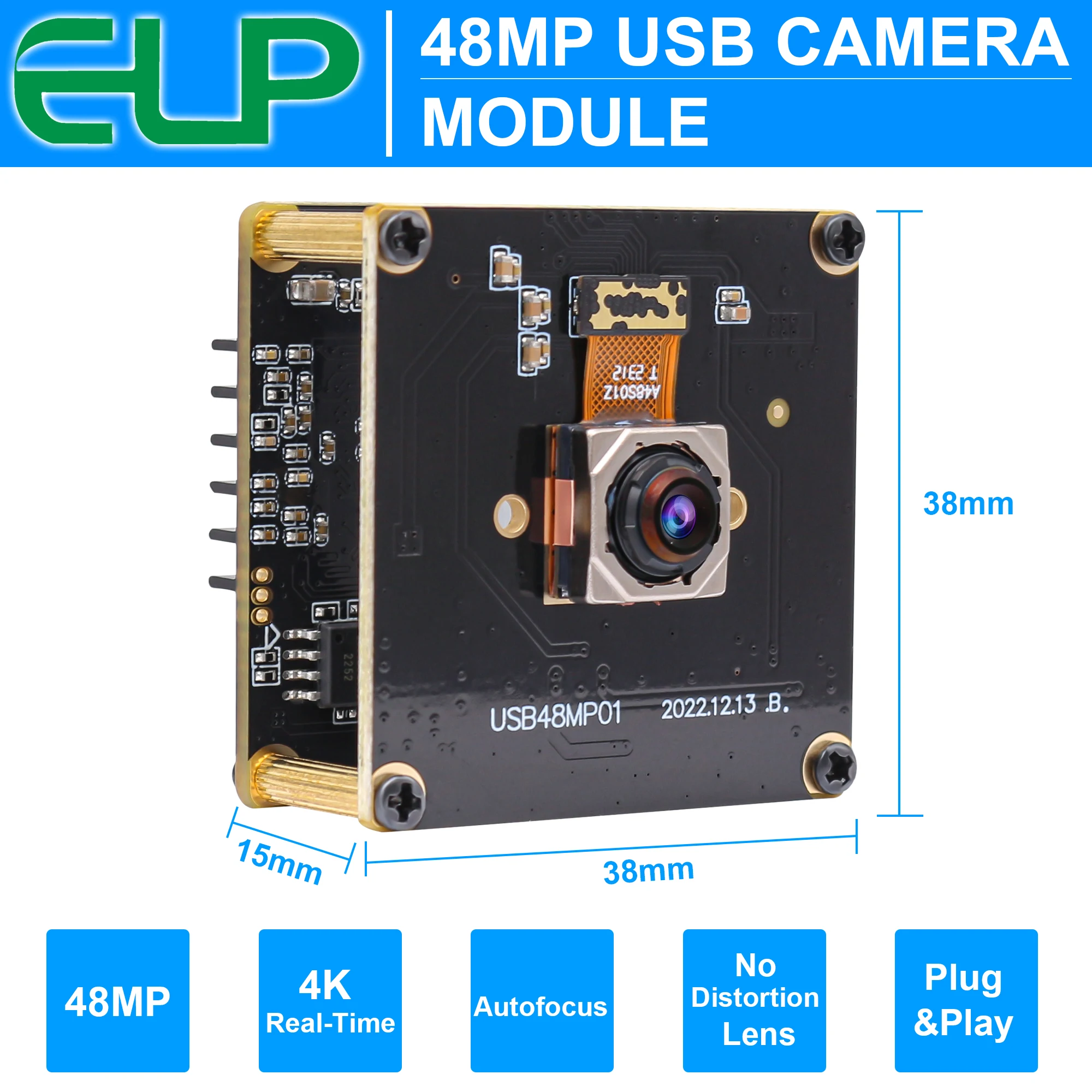

Board Size | Double-Sided PCB, 38mm × 38mm |
Storage Temperature | -20°C to 80°C |
Working Temperature | 0°C to 70°C |
USB Cable | Standard 1m / optional 2m,3m... |
Operating System Request | Win XP/Vista/Win7/Win8 / Win10/ Win11 etc. |
Product Display

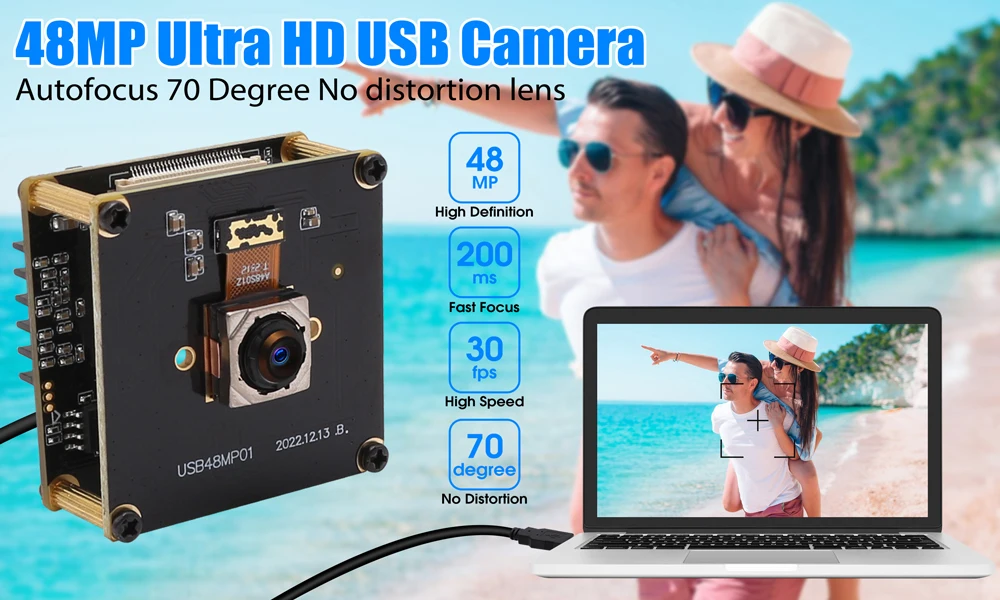

Autofocus with 70degree mini size no distortion lens,mini size for PC camera interface,plug and play,free driver,UVC compliant.
48MP Ultra Clear,Max Resolution:8000(H) X 6000(V) 48 Megapixel,super Image reality, real color reproduction, show your best in every video call.

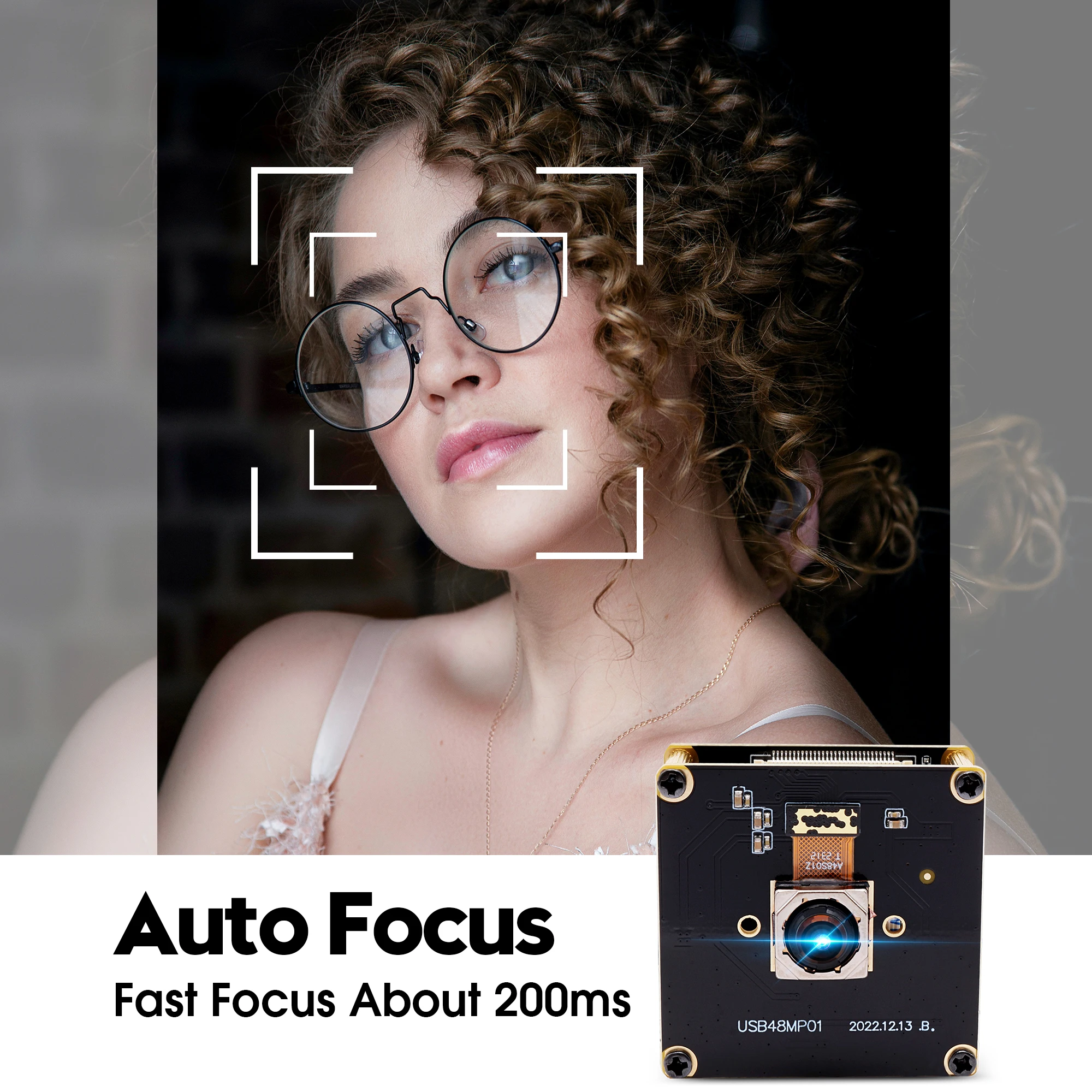

Fast Autofocus,shoot objects at millimeter level and in the distance on the same camera, automatically controlled without lens adjustment tool, closer and easier than the fixed focus camera.

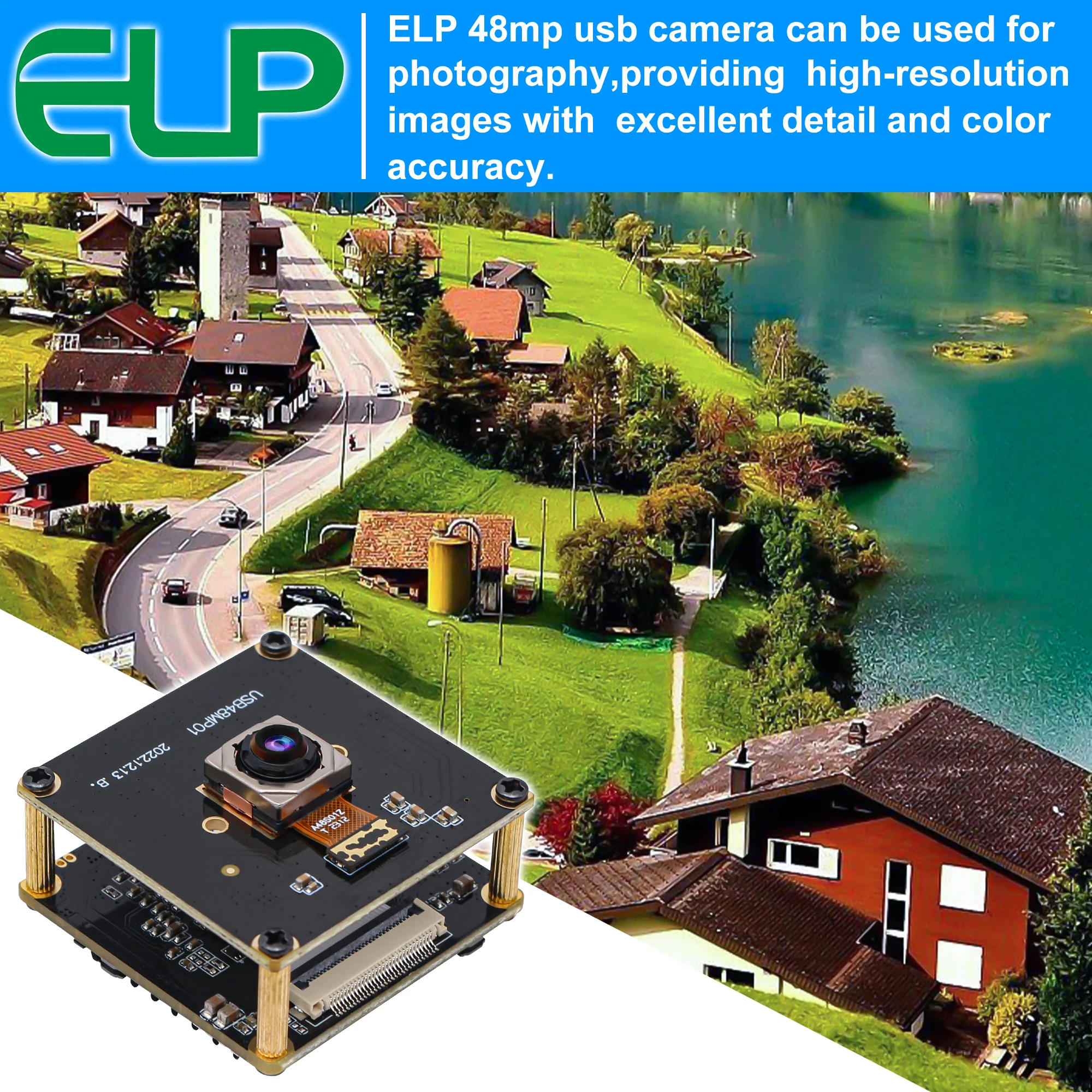

48MP autofocus camera usb with high quality sensor chip. provides excellent details and color accurancy.

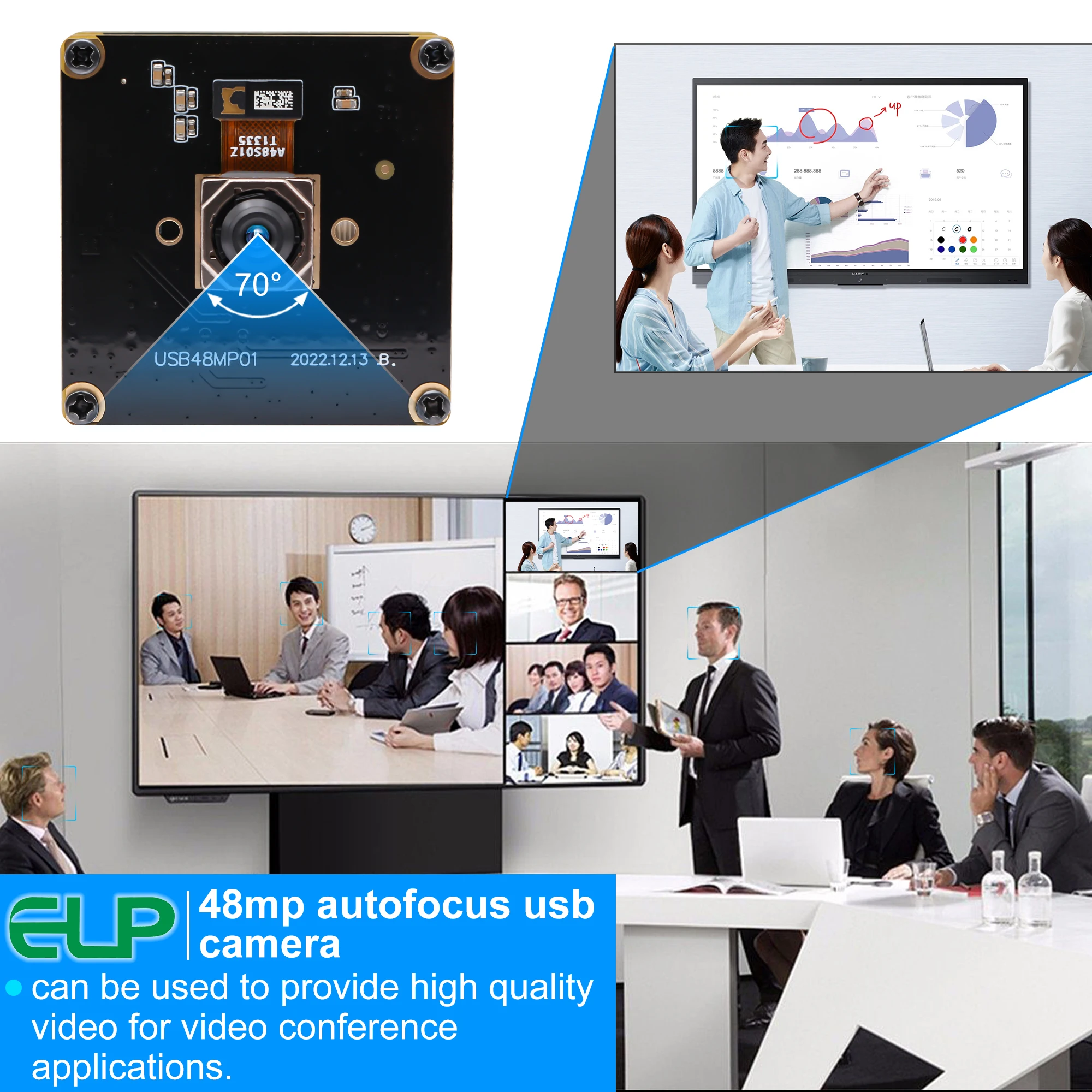

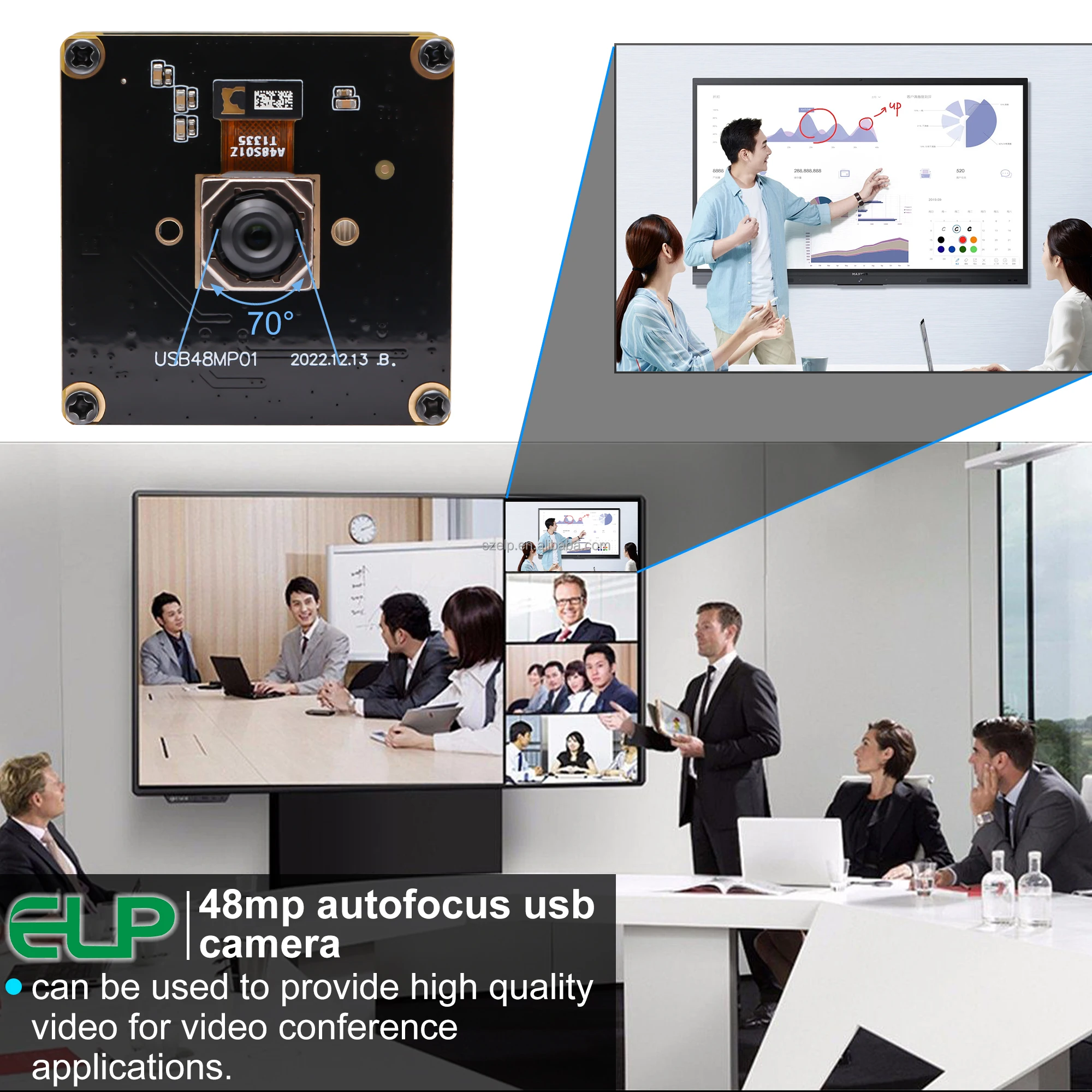

No Distortion Lens, Mini USB autofocus camera with none-distortion lens,wider range of view: HFOV: 70degree,DFOV: 82degree

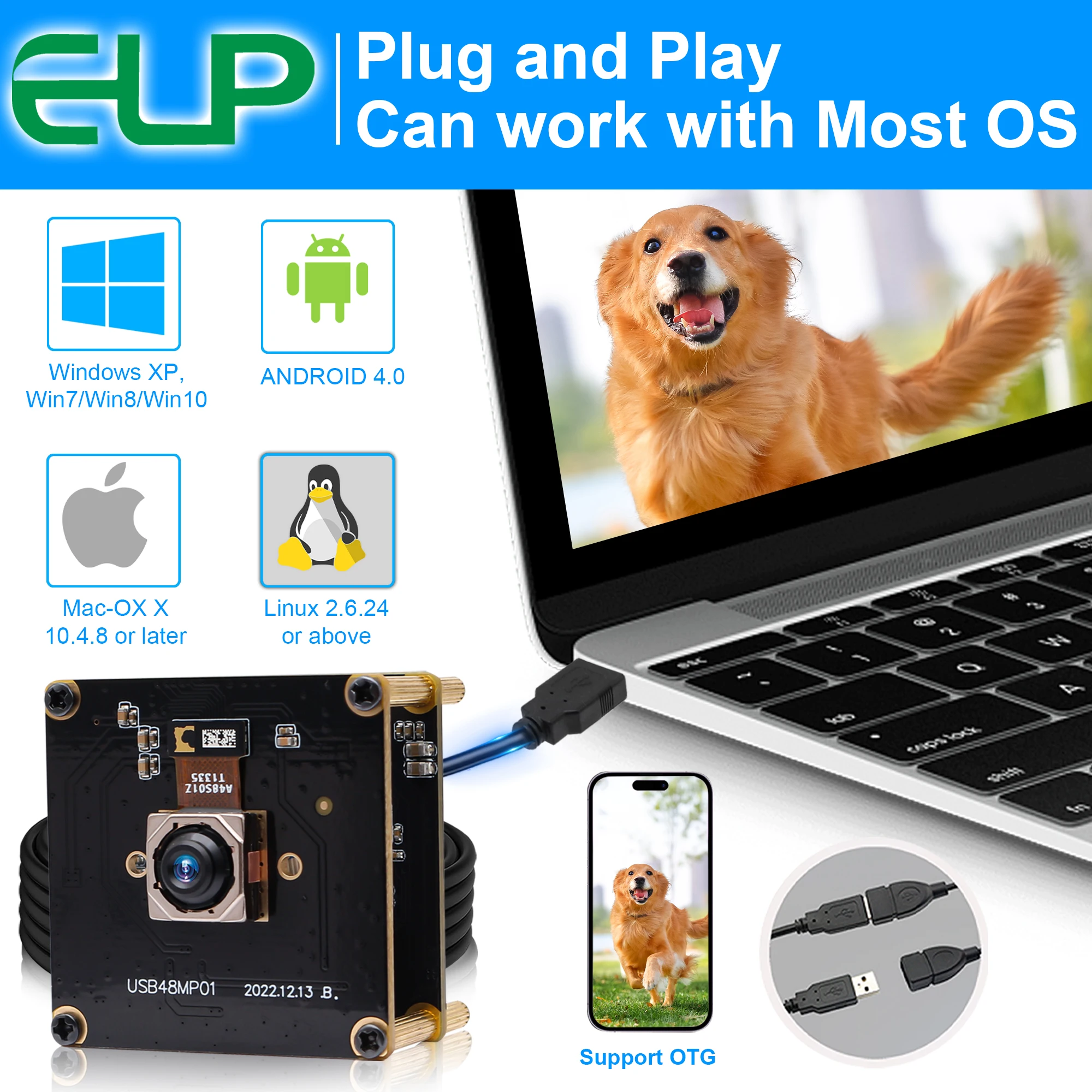

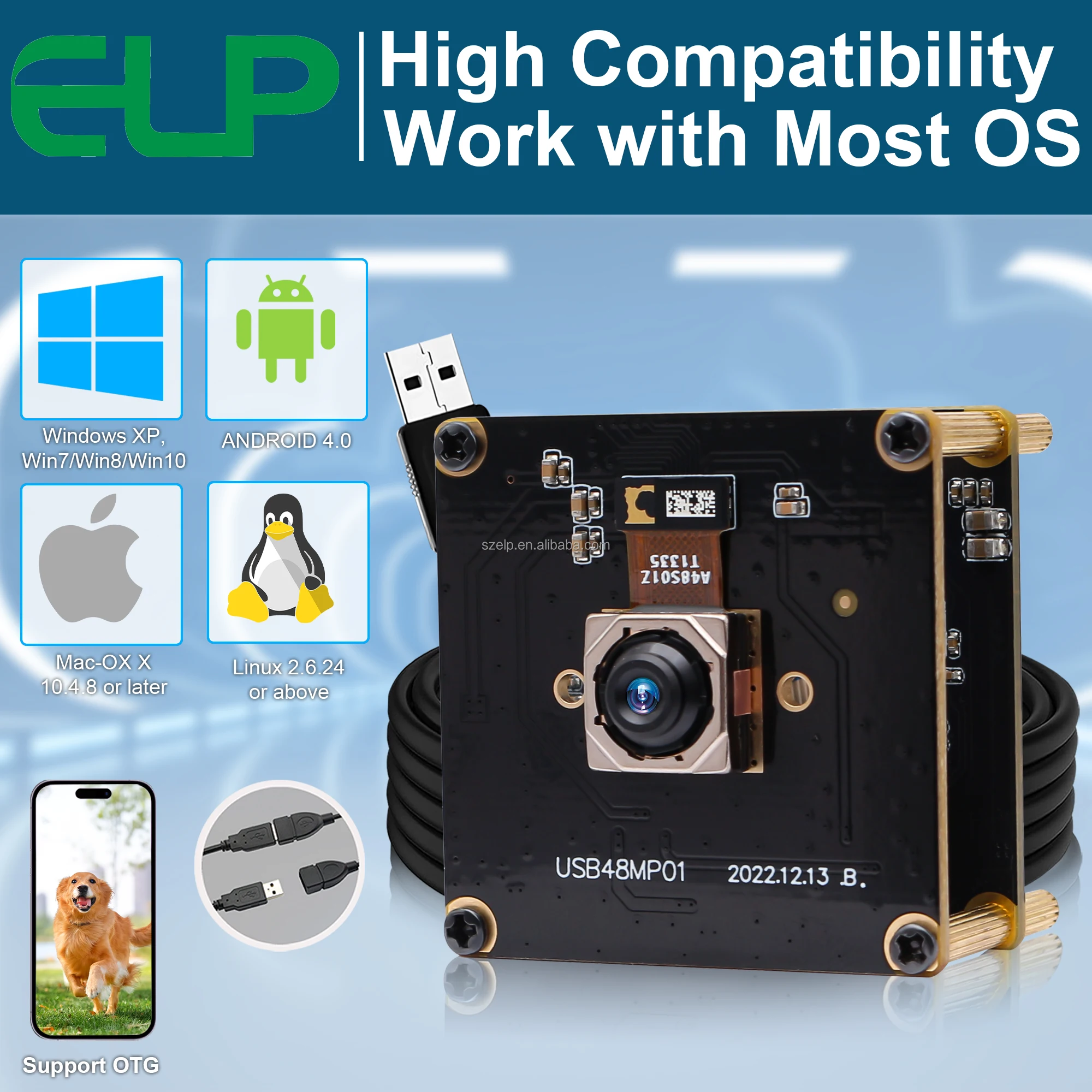

High compatibility, Support Windows, Linux, Android, Mac OS, Ubuntu, Raspberry Pi...OTG Support, can be used on Android smartphone, recommended app "USB Camera".

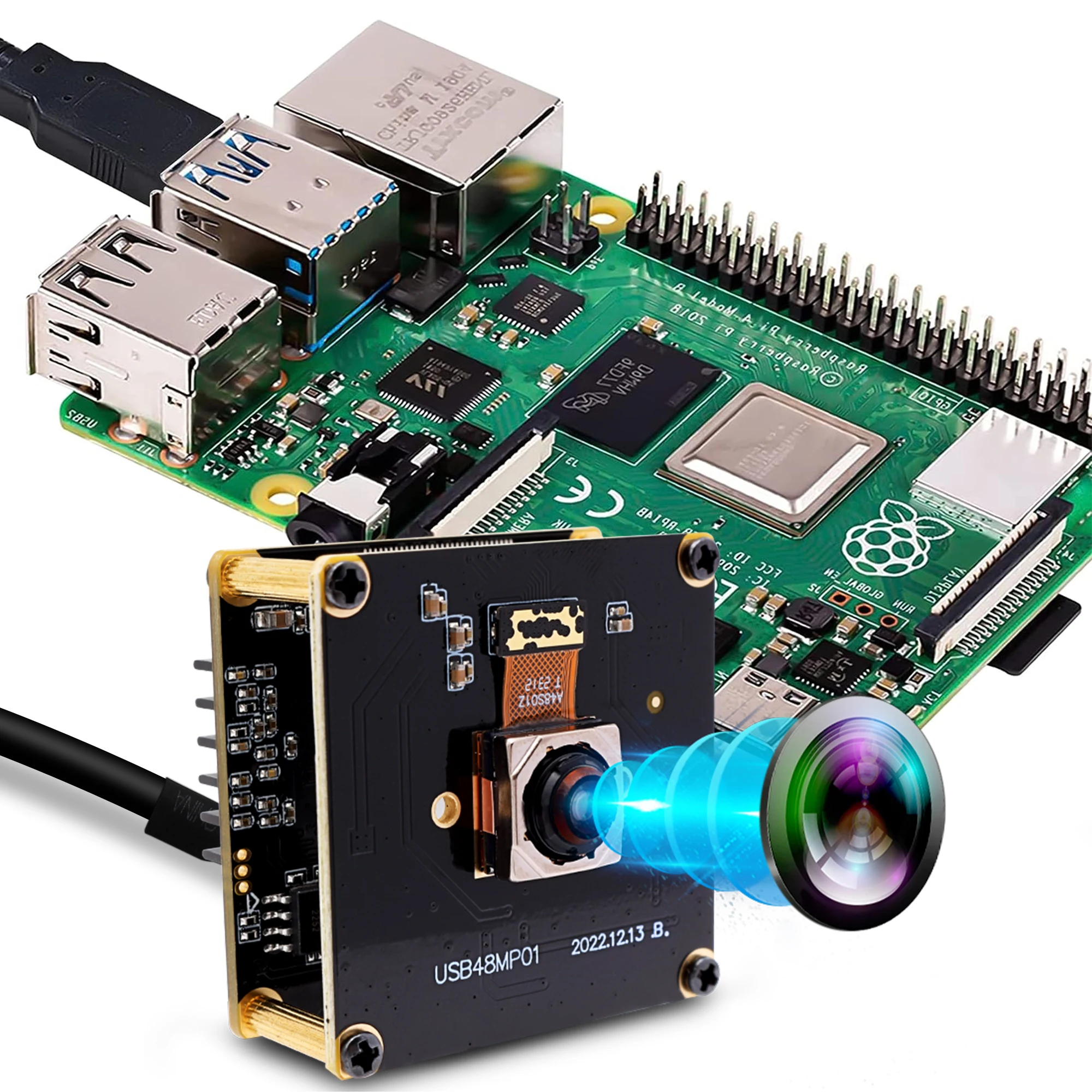

Plug and Play/Free Driver, UVC-compliant, just connect the camera to PC, laptop, Android device or Raspberry Pi with the USB cable without extra drivers to be installed.
Applications
Well used for industrial camera, video conferencing, live streaming, security system, medical device, industrial inspection, scientific research and development , education and training, high resolution document scan, high-speed photographic apparatus, photo scanner... and so on.
Sample Pictures
Company Information
FAQ
♦Are you manufacturer?
Yes, we are designer and manufacturer for usb camera module for more than 12 years
♦Can you OEM camera module?
Yes, we can offer OEM camera modules according to customer's different requirement.
♦Can you provide SDK for secondary development?
Yes, We can offer Linux, Windows, Android SDK.
♦What lens optional you have?
We have normal M12 2.1/2.8/3.6/6/8/12mm lens, M7 mini lens and also wide angle fisheye lens and varifocal lens
♦What operating system your cameras support?
Android, Windows and Linux System
♦What certificate your products have?
CE, FCC, partial have RoHS and UL
♦Does the camera support Raspberry Pi? If support Linux Ubuntun system?
Yes, all our usb cameras support Raspberry Pi system and Linux Ubuntun system.
Yes, all our usb cameras support Raspberry Pi system and Linux Ubuntun system.
♦Does the camera support OTG?
Most of our usb cameras support OTG function, except 0.3MP USB30W02M series and 5MP OV5640 USB cameras.
Most of our usb cameras support OTG function, except 0.3MP USB30W02M series and 5MP OV5640 USB cameras.
♦Which software your usb camera module support?
Blue Iris, ContaCam, Yawcam, Ispy, Motion Eye OS,AMCAP Wecam Viewer, IP Camera Viewer, ZoneMinder,V4L2 video for Linux, Camerafi, VLC Player
