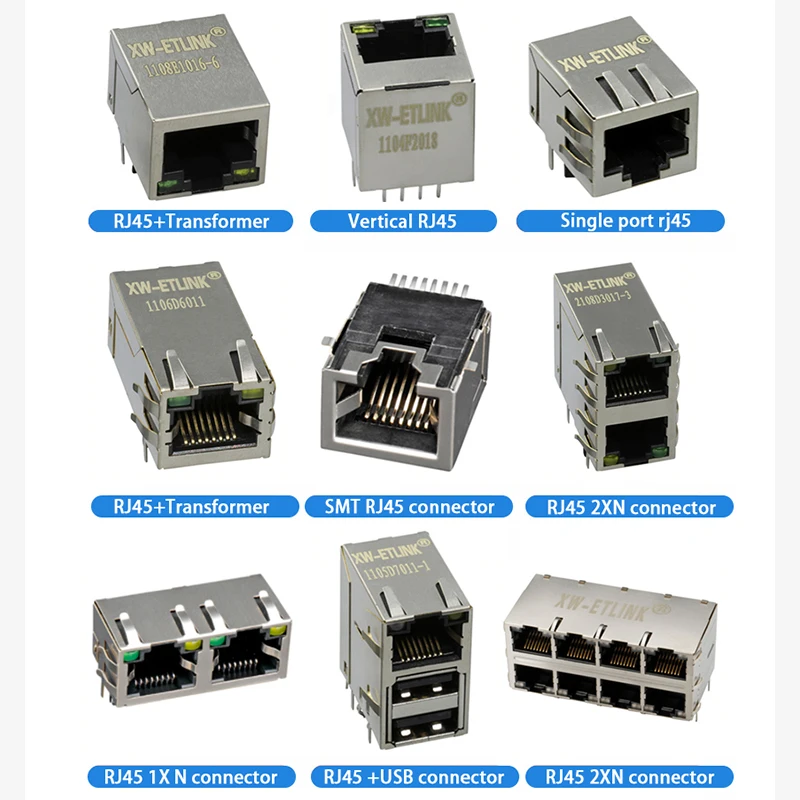

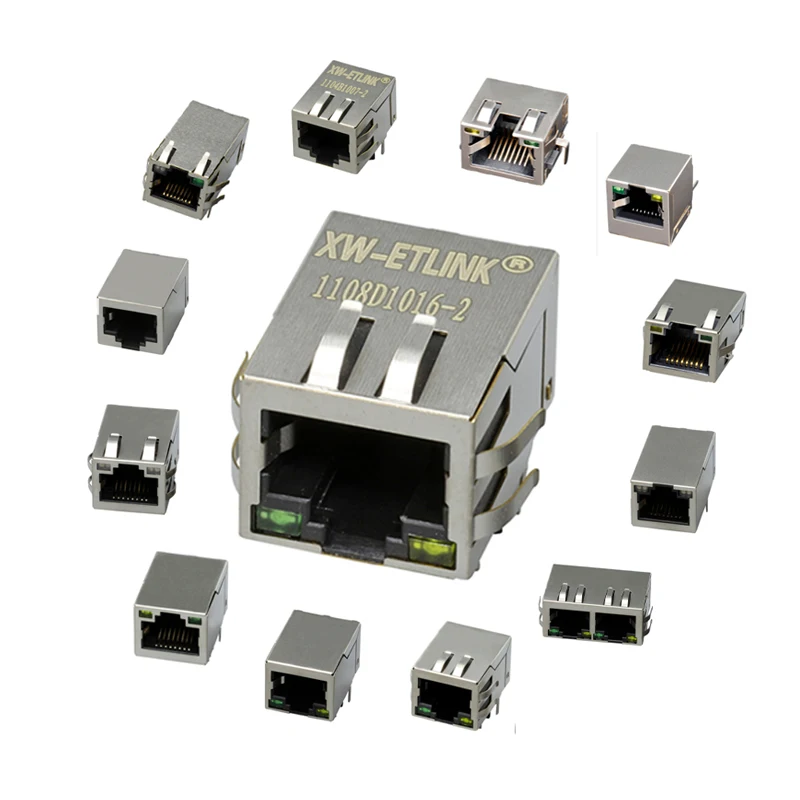

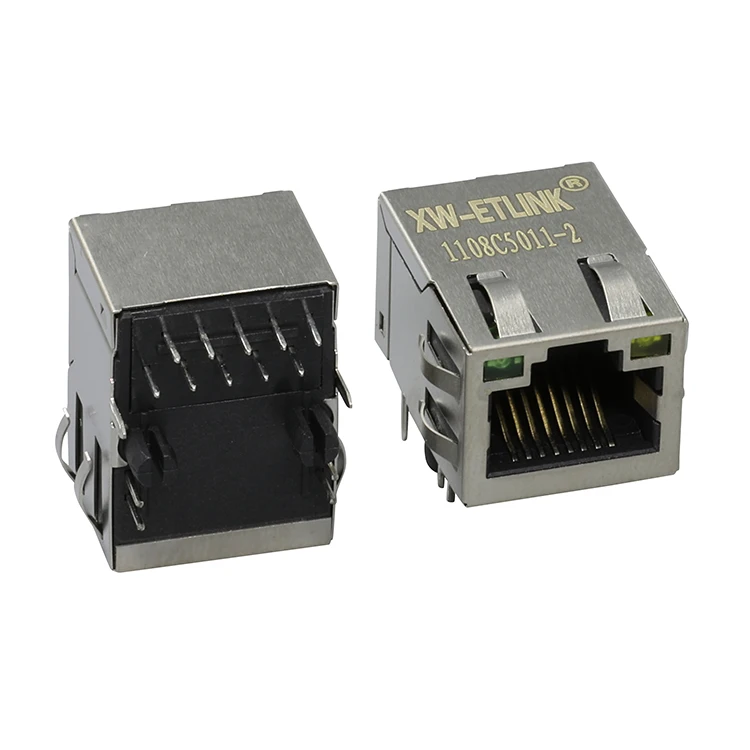

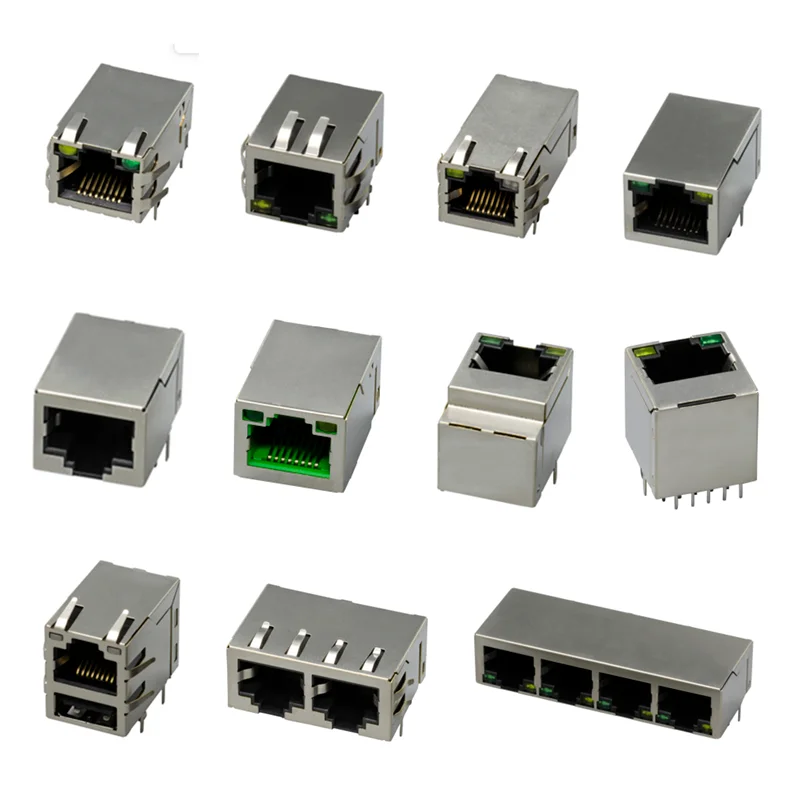

Gigabit JD1 0002NL 1 port POE jack rj45 modular 5G 10G 10pin rj45 female connector 8p8c POE ethernet rj45 connector J00 0061NL
- Category: >>>
- Supplier: Dongguan Xunwang Electronic Technology Co. Ltd.
Share on (1601064475103):
Product Overview
Description
Note: All certificates are authentic and valid. If you need the certificate details, please contact customer service to provide
Specification
Electrical | ||||||||
1.Current Rating | 1.5 amps | |||||||
2.Voltage Rating | 125vac | |||||||
3.Insulation Resistance | 500 MΩmin | |||||||
4.Contact Resistance | 30 MΩmax | |||||||
5.Withstanding Voltage | AC 1000V RMS 50Hz or 60Hz 1 min | |||||||
Mechanical | ||||||||
1.Retention Strength | 7.7KG.F min between jack and plug | |||||||
2.Durability | 750 mating cycles min | |||||||
Material | ||||||||
1.Housing | PBT(UL94V-0) PA66(UL94V-0) PA46(UL94V-0) LCP(UL94V-0) | |||||||
2.Contact Wire | Diameter 0.45mm phosphor bronze gold plating over nickel 0.35mm thickness phosphor bronze alloy selective gold plating over nickel | |||||||
3.Shield | 0.20~0.25mm thickness brass with tin plated | |||||||
4.Gold Plating | 1u" 3u" 6u" 15u" 30u" 50u" | |||||||
5.RoHS peak wave solder | RoHS peak wave solder temperature rating 260℃±5℃ | |||||||
Operating and Storage Temperature | ||||||||
Operating Temperature | -40℃ to 85℃ | |||||||
Storage Temperature | -40℃ to 85℃ | |||||||
APPLICATION | ||||||||
NETWORKING PRODUCTS: NIC, HUB, SWITCH, ROUTER, BRIDGE,WORK, | ||||||||
STATION: PC/SYSTEM, PRINTER,SERVER,NB,IACABLE MODEN,XDSL APPLICATION, SET-TOP-BOX. | ||||||||
