Manufacture Automatic High Quality 16 Rows C Omega Strut Channel Roll Forming LIne Machine
- Category: >>>
- Supplier: Cangzhou Guangchi Machinery Co. Ltd.
Share on (1601064665019):
Product Overview
Description
Product Description
Work Flow

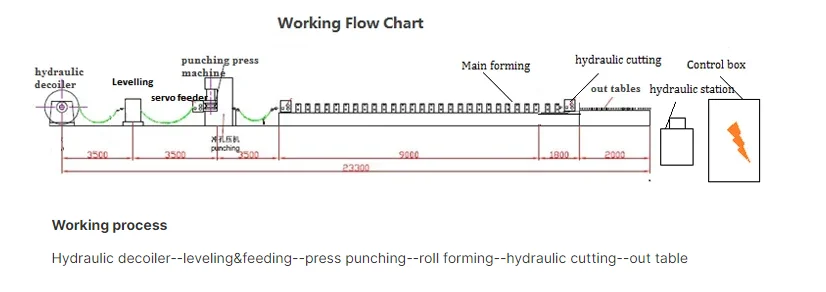

Decoiler--leveling&feeding--press punching--roll forming--hydraulic cutting--out table
Details Images
Specification
Feeding Material（Thickness） | 1mm |
Row | 16 |
Shaft | Φ50 #45 steel processing |
Roller | Cr12 Mov |
Frame | 16mm 300H steel welded |
Frame Support | 30mm Steel |
Main Engine | 7.5KW+350PM |
Control System | PLC with screen and button |
Cutting Mode | 4KW Hydraulic Pump Station with 1.5KW Servo Motor |
Driving Mode | 140mm Gear |
Decoiler | 2000KG |
Equipment Size: 6.5m*0.8m*1m, compact design, space-saving, suitable for various production scenarios.
Main Frame: Adopting an integral welded platform with a large gantry milling, platform thickness 30mm, ensuring stability and durability.
Arch Wallboard: Arch fixed bottom plate 20mm, arch 25mm, sturdy structure, ensuring forming accuracy.

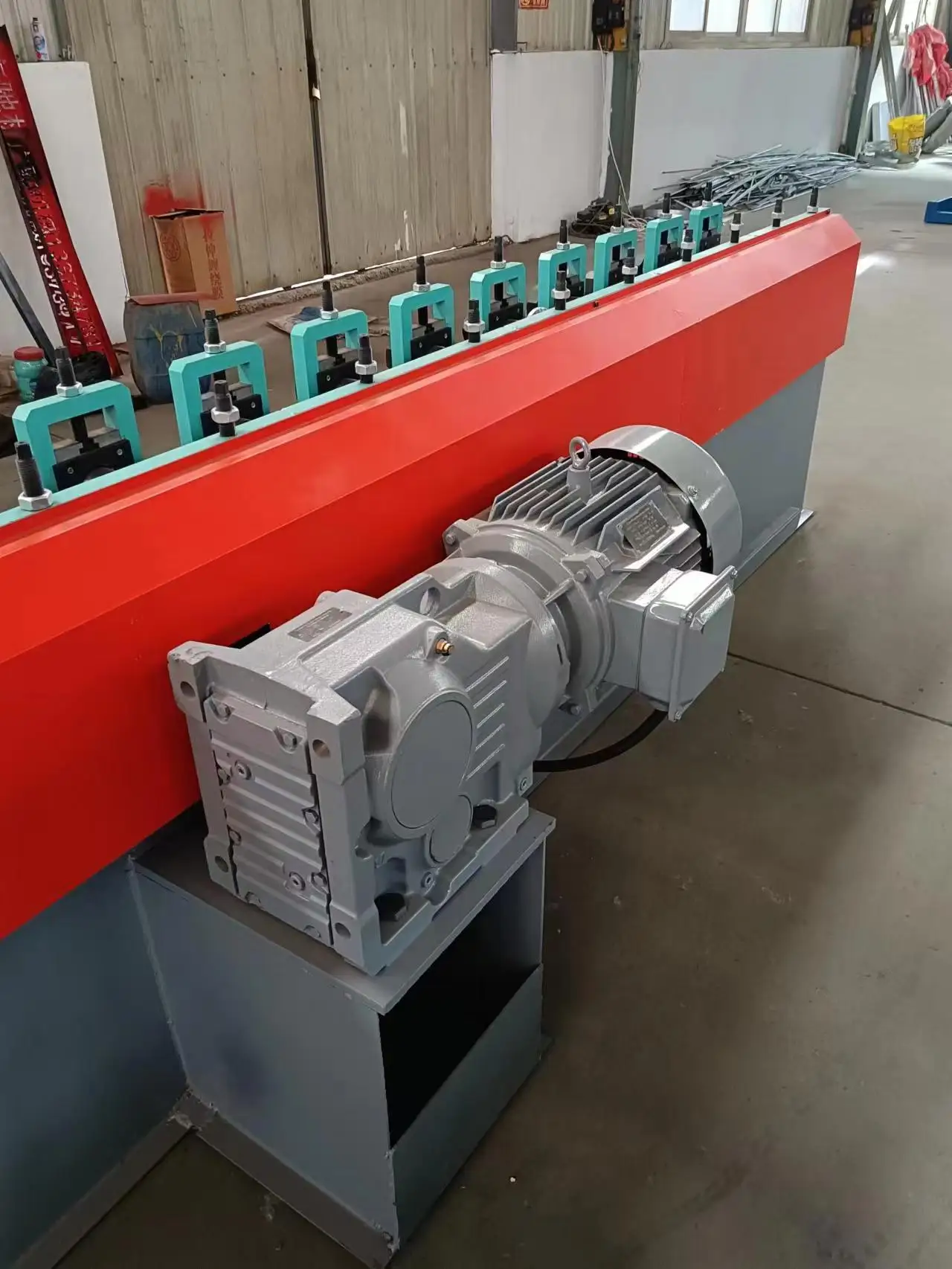

Transmission System: Equipped with a Shanghai Bojiang motor 7.5KW +350PM reducer, gear drive 140mm, 16 forming rows, production speed up to 20-50m/min, high-efficiency stable production.
Hydraulic System: Equipped with a 4KW hydraulic pump station, ensuring efficient operation performance and reliable work stability.
Cutting System: Cutting cylinder 100 cylinder diameter, ball screw SFU32 screw, linear guide rail HGR25, equipped with a 1.5KW servo motor, ensuring precise cutting and high-speed operation.
Intelligent Control: Integrated design of the electrical control cabinet, convenient operation, ensuring stable and controllable production processes.
Main Frame: Adopting an integral welded platform with a large gantry milling, platform thickness 30mm, ensuring stability and durability.
Arch Wallboard: Arch fixed bottom plate 20mm, arch 25mm, sturdy structure, ensuring forming accuracy.
Transmission System: Equipped with a Shanghai Bojiang motor 7.5KW +350PM reducer, gear drive 140mm, 16 forming rows, production speed up to 20-50m/min, high-efficiency stable production.
Hydraulic System: Equipped with a 4KW hydraulic pump station, ensuring efficient operation performance and reliable work stability.
Cutting System: Cutting cylinder 100 cylinder diameter, ball screw SFU32 screw, linear guide rail HGR25, equipped with a 1.5KW servo motor, ensuring precise cutting and high-speed operation.
Intelligent Control: Integrated design of the electrical control cabinet, convenient operation, ensuring stable and controllable production processes.
