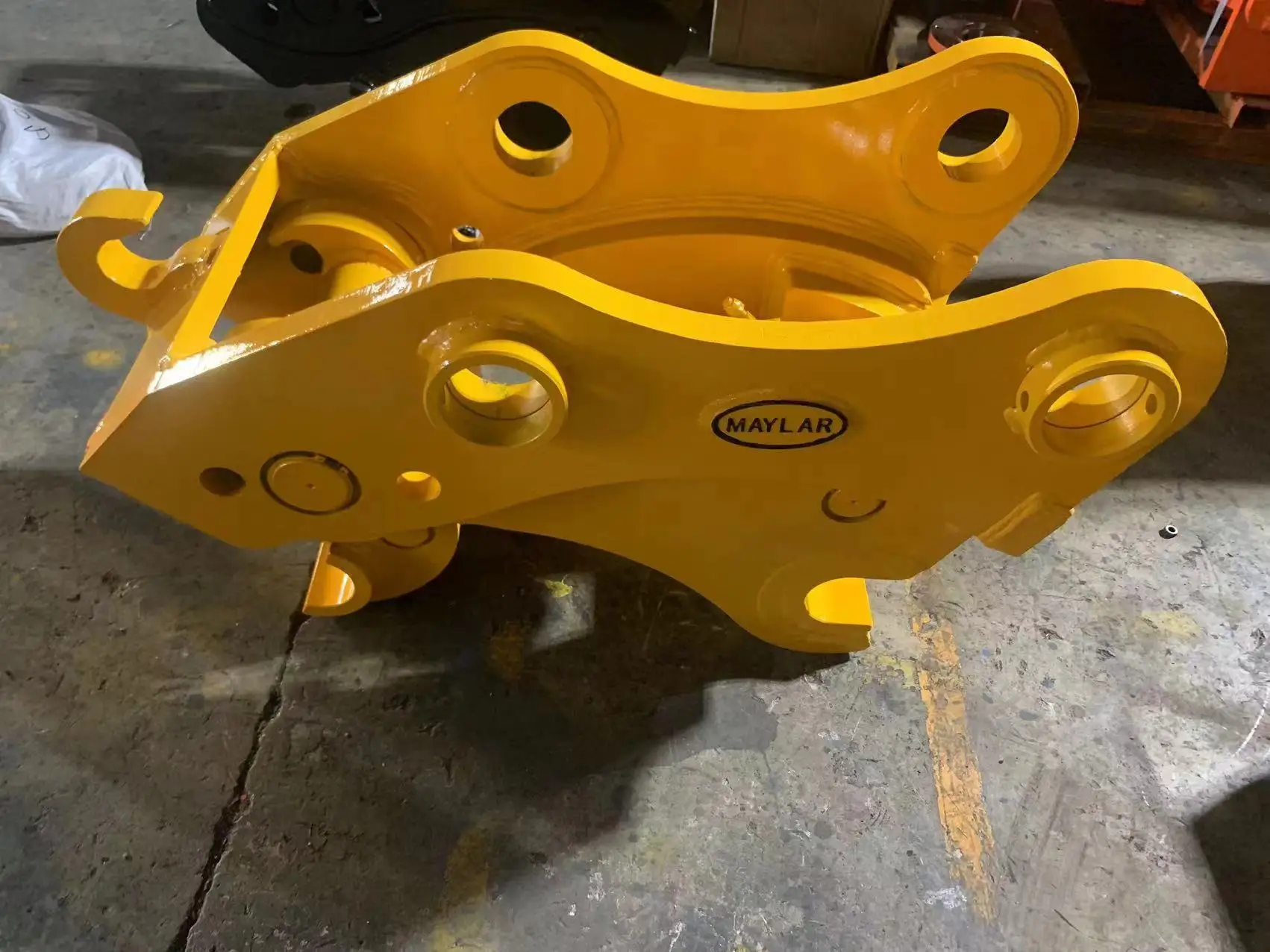

New Hitachi Excavator Quick Hitch Attachment Hydraulic Quick Coupler with Core Pump Component for Sale
- Category: >>>
- Supplier: Anton EquipmentAnton Equipment
Share on (1601064759706):
Product Overview
Description

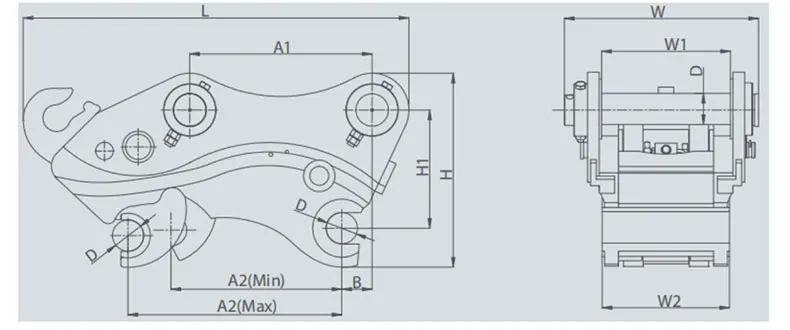

Product Specification
Model | Unit | AE-MINI | AE-02 | AE-04 | AE-06 | AE-08 | AE-10 | AE-17 |
Suitable Carrier | T | ≤4 | 4-6 | 7-8 | 12-18 | 19-24 | 25-32 | 35-40 |
Length | mm | 306-475 | 534-545 | 600 | 765 | 924-944 | 983-1050 | 1006-1173 |
Height | mm | 230-268 | 307 | 310 | 388 | 492 | 574 | 558-610 |
Width | mm | 175-242 | 258-263 | 270-280 | 353-436 | 449-483 | 543-568 | 606-663 |
Pin to pin distance | mm | 86-200 | 230-270 | 290-360 | 380-420 | 460-480 | 473-540 | 550-620 |
Arm width | mm | 86-185 | 155-170 | 180-200 | 232-315 | 306-340 | 375-411 | 416-469 |
Distance between up and bottom pin | mm | 159-165 | 150 | 195 | 220 | 275 | 300 | 360 |
Pin diameter | mm | 25-40 | 45-50 | 50/55 | 60/65 | 70/80 | 90 | 100/110 |
Weight | kg | 60 | 100 | 120 | 250 | 500 | 650 | 850 |
Working pressure | Kgf/cm2 | 40-380 | 40-380 | 40-380 | 40-380 | 40-380 | 40-380 | 40-380 |
Oil flow | l/m | 10-20 | 10-20 | 10-20 | 10-20 | 10-20 | 10-20 | 10-20 |

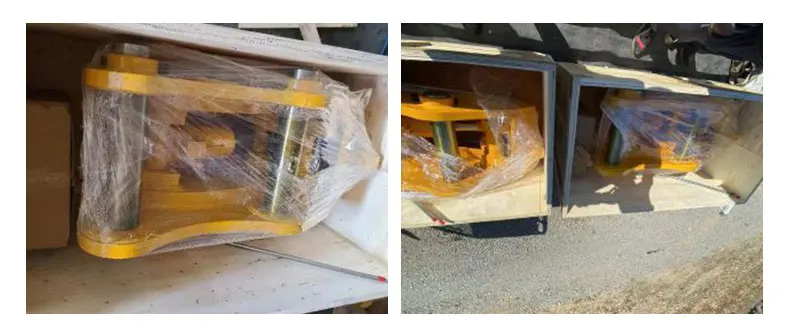

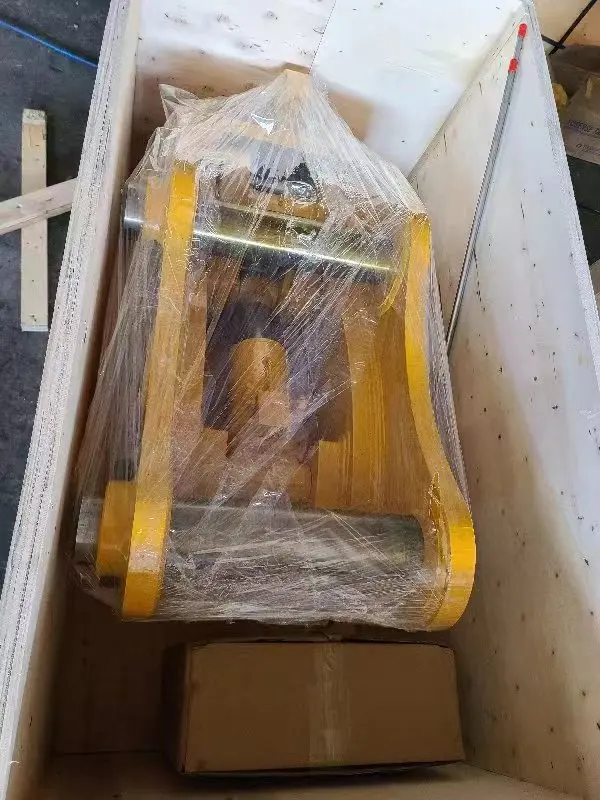

Packing& Delivery

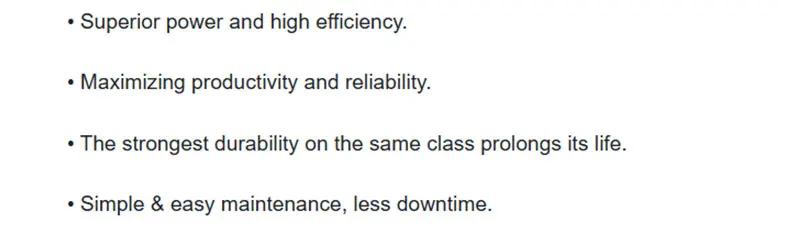

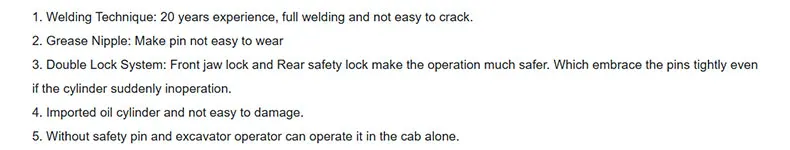

Product Features
Our Company

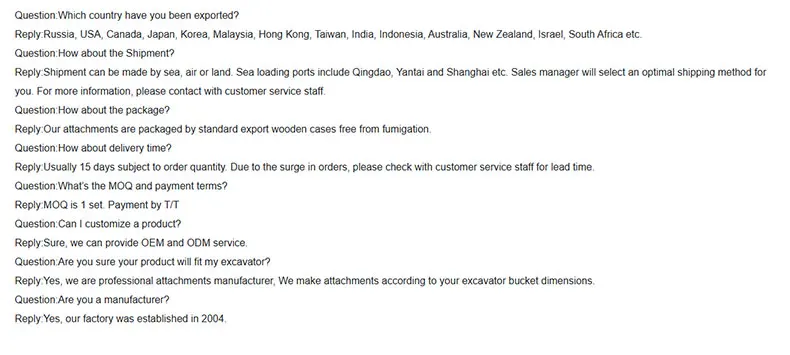

FAQ
