ELP 48MP Autofocus USB Camera 70 Degree Webcam UVC Free Driver Mini Camera Module for Security Video Scanning Tablet Laptop PC
- Category: >>>
- Supplier: Shenzhen Ailipu Technology Co. Ltd.
Share on (1601064762156):
Product Overview
Description
Recommend Products
ELP New 48MP Ultra HD 8000*6000 70 Degree Autofocus Monitor Webcam USB Mini Camera Module for Security Protection Live Streaming Video Conference Play&Plug Tablet Laptop PC Computer
Product Description
♦Key Features
♦Key Features
1.Ultra HD 8000X6000 High Resolution 48MP USB Camera.
2.Fast autofocus 48 Megapixel USB camera, 200ms autofocus speed.
3.Wide angle Autofocus lens, HFOV about 70 degree, DFOV about 82 degree.
4.With industrial grade high quality sensor GM1.
5.Super Image reality, real color reproduction.
6.UVC Free Driver, Plug and Play, easily used on different systems.
7.Support Windows, Linux, Android, Mac OS, Ubuntu, Raspberry Pi...
8. OTG Support, can be used on Android smartphone, recommended app "USB Camera".
2.Fast autofocus 48 Megapixel USB camera, 200ms autofocus speed.
3.Wide angle Autofocus lens, HFOV about 70 degree, DFOV about 82 degree.
4.With industrial grade high quality sensor GM1.
5.Super Image reality, real color reproduction.
6.UVC Free Driver, Plug and Play, easily used on different systems.
7.Support Windows, Linux, Android, Mac OS, Ubuntu, Raspberry Pi...
8. OTG Support, can be used on Android smartphone, recommended app "USB Camera".
♦Specifications
Model | ELP-USB48MP01-AF70 |
Sensor | GM1 sensor |
Max. Resolution | 8000 (H) *6000 (V) |
Lens Size | 1/2 inch (4:3) |
Compression Format | MJPEG / YUV2 (YUYV) |
Resolution & Frame Rate | 8000x6000 @ 3fps MJPEG / 4000x3000 @ 12fps MJPEG 3840x2160 @ 30fps MJPEG / 1920x1080 @ 30fps MJPEG 1280x720 @ 30fps MJPEG |
Surface Mount Technology | SMT |
Focus Speed | Fast About 200ms |
Central Definition | 1000LW/PH (Center) |
S/N Ratio | 36dB |
Dynamic Range | 82dB |
Sensitivity | 1.4V/lux-sec@550nm |
Min illumination | 0.3 lux |
Shutter Type | Electronic rolling shutter / Frame exposure |
Connecting Port Type | USB2.0 High Speed |
AEC | Support |
AWB | Support |
Adjustable Parameters | Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, White balance, Exposure |
Lens Parameter | Size 1/2 DFOV About 82 degree HFOV About 70 degree Mount M8.15 *P0.35 |
Power Supply | USB BUS POWER 4P-2.0mm Socket |
Operating Voltage | DC 5V |
Working Current | 550Ma- 610mA |

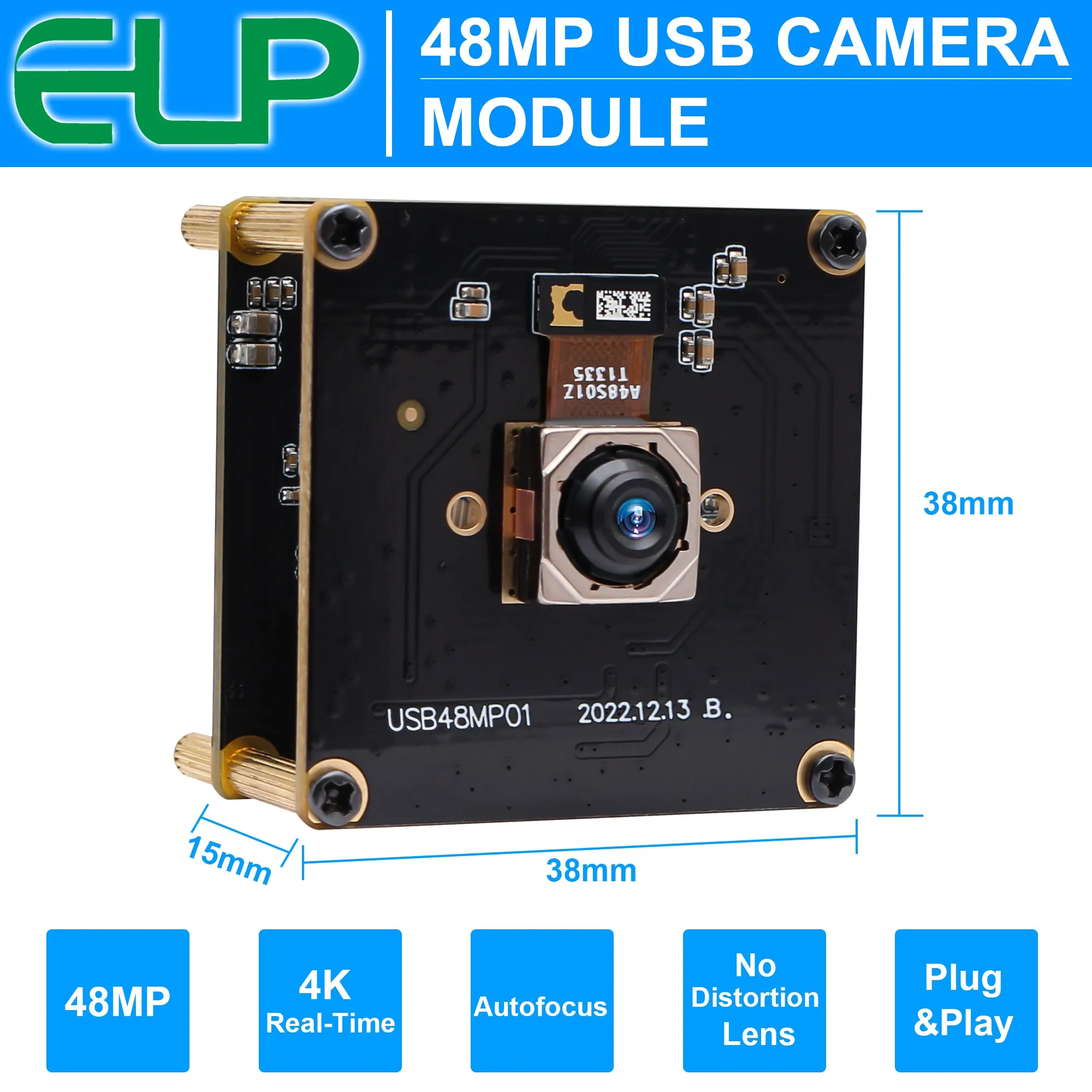

Board Size | Double-deck, 38mm × 38mm |
Storage Temperature | -20°C to 80°C |
Working Temperature | 0°C to 70°C |

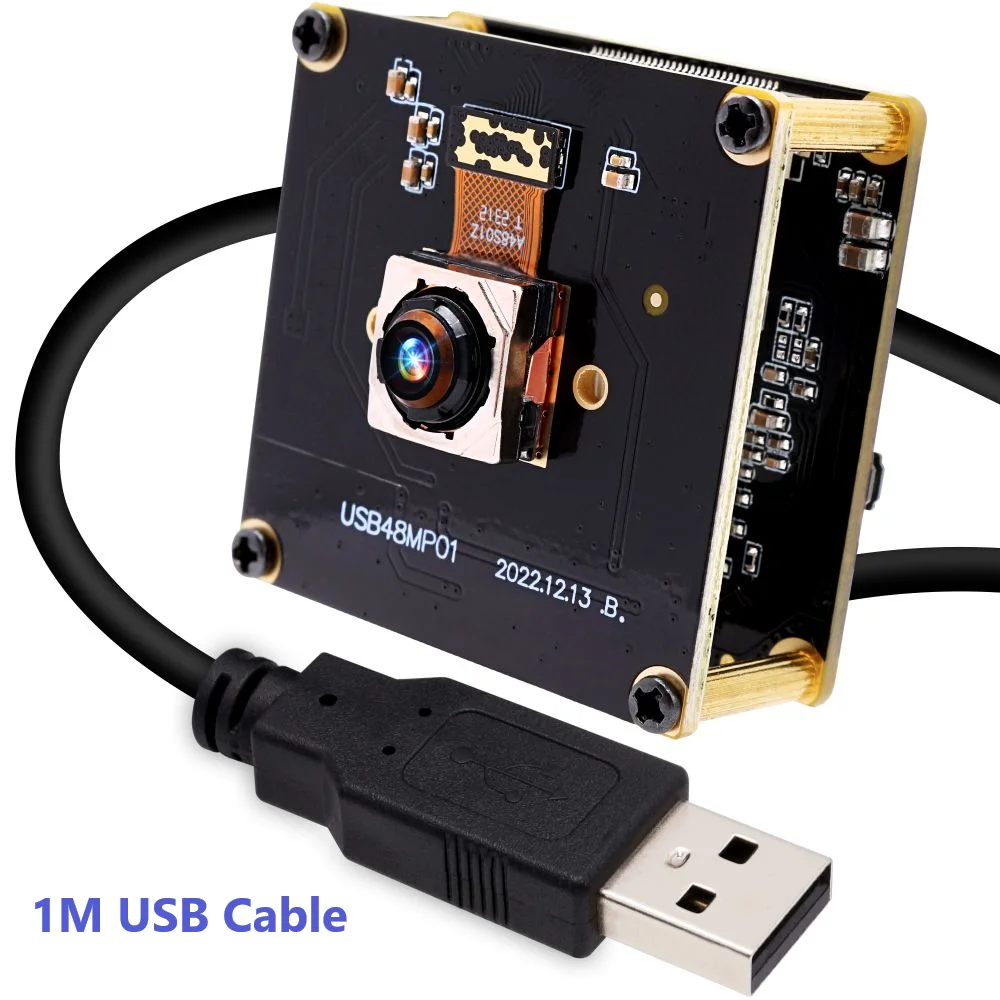

USB Cable | Standard 1m / optional 2m... |
Operating System Request | Win XP/Vista/Win7/Win8 / Win10/ Win11 etc. Linux with UVC (above linux-2.6.26) MAC-OS X 10.4.8 or later/Android 4.0 or above with UVC |
♦Working Modes

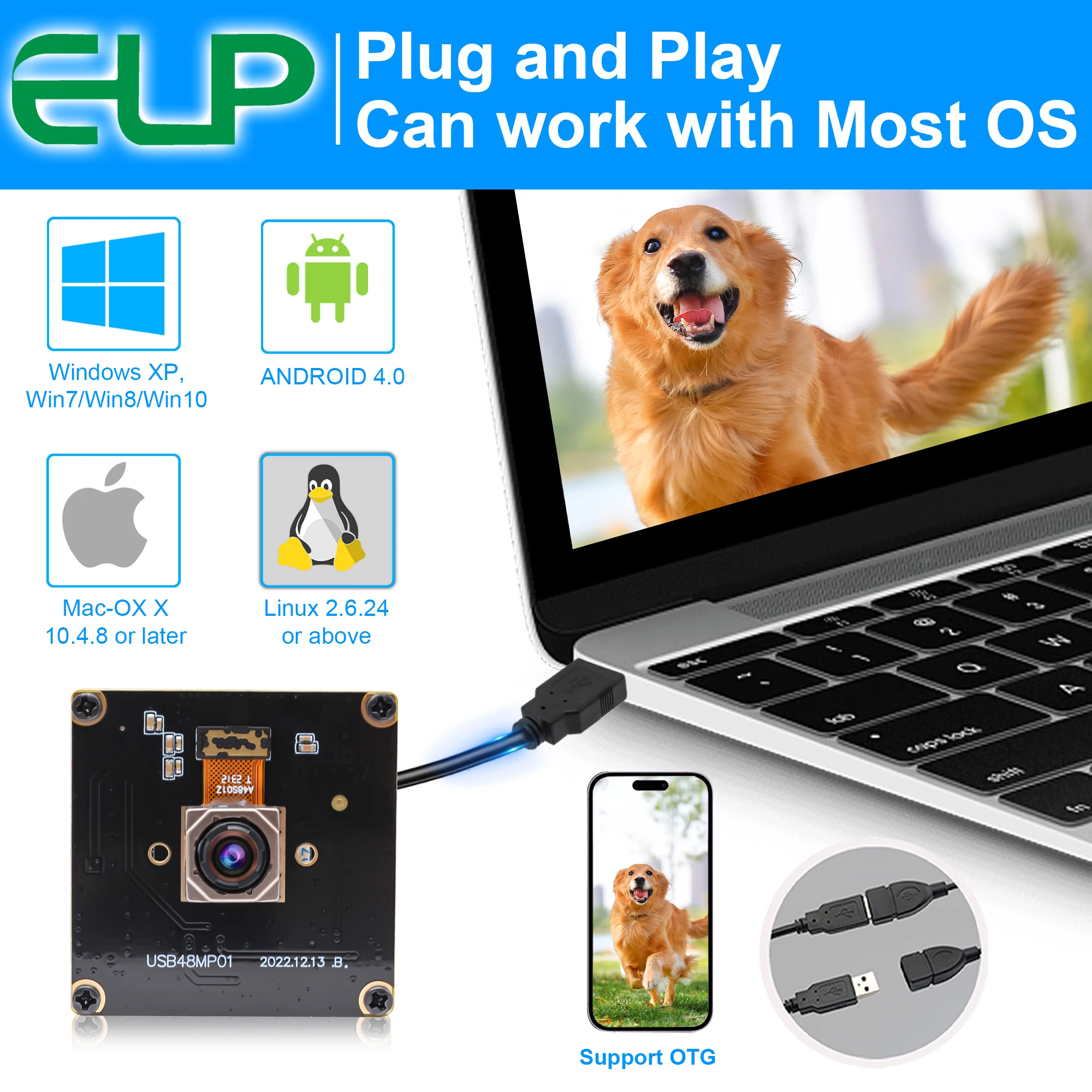

Plug&Play: No driver required. The USB camera board is equipped with a 4pin to USB connector on the back for direct PC connection, compatible with the various platforms such as Linux, Windows, Andriod, and Mac OS; it also supports the use of Zoom/Skype/Facetime
and other video streaming APP.
and other video streaming APP.
Autofocus lens: When the picture is enlarged, the details are still sharp.

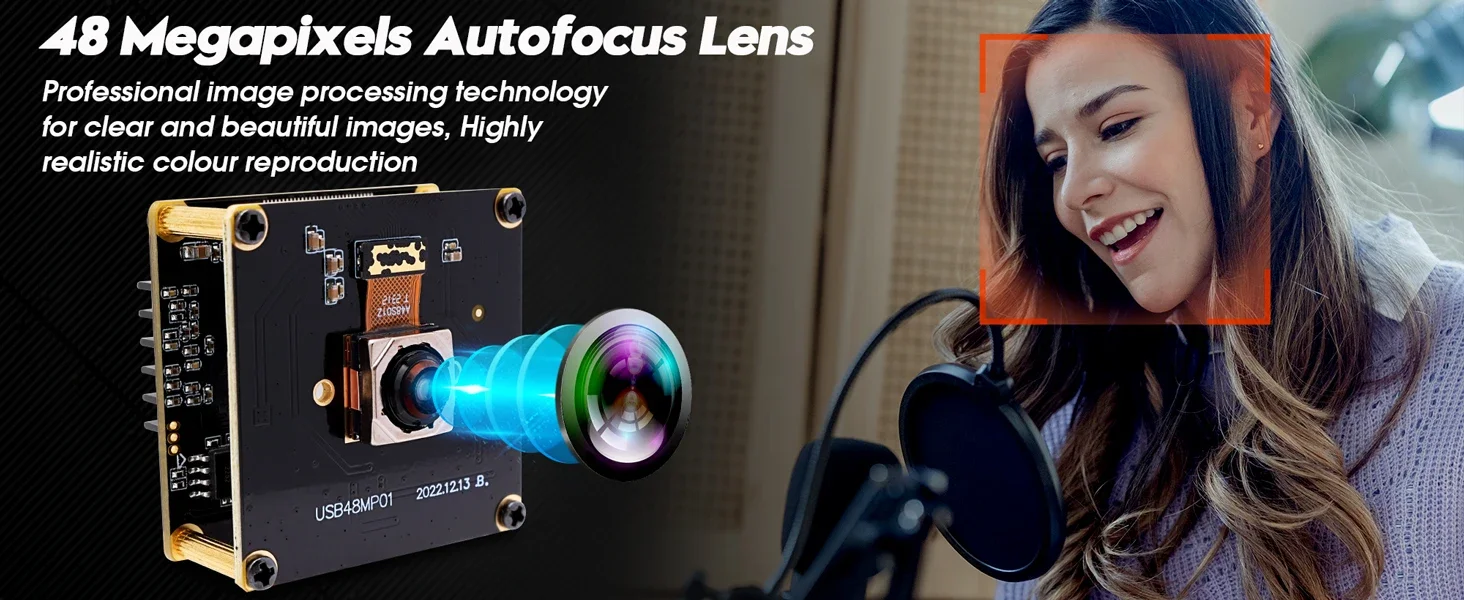

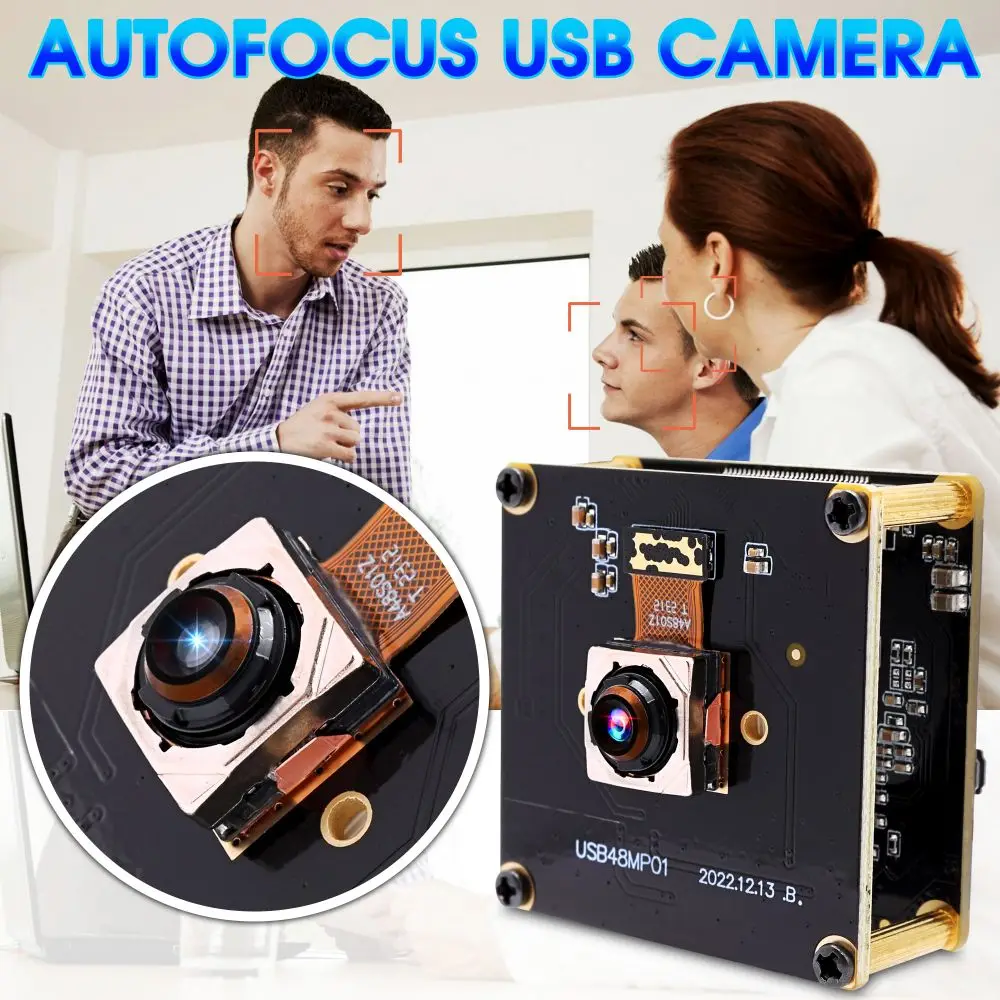

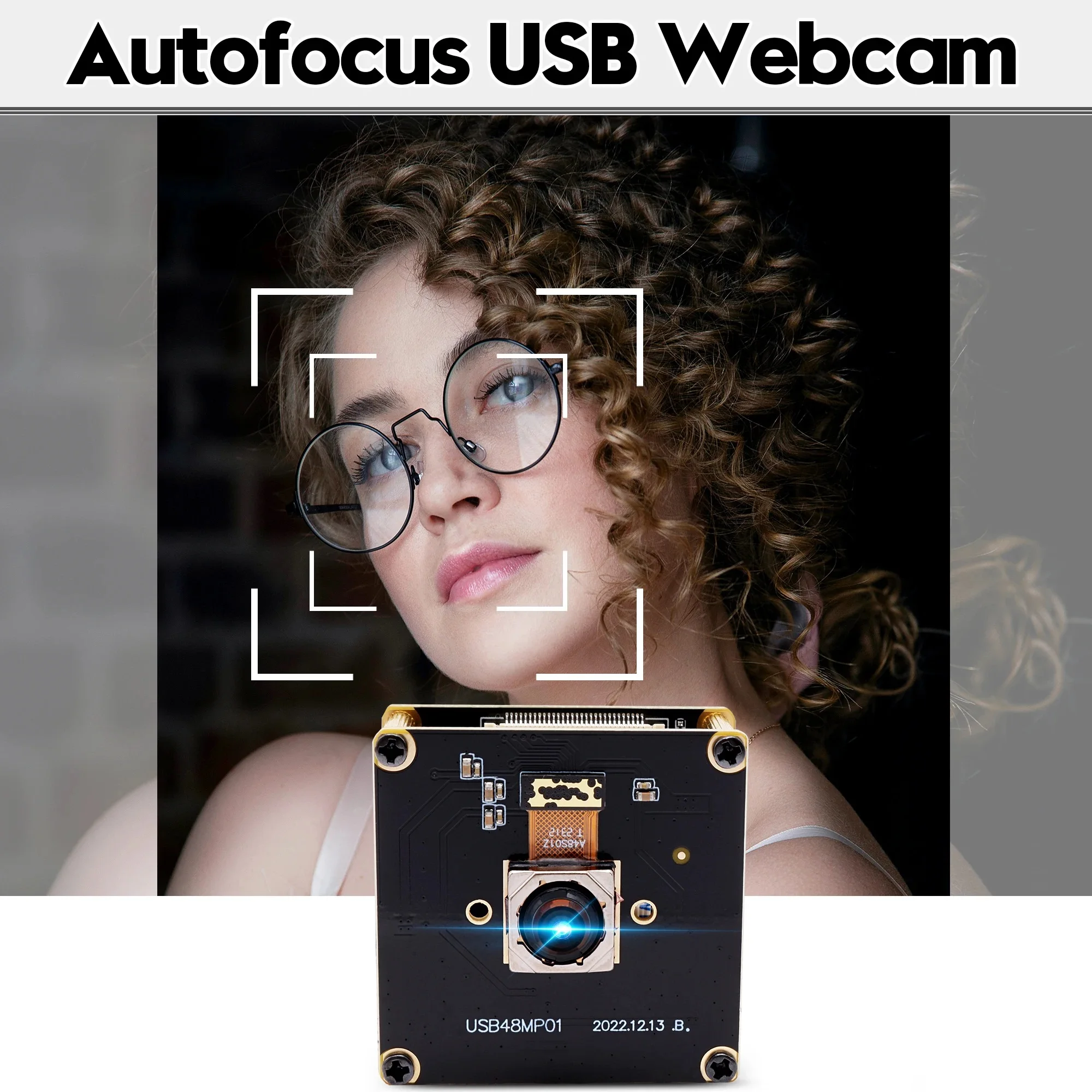

Autofocus camera module Fast focus
48MP Camera support fast focus at about 200ms, Heat Dissipation is designed on back of this camera.
48MP Camera support fast focus at about 200ms, Heat Dissipation is designed on back of this camera.
No distortion lens: There is no distortion around the edge, and the illumination around the edge is good to ensure uniform and bright images

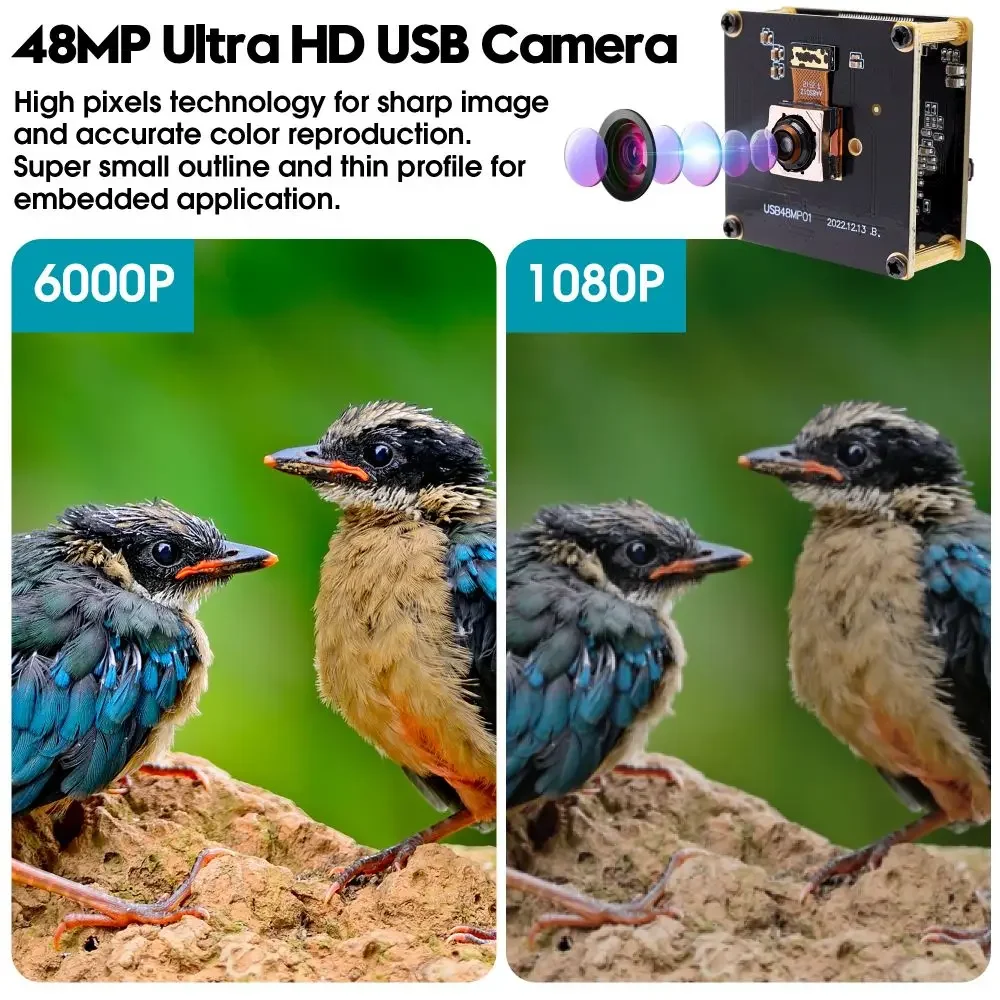

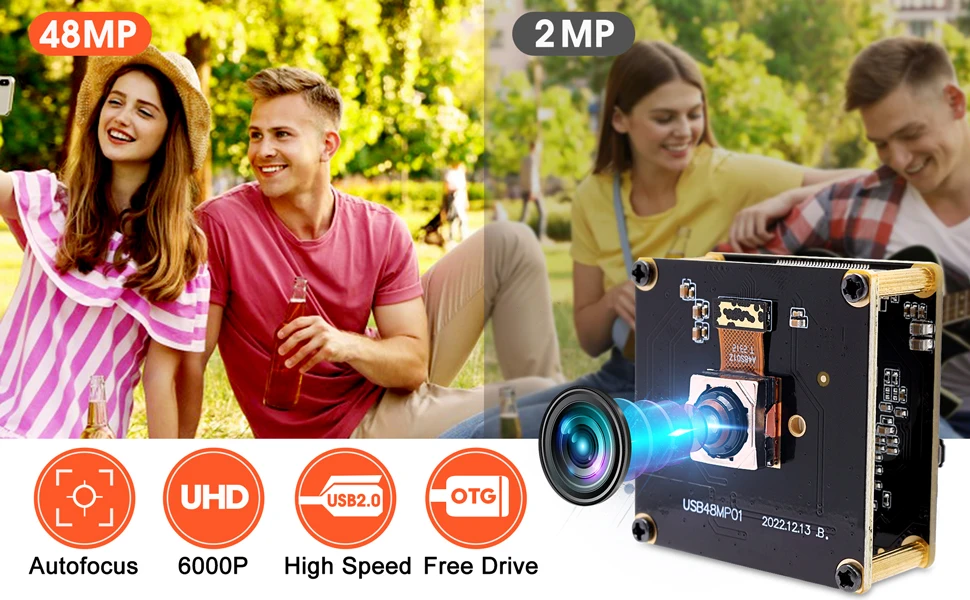

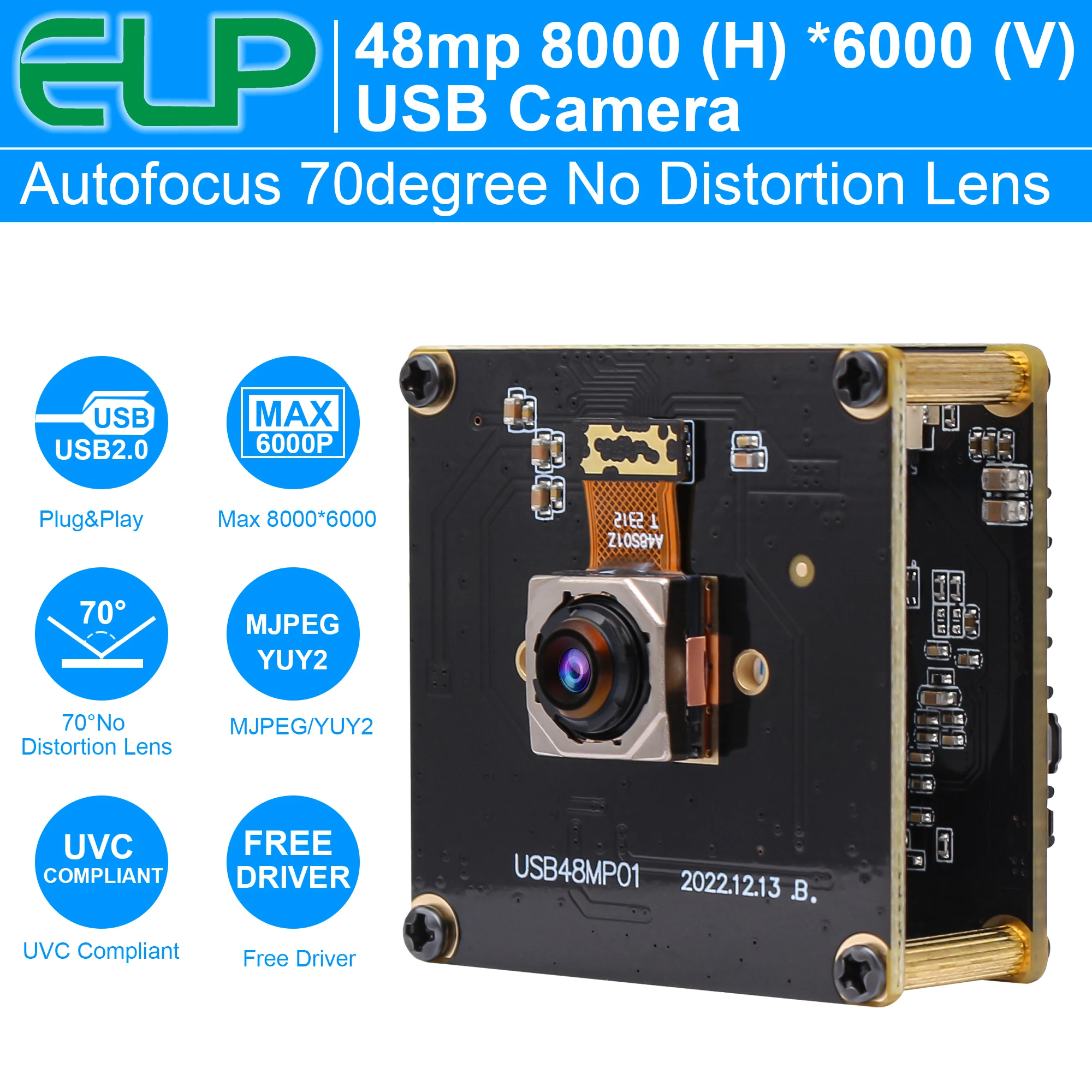

Ultra HD 8000X6000: High Resolution 48MP USB Camera with 1/2 S5KGM1ST04-FG9 Sensor. Real Color Reproduction, without interpolation
With 70 Degree wide angle

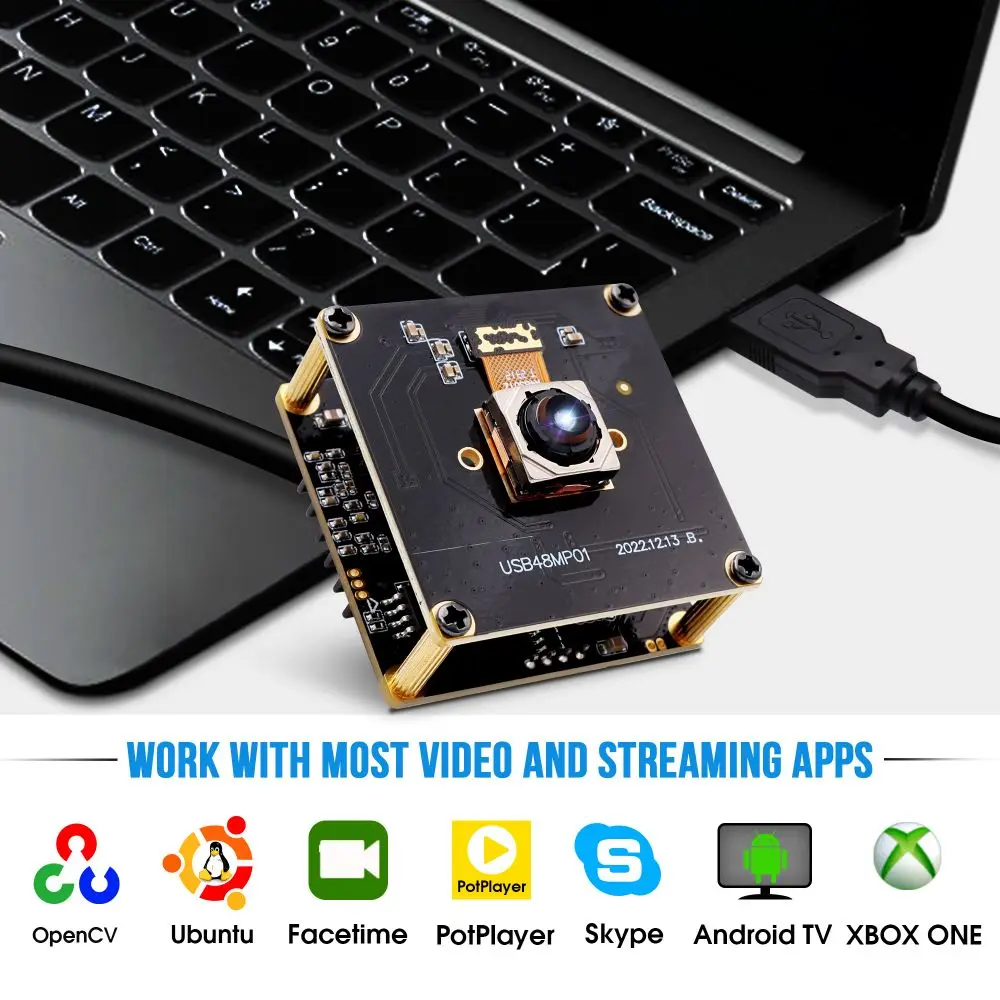

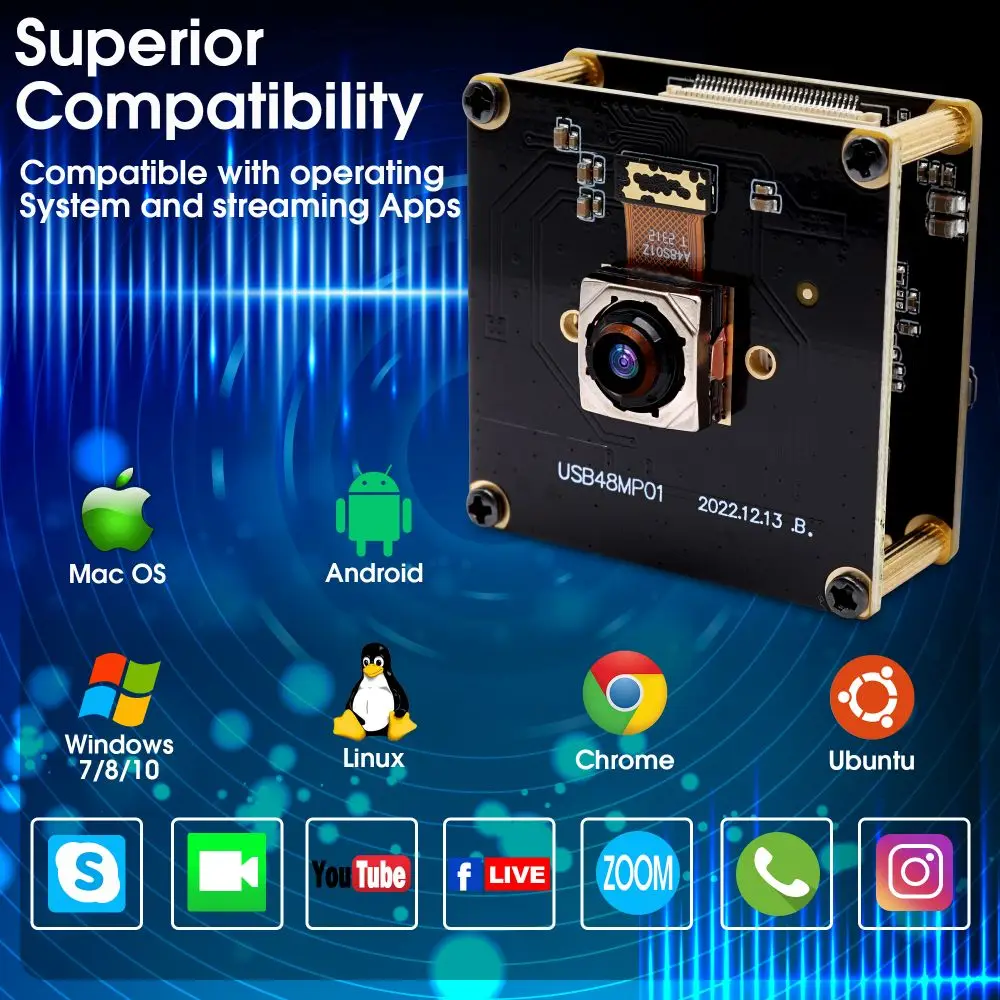

This 48MP USB camera can widely use for regular social software like Skype/QuickTime/Zoom/Facetime /OBS/GoToMeeting/Facebook/LIVE/YouTube.Professional computer video software Amcap/OpenCV/VLC.
♦Production Size
♦Broad Application

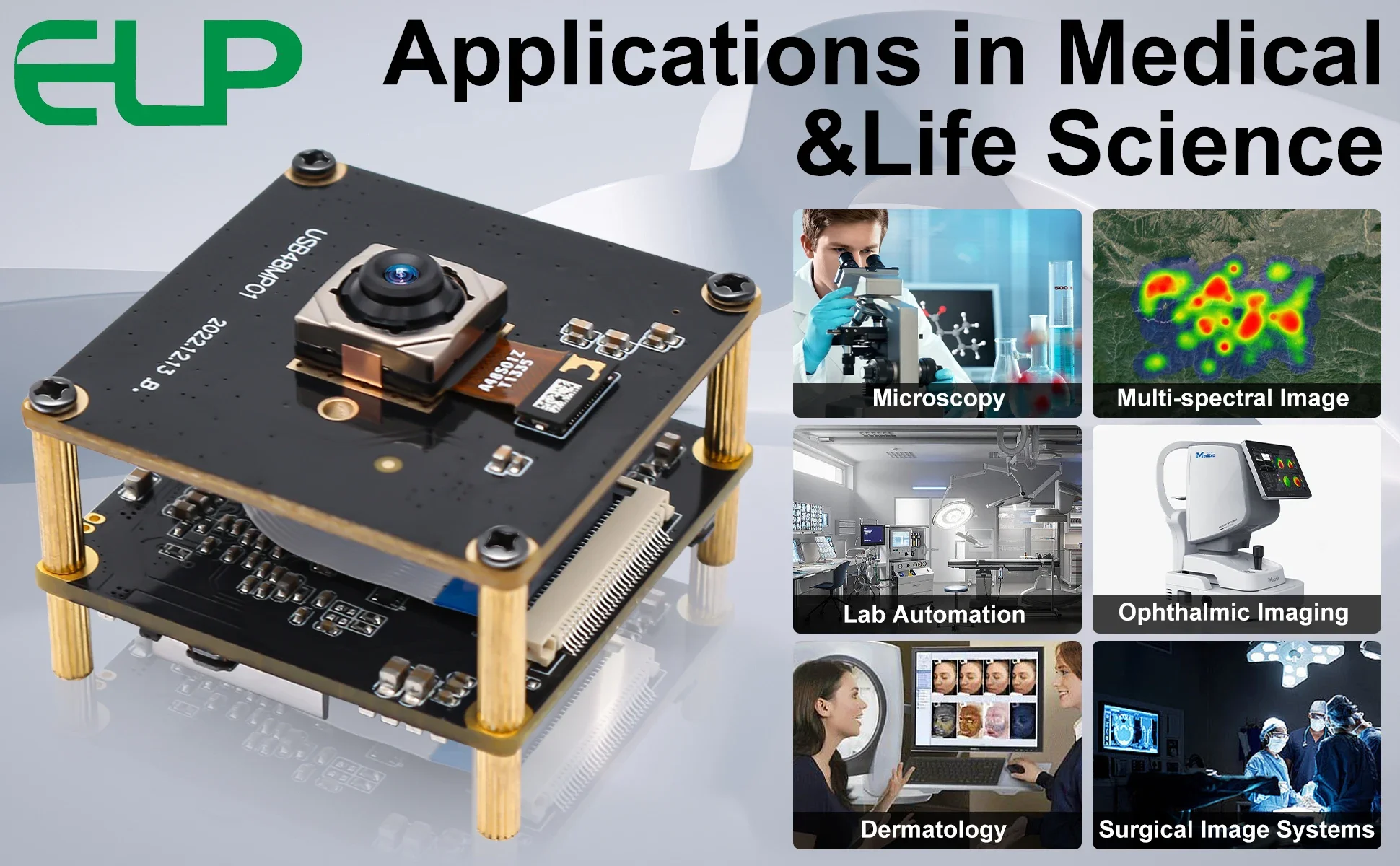

Wide Application: For Video Conferencing, Live Streaming, Security, Medical device, Industrial Inspection, Science Research and Development, Education and Training, High Resolution document Scan.
Company Profile
Shenzhen Ailipu Technology Co.,Ltd established in 2005, is a 18 years professional USB Cameras manufacturer in China. Our own brand ELP is well known in cameras industry domestic and abroad. We achieve quality certificate like ISO9001, CE, FCC, ROHS.
With our own unique R&D team as the basic, oriented by dedicated sales team. We already developed into aprofessional USB Camerascompany, integrated with developing, manufacture, sales and service all together.
At present, Shenzhen Ailipu Technology Co., Ltd produce all kinds of USB Cameras for industrial, commercial vision application. Like ATM, Kiosk, Robot, Medical device,Smart factory, video surveillance. Resolution range from 0.3 megapixel, 1 megapixel, 2 megapixel, 5 megapixel to 8 megapixel. And recently We launch new ultra HD USB cameras like Super Sharp 4K cameras,13 Megapixel cameras. We also supply special function Auto focus cameras, High frame rate cameras, Low illumination cameras, WDR Cameras,
Global shutter camera, H.264 cameras, USB 3.0 cameras, Stereo cameras. We can also provide OEM or customization service.
We always believe"Together Everybody Achieves More". We are looking forward to your choice and join.
With our own unique R&D team as the basic, oriented by dedicated sales team. We already developed into aprofessional USB Camerascompany, integrated with developing, manufacture, sales and service all together.
At present, Shenzhen Ailipu Technology Co., Ltd produce all kinds of USB Cameras for industrial, commercial vision application. Like ATM, Kiosk, Robot, Medical device,Smart factory, video surveillance. Resolution range from 0.3 megapixel, 1 megapixel, 2 megapixel, 5 megapixel to 8 megapixel. And recently We launch new ultra HD USB cameras like Super Sharp 4K cameras,13 Megapixel cameras. We also supply special function Auto focus cameras, High frame rate cameras, Low illumination cameras, WDR Cameras,
Global shutter camera, H.264 cameras, USB 3.0 cameras, Stereo cameras. We can also provide OEM or customization service.
We always believe"Together Everybody Achieves More". We are looking forward to your choice and join.
FQA
1. Can you OEM camera module?
Yes, we can offer OEM camera modules according to customer's different requirement.
2. Can you provide SDK for secondary development?
Yes, We can offer Linux, Windows, Android SDK.
3. What's your usb cameras' production cycle?
We can supply the camera module for a long time. as long as customers need it.
4. Are you manufacturer?
Yes, we are designer and manufacturer for usb camera module.
5. What lens optional you have?
We have normal M12 2.1/2.8/3.6/6/8/12mm lens, M7 mini lens and also wide angle fisheye lens and varifocal lens.
6. What operating system your cameras support?
Our USB cameras support Android, Windows and Linux System, Mac.
7. What certificate your products have?
All our USB Camera Module have CE, FCC certificates, partial have RoHS and UL.
8. Does the camera support Raspberry Pi? If support Linux Ubuntun system?
Yes, all our usb cameras support Raspberry Pi system and Linux Ubuntun system.
9. Does the camera support OTG?
Most of our usb cameras support OTG function, except 0.3MP USB30W02M series and 5MP OV5640 USB cameras.
10. Which software your usb camera module support?
Blue Iris, ContaCam, Yawcam, Ispy, Motion Eye OS,AMCAP Wecam Viewer, IP Camera Viewer, ZoneMinder,V4L2 video for Linux,Camerafi,VLC Player.
1. Can you OEM camera module?
Yes, we can offer OEM camera modules according to customer's different requirement.
2. Can you provide SDK for secondary development?
Yes, We can offer Linux, Windows, Android SDK.
3. What's your usb cameras' production cycle?
We can supply the camera module for a long time. as long as customers need it.
4. Are you manufacturer?
Yes, we are designer and manufacturer for usb camera module.
5. What lens optional you have?
We have normal M12 2.1/2.8/3.6/6/8/12mm lens, M7 mini lens and also wide angle fisheye lens and varifocal lens.
6. What operating system your cameras support?
Our USB cameras support Android, Windows and Linux System, Mac.
7. What certificate your products have?
All our USB Camera Module have CE, FCC certificates, partial have RoHS and UL.
8. Does the camera support Raspberry Pi? If support Linux Ubuntun system?
Yes, all our usb cameras support Raspberry Pi system and Linux Ubuntun system.
9. Does the camera support OTG?
Most of our usb cameras support OTG function, except 0.3MP USB30W02M series and 5MP OV5640 USB cameras.
10. Which software your usb camera module support?
Blue Iris, ContaCam, Yawcam, Ispy, Motion Eye OS,AMCAP Wecam Viewer, IP Camera Viewer, ZoneMinder,V4L2 video for Linux,Camerafi,VLC Player.
