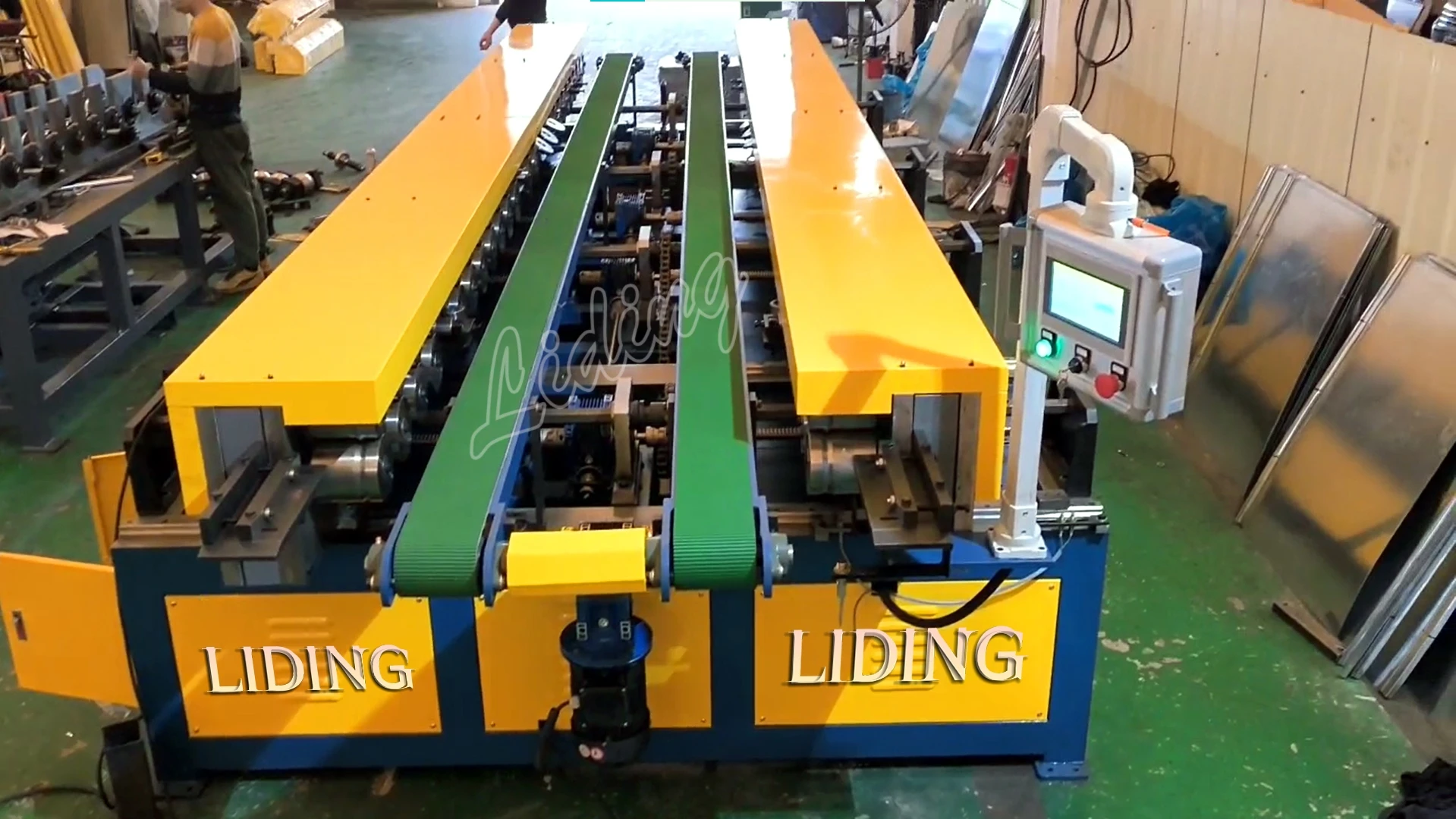

R&D Professional tdc air duct flange roll forming machine made in China
R&D Professional tdc air duct flange roll forming machine made in China
R&D Professional tdc air duct flange roll forming machine made in China
R&D Professional tdc air duct flange roll forming machine made in China
R&D Professional tdc air duct flange roll forming machine made in China
R&D Professional tdc air duct flange roll forming machine made in China
R&D Professional tdc air duct flange roll forming machine made in China

R&D Professional tdc air duct flange roll forming machine made in China

Share on (1601064799111):


Price:$34,700.00 - $35,600.00

Quantity:


Product Overview

Description


Product Description

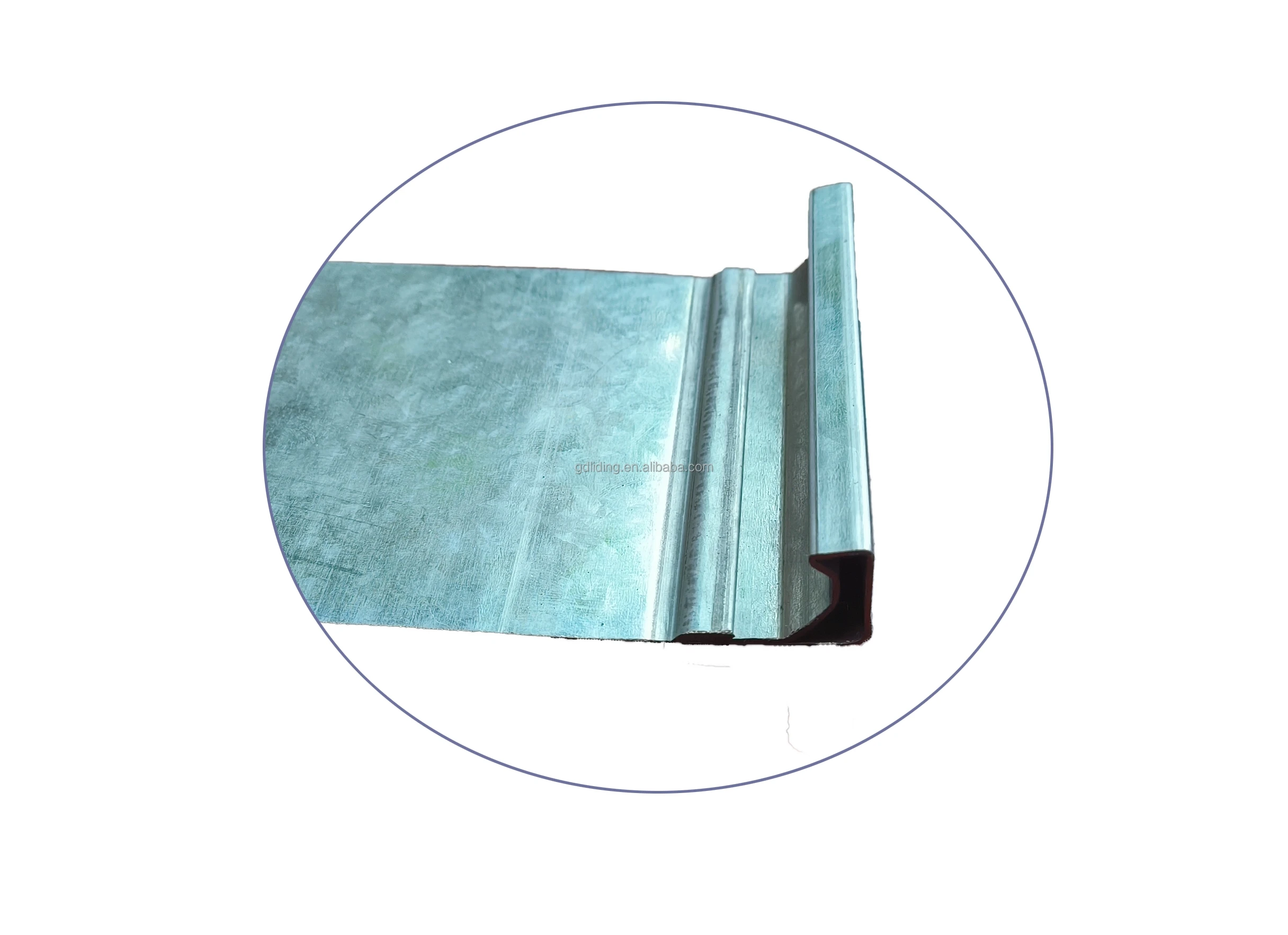

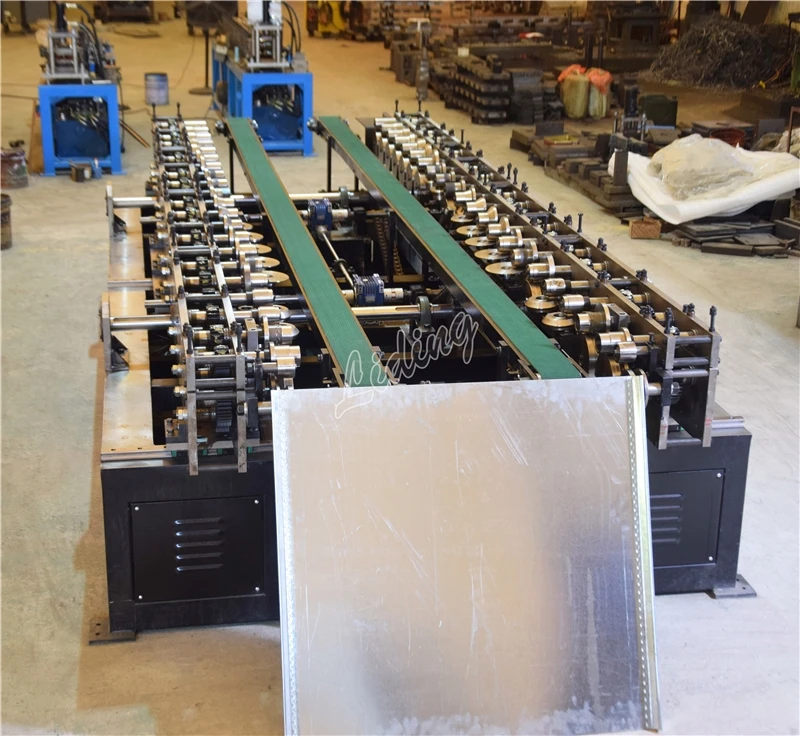

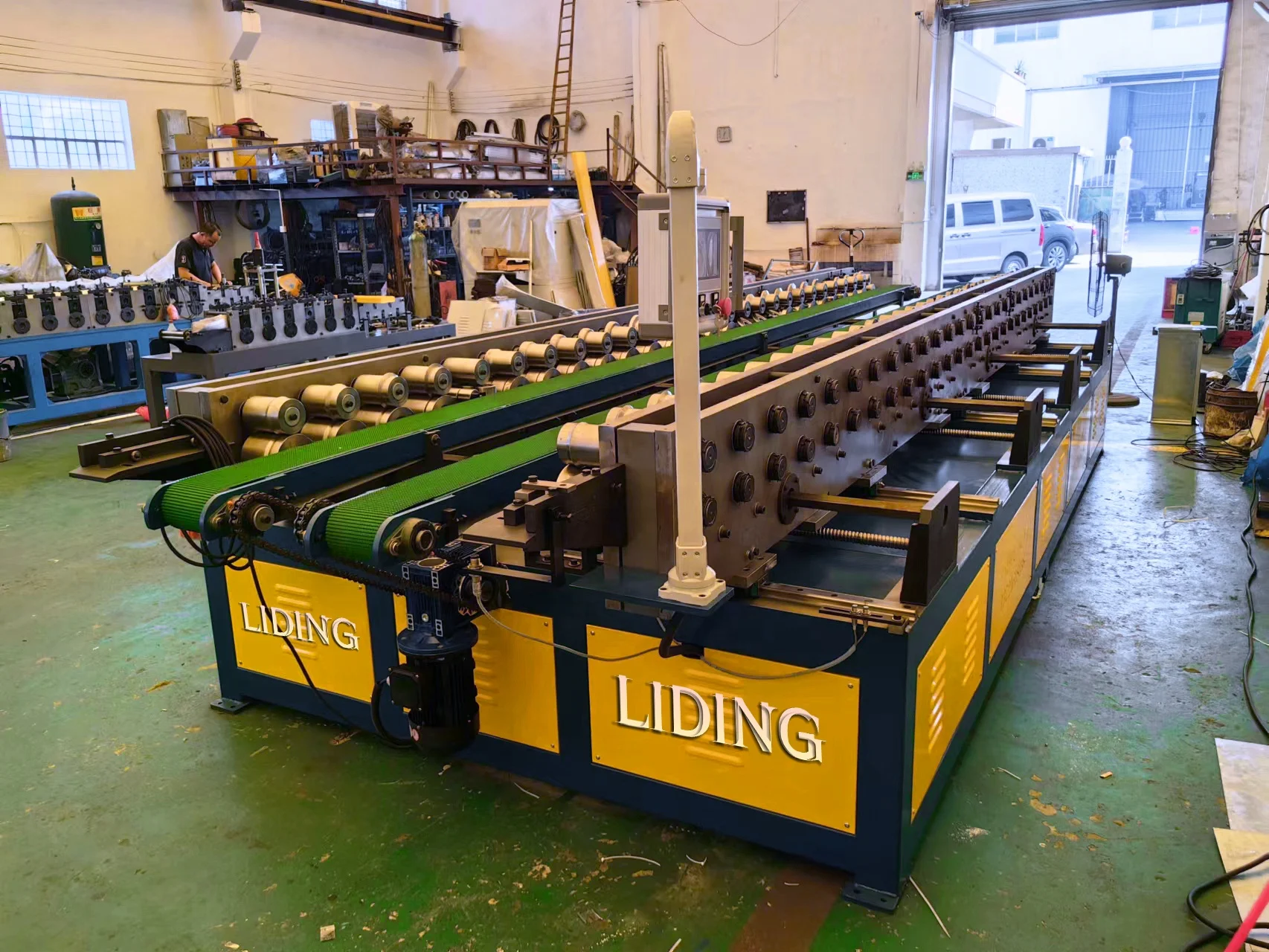

GDF/PDF Duplex Flangehvac air duct machine
Air duct equipment air duct panel making machine Technical parameters
Rolling material: Galvanized sheet

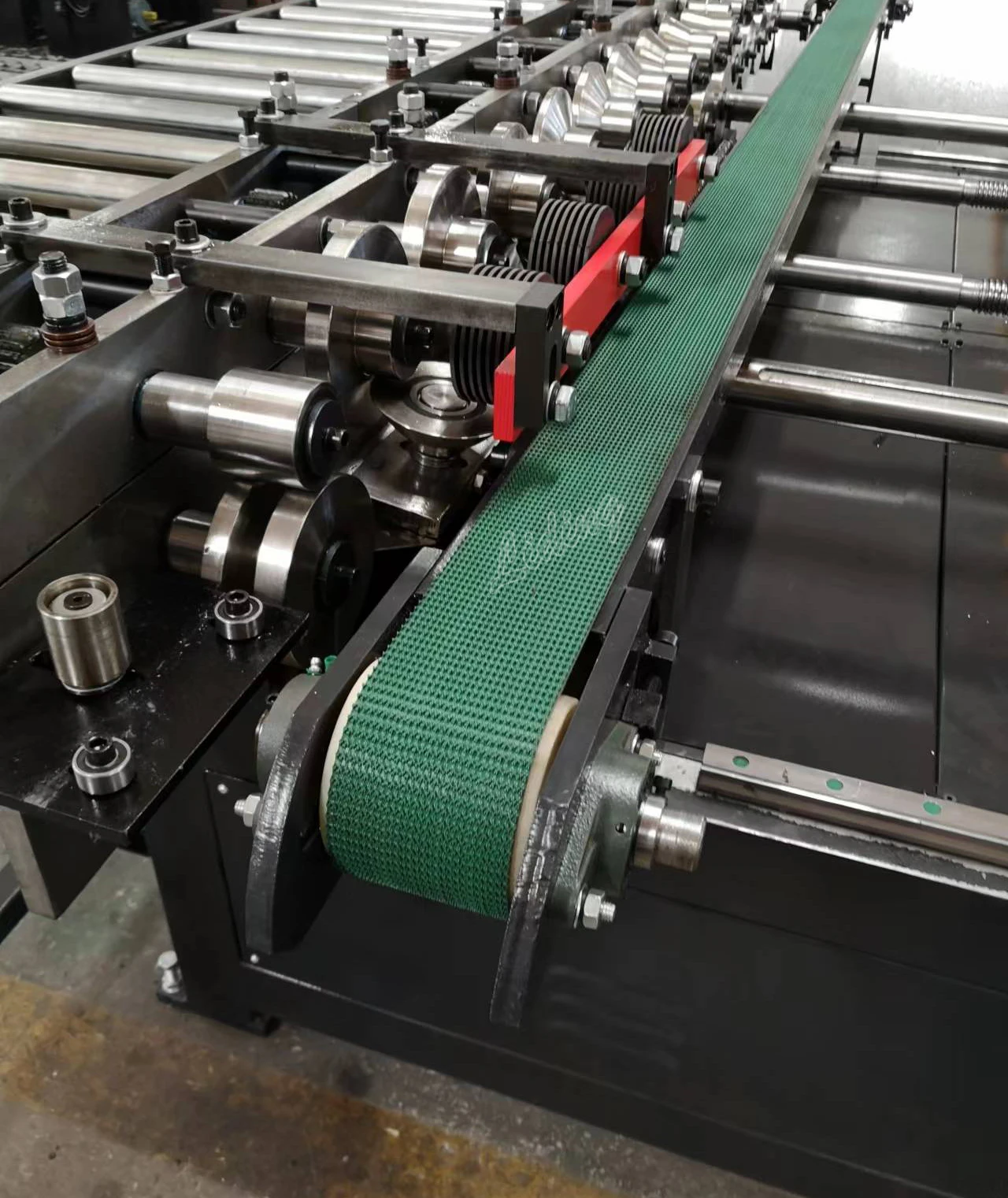

Rolling wheel: 26 sets
Rolling wheel material: GCr15 steel
Rolling wheel: heat treatment HRC55°~57°
Rolling wheel spindle diameter: 40mm, material 45# steel.
Rolling wheel bearing specifications: Harbin 6009
Thickness of plywood: 40

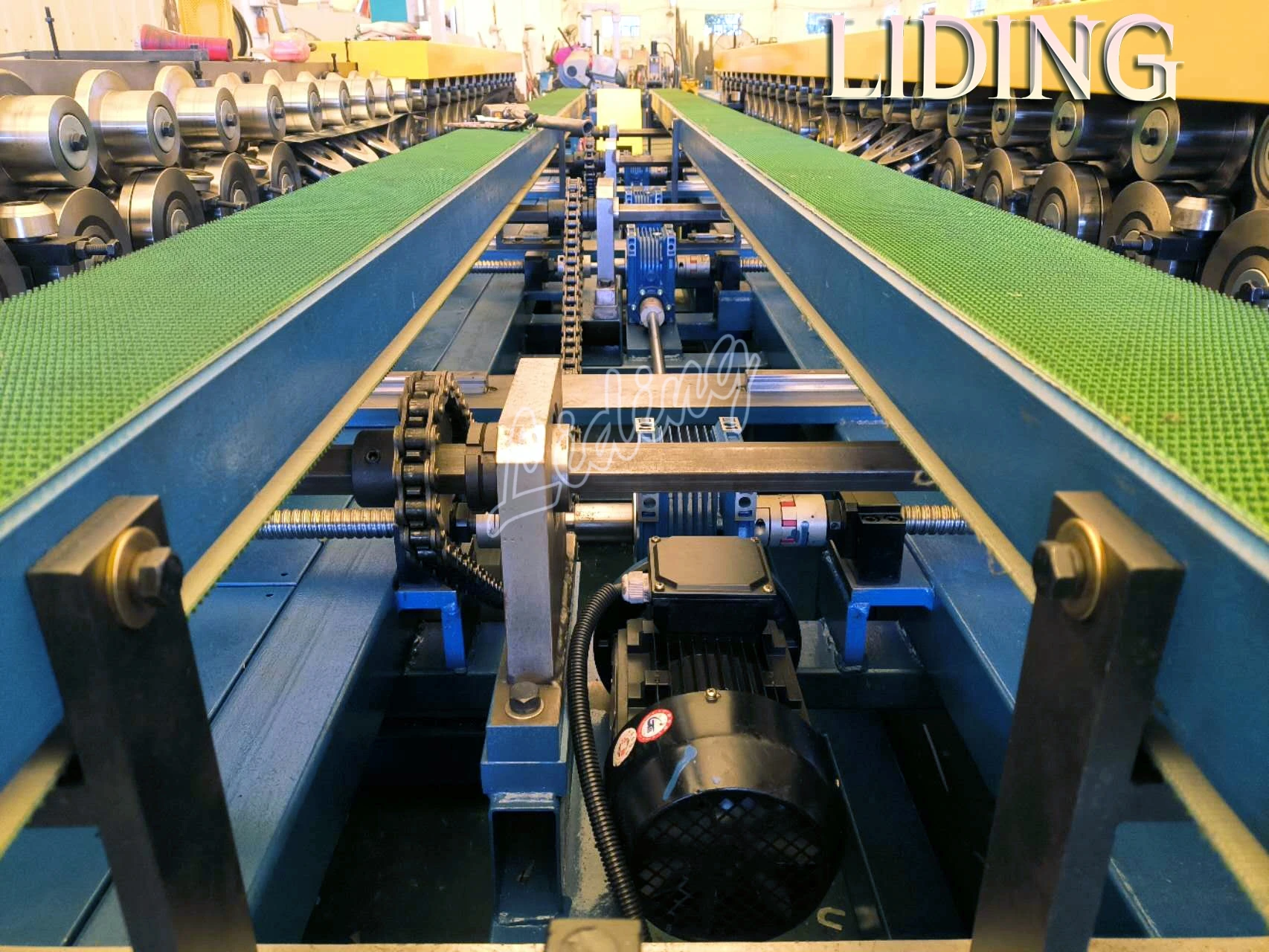

Transmission method: Chain and vector wheel
Power Transition: servo motor +gearbox
Motor power :12.5 kW.
Forming speed: 10m/min.
Voltage:380V 50Hz
Specification
Condition
New
Production Capacity
0-10m/min
Place of Origin
China,Guangdong
Brand Name
Liding
Voltage
380V 50Hz 3phases

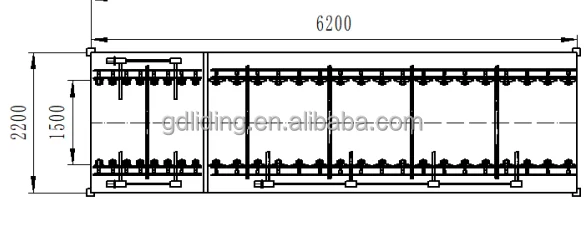

Dimension(L*W*H)
6200*2200*1000mm
Weight
5000kg
Warranty
1 Year
Key Selling Points
High-accuracy
Rolling thinckness
0.8mm(decided by clients)
Machinery Test Report
Provided
Video outgoing-inspection
Provided
Warranty of core components
1 Year
Product name

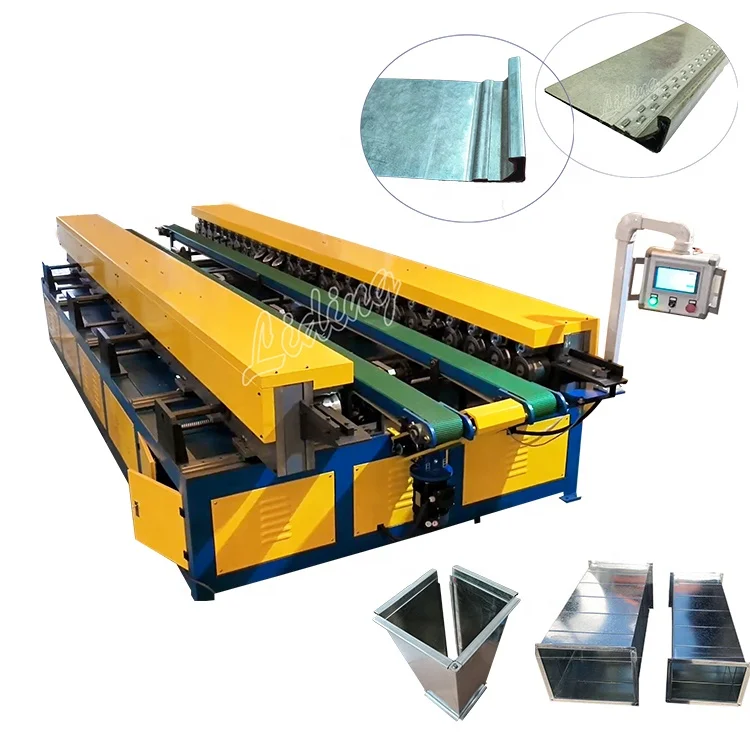

PDF/GDF square air duct machine air ducts manufacturing machine
Roller material
Gcr15
Transmission
Gear

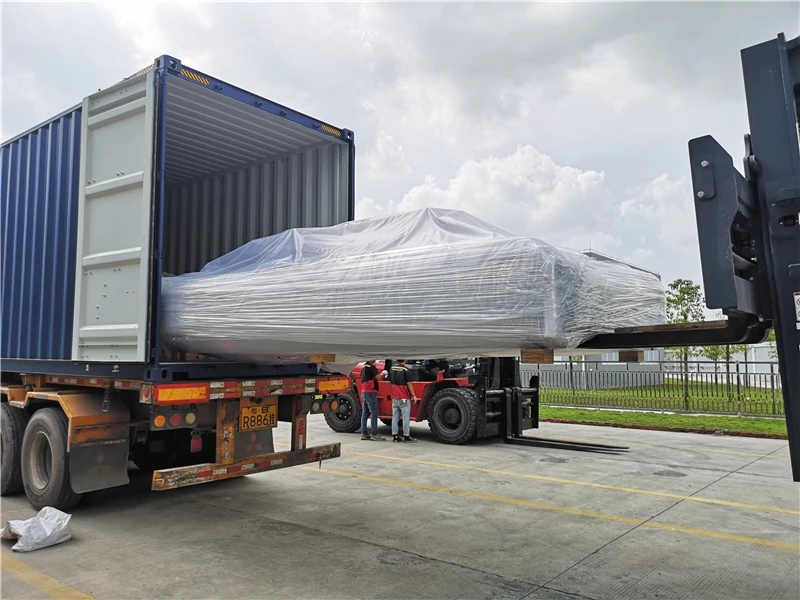

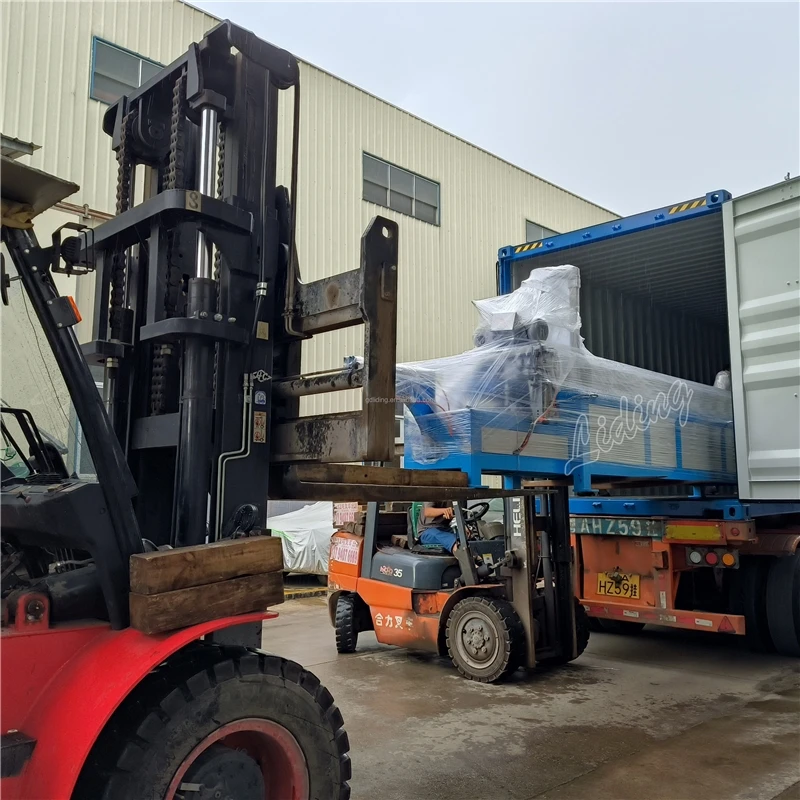

Packing & Delivery
Main machine,motor ,pump and control box are packaged by plastic paper.

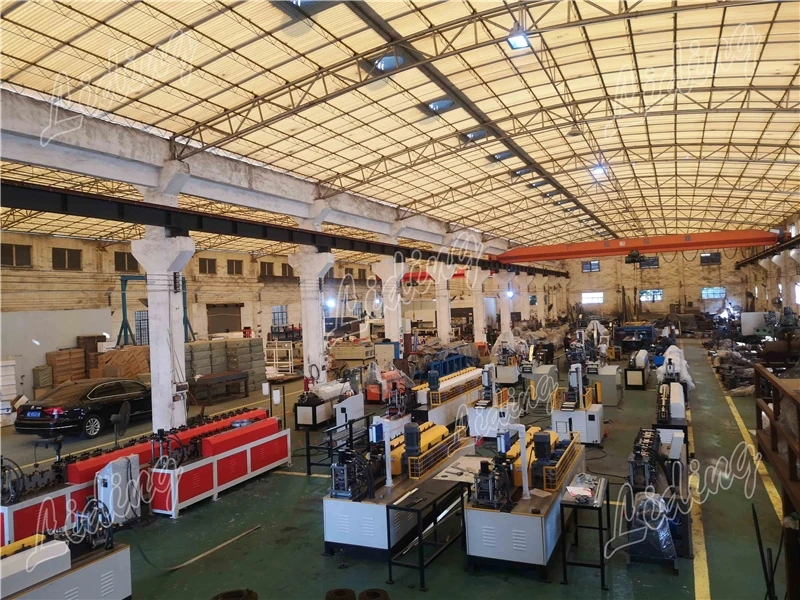

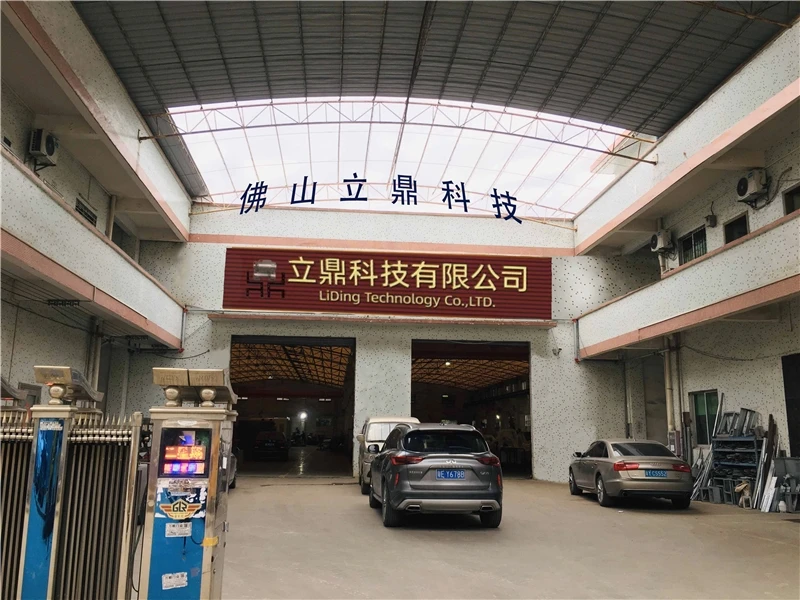

Company Profile

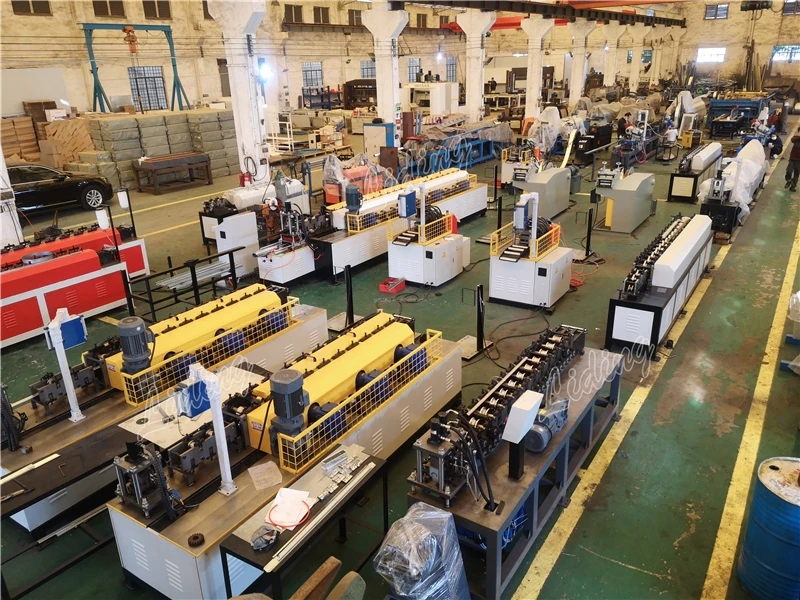

Foshan Liding Machinery Technology Co., Ltd. was established in 2014,specializing in the design and manufacture of cold-forming equipment automatic production lines,such as TDC flange machine, elliptical pipe machine, spiral duct machine, C/Z-shaped steel machine, color tile machine, highway guardrail machine,cold cabinet accessories machine, shelf column machinery, doors and windows frame machinery, shaped pipe machine, etc.

Liding provides the most professional and precise cold-forming machine machinery equipment,which has reliable quality and stable performance. A team of experienced engineers is working with PROE design software system and skilled technicians for machine production and inspection. And high precision cold-forming equipment with programmable PLC computer control makes the process of forming more stable and efficient.
FAQ
Q1. What are the main key points for selecting right machines?A1: Whole structure,Roller Shaft,Roller Material,Motor&Pump,and Control system. As the new buyer, please kindly know that price not the final point. Good quality is for long-term business cooperation.Q2. Can you provide OEM service for roll forming machine?A2: Yes, most of cold roll forming machine need to be customized as detailed request, because raw material , size , production usage, machine speed, then machine specification will be some different.Q3. What’s your standard trade terms ?A3: We can provide the technical offer with FOB, CFR, CIF and so on. Please kindly tell the detailed port name for
competitive ocean freight.Q4. What's your payment terms ?
A4: 30% as the deposit in advance, 70% as the balance payment after your inspect the machine well and before delivery. After we get down payment, we will arrange production.Q5. How to get a quotation?
A5: 1. Give me the dimension drawing and thickness, it is very important.
2. If you have requirements for production speed, power, voltage and brand, please explain in advance. 3. If you don't have your own outline drawing, we can recommend some models according to your local market standard.Q6. What is the after- sale service?A6: 1. The warranty is 12 months after the client receives the machine. 2.Within quality guarantee period, except for failures caused by human error, repair parts will be provided for free. 3. We offer technical support for the entire life of our machines. 4. We can send our technicians to install and train the workers in the clients' factories with extra cost. 5.After the quality guarantee period, only charge the production cost of the spare parts.Q7. Can you provide some spare parts?A7: Yes, of course you can. Fast wearing parts will be sent to you together with the machine.
