LASER TREE K1 MINI Portable 10W 3030 Laser Engraver with Air Assist Fast Diode Lazer Engraving Machine for Wood Leather DIY Tool
- Category: >>>
- Supplier: Shenzhen Guangchuangfeng Technology Co. Ltd.
Share on (1601065002140):
Product Overview
Description
Remarks:
We currently have overseas warehouses to storage & deliver our Laser Engraving Machines, please contact our customer service to check if you can buy our products in this way. Then the shipping cost will be greatly reduced.
Recommend Products
Parameters
Product Name | Laser Engraving Machine / Laser Engraver | ||||||
Brand | LASER TREE | ||||||
Model | K1 Mini 10W | ||||||
Engraving Area | 300*300mm | ||||||
Net Weight | 3.65kg | ||||||
Application | Engraving & Cutting | ||||||
Support Software | LightBurn & LaserGRBL | ||||||
Support Material | Wood, Paper, Leather, Fabric, Bamboo, Rock Plate, Tile, Stainless Steel, Part of Acrylic, etc. | ||||||
Laser Optical Power | 10W (±1W) | ||||||
Input | DC 12V 5A | ||||||
Wavelength | 450nm (±10nm) | ||||||

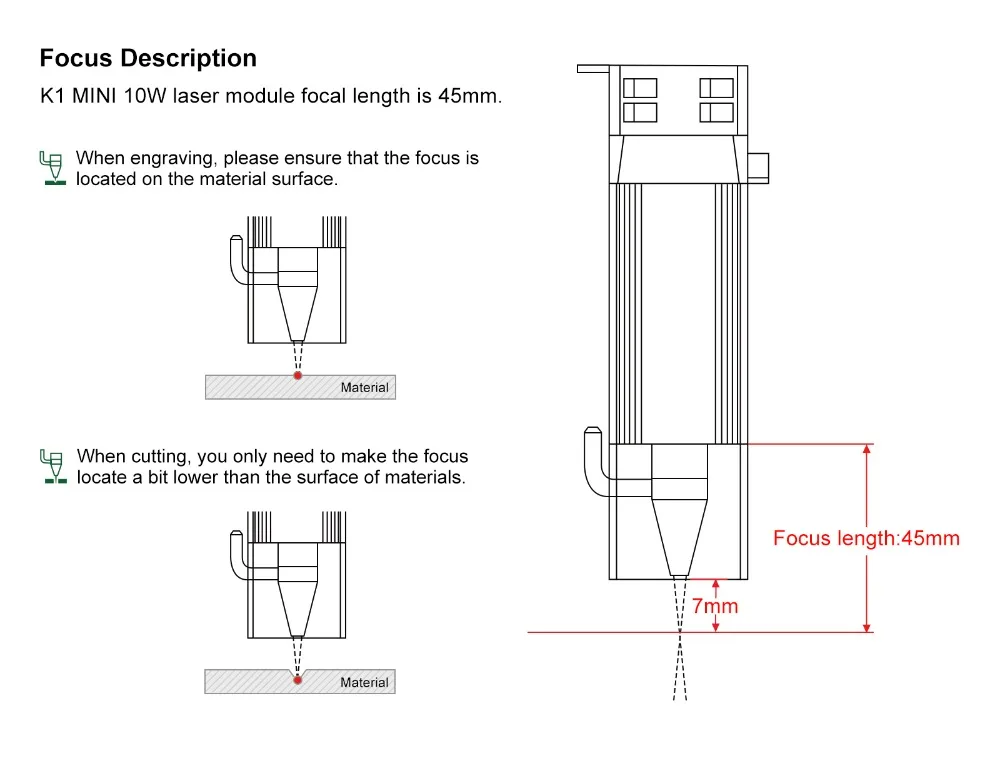

Focus Length | 45mm | ||||||
Engraving Precision | 0.01mm | ||||||

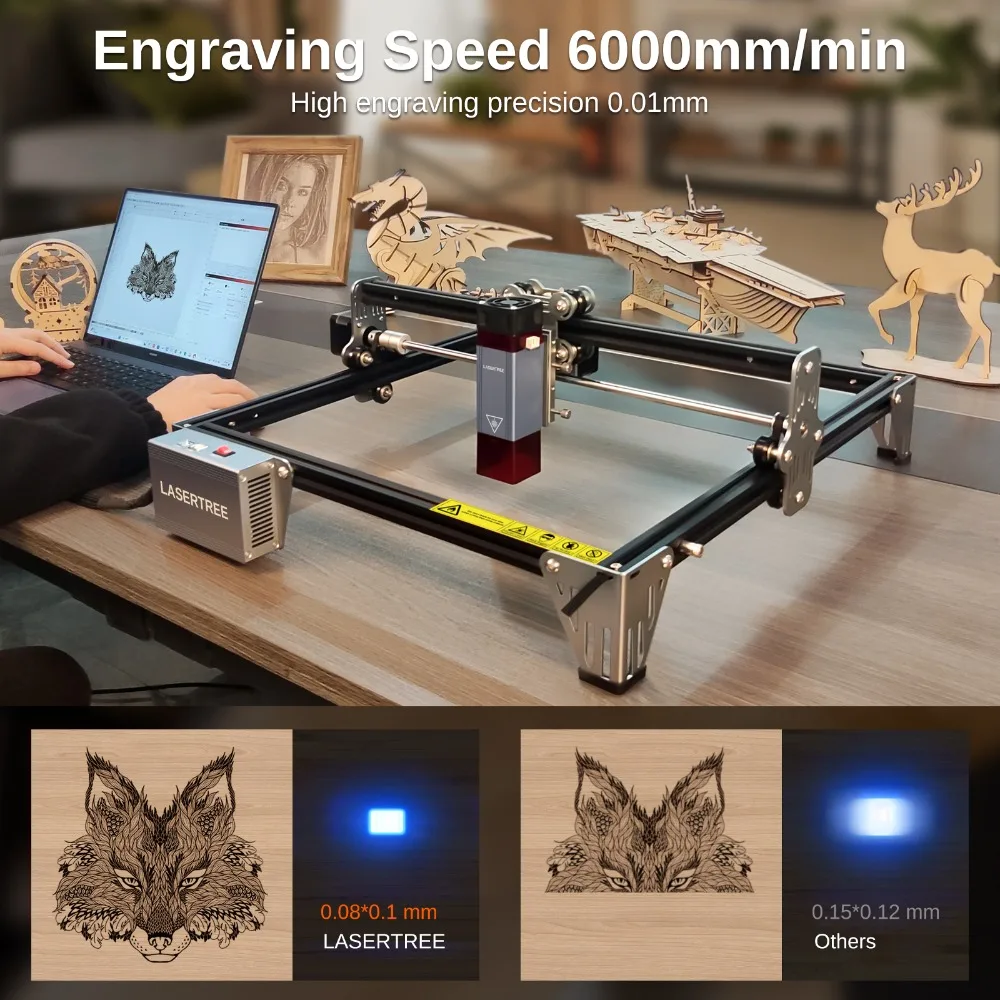

Engraving Speed | 6000mm/min | ||||||
Operating Temperature | 0~60℃ | ||||||
Machine Dimension | 490*430*182mm | ||||||
Single Packaging Dimension | 87*30*17cm | ||||||
Single Packaging Gross Weight | 6.9kg | ||||||
Cutting Material Types | all kinds of wood (including walnut, cherry wood and other high-density wood), MDF, black acrylic board, cardboard, bamboo chips, leather, some plastic boards, fiberglass board. | ||||||
Engraving Material Types | all kinds of wood (including walnut, cherry wood and other high-density wood), MDF, bamboo, cardboard, plastic, leather, fiberglass board, aluminum oxide, stainless steel(non-specular surface), ceramics, dark stone. | ||||||
Additional Notes | 1. Materials that are not easily oxidized/decomposed/melted at high temperatures cannot be engraved/cut; 2. All transparent materials cannot be engraved/cut, and white/blue/purple materials cannot be directly carved/cut except for materials such as wood, cloth, paper, and leather; 3. Unoxidized aluminum, silver color alumina, copper, silver and gold cannot be engraved; 4. The electroplating material needs to determine the coating composition first; 5. All metals cannot be cut. | ||||||
Main Features
1). The K1 MINI laser engraving machine uses our well-received 10W Optical Power laser module with beam compressed & combination technology. And this fixed focal length type laser module can provide more stable output than the zoom laser. The entire laser engraving machine uses a lightweight design and portable dimension. Also, it has easy installation structure and the assembly can generally be completed within 10-20 minutes.
3). Due to the use of alloy frame, non-slip feet and 3-wheel motion structure & Y-axis synchronization design, the stability of this laser engraver is great. Combined with a reasonable engraving speed, its engraving effect is also excellent. With few wires, proper notches and wire ties, no worry about tangled wires and misplugging. The sliding plate makes the adjustment of focus position more convenient and fast.

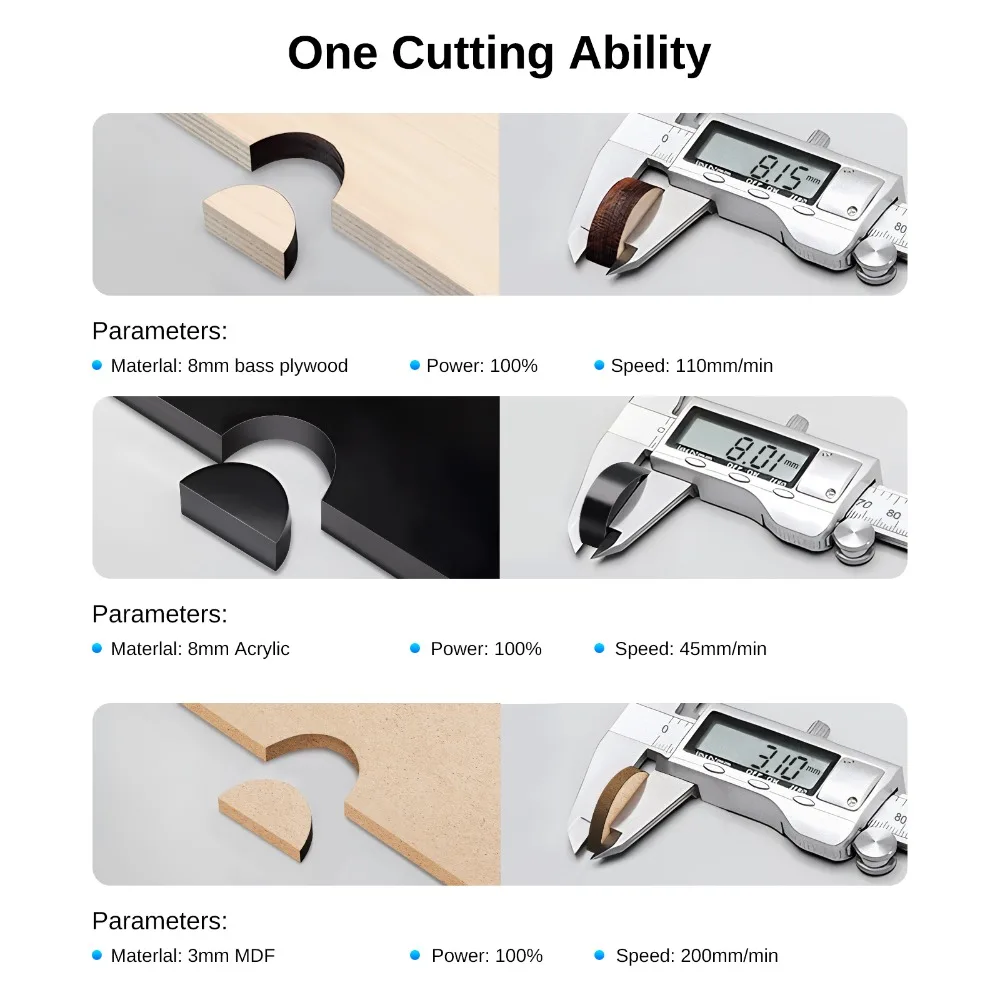

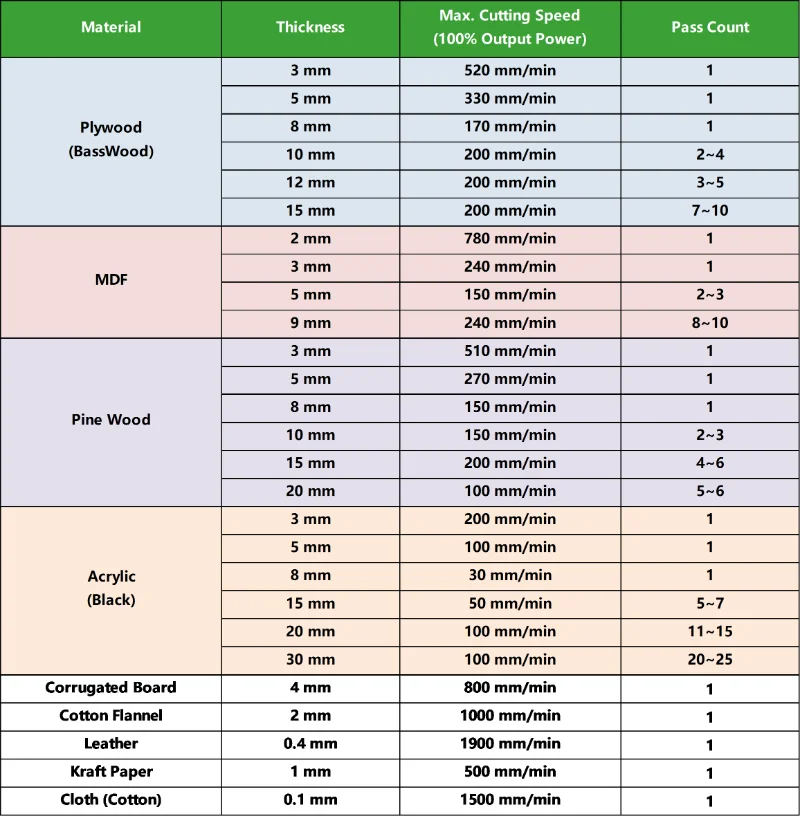

4). The laser module includes a removable eye cover(to provide basic protection for eyes, and you can easily disassemble it if you don't need it) to improve safety during use. It can cut 8mm thickness BassWood Plywood, 3mm thickness MDF, 8mm thickness Pine Wood and 8mm thickness Black Acrylic by One Pass. And it also supports air assistance function to improve the cutting effect. The focal spot size is about 0.08*0.08mm while engraving to provide better details for your work, and the engraving precision can reach 0.01mm.

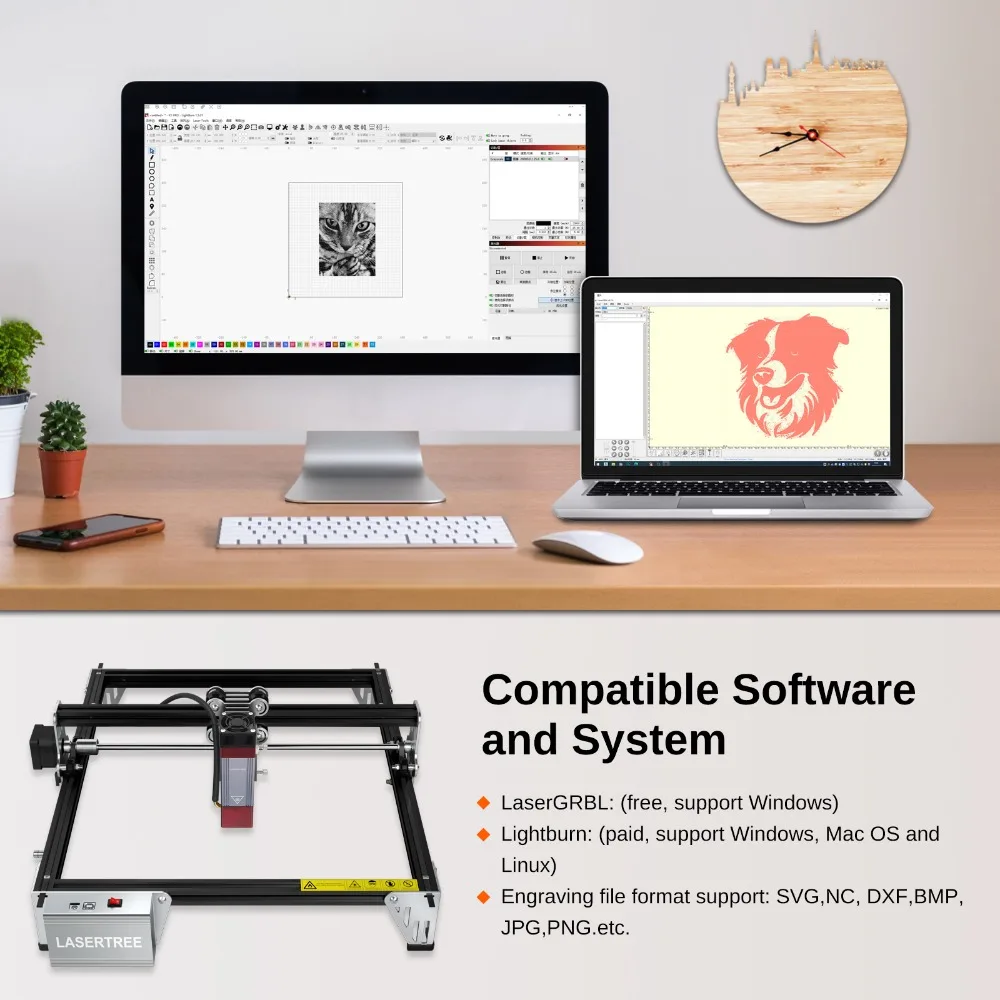

5). The machine can be compatible with various mature engraving software, such as LaserGRBL, LightBurn, supports major operating systems, engraving file format supports AI, PLT, DXF, BMP, SVG, NC, JPG, PNG, etc. Diode laser machines are also easier to maintain than CO2 lasers. Just clean the protective lens on the laser module regularly with alcohol and cotton swabs, and its service life can be extended significantly. When the protective lens is damaged or after long-term use, it can be replaced to restore the cutting & engraving ability. A spare protective lens is included with the default set, more lens can be easily purchased from LASER TREE.
Additional Note:
2). Based on the characteristics of 450nm blue laser, it can process a variety of materials, including wood, plywood, MDF, acrylic, bamboo, leather, aluminum oxide, stainless steel, ceramics, rock slabs, fabric, tile, etc. The combination of 10W optical power laser module and 300*300mm working area is more suitable for those who have requirements for both engraving and cutting but not large items. In this way, it is also quite suitable for beginners.
3). Due to the use of alloy frame, non-slip feet and 3-wheel motion structure & Y-axis synchronization design, the stability of this laser engraver is great. Combined with a reasonable engraving speed, its engraving effect is also excellent. With few wires, proper notches and wire ties, no worry about tangled wires and misplugging. The sliding plate makes the adjustment of focus position more convenient and fast.
4). The laser module includes a removable eye cover(to provide basic protection for eyes, and you can easily disassemble it if you don't need it) to improve safety during use. It can cut 8mm thickness BassWood Plywood, 3mm thickness MDF, 8mm thickness Pine Wood and 8mm thickness Black Acrylic by One Pass. And it also supports air assistance function to improve the cutting effect. The focal spot size is about 0.08*0.08mm while engraving to provide better details for your work, and the engraving precision can reach 0.01mm.
5). The machine can be compatible with various mature engraving software, such as LaserGRBL, LightBurn, supports major operating systems, engraving file format supports AI, PLT, DXF, BMP, SVG, NC, JPG, PNG, etc. Diode laser machines are also easier to maintain than CO2 lasers. Just clean the protective lens on the laser module regularly with alcohol and cotton swabs, and its service life can be extended significantly. When the protective lens is damaged or after long-term use, it can be replaced to restore the cutting & engraving ability. A spare protective lens is included with the default set, more lens can be easily purchased from LASER TREE.
Additional Note:

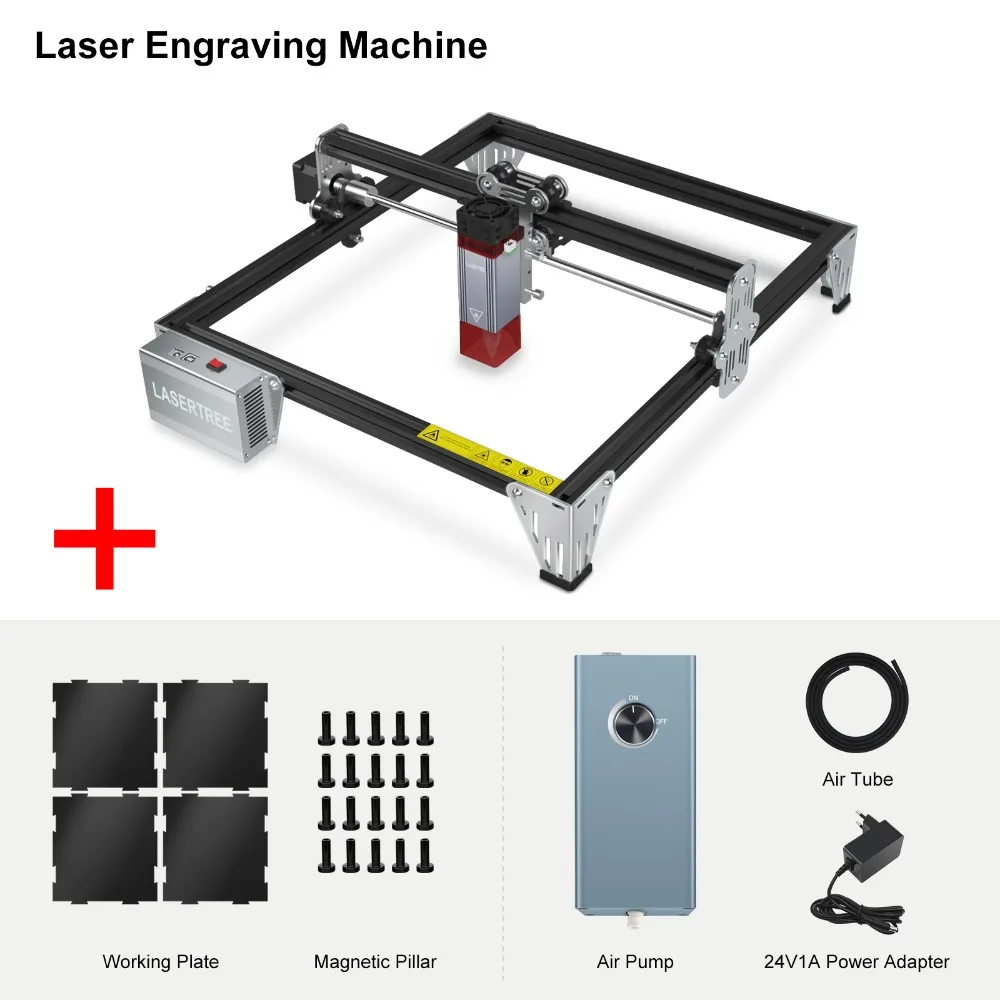

The Standard Version of this laser engraving machine only includes the default machine set, and the KIT Version of it includes extra Air Pump and Working Plate.
Specifications

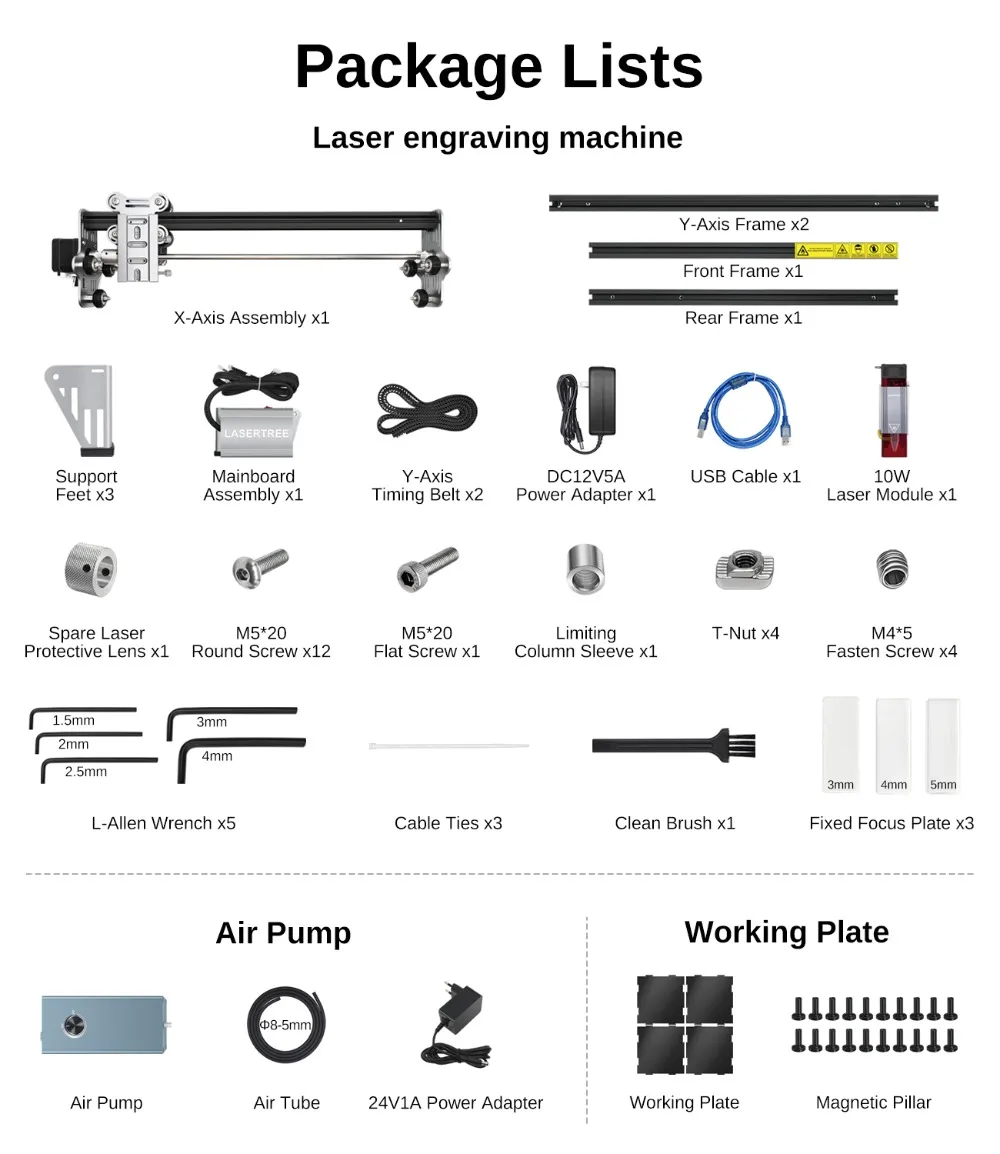

Packing List
Company Profile
Shenzhen Guangchuangfeng Technology Co., Ltd. is a high-tech company integrated sales, marketing promotion, and technical services and support. We are engaging in the distribution of the visible laser devices and peripheral optical circuit products. We establish long-term and stable cooperation with our manufacturers and partners. Our products apply to laser illumination, stage lighting, blue laser engraving, welding, and medical fields. We can provide optical shaping solutions and products according to your customized requirements.
Production & Assembly
Testing & Quality Control
Designing & Support OEM/ODM
Customer Reviews

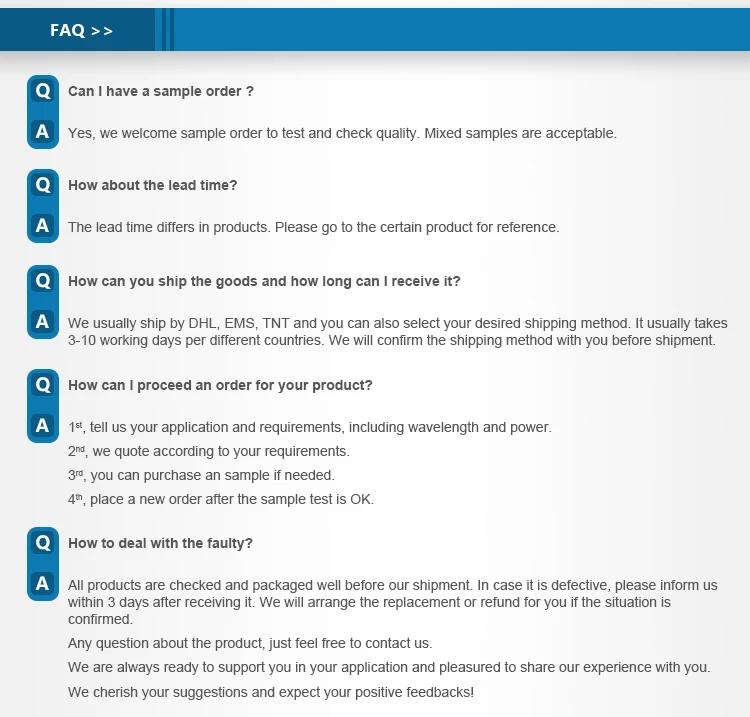

FAQ
