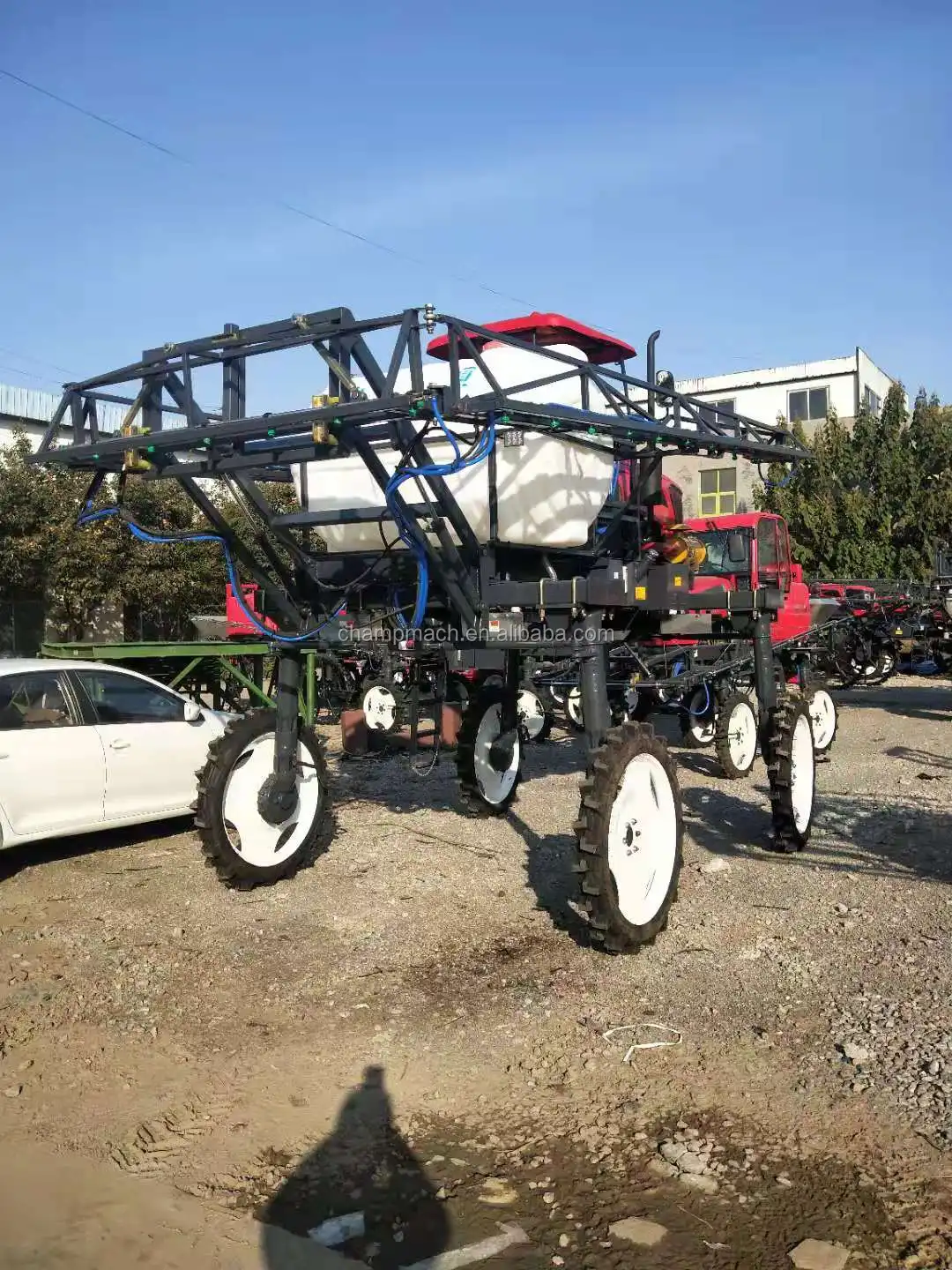

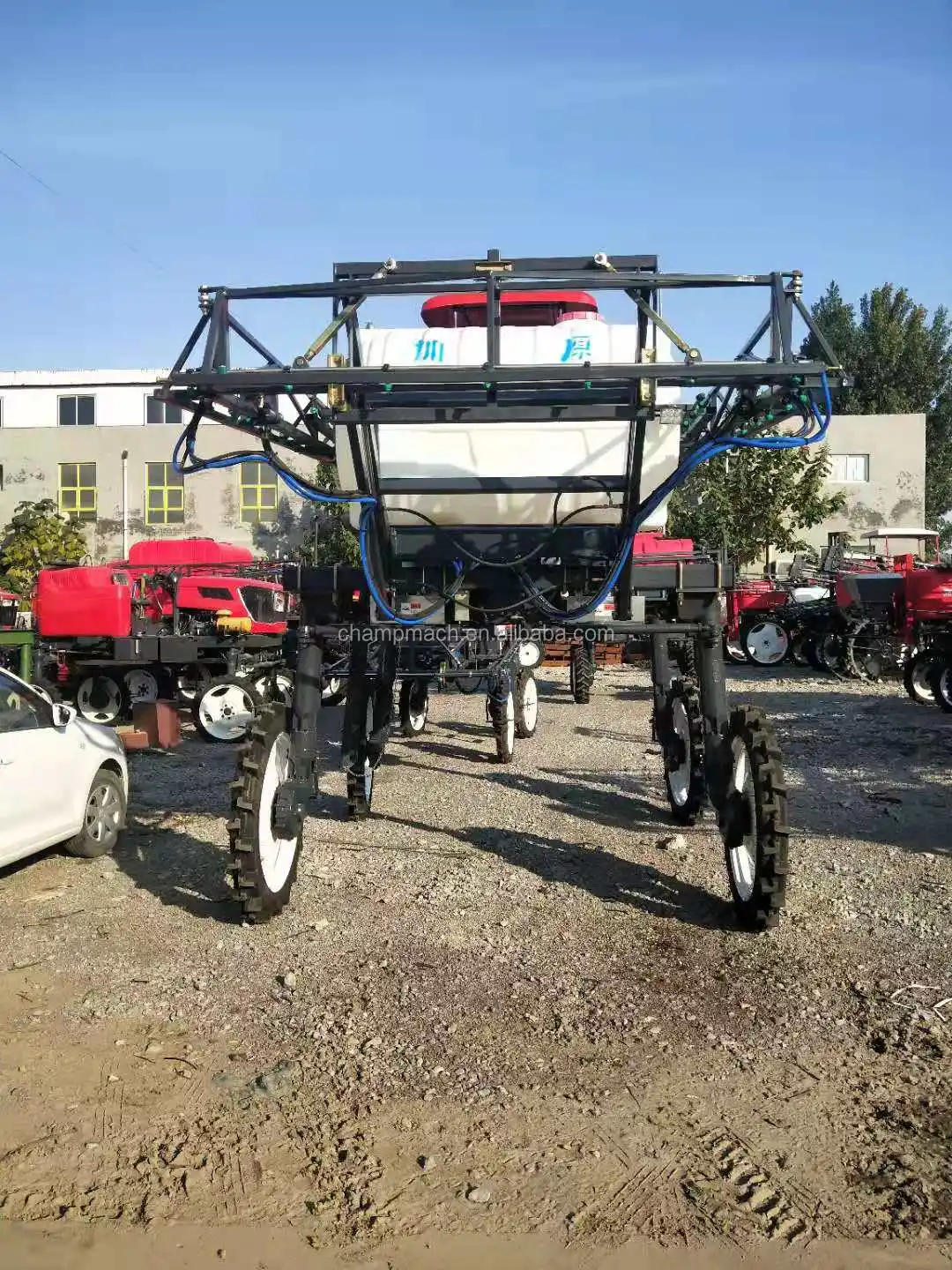

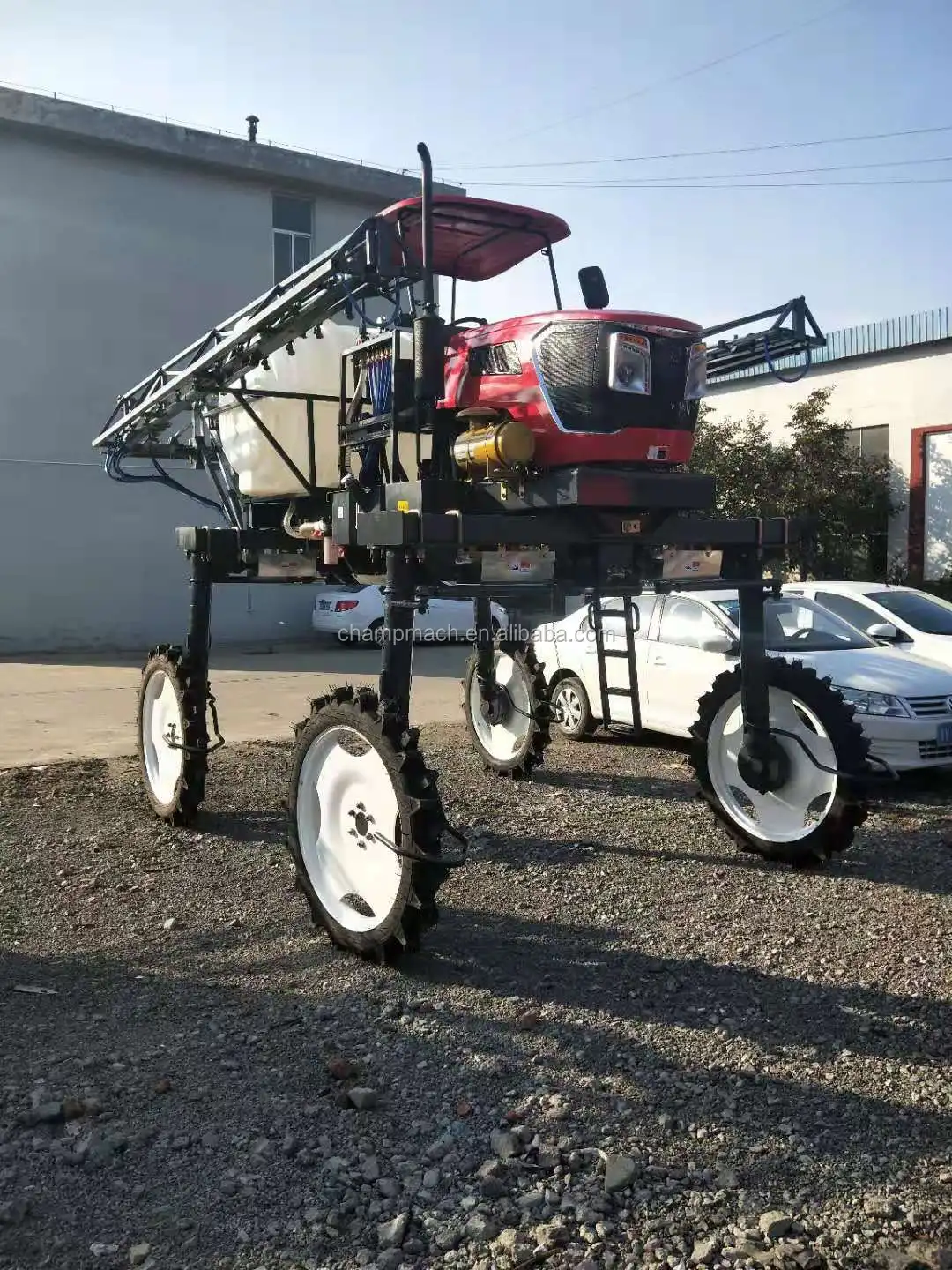

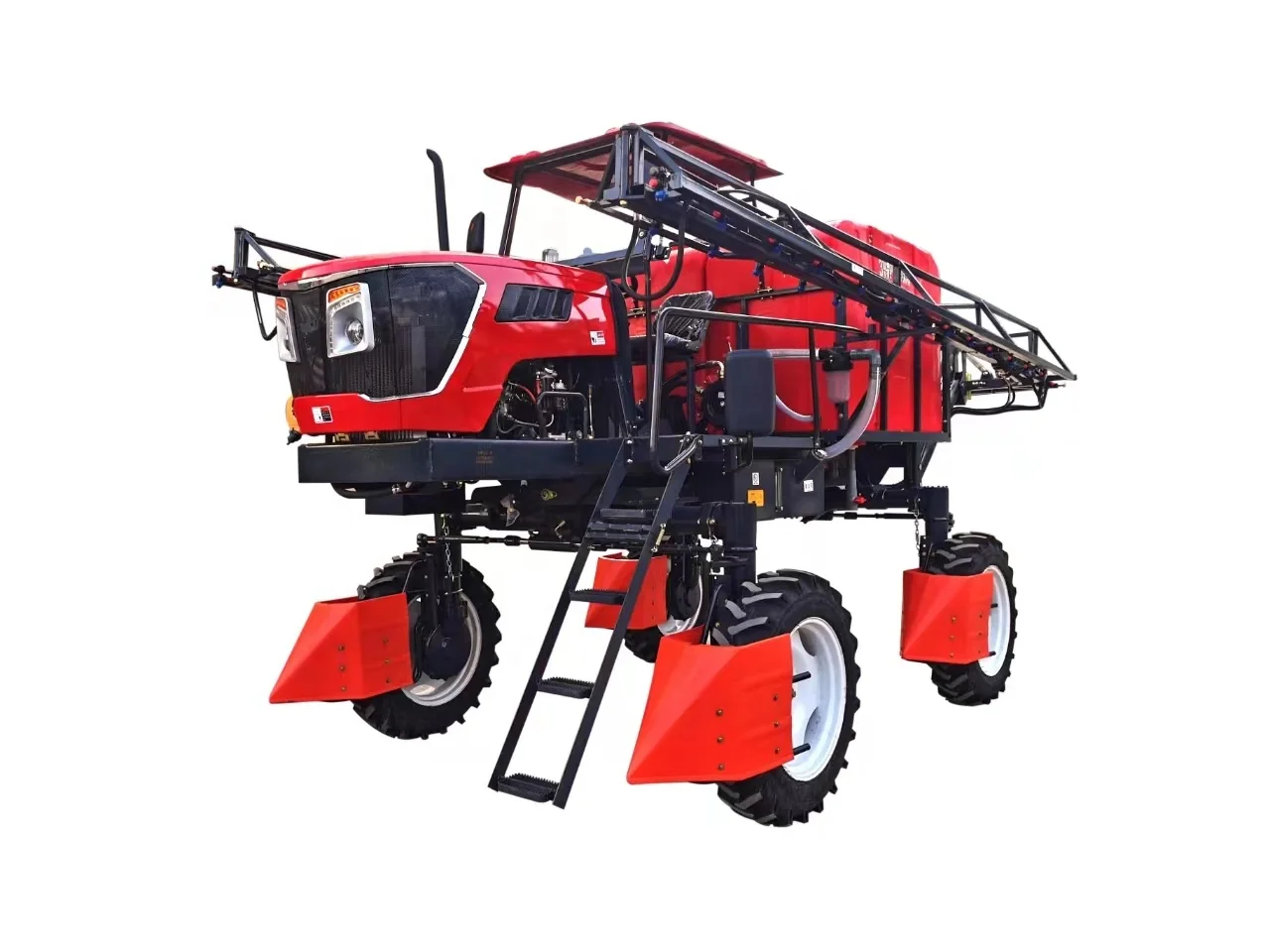

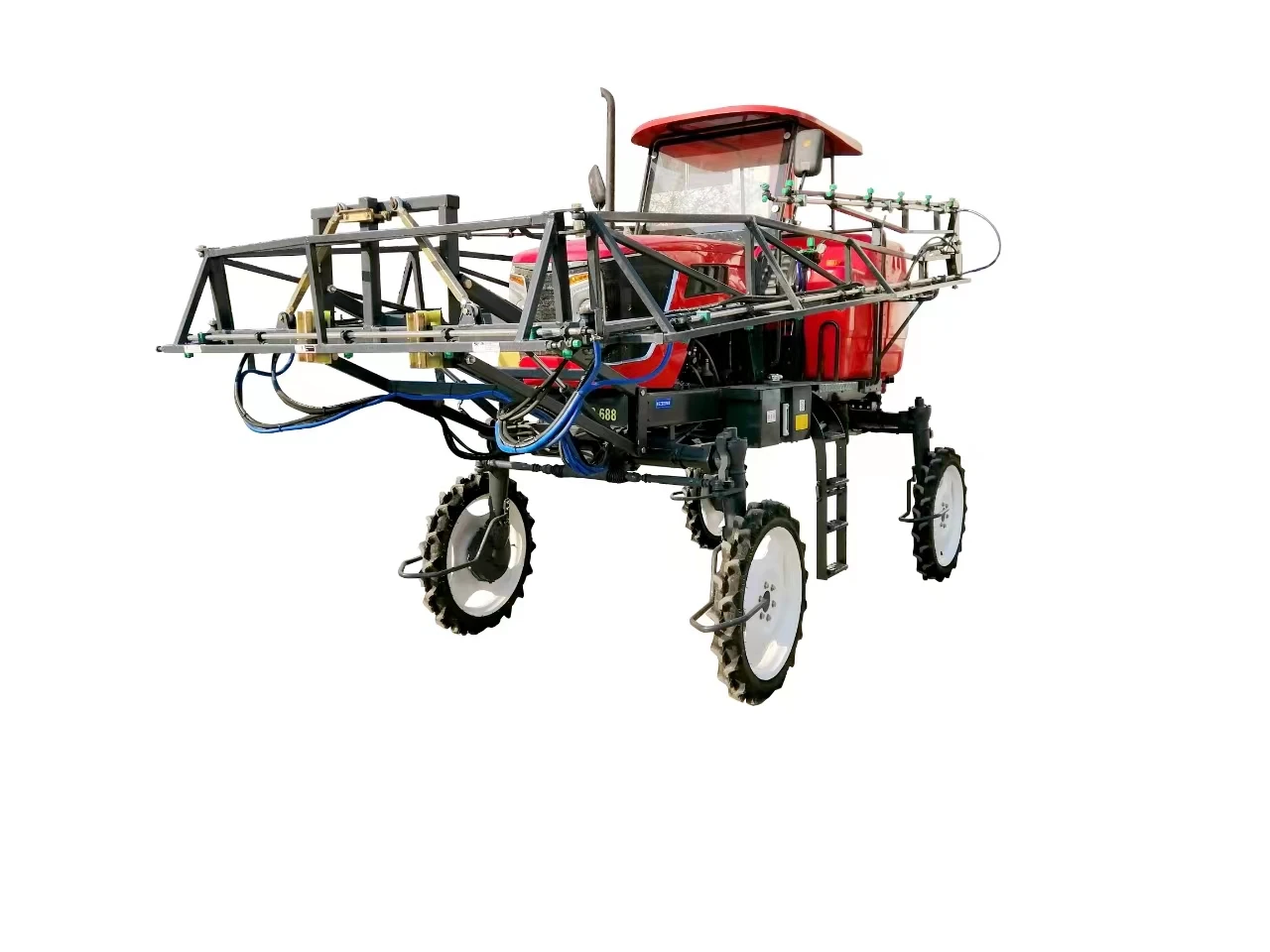

agricultural self propelled rod sprayer tractor boom sprayer pesticide for sale
- Category: >>>
- Supplier: Weifang Champion Farm Machinery Co. Ltd.
Share on (1601066625795):
Product Overview
Description
Product Description
1. Automobile chassis, strong and durable, anti-corrosion
2. One key switch of front wheel and rear wheel steering; Automatic rear wheel
-positionin; Easy operatio
SPECIFICATIONS
Model | 3WPZ-700/1600 |
Type | Self propelled |
Dimensions (mm) | 4710*2900*3500/5200*2800*3700 |
Weight (kg) | 2210/3000 |
Engine | Quan Chai |
Sprayed boom (m) | 12/16.5 |
Working pressure of spray bar (mpa) | 0.3-0.5 |
Ground clearance (mm) | 1700 |
Tread (mm) | 2600 (adjustable/customizable) |
Power (kw/rpm) | 36.8/2400 & 72.6/2400 |
Starting mode | Electric start |
Driving mode | 4*4 |

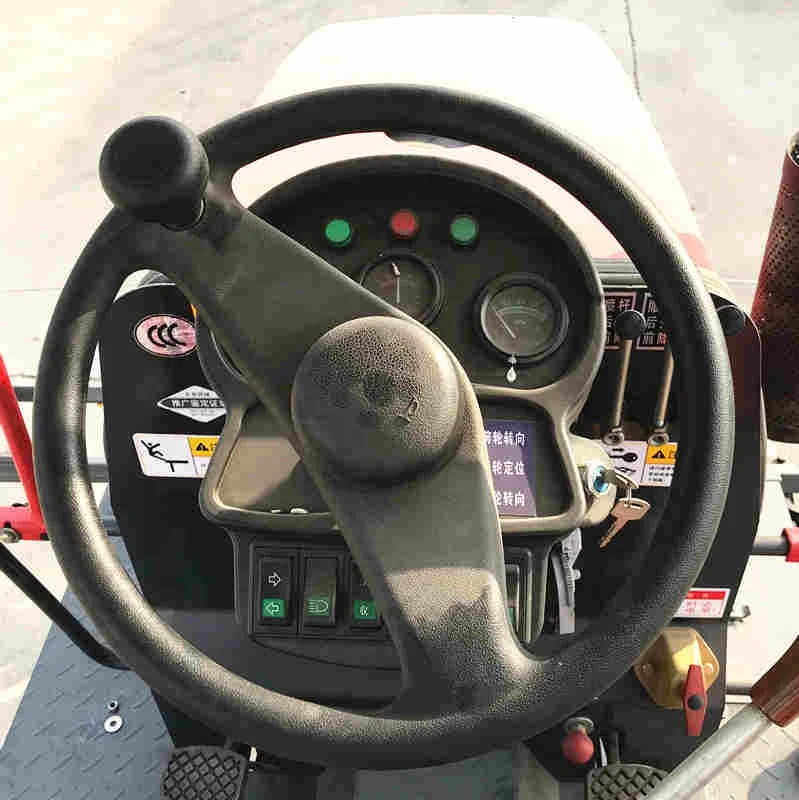

Steering mode | Four wheel steering (Two wheels can be exchanged electronically) |
Pesticide tank capacity (L) | 700/1600 |
Mixing mode | Jet mixing |
Sprinkler type | Sector |
Sprinkler quantity | adjustable |
Spray angel (°) | 110 |
Single spray volume(L/min) | 0.8 |
Row spacing (mm) | 500 (adjustable) |

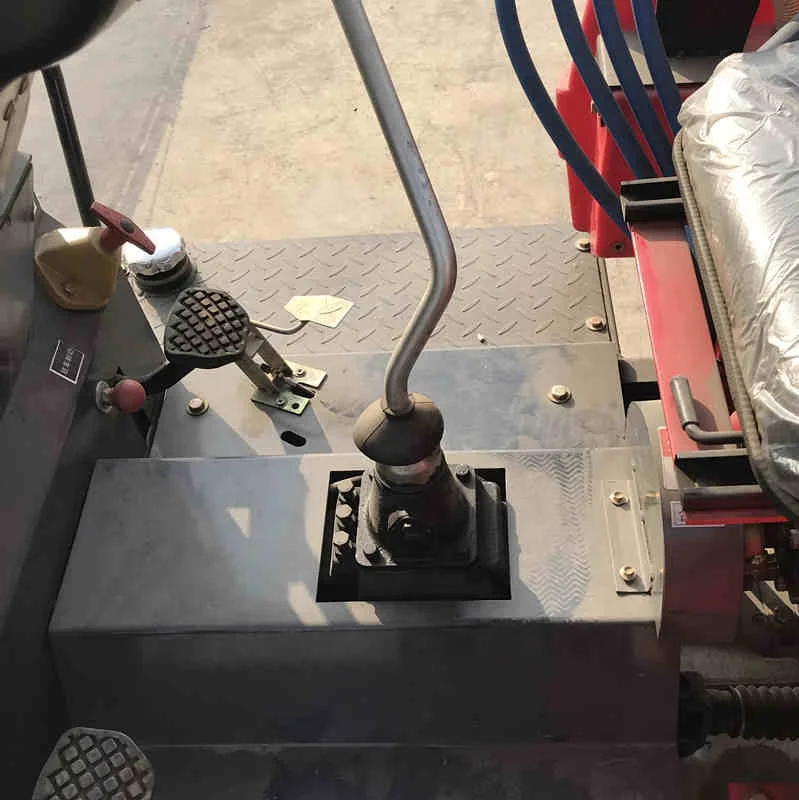

Transmission case | 6F/4R |
Operating rate (ha/h) | 5.3/8 |

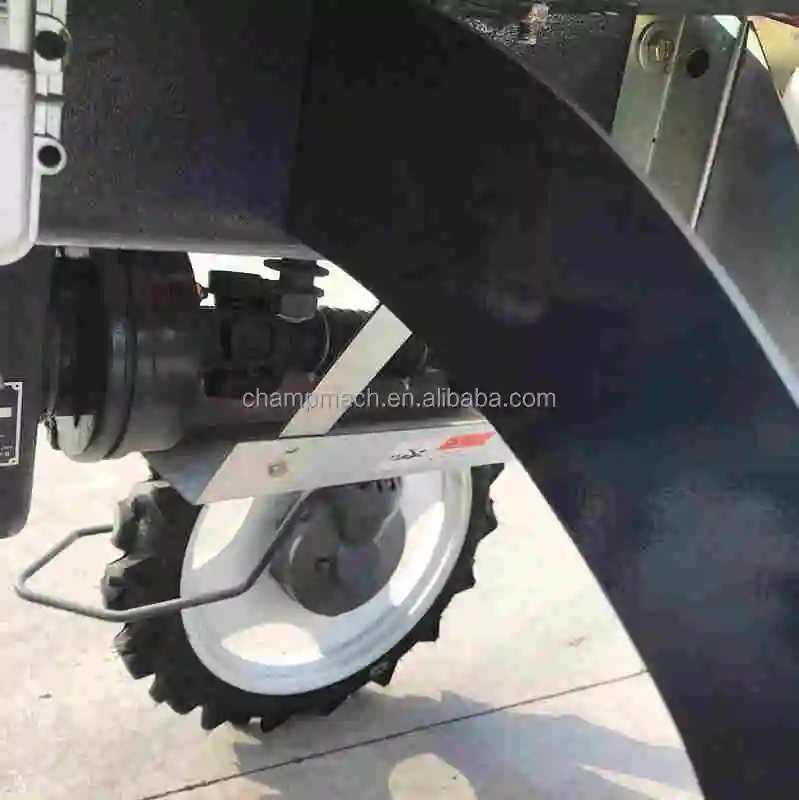

Detailed Images
