LH Type Electric Hoist Double Girder Bridge Overhead Cranes
$1,800.00-2,000.00
Heavy Capacity 50ton Overhead Cranes Bridge Casting For Foundry
- Category: >>>
- Supplier: Henan Weihua Heavy Machinery Co. Ltd.Henan Ltd.
Share on (1601067132111):
Product Overview
Description
Product Overview

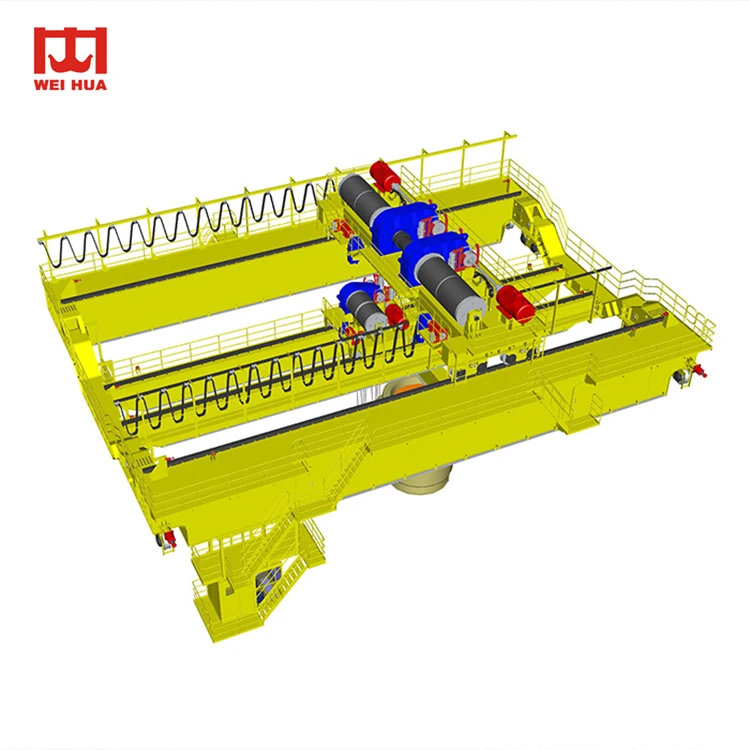

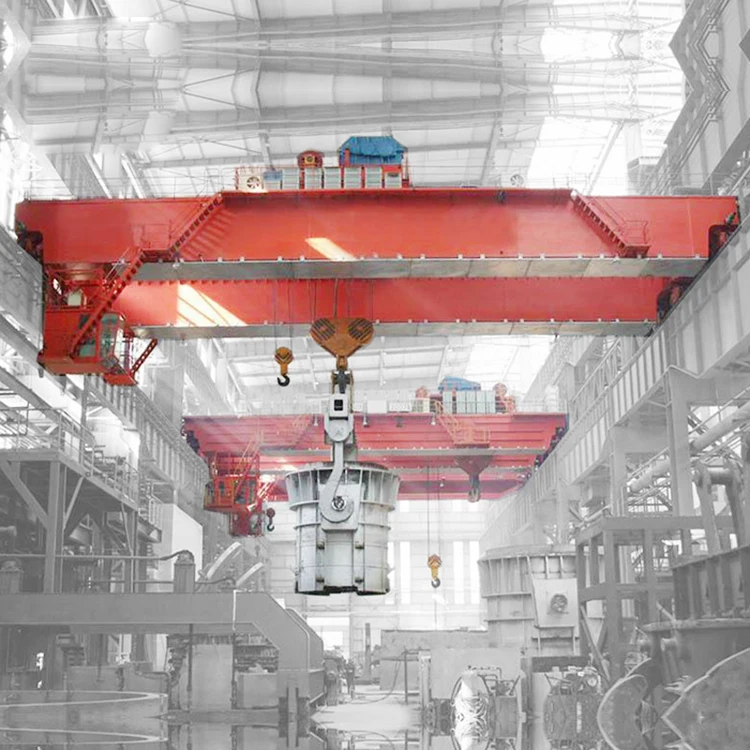

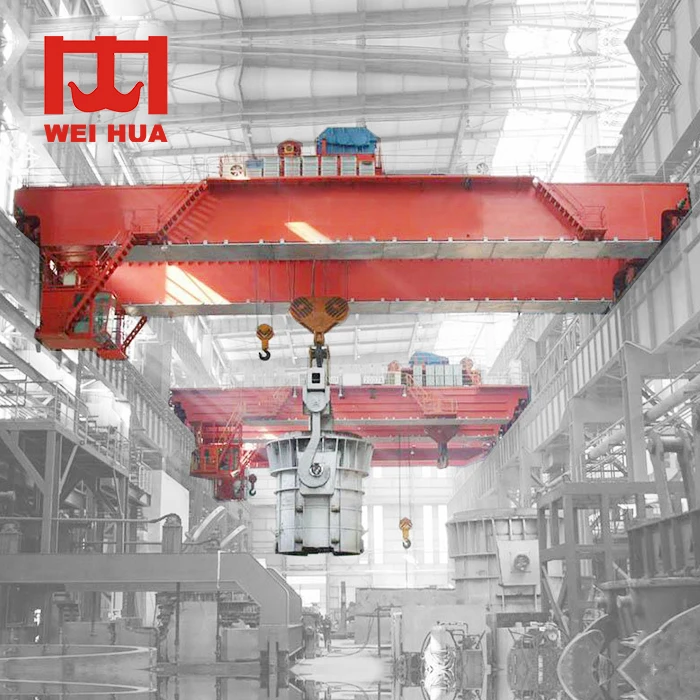

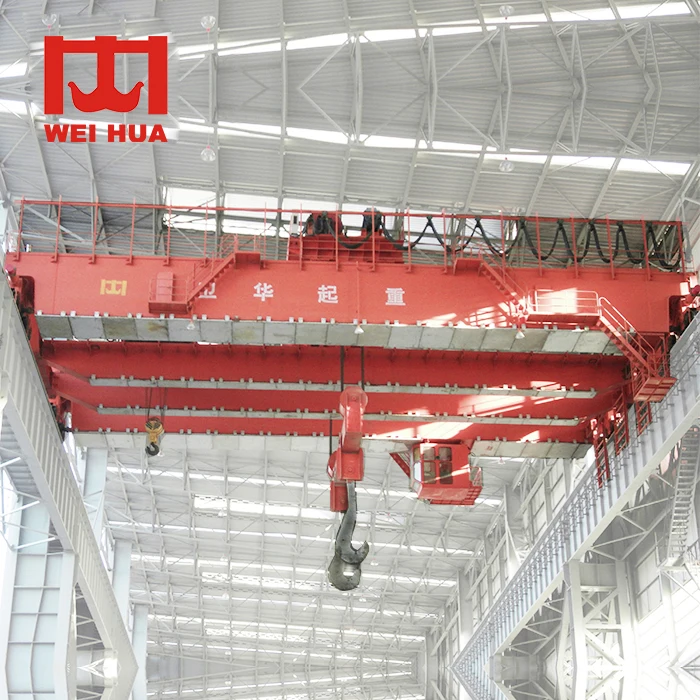

YZS type Four Girders Overhead Traveling Casting Crane

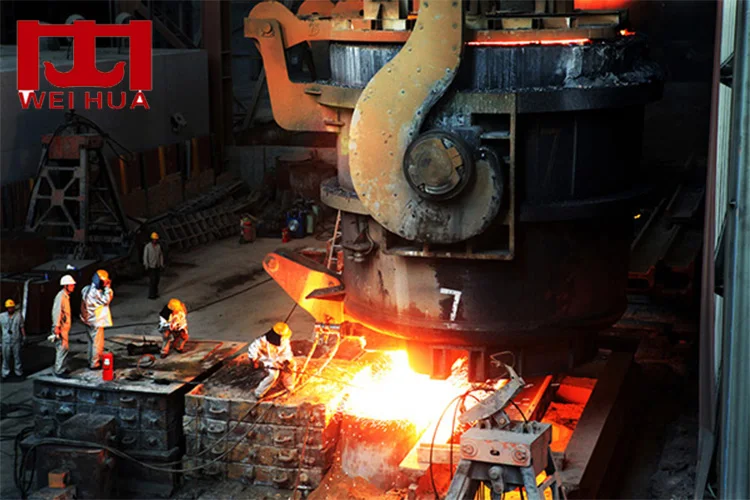

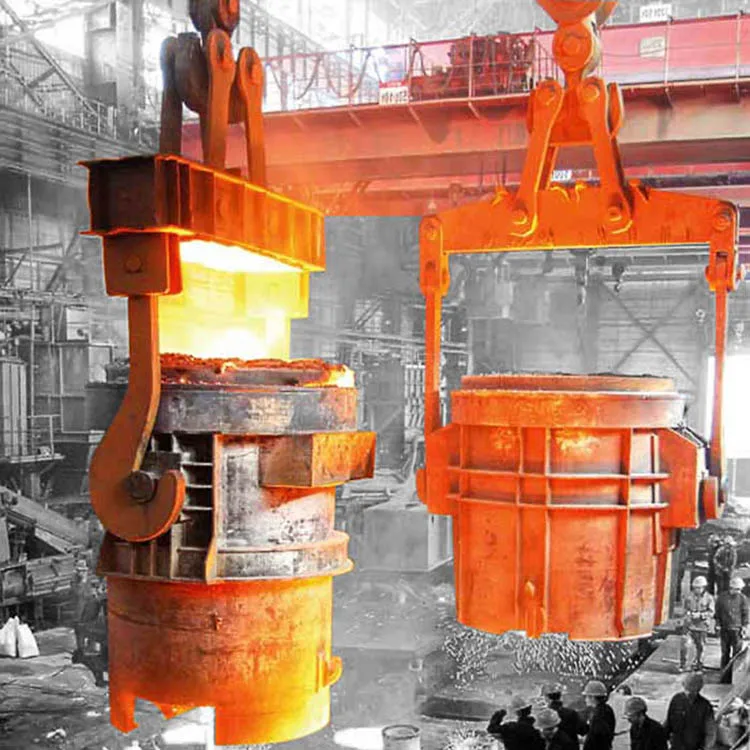

Steel plant double girders casting overhead crane for ladle handing is also called ladle handling crane, it transports ladles
filled with molten iron to the basic oxygen furnace(BOF), or molten steel from the BOF and electric arc furnace to the continuous casting machine. It can also be used for teeming and casting, so called teeming crane as well. As with the charging crane, safety and reliability come first with this crane since it is used to transport molten steel.
filled with molten iron to the basic oxygen furnace(BOF), or molten steel from the BOF and electric arc furnace to the continuous casting machine. It can also be used for teeming and casting, so called teeming crane as well. As with the charging crane, safety and reliability come first with this crane since it is used to transport molten steel.
FEATURES AT A GLANCE
. Anti high temperature.
. Capacity is 123/32 tons and up.
. Emergency stop system.
. Over current protection.
. hort-circuit protection.
. Phase sequence protection.
. Voltage loss protection.
. Current overload protection.
. Over current protection.
. hort-circuit protection.
. Phase sequence protection.
. Voltage loss protection.
. Current overload protection.

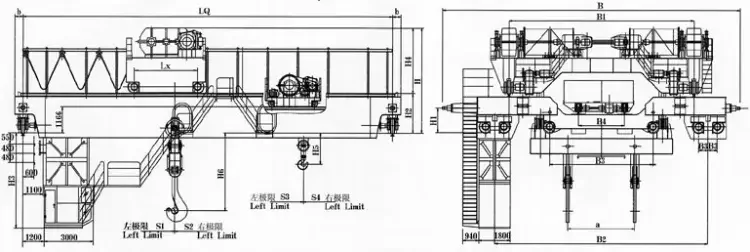

PRODUCT SPECIFICATIONS
Lifting Capacity | 125/32 | 140/32 | 160/32 | 180/50 | 200/50 | 225/65 | 240/80 | 280/80 | 320/80 | ||||||||
Working Class | A7 | ||||||||||||||||
Span | 19 | 19 | 27 | 28.5 | 28 | 27 | 22 | 22 | 24.5 | ||||||||
Lifting Height (Main Hook) | 24 | 22 | 25 | 27 | 26 | 32 | 25 | 29 | 28 | ||||||||
Lifting Height (Auxiliary Hook) | 26 | 24 | 26 | 29 | 26 | 34 | 27 | 29 | 33 | ||||||||
Speed (Main Hook) | 7.6 | 7.8 | 9.8 | 7.5 | 6 | 11 | 7 | 12 | 7.5 | ||||||||
Speed (Auxiliary Hook) | 9.7 | 9.7 | 12 | 10 | 10 | 11 | 9.6 | 10 | 10 | ||||||||
Speed (Main Trolley) | 38 | 36 | 43.5 | 40 | 41 | 41 | 35 | 40 | 29 | ||||||||
Speed (Auxiliary Trolley) | 39 | 37.5 | 43.5 | 38 | 38 | 39.5 | 38 | 40 | 39 | ||||||||
Speed (crane | 76 | 73 | 84 | 80 | 78 | 84 | 80 | 80 | 58 | ||||||||
Related Products
Single girder overhead crane
Double girders overhead crane
European overhead crane
Single beam gantry crane
Double beams gantry crane
Single beam Semi-gantry crane
Rail mounted container gantry crane
Rubber tyre container gantry crane
Boat Lifting
Electric Winch
European Hoist
Jib Crane
Company Overview
Weihua Crane is professional crane manufacture, which located in China Crane Hometome, Changyuan, Xinxiang City.
. Employees more than 6800
. An area of 3.42 million square meters
. Annual sales of 8.26 billion
. Total assets of 6.4 billions
FAQ
A: What is the best crane for my need?
B: We can customize all kinds of crane according to your requirements, so don’t worry about your needs, just tell us your demands, and we can design and manufature your own crane based on your needs.
A: Which industries do you serice?
B: We service many industries inluding machinery, metallurgy, electric power, railway, water conservancy, port, aviation,
military, auto, shipbuliding, petroleum, chemical, tabulation, coal, steel fabricators, pre-cast concrete, steel warehouse, marble and stone and other fields.
A: Which ereas do you service?
B: We have very big market in China local market, at same time, we have export our crane to all over the world, including
European, Africa, Middle-East, Asia, North American, South America and so on. Tatal more than 95 countries all over the world.
A: What types of overhead cranes do you supply?
B: We are a leading suppiler of overhead cranes and we can offer thres different types including the single girder top running crane, the single girder underslung crane and the double girders top ruuning crane.
A: Which cranes are most suitable for outdoors?
B: The gantry crane range is often most suitable for outfoor type work. There are types- the single girder gantry crane and double girder gantry crane.
A: What internation cerfiticate does your crane passed?
B: Our crane has passed CE, ISO, GOST, SGS, TUV, BV, and so on.
A: Do you have local agent in our country?
B: We have agent in Bangladesh, Uruguay, India, South Afria, Saudi Arabia, and so on. At same time, we have developing more agents all over the world. Welcome you join us to expend crane market and build long time win-win cooperation.
B: We can customize all kinds of crane according to your requirements, so don’t worry about your needs, just tell us your demands, and we can design and manufature your own crane based on your needs.
A: Which industries do you serice?
B: We service many industries inluding machinery, metallurgy, electric power, railway, water conservancy, port, aviation,
military, auto, shipbuliding, petroleum, chemical, tabulation, coal, steel fabricators, pre-cast concrete, steel warehouse, marble and stone and other fields.
A: Which ereas do you service?
B: We have very big market in China local market, at same time, we have export our crane to all over the world, including
European, Africa, Middle-East, Asia, North American, South America and so on. Tatal more than 95 countries all over the world.
A: What types of overhead cranes do you supply?
B: We are a leading suppiler of overhead cranes and we can offer thres different types including the single girder top running crane, the single girder underslung crane and the double girders top ruuning crane.
A: Which cranes are most suitable for outdoors?
B: The gantry crane range is often most suitable for outfoor type work. There are types- the single girder gantry crane and double girder gantry crane.
A: What internation cerfiticate does your crane passed?
B: Our crane has passed CE, ISO, GOST, SGS, TUV, BV, and so on.
A: Do you have local agent in our country?
B: We have agent in Bangladesh, Uruguay, India, South Afria, Saudi Arabia, and so on. At same time, we have developing more agents all over the world. Welcome you join us to expend crane market and build long time win-win cooperation.
