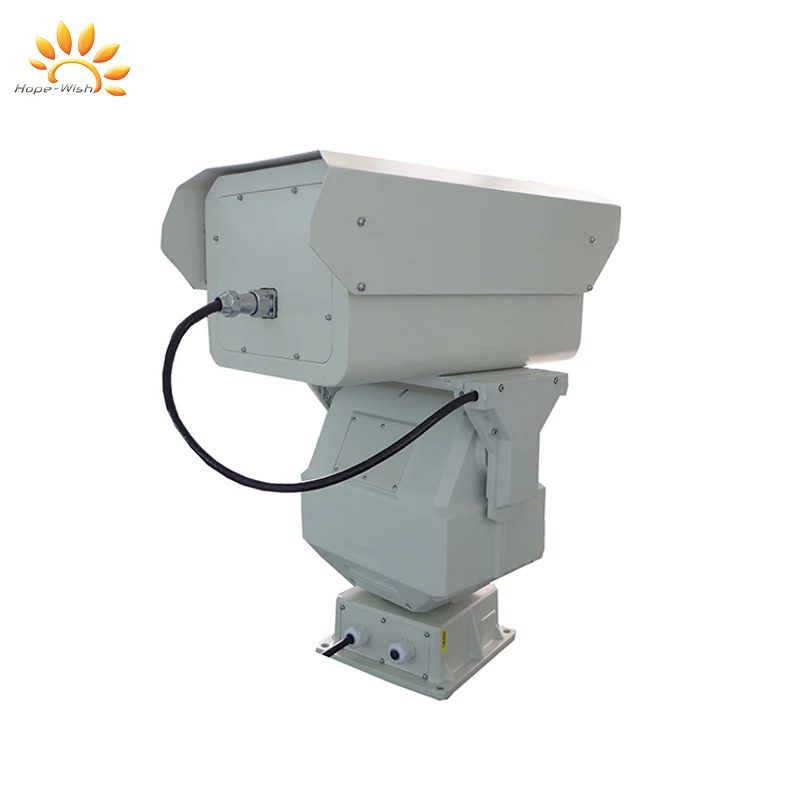

Long Range Ptz Coastal Defense Thermal night vision security camera

Model

HP-TC12618C

Detection

Vehicle: 16400m

Human: 5800m

Recognition

Vehicle: 4200m

Human: 1900m

Sensor

1.Detector:5th generation UFPA Vox Detector ;
2.Resolution:1280×1024
3.NETD:50mK（@25℃ F1.0）
4.Spectral range:12μm

NETD

50mK（@25℃ F1.0）

Focal length

1.Length: 30~180mm
2.FOV:28.7°×23.1°～4.9°×3.9°
3.optical zoom, auto focus ;
4.AS+DOE advanced optical design, high infrared transmission;
5.Applied 3CAM high precision design;

IFOV

0.067～0.4mrad

Image processing

2. SDE digital image processing

3. 10 pseudo color and B/W, B/W inverse

4. AGC

5. 1-8X continuous digital amplification,Optical electronic relay zoom

Housing

1.Material:aluminum alloy housing,waterproof;
2.Structure:Integral single window design ;
3.Surface:PTA coating, anti sea water corrosion;
4.Sealing rate:IP66
5.Built-in temperature controller,thermal balance design;
6.Interface:aviation waterproof connector ;

PTZ（optional）

1.Load:50kg military level digital PT ;
2.Angle:pan 0～360°,tilt -45°～+45°
3.Speed:0.01～30°/S high precision variable speed control and locking ;
4.Preset:80 presets,support lens zoom and focus memory,variable speed scanning 0～30°/S ,support apple peel scanning function;

Enhancements

1. Strong light protection: support, anti sun burn function
2. Intelligent analysis: support intrusion detection, out-of-bounds detection, entry/exit area detection, motion detection
3. Scene mode: support multi-configuration scene, adapt to different environment applications
4. Auto focus tuning: support remote auto focus accuracy parameter adjustment to adapt to different scenarios
5. Lens Servo: Support lens preset, focal length return, focal length positioning functions
6. Full life management: health index recording function, support working time, shutter times, working temperature, extreme
temperature, etc.
7. Remote maintenance: with fault query, self-check, remote restart functions; online upgrade, remote upgrade
8. Configuration file: support configuration file import and export functions

Consumption ,weight

1.Consumption（PT included）:min.40W,max.120W
2.weight（PT included）:≤45kg

Interface

1. RJ45 interface

2. Remote OSD setting

3. PAL/NTSC video output

4.AC/DC24V, anti-reverse connection protection

5. Waterproof connector

Environment indicator

1.Working temperature:-25℃～+55℃（-40℃ optional）
2.Storage temperature:-35℃～+75℃
3.Humidity:<90%
4.Anti-shock:0.2g（GB/T15211—20135.4 harshest level 2 standard）
5.Anti-resistance:15g（GB/T15211—20135.3 harshest level 3 standard）
6.Anti-lightening:power 4000V,signal 2000V
7.Anti salty:PH6.5～7.2,continuous sprarying 48 hours ;
8.Protection rate:IP66
