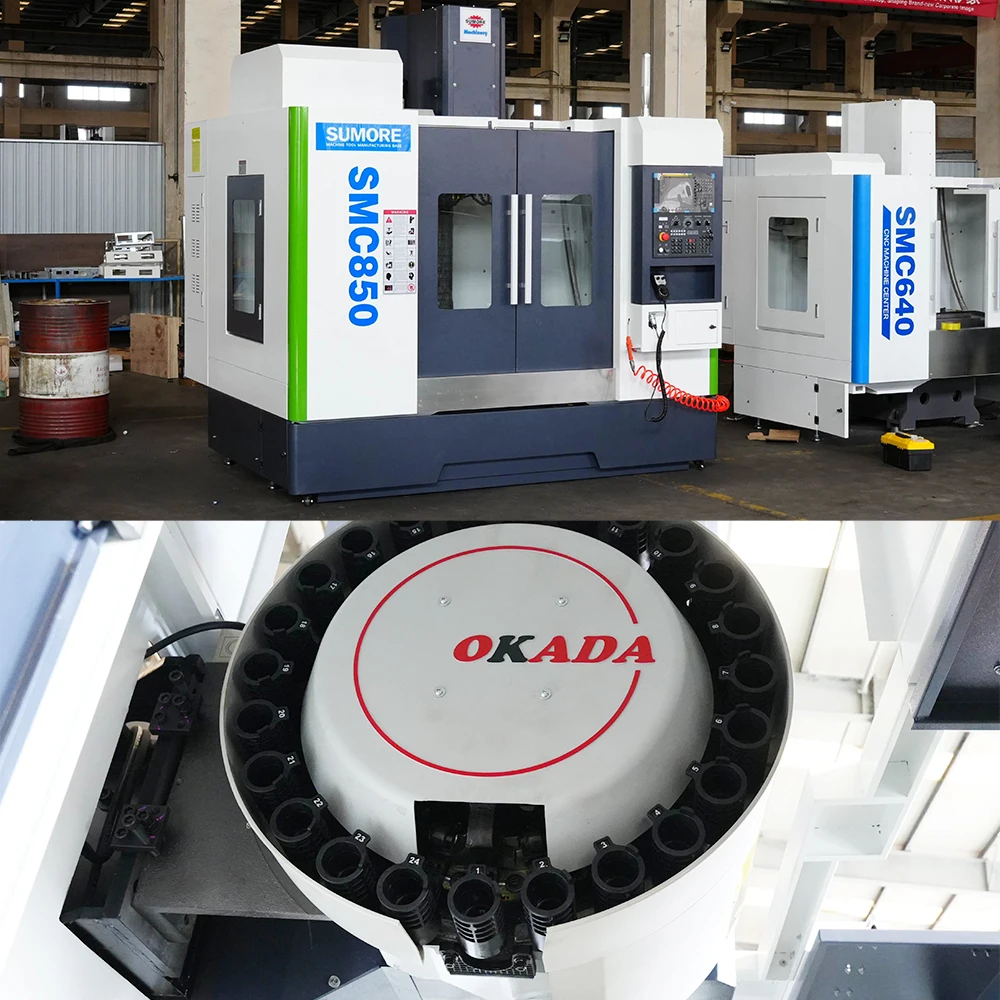

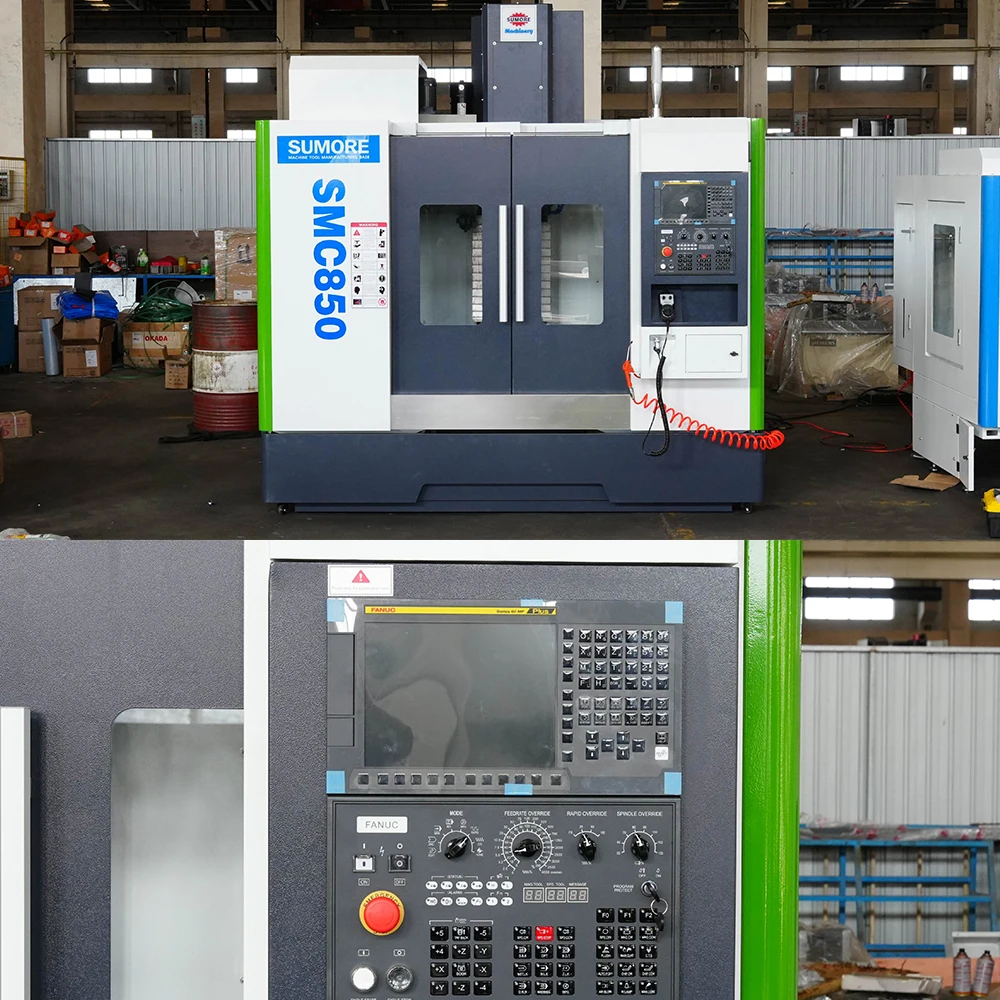

VMC 850 OEM ODM China 5 Axis Vertical CNC Machining Center VMC850 with Fanuc Controller price
- Category: >>>
- Supplier: Shanghai Sumore Industrial Co. Ltd.
Share on (1601067671572):
Product Overview
Description
Product Description
3/5 Axis Cnc Milling Machine Manufacturer VMC850 Vertical Machining Center Provided Heavy Duty Vmc Machine 850 Single Cast Iron

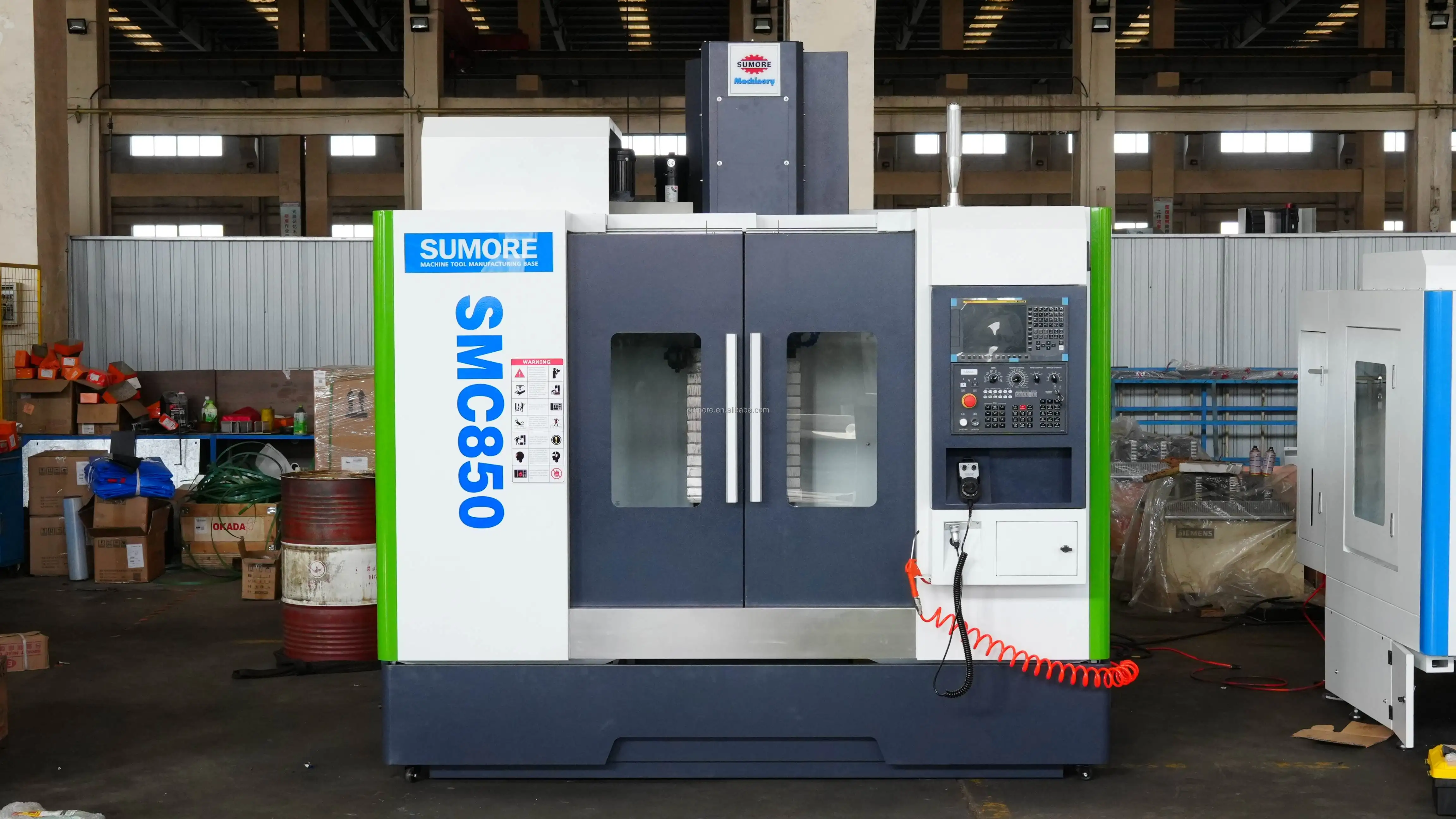

CNC Vertical Machining Center SMC850 Main Application:
All 5 axis use class precision screw, match up the nut preloading and screw prestretched, preeliminate backlash and temperature rise, so that the machine can achieve stability of the positioning and repeatability accuracy. Besides, the X/Y/Z axis use precision linear rails to ensure the control of the positioning accuracy and processing errors,so that the machine can have high accuracy and long working life.
All 5 axis use class precision screw, match up the nut preloading and screw prestretched, preeliminate backlash and temperature rise, so that the machine can achieve stability of the positioning and repeatability accuracy. Besides, the X/Y/Z axis use precision linear rails to ensure the control of the positioning accuracy and processing errors,so that the machine can have high accuracy and long working life.
Specification

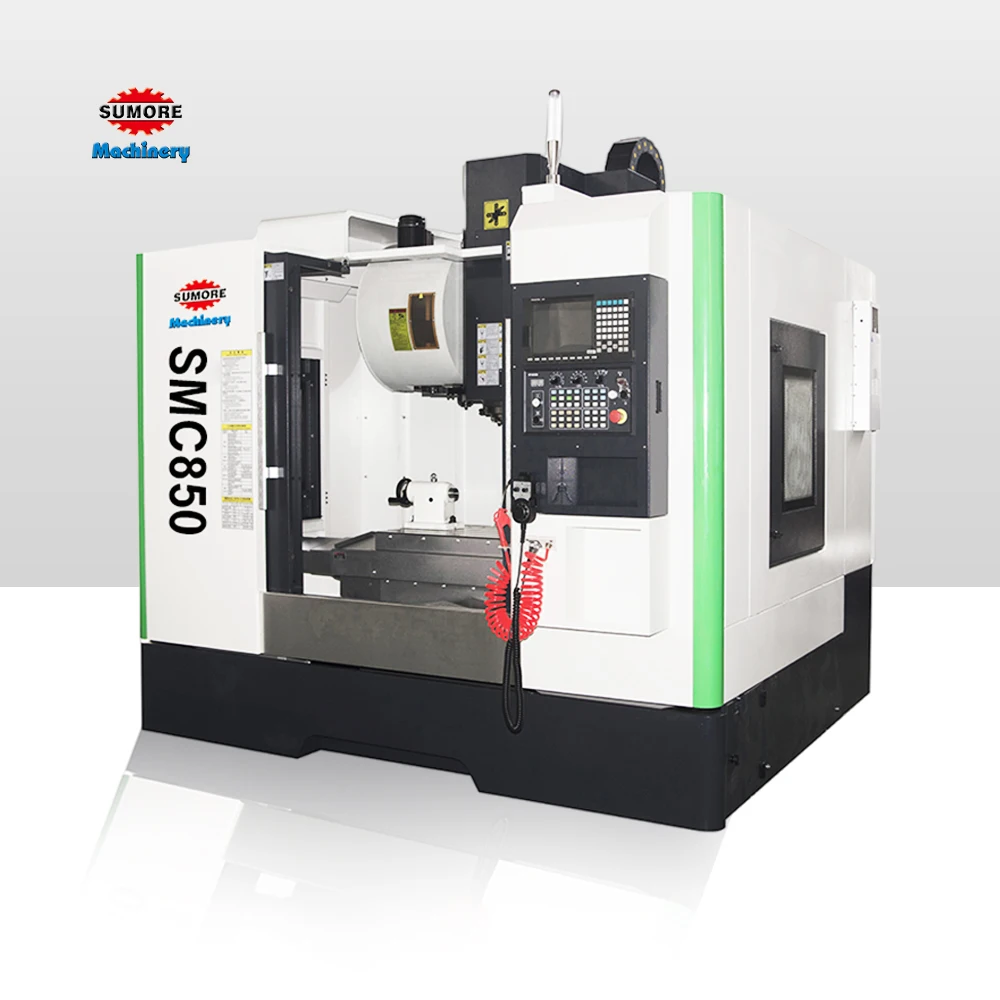

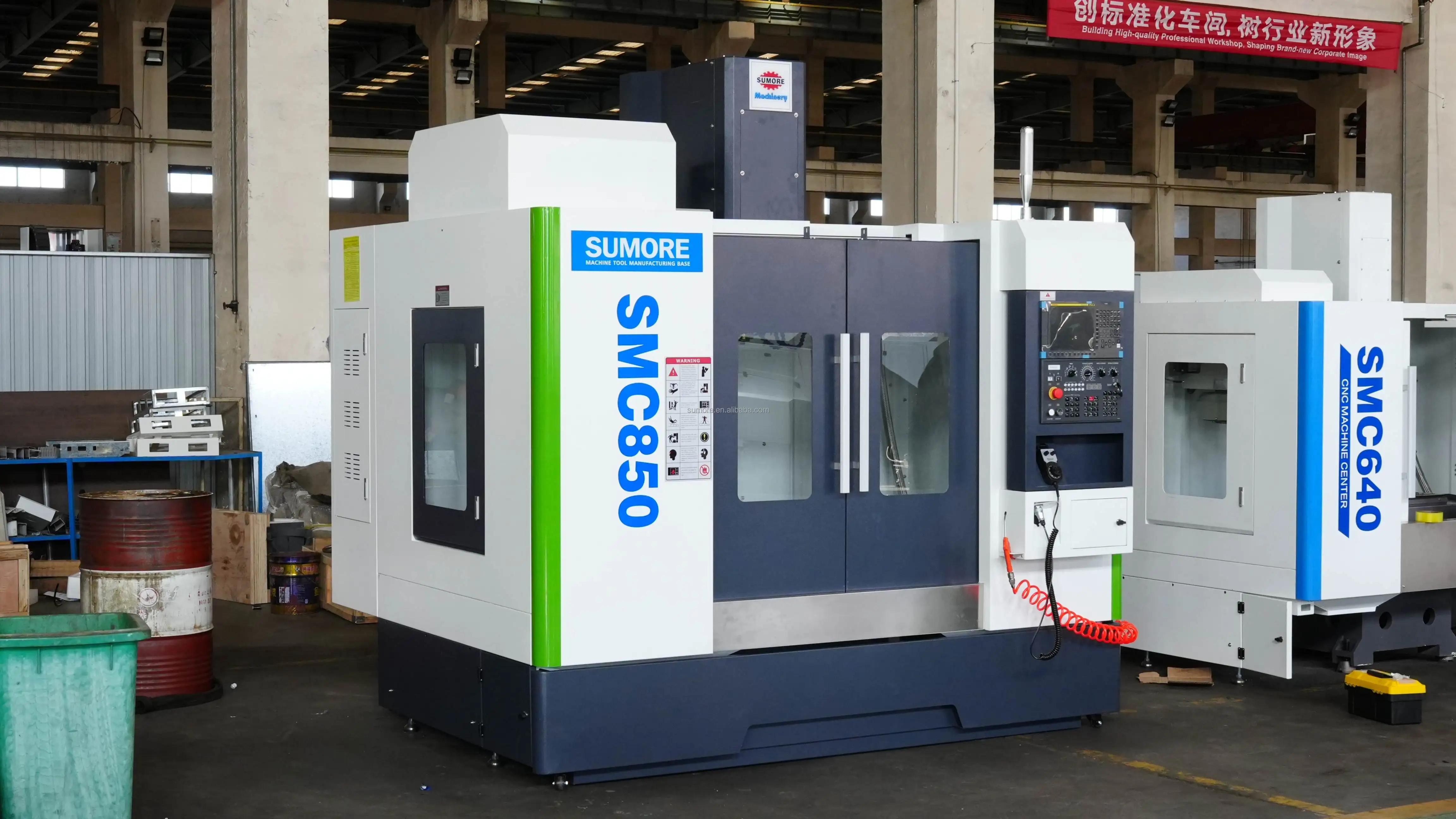

Model | SMC850 |
Table size | 1000x500mm |
X axis travel | 800mm |
Y axis travel | 500mm |
Z axis travel | 500mm |
Distance between spindle center and column surface | 550mm |
Distance between spindle nose and table surface | 150-650mm |
T slot | 5-18*100mm |
Spindle taper | BT40 |
Max. spindle speed | 8000rpm （optional 10000rpm） |
Main motor power | 7.5kw |
X/Y/Z axis servo motor torque | 15/15/22N.m |
X/Y/Z guide rail form | 3 axis linear guide rail |
Automatic tools changer | 24 pcs |
Max. tool diameter | 80mm /150mm |
X/Y/Z axis rapid traverse | 24/24/20 m/min |
Repeat positioning accuracy | ±0.003mm/300mm |
Machine dimension | 2750x2300x2300mm |
Machine weight | 5000kgs |

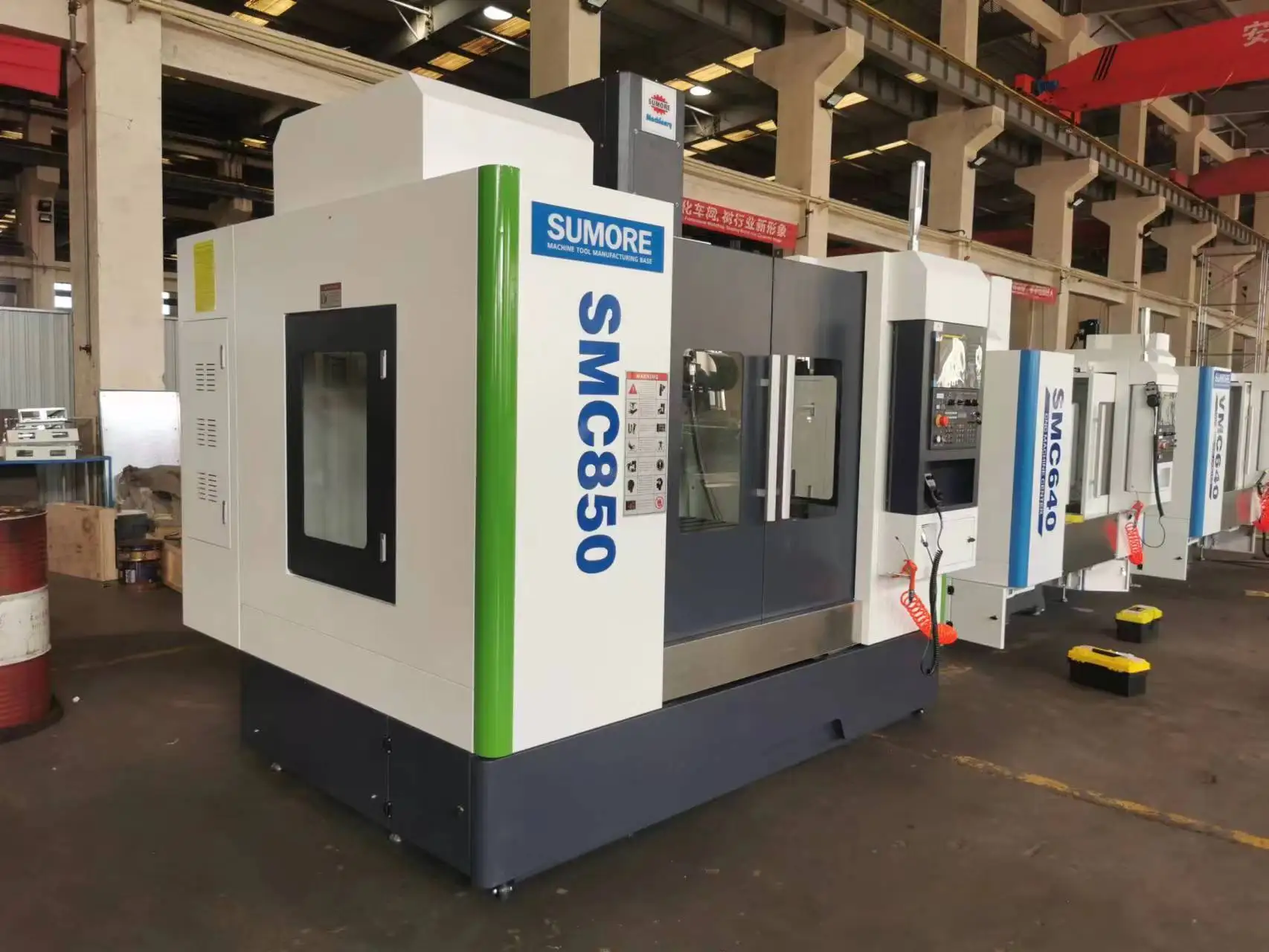

Product detail pictures
Main Features:
✿ 1. High Precision Hard guideway and screw.
✿ 2. BT40 spindle unit 8000,10000rpm speed available.
✿ 3. Reliable Control System: Fanuc, Siemens, GSK, HNC, Heidenhain.
✿ 2. BT40 spindle unit 8000,10000rpm speed available.
✿ 3. Reliable Control System: Fanuc, Siemens, GSK, HNC, Heidenhain.

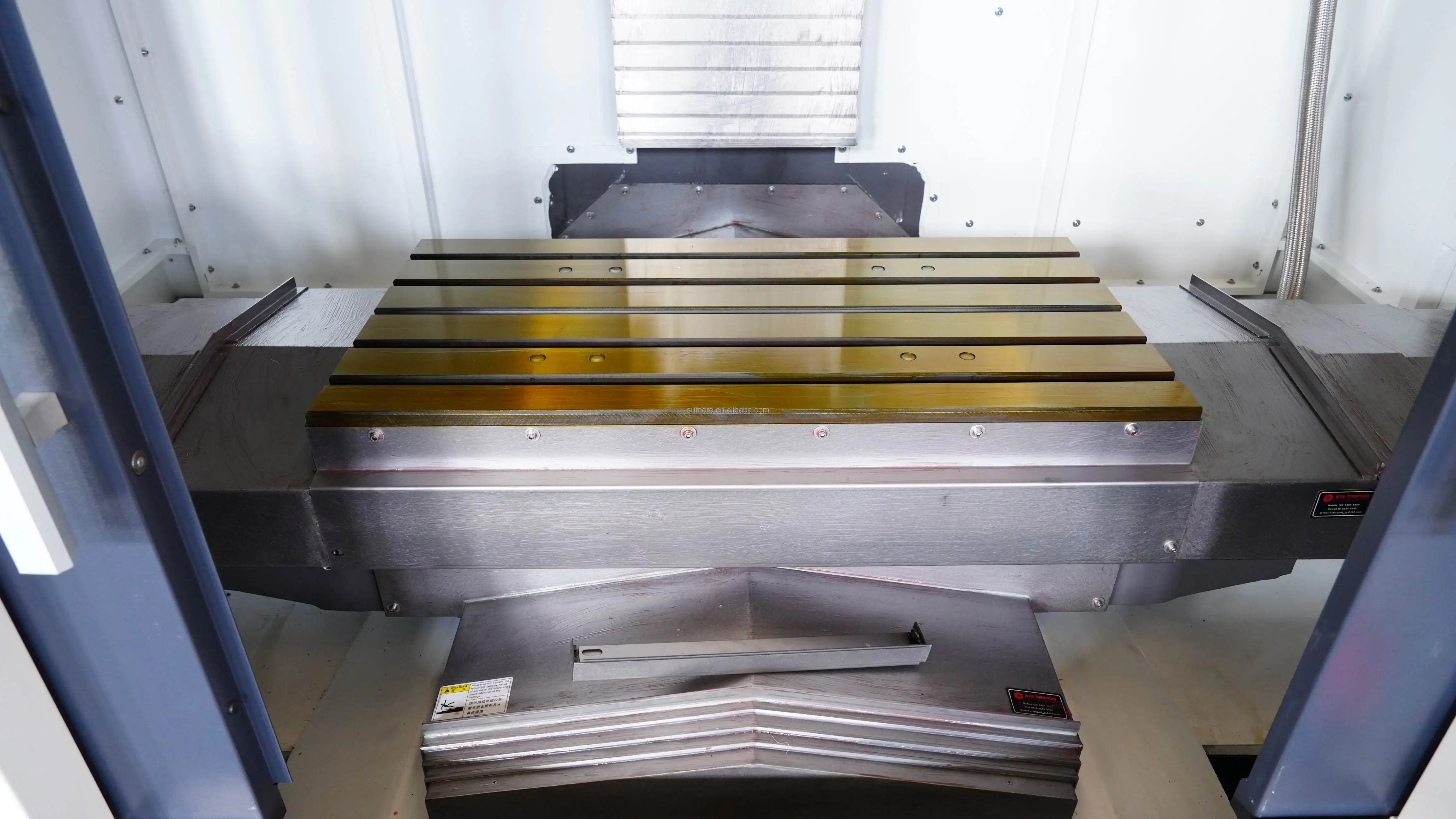

Big working area
1) 1000×500mm effective working area
2)High rigidity, Maximum load capacity: 500kgs.
1) 1000×500mm effective working area
2)High rigidity, Maximum load capacity: 500kgs.

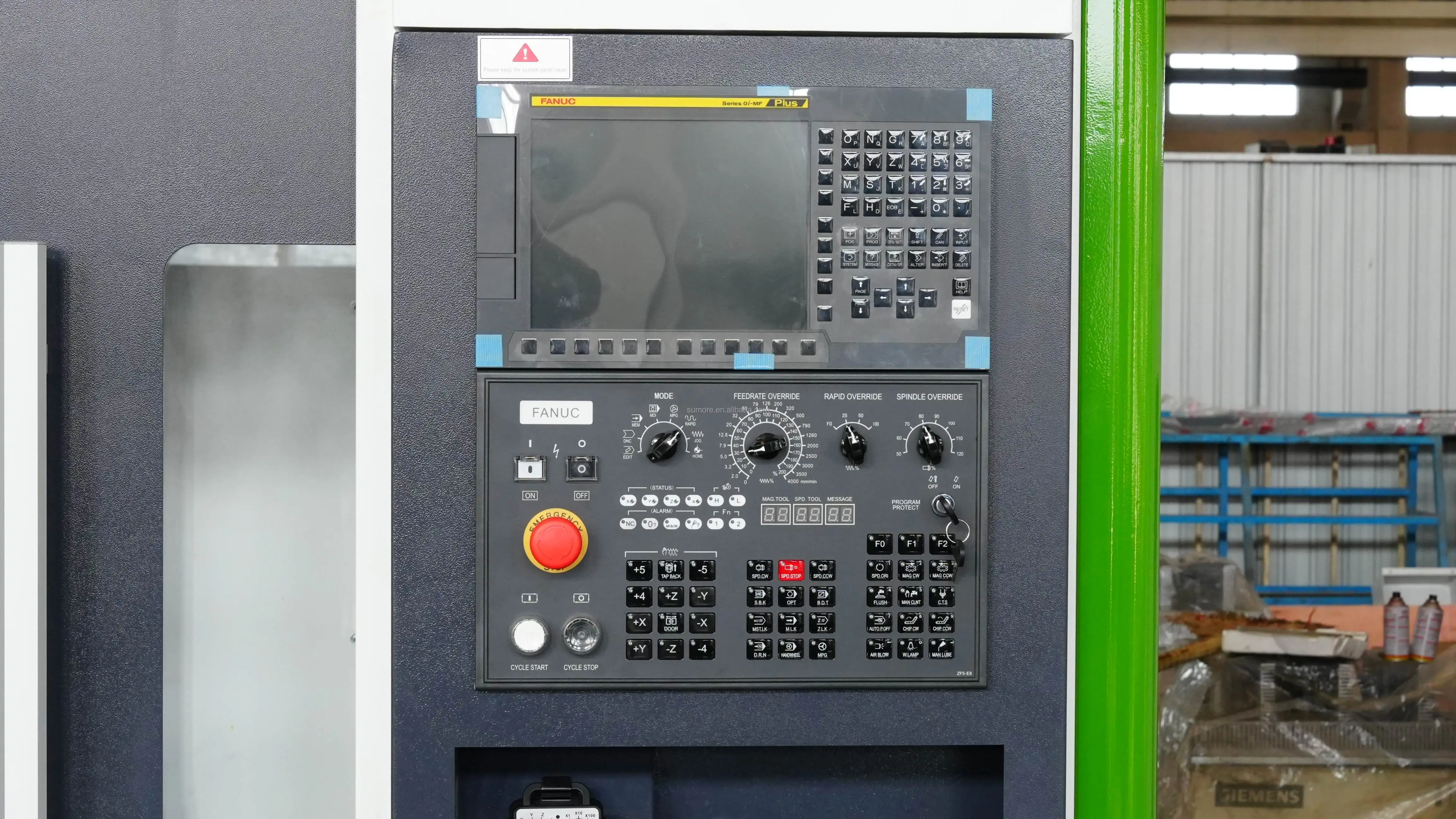

Reliable Control System
1)Can milling, engraving, drilling, grinding and other
2)Optional: Gsk, Fanuc, Siemens 808D/828D, Hnc, Heidenhain and other good system available
1)Can milling, engraving, drilling, grinding and other
2)Optional: Gsk, Fanuc, Siemens 808D/828D, Hnc, Heidenhain and other good system available

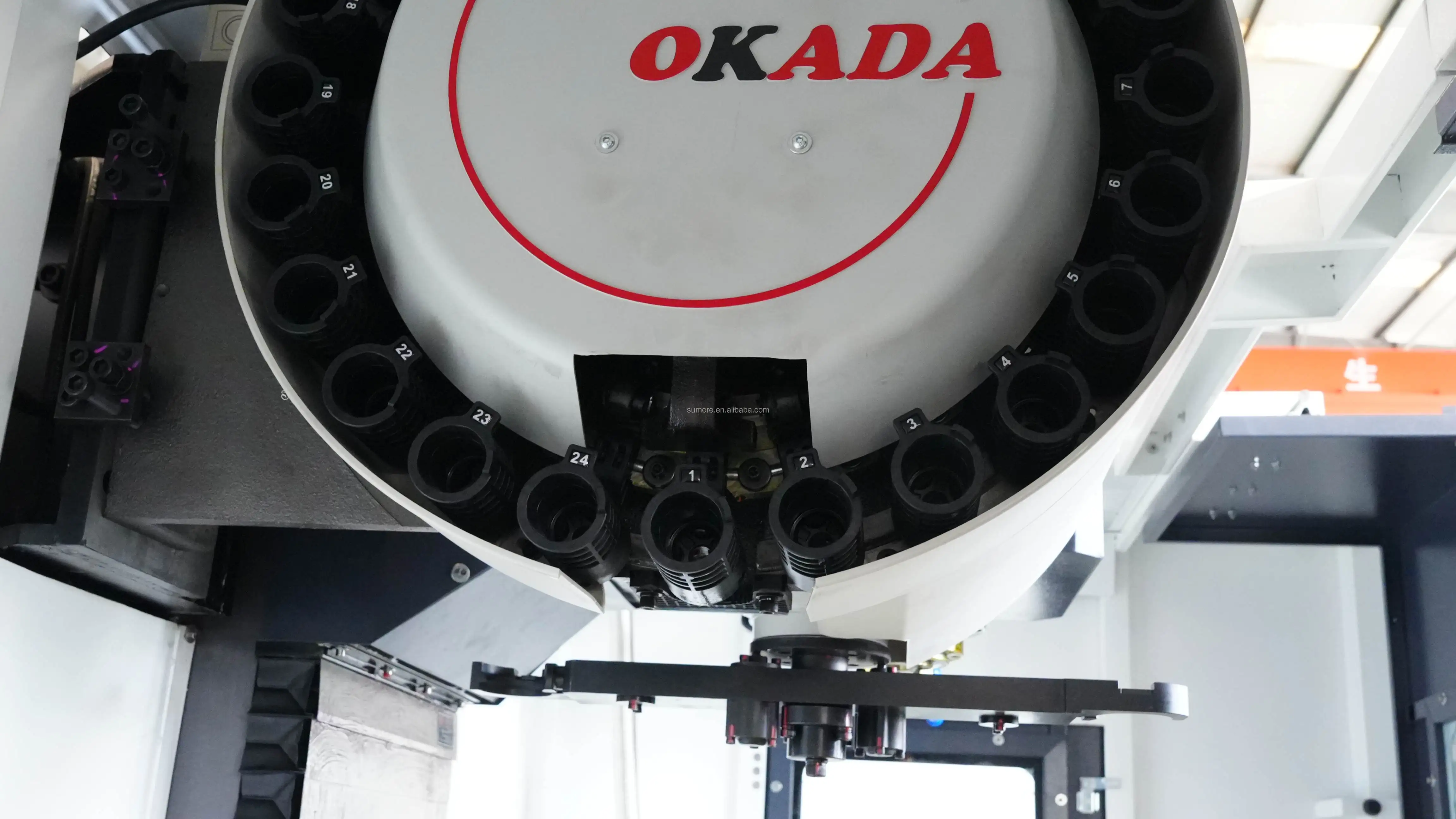

Automatic tool changer
24 tools ATC from Taiwan

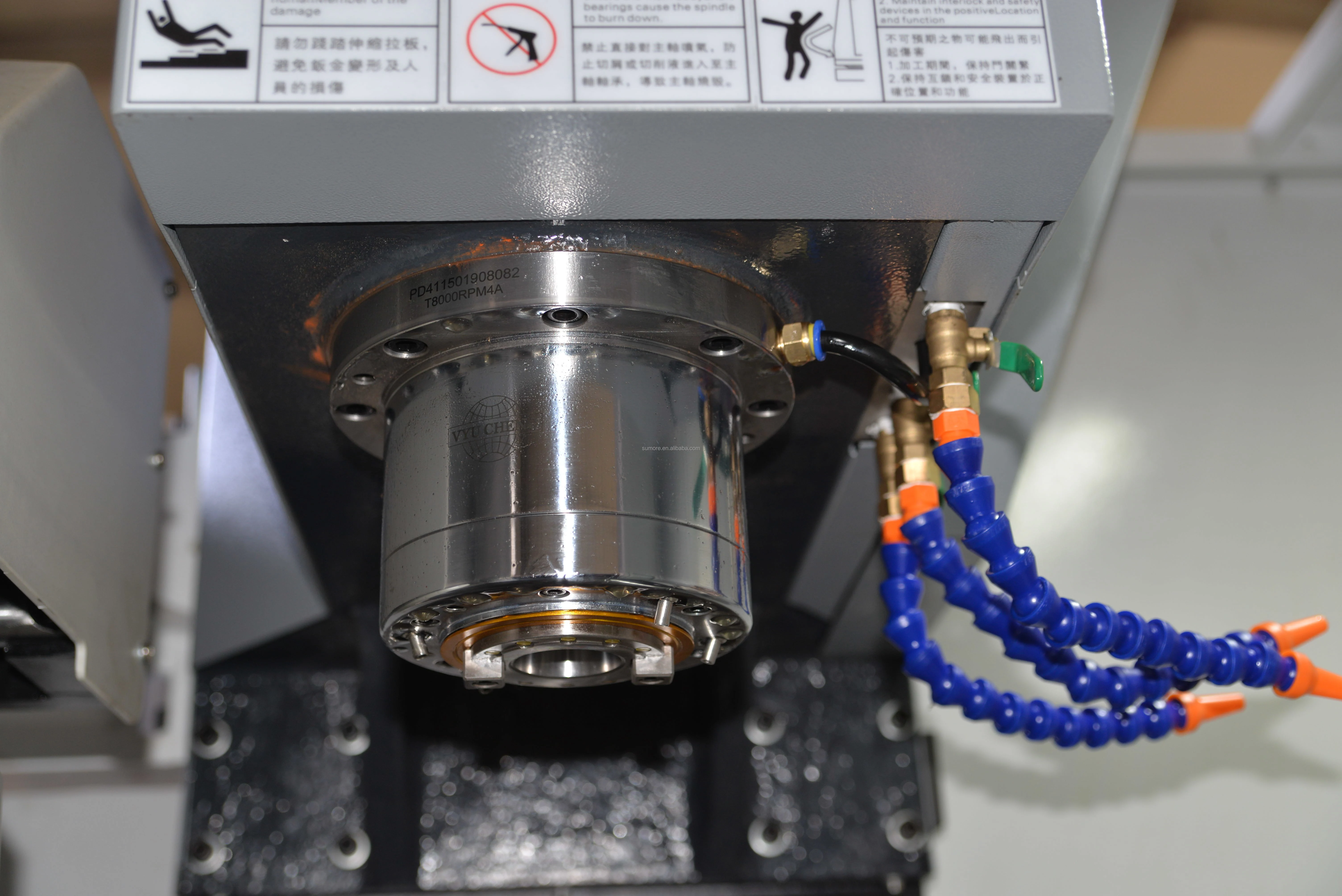

High Precision Taiwan Speed Spindle
1)High Speed, Stable Performace
2)8000,10000,12000rpm available
3)BT40,BT50 Spindle Taper freely choosen
1)High Speed, Stable Performace
2)8000,10000,12000rpm available
3)BT40,BT50 Spindle Taper freely choosen

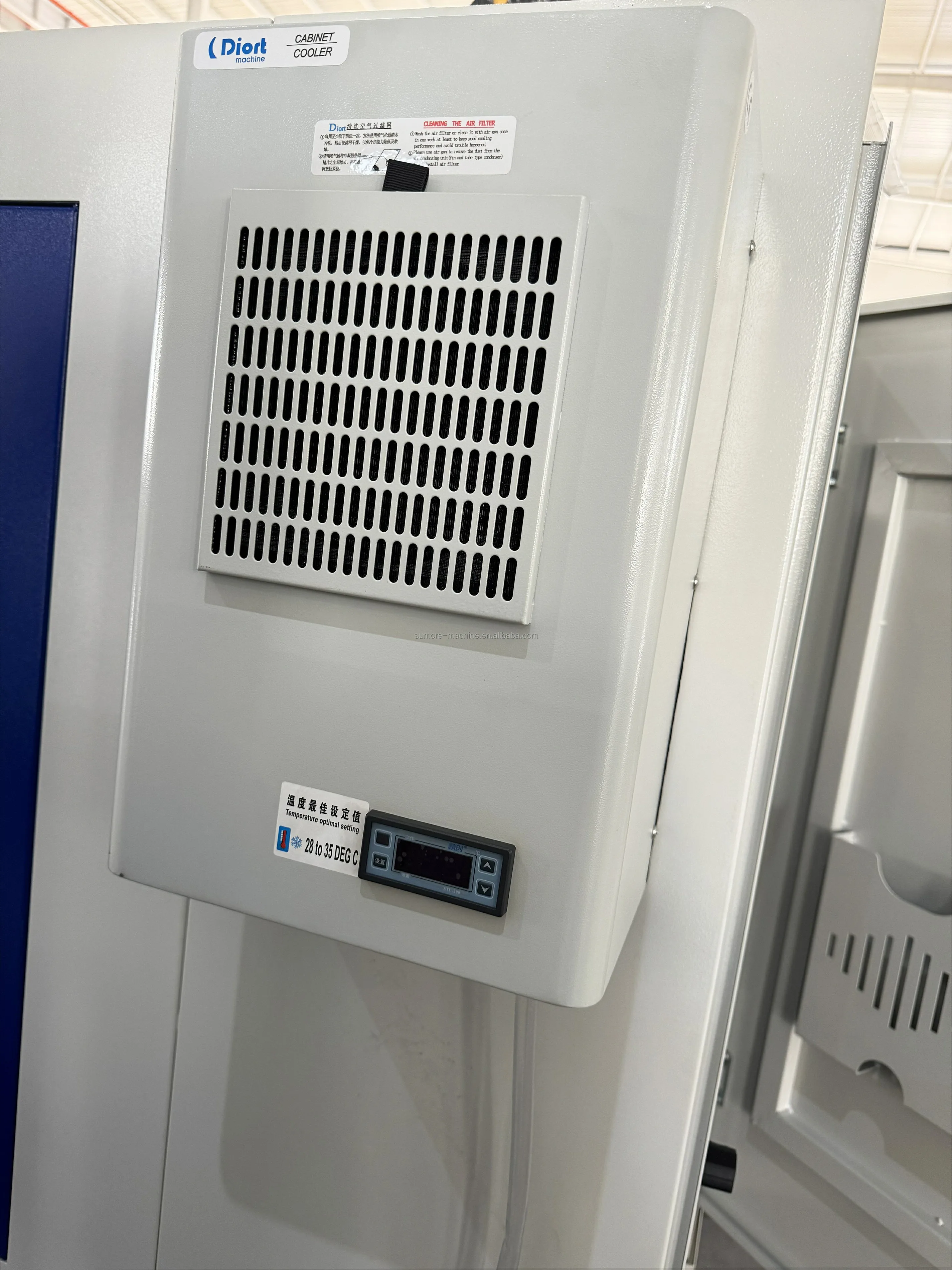

Electrical cabinetair conditioner
1)Standard air conditioning
1)Standard air conditioning
2)High-end configuration, easy todissipate heat.

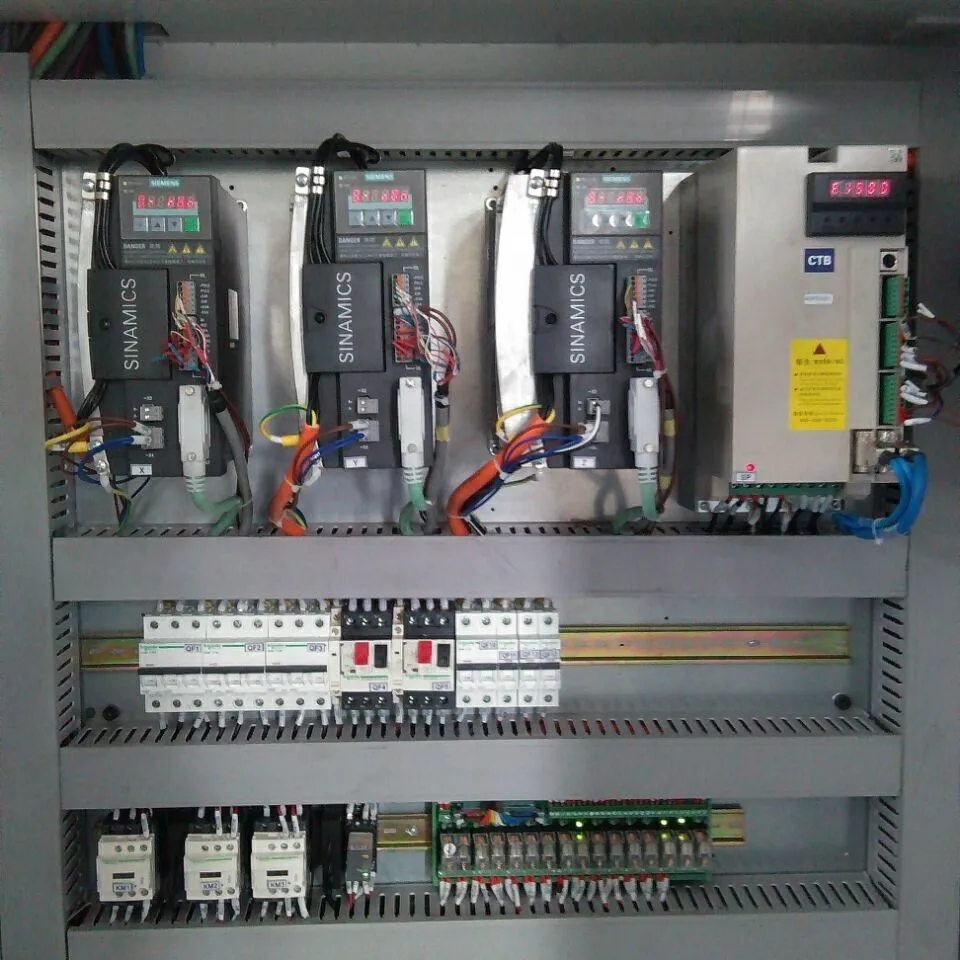

High Quality Electrical Parts
1)High Quality Electrial Compotents is used
2)Make the Machine performance Better.
1)High Quality Electrial Compotents is used
2)Make the Machine performance Better.

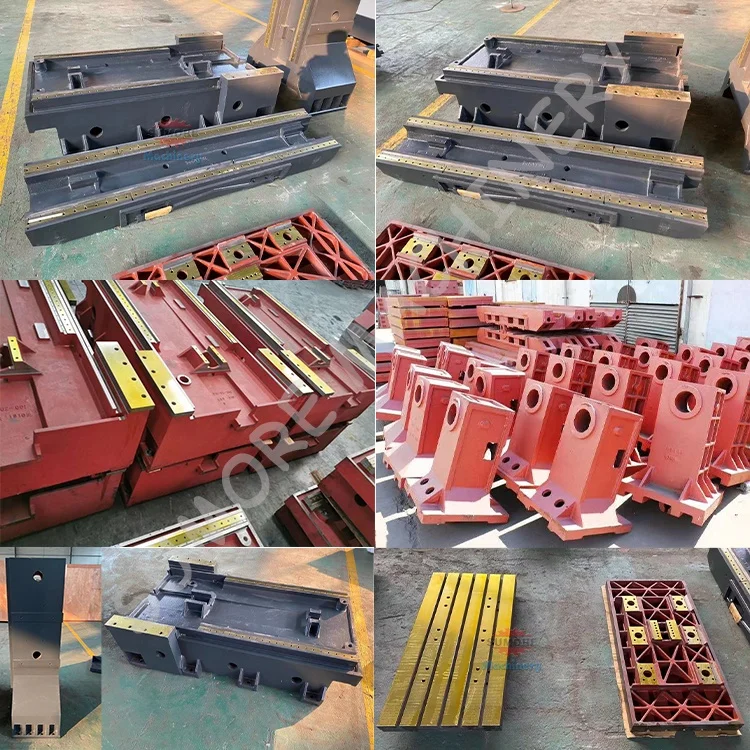

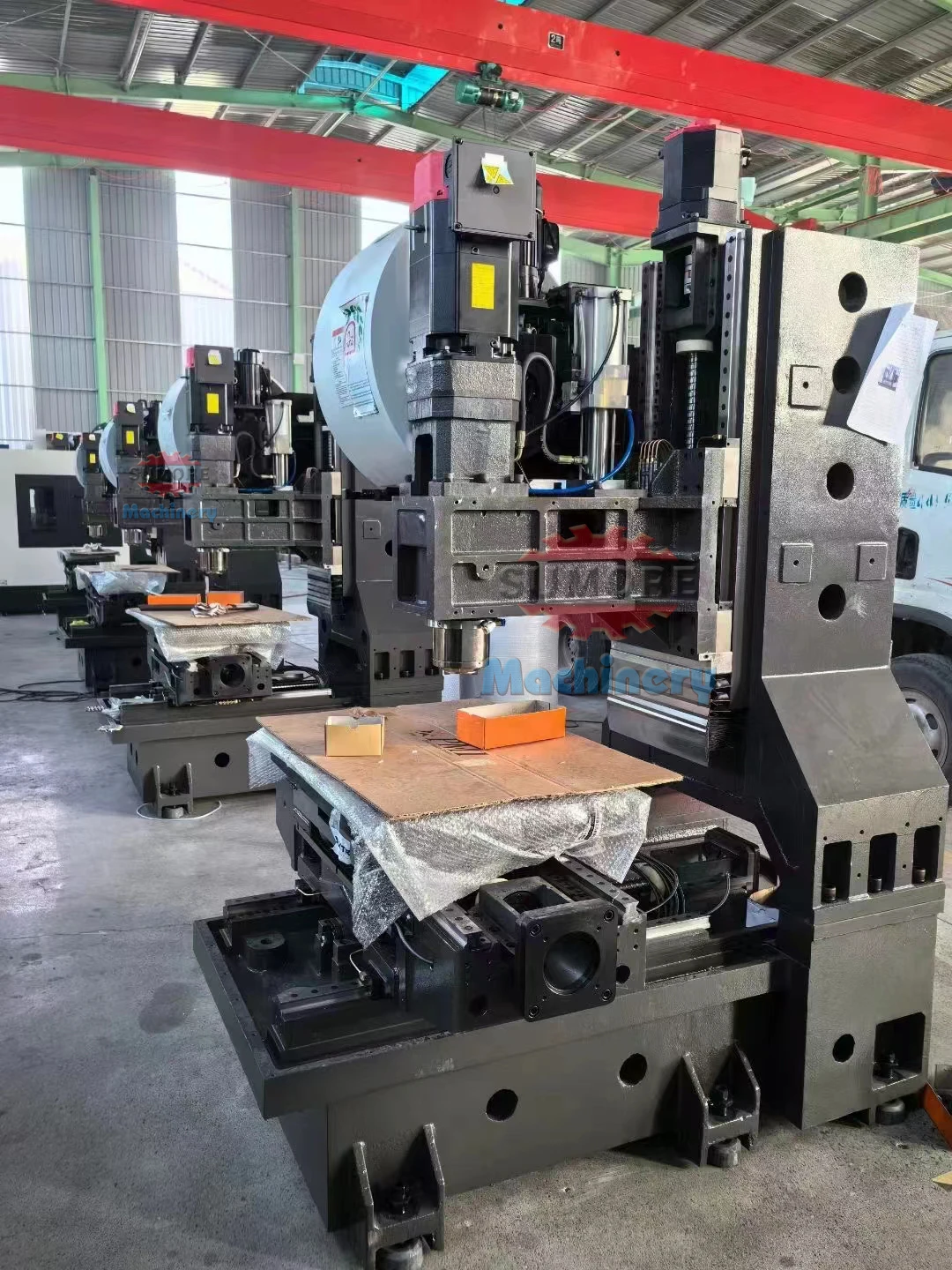

MACHINE FRAME: Precision casting precision machining

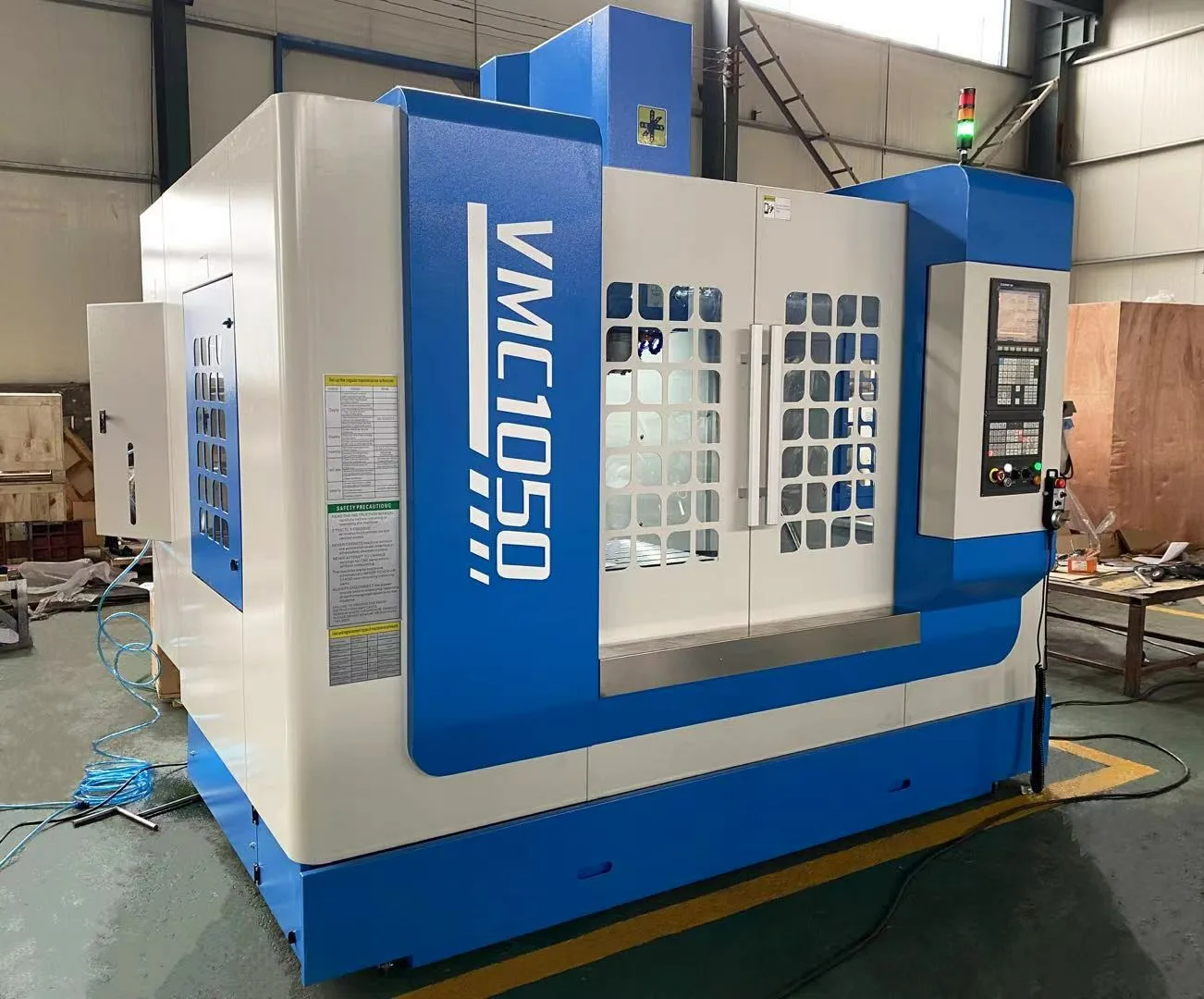

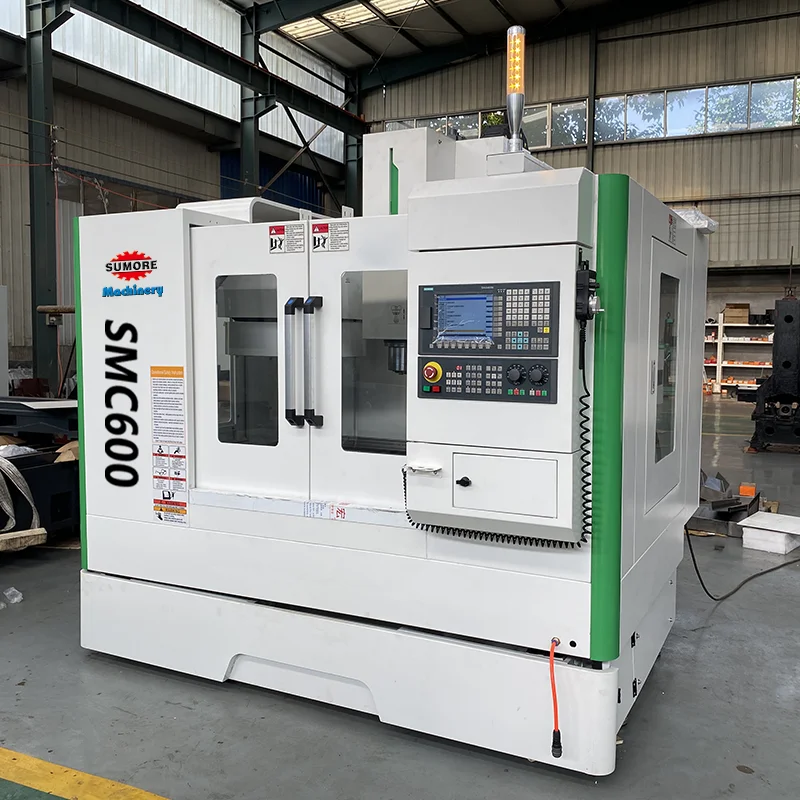

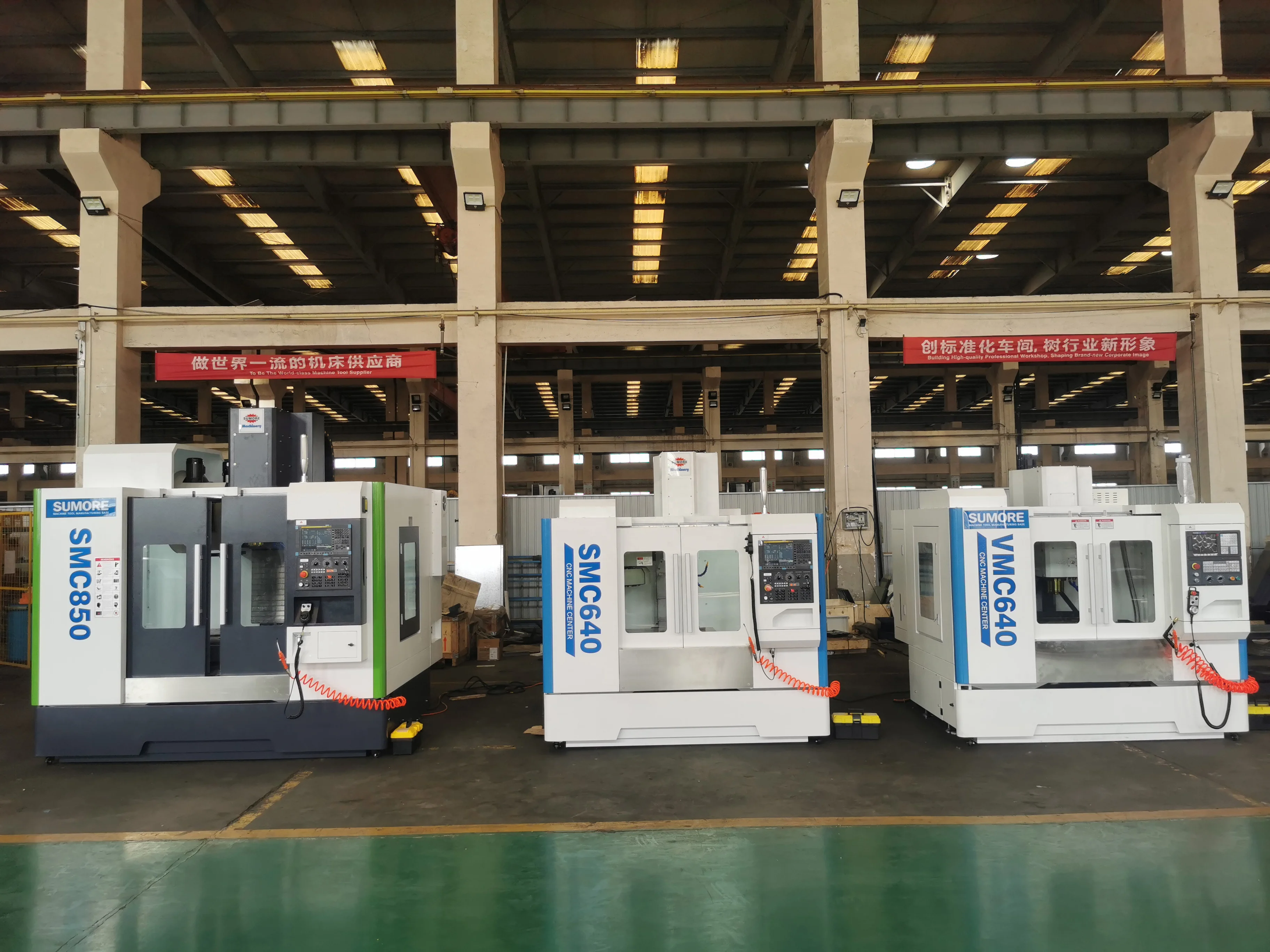

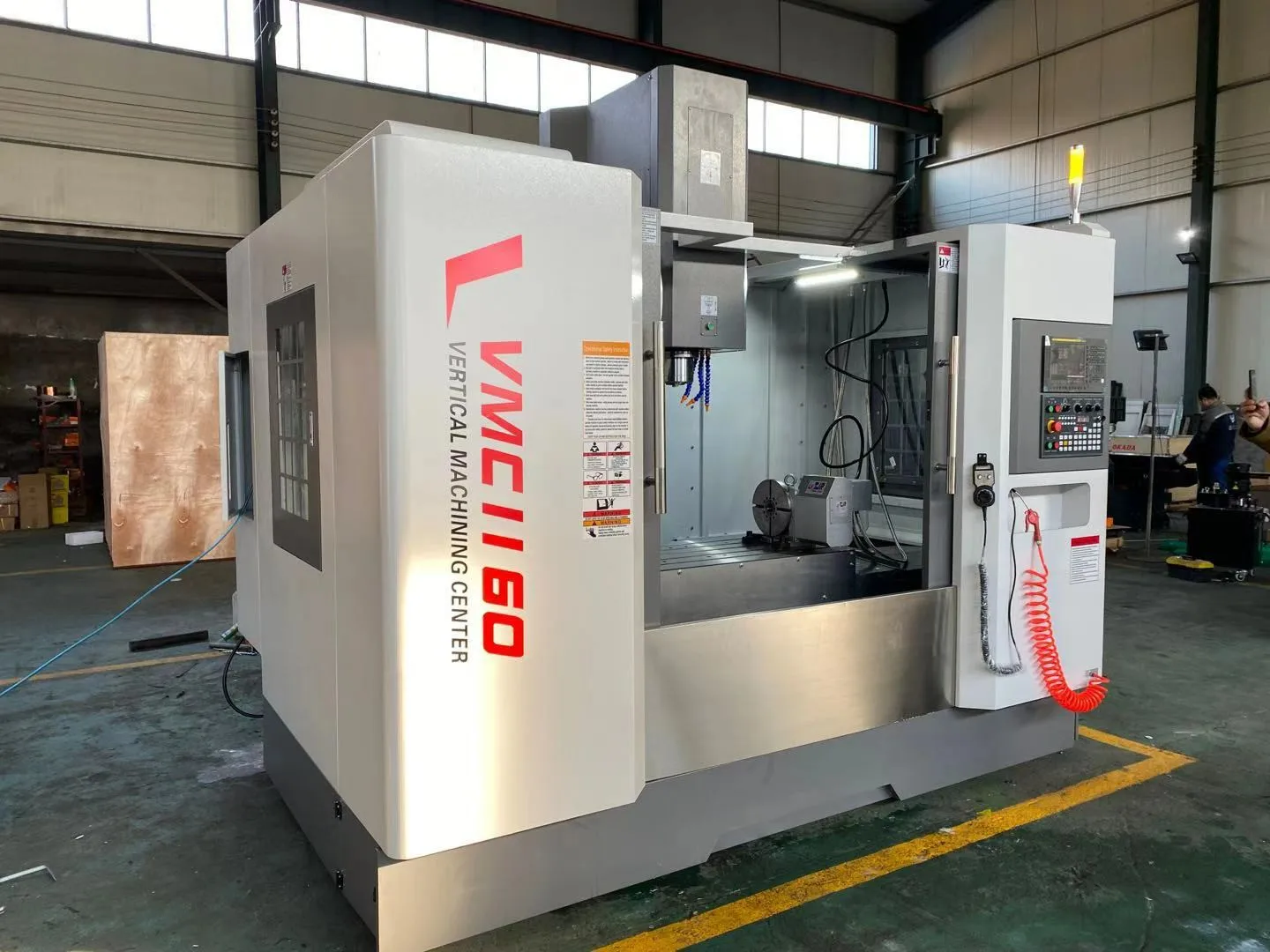

More Machining Center
Packaging & Shipping
Company Profile
As the professional and experienced manufacturer of lathe, mill , drill , cnc and other tools ,Shanghai SUMORE Industrial Group has been in this filed for more than 20 years.
We have got the certificates of CE, GS ,Rohs , CSA ,UL ,etc . Also we have been in business with GSK ,Siemens ,Faunc and other famous companies within 50 countries all over the world.
Whether you need the standard or the customerised products , please contact us directly . Our professional and experienced engineers and after sale service team will meet your needs.
Hope to cooperate with you!
We have got the certificates of CE, GS ,Rohs , CSA ,UL ,etc . Also we have been in business with GSK ,Siemens ,Faunc and other famous companies within 50 countries all over the world.
Whether you need the standard or the customerised products , please contact us directly . Our professional and experienced engineers and after sale service team will meet your needs.
Hope to cooperate with you!
FAQ
1.Q: What is your payment terms?
A:Our payment term is 30% T/T in advance, 70% T/T before shipment.It is negotiable.
2.Q: What is your delivery time?
A:Usually, one machine takes 20-40 days. If we have in stock, we can arrange
shipment as soon as we receive the payment.
3.Q:Where is your factory?Can we go to your factory and learn how to use the machine?
A:Our factory is loacted in yancheng,jiangsu Province.
We sincerely welcome you come to our factory.
4.Q: Do you have CE certification?
A:yes, we have CE certification, machine quality is guaranteed.
5.Q:Can you accept OEM order?
A:Sure,we accept OEM with your logo print on the machine and package with your design.
A:Our payment term is 30% T/T in advance, 70% T/T before shipment.It is negotiable.
2.Q: What is your delivery time?
A:Usually, one machine takes 20-40 days. If we have in stock, we can arrange
shipment as soon as we receive the payment.
3.Q:Where is your factory?Can we go to your factory and learn how to use the machine?
A:Our factory is loacted in yancheng,jiangsu Province.
We sincerely welcome you come to our factory.
4.Q: Do you have CE certification?
A:yes, we have CE certification, machine quality is guaranteed.
5.Q:Can you accept OEM order?
A:Sure,we accept OEM with your logo print on the machine and package with your design.
