Product Overview

Description



Product Description




Product Presentation

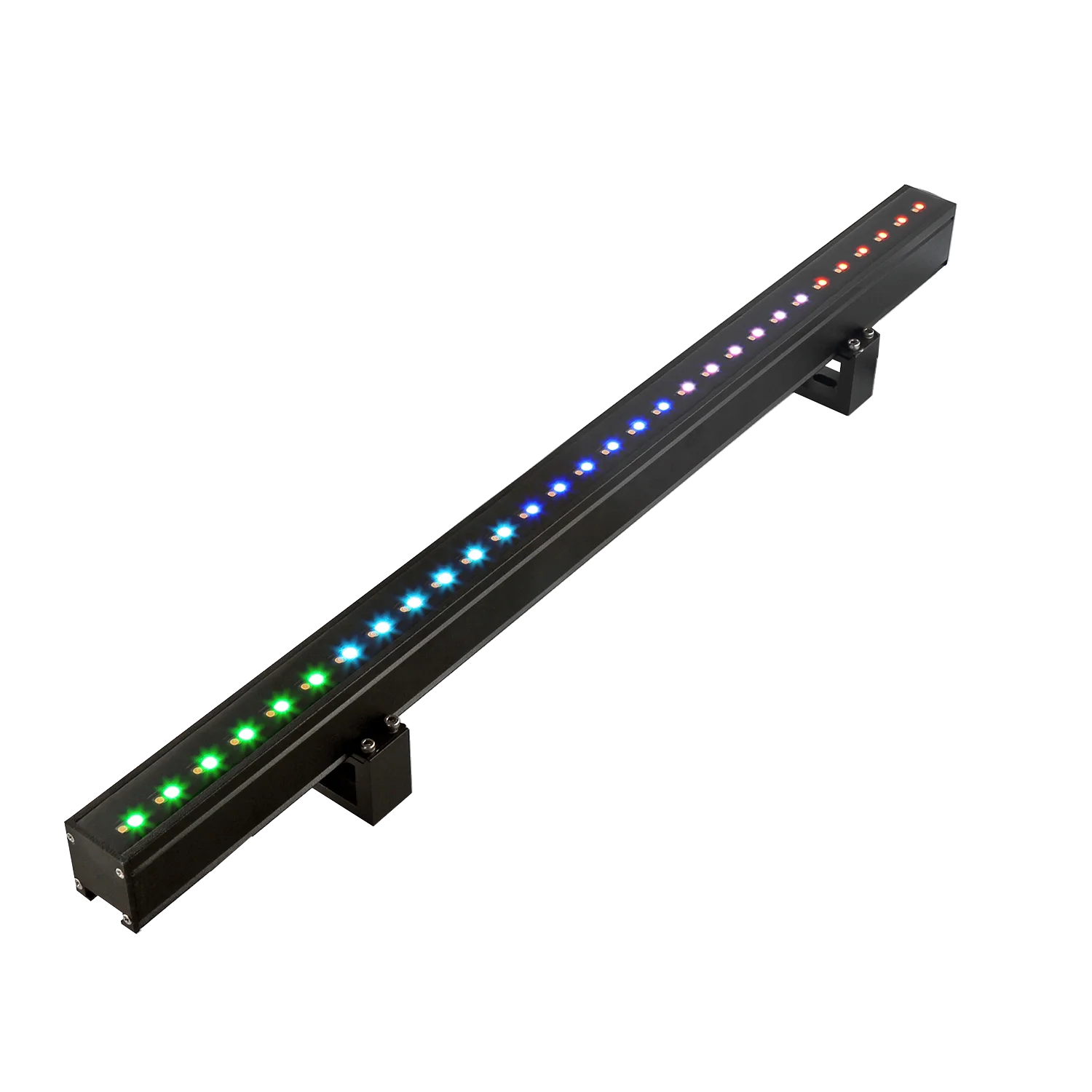

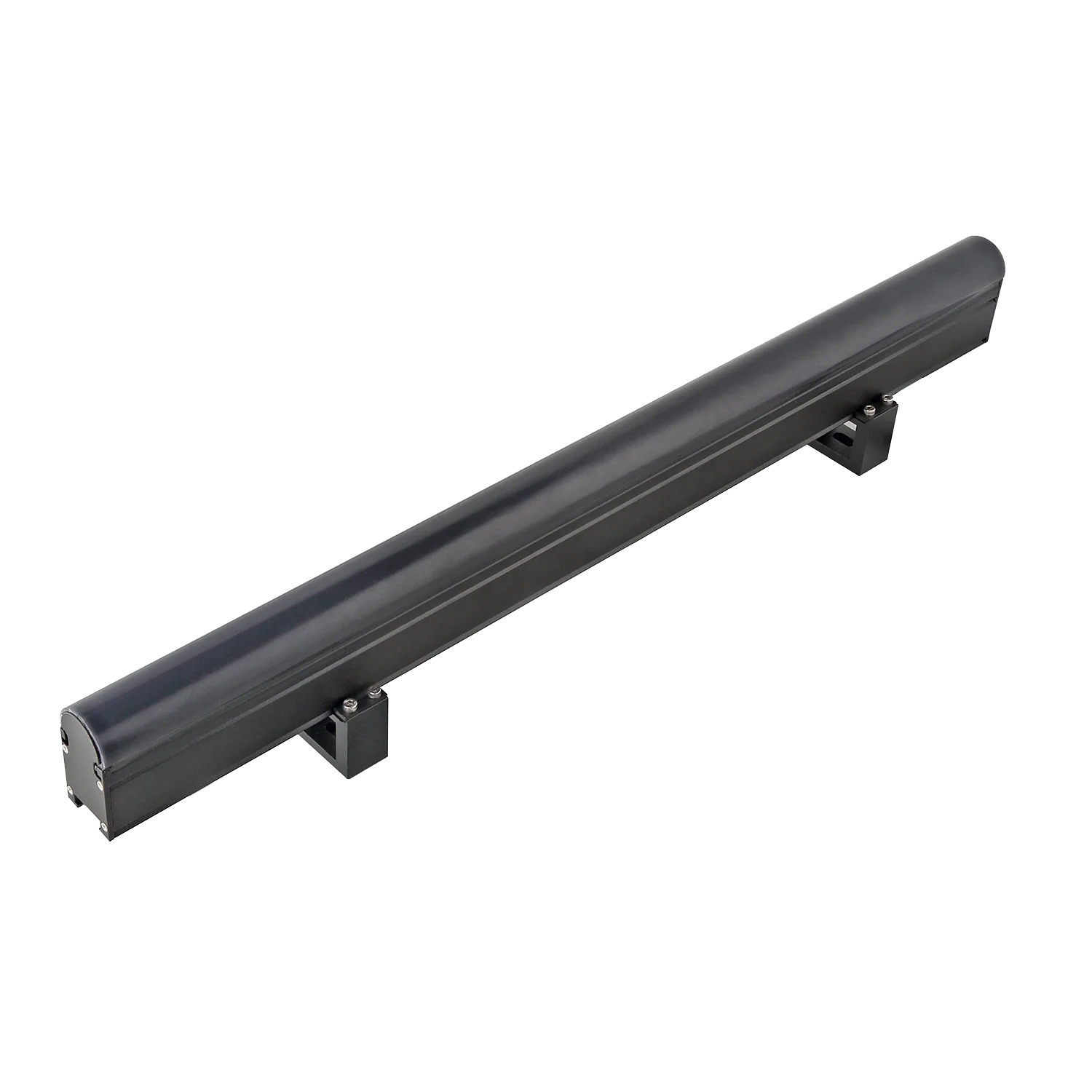

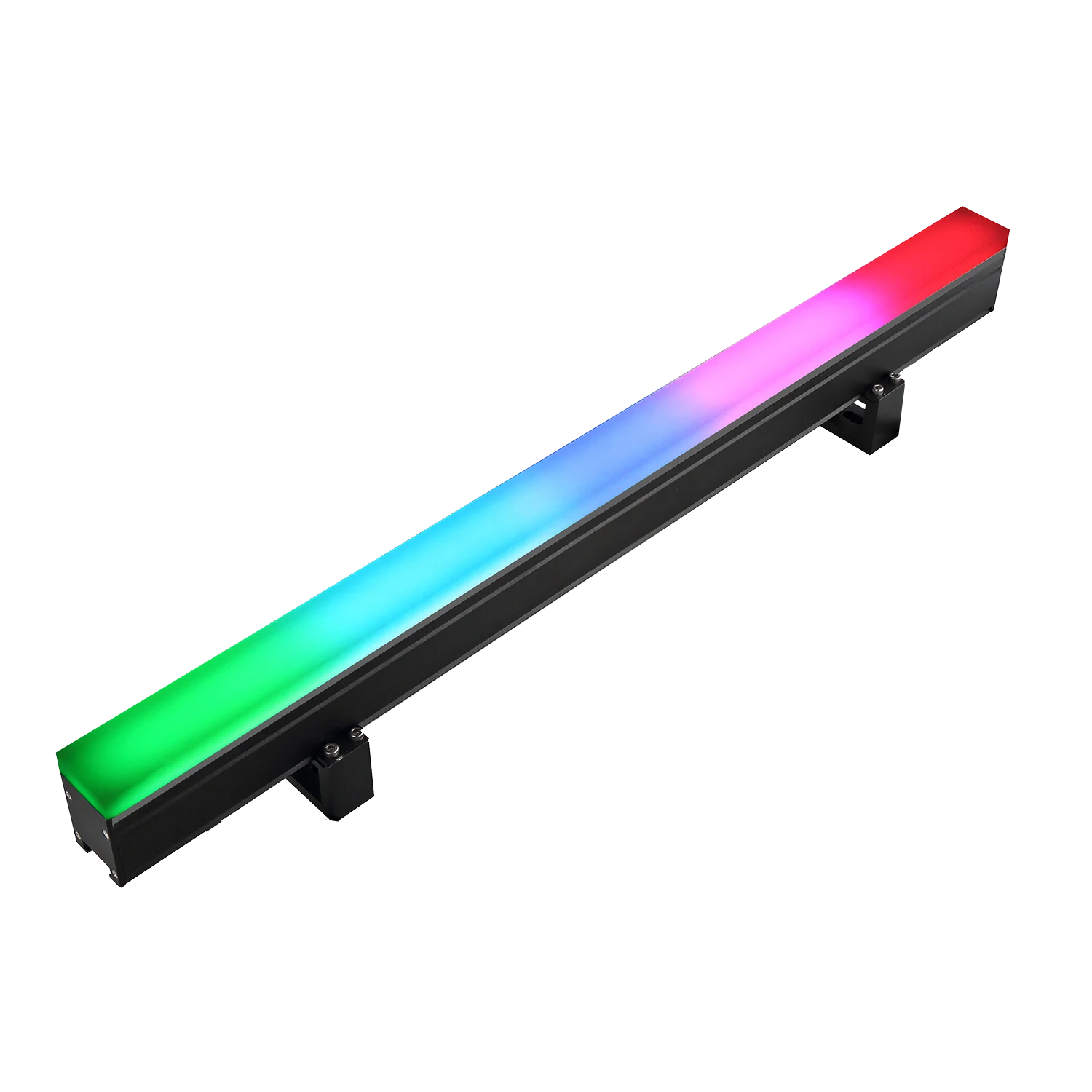

The Colordreamer DMX Media Bar is a 18mm wide exterior DMX Direct-view Linear with Clear,
black, Opal PC and Opal Acrylic Diffuser. Fixtured Mounting Brackets or customized brackets are available.

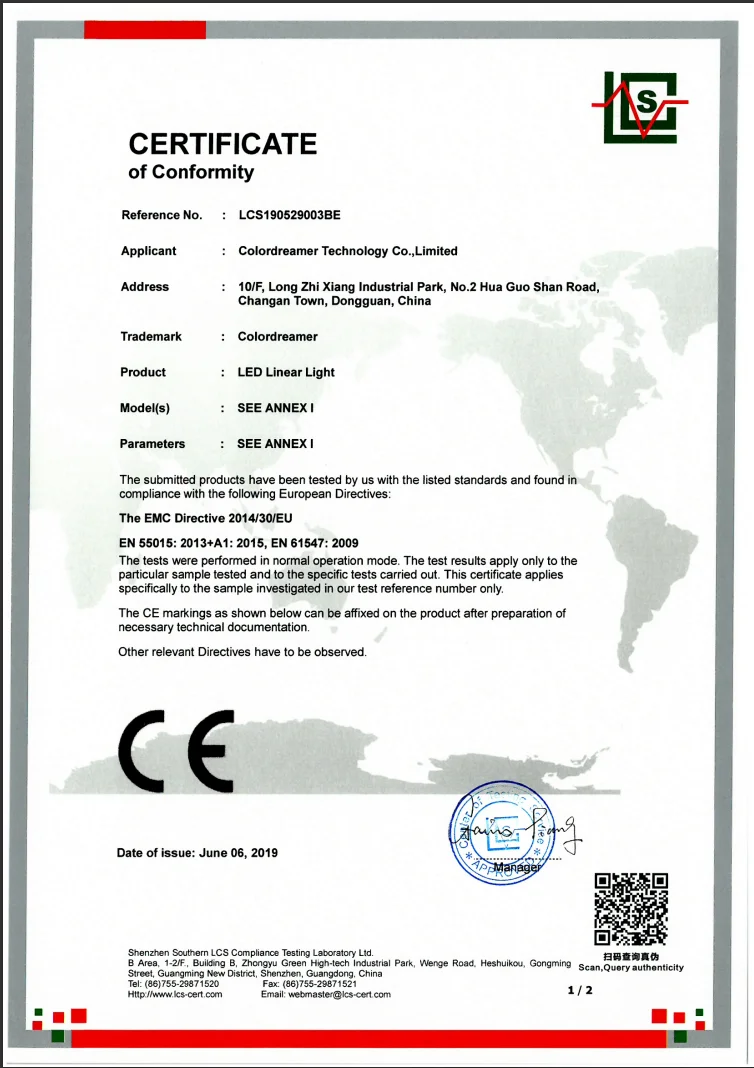

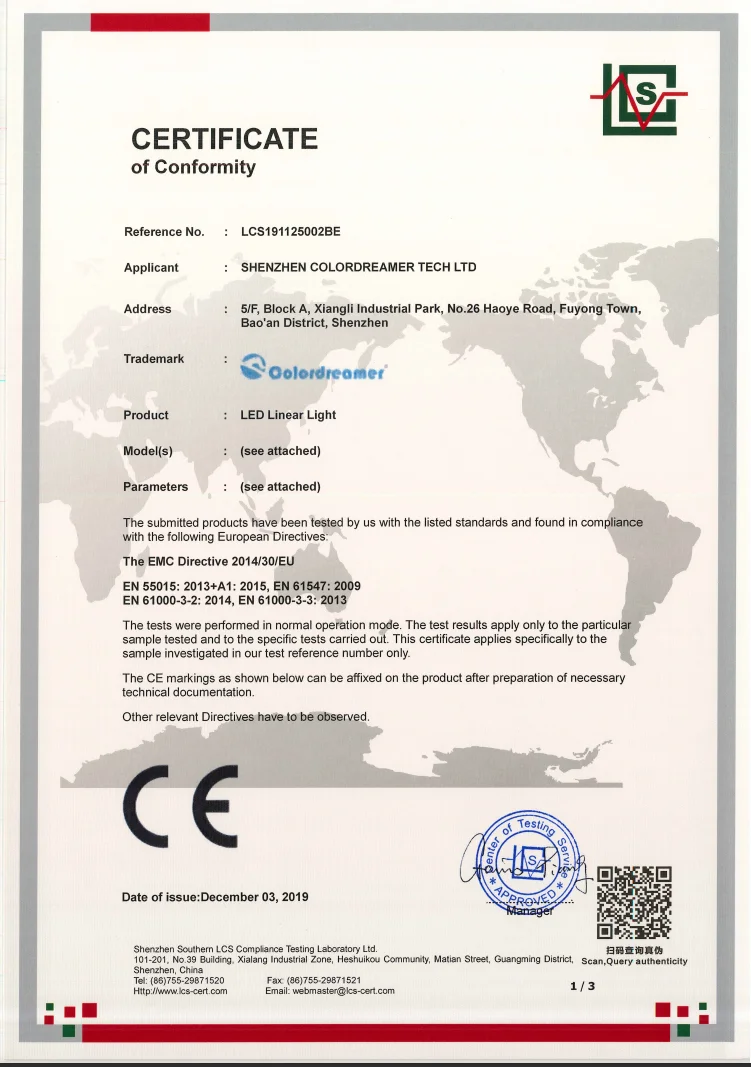

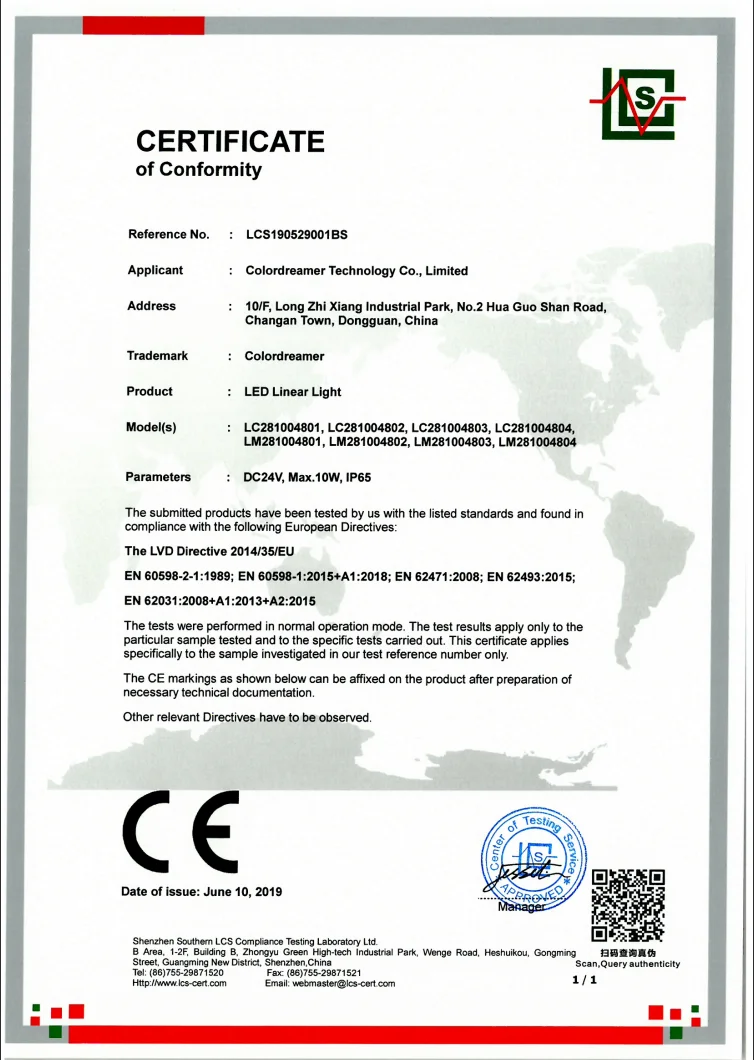

Certificate


Models
LX181006001
LX1810012002
LX181006003
LX1810012004
LED
Color
Static White
Tunable White
RGB
RGBW
Light Source
SMD 3535 LED
SMD 3535 LED
SMD 3535 LED
SMD 3535 LED
LED Source Color
W:3000K
W:4000K
W:5700K
W:3000K
W:5700K
R:619-624nm
G:520-540nm
B:460-480nm
R:619-624nm
G:520-540nm
B:460-480nm
W:3000K/4000K/5700K/
CRI for White LED
Ra>80
Ra>80
-
Ra>80
LED QTY
60LEDs/m
120LEDs/m
60LEDs/m
120LEDs/m
Performance
Lumen Output
Update soon
Update soon
Update soon
844lumen/Clear
@CREE RGBW(W3000K)
415lumen Acrylic Top
@CREE RGBW(W3000K)
Efficacy
Update soon
Update soon
Update soon
85lumen/W Clear
@CREE RGBW(W3000K)
41.5lumen/W Acrylic
@CREE RGBW(W3000K)
Beam Angle
110° Clear Cover
165° Black Cover/Opal Cover/Acrylic Cover
Electrical
Input Voltage
15-24VDC
15-24VDC
15-24VDC
15-24VDC
Power Consumption
10W/Meter
3W/ft
10W/Meter
3W/ft
10W/Meter
3W/ft
10W/Meter
3W/ft
Control
Protocols
DMX512
DMX512
DMX512
DMX512
PWM Frequency
1KHz@16-Bit Grayscale
256KHz@8-Bit Grayscale
Addressing
Auto Addressing or RDM Manual Addressing with Colordreamer addressing device
Pixels
20Pixels/m
10Pixels/m
5Pixels/m
1Pixel/m
10Pixels/m
5Pixels/m
1Pixel/m
20Pixels/m
10Pixels/m
5Pixels/m
1Pixel/m
10Pixels per meter
5Pixels per meter
1Pixel per meter
Physical
Material
Aluminum 6063 with UV Protected Cover
Finish Color
Powder coating, Black/Grey Silver or Custom RAL Color
Cover
Clear/PC Black/PC Opal/Acrylic

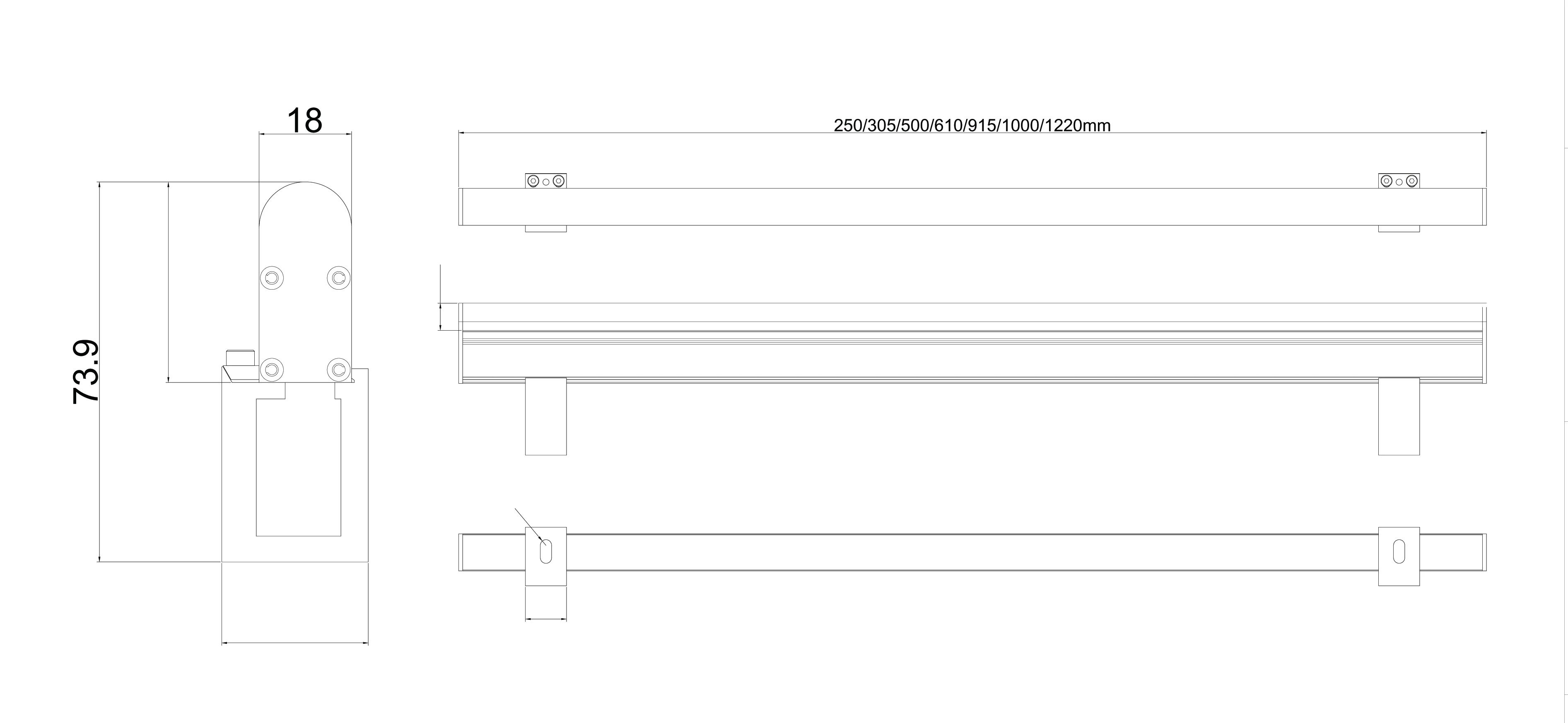

Dimensions(LXWxH)
With Brackets
1000mm*28.5mm*60mm(for Clear Cover)
1000mm*28.5mm*74mm(for PC Dome or Acrylic Top)
Length
250mm/500mm/1000mm/305mm/610mm/915mm/1200mm
Cable Entry
Bottom Entry, Side Left Entry or Side Right Entry
Mounting
Fixed Mounting Brackets
Contact us if you need customized brackets
Mounting Orientation
Horizontal or vertical
Packing
20pcs 1000mm per Box. Package Size 103*29.5*26cm
20pcs 1220mm per Box. Package Size 125*29.5*26cm
Environment
Operating Temperature
-30℃ to +50℃
Storage Temperature
-40℃ to +70℃
Humidity
0-90% non-condensing
IP Rating
Dry, Damp, Wet locations IP66
Certification and Safety
Certification
CE/ETL
Warranty
2Years Limited Warranty from the Date of Manufacture
Contact us if you need extended warranty






Company Introduction




Packing&Shipping




FAQ


Q1. Do you have any MOQ limit for led light order?
Answer: Low MOQ. 1 PC for sample checking is available.

Q2. How do you ship the goods and how long does it take to arrive?
Answer ：We usually ship by DHL and FedEx. It usually takes 3–5 days to arrive.
Airline and sea shipping are also optional.

Q3. Which international certification will you provide?
Answer: We provide international certifications authorized by CE, RoHS for EU and ETL for North America.

Q4. Are you a factory, Is possible to visit your factory?
Answer: Yes. Professional stage equipment manufacturer in China. Our sales network is worldwide for wholesale and custom orders
lf you want to bulk buy in China. Welcome to inquiry and visit our factory.

Q5. What are your terms of payment?
Answer: TT or PayPal

Q6. Do you offer free samples?
Answer: Not. we don't. We can offer you samples but you should pay the samples fee. lf you place an order with us. we can return
the samples fee to you .

Q7. Do you offer guarantee for the products?
Answer: Yes. All our products have a 3–5-year warranty.
