AC 3 Phase Alternator 10KW Low RPM 200 Watt Permanent Magnet Alternator Customized 350Kw Permanent Magnet Generator

Product Overview

Description

AC three phase alternator 10KW 375RPM 50Hz 277Nm torque 15A low rpm 10kw 220vx3/380v permanent magnet generator





Features

• Low start up speed; Low cogging torque

• Suitable for both Horizontal and Vertical Turbines
• Die Casting aluminium alloy case for use in all environments: anti corrosion, acid and alkali resistant, and anti salt corrosion.
• Excellent heat dissipation
• Designed for 20-year operation life.
• Best NdFeB Permanent Maget
• High-grade pure copper winding
• High efficient and produce power stably
• H class insulation, vacuum pressure impregnation
• Maintenance free, and for all environments
• SKF bearing
• Low speed permanent magnet direct-drive generator. Do not need the gearbox. The turbine connects with the PMG directly, simplifying the structure and improving the system performance. The PMG can output 50Hz/60hz directly at the rated speed.
• Multi poles design, improve the frequency and efficiency of rectifiers and inverters.
• High efficiency. The efficiency can be improved by 20% when you use PM generator without gearbox.
• The voltage, speed ,power of the generator can be customized. The shape can also be changed, using spine shaft, dual shaft, front edge or other output ways.

Specification



Main specifications
Rated power (kW)	10kW
Rated speed (rpm)	375rpm
Rated torque (Nm):	277Nm
Rated voltage (V):	220x3/380VAC
Rated current (A):	15A
Startup torque (Nm)	<5.54Nm
Phase number	3-phase
Frequency(Hz)	50Hz
Insulation Class:	H
Protection Class	IP54
Efficiency(%)	more than 92%
Cooling	Natural Air cooling/forcing cooling
Mechanical specifications
Installation	Horizontal
Frame size	Y180
Weight	180kgs
Materials
Shaft material	Steel
Bearings	SKF
Housing material	Casting Iron
Winding material	Copper
Winding temperature level	180°C
Magnet	NdFeB
Magnet temperature level	150°C
Core	Cold rolled silicon steel sheet



Application:

1.  For wind turbine design

2.  For hydro turbine design

3. Driven b belt with motor

4. perpetual motion machine

5. With test plant

6. Any DIY idea by yourself. Make the shaft rotate then it can generator power





Drawings











Can custom make different specification, just provide below data:

1. Rated Power

2. Voltage

3. Rotate Speed

4. Size (if you have request)

5. Frequency(if for wind or hydro power, no need this, but pls tell me advance)

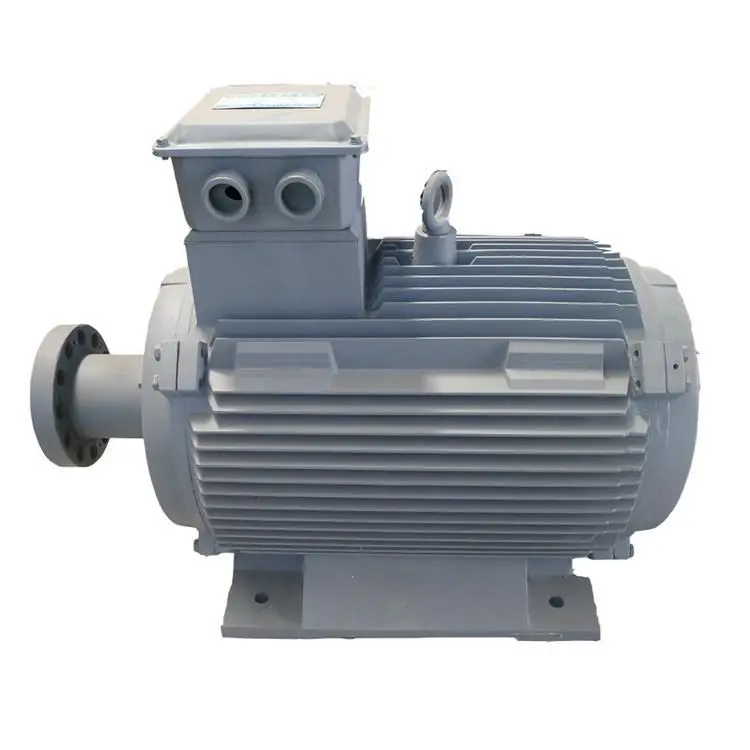

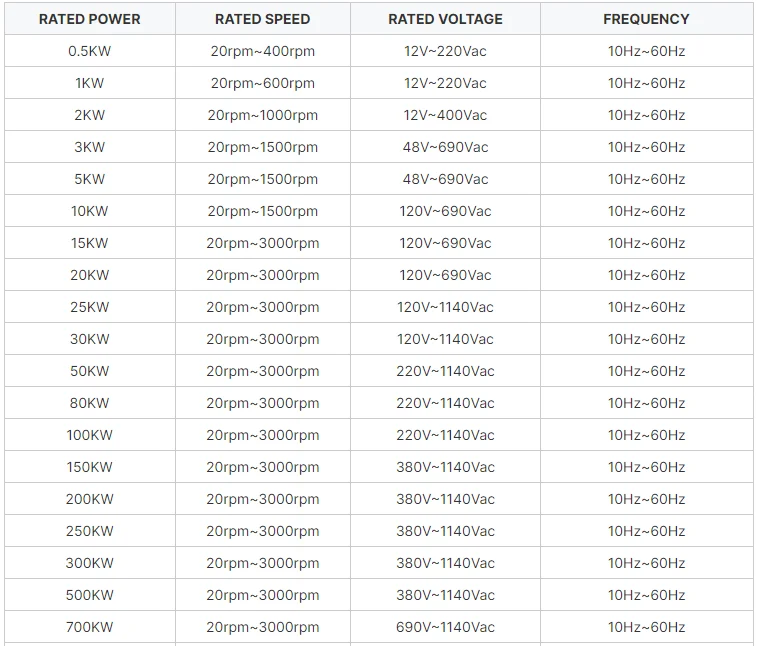

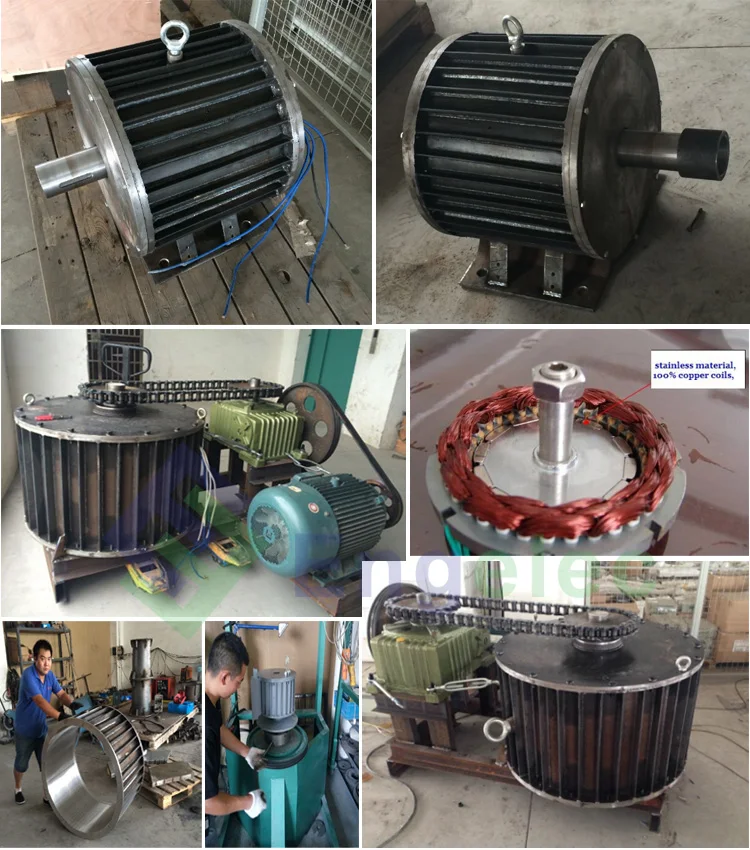

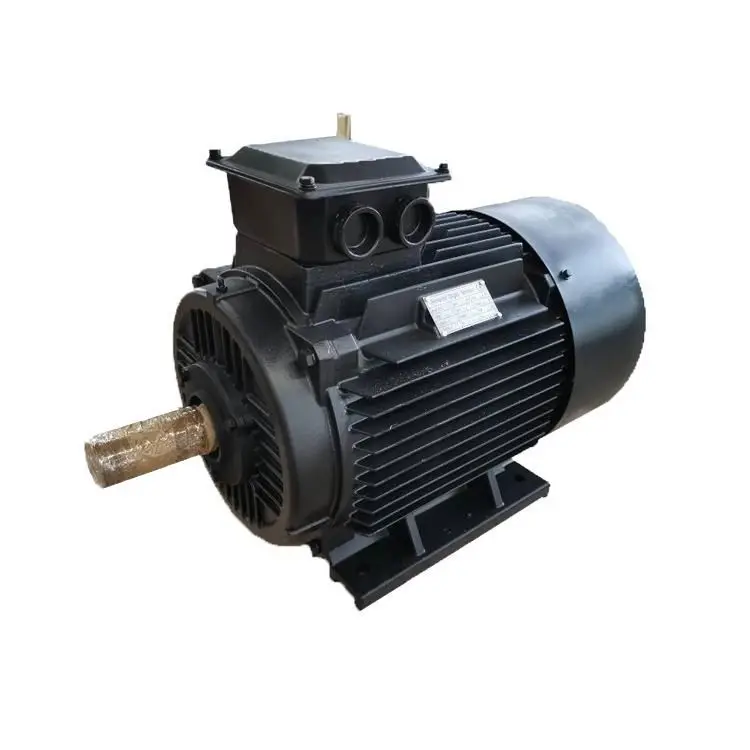

General Product Range:

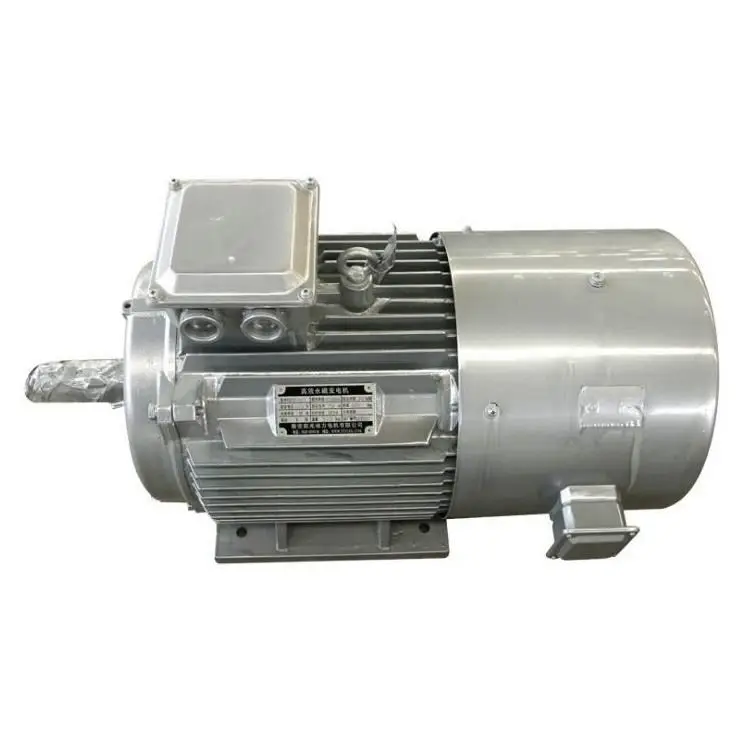

Photo for reference in Black

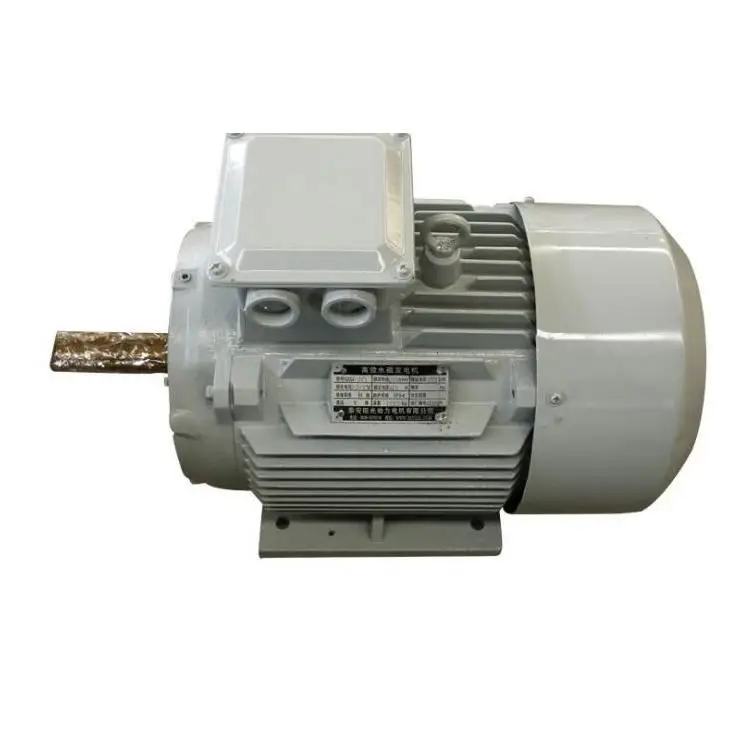

Photo for reference in Gray





Each unit is tested before shipping

 (the example testing data is for PMG 50KW 1500RPM 380V)

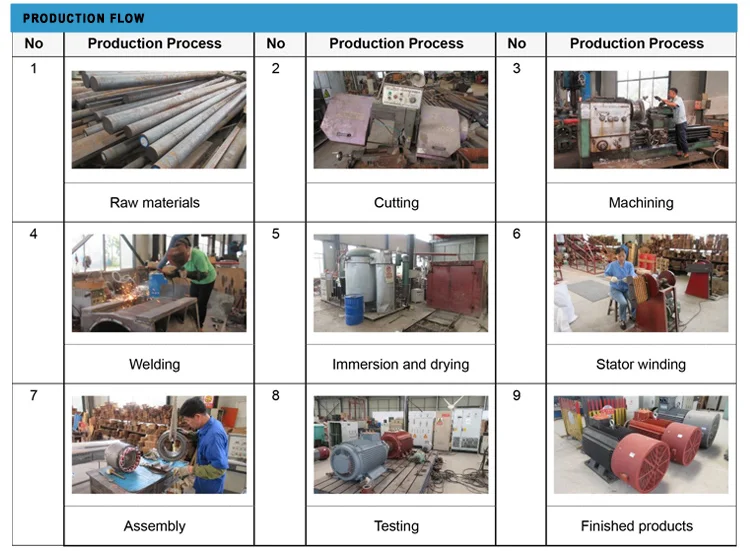

Part of factory show













Welcome to contact me for more information!
