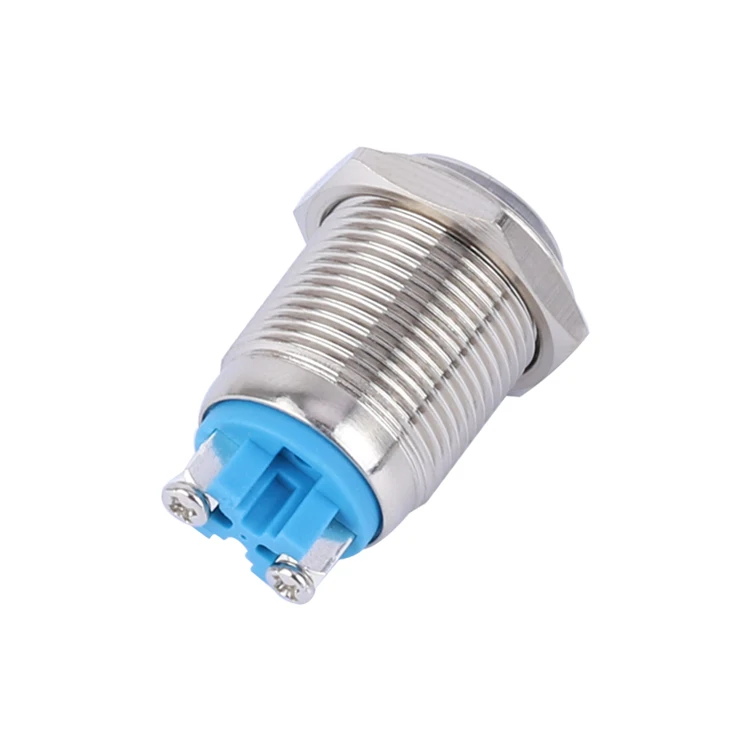

16mm 2 Screw Terminals electric waterproof IP65 stainless steel metal momentary self return car door push button switches
- Category: >>>
- Supplier: Jiangxi Shuangdu Technology Co. Ltd.
Share on (1601068035547):
Product Overview
Description
Products Description

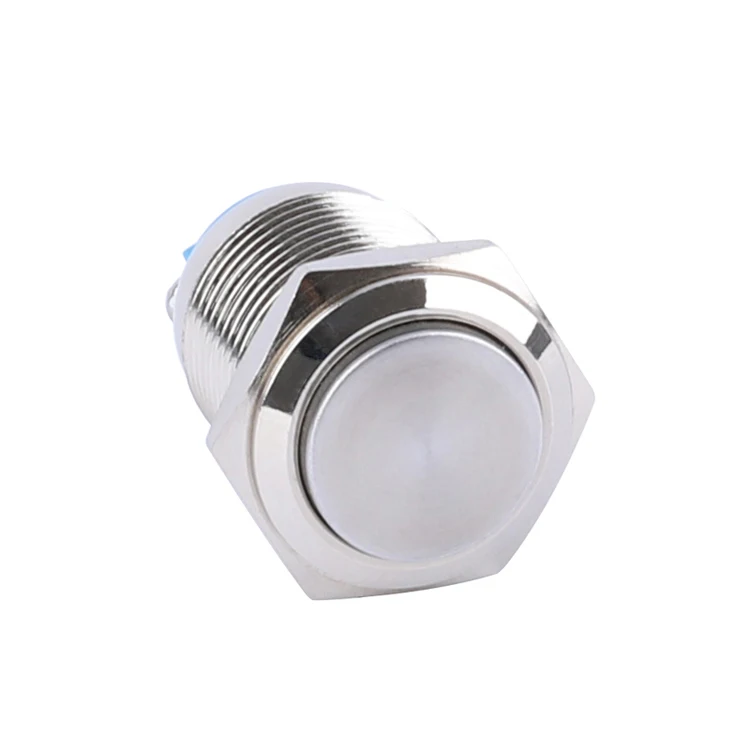

16mm 2 Screw Terminals electric waterproof IP65 stainless steel metal momentary self return car door push button switches
Specification:Operation Type: Momentary; Contact Type: 1NO
(Rated) Voltage & Current: 250V 3A; Mounting Hole Dia: 16mm
Terminals Quantity: 2; Head Shape: High Round Head;
Product description:
Pole and Throw: SPST;
Product Name: Push Button Switch;
Country of Manufacture: CHINA;
·Material: Stainless Steel;

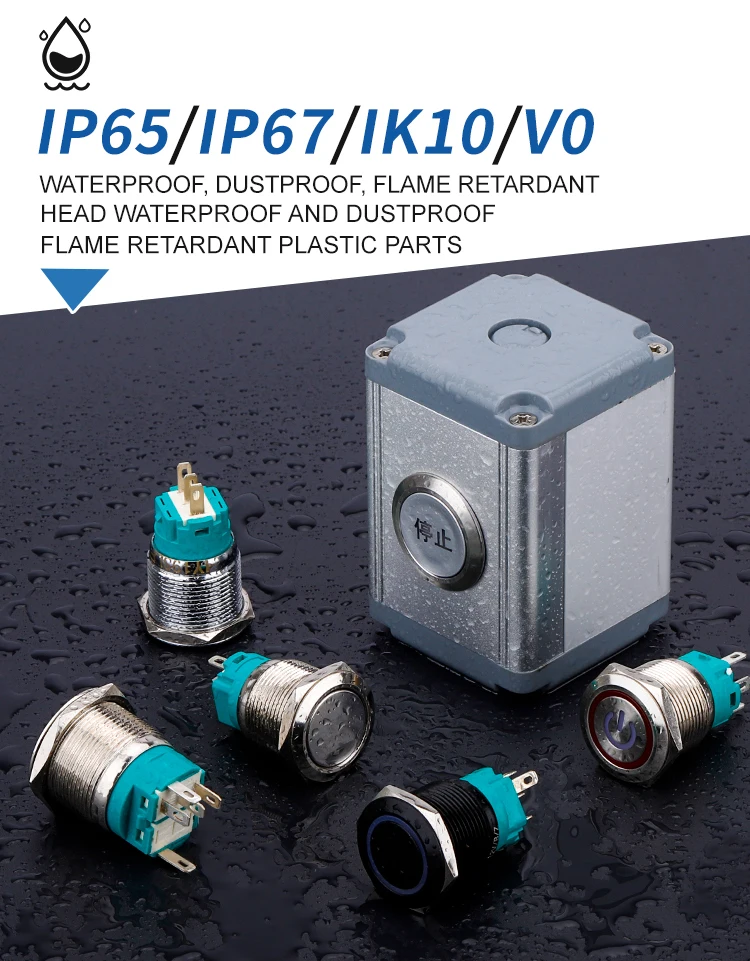

With IP65 Waterproof, can be used in wet or dusty environment.
Product Paramenters
Model Specification | ||
Mounting diameter | 16mm | |

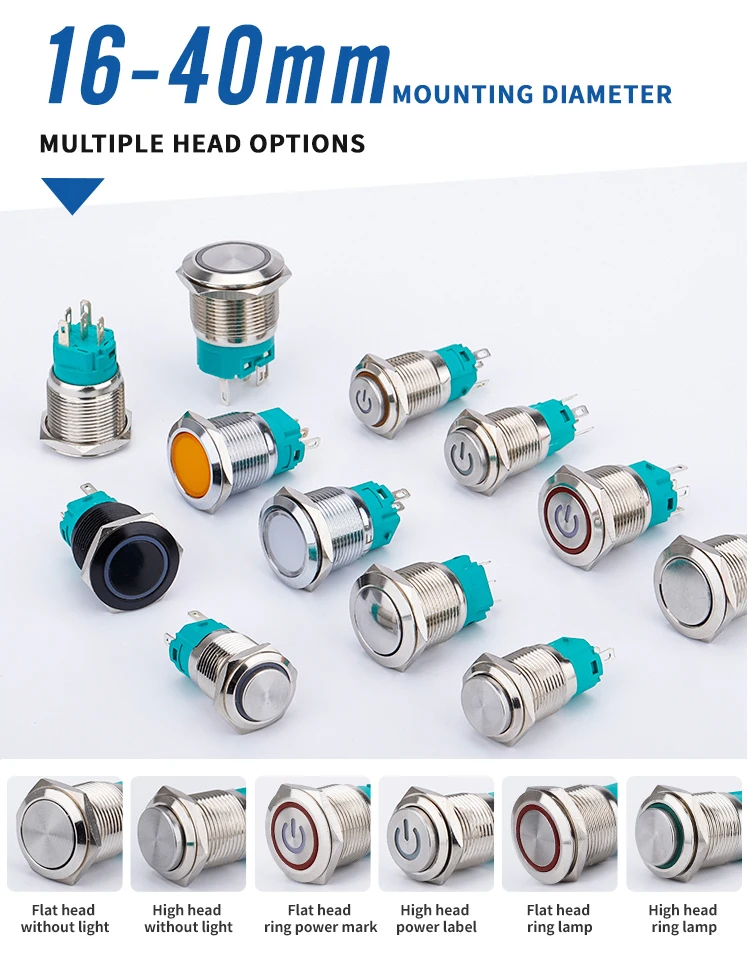

Head shape | High head | |
Switch Combination | 1NO | |
Operation type | Momentary | |
Rated Current | 3A | |
Illuminating type | Non-illuminated | |
Illuminating color | Red,green,blue,yellow,orange,white,purple | |
Lamp voltage | 2V/3V/6V/12V/24V/36V/110V/220V/250V | |

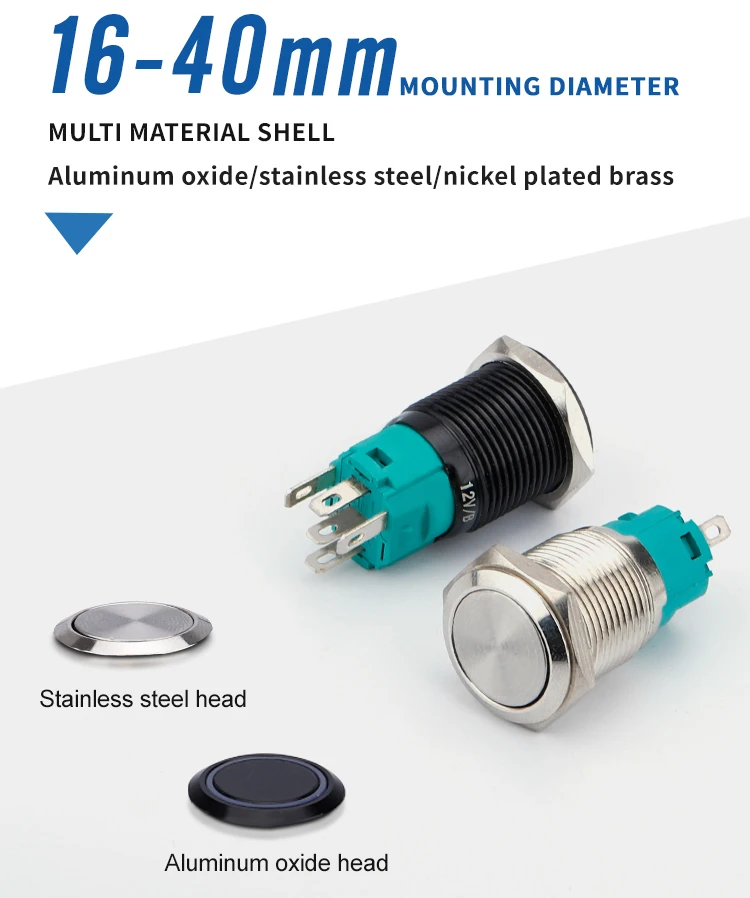

Shell material | Brass nickel,Stainless steel,aluminum oxide | |
Contact Resistance | 50mΩ max | |
Insulation Resistance | 1000MΩ Min | |
Dielectric Intensity | 2000VAC | |

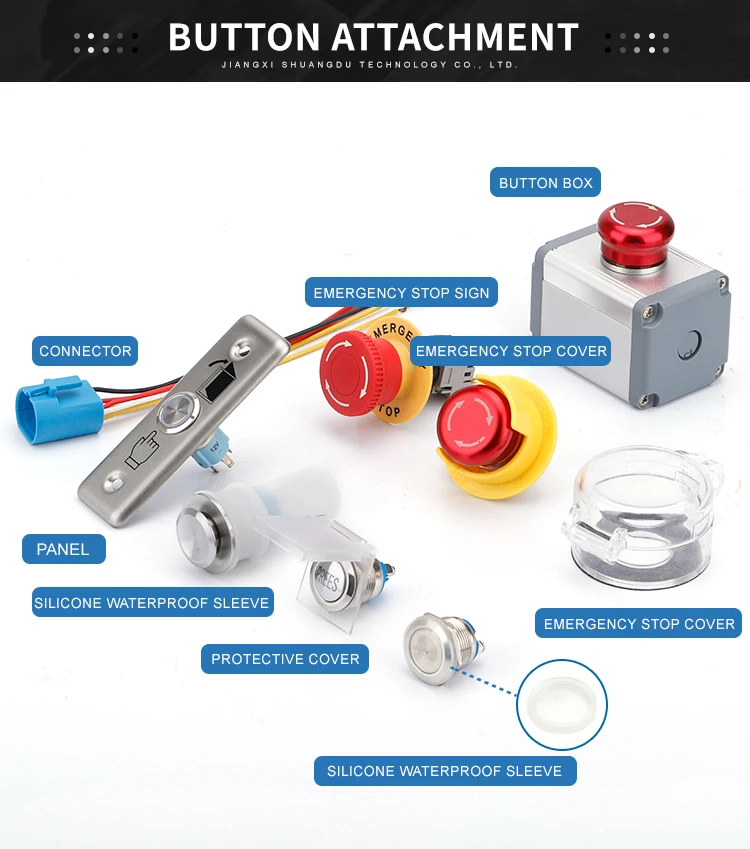

Accessories | Nut, Rubber Waterproof O-ring | |

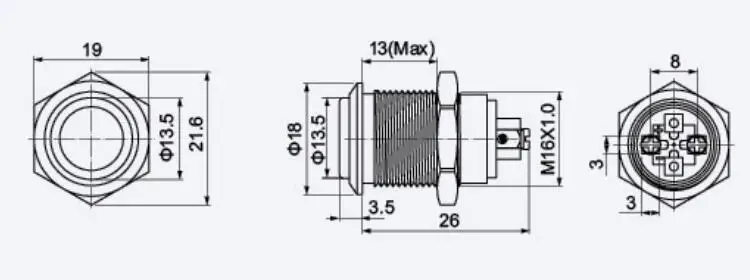

Installation Instructions

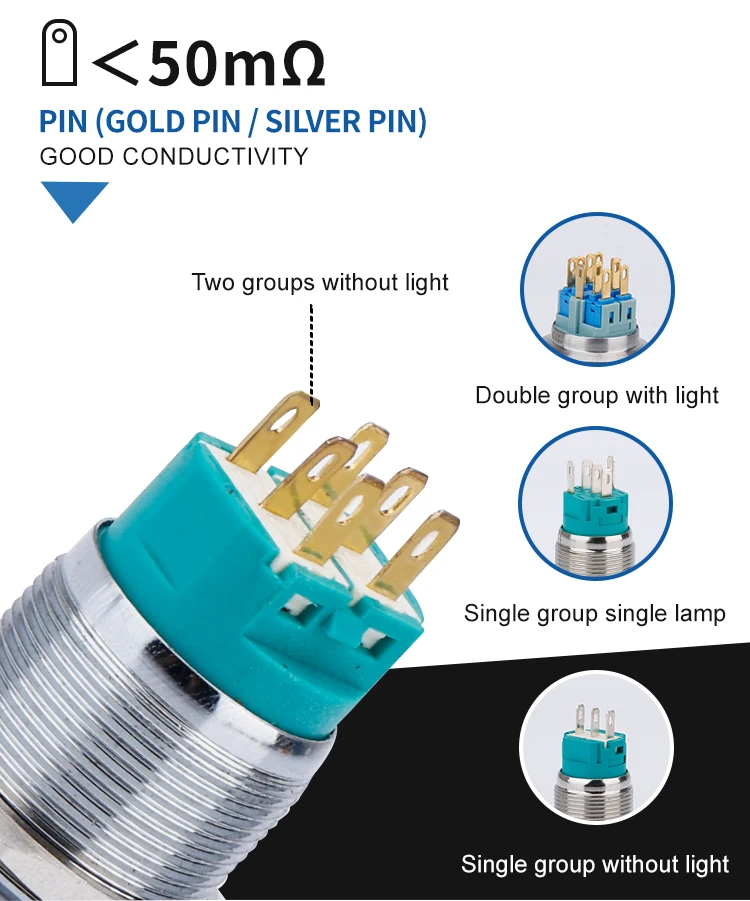

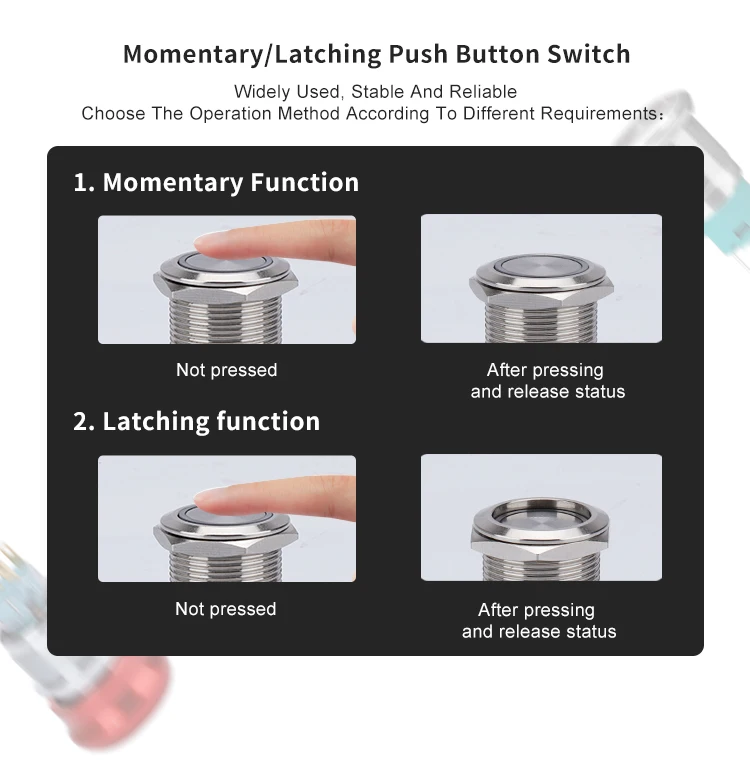

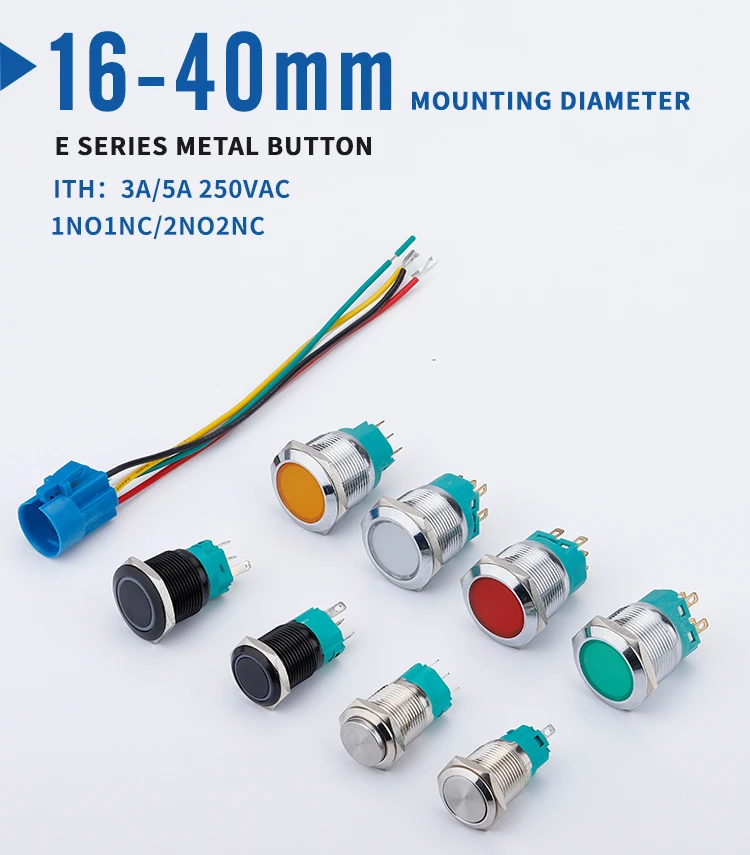

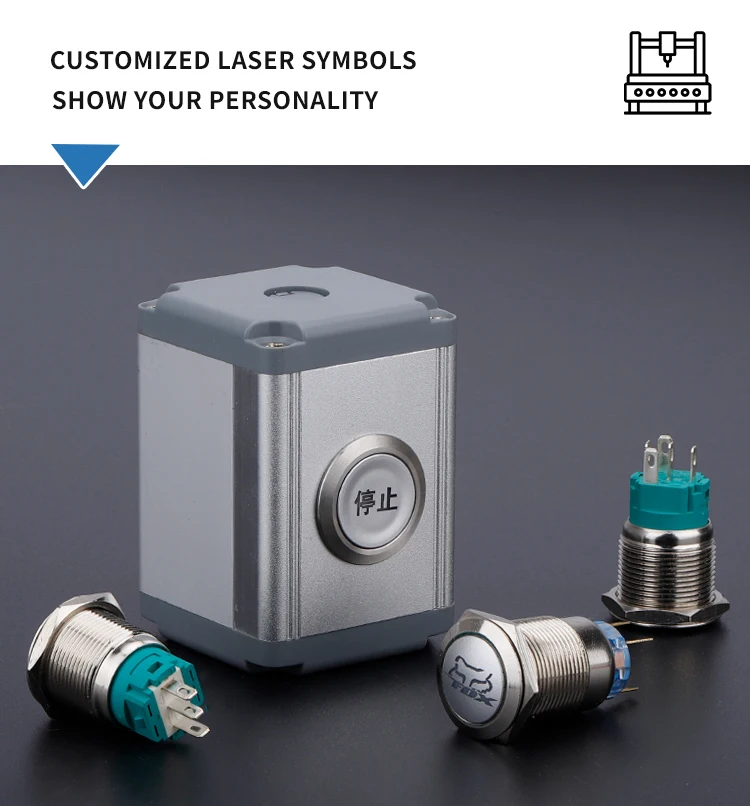

Details Images
Company Profile
Product packaging
FAQ
Q1. What is your terms of packing? Ring led light push button switch
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment? Wayerproof momentary latching push button switch
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery? IP65 IK08 Wayerproof push button switches
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time? Customize push button switches
A: Generally, it will take 3 to 10 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q5. Can you produce according to the samples? 16mm 19mm 22mm Metal Push Button Switch
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy? 12mm Flat Round push button switch
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q7. Do you test all your goods before delivery? 1NO1NC 2NO2NC Metal Push Button Switch
A: Yes, we have 100% test before delivery
Q8: How do you make our business long-term and good relationship? Electric switch push button
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment? Wayerproof momentary latching push button switch
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery? IP65 IK08 Wayerproof push button switches
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time? Customize push button switches
A: Generally, it will take 3 to 10 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q5. Can you produce according to the samples? 16mm 19mm 22mm Metal Push Button Switch
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy? 12mm Flat Round push button switch
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q7. Do you test all your goods before delivery? 1NO1NC 2NO2NC Metal Push Button Switch
A: Yes, we have 100% test before delivery
Q8: How do you make our business long-term and good relationship? Electric switch push button
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
