Dawei Veterinary Ultrasonic System Animal Ultrasound Dissection Cutting Tool Ultrasound Surgery Knife
- Category: >>>
- Supplier: Dawei Veterinary Medical (Jiangsu) Co. Ltd.
Share on (1601068247606):
Product Overview
Description
Products Description
Dawei Veterinary Ultraonic System Animal Ultrasound Dissection Cutting Tool Ultrasound Surgery Knife
Clinical Advantages
Ultrasound Scalpel Applicable to 95% of Pet Surgeries
1. Precision Cutting: The ultrasonic scalpel achieves cutting through high-frequency vibrations, providing finer and more accurate surgical incisions, aiding in the protection of surrounding tissues.
2. Reduced Bleeding: As the ultrasonic scalpel simultaneously coagulates during the cutting process, it may reduce the amount of bleeding during surgery, enhancing the clarity of surgical procedures.
3. Minimized Tissue Damage: In comparison to traditional blades, the ultrasonic scalpel may reduce heat and mechanical damage to surrounding tissues, helping to minimize healing time after surgery.
4. Decreased Pain and Inflammation: The ultrasonic scalpel cutting process may reduce inflammatory responses in tissues, thereby alleviating pain at the surgical site and contributing to a faster recovery.
5. Faster Healing: Due to its precision and reduced damage to surrounding tissues, the use of an ultrasonic scalpel may result in a quicker recovery and healing process for patients.
2. Reduced Bleeding: As the ultrasonic scalpel simultaneously coagulates during the cutting process, it may reduce the amount of bleeding during surgery, enhancing the clarity of surgical procedures.
3. Minimized Tissue Damage: In comparison to traditional blades, the ultrasonic scalpel may reduce heat and mechanical damage to surrounding tissues, helping to minimize healing time after surgery.
4. Decreased Pain and Inflammation: The ultrasonic scalpel cutting process may reduce inflammatory responses in tissues, thereby alleviating pain at the surgical site and contributing to a faster recovery.
5. Faster Healing: Due to its precision and reduced damage to surrounding tissues, the use of an ultrasonic scalpel may result in a quicker recovery and healing process for patients.
Ultrasonic Scalpel System
Vibration frequency:55.5KHZ±1K Hz
Mains power input value:100-240V, 50/60Hz, 150 VA
Output power :Maximum 50W continuous, 30-80kHz (55.5kHz during operation)
Head amplitude:55-95um, with a unique cavitation effect to ensure the best cutting coagulation effect.
Mains power input value:100-240V, 50/60Hz, 150 VA
Output power :Maximum 50W continuous, 30-80kHz (55.5kHz during operation)
Head amplitude:55-95um, with a unique cavitation effect to ensure the best cutting coagulation effect.

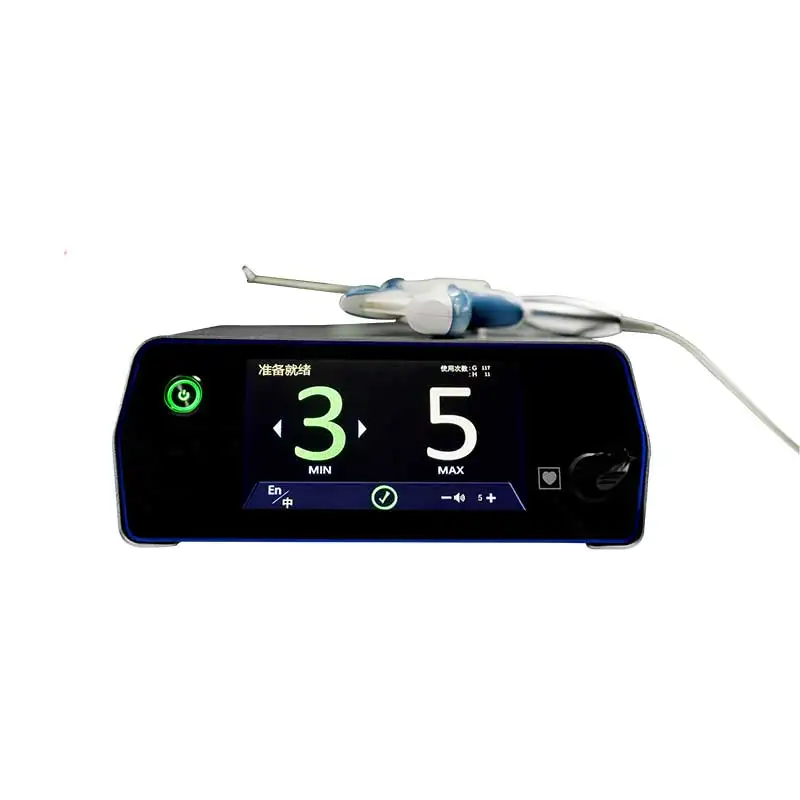

Veterinary Ultrasound Scalpel

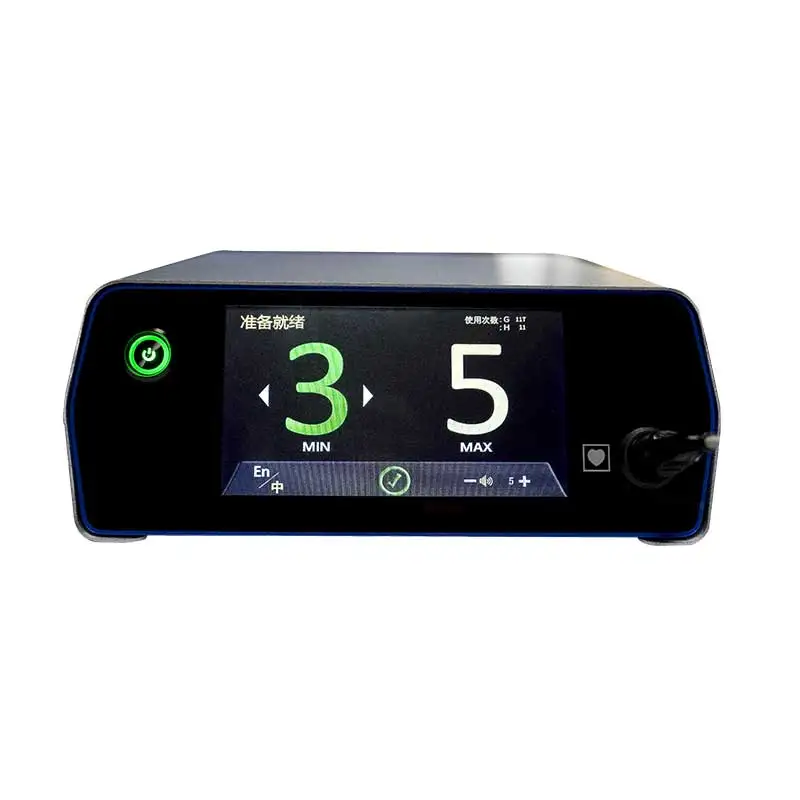

Generator
1、The host has a power-on intelligent self-test system, and the self-test time is no more than 5 seconds;
2、It has the automatic fault detection function of host, handle and cutter head to ensure the safety of surgery;
3, can be connected to the "hand control" "foot control", according to the operator's habits to switch at any time.
4, the host built-in frequency tracking algorithm, can effectively extend the service life of the cutter head, improve the cutter head cutting and blood coagulation ability.
5、The host adopts overload protection technology, which effectively reduces the risk of overheating and melting of the gasket during surgery.
6、Intelligent tissue sensing technology can adjust the energy output accordingly to the state change of the clamped tissue.
2、It has the automatic fault detection function of host, handle and cutter head to ensure the safety of surgery;
3, can be connected to the "hand control" "foot control", according to the operator's habits to switch at any time.
4, the host built-in frequency tracking algorithm, can effectively extend the service life of the cutter head, improve the cutter head cutting and blood coagulation ability.
5、The host adopts overload protection technology, which effectively reduces the risk of overheating and melting of the gasket during surgery.
6、Intelligent tissue sensing technology can adjust the energy output accordingly to the state change of the clamped tissue.

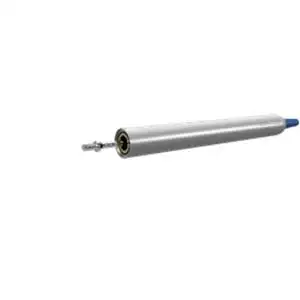

Veterinary ultrasonic knife handle
1、Hand piece without time of use restriction
2、 The chip inside the hand piece could optimize the output power
2、 The chip inside the hand piece could optimize the output power
Veterinary Ultrasonic Scalpel Blade
1, Veterinary ultrasonic knife head vibration frequency of 55.5KHZ, to ensure the best cutting and coagulation effect (maximum safe to deal with 5mm and the following blood vessels);
2, The cutter head with cutter head hand-controlled excitation and foot-controlled excitation of two operating modes, hand-controlled foot-controlled use of the same handle;
3, A variety of specifications cutter head options such as: 14cm/23cm/36cm/45cm, can be applied to all types of luminal and open surgery;
4, Strengthen the gasket design, more wear-resistant, extend the service life of the cutter head
5, gasket heat-resistant enhanced design, can withstand 400 degrees high temperature, to protect the safety of surgery.
6, Veterinary ultrasonic cutter head can provide 5 working surfaces, to meet the needs of cutting and hemostasis of different tissue parts in surgery.
7, Veterinary ultrasonic cutter head vibration amplitude of 55 ~ 95 microns, to ensure the best cutting effect;
2, The cutter head with cutter head hand-controlled excitation and foot-controlled excitation of two operating modes, hand-controlled foot-controlled use of the same handle;
3, A variety of specifications cutter head options such as: 14cm/23cm/36cm/45cm, can be applied to all types of luminal and open surgery;
4, Strengthen the gasket design, more wear-resistant, extend the service life of the cutter head
5, gasket heat-resistant enhanced design, can withstand 400 degrees high temperature, to protect the safety of surgery.
6, Veterinary ultrasonic cutter head can provide 5 working surfaces, to meet the needs of cutting and hemostasis of different tissue parts in surgery.
7, Veterinary ultrasonic cutter head vibration amplitude of 55 ~ 95 microns, to ensure the best cutting effect;
Scissor-Style Blade （Optional）
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Product Paramenters
Parameters | Indicators |
Vibration frequency | 55.5KHZ±1K Hz |
Main power input value | 100-240V, 50/60Hz, 150 VA |
Output power | Max 50W， continuous, 30-80kHz (55.5kHz at work) |
Working Environment | Temperature: 10℃- 30℃, humidity: ≦70% no condensation, atmospheric pressure range: 860 hPa- 1060 hPa |
Safety Standards | GB9706.1-2007 《medical electrical equipment part 1 safety general requirements》, management classification Ⅲ category. |
Cutter head amplitude | The vibration amplitude of the blade head is 55-95um, which has a unique cavitation effect to ensure the best cutting and clotting effect. |
Working temperature of cutter head | 50-100℃, smaller lateral thermal damage, can do precise separation, less damage to tissues, ensure safe operation near important organs. |
For more detail information, please inqury us.
