4 10Ton Per Hour Bag Bitumen Melting Machine

Product Overview

Description

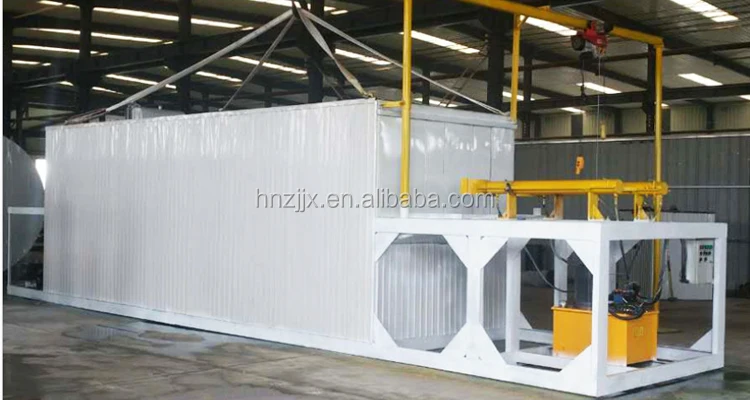

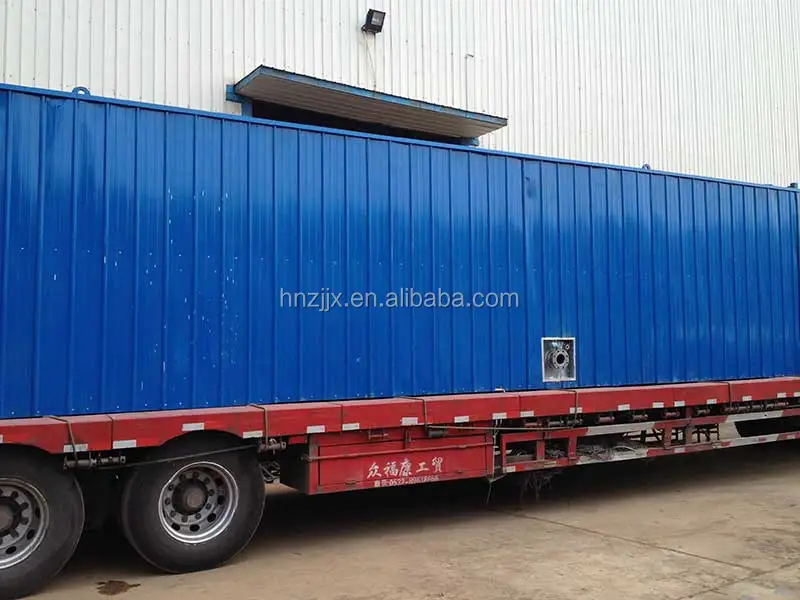

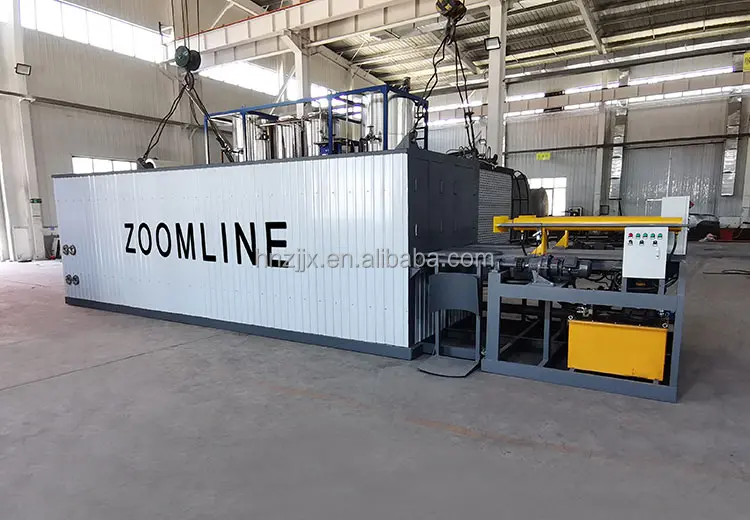

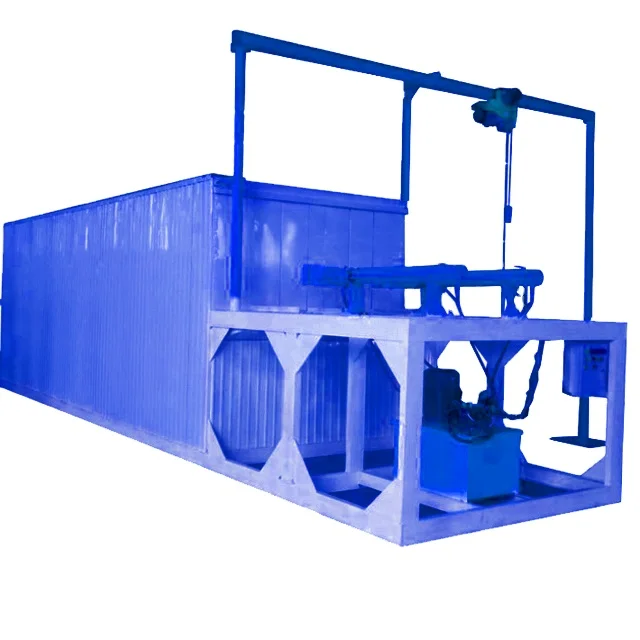

4-10Ton Per Hour Bag Bitumen Melting Machine

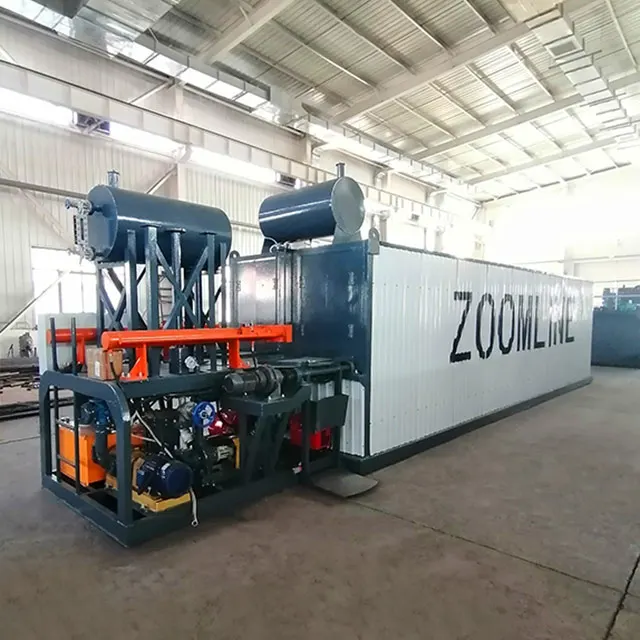

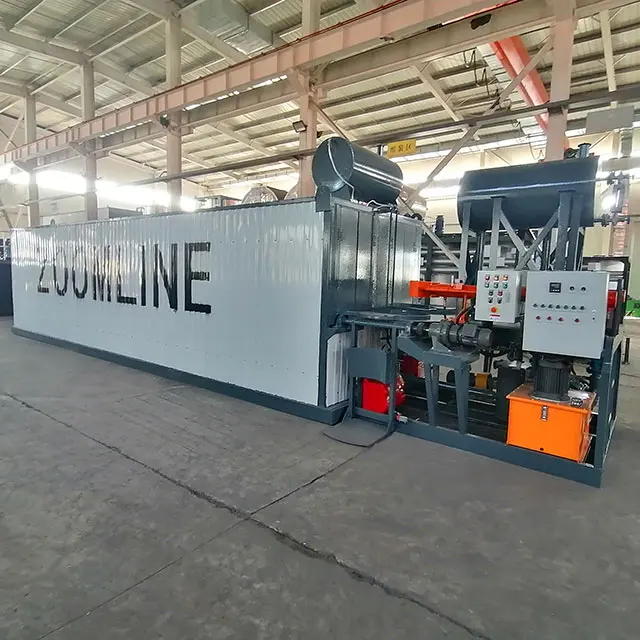

ZAM series bitumen melting machine is consist of melting tank, sliding supporting platform, thermal oil furnace heating system and electrical apparatus control system. The asphalt melting tank is divided into two chambers. The upper one is melting chamber for barreled bitumen; the lower one is equipped with heating coil, and the heating coil exchange heat with asphalt barrel in radiation way to achieve the purpose of asphalt melting. The lower chamber keeps up heating to bitumen to reach the temperature of suction pump( 100°C),then the bitumen pump pumps the bitumen into high-temperature tank, if increasing the heating time, you can get higher temperature.

Features of ZAM series bitumen melting machine:
1.Closed type production, Energy Efficiency, No Pollution.
2.Easy operation, modular design, easy to transportation and assembly.
3.Batch-type fully enclosed structure, saving energy 50% than continuous type asphalt melting equipment.
4.Exhaust from thermal oil furnace is used again, high energy utilization.
5.ZAP series asphalt melting equipment can be applied to different specification barrel shape in different country, strong applicability, wide range of application.
6.Using large displacement heat preservation pump to internal circulation and agitation, asphalt be heated more quickly and uniform heating. water vapor is  exhausted quickly by induced draft fan to dewatering by negative pressure.
7.Thermal oil furnace adopts automatic Control System and international brand burner which can automatically control according to oil temperature with instrument monitoring.
8.High power thermal oil furnace, heating speed faster, stable and reliable performance.



ZAM series asphalt melting equipment technical parameters:

Model	ZAM-4	ZAM-6	ZAM-8
Capacity	4-6T/H	6-8T/H	8-10T/H
Thermal oil furnace	600,000Kcal/h	800,000Kcal/h	1000,000Kcal/h
Thermal oil temperature	200-240°C	200-240°C	200-240°C
Bitumen temperature	120-140°C	120-140°C	120-140°C
Bitumen storage volume	11m3	17m3	24m3
Total power	32kw	37kw	41.5kw
Over Size	6200×2200×2700 mm	8250×2200×2700 mm	11500×2200×2700 mm
