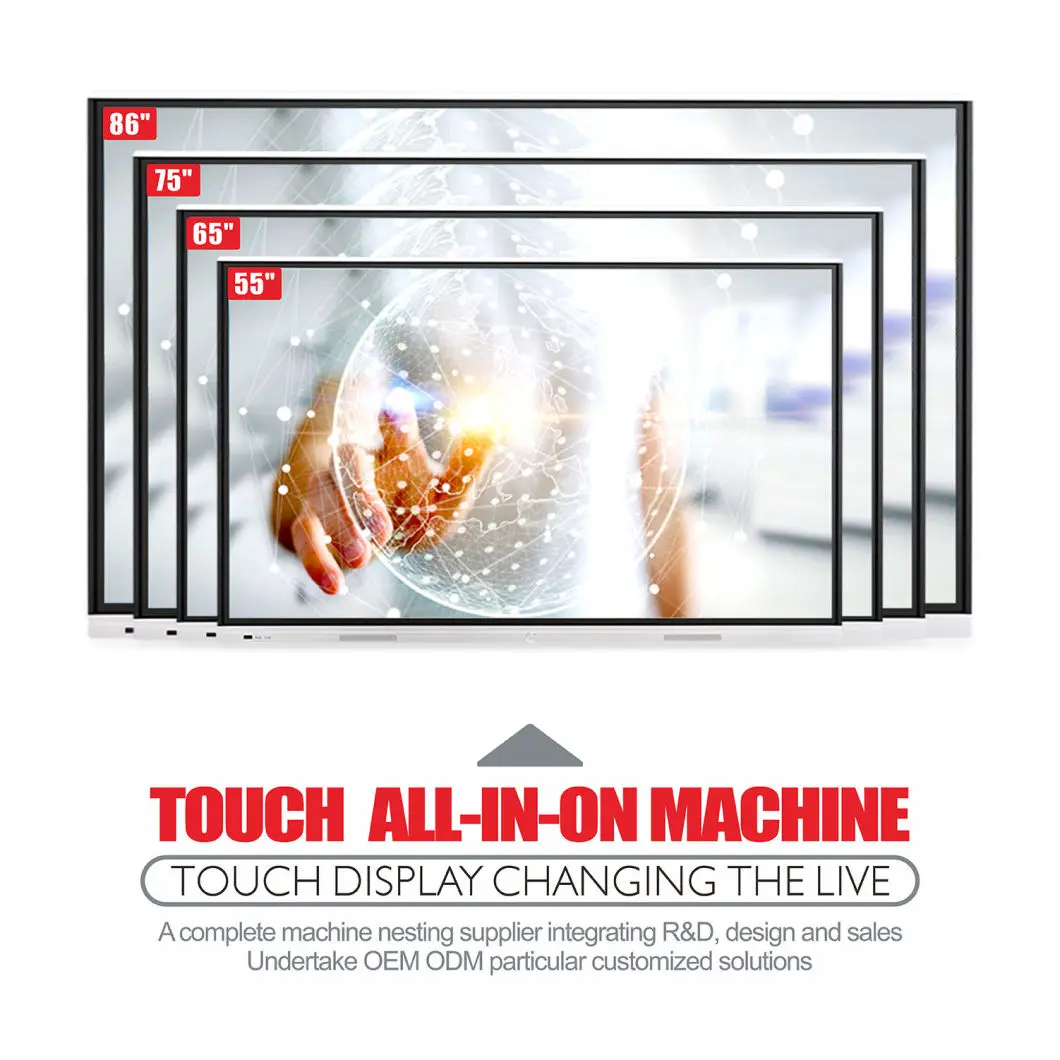

100/85/75/65Inch 4K Resolution Interactive Board All In One LCD Touch Screen Monitor Smart Whiteboard for Enhanced Collaboration

Share on (1601068628548):


Price:$890.00

Quantity:


Product Overview

Description


100/85/75/65 Inch 4K Resolution Interactive Board All-In-One LCD Touch Screen Monitor Smart Whiteboard for Enhanced Collaboration



Product Description










Windows system


















































































Processor



Intel Core i3-3217U @ 1.80GHz



GPU:



Intel HD4000 Graphics



Chipset



Intel Chipset HM65



Memory



DDR3 4GB ,Support up to 8GB



Ethernet



Realtek GBE RJ45,8111E



Audio



Realtek HD Audio,Support Line-in,Line-out,Mic-in,Spdif,Speaker



Display



VGA1,LVDS.



Storage



128G SSD



Power Supply



DC 12V Power Supply, or ATX Power Supply



CPU_Fan



Thin Cool Fan



Size



Mini-ITX



Ports:



4*USB2.0 ,1*VGA, 1*HDMI, 1*RJ-45, 1*DC, 1*MIC-IN, 1* LINE-OUT



Built-in I/O



1x24bit LVDS,4xUSB,5xCom,2xFan_Slot, SIM Card slot,Spdif,VGA header(12P standard)



Expansion



2xMini-PCIE , Support Wifi,3G,Bluetooth,GPS



Operating Temperature



-10 to 60



Storage Temperature



-40 to 80



Operating Humidity



0-95%



Watchdog



Option



H/W Monitoring



Monitor the state of voltage,temperature


and rotational speed of the fan






IR touch screen



































































Multi-touch Frame



Touch technology



Infrared multi touch technology



Touch model



6 touch points



Induction object



Finger, pen, any opaque objects



Size of induction



Greater than or equal to 5 mm in diameter



Resolution



8192*8192



Response time



First point 25ms  consecutive points 8ms



Cursor speed



≥200dots/second



Glass Thickness



4mm Normal or Anti-glare tempered glass



Operating voltage



DC 4.6V ~ DC 5V by USB



Consumption current



<1W, current ≤ 100mA



Touch Activation Force



No pressure needed



Service life



>6 million times single spot touch



Transferring rate



12m/s



Positioning accurac



≤0.1mm



Droop resistant



Yes, prevent due to long time work performance degradation










_01_02_03_04_05_06_07_08_09_10_11 interactive whiteboard





Product Description




Features


1. Safety, energy saving, metal shell, no sharp edges and corners; low power consumption, low radiation, energy efficiency.


2. Anti-riot and anti glare tempered glass, Interference of ambient light effectively.

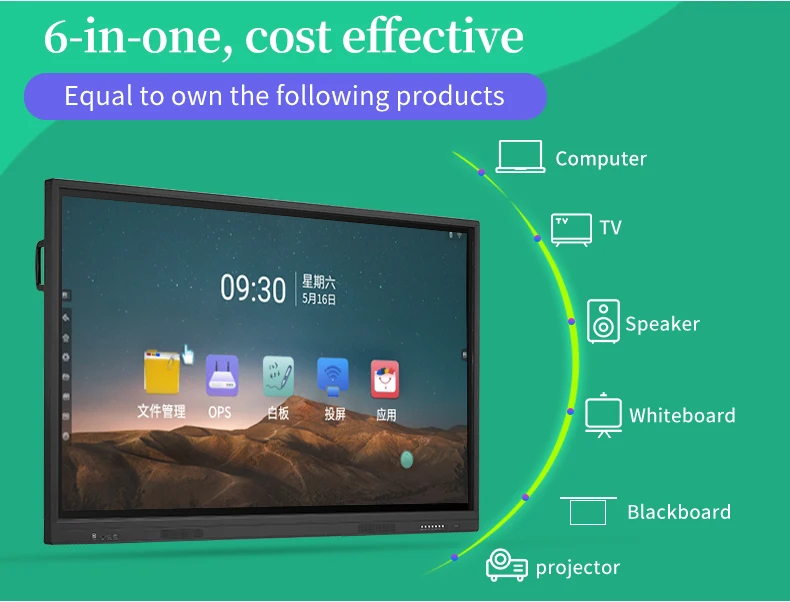

3. Compatible with Android and PC dual system touch operation, can access the Internet without PC,Play multimedia files,PPT demo etc,can install APK yourself;

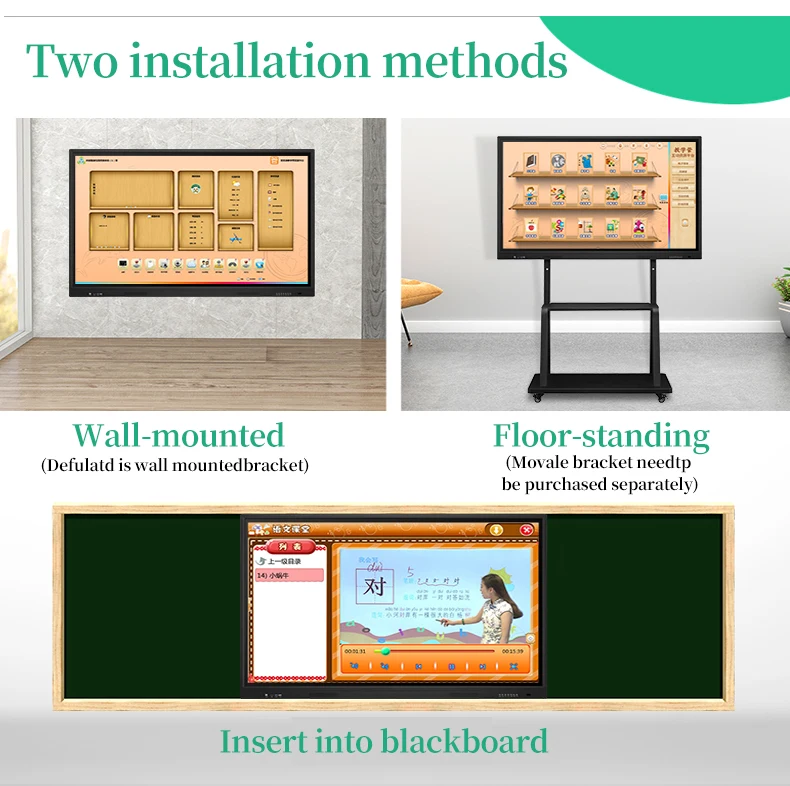

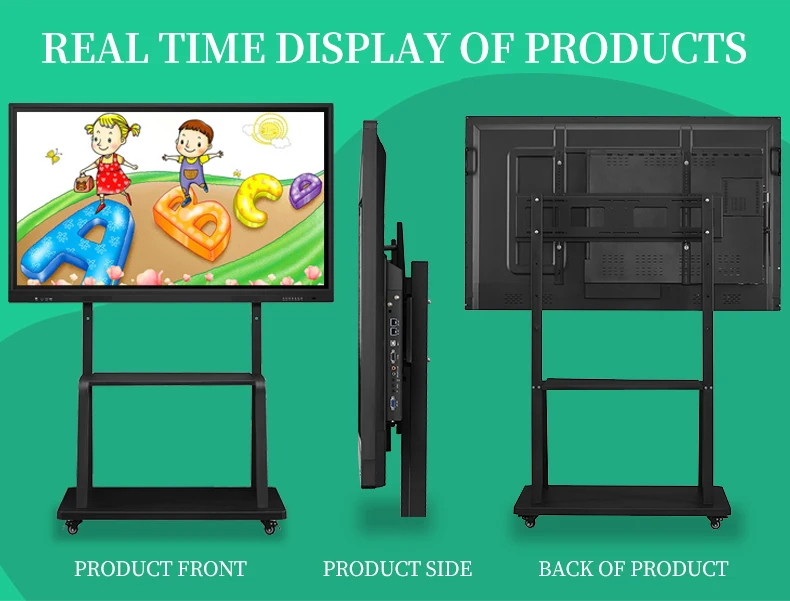

4. Wall hanging bracket or Moving Support;


5. Using front multi function button and computer USB interface for copy files easier








interactive whiteboard









interactive whiteboard









Product Parameter


    65 Inch Android Touch Metal Frame Floor Standing Lcd Advertising Display:













Our Services


1, Reply your inquiry in 24 working hours .
2, Experienced staffs answer all your questions in fluent English .
3, Customized requirement is available , OEM&ODM are welcome.
4, Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staffs.

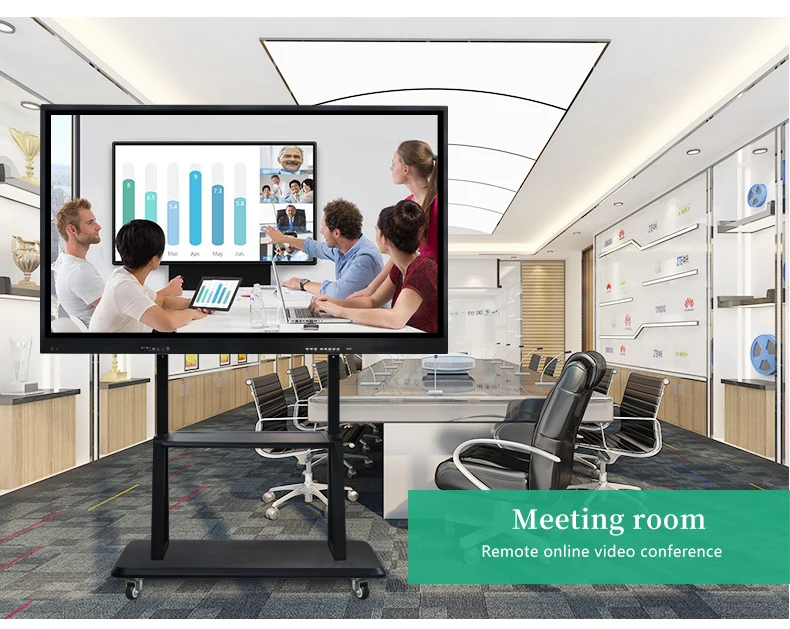

Applications







Company Information





  Shenzhen SYTON Technology Co., Ltd is one of the most professional domestic digital signage suppliers. SYTON Co., was established in 2005, as one of the earliest manufacturer to develop and produce the LCD advertising player. After years of experience, now it becomes a new high-tech enterprise with the power of R&D, manufacturing and selling. Our main products are LCD Advertising player, touch screen kiosk, video wall, and so on.

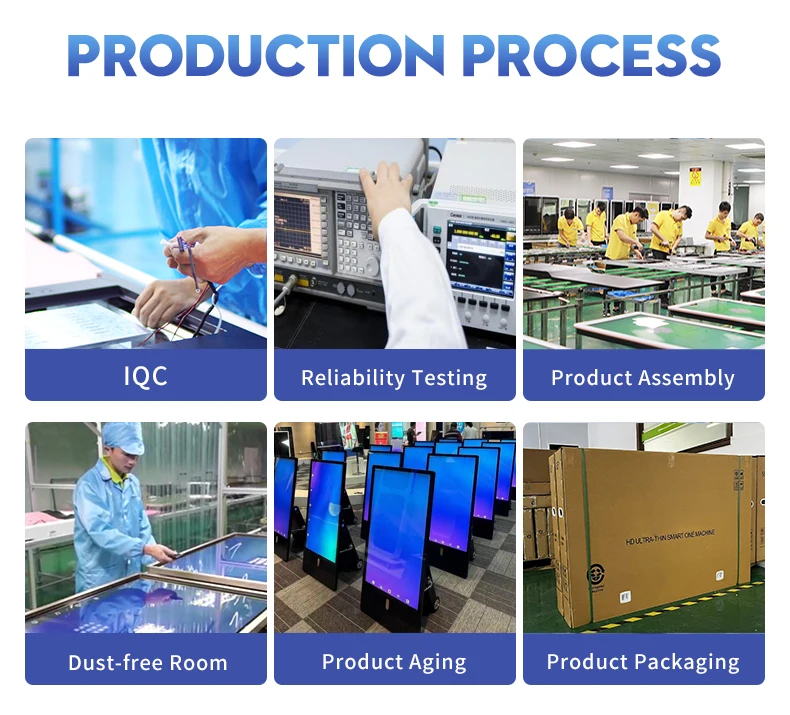

  SYTON technology had established R&D center, foreign sales department in Shenzhen. It also owns the 6000 square meters advanced factory. During the production, we strictly enforce the ISO9001 ----standards of quality management system, to control product quality. All products adopt the high quality raw material and the advanced production technology. What’s more, every product has passed the ROHs, 3C, CE and FCC, ISO9001, SAA and IP65 certificates.


  With the powerful support from the professional hardware software development team, SYTON has made much successful resolutions for many fields, such as media industry, financial, hotel, shopping mall, hospitals, airports and schools.


  “Create Win Win, make clients satisfied” is our unswerving pursuit of the goal.


Please feel free to contact us; we are always here to service you.


Welcome to visit us!







01_1201_1501_1601_11_22

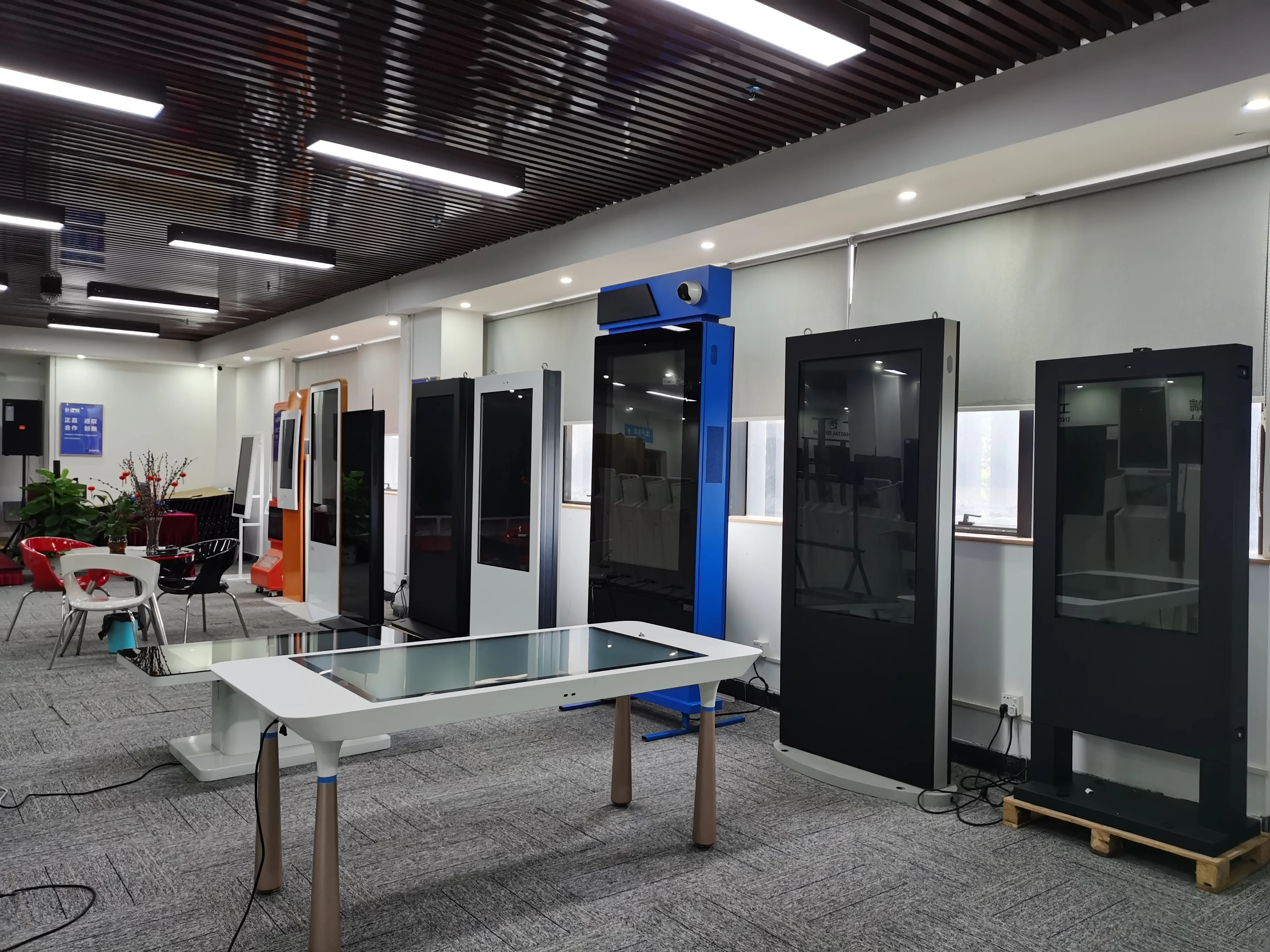

SHOWROOM
