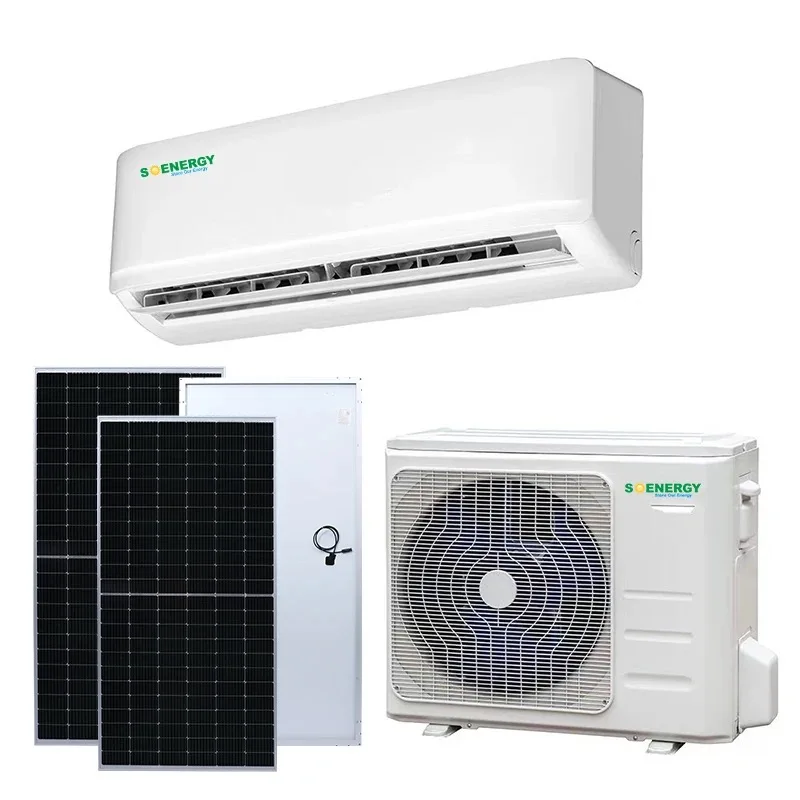

Solar On Grid Single Phase Inverter 3kw Connect With Solar Panel for Normal Air Conditioner Save Electricity Bills
- Category: >>>
- Supplier: Nanjing International Technology Co. LtdNanjing Ltd
Share on (1601068639062):
Product Overview
Description
Working Modes Applications

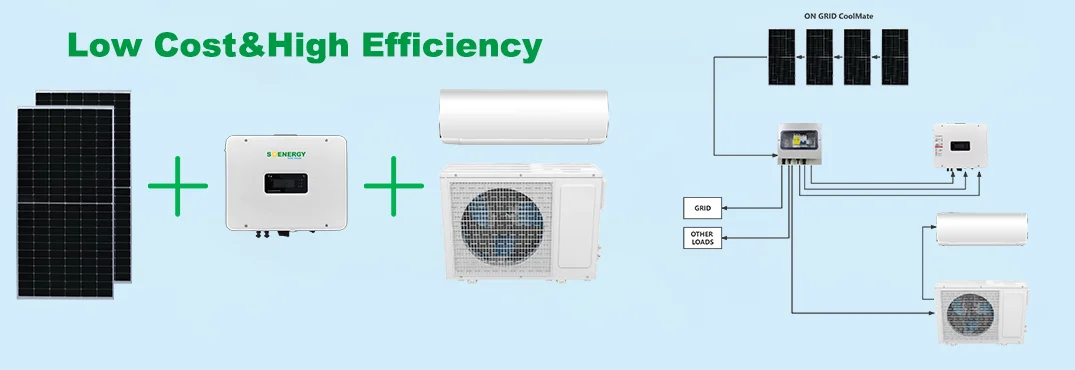

Air conditioners are becoming one of the most important necessities in modern life, but it almost account for about 80% of the energy consumption in a normal home and an office. How to reduce power cost from aircons is a big concern for many people.The Solar Coolmate (On Grid) system can add an On Grid inveter to a home where air conditioning is already installed, connect theSolar Panels, and drive the air conditioner by both Dc and Ac. When the sunlight is strong during the day time, we can hardly usethe Grid. When the sunlight is not very strong, the Grid wil increase to stably drive the air conditioner..
GRID POWER
During the night, the A/C unit take the power from the grid power and running with same principle of regular air conditioner.
GRID AND SOLAR
When Sunshine is weak, like the morning or cloudy day. The A/C unit will take the solar as the priority choice, the insufficient power will take from the grid.
100% SOLAR
When solar meet the Min Running requirement of compressor, the A/C unit can start and operate by solar energy only, even the grid off. 100% energy saving.
Technical Data
Model No | S2200TL | TPH5KTL | TPH6KTL | TPH8KTL | TPH10KTL | TPH12KTL | ||||||
DC Side / Input Parameters | ||||||||||||
Max Dc power (w） | 4500W | 7500W | 9000W | 12000W | 15000W | 15000W | ||||||
Max DC voltage | 500V | |||||||||||
Min System startShut down voltage (Vdc) | 75/100 | |||||||||||
MPPT voltage range | 100-450 | |||||||||||
Max input current/per string | 13A | |||||||||||
Number of MPP trackers | 1 | |||||||||||
Strings per MPp tracker | 1 | |||||||||||
AC Side / Output Parameters | ||||||||||||
Nominal output power (W) | 3000 | 5500VA | 7000VA | 8800VA | 11000VA | 13200VA | ||||||
Maximum output power (W) | 3300 | 10A | 12A | 15A | 17A | 20A | ||||||
Nominal output voltage/range (V) | 208 220,230,24W180-270 | |||||||||||
AC grid frequency/range (Hz) | 50Hz.60Hz(auto-selection)/44Hz-55Hz;54Hz-65Hz | |||||||||||
Maximum output current (A) | 16 | |||||||||||
AC connection (with PE) | Single phase | |||||||||||
Current distortion(THDi) | ＜1.5% | |||||||||||
Power factor | ~1%(Adjustable from 0.8 leading to 0.8 lagging) | |||||||||||
Efficiency | ||||||||||||
Maximum conversion efficiency | 97.5% | 98.2% | ||||||||||
European efficiency | 97.2% | 97.5% | ||||||||||
MPPT efficiency | 99.9% | |||||||||||
Safety and Protection | ||||||||||||
DC reverse-polarity protection | yes | |||||||||||
Anti-islanding /Overvoltage protedtion | yes | |||||||||||
Short circuit protection | yes | |||||||||||
Leakage current protection | yes | |||||||||||
Grid monitoring / Ground fault monitoring | yes | |||||||||||

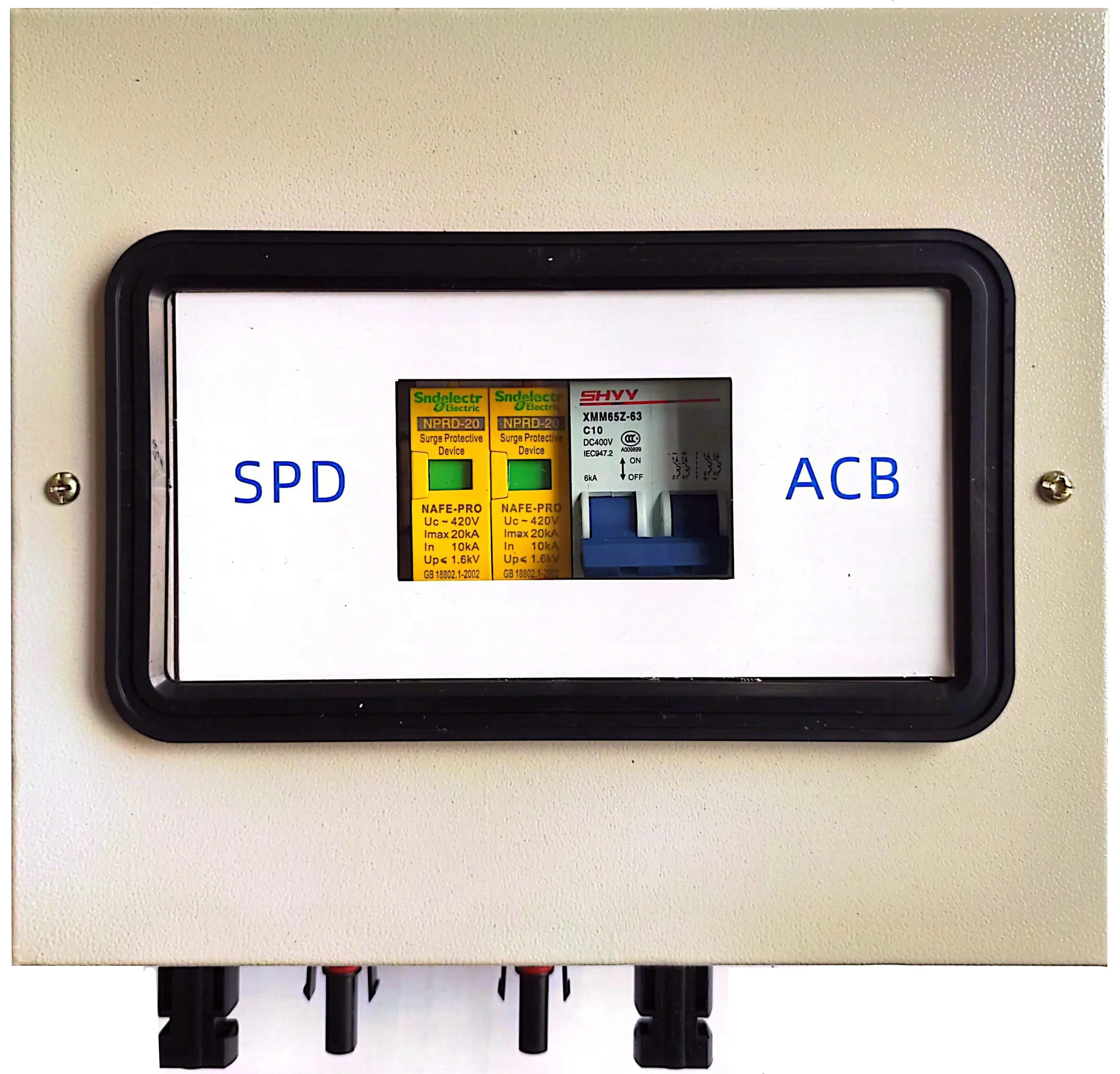

DC/AC side SPD(thermally protected) | yes | |||||||||||
General Parameters | ||||||||||||
Dimension (Lv/H)(mm) | 370/277/115 | |||||||||||
Weight | 7 kg | |||||||||||
Embedded DC Switch | Optional | |||||||||||
Night power consumption (V) | ＜0.2 | |||||||||||
Display | LCD | |||||||||||
Certificates and Approvals | ||||||||||||
Main Parts

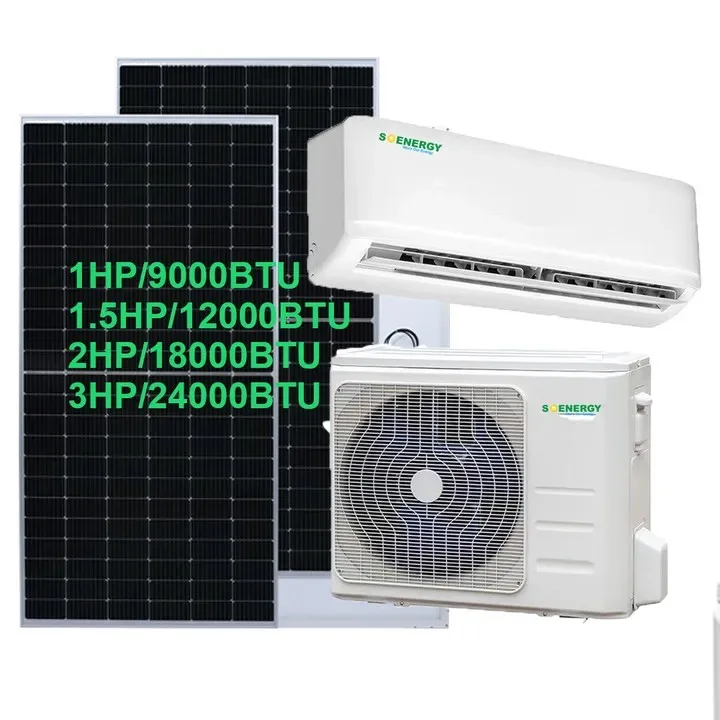

Air Conditioner
Available Capacity: 12k, 18k, 24k Btu
Digital display
Digital display
APP and remote control
AC Input 180~240V 50/60HZ
AC Input 180~240V 50/60HZ
Refrigerant: Eco Friendly R32
Low Noise 53~60dB
Low Noise 53~60dB
Solar Panel
Wattage: 450W
Vmp (V): 41.5
Imp (A): 10.85
Voc (V):49.3
Isc (A):11.6
Dimensions: 2094x1038x35 mm
Weight: 24.3kg

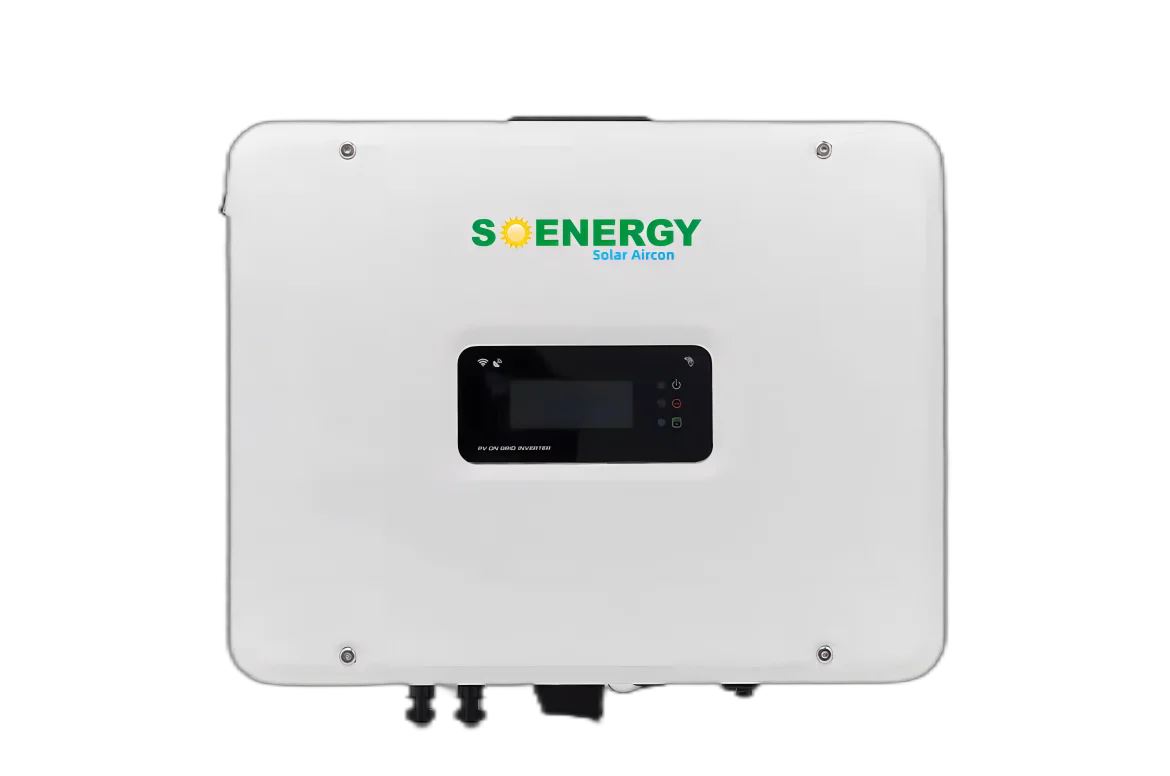

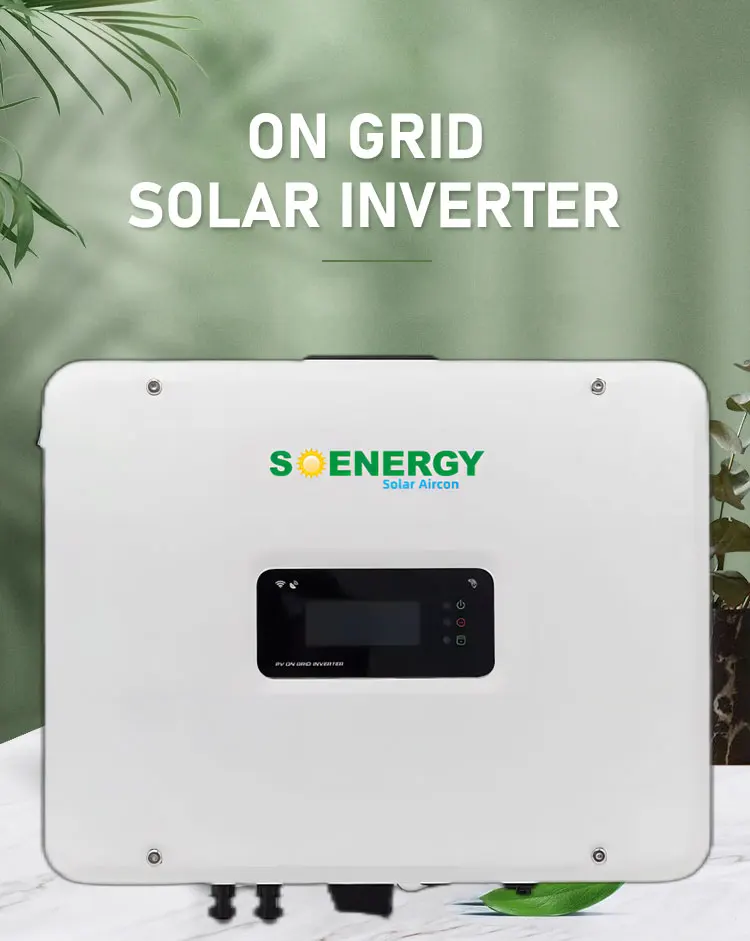

3kw On Grid inverter
Max Dc power (w):4500w
Max DC voltage：500V

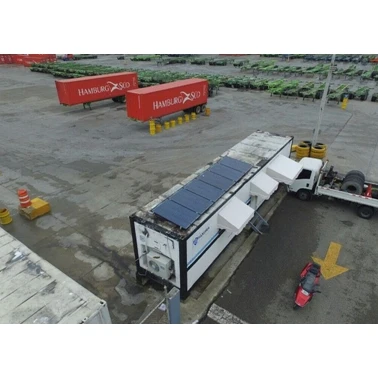

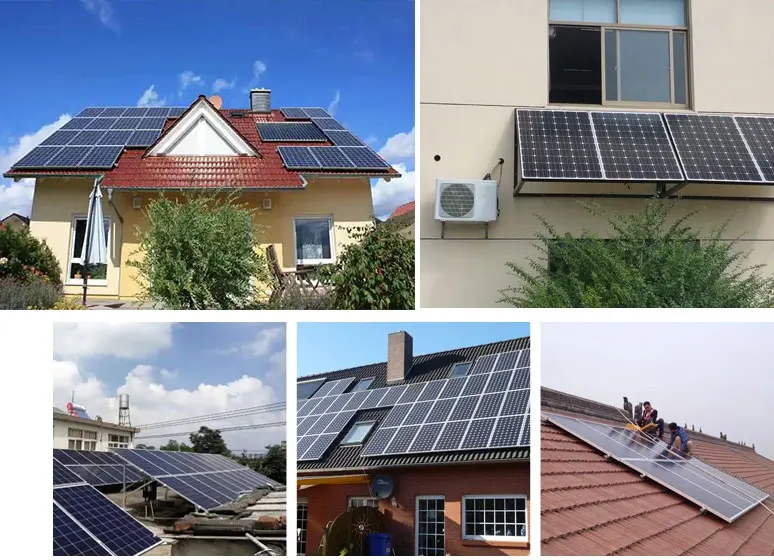

Customers Case
Company Profile
Certification
FAQ
1) How could I get a sample?
Before we received the first order, please afford the sample cost and express fee. We will return the sample cost back to you within your first order.
3) Whether you could make our brand on your products?
4) Whether you could make your products by our color?
5) How to guarantee the quality of your products?
6)Can you provide an early design?
2) Sample time?
Existing items: Within 15 days.
3) Whether you could make our brand on your products?
Yes. We can print your Logo on both the products and the packages if you can meet our MOQ.
4) Whether you could make your products by our color?
Yes, The color of products can be customized if you can meet our MOQ.
5) How to guarantee the quality of your products?
a) Strict detection during production.
b) Strict sampling inspection on products before shipment and intact product packaging ensured.
6)Can you provide an early design?
Yes, we can provide you with special design and installation plan according to your
installation site.
installation site.
