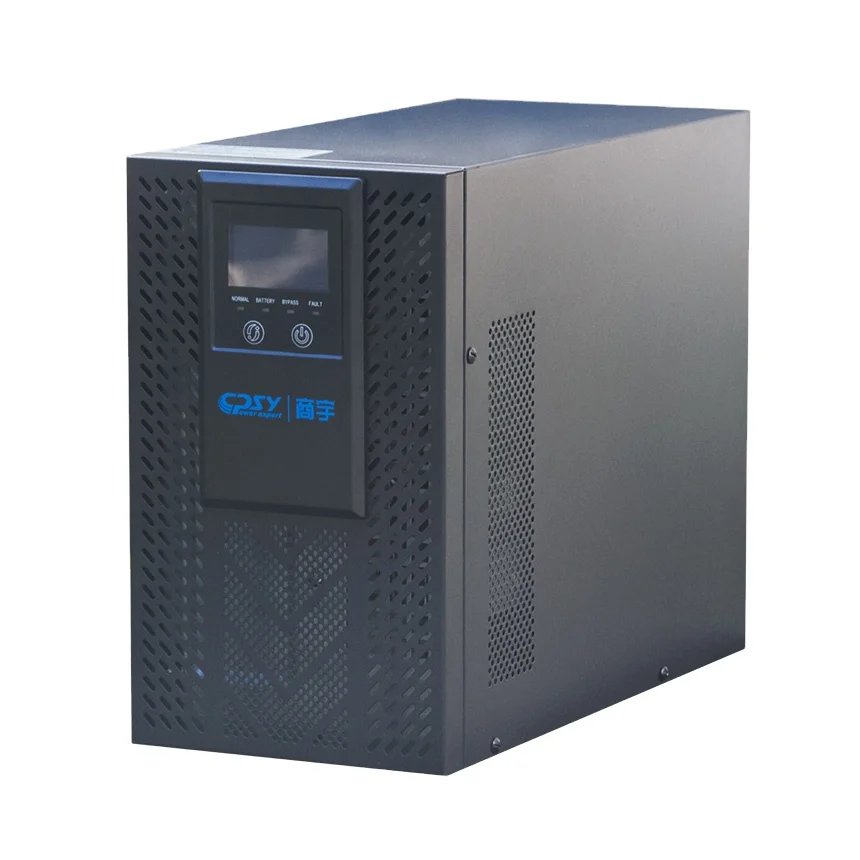

Single Phase High Frequency Online Tower UPS with 0.8 0.9 Power Factor 3Kva portable power station ups
- Category: >>>
- Supplier: Shangyu (shenzhen) Technology Co. Ltd.
Share on (1601068684094):
Product Overview
Description
Product Description
Single Phase High Frequency Online Tower UPS with 0.8 0.9 Power Factor 3Kva portable power station ups
Technical data
| Model | HP1101B / H | HP1102B / H | HP1103B / H | |||
| CAPACITY | 1000 VA / 900 W | 2000 VA / 1800 W | 3000 VA / 2700 W | |||
| Voltage Range | 110 - 300 VAC (Auto sensing) | |||||
| Frequency Range | 46Hz~55 Hz or 56Hz ~ 64 Hz | |||||
| Phase | Single phase with ground | |||||
| PowerFactor | ≥0.99 | |||||
| Waveform (Batt. Mode) | Pure sinewave | |||||
| Standard Model | Battery Type | 12V / 9Ah | ||||
| Battery QTY | 2 | 4 | 6 | |||
| Typical Recharge Time | 5 hours recover to 90% capacity | |||||
| Charging Current | 1A | |||||
| Charging Voltage | 27.4 VDC ± 1% | 54.8 VDC ±1% | 82.2 VDC ±1% | |||
| Long-run Model | Battery Type and QTY | 3 | 6 | 8 | ||
| Charging Current | Default 4A,4A/6A adjustable | |||||
| Charging Voltage | 41.1 VDC ± 1% | 82.2 VDC ±1% | 109.6 VDC ±1% | |||
| Standard Model | DxWxH(mm) | 360*145*227 | 400*193*327 | 400*193*327 | ||
| Net Weight (kgs) | 9.9 | 17.7 | 23.2 | |||
| Long-run Model | DxWxH(mm) | 360*145*227 | 400*193*327 | 400*193*327 | ||
| Net Weight (kgs) | 5.2 | 8.6 | 23.2 | |||
| Communication | RS232 Card / Optional USB Card, SNMP Card, or AS400 Card available | |||||
| Supports Windows2 2000/2003/XP/Vista/2008, Windows2 7, Linux, Unix, and MAC | ||||||
| Optional SNMP | Power management from SNMP manager and web browser | |||||
Online UPS advantages:
-Power Factor 0.8/0.9(optional)
-Adopting advanced three-stage charging method
-The overall efficiency reaches 95%,ECO mode to 98%
-N+X parallel redundancy function, Max 4 parallel machines
-90% of components are from internationally renowned brands
-Abandant monitoring/communication interfaces available, SNMP/MODBUS/dry contacts/emergency stop EPO/USB/RS232/RS485/CAN, etc.
-Conformal Coated PCA component
-Customizable waterproof level, IP20-IP56
-Low fault rate, as low as 0.35% (0.3% -0.5%)
-Can connect to 2 independent mains (dual mains input)
-Adjustable number of battery units
