Versatile 7.2v 9.6v 14.4 Voltage Hybrid Battery Repair Devices for Toyota Prius Used Car
- Category: >>>
- Supplier: Yesa Company (Hong Kong)
Share on (1601068692184):
Product Overview
Description

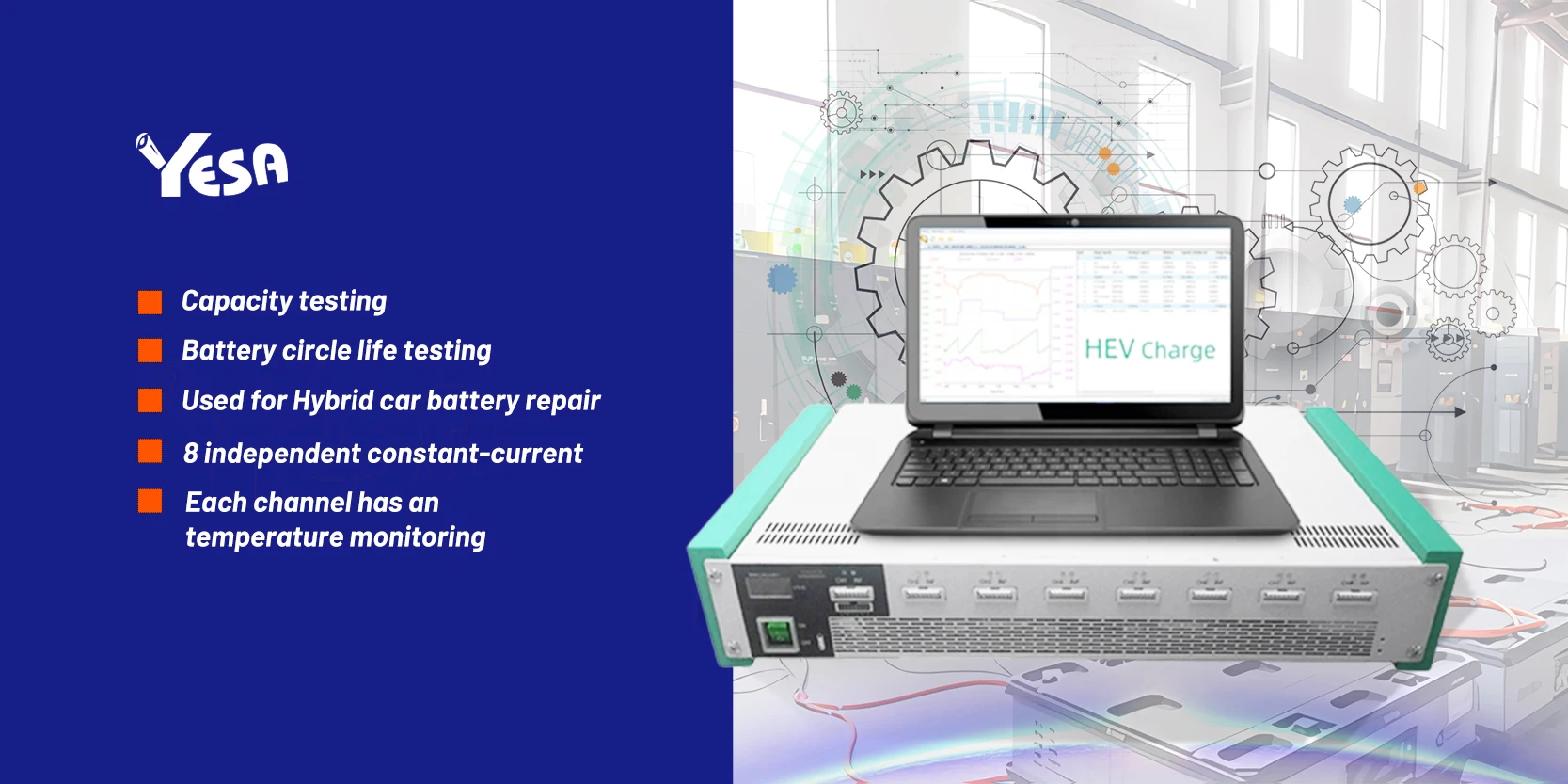

Hybird Battery Reconditioning Machine
*Mainly used for Hybrid car battery repair.
*Support battery circle life testing, capacity testing, charging characteristic testing, discharging characteristic testing, charge retention capability testing, charge and discharge efficiency testing,overcharge or over discharge rate affordability testing.
*Benefits from the implementation of eight independent constant-current & voltage sources, each channel can function independently without interference with each other.
*Each channel has an temperature monitoring to monitor the temperature of the batteries during the charging/discharging cycles.
Product Parameters
ACTS-20V5A(YESA Latest Version) | ||||||||
Main channels | 8 channels | |||||||
Channels working mode | Independently | |||||||
Main channel test cut off condition | Time, total voltage, total current, capacity, -ΔV, Vcell, RSOC, etc. | |||||||
Power supply | AC 220V±10%,or Customized | |||||||
Frequency | 50HZ±5%, or customized | |||||||
Working humidity | less than ≤ 85%R.H (non-condensing) | |||||||
Details Images
Machine
Cooling Table
Test Cable
Network Cable
Temperature Test Cable
Switches
Network Adapter Cable
Power Cable
Scanner
USB with Software Program Inside
Clips
Application
Help for hurting batteries | ||
1 | Red Triangle Warning | |
2 | DTC Codes:P0A80 | |
3 | Normal Use | |
4 | Repair | |
Our Hybrid Battery Tester Analyzer can help with the following DTC codes | ||||||||||||
For Honda | P1447 | P1449 | P1600 | P0A7F | P07AF | P1433 | ||||||
For Toyota | P0A80 | P0A7F | P0AFA | P3006 | P3011 | P3012 | ||||||
P3013 | P3014 | P3015 | P3016 | P3017 | P3018 | |||||||
P3019 | P3020 | P3021 | P3022 | P3023 | P3024 | |||||||
P3025 | P3026 | P3027 | ||||||||||
The hybrid battery recondition machine is highly efficient in reconditioning
For example:
T3A has 24 channels,which can recondition one pack of Puius C / Aqua within 16 hours only;
T4A has 32 channels,which can recondition one pack of Puius within 16 hours only;
T5A has 40 channels,which can recondition one pack of Camry/Lexus GS450h within 16 hours only;
T7A has 56 channels,which can recondition two pack of Puius within 16 hours only;

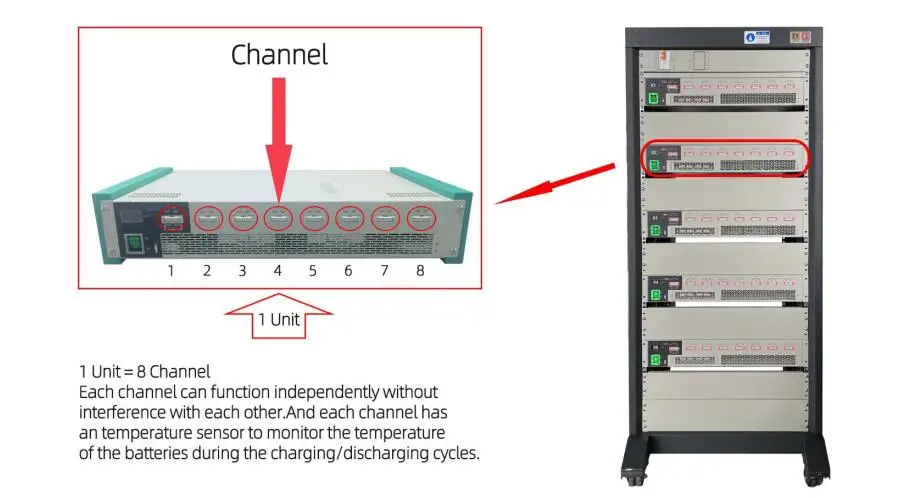

OEM Channel
T1A: 1 Unit = 8 Channel
T2A: 1 Unit = 16 Channel
T3A: 1 Unit = 24 Channel
T4A: 1 Unit = 32 Channel
T5A: 1 Unit = 40 Channel
T6A: 1 Unit = 48 Channel
T7A: 1 Unit = 56 Channel
T8A: 1 Unit = 64 Channel
T9A: 1 Unit = 72 Channel
TTA: 1 Unit = 80 Channel
Reminder :
The effectiveness of battery repair is highly dependent on the condition of the battery being repaired and the repair procedures followed. Therefore, it is advisable for buyers to rationally consider the information provided by professional sales personnel and avoid trusting advertisements from unreliable stores that lack scientific evidence or exaggerate the repair results without any basis. Please trust in the expertise of YESA, the original developers of this machine, who have 20 years of experience in battery and testing equipment.
Why Choose Us

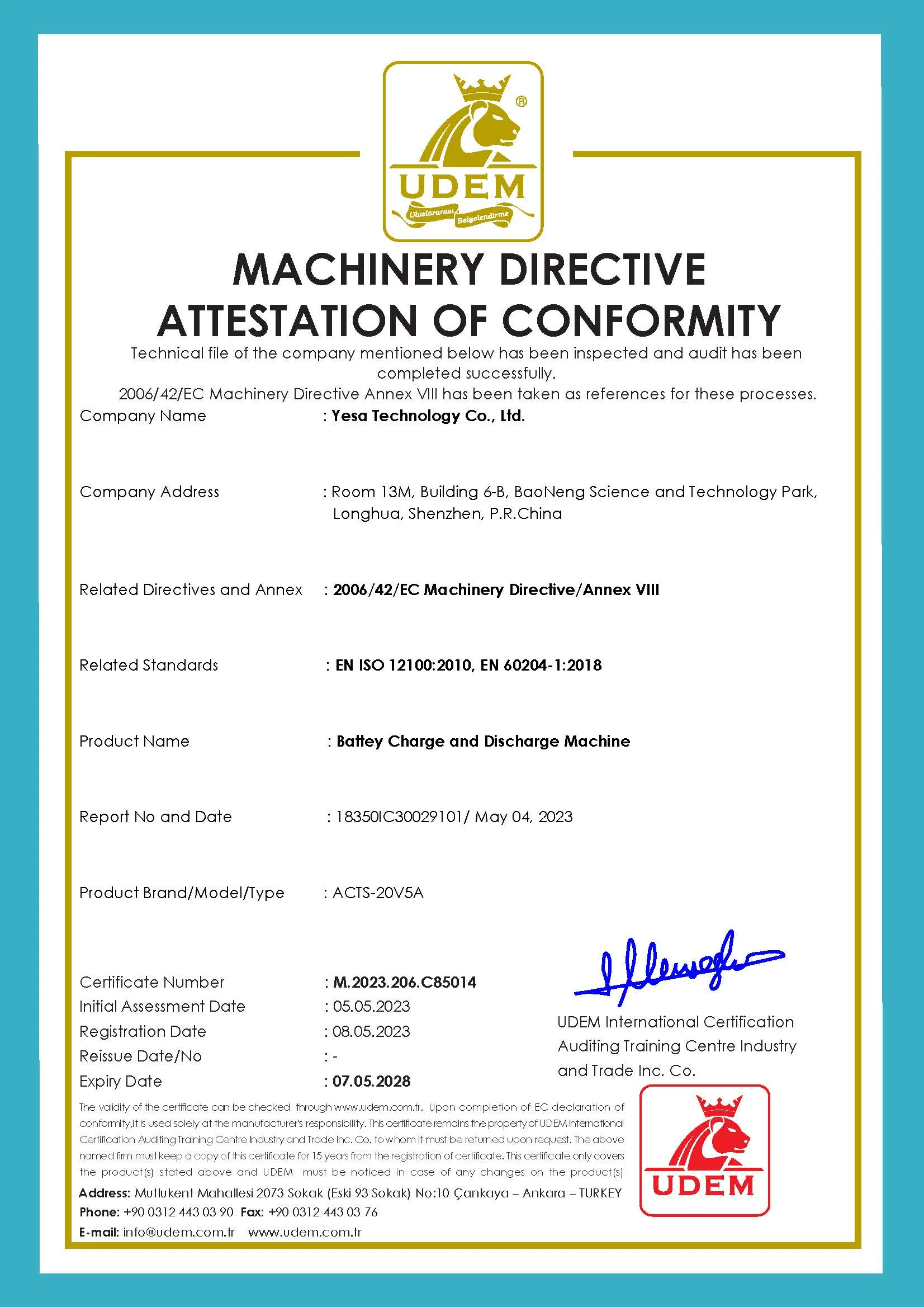

Our product is accompanied by a CE certificate (UDEM) for quality assurance.
You can verify the authenticity of the certificate by visiting the website:"www.udem.com.tr."
Company Name:Yesa Technology Co., Ltd
Certificate No:M.2023.206.C85014
Our product has proven itself in the market over the years, standing the test of time.
It is a unique offering that sets itself apart from counterfeit or imitation products.
Please ensure that you make the right purchase and avoid buying counterfeit alternatives.
Company Profile
We have built a strong reputation and earned the trust of our customers. With a focus on excellence and reliability.
YESA is known for delivering high-quality products that meet the needs of our clients.
Our commitment to innovation and cutting-edge technology ensures that our products are at the forefront of the industry.

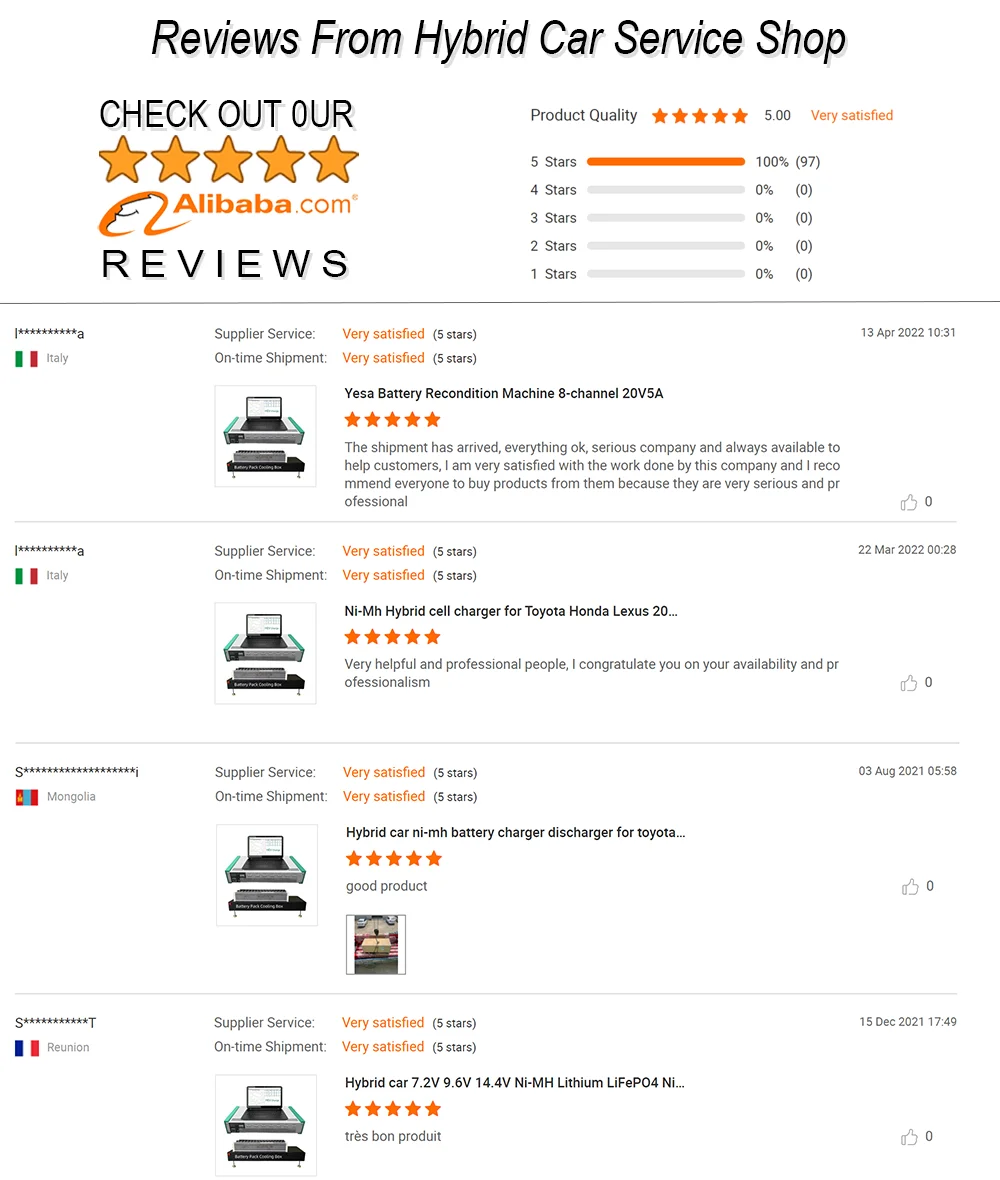

Reviews & FAQ
Q: How long is the repair time?
A: For one Prius3 is about 16~20 hours, if using 4 machines / 28 channels to work at the same time.
Q: Fix how many cycles to do?
A: Generally we recommend 4 cycles. The discharge capacity of the last three times are relatively close, and it can be regarded as the limit of repair.
Q: What data to look at after repairing?
A: After repairing, look at the discharge capacity of the last cycle.
Q: How much is the capacity after repair?
A: The last discharge capacity after repair is greater than 3000mah, which is an acceptable limit, and can be reassembled into a battery pack. If the capacity is lower than this, even if it can be installed on the car again, it cannot be used how long. Soon the car's dashboard will also light up the fault code.

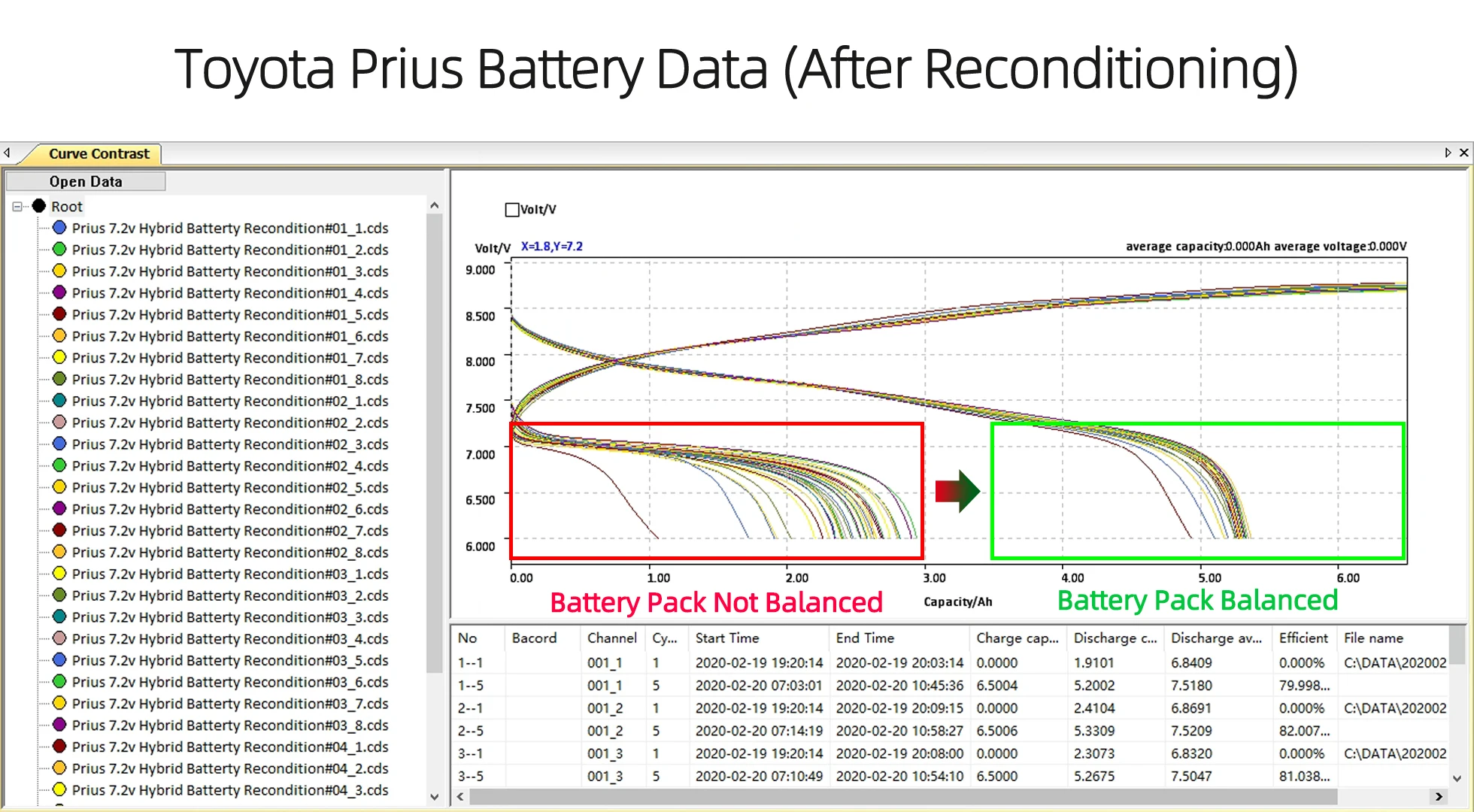

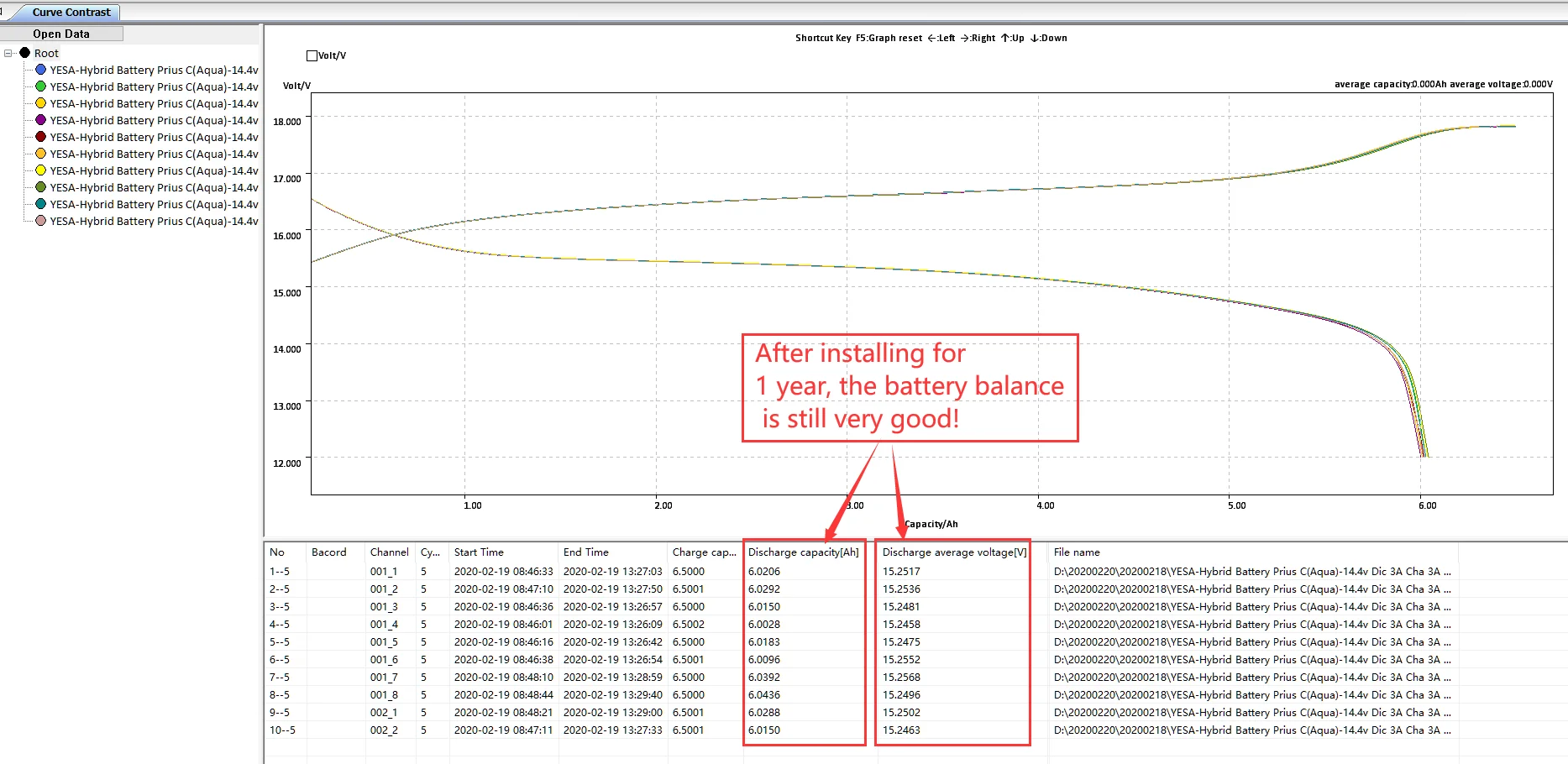

Q: How to match the repaired batteries?
A: There are two main points: First, the capacity difference of each module should not exceed 0.2ah. Second, it is recommended that the batteries of the same year, if not, are close to the year.

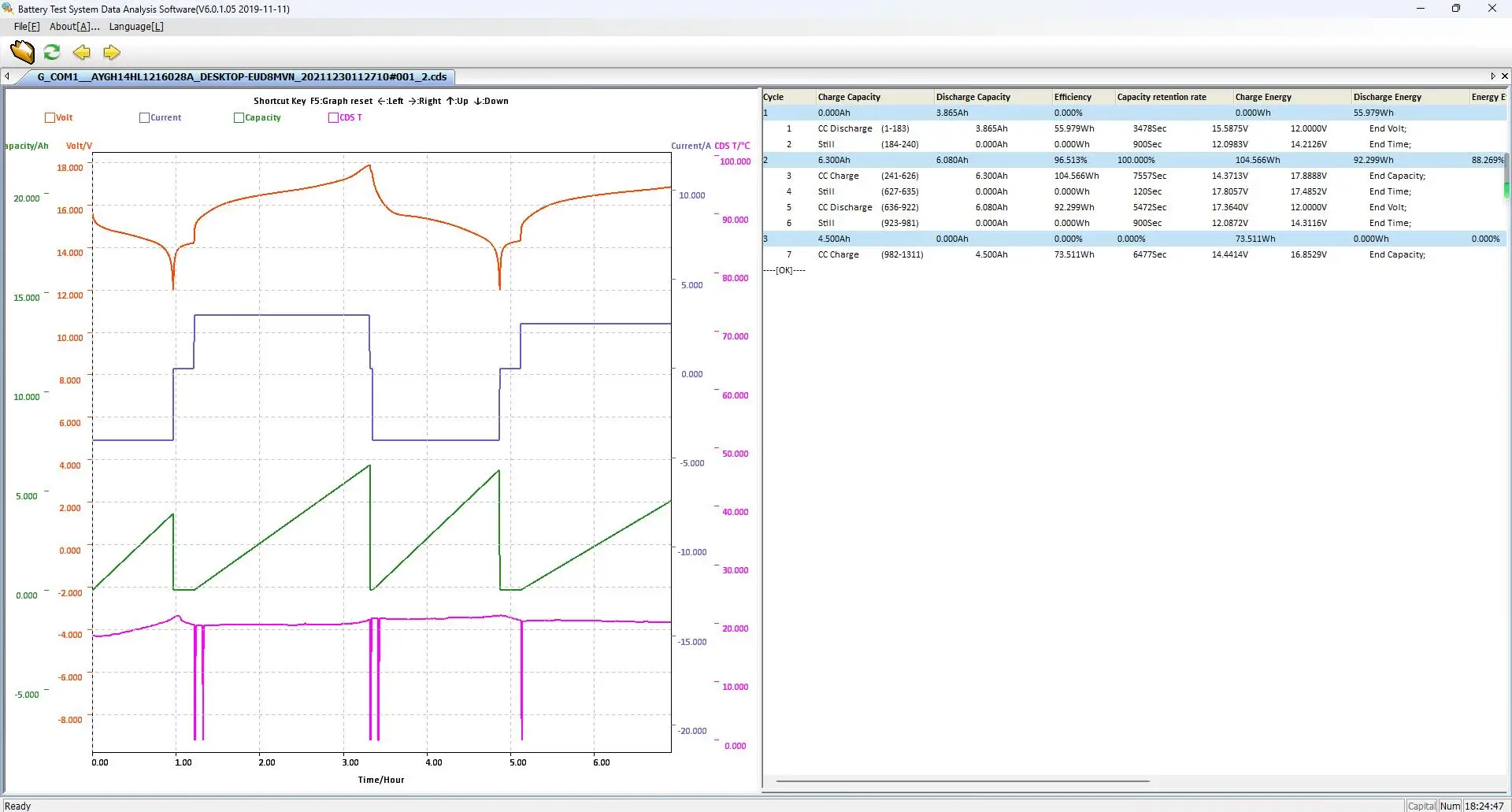

Q: How to export the repaired battery data?
A: Method 1: Export the test results to EXCEL, and then enter them into our table for future reference.
Method 2: Curve comparison, use our special software to output.
Q: Whether the machine can detect internal resistance?
A: Yes, but we do not recommend testing the internal resistance, because this internal resistance is static one and has no meaning for understanding the battery condition. The dynamic internal resistance of the battery is meaningful, which can only be measured by other instruments when the car is working.
Q: How many channels to buy is more suitable?
A: A unit has 8 channels, and each channel is connected to a battery. This is different from the prolong machine. Our customers generally buy at least 4 units, that is, 32 channels. You can also buy a test first,The unit price of one unit is a little more expensive than the unit price of 4 units. However, if you buy another 3 units in 1 month, we can sell them to you at the preferential price of 4 units and deduct the money paid for the first unit.
Q: What are the requirements for computer hardware?
A: Desktop and laptop can be used. The hardware requirement is I3CPU/4GDDR/128HD, we will assign the software of the machine to you.Other related software, we will put it in the U disk for you, you can download it yourself. If we buy a computer for you, we will install all the software for you, and the software is genuine.

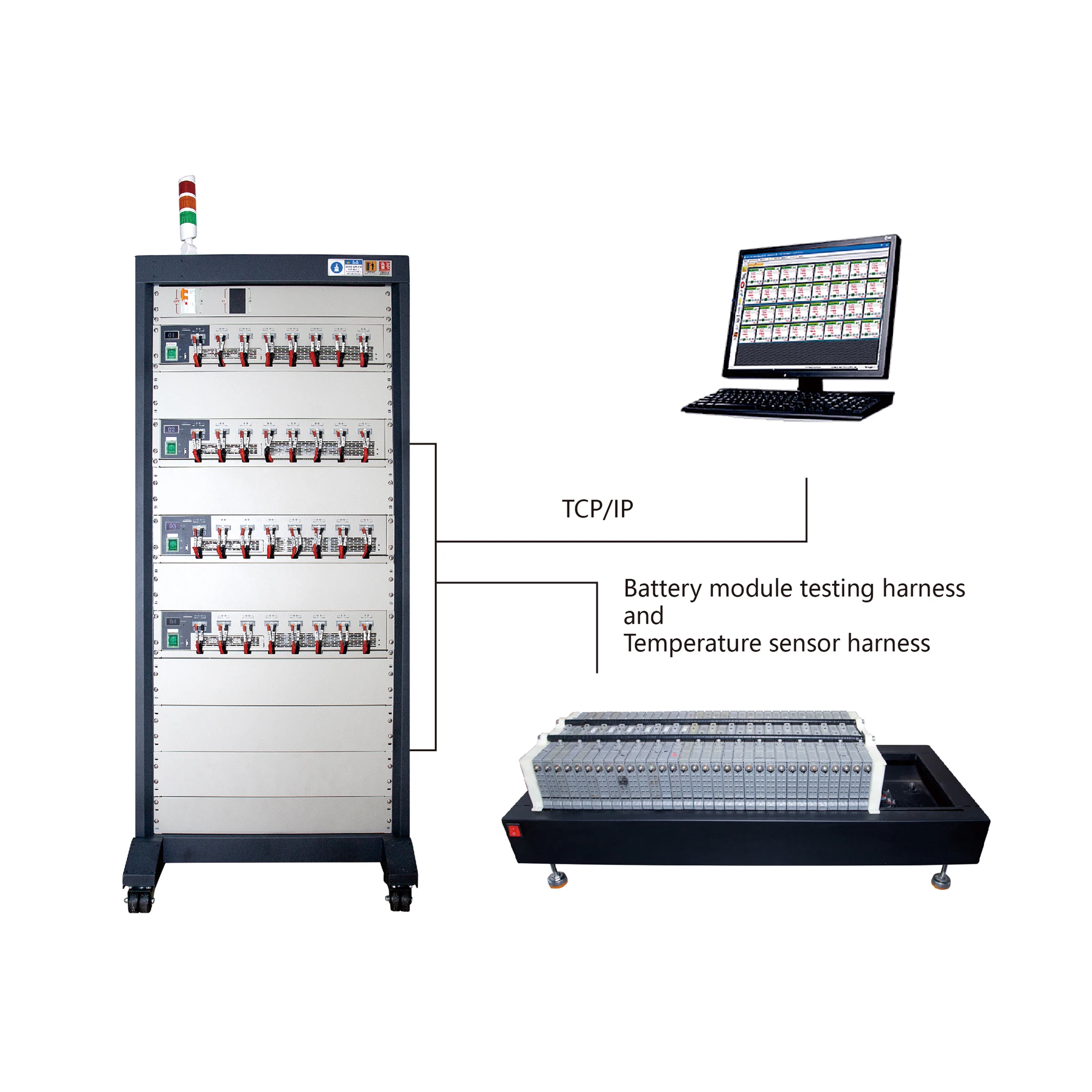

Q: Communication method between machine and computer?
A: 1. For a single machine, we will provide USB network card, network cable,
2. For 2 or more machine, we will provide 8-port high-speed switch USB network card and network cable,

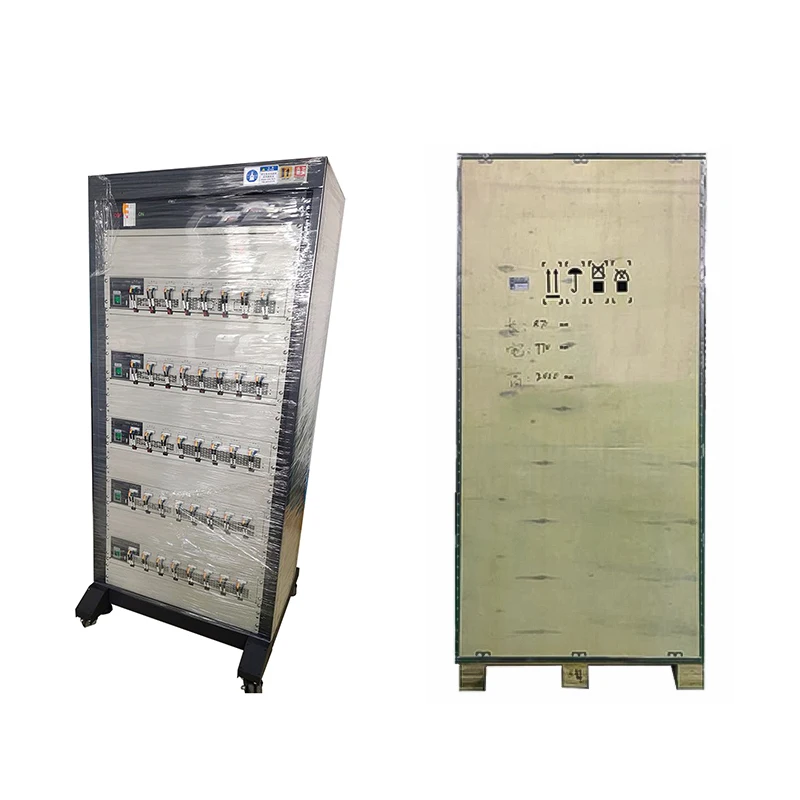

3. For the machines built in the machine cabinet , There are 16 ports high-speed switches in the cabinet, we provide USB
Related Products

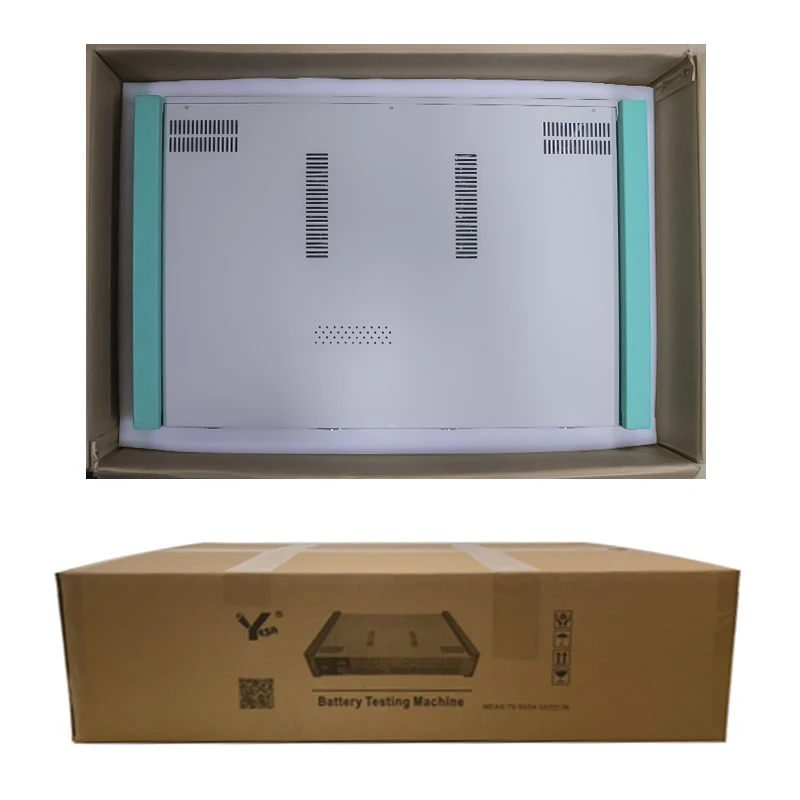

Packing & Shipping
Package Size(L*W*H)
79.5cm*54.5cm*22cm
31.30in*21.46in*8.66in
Package Size(L*W*H)
200cm *87cm*77cm
78in*34in*30in
