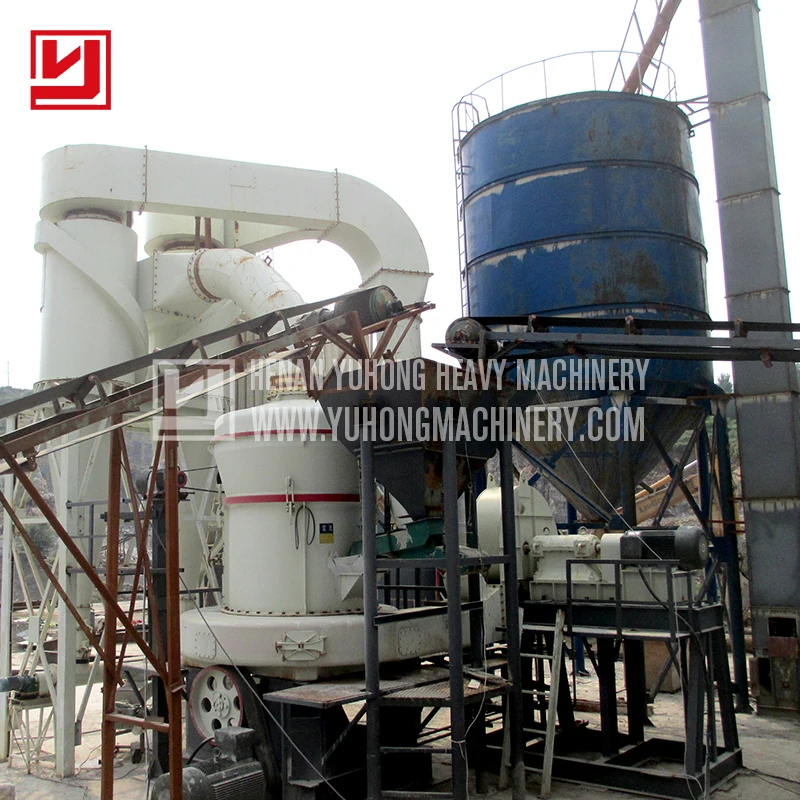

Good Performance Mining Limestone Stone Ultrafine High Pressure Grinding Mill
- Category: >>>
- Supplier: Henan Yuhong Heavy Machinery Co. Ltd.
Share on (1601068693077):
Product Overview
Description
Overview
Products Display
Raymond Mill is widely used for the highly fine powder processing of 300 kinds of materials in the areas of non-flammable mine chemical industry,and building materials with moth's hardness less than 7 level an the moisture less than 6%,such as barite,calcite,potash feldspar,pencil
stone,marble,limestone,dolomite,fluorite,lime,active carclazyte,bentonite,active carbon,kaolin,cement,phosphorite rock,gypsum,glass and heat insulating materials,etc.The size of the finished products can be adjusted from 80 to 400 meshes at random,and some of the sizes can reach 600 meshes at the maximum.
stone,marble,limestone,dolomite,fluorite,lime,active carclazyte,bentonite,active carbon,kaolin,cement,phosphorite rock,gypsum,glass and heat insulating materials,etc.The size of the finished products can be adjusted from 80 to 400 meshes at random,and some of the sizes can reach 600 meshes at the maximum.
Application

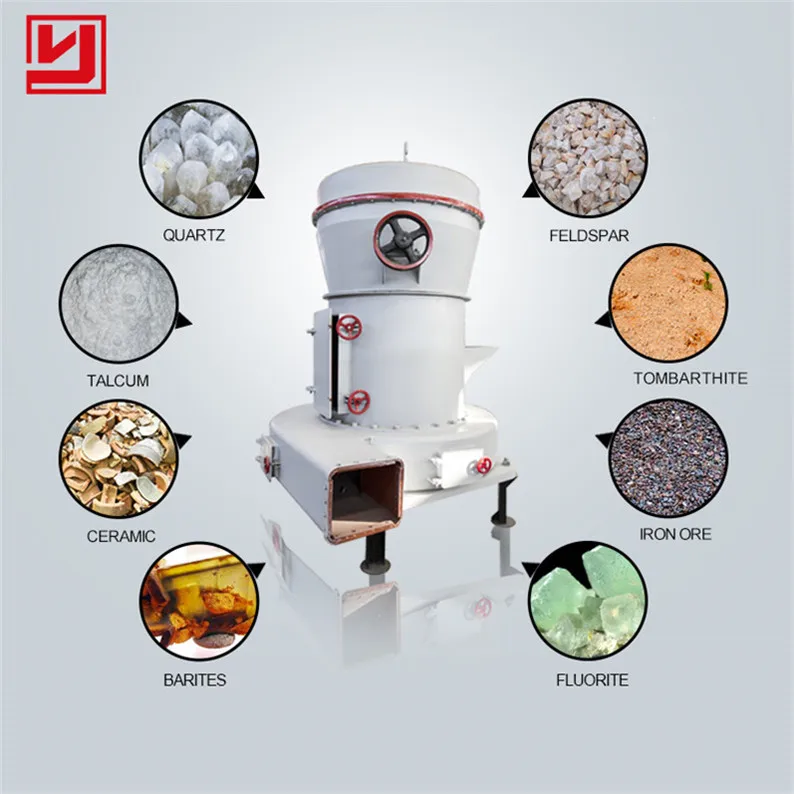

Raymond mill is a kinds of advanced equipment widely used in all kinds of ore grinding. It is mainly suitable for non-flammable and explosive mineral,chemical and construction industries with humidity of less than 6%. Sepecifically, it can process gypsum, talc, calcite, limestone,marble,potassium feldspar, barite, dolomite, granite, kaolin, bentonite, medicsl stone, bauxite,iron oxide red, iron ore and other materials. In addition, it can also be used in small and medium-sized mining, chemical, building materials, enment and other industries.
Technical parameters
Model | Max Feeding Size | Finished Products Size | Shift Output | Inner Diameter of Ring | Diameter of Roller | Height of Roller and Ring | Main Motor Powder | ||
Dimensions | Weight | ||||||||
(mm) | (mm) | t/h | (mm) | (mm) | (mm) | (KW) | (L*W*H)(mm) | (kg) | |
3R2115 | 15 | 0.125-0.044 | 1-18 | 640 | 210 | 150 | 15 | 4500*2800*5800 | 3600 |
3R2615 | 20 | 0.125-0.044 | 2-25 | 780 | 260 | 150 | 18.5 | 5970*4000*5000 | 3800 |
3R3016 | 15-25 | 0.125-0.044 | 3-34 | 910 | 300 | 160 | 30 | 7500*4500*6200 | 7000 |
4R2716 | 15-25 | 0.125-0.044 | 3-30 | 830 | 270 | 160 | 22 | 5970*4000*5000 | 3900 |
4R3016 | 15-25 | 0.125-0.044 | 3-36 | 910 | 300 | 160 | 30 | 7500*4500*6200 | 7500 |
4R3216 | 25 | 0.125-0.044 | 3-38 | 970 | 320 | 160 | 37 | 9900*5800*8500 | 14000 |
5R4119 | 30 | 0.125-0.044 | 6-76 | 1280 | 410 | 190 | 75 | 7850*8000*9700 | 25700 |
6R4525 | 30 | 0.125-0.044 | 10-120 | 1770 | 450 | 250 | 132 | 8850*10500*11000 | 47000 |
Company Profile
The business areas cover metallurgy, mining, building materials industries.

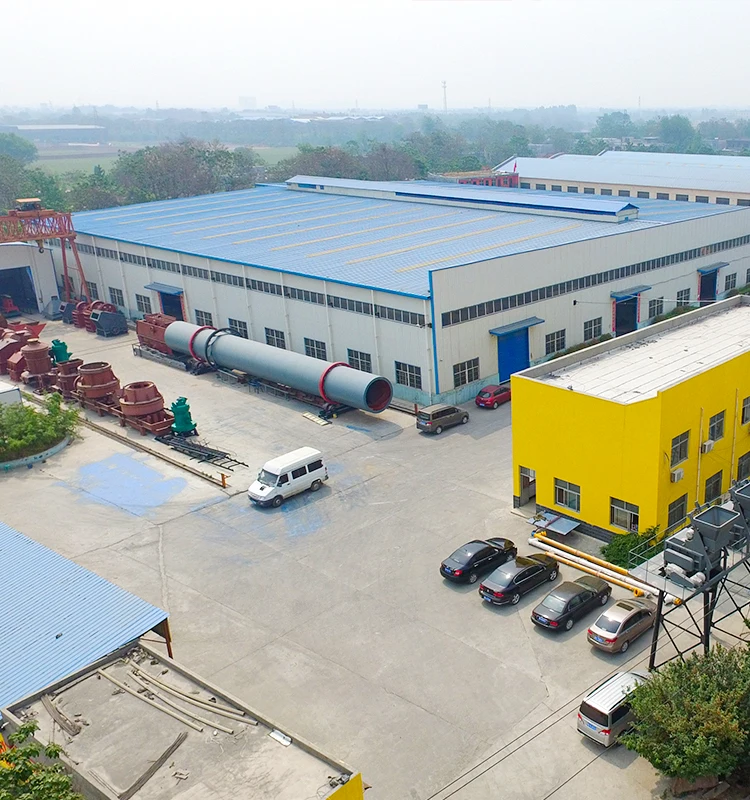

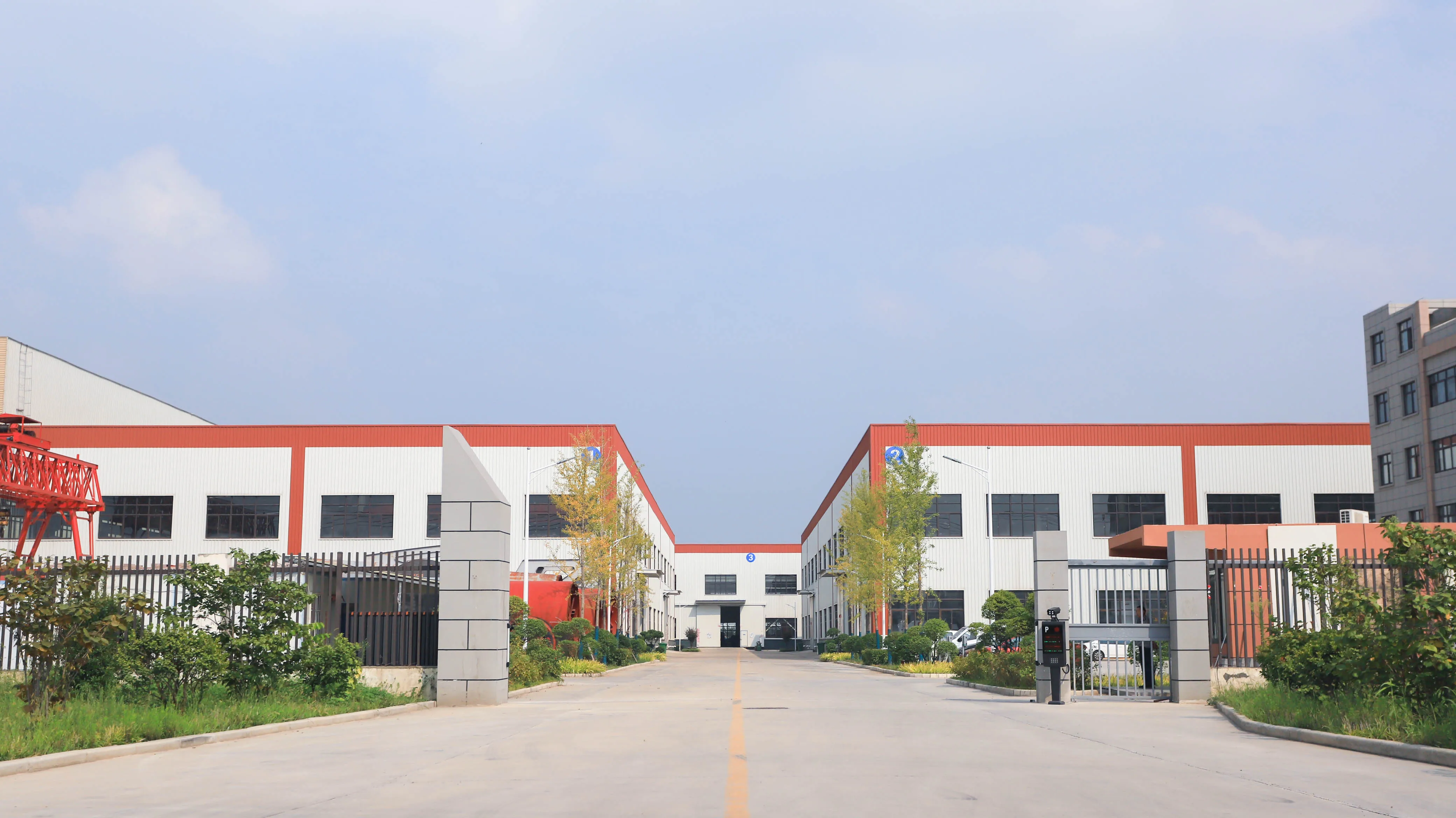

The company is located in Zhengzhou National High-tech Development Zone, founded in 1997, covers an area of 16.7 hectares. Annual sales reach 30 million. In 2003, the company passed ISO9001 international quality certification.

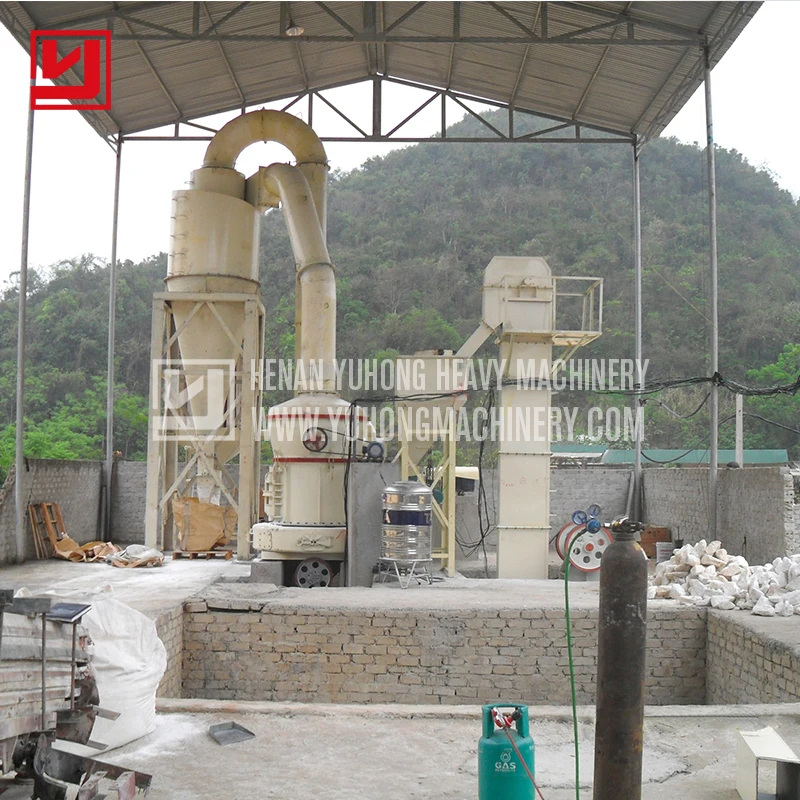

Customer Photos

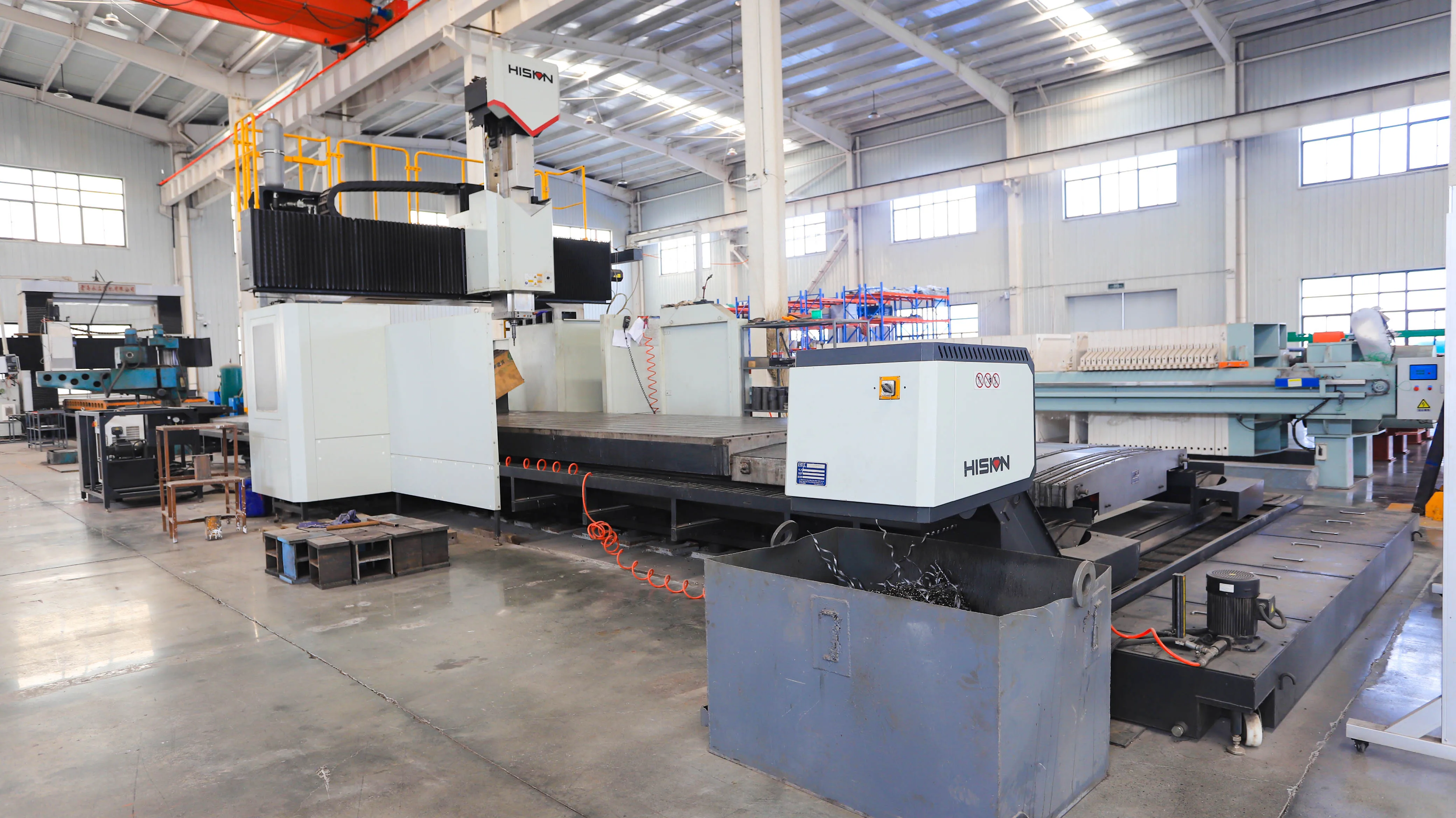

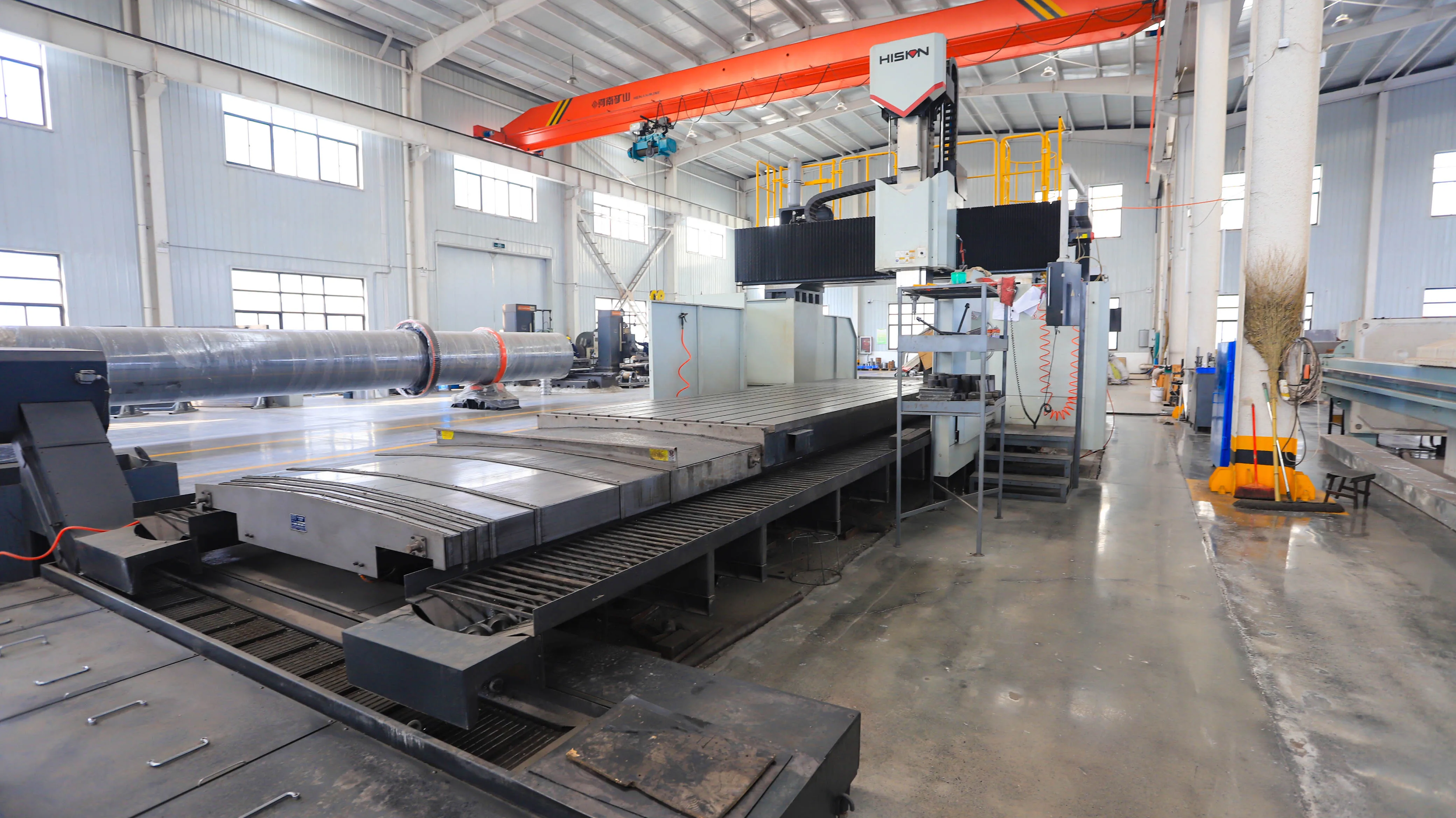

Our Workshop
Our Advantages
1. Technical advantages: Yuhong has a professional R & D team and strong technical strength, and can constantly innovate and optimize products to adapt to market changes and customer needs.
2. Equipment advantages: The equipment uses high-quality wear-resistant materials and advanced manufacturing processes, making the equipment have a long service life.
3. Customized services: We can provide personalized customized services according to the actual needs of customers.
4. After-sales guarantee: We have a perfect after-sales service system to provide customers with timely and professional technical support and maintenance services. Able to quickly respond to customer needs and solve problems in equipment use engineering.
2. Equipment advantages: The equipment uses high-quality wear-resistant materials and advanced manufacturing processes, making the equipment have a long service life.
3. Customized services: We can provide personalized customized services according to the actual needs of customers.
4. After-sales guarantee: We have a perfect after-sales service system to provide customers with timely and professional technical support and maintenance services. Able to quickly respond to customer needs and solve problems in equipment use engineering.
Certifications
FAQ
Q1:Why choose YuHong machinery?
A1:1.Up-to-date design,CAD calculation and simulation;
2.ISO,BV,SGS,CE quapty control manufacturing;
3. Over 30 years experience, export to over 50countries;
4.Highest standard to suit operators' use;
5.World class quality at affordable price.
Remarks: The price will depend on different models. Reply message ,you will get 5% discount price.
A1:1.Up-to-date design,CAD calculation and simulation;
2.ISO,BV,SGS,CE quapty control manufacturing;
3. Over 30 years experience, export to over 50countries;
4.Highest standard to suit operators' use;
5.World class quality at affordable price.
Remarks: The price will depend on different models. Reply message ,you will get 5% discount price.
Q2:What are the requirements for Raymond Mill material?
A2:1: Our Yuhong has a high standard on choosing material of Raymond Mill.
2.Using very high grade steel plate (i.e.Q235,Q345) on structuring part;
3.Using wear-resistant steel (i.e.ZG35, ZGMn13,65Mn,35CrMo,ZG60Si2CrA)on quick-wear parts;
4.The motor,reducer, bearing, belt, bolts are Chinese top 5 brands;
5. Metallurgy performance must be considered during designing, cutting,bending, fitting&welding.
A2:1: Our Yuhong has a high standard on choosing material of Raymond Mill.
2.Using very high grade steel plate (i.e.Q235,Q345) on structuring part;
3.Using wear-resistant steel (i.e.ZG35, ZGMn13,65Mn,35CrMo,ZG60Si2CrA)on quick-wear parts;
4.The motor,reducer, bearing, belt, bolts are Chinese top 5 brands;
5. Metallurgy performance must be considered during designing, cutting,bending, fitting&welding.
Q3:What information do we need to provide you the reasonable model and best quotation?
A3:1.What is the raw material?
2.Raw material maximum feeding size (mm or mesh)?
3. Final products size (mm or mesh) and usage?
4.What is the capacity per hour?
A3:1.What is the raw material?
2.Raw material maximum feeding size (mm or mesh)?
3. Final products size (mm or mesh) and usage?
4.What is the capacity per hour?
