Photovoltaic Roofing T Max L B 80W Light 6Kg Roof Tile Mould Slate Pvc Roof Tile
- Category: >>>
- Supplier: Zhejiang San-Gobuild Jiasheng New Energy Co. Ltd.
Share on (1601068874075):
Product Overview
Description
PHYSICAL PARAMETERS | ||||||
Product model | JS65DG-9e 1/2 | JS56DG-9e 1/2 | JS58DG-9e 1/2 | |||
Color | Black | Red(JSA10-202) | Grey(JSA10-102) | |||
Dimensions | 1340*420mm | |||||
Weight | 6kg | |||||
Glass (material/thickness) | Tempered glass/3.2mm+Backplane | |||||
Cell | 182*91mm（3*6） | |||||
Junction box | ≥IP67 | |||||
Cable type | 500mm / 4mm² | |||||
Plug connector | MC4 | |||||
Life span | >30years | |||||
ELECTRICAL PARAMETERS(STC) | ||||||
Solar cells | Monocrystalline | |||||
Power output（Pmax ） | 65W | 56W | 58W | |||
Module efficiency（%） | 17.80% | 15.60% | 16.10% | |||
Voltage at Pmax（Vmpp） | 10.3V | 10.1V | 10.1V | |||
Current at Pmax（I mpp） | 6.6A | 5.54A | 5.74A | |||
Open-circuit current（Voc） | 12.3V | 12.1V | 12.1V | |||
Short-circuit current（Isc） | 6.92A | 5.88A | 6.03A | |||
Zhejiang San-gobuild Jiasheng New Energy Co.,ltd. ( Here by "GAIN SOLAR"), is a carbon-neutral solutions expert company. Gain Solar is a professional solution provider with the support of the entire industry chain for building integrated photovoltaic (BIPV) and photovoltaic + applications, it can provide professional building energy conservation, photovoltaic + solutions and one-stop services including BIPV products, customized photovoltaic + product R&D, design, production, installation, O&M for the global customers.
Under the support of four National R&D and innovation platforms, including the State Key Laboratory of Photovoltaic Materials and Technology and the National Key Laboratory of Energy Photovoltaic Technology, Gain Solar has invested nearly ten(10) billion RMB in R&D funds, cultivated over 2.000 professionals in related fields, and launched a total of 12 Generation of BIPV products, hundreds of photovoltaic+products, applied in thousands of PV green buildings. Also Gain Solar has accumulatively applied for 323 patents edited and participated in the compilation of 16 various standards, the number of patent authorizations and participation in standards ranked first in the industry. Gain Solar's carbon-neutral projects and products have covered nearly 100+ countries and regions in the world including the United Kingdom, the Netherlands, Germany, the Middle East and so on.
Under the support of four National R&D and innovation platforms, including the State Key Laboratory of Photovoltaic Materials and Technology and the National Key Laboratory of Energy Photovoltaic Technology, Gain Solar has invested nearly ten(10) billion RMB in R&D funds, cultivated over 2.000 professionals in related fields, and launched a total of 12 Generation of BIPV products, hundreds of photovoltaic+products, applied in thousands of PV green buildings. Also Gain Solar has accumulatively applied for 323 patents edited and participated in the compilation of 16 various standards, the number of patent authorizations and participation in standards ranked first in the industry. Gain Solar's carbon-neutral projects and products have covered nearly 100+ countries and regions in the world including the United Kingdom, the Netherlands, Germany, the Middle East and so on.
What size system should I install?
Our tiles are modular, so we can install any size of system you require. Each tile is 90w, so a 4kW system would require 46 tiles (46x90w).
Does solar tiles need regular maintenance?
There is no maintenance required for the tiles. To perform optimally they need to just be kept clean, and rain water does a really good job of ensuring that.

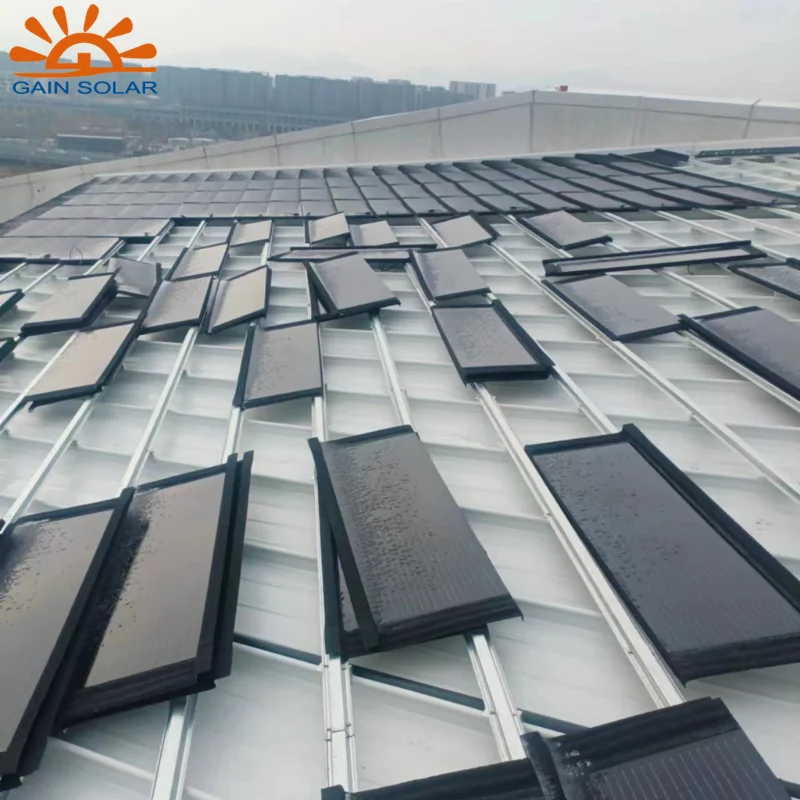

How to install BIPV solar tile system?
We will provide the installation manual, you can ask the workers to follow the steps to install.
Does my roof need to face South?
No, although a South facing roof will generate the most energy, East and West facing roofs can also be suitable for solar, North-facing roof orientations are not ideal for solar energy capture.
If the grid goes out or fails, will the solar tile system still work?
After the power grid fails, the on-grid system will generally stop running and cannot generate electricity normally. But if you install hybrid system, you can use the electricity in the battery.
