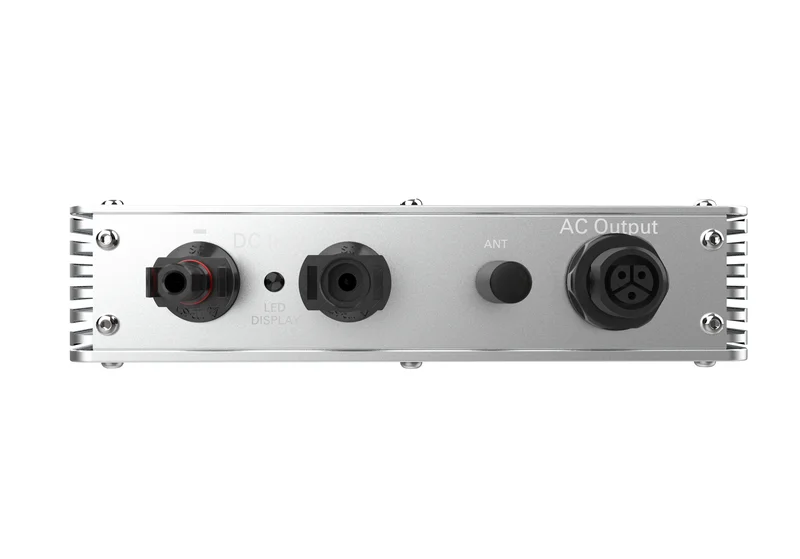

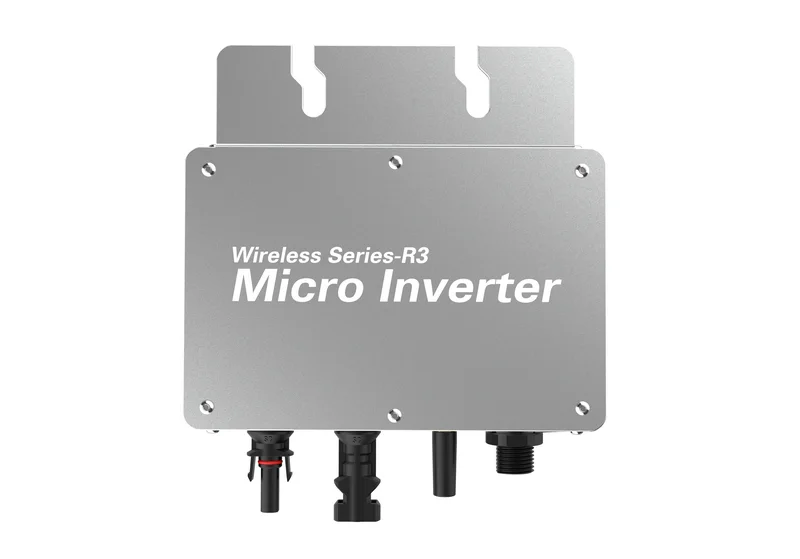

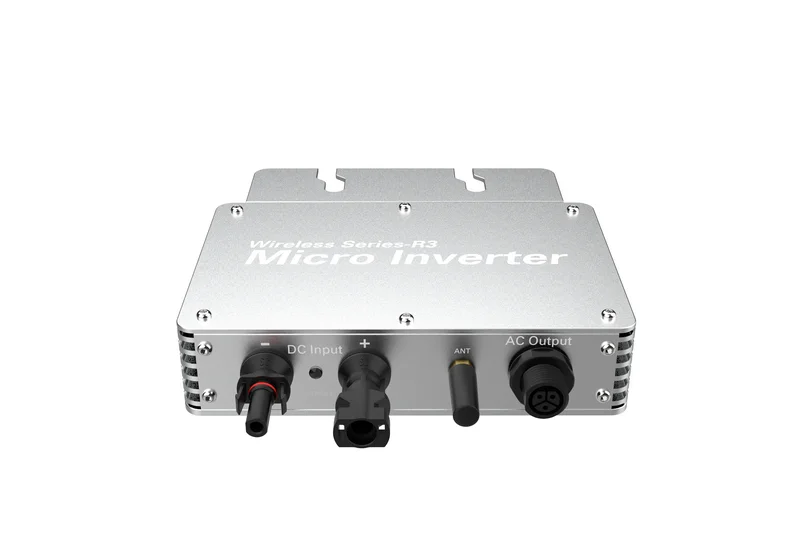

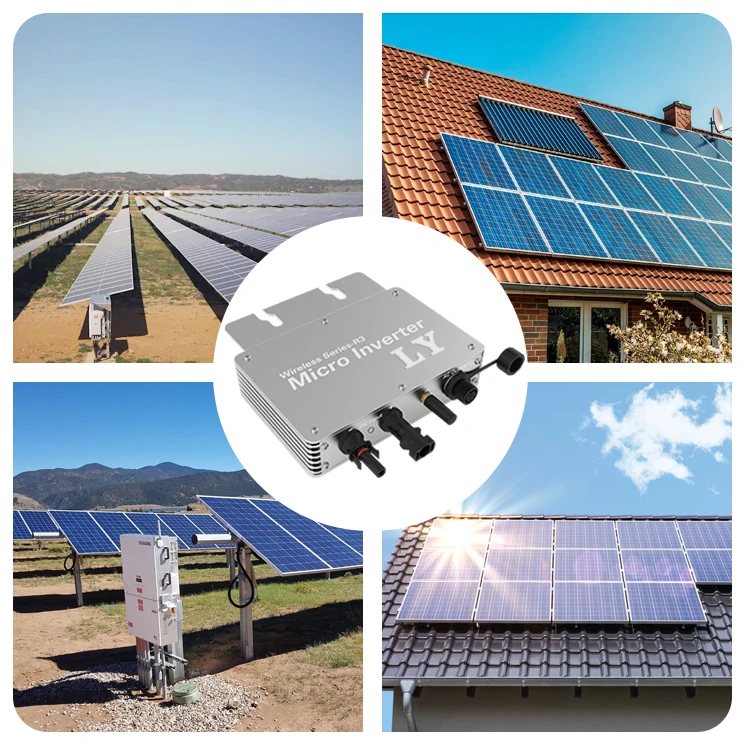

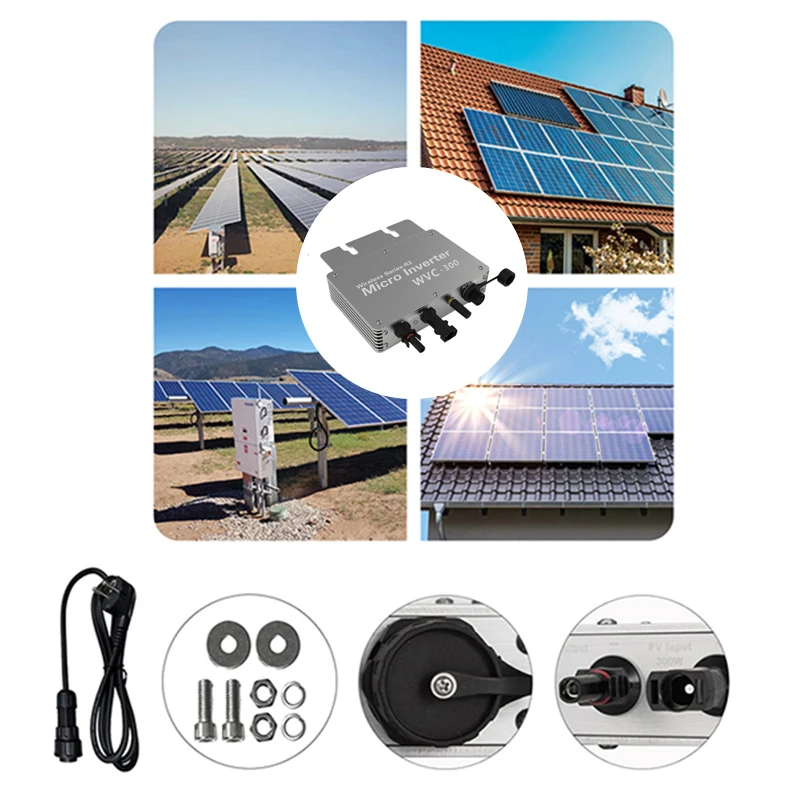

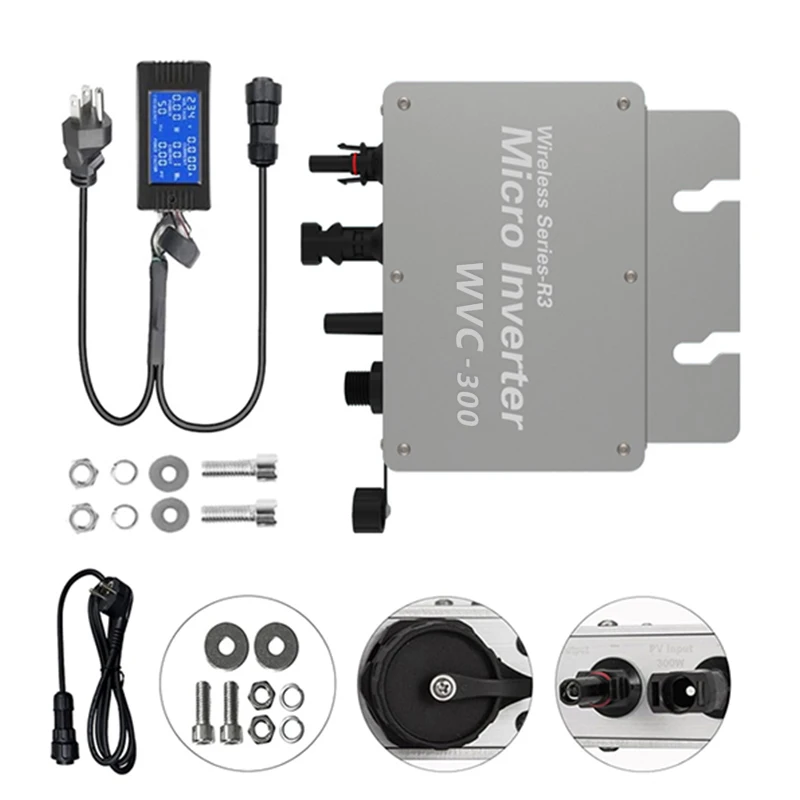

Waterproof Solar Grid Tie Microinverter WIFI Control micro inverter 300W 350W 400W solar power inverter grid tie micro inverter

Product Overview

Description













.

 Specifications

Modell	LY-300	LY-350
Recommend PV	MAX 375W	MAX 435W
PV opencircuitvoltage range	30-60 VOC
Min /Max start voltage	20~60V
Peakpower tracking voltage	20~60V
Maximum DC short current	13.7	18
Maximum Input Current	15	16
Power	300W	350W
Output current	@120V 2.5A @230V 1.3A	@120V 2.91A @230V 1.52A
AC Voltage/Frequency  Range	@120V 85-160VAC 48-51Hz/58-61Hz @230V 180-280VAC 48-51Hz/58-61Hz
Loss of power at night	<0.5W
Total current harmonics	<3%
Power factor	>95%
Static MPPT efficiency	99.5%
Max output efficiency	95%
Number of branch connections	@120V 15 PCS @230V 25PCS	@120V 15 PCS @240V 25PCS
Working Temperature	-20°C to +50°C

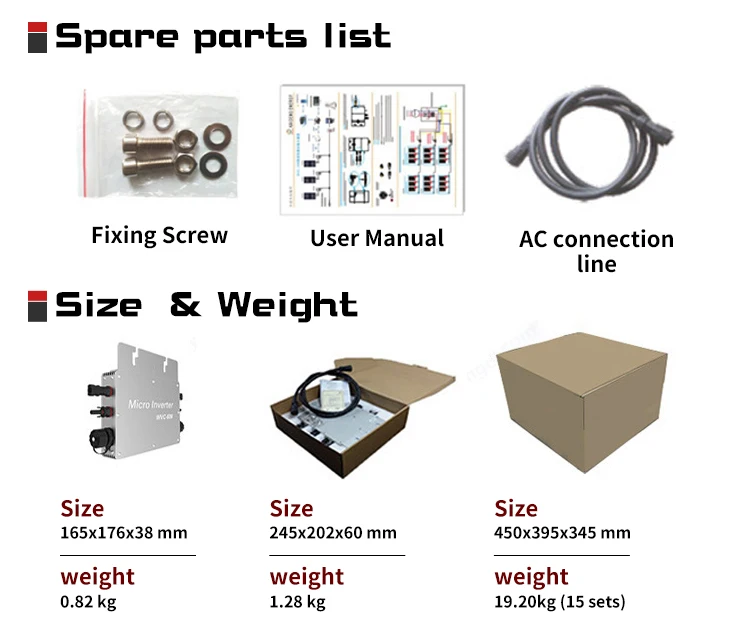

Size(L×W×H)	165mm×176mm×38mm
Weight	0.82KG
Protection grade	Ip65(IP67 Customizable)
Communication mode	Wi-Fi
Power transmission mode	Reverse transmission,Load priority

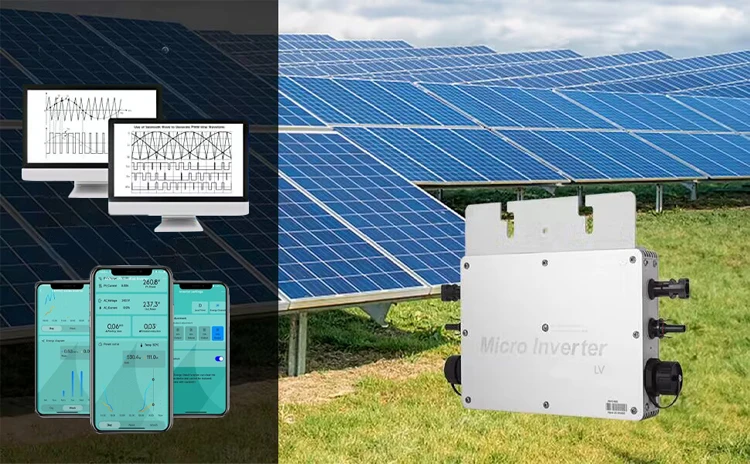

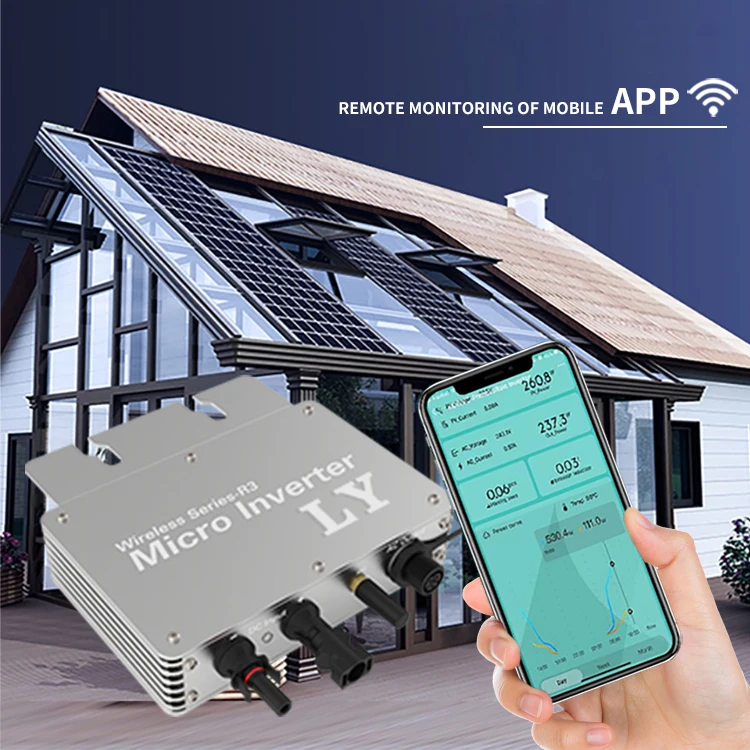

Monitoring system	APP
Electromagnetic Detection	EN61000-6-1:2007 EN6100-6-3:2007+A1:2011+AC:2012
Power Grid standard	EN50549-1,EN 50549-2,NBR 16149:2013,UL1741
Power grid detection	IEC/EN 62109-1, IEC/EN 62109-2, IEC 62116,IEEE 1547
Certificate	CE/IEC/DVE/EMC/CSA

Patents   Wall



Start DIY your solar system. Reduce your electricity bill.

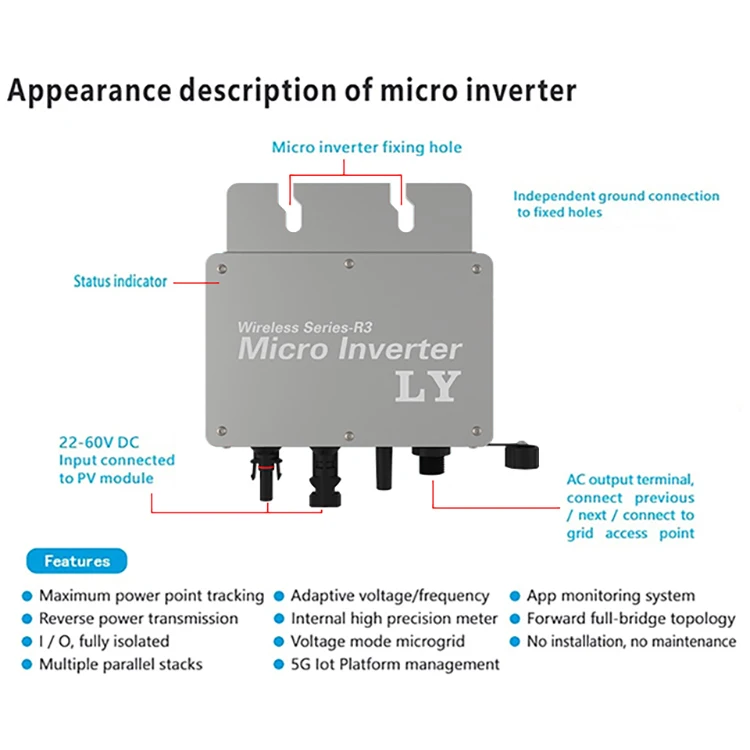

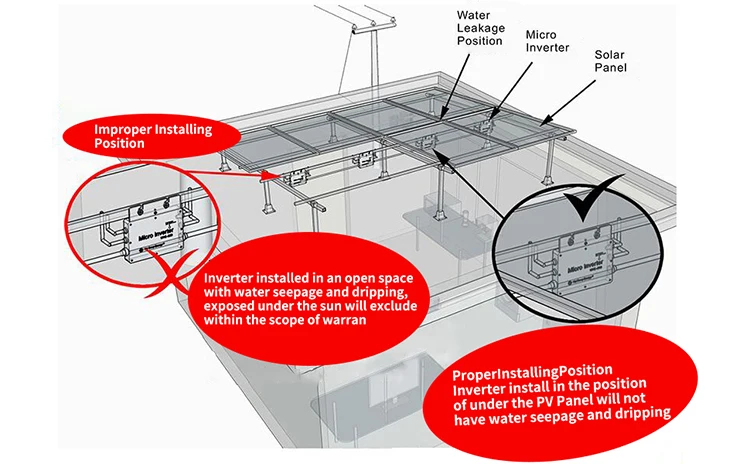

LY series inverter Using IP65 waterproof streamline design which effectively prevent rainwater on the surface erosion, built-in high-performance maximum power point tracking MPPT function better able to track changes in the solar luminosity and control different output power, effectively capture and collect sunlight AC electric power transmission using the reverse transmission technology. The inverter output power can provide load priority use, extra electricity to the grid, Efficiently turns sunlight into clean and green power.

When you switch to solar, you’re reducing your dependence on the grid. The energy you produce isn’t harmful to the environment – it’s harnessing the environment. But it doesn’t stop there. By feeding excess energy that you don’t use back to the grid, you’re reducing the amount of energy that providers need to generate through fossil fuels. This compounds the impact on not just your carbon footprint, but the shared carbon footprint of the world.





About this item
1.MPPT Technology: Precise maximum power point tracking. MPPT algorithm can optimize the power collection from solar panels. It accurately captures and collects sunlight, and locks in the maximum output power points, significantly increasing over 25% of the power generation. With the monitoring system, it can help you

monitor the power generation efficiency of the power station and reduce workforce expenses.
2.High Performance: Reverse power transmission. With efficient reverse power transmission technology, the power transmission rate up to 99.9%. Full digital control can be achieved by using intelligent soft switching technology and built-in MCU for charging modules; Introducing high-frequency switching power supply and SPWM control technology. It features strong anti-interference ability, fast calculation speed, a high degree of intelligence, high control precision, and excellent output waveform.
3. Protective & Reliable: IP65 waterproof design and aluminum alloy material can effectively prevent rainwater erosion on the surface. It provides electrical isolation, more reliable to use. It offers multiple protection functions, such as over-current protection, short circuit protection, low-voltage protection, over high voltage protection.

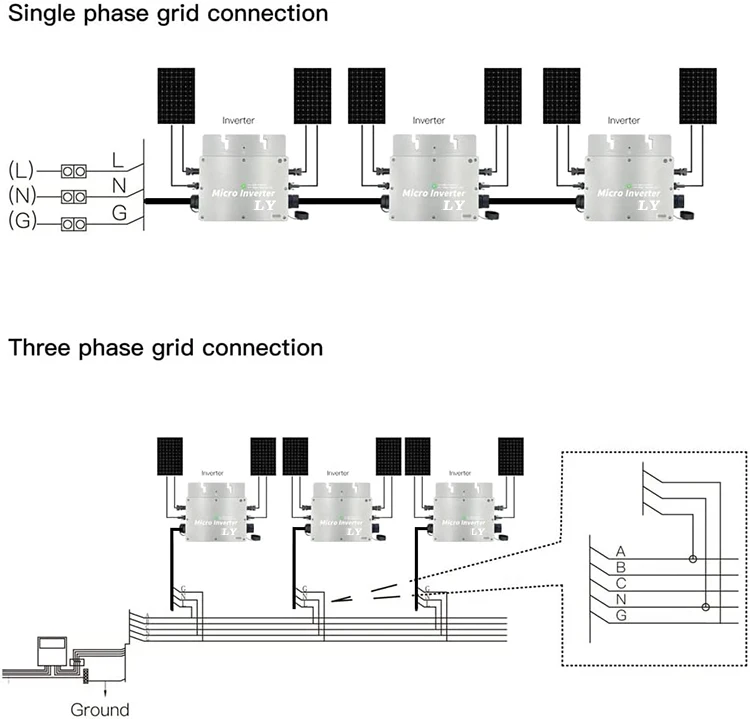

4.Easy Operation: Lightweight and easy to install, many inverters can be stacked arbitrarily to form a single-phase parallel stacking system. Almost no maintenance work is required, clean the dust on the photovoltaic panel occasionally.
Sustainable Use: This grid-tie micro-inverter can convert DC power generated by solar panels into AC power. Our solar inverter provides sustainable energy and brings excellent environmental benefits.
