Deye Hybrid 3 Phase Eu 12kw 2 MPPT Hybrid Inverter 12kw 10kw 8kw 5kw 10 Kw Solar Inverter
- Category: >>>
- Supplier: Anhui GP New Energy Co. Ltd.
Share on (1601069261967):
Product Overview
Description
Product Description
Product Parameters
Model | SUN-5K-SG04LP3-EU | SUN-6K-SG04LP3-EU | SUN-8K-SG04LP3-EU | SUN-10K-SG04LP3-EU | SUN-12K-SG04LP3-EU | ||||
Battery Input Data | |||||||||
Battery Type | Lead-acid or Lithium-ion | ||||||||
Battery Voltage Range(V) | 40-60 | ||||||||
Max.Charging Current(A) | 120 | 150 | 190 | 210 | 240 | ||||
Max.Discharging Current(A) | 120 | 150 | 190 | 210 | 240 | ||||
Charging Strategy for Li-ion Battery | Self-adaption to BMS | ||||||||
Number of battery input | 1 | ||||||||
PV String Input Data | |||||||||
Max DC Input Power（W） | 6500 | 7800 | 10400 | 13000 | 15600 | ||||
Max DC Input Voltage（V） | 800 | ||||||||
Start-up Voltage（V） | 160 | ||||||||
MPPT Voltage Range（V） | 200-650 | ||||||||
Rated DC Input Voltage(V) | 550 | ||||||||
Max. Operating PV Input Current (A) | 13+13 | 26+13 | |||||||
Max. Input Short-Circuit Current (A) | 17+17 | 34+17 | |||||||
No.of MPP Trackers/No.of String Per MPP Tracker | 2/1+1 | 2/2+1 | |||||||
AC Input/Output Data | |||||||||
Rated AC Input/Output Active Power（W） | 5000 | 6000 | 8000 | 10000 | 12000 | ||||
Max AC Input/Output Apparent Power （VA） | 5500 | 6600 | 8800 | 11000 | 13200 | ||||
Peak Power (off-grid)（W） | 2 times of rated power, 10s | ||||||||
Rated AC Input/Output Current（A） | 7.6/7.2 | 9.1/8.7 | 12.1/11.6 | 15.2/14.5 | 18.2/17.4 | ||||
Max AC Input/Output Current（A） | 8.4/8 | 10/9.6 | 13.4/12.8 | 16.7/15.9 | 20/19.1 | ||||
Max. Three-phase Unbalanced Output Current（A） | 11.4/10.9 | 13.6/13 | 18.2/17.4 | 22.7/21.7 | 27.3/26.1 | ||||
Max Continuous AC Passthrough (grid to load)（A） | 45 | ||||||||
Rated Input/Output Voltage/Range(V) | 220/380V，230/400V 0.85Un-1.1Un | ||||||||
Grid Connection Form | 3L+N+PE | ||||||||
Rated Input/Output Grid Frequency/Range | 50/45-55, 60/55-65 | ||||||||
Power Factor Adjustment Range | 0.8 leading to 0.8 lagging | ||||||||
Total Current Harmonic Distortion THDi | <3% (of nominal power) | ||||||||
DC Injection Current | <0.5%ln | ||||||||
Efficiency | |||||||||
Max Efficiency | 97.6% | ||||||||
Euro Efficiency | 97.0% | ||||||||
MPPT Efficiency | ＞99% | ||||||||
Equipment Protection | |||||||||
DC Polarity Reverse Connection Protection | YES | ||||||||
AC Output Overcurrent Protection | YES | ||||||||
AC Output Overvoltage Protection | YES | ||||||||
AC Output Short Circuit Protection | YES | ||||||||
Thermal Protection | YES | ||||||||
DC Terminal Insulation Impedance Monitoring | YES | ||||||||
DC Component Monitoring | YES | ||||||||
Ground Fault Current Monitoring | YES | ||||||||
Power Network Monitoring | YES | ||||||||
Island Protection Monitoring | YES | ||||||||
Earth Fault Detection | YES | ||||||||
DC Input Switch | YES | ||||||||
Overvoltage Load Drop Protection | YES | ||||||||
Residual Current (RCD) Detection | YES | ||||||||
Surge Protection Level | TYPE II(DC), TYPE II(AC) | ||||||||
Interface | |||||||||
Communication Interface | WIFI, RS485, CAN | ||||||||
General Data | |||||||||
Operating Temperature Range | -40 to +60℃, >45℃ Derating | ||||||||
Permissible Ambient Humidity | 0-100% | ||||||||
Permissible Altitude | 2000m | ||||||||
Noise | ≤ 55 dB(A) | ||||||||
Ingress Protection(IP) Rating | IP 65 | ||||||||
Inverter Topology | Non-Isolated | ||||||||
Over Voltage Category | OVC II(DC),OVC III(AC) | ||||||||
Cabinet size（W*H*D）[mm] | 422×658×254（Excluding connectors and brackets） | ||||||||
Weight[kg] | 38 | ||||||||
Warranty | 5 Years/10 Years the Warranty Period Depends the Final Installation Site of Inverter, More Info Please Refer to Warranty Policy | ||||||||
Type Of Cooling | Intelligent air cooling | ||||||||
Grid Regulation | IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G99, VDE-AR-N 4105 | ||||||||
Safety EMC/Standard | IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 | ||||||||

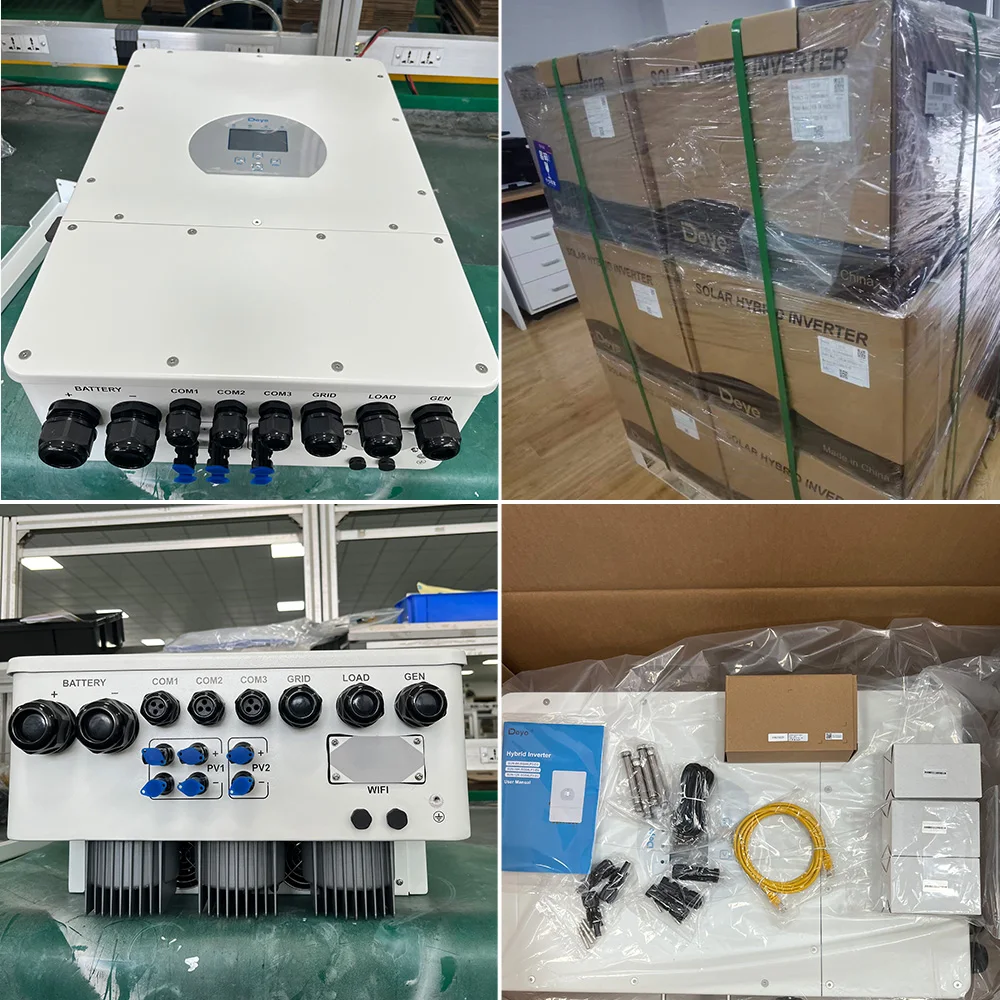

Packing Details

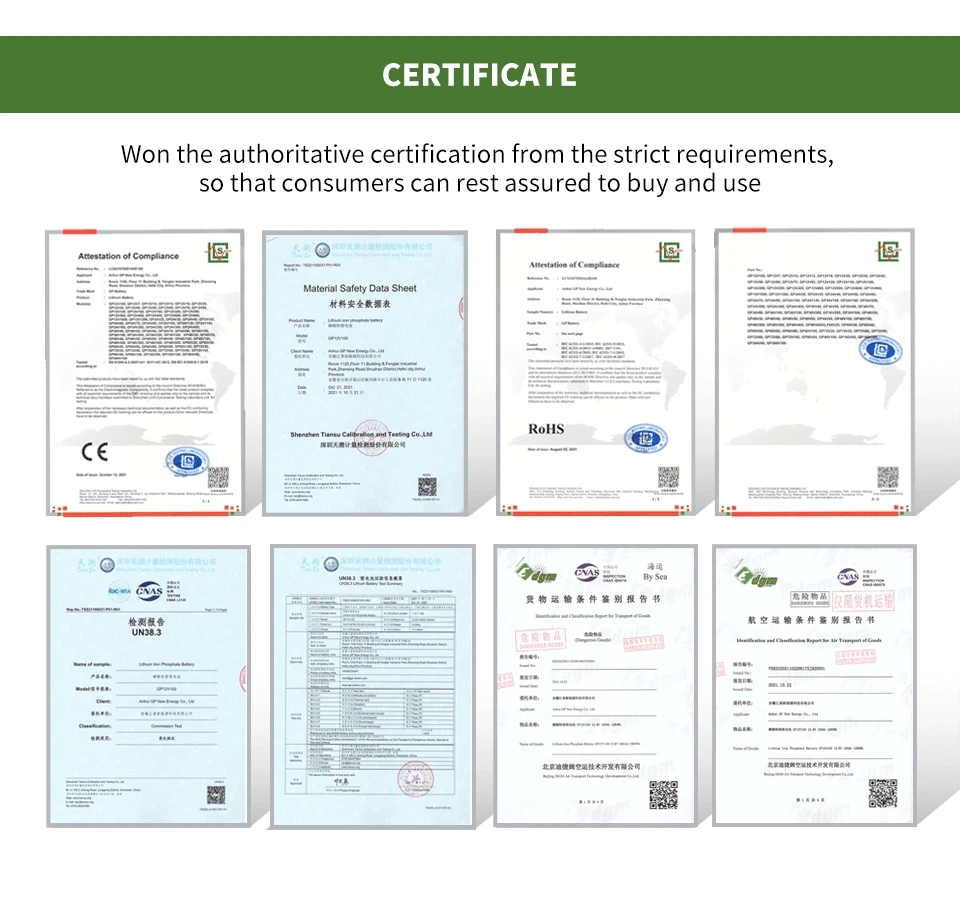

Certifications
Company Profile
EXHIBITION
Q&A
What does a solar inverter do?
It's a device that converts direct current (DC) electricity, which is what a solar panel generates, to alternating current (AC)
electricity, which the electrical grid uses.
electricity, which the electrical grid uses.
What is the difference between a string solar inverter and a hybrid inverter?
Hybrid inverters generate power exactly the same way as common string solar inverters. The difference is that it has built-in battery connections to enable energy storage for later use. This battery backup ability enables most hybrid systems to also operate as a backup power supply during a blackout.
Can you go off-grid with hybrid inverter?
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
What are the basic parameters of inverter?
There are 3 parameters that will define the output of power inverter, and they are the frequency, the voltage, and power capacity.
