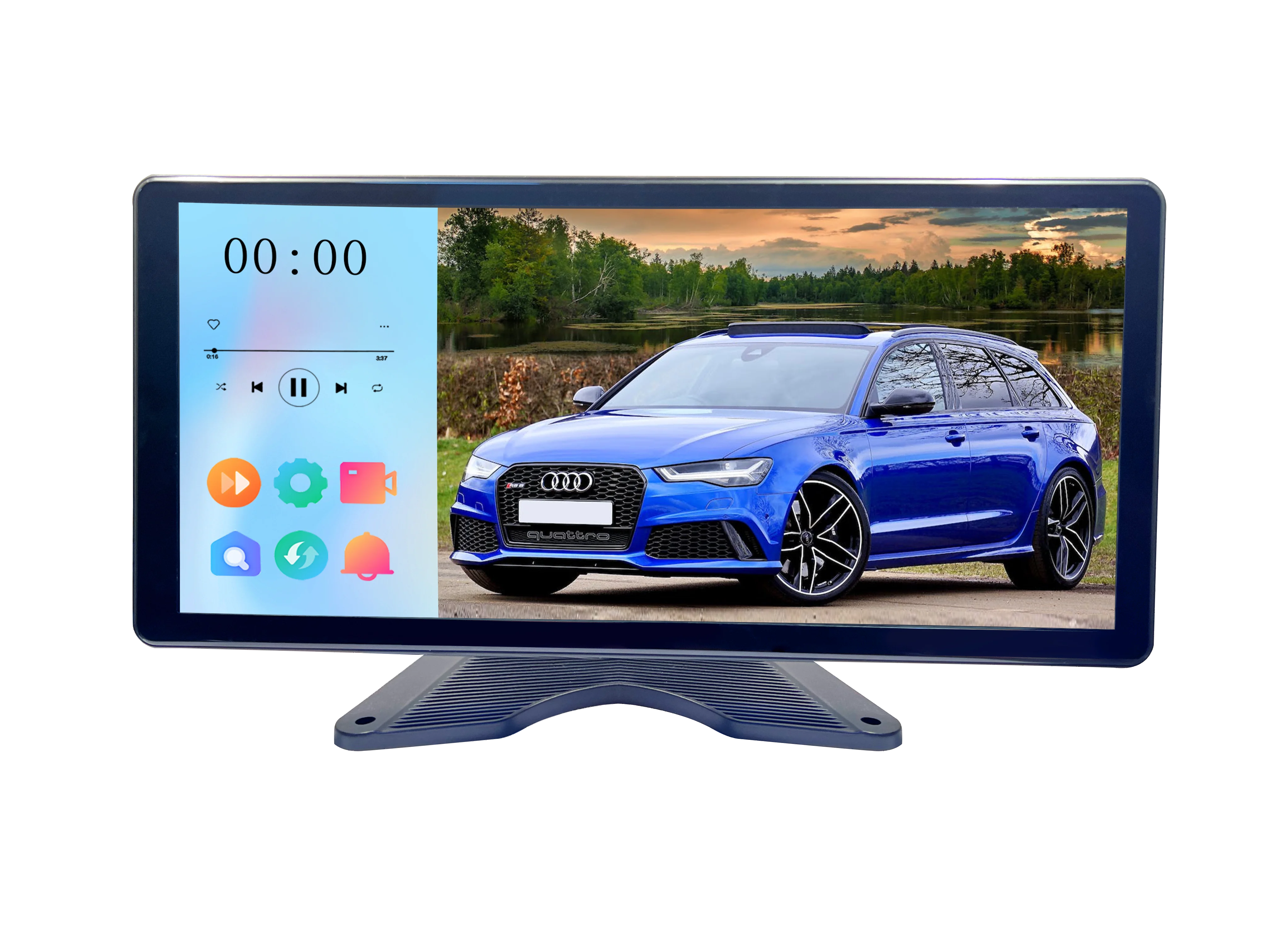

10.36 inch HD vehicle monitoring quad view truck monitor bus camera system passenger cars reversing image display screen
- Category: >>>
- Supplier: Dongguan Forescene Information Technology Co. Ltd
Share on (1601069491838):
Product Overview
Description
Product Description
YDV05L10.36+4701 set include
1) YDV05L10.36 monitor*1
2) YJ-4701 camera*4
3) 5m cable*2
4) 8m spring cable*1
5) 10m cable*1
6) remote control1er*1
7) 64G TF card*1
Product Specifications

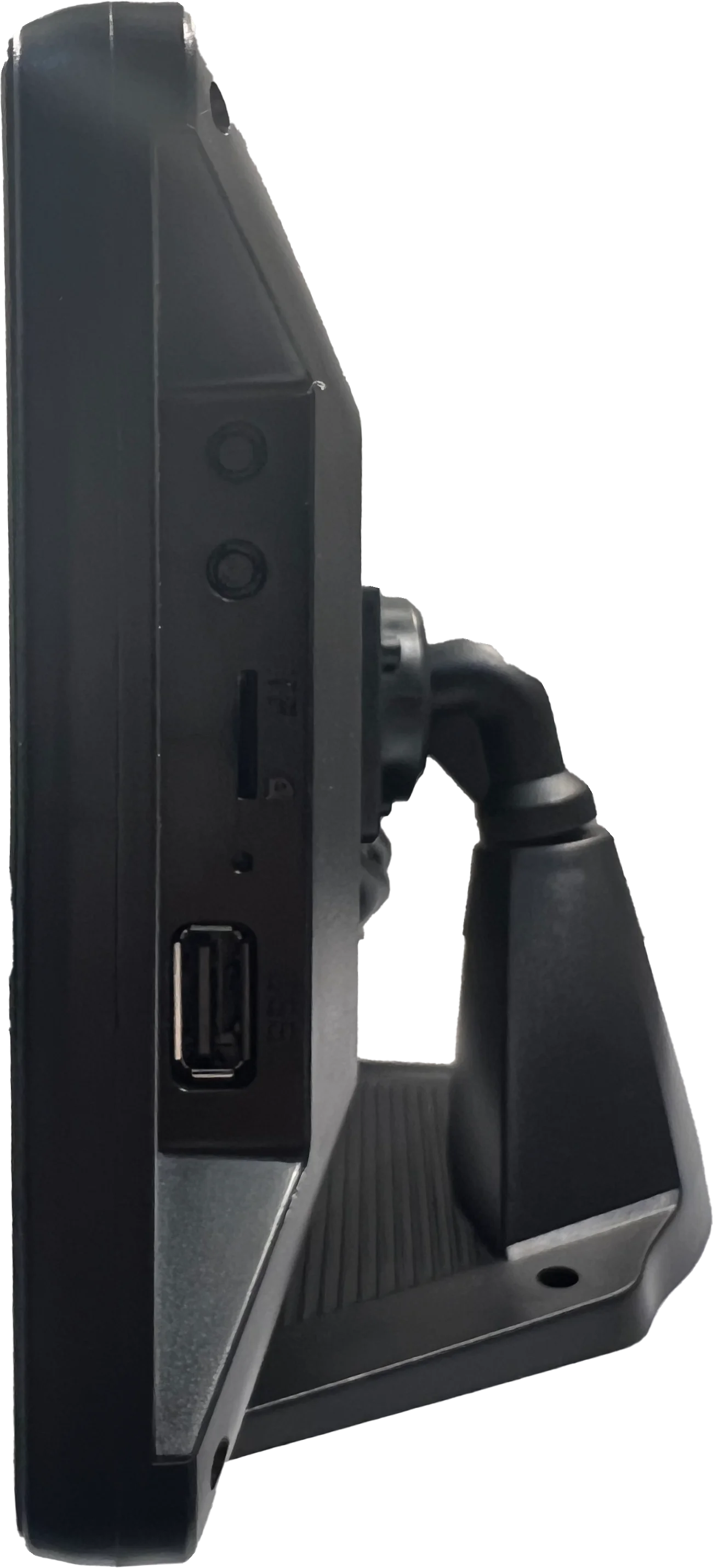

YDV05L10.36
| Item | Function | Performance index |
| system | operation language | Simplified/Tranditional Chinese/English, etc |
| operaion interface | Graphical menu operation | |
| operation mode | touch screen | |
| video input | video input | 4CH AHD HD video input |
| recorde mode | default switch on record without loss 1s | |
| record format | H.265 video, 4 CH video save separately | |
| video display | real time display | 10.36 inch HD IPS screen 1600*720 |
| video display | 14 kinds of multi CH video display mode | |
| local playback | local play and view in any time | |
| trigger display | trigger display | switch to the corresponding camera view automatically |
| record storage | SD card | CLASS 10 U1, support the Mini. 64GB and the Maxi. 256GB |
| audio | microphone | support microphone record, menu can be set switch off |
| power | power input | Support wide voltage range from 9V to 36V, with vehicle level surge, overload, over voltage, under voltage, short circuit and other power protection circuits, suitable for various truck power environments. |
| consumption | engine detection | ACC detection cable |
| 4 Channel record | less than 10W(screen diplay and 4 CH camera record) | |
| others | working temperature | -20~+70 degree |
| heat dissipation method | passive heat dissiption | |
| rear mode | adjustable | |
| video record time | video record time can be set | |
| channel trigger delay | turn signal delay can be set |

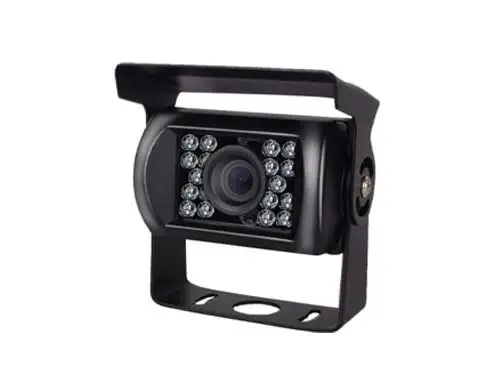

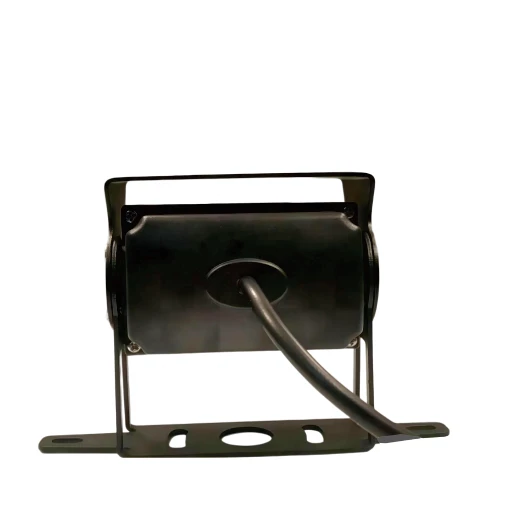

YJ4701
| item | part | specification |
| camera | cover material | aluminum alloy surface matte black |
| waterproof | over IP67 | |
| weight | 220g | |
| box size | 10*10*9cm | |
| PCB board | sensor/DSP | sensor:1/2.7 ISP:2MP |
| resolution | AHD720P(1280*720) | |
| signal system | PAL/NTSC | |
| minimum illumination | 0.001LUX/F2.0(IR ON) | |
| signal to noise rate | more than 48DB | |
| wide dynamic | wide dynamic 82db | |
| synchronization method | inner synchronization | |
| video output | line by line AHD-720P | |
| gain control | Auto | |
| Power consumption | less than 120mA@DC12V (Infrared off) less than 300mA@DC12V (Infrared on) | |
| Environmental humidity | 30%-85% | |
| working temperature | -20℃--+75℃ | |
| storage temperature | -40℃--+85℃ | |
| Lens | Focal length | 2.8mm |
| material | 4G glass | |
| aperture | F2.0 | |
| pixel | 2MP | |
| light board | LED | 18 pcs 850 IR,scattering 85° |
| Power consumption | 190ma(12V) |
