High Performance / Hand Held metal detector GC 1002

Product Overview

Description

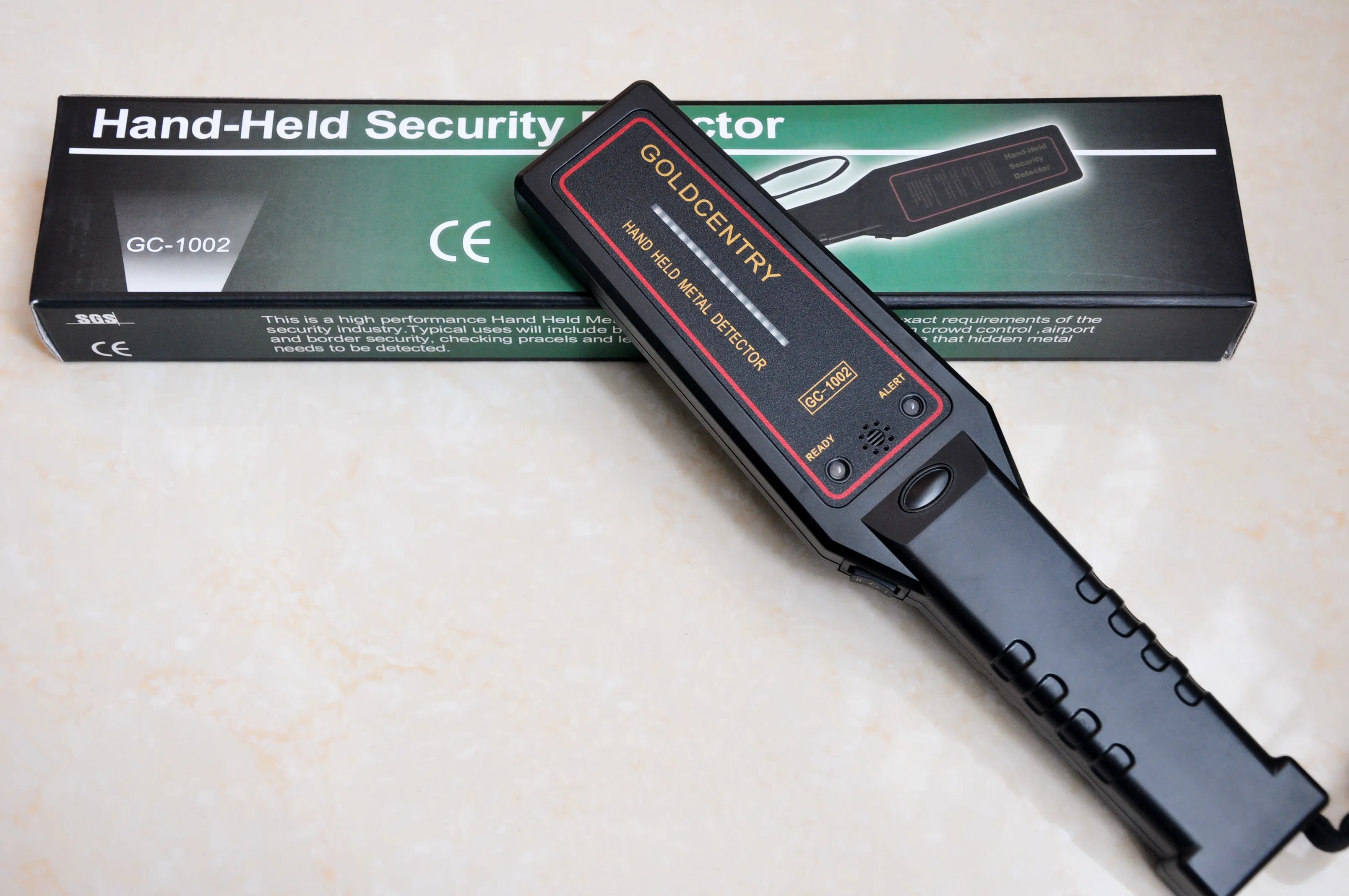

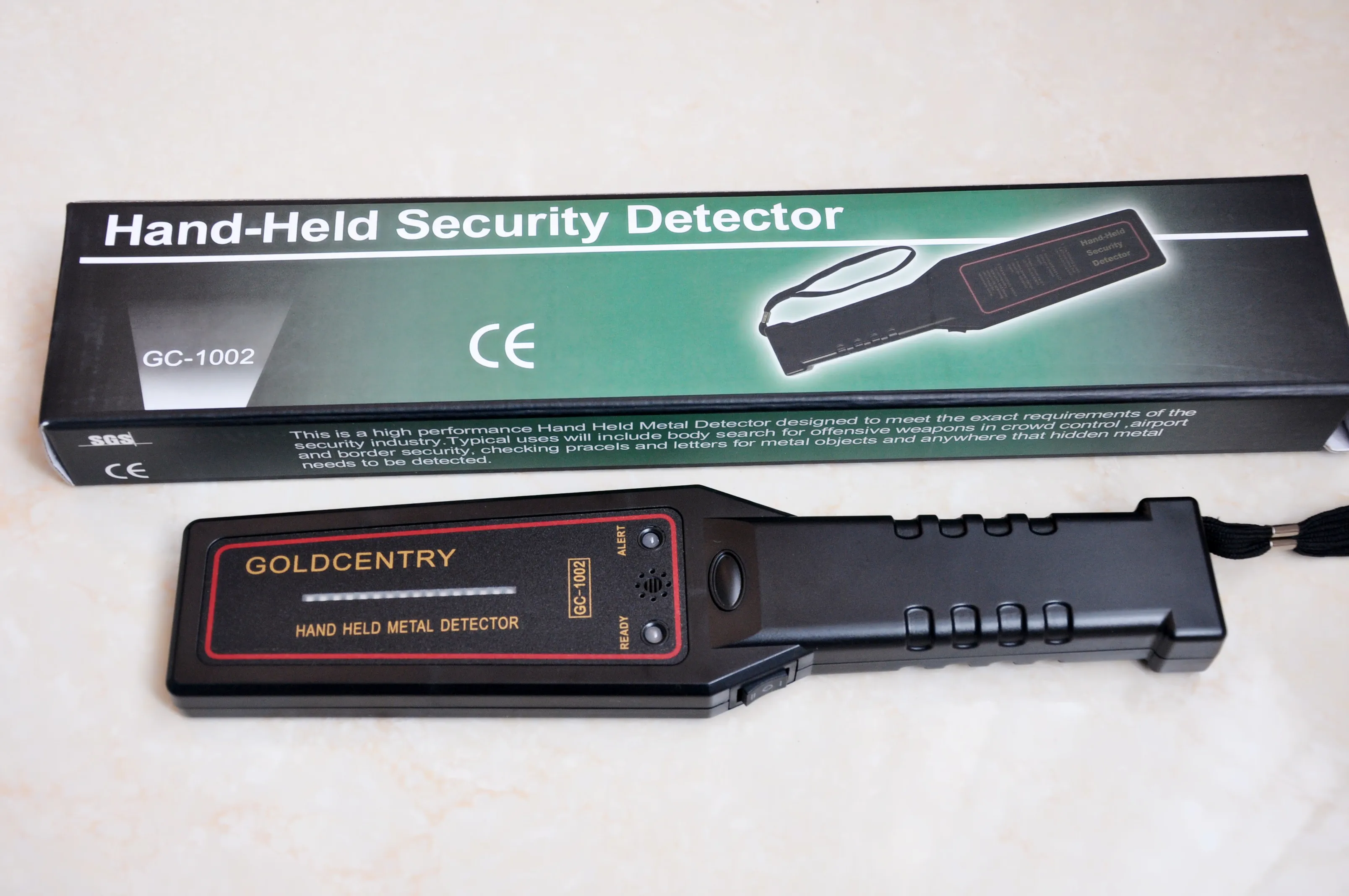

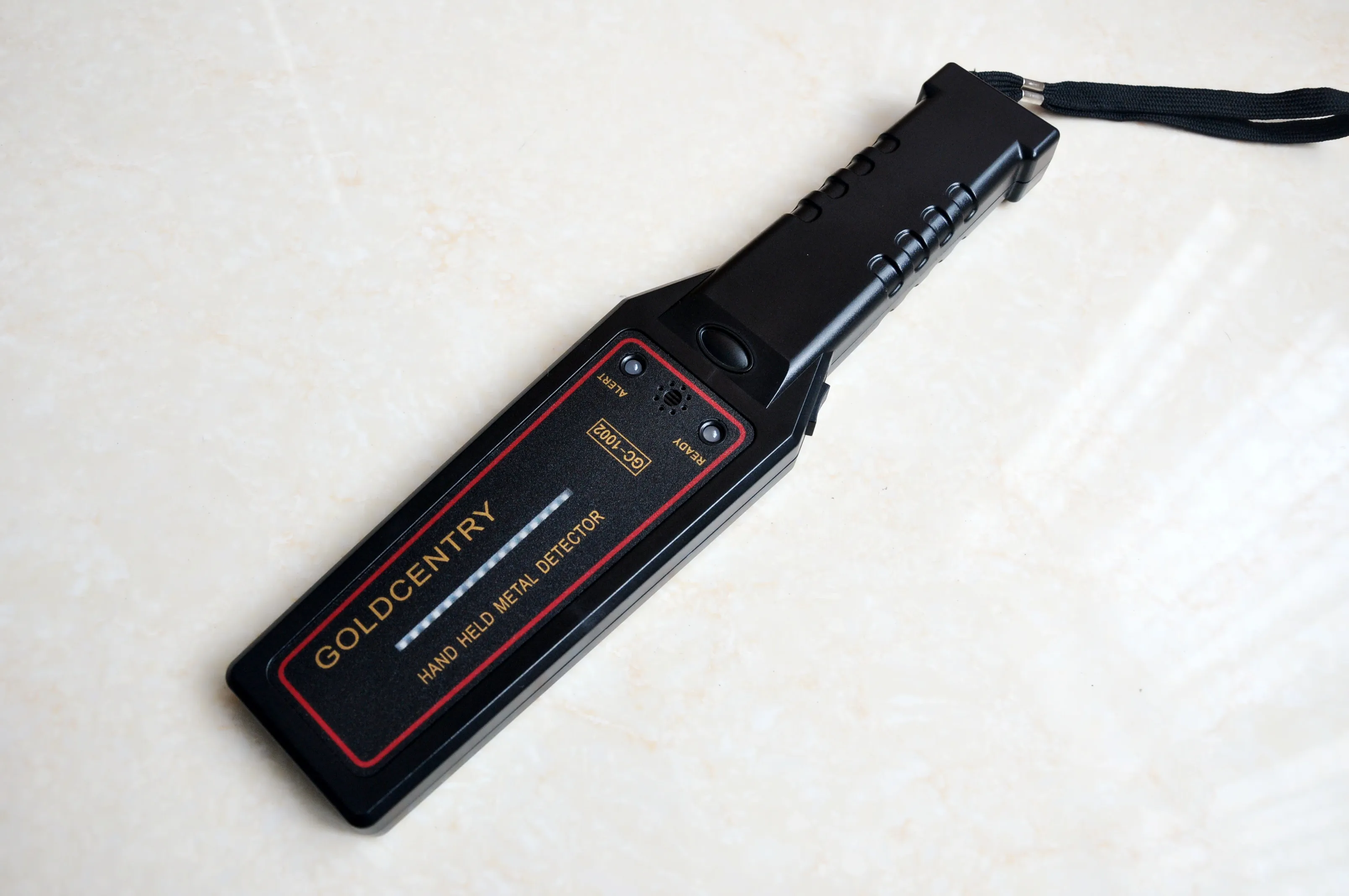

High Performance / Hand-Held metal detector GC-1002

Instructions

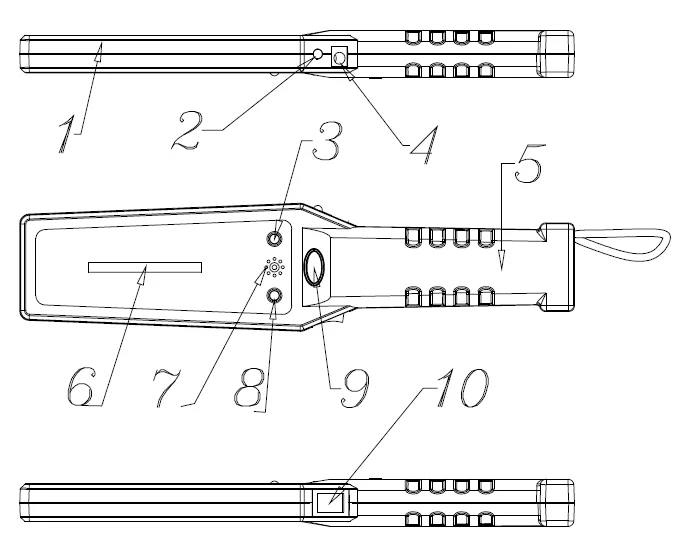

I.  DETAILS:



1. Detection  Area

2. Low Battery Indication (The battery is low,this light on)

3. Alarm indicator (red)     4. Charging jack

5. Battery cover (rear)      6. Signal Strength Indicator

7. Audio Alert               8. Ready  (green)

9. Low sensitivity switch(Reset)

10. Switch (Sound ,Off Or Vibration)



1

II.  INTRODUCTION:

1. Airports, railway stations, docks electronic detection checks;

2. customs, public security, security checks;

3. Medicine, food quality inspection business systems;

4. sawmill detection nails, important places, playground safety inspection;

5. precious metal detection, such as gold and silver jewelry factory, electronics factory.

III.DETECTION RANGE:

1. Staple   30—50mm        2 Tiananmen-style pistol    200mm

3 38 Caliber Pistol      250mm

IV.  FEATURE:

1. streamlined appearance, small and exquisite, easy to carry; easy to use, convenient, no need to adjust;

2. with battery voltage indicator; When the battery is low, the yellow light will on, to remind you to charge or replace the battery;

3. electricity province, 250MA battery charging time can work continuously for more than 40 hours; When 9V battery down to about 7V, the same detection range;

4. two alarm modes are available: LED lights and audible alarm or vibrating alarm;

5. light weight, large area detection sensor to detect speed;

6. There are high and low two kinds of sensitivity options;

7. has an external charging jack: After installing rechargeable battery,you can charge your detector with a charger(12VDC power supply)

8. with superior shock resistance, durable, one meter height of free fall without damage;

2

V.  OPERATION:

1. Turn the power switch (10) to hear alert sound or vibrate, which means that the power is turned on,.when the green light blinking, the detector can be use. If the green light is not bling,maybe the battery is broken, or the battery can not be reused,when the yellow light on , please recharge or replace the batteries with new.

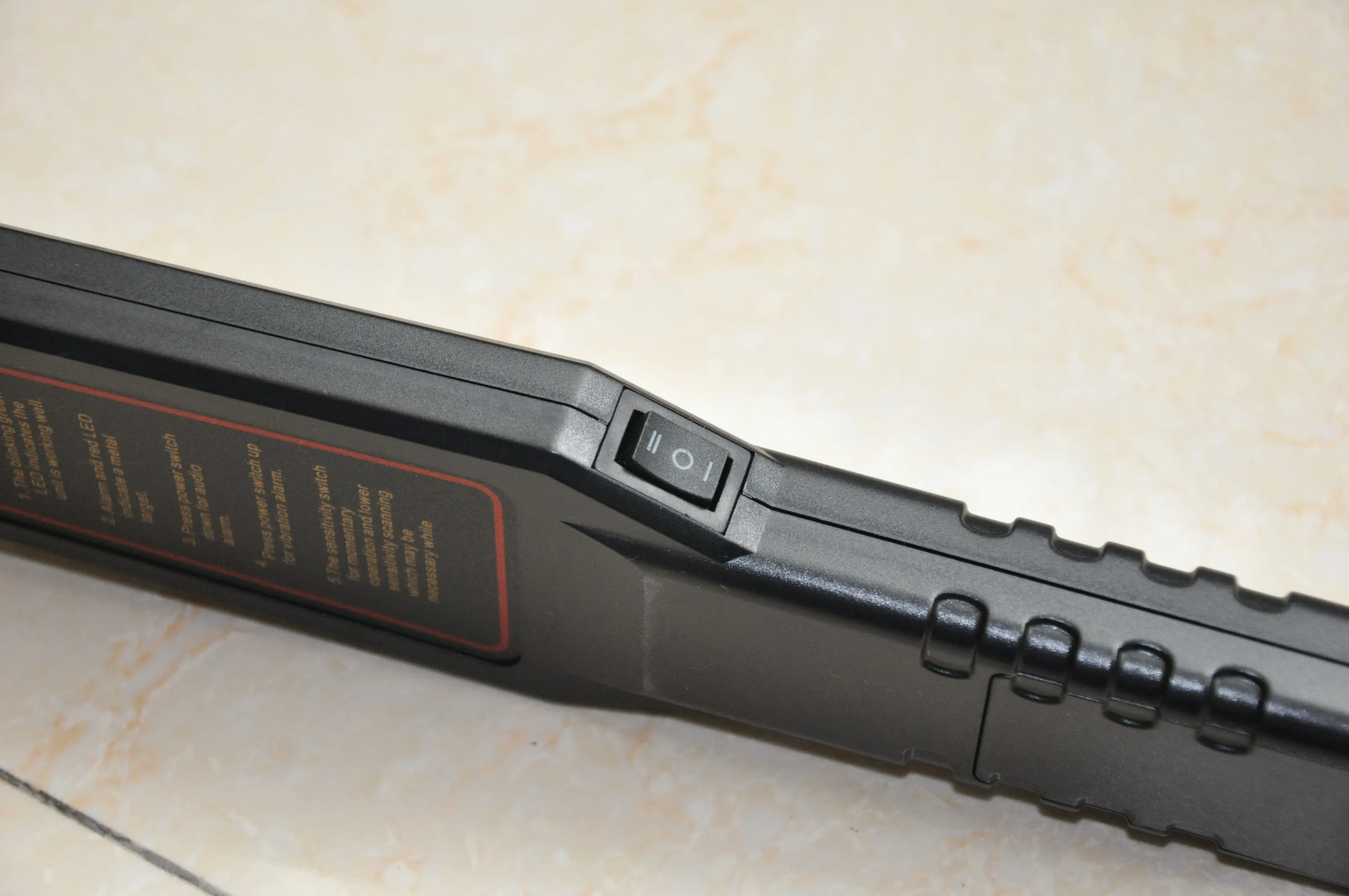

2. sound, vibration change option: switch (10) for the third gear switch, intermediate stops to turn off the power, docked one side of an audible alarm, vibration alarm the other direction.

3. After the power is turned on, you can perform high sensitivity detection, Scan the targer with the Detection Area ,when metal be detected the red light on and the alarm sound or vibration.

4. low sensitivity detection: If you need a low-sensitive detection (such as in the vicinity reinforced of the ground to find a coin), you can hold down the low sensitivity switch (9),then the sensitivity reduced to about  1/5.

5. Charging: when the yellow light is on,  It’s means the battery power is low, please connect the charger.  when the battery voltage reaches 9V, green light (8) will light up when the green bright enough to prove ,that the battery is fully charged. (Charging time depends on the specific battery capacity, our factory standard battery is  about 3 to 6 hours to full)





3

VI.  PRECAUTIONS:

1. Turn off the power after use,Do’t forget! Long time not to use please take out the battery

2. when the detector is fixed against the metal,It does not send sound or vibration , sound or vibration only occurred when the detector sanning;

3. When charging, please note that with the use of rechargeable batteries, Otherwise it may cause the battery to explode; charger voltage: AC or DC 12V, 1000MA;

4. When using an external power supply, you can remove the battery, then use the sufficient power supply, or it may cause the detector does not work.

VII.TECHNICAL PARAMETERS:



1,Alarm Indication:

Flashing green LED: Power

Flashing red LED: Target has been detected

Continuing yellow LED: Low Voltage Directive

Metal indication LED: detection of objects of different sizes, the light from green to red gradient

2,Power supply: 9V battery standard

3,Power: maximum <700MW (0.7W), standby power 100MW (0.1W

4,Operating frequency: 55KHZ

5,Standby current: <5MA

6,Operating Voltage: DC 7 ~ 12V

7,Working temperature: -10 ℃ ~ 65 ℃

8,Reset time: 0.5 seconds, the automatic

9,Weight: 170g (without batteries)

10,Size: 295mm * 68mm * 28mm
