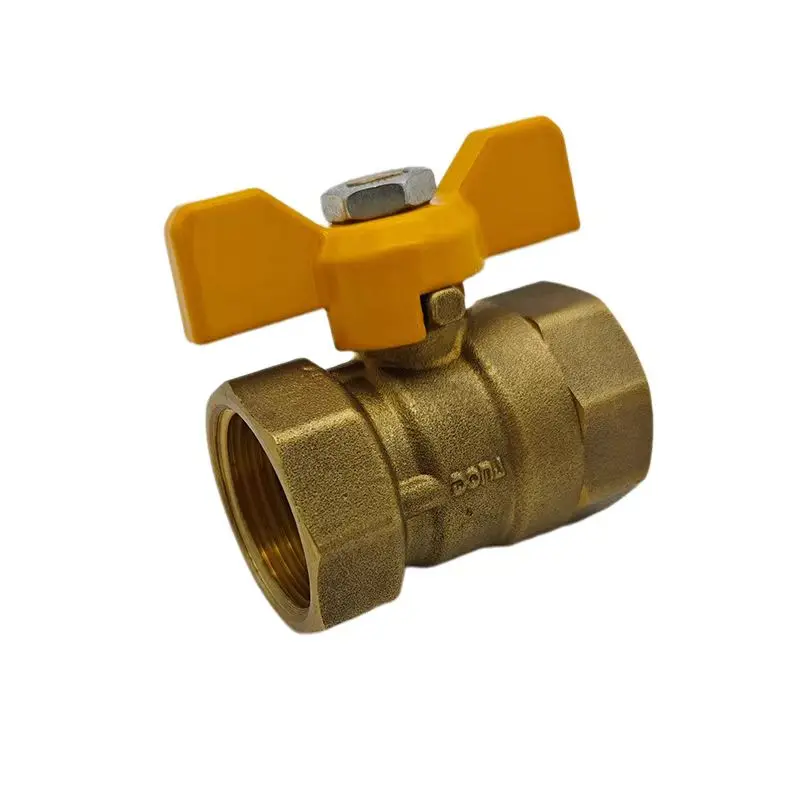

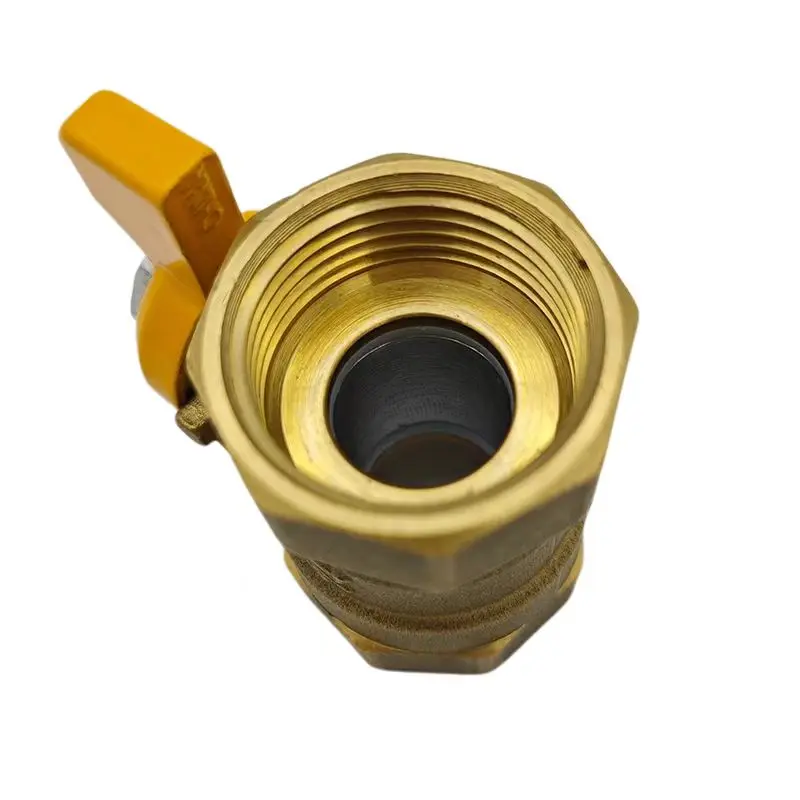

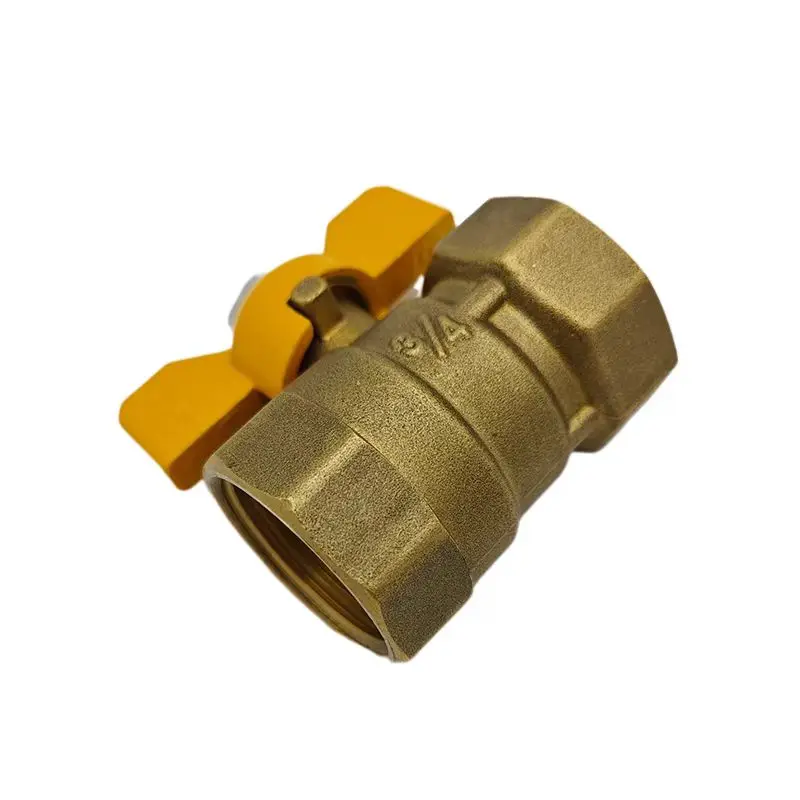

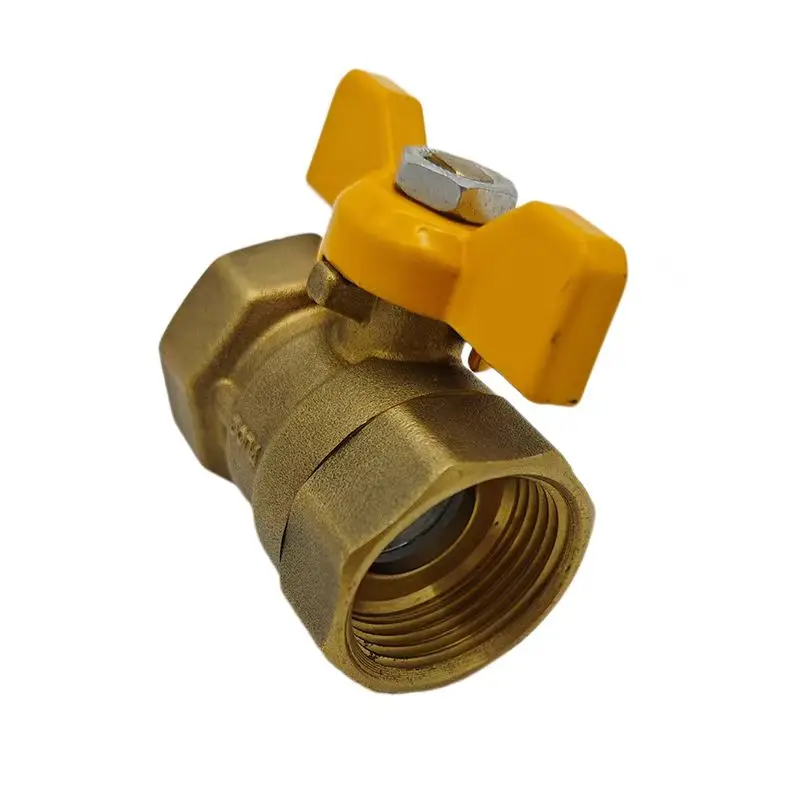

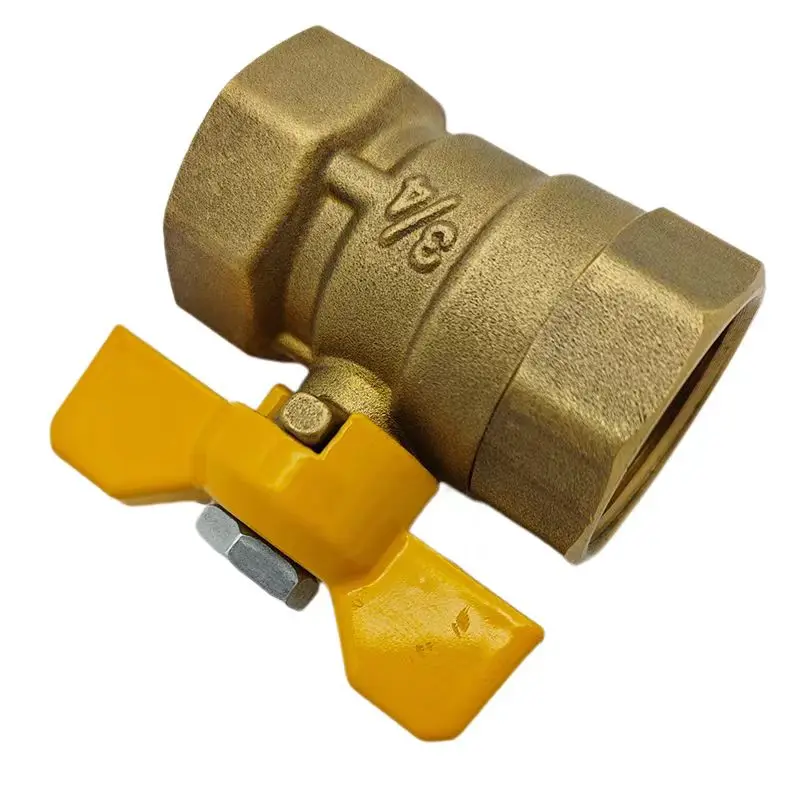

Brass Ball Valve With Butterfly Handle Two Way Forged Manual Valve All Copper General Application Customizable 2TXG WH
- Category: >>>
- Supplier: Ningbo Texoon Brass Works Co. Ltd.
Share on (1601069615946):
Product Overview
Description
Products Description
Specification
●Full port
●Forged Brass Body
●Blow Out Proof Stem Design
●Double-O-ring
●Butterfly handle
●Forged Brass Body
●Blow Out Proof Stem Design
●Double-O-ring
●Butterfly handle
●Thread:ISO228
Performance Rating
●Max working pressure 1.6Mpa
●Temperature Range:0℃-120℃
●Temperature Range:0℃-120℃
Certification
●cUPC、 NSF/ANSI 61、NSF/ANSI 372 and CSA Approved
Model & Structure Dimension
Model | Size | Port |
2TXG-WH050 | 1/2" | 0.501" |
2TXG-WH075 | 3/4'' | 0.591" |
2TXG-WH100 | 1'' | 0.787" |
Material List
No. | Name | Material | QTY |
1 | Body | Brass | 1 |
2 | Seat | PTFE | 2 |
3 | Ball | Stainless Steel/Brass | 1 |
4 | O-Ring | NBR | 2 |
5 | Stem | Brass | 1 |
6 | Handle Nut | Plated Steel | 1 |
7 | Handle | AL-alloy | 1 |
8 | Cap | Brass | 1 |
