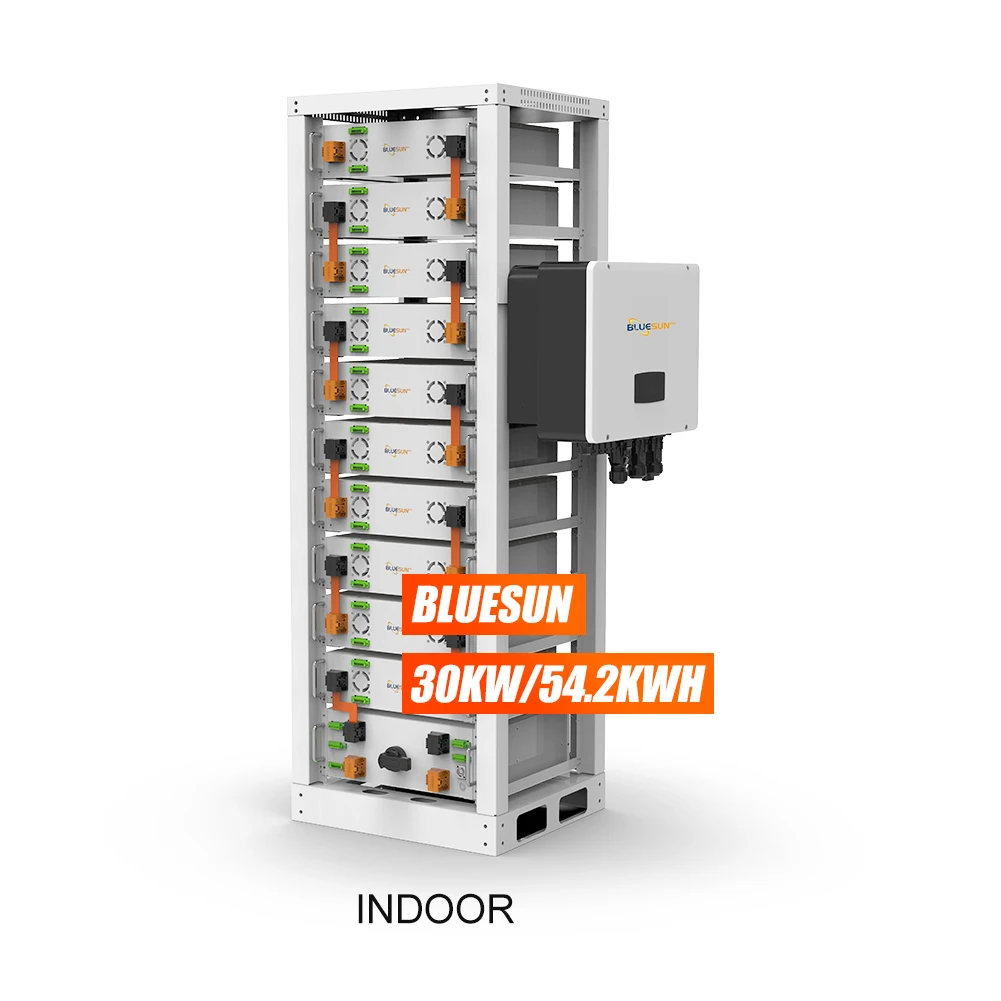

Bluesun 2024 30kw solar system with lithium battery 30000w 100kw 1mw battery energy storage systems for factory
- Category: >>>
- Supplier: Bluesun Outdoor Energy Co. Ltd.
Share on (1601069847748):
Product Overview
Description
Product Description

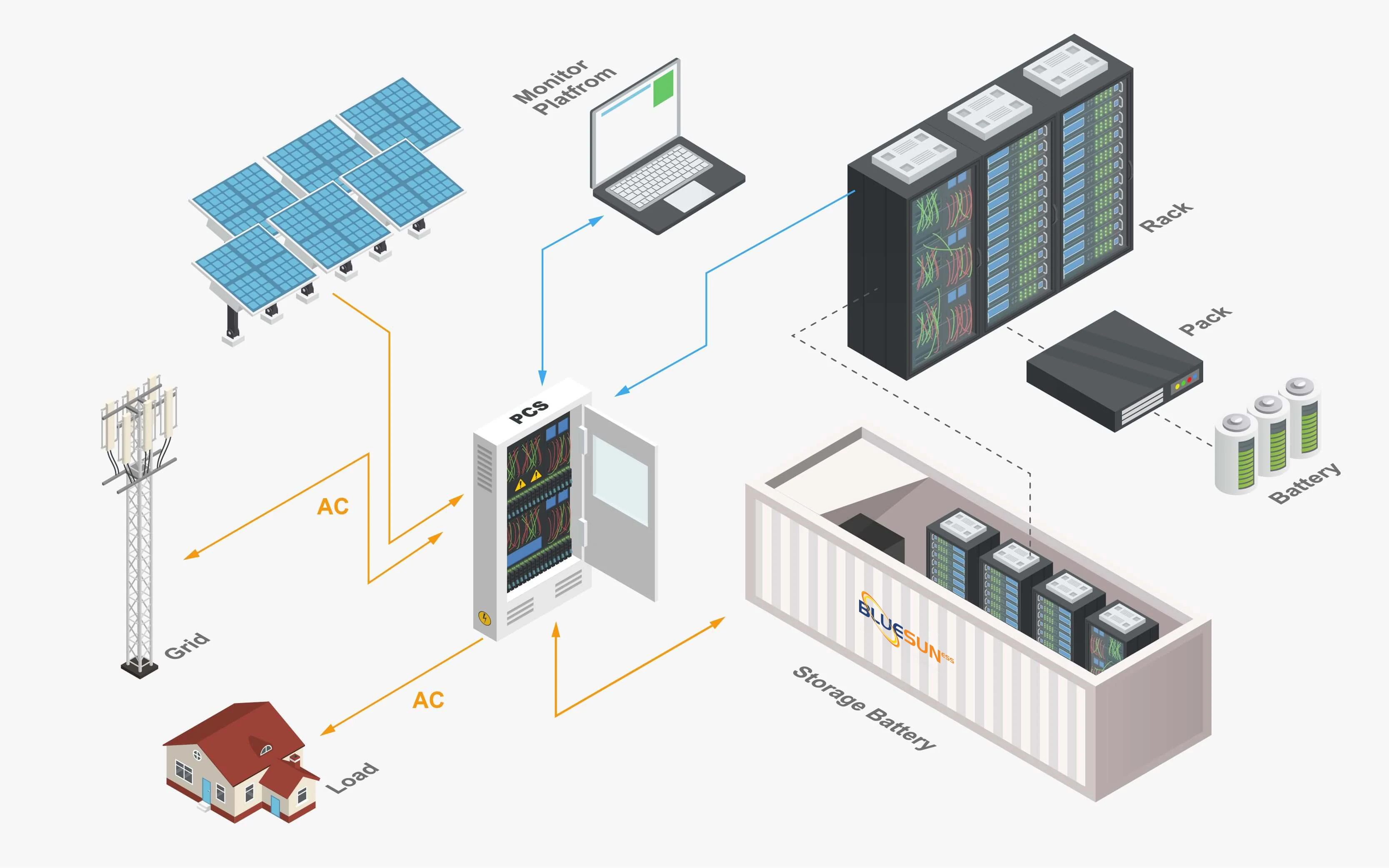

System Diagram
30KW Hybrid Solar Power System Components List | ||||||
Item | Model | Description | Quantity | |||
1 | Solar Panel | Mono Perc 455W Solar Panel | 68pcs | |||
2 | Combiner Box | Customized | 1 pc | |||
3 | Lithium Battery or Lead Acid Battery | 30kwh 307.2V 105AH lithium battery racks, BMS and battery cables | 1set | |||
4 | Hybrid Inverter | 30KW grid hybrid inverter 230/380VAC 50HZ built in MPPT controller | 1 pc | |||
5 | Mounting Support | Roof/Ground | 1 set | |||
6 | Cable | 4mm² PV cable | 500m | |||
7 | Connector | Solar Connector | 36pairs | |||
8 | Tools Bag | Solar Installation tools | 1 set | |||
50KW Hybrid Solar Power System Components List | ||||||
Item | Model | Description | Quantity | |||
1 | Solar Panel | Mono Perc 455W Solar Panel | 119pcs | |||
2 | Combiner Box | Customized | 1 pc | |||
3 | Lithium Battery or Lead Acid Battery | 53.76kwh 512V 105AH lithium battery racks, BMS and battery cables | 1set | |||
BMS and battery cables | ||||||
4 | Hybrid Inverter | 50KW grid hybrid inverter 230/380VAC 50HZ, built in MPPT controller | 1 pc | |||
built in MPPT controller | ||||||
5 | Mounting Support | Roof/Ground | 1 set | |||
6 | Cable | 4mm² PV cable | 700m | |||
7 | Connector | Solar Connector | 54pairs | |||
8 | Tools Bag | Solar Installation tools | 1 set | |||
100KW Hybrid Solar Power System Components List | ||||||
Item | Model | Description | Quantity | |||
1 | Solar Panel | Mono Perc 455W Solar Panel | 238pcs | |||
2 | Combiner Box | Customized | 1 pc | |||
3 | Lithium Battery or Lead Acid Battery | 104.96kwh 512V 205AH lithium battery racks, BMS and battery cables | 1set | |||
4 | Hybrid Inverter | 100KW grid hybrid inverter 230/380VAC 50HZ built in MPPT controller | 1 pc | |||
5 | Mounting Support | Roof/Ground | 1 set | |||
6 | Cable | 4mm² PV cable | 1200m | |||
7 | Connector | Solar Connector | 70pairs | |||
8 | Tools Bag | Solar Installation tools | 1 set | |||
Which parts are customizable? | ||
Battery pack's Capacity | customizable | |
Battery pack's size | customizable | |
PCS | customizable | |
Battery pack's voltage （Lithium battery ） | customizable | |
Inverter | customizable | |
Kindly Reminder
Configuration Detail

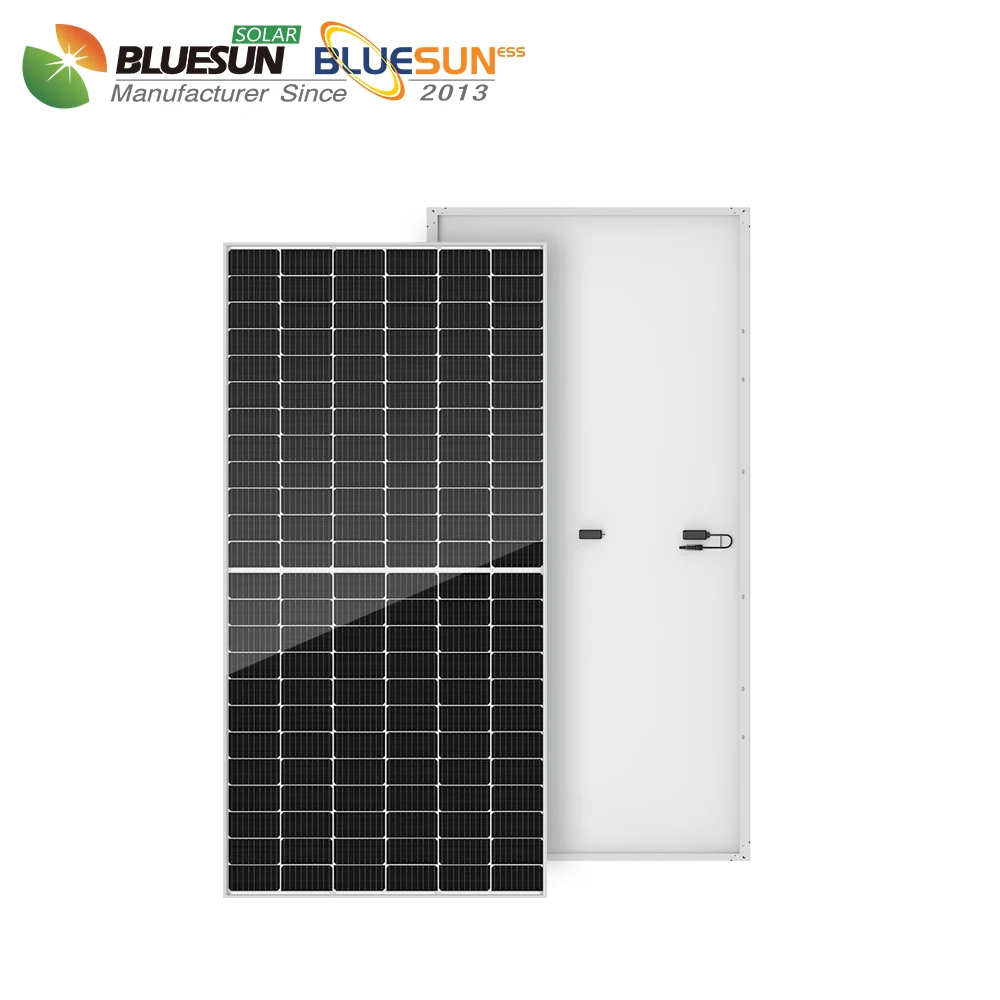

Solar Panels
> Perc/Bifacial/HJT solar panels are available
>25 years warranty
> Highest quality with full certificates
> Excellent mechanical load resistance
> PID Resistant,High salt and ammonia resistance
Hybrid Solar Inverter
> NREL certified PCS P-Q & V-F mode
>Built-in or external transformer offers option for 400Vac connection
>Design with highly integrated power distribution boxes
>Intermodal shipping container
>Design with highly integrated power distribution boxes
>Intermodal shipping container
>Laboratory testing, failure rate < 1%
>10ft/20ft/40ft standard ISO container
>10ft/20ft/40ft standard ISO container
PV Combiner Box
>Cross Section: 4mm2, 6mm2 Optional
>Rated Voltage:600VDC/1000VDC(TUV)
>Rated Current: 55A,70A
>Colors: Black For STD, Red Optional.
>Rated Voltage:600VDC/1000VDC(TUV)
>Rated Current: 55A,70A
>Colors: Black For STD, Red Optional.

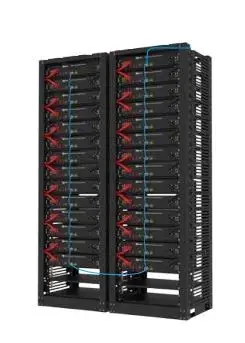

Battery Cabinet
>Lithium-ion (LFP/NCM/NAM) or Lead-acid, or Nickle Iron, or Flow battery compatible

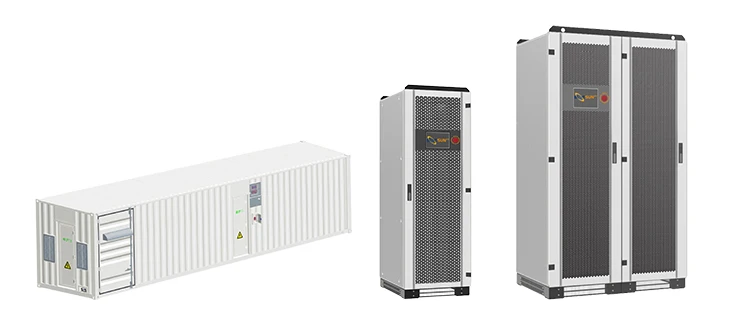

>100kWh/200kWh/500kWh Outdoor Cabinet ESS Compatible with rack Mounted battery

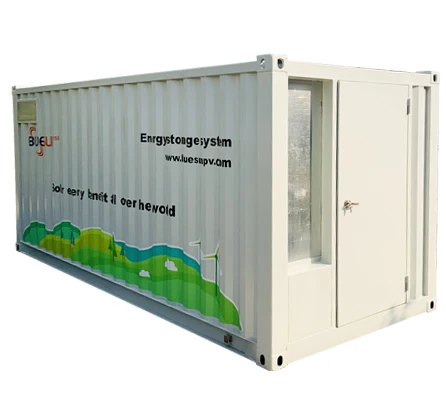

>Container Solar System, Easy to Install and dispatch, with built-in HVAC/FSS (optional), and could be used in parallel
>Back up Optional from Diesel generator, State Grid, Solar Battery
>Container Solar System, Easy to Install and dispatch, with built-in HVAC/FSS (optional), and could be used in parallel
>Back up Optional from Diesel generator, State Grid, Solar Battery
Accessories
> AC Cable
> DC Switches
> AC Breaker
PV Mounting System
> Residential Roof(Pitched Roof)
> Commercial Roof(Flat roof&workshop roof)
> Ground Solar Mounting system
> Vertical wall solar mounting system
> All aluminum structure solar mounting system
> Car parking solar mounting system
> Commercial Roof(Flat roof&workshop roof)
> Ground Solar Mounting system
> Vertical wall solar mounting system
> All aluminum structure solar mounting system
> Car parking solar mounting system
>Wire Cable Cutter & Stripper
> PV connector Crimper
> PV connector Assembly
>Disassembly Tool
> PV connector Crimper
> PV connector Assembly
>Disassembly Tool

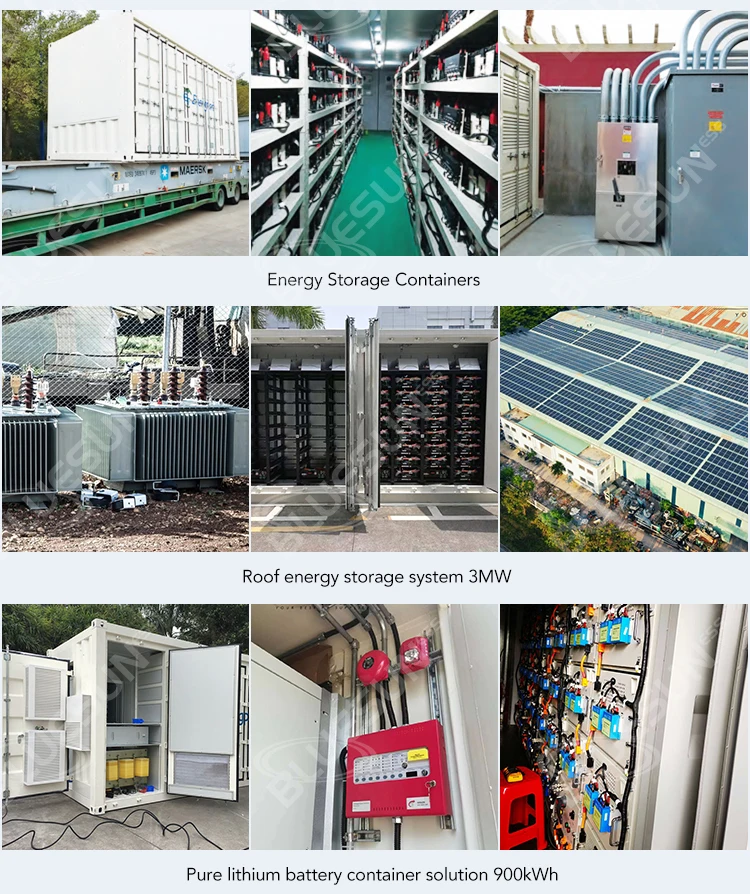

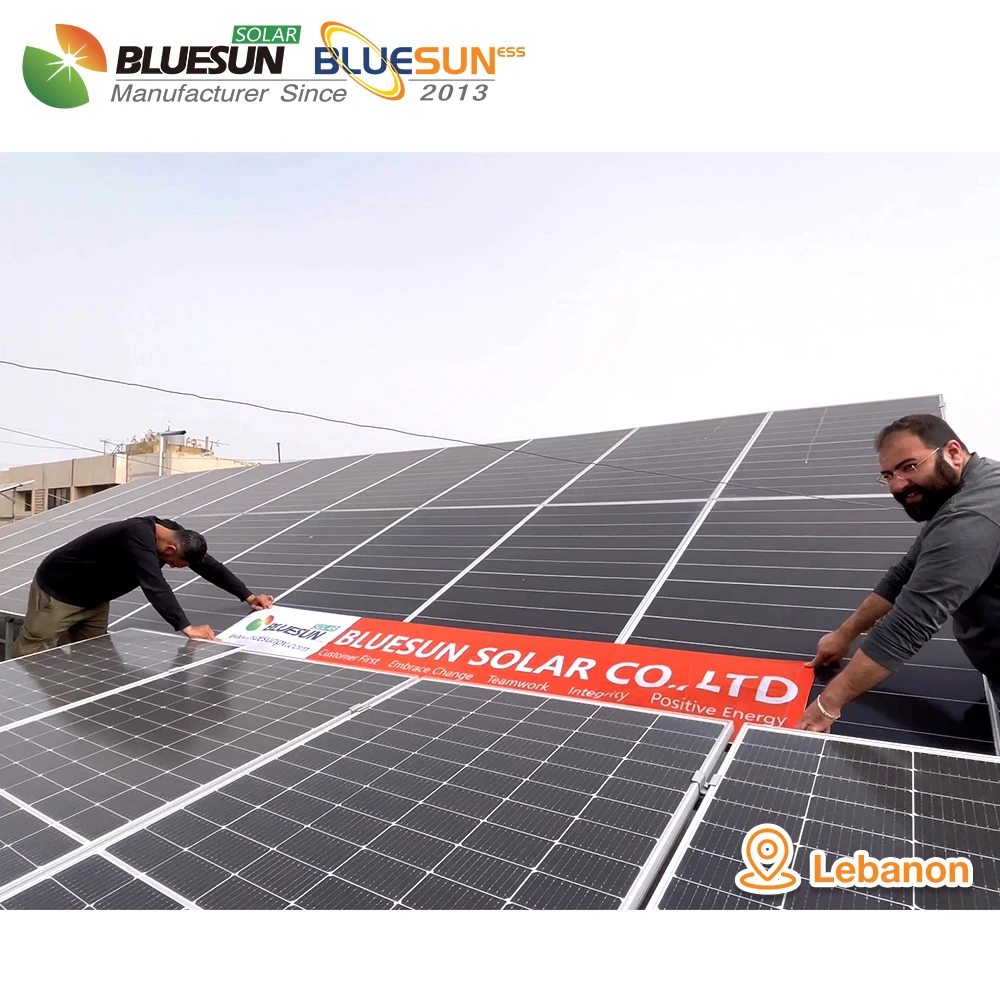

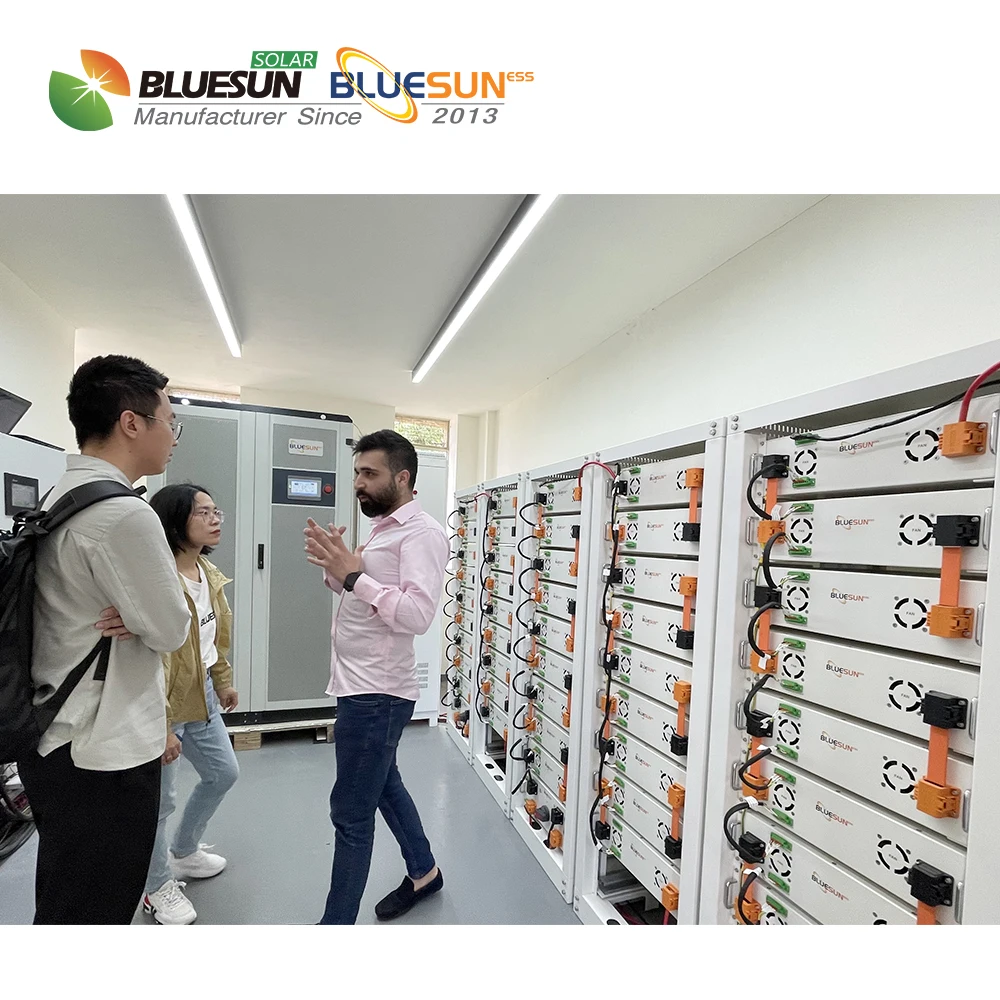

Project
