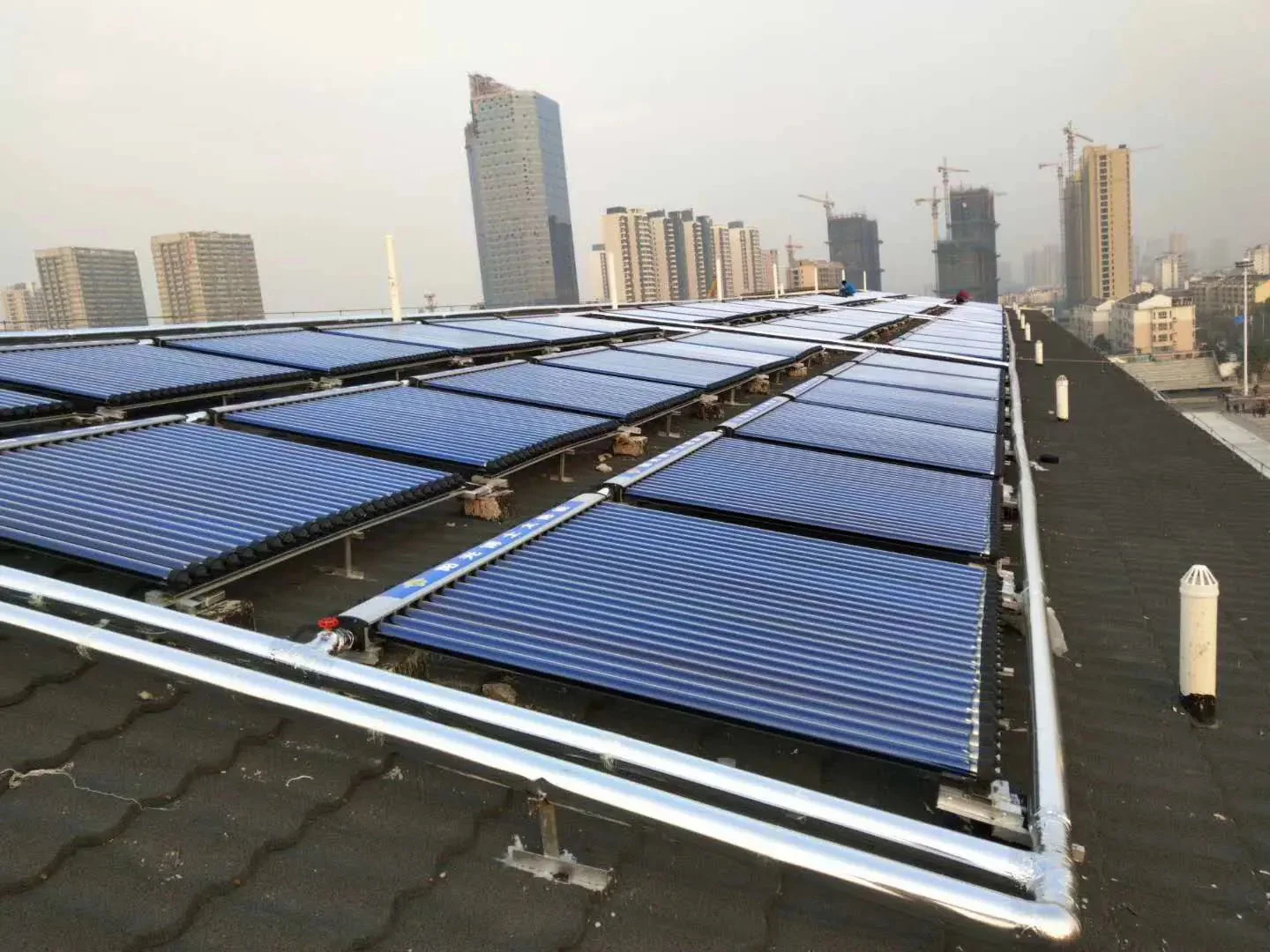

2024 new solar collector solar water heater heat pipe solar collector for house commercial hotel
- Category: >>>
- Supplier: Haining Meisheng New Energy Co. Ltd.Haining Ltd.
Share on (1601069896539):
Product Overview
Description

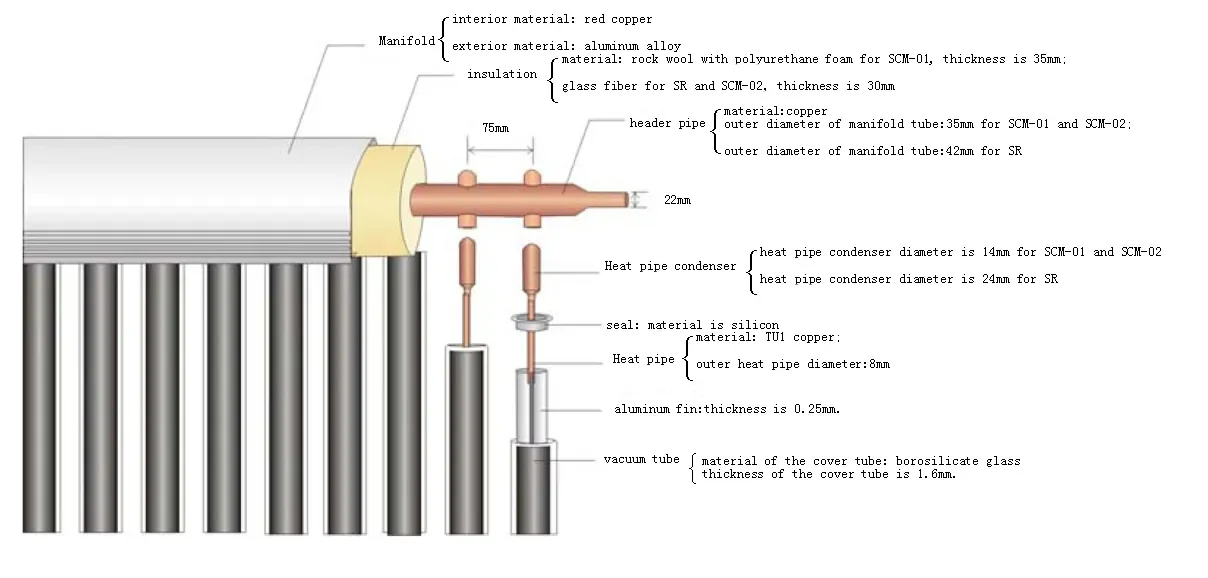

Type | Heat pipe collector | ||||||
Manifold Casing Material | Aluminium (grade 3A21) | ||||||
Frame Material | 6063 Aluminum Alloy（1.8mm） | ||||||

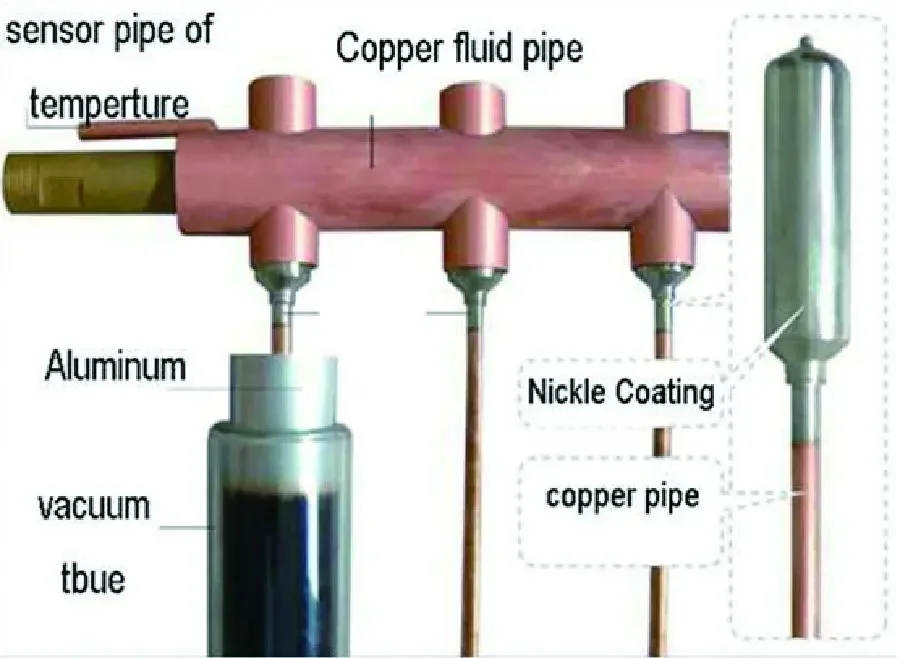

Header Pipe Material | 99.93% pure Copper & lead free 45% silver brazing | ||||||
Fins around heat pipe | Double round aluminum 1.68m | ||||||
Insulation | Compressed Glass Wool - K = 0.041W/mK | ||||||
Rubber Seals and Rings | HTV grade silicone rubber | ||||||
Optimal installation angle | 20-70° Vertical, -5° to +5° Horizontal | ||||||
Maximum Operating Pressure | 8 Bar-16psi | ||||||
Optimal flow rate | 0.1L/min/tube - 0.026G/min/tube | ||||||
Inlet outlet | 3/4" or 1” or 1/2“ optional | ||||||
Performance Data | Conversion Factor: h° = 0.70 | ||||||
Loss Coefficients: a1 = 1.52, a2 = 0.0085 | |||||||
INSULATION
Polyurethane foaming with 40mm thickness
EASY MAINTENANCE
No water in the vacuum tube, convenient to be changed if broken
REASONABLE STRUCTURE
It could be installed on both flat roof and slope roof and the frame could be adjusted.
STEADY PERFORMANCE
Tested by the most advanced SWT solar system testing machine imported from Germany.
HIGH PERFORMANCE
Starting fast,working reliably,saving energy excllent performance
ECONOMICAL
Ideal solar collector for projects because of high efficiency. Topmost Sales across all products in Europe
Polyurethane foaming with 40mm thickness
EASY MAINTENANCE
No water in the vacuum tube, convenient to be changed if broken
REASONABLE STRUCTURE
It could be installed on both flat roof and slope roof and the frame could be adjusted.
STEADY PERFORMANCE
Tested by the most advanced SWT solar system testing machine imported from Germany.
HIGH PERFORMANCE
Starting fast,working reliably,saving energy excllent performance
ECONOMICAL
Ideal solar collector for projects because of high efficiency. Topmost Sales across all products in Europe
Short delivery time within 2 weeks.
All products tested 3 times before delivery and can offer 5 years warranty.
Mysun has CE, Solar KeyMark and ISO9001 certification. Ranked the TOP 3 in the solar thermal world.
We can accept OEM & ODM orders. Solar Collectors have high efficiency and long working life.

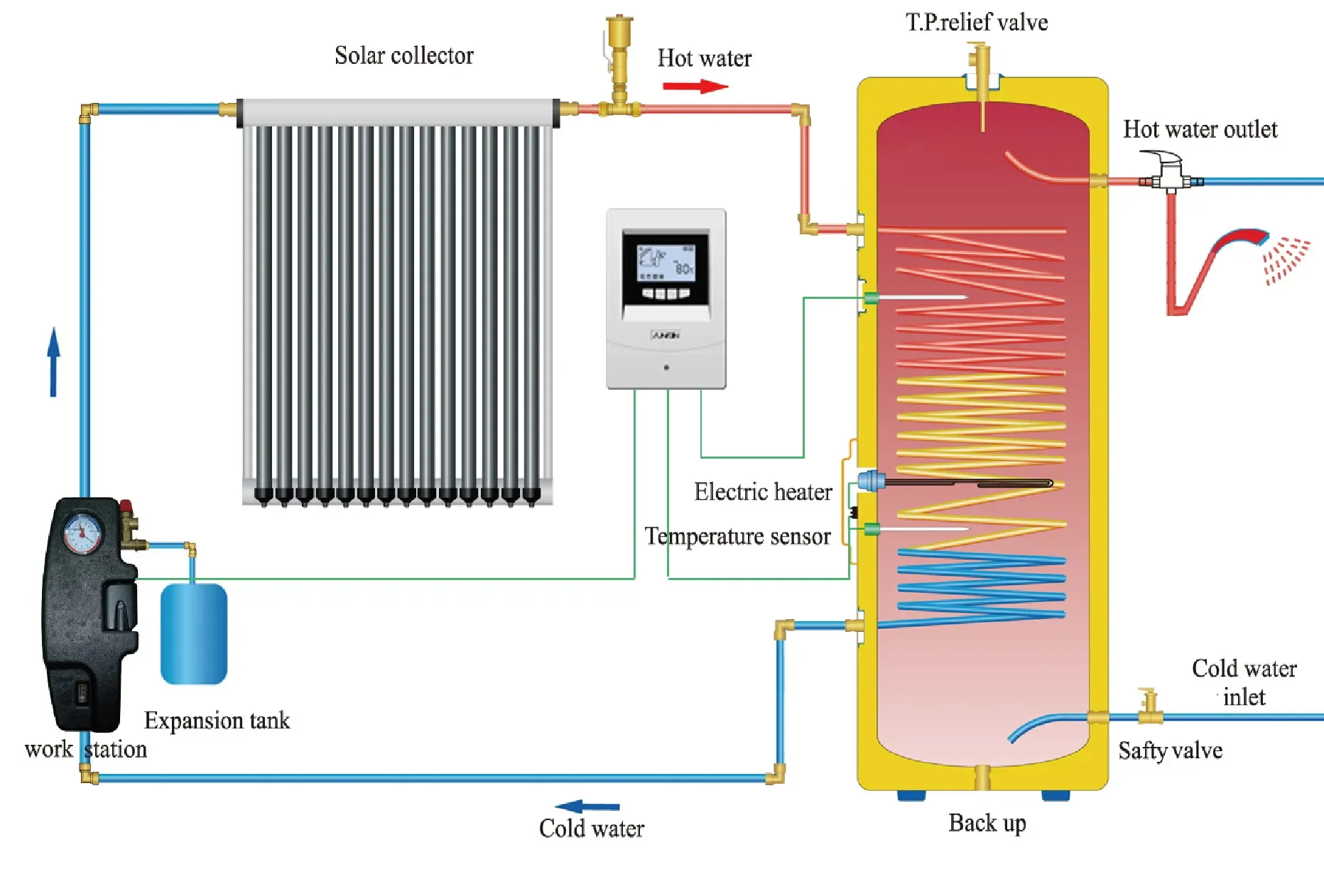

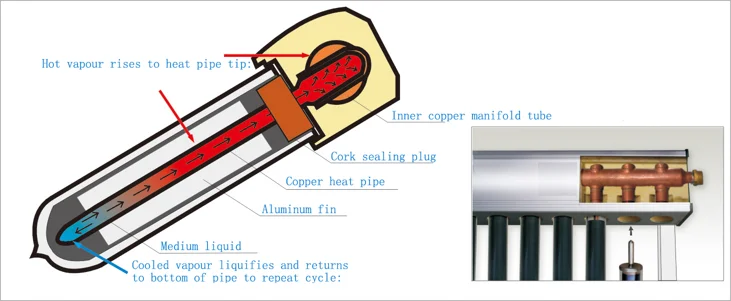

Principle
1. How can we guarantee quality?
2.What can you buy from us?
Solar water heater,solar collector,Solar water heater accessories.
Solar water heater production equipment,solar vacuum tube...
3. Why should you buy from us not from other suppliers?
4. What services can we provide?
Always a pre-production sample before mass production;Always finalInspection before shipment.
2.What can you buy from us?
Solar water heater,solar collector,Solar water heater accessories.
Solar water heater production equipment,solar vacuum tube...
3. Why should you buy from us not from other suppliers?
Focus on High Quality, reliable manufacturing products.
We make solar manufacturing equipment for solar production line rawmaterials if needed.
We have many stable and cooperative foreigncompanies, understand foreign markets and characteristics.
4. What services can we provide?
Accepted Delivery Terms: FOB;
Accepted Payment Currency: USD;
Accepted Payment Type: T/T,L/C,D/P D/A,PayPal;
Language Spoken: English,Chinese,Spanish,JapanesePortuguese,German,Arabic,French,Russian,Korean,Hindi,ltalian..
