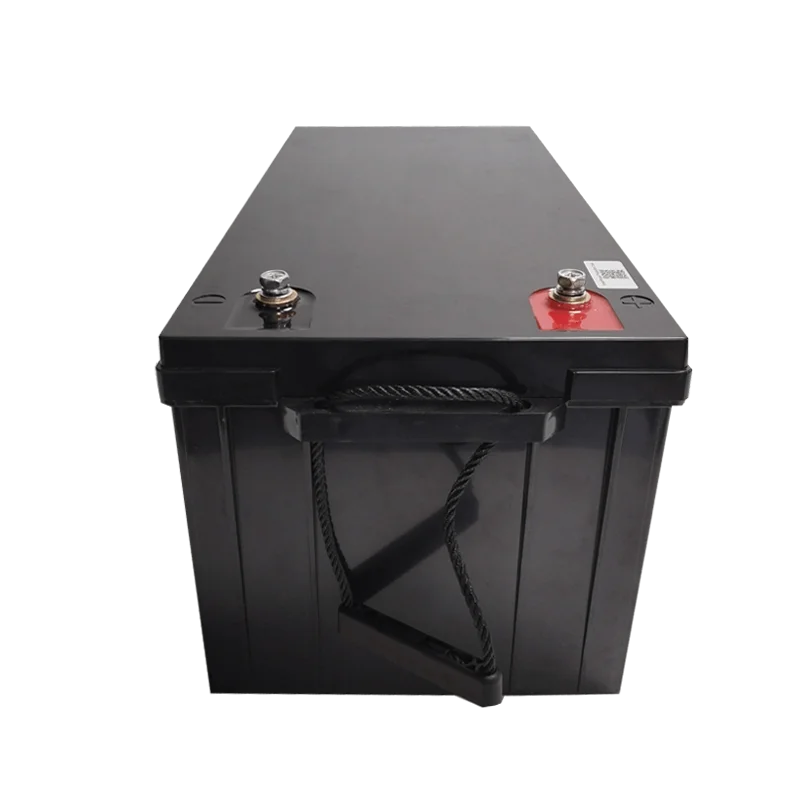

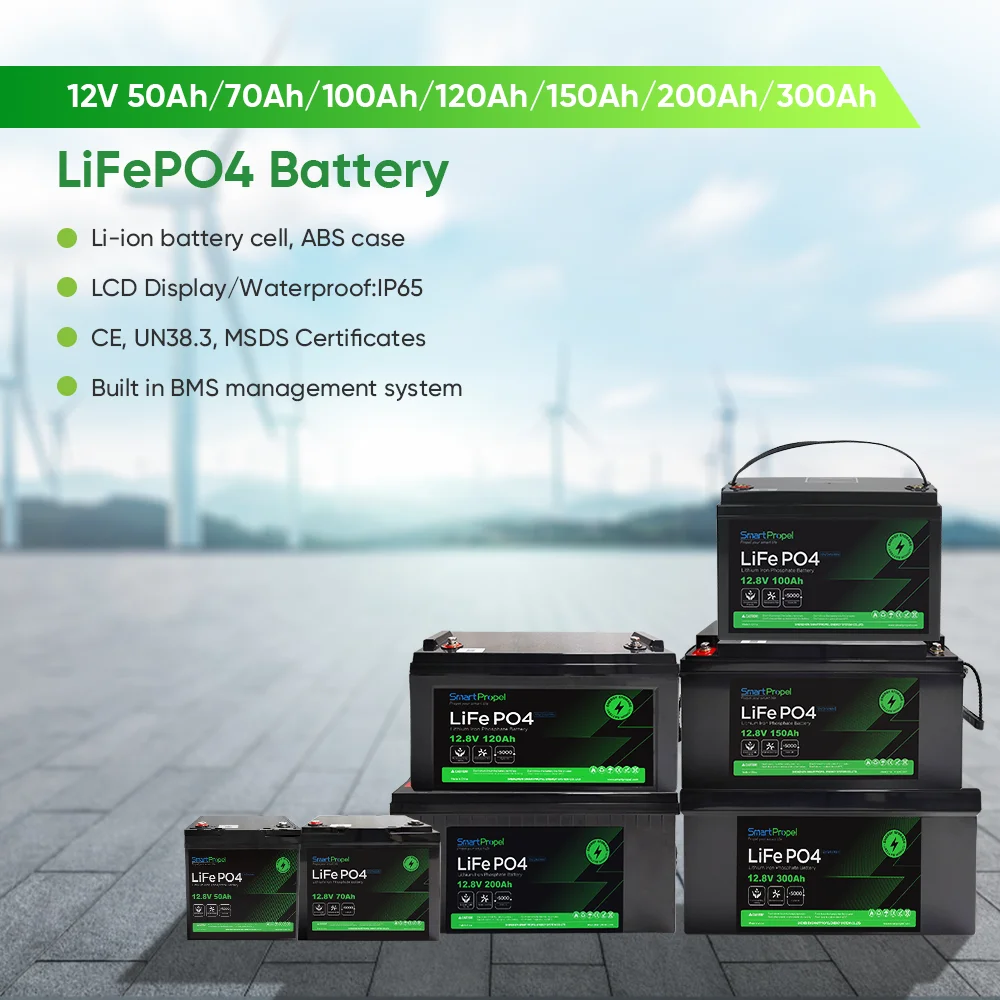

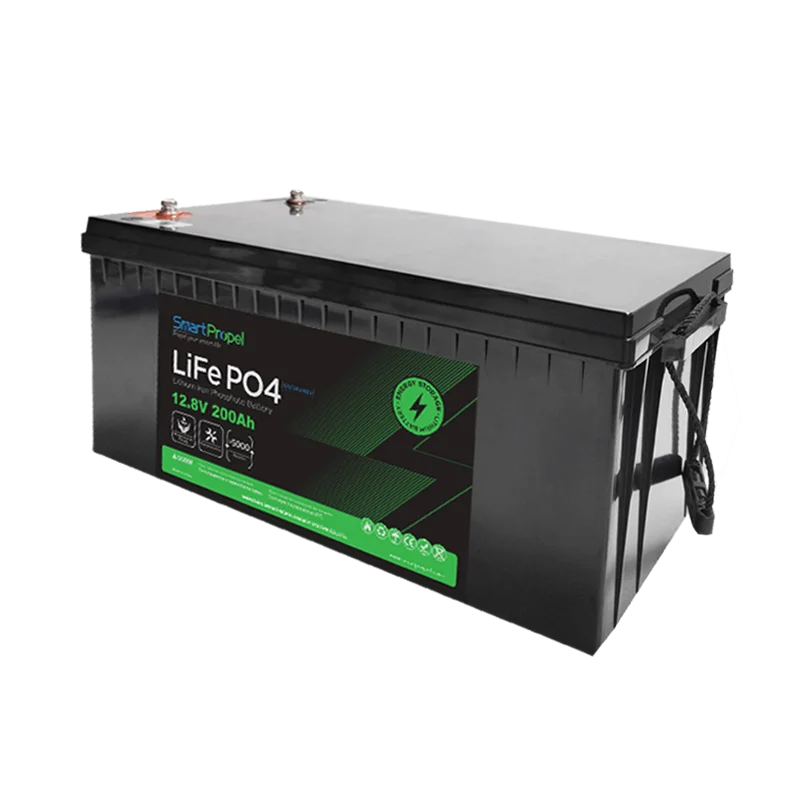

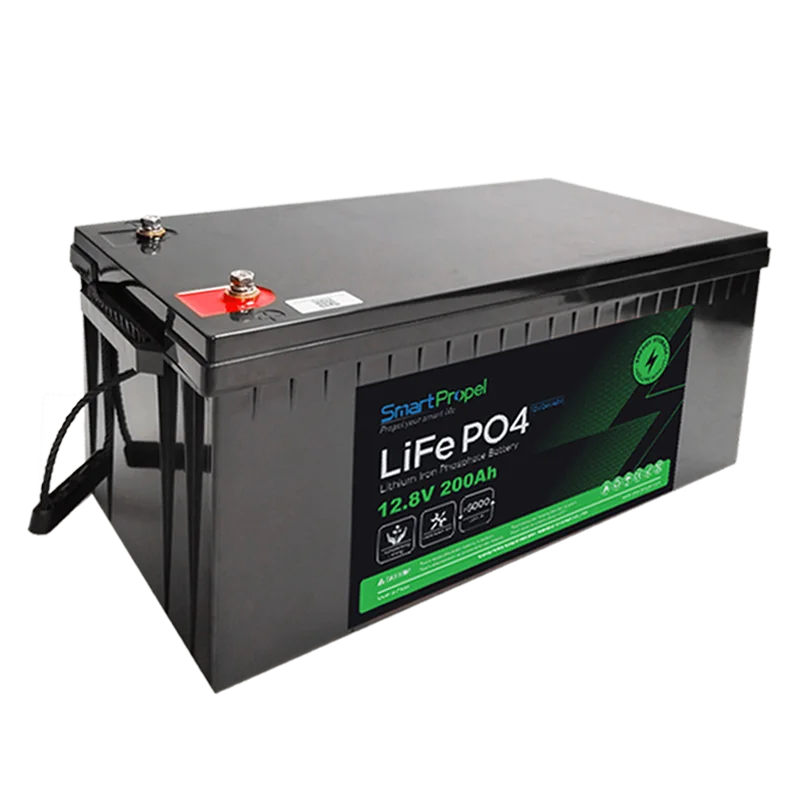

Solar Rechargeable Lfp Battery 12.8V 200Ah Lithium Ion Lifepo4 12V 100Ah 50Ah 24V Battery Pack Cell Energy Storage Battery
- Category: >>>
- Supplier: Shenzhen Smartpropel Energy System Co. Ltd.
Share on (1601070020140):
Product Overview
Description
Products Description
Electrical Characteristics | Nominal Voltage | 12.8V |
Nominal Capacity | 200Ah | |
Energy | 1280Wh | |
Internal Resistance | ≤40mΩ | |
Cycle Life | 3000 Cycles @ 0.2C Charging/Discharging ,80% DOD; 5000 Cycles, 50% DOD | |
Self Discharge | ≤3.5% per month at 25℃ | |
Standard Charging | Max.Charging Voltage | 14.0~14.6V |

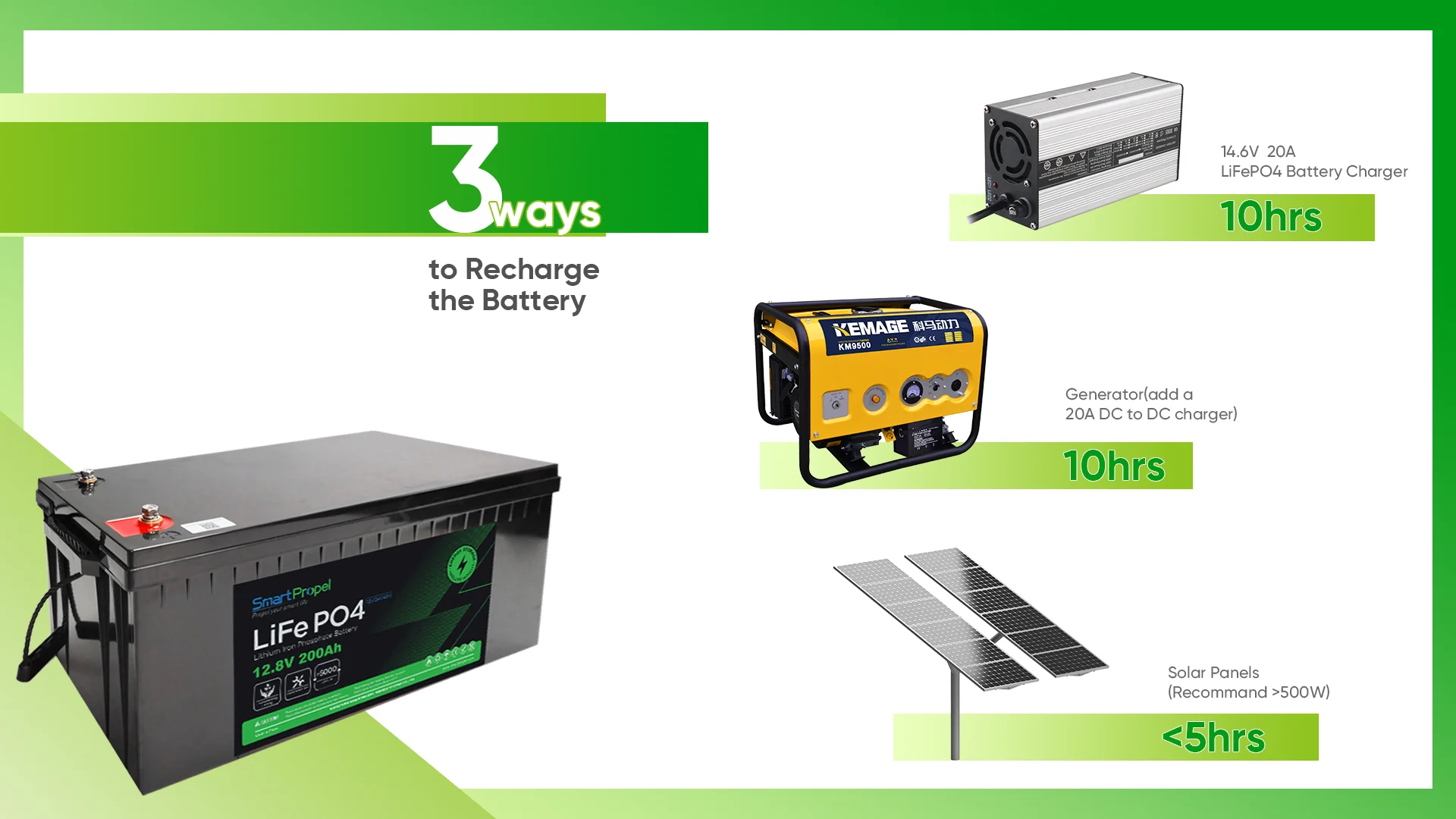

Charging Mode | At 0℃~45℃ temperature, charged to 14.6V at a constant current of 0.2C, and then,changed continuously with constant voltage of 14.6V until the current was not more than 0.02C | |
Charging Current | 20A | |
Max.Charging Current | 50A | |
Standard Discharging | Discharging Current | 100A |
Max. Continuous Current | 100Ah | |
Max.Pulse Current | 300A(<3S） | |
Discharging Cut-off Voltage | 10.0V | |
Operating Condition | Charge Temperature | 0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity |
Discharge Temperature | -20℃ to 60℃(-4℉ to 140℉) @60±25% Relative Humidity | |
Storage Temperature | 0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity | |
Water Dust Resistance | IP65 | |
Structure | Cell | LiFePO4 |
Casing | Plastic | |
Dimension(L*W*H) | 260*169*210mm | |
Weight | Approx. 9Kg | |
Terminal | M8 / M6 | |
Cell Equalization Function | ≥3.4V (can be reset) | Equalized opening voltage |
Cell equalization function | ≥30mV (can be reset) | Equalizing the start voltage difference |
≤20mV (can be reset) | Equalize the end voltage difference |
SmartPropel 12V Solar Battery Features
Advantages:

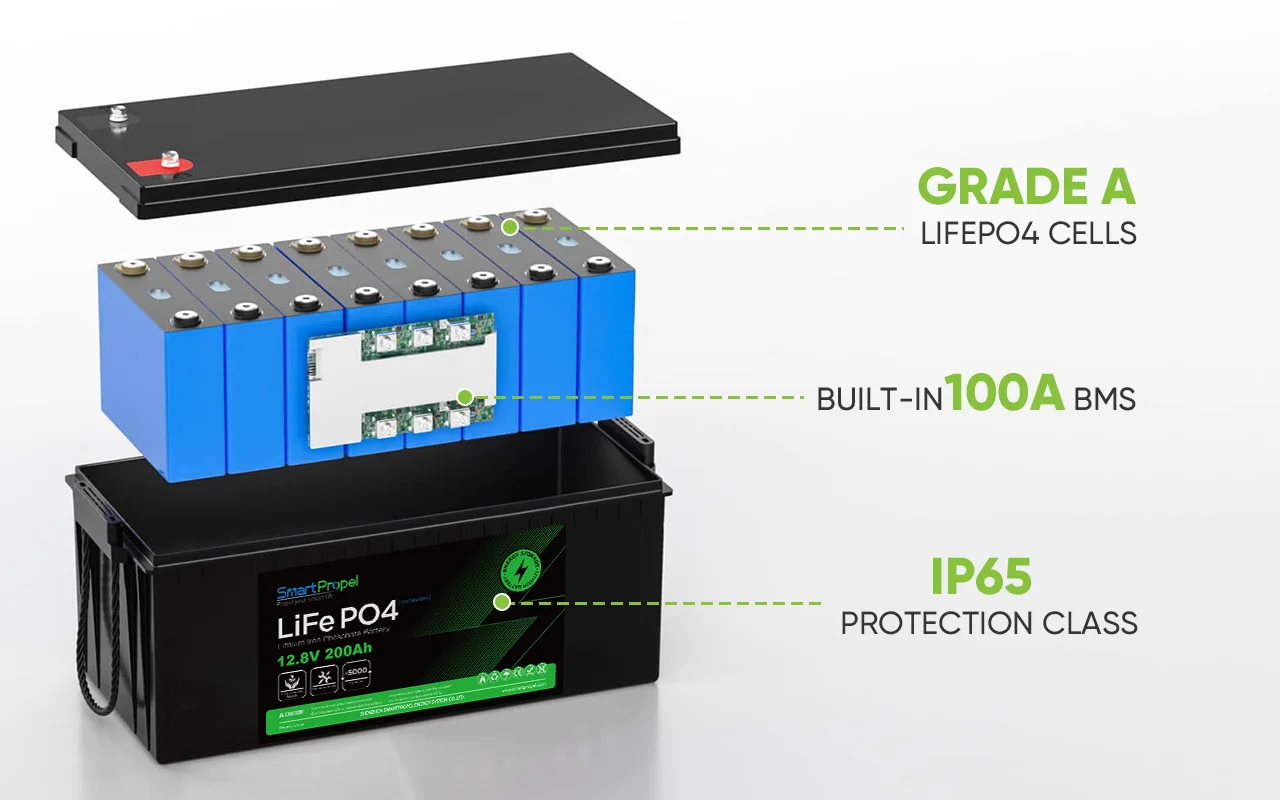

◆Using the technology of lithium iron phosphate cell, superior safety, 5000 cycles, 10 years design service life.

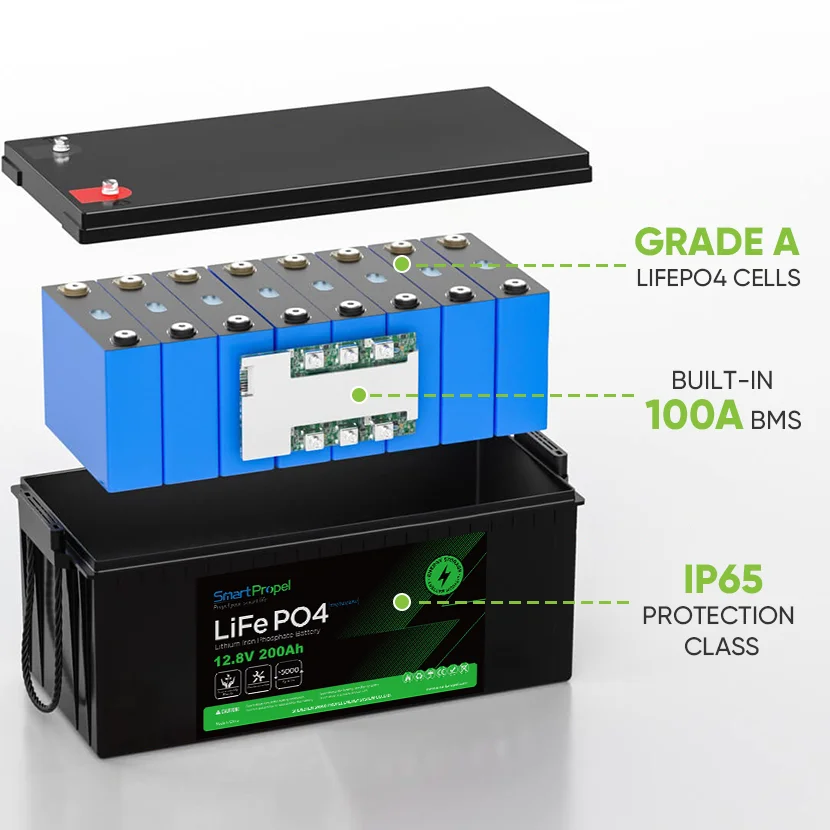

◆Built-in BMS automatic protection for over-charge, over discharge, over current and over temperature.
◆ Free of maintenance .
◆ Internal cell balancing.
◆ Lighter weight: About 40% ~50% of the weight of a comparable lead acid battery.
◆ Wider temperature range:-20℃~60℃.
◆ Free of maintenance .
◆ Internal cell balancing.
◆ Lighter weight: About 40% ~50% of the weight of a comparable lead acid battery.
◆ Wider temperature range:-20℃~60℃.

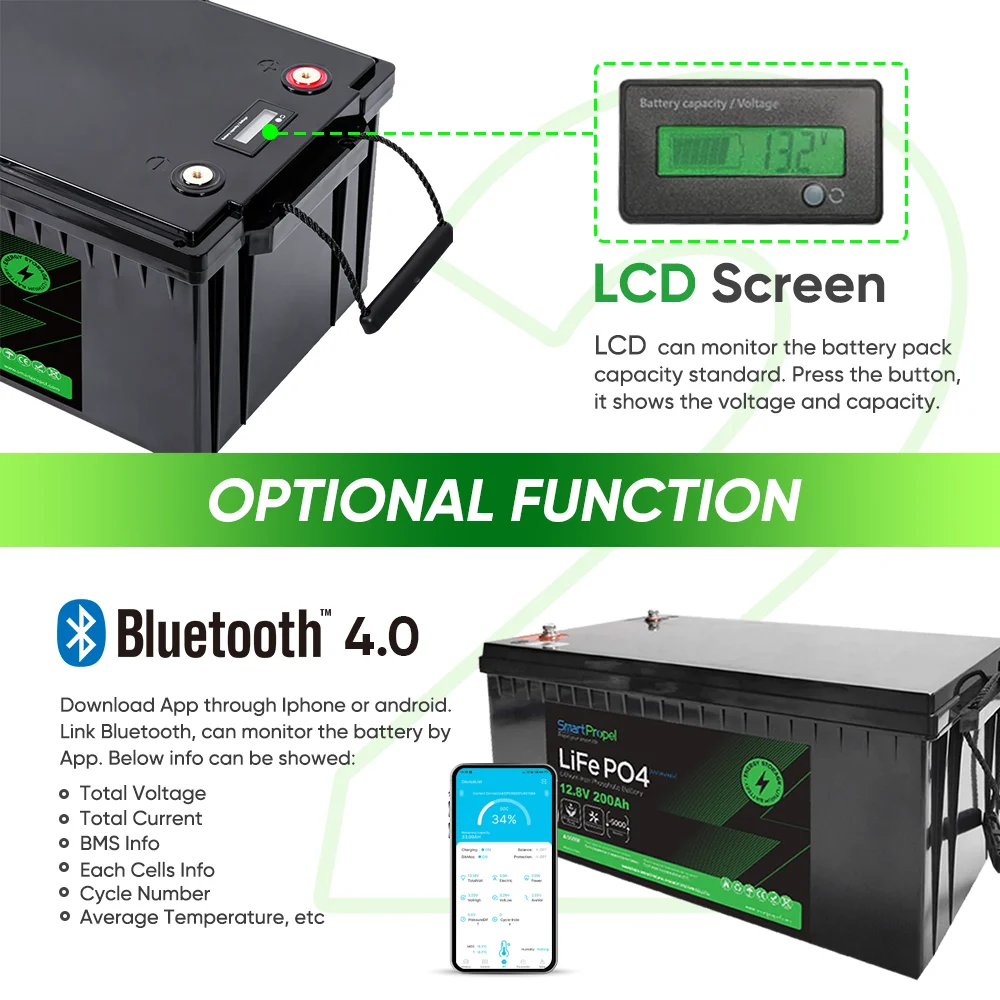

◆ Optional function: LCD screen and Bluetooth Function.

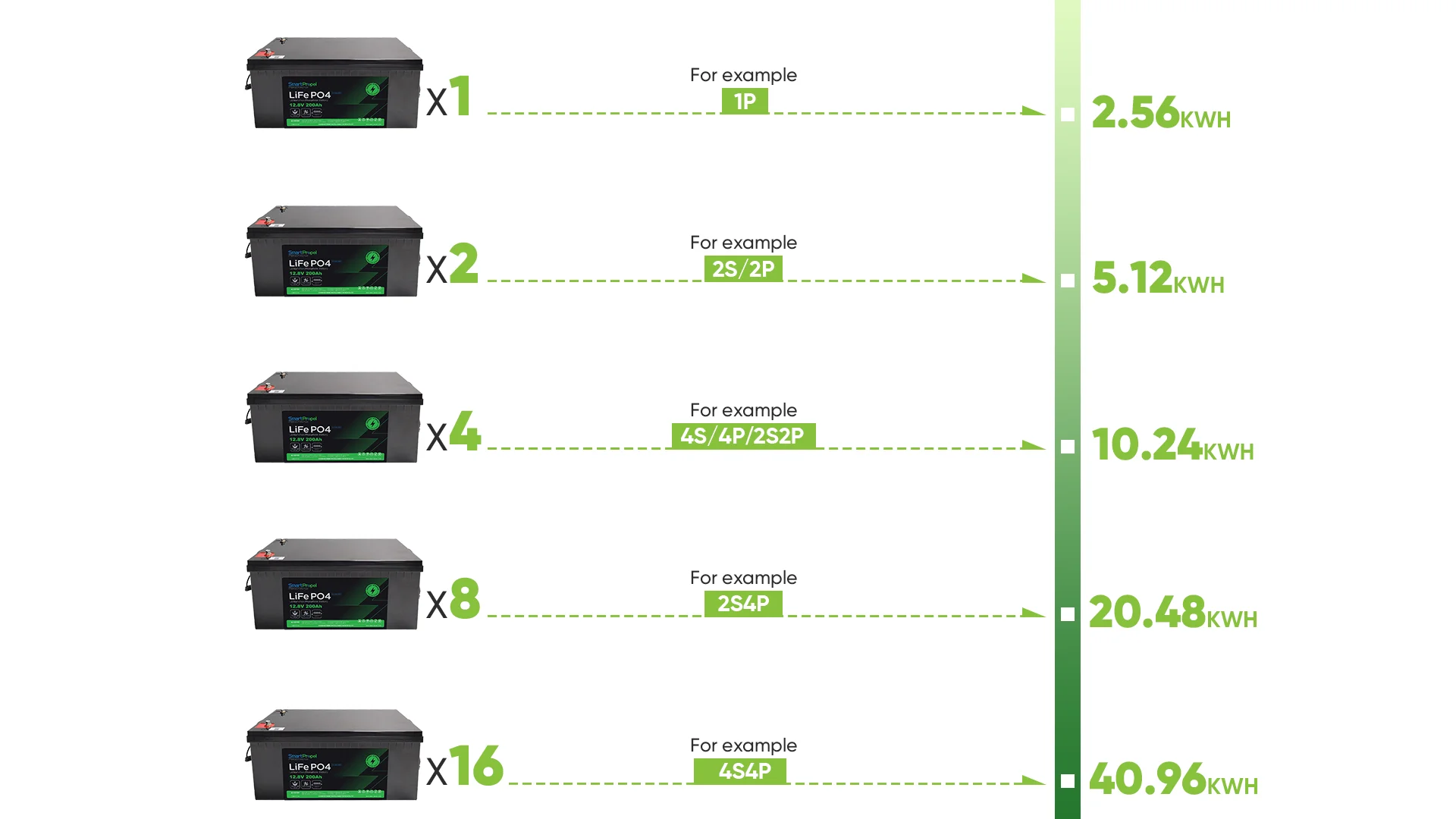

◆ Support maximum 16 batteries units series or parallels.
◆ Support maximum 16 batteries units series or parallels.
Why Choose Our 12V Energy Storage Batteries
SmartPropel adopt excellent EXCLUSIVE BRACKET, which is significant for battery battery performance, durable usage and longercyclelife. Further more,
1)Add EPE for Anti-Vibration, even on bumpy road driving can be well protects the battery pack.
2)Epoxy Board exist for good isolutation, extreme protect the battery pack any safety risk.
3) Quadruple protection PVC film, well package the battery pack, for waterproof and better protection for whole battery pack.
Bracket/EPE/Epoxy/PVC, 4 advanced steps for battery highest level protection which make our battery more competitive than other brands.
1)Add EPE for Anti-Vibration, even on bumpy road driving can be well protects the battery pack.
2)Epoxy Board exist for good isolutation, extreme protect the battery pack any safety risk.
3) Quadruple protection PVC film, well package the battery pack, for waterproof and better protection for whole battery pack.
Bracket/EPE/Epoxy/PVC, 4 advanced steps for battery highest level protection which make our battery more competitive than other brands.
12V Solar Battery Application Field
Company Profile
SmartPropel Introduction >>>
Established in 2015, SmartPropel is a professional lithium battery manufacturer and energy solution Factory.
Supported by 3 production base, we focus on E-bike battery, electric scooter battery, EV battery, energy storage battery, outdoor power supply, etc.our main product line covers most lithium battery in diversity field, one-stop station for worldwide customers.
We start with environment-friendly production while adopting the semi-automatic flow operation mode to ensure good production efficiency. We strictly control every detail, insisting on not accepting incoming defective materials, not producing defective products, or not shipping defective products. Committed to the development of high capacity, high quality, high-performance lithium battery products.
Supported by 3 production base, we focus on E-bike battery, electric scooter battery, EV battery, energy storage battery, outdoor power supply, etc.our main product line covers most lithium battery in diversity field, one-stop station for worldwide customers.
We start with environment-friendly production while adopting the semi-automatic flow operation mode to ensure good production efficiency. We strictly control every detail, insisting on not accepting incoming defective materials, not producing defective products, or not shipping defective products. Committed to the development of high capacity, high quality, high-performance lithium battery products.
SmartPropel, Propel your smart Life.

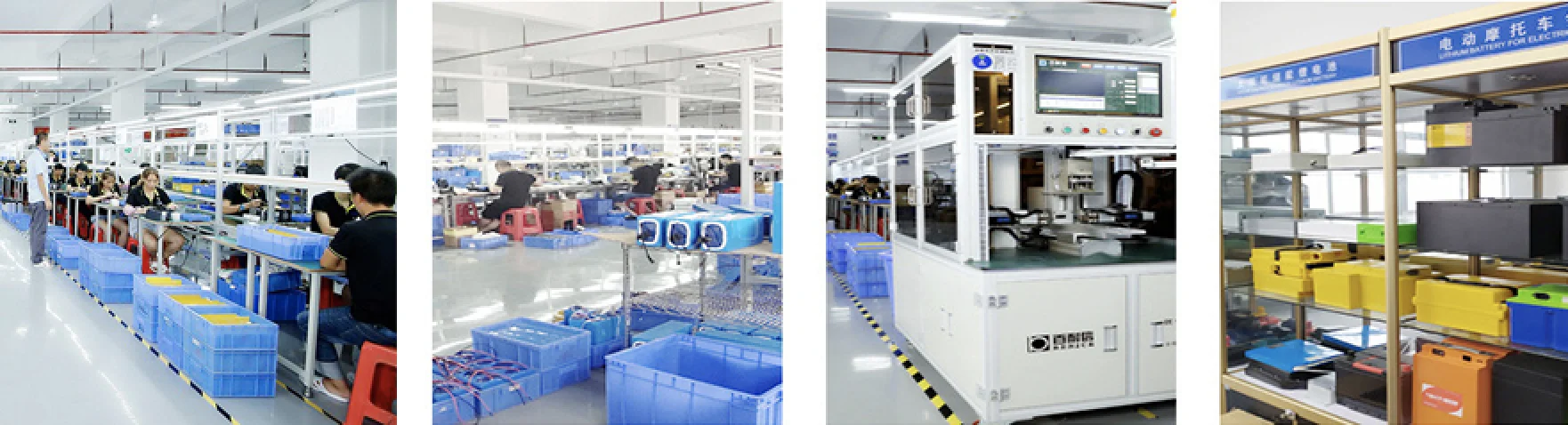

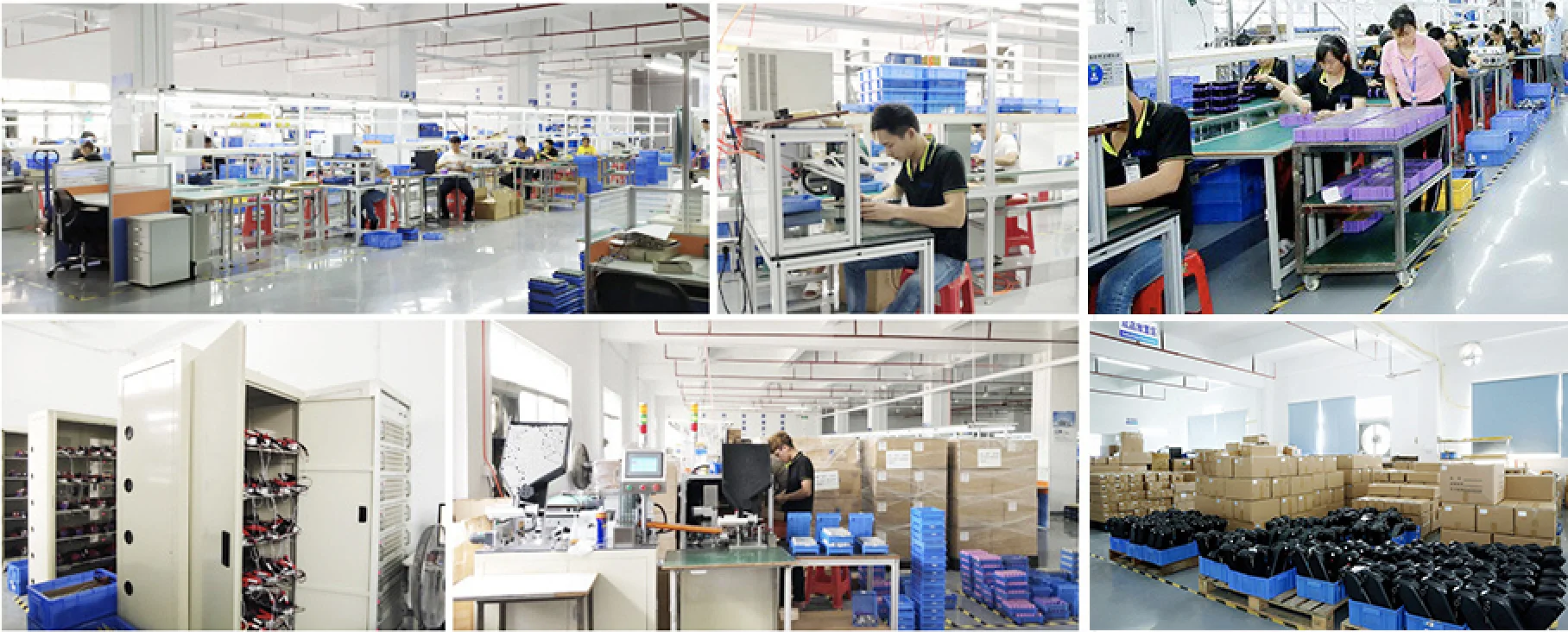

Production Line

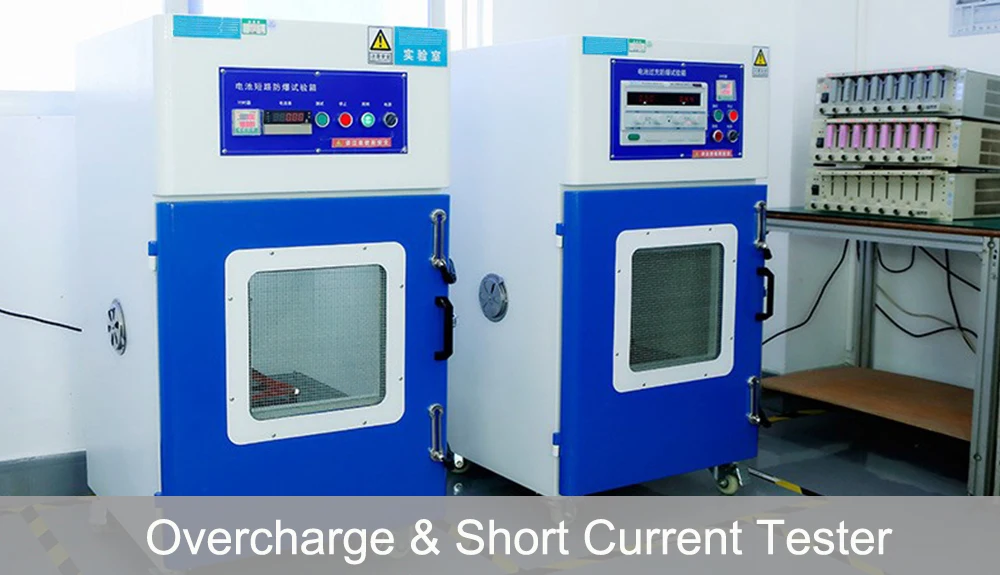

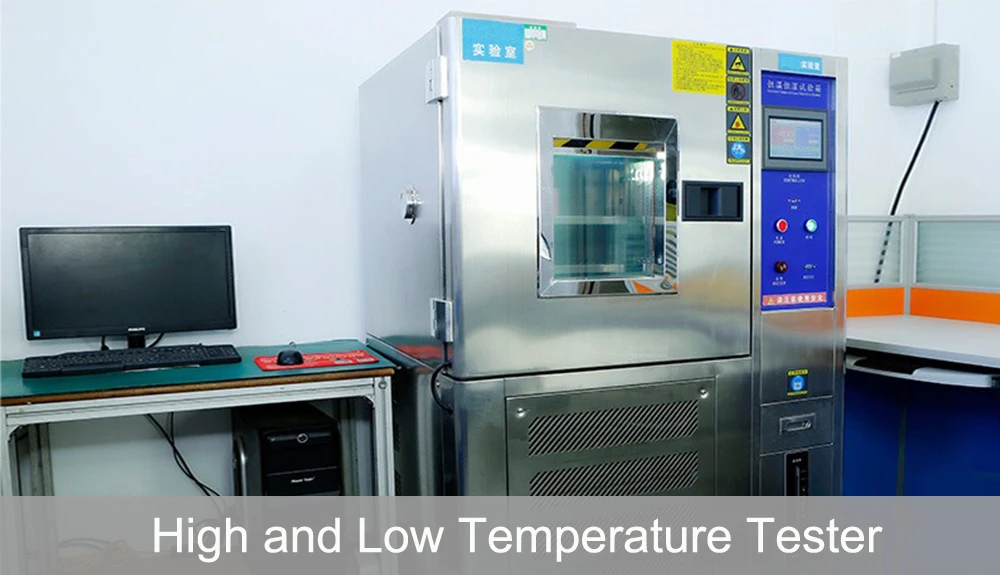

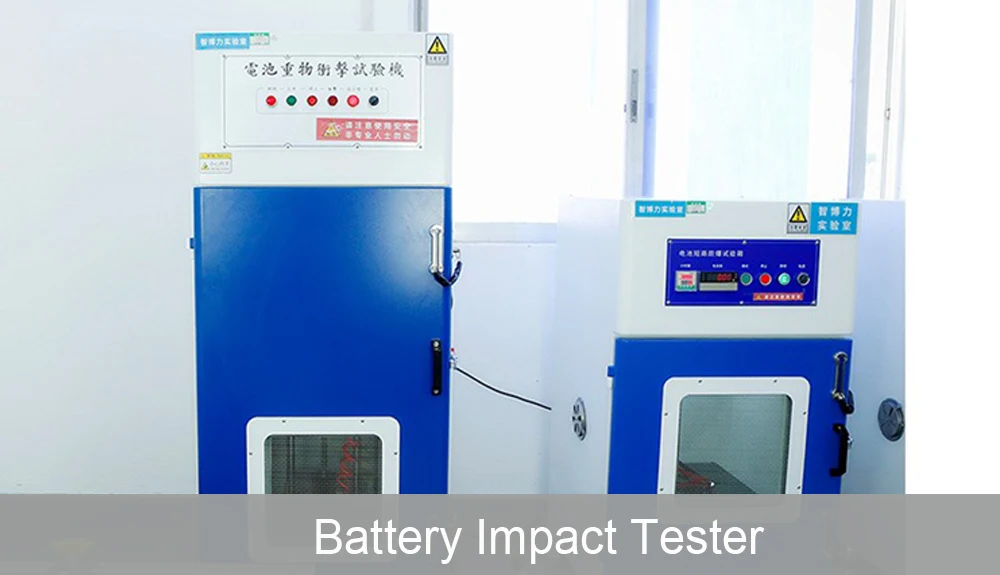

Test Equipment
Certificates
FAQ
Q1. Are you a factory or a trader? May I visit your factory?
We are the source manufacturer of lithium battery packs, you are welcome to visit the factory online/offline.
We are the source manufacturer of lithium battery packs, you are welcome to visit the factory online/offline.
Q2. Does the battery pack be equipped with LCD display, also support Bluetooth communication?
Yes. Supports LCD display and Bluetooth communication. We also can provide customers with Bluetooth APP (Android & iPhone) to view battery pack data in real time.
Yes. Supports LCD display and Bluetooth communication. We also can provide customers with Bluetooth APP (Android & iPhone) to view battery pack data in real time.
Q3. Can the battery pack match the charger? What is the output and input port of the charger?
We can match the charger for you, and the charger input/output model is made according to your requirements.
We can match the charger for you, and the charger input/output model is made according to your requirements.
Q4. Does your battery pack include BMS?
Yes, our battery pack include BMS. BMS have OVP/UVP/OCP/OTP/UTP/SCP protection functions.
Yes, our battery pack include BMS. BMS have OVP/UVP/OCP/OTP/UTP/SCP protection functions.
Q5. Can it be series or parallel for use?
Yes. it can support max. 4 in series or parallel connection for use ( 12V series ).
Yes. it can support max. 4 in series or parallel connection for use ( 12V series ).
Q6. What kind of certificates your products have?
CE,FCC,RoHS,PSE,UN38.3,MSDS etc,which is able to satisfy mostcountry's importing requirements.
CE,FCC,RoHS,PSE,UN38.3,MSDS etc,which is able to satisfy mostcountry's importing requirements.
Q7. Is OEM/ODM battery pack available?
Yes, OEM/ODM battery packs are warmly welcome. Professional engineers provide technical support.
Yes, OEM/ODM battery packs are warmly welcome. Professional engineers provide technical support.
Q8. What is the payment method?
100% payment for sample orders; 30% deposit for bulk orders, 70% balance before shipment.
100% payment for sample orders; 30% deposit for bulk orders, 70% balance before shipment.
Q9. What about the warranty? How can we guarantee quality?
Warranty for 5 years. Always a pre-production sample before mass production. All products will undergo charge and discharge aging test and final quality inspection before shipment.
Warranty for 5 years. Always a pre-production sample before mass production. All products will undergo charge and discharge aging test and final quality inspection before shipment.
Q10. What about the delivery time and shipping?
Some products are in stock. Supports sea, land, and air transport, and provides DDP services. Use International Express (UPS/FEDEX/DHL) to deliver goods within 3-7 days.
Some products are in stock. Supports sea, land, and air transport, and provides DDP services. Use International Express (UPS/FEDEX/DHL) to deliver goods within 3-7 days.
