Fuchong FC SQWG Double curvature/ Bent glass tempering furnace machine for sale automobile windows
Fuchong FC-SQWG Double curvature/ Bent glass tempering furnace machine for sale automobile windows
Fuchong FC-SQWG Double curvature/ Bent glass tempering furnace machine for sale automobile windows
Fuchong FC-SQWG Double curvature/ Bent glass tempering furnace machine for sale automobile windows
Fuchong FC-SQWG Double curvature/ Bent glass tempering furnace machine for sale automobile windows
Fuchong FC-SQWG Double curvature/ Bent glass tempering furnace machine for sale automobile windows
Fuchong FC-SQWG Double curvature/ Bent glass tempering furnace machine for sale automobile windows

Fuchong FC SQWG Double curvature/ Bent glass tempering furnace machine for sale automobile windows

Share on (1601070190048):


Price:$300,000.00 - $320,000.00

Quantity:


Product Overview

Description



Products Description


With one machine, the double curvature glass, single curvature glass and unequal-arc glass could be processed, such as backlite of car, bus, other vehicle, and also furniture glass, household appliance glass, architecture glass,etc.






Specification


Model
Max.Size
(mm)
Thickness(mm)
Min.Radius(mm)
Max.Bent Depth(mm)
Max.size
(mm)
Thickness
(mm)
Radius(mm)
FC-SQWG1610/10A

1600*1000

3.5-6











120











150
1600*1000︵


4-6
≥600
FC-SQWG1610/15A




1600*1500︵

≥750
FC-SQWG1610/18A




1600*1800︵

≥1000
FC-SQWG2010/10A

2000*1000

4-6
2000*1000︵
≥600
FC-SQWG2010/15A
2000*1500︵







5-6
≥750
FC-SQWG1610/18A
2000*1800︵
≥1000
FC-SQWG2210/10A

2200*1000






5-6
2200*1000︵
≥600
FC-SQWG2210/15A
2200*1500︵
≥750
FC-SQWG2210/18A
2200*1800︵
≥1000
FC-SQWG2212/10A

2200*1200
2200*1000︵
≥600
FC-SQWG2212/15A
2200*1500︵
≥750
FC-SQWG2212/18A
2200*1800︵
≥1000
FC-SQWG2315/10A

2300*1500
2300*1000︵
≥600
FC-SQWG2315/15A
2300*1500︵
≥750
FC-SQWG2315/20A
2300*2000︵
≥1000
Note: The above types are normal ones, we can design the machine according to your special requirements.




Model

Max.size
(mm)

Thickness(mm)

Min.Radius
(mm)
Max.Bent Depth
(mm)

Max.Size（mm）

Thickness(mm)

Radius(mm)
FC-SSQWG1710/10A-Ⅳ
1700*1000










4-6










120










150-280
1700*1000︵










5-6
≥600
FC-SSQWG1712/12A-Ⅳ
1700*1200



1700*1200︵

≥700
FC-SSQWG1715/15A-Ⅳ

1700*1500



1700*1500︵

≥850
FC-SSQWG1715/18A-Ⅳ



1700*1800︵

≥1000
FC-SSQWG2010/10A-Ⅳ
2000*1000



2000*1000︵

≥600
FC-SSQWG2012/12A-Ⅳ
2000*1200



2000*1200︵

≥700
FC-SSQWG2015/15A-Ⅳ

2000*1500



2000*1500︵

≥850
FC-SSQWG2015/18A-Ⅳ



2000*1800︵

≥1000
FC-SSQWG2210/10A-Ⅳ

2200*1000



2000*1000︵

≥600
FC-SSQWG2210/15A-Ⅳ




2000*1500︵

≥850
FC-SSQWG2212/10A-Ⅳ

2200*1200



2200*1000︵

≥600
FC-SSQWG2212/15A-Ⅳ




2200*1500︵

≥850
FC-SSQWG2315/10A-Ⅳ

2300*1500



2300*1000︵

≥600
FC-SSQWG2315/15A-Ⅳ




2300*1500︵

≥850
Note: The above types are normal ones, we can design the machine according to your special requirements.









Certifications

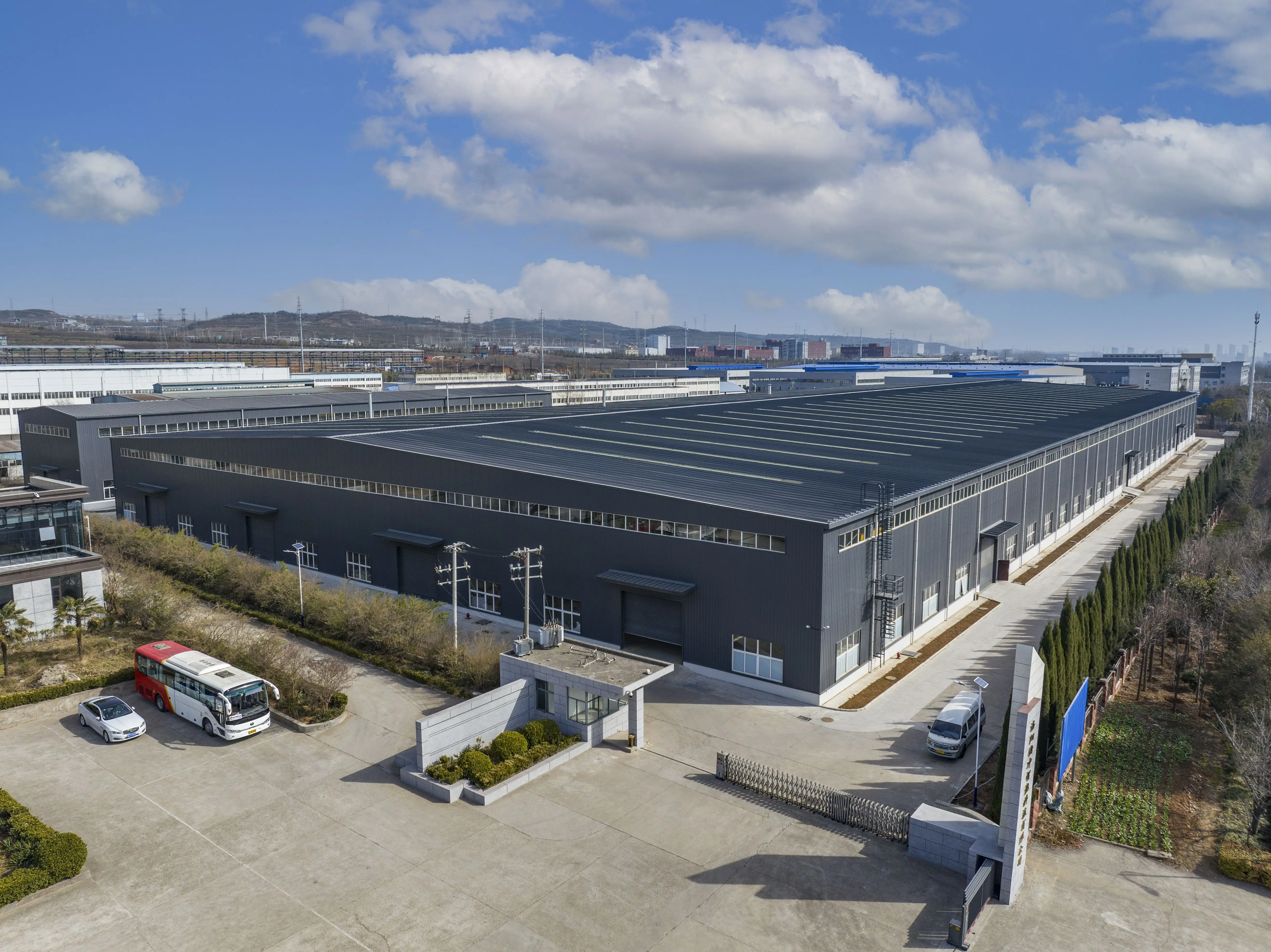

Company Profile


The main products of our company: flat glass tempering furnace line, bent glass tempering furnace line, double direction flat and bent glass tempering furnace line, continuous flat and bent glass tempering furnace line, double curvature tempering furnace line.








Customer Photos






We have exported to Italy, Russia, Poland, India and other countries, the feedback is also good.
