LIMA Automatic Small Livestock Fish Feed Mill Full Production Line 55kw Animal Dog Food Pellet Making Machine Manufacture Plant
- Category: >>>
- Supplier: Henan Lima Feed Machinery Manufacture Co. Ltd.
Share on (1601070443758):
Product Overview
Description
Fish Feed Production Line Details
1. LIMA Automatic Small Livestock Fish Feed Mill Full Production Line 55kw Animal Dog Food Pellet Making Machine Manufacture Plant:
This is a mini size fish feed production line, which including a corn grinder, a feed mixer, a pellet extruder and a dryer. It is a
semi-automatic feed processing line, not including belt conveyor. So that to reduce the budget for this feed production line
,suitable for beginner those new to the feed making industry and small to medium scale fish farming
semi-automatic feed processing line, not including belt conveyor. So that to reduce the budget for this feed production line
,suitable for beginner those new to the feed making industry and small to medium scale fish farming
2. Fish Feed Production Line Application:

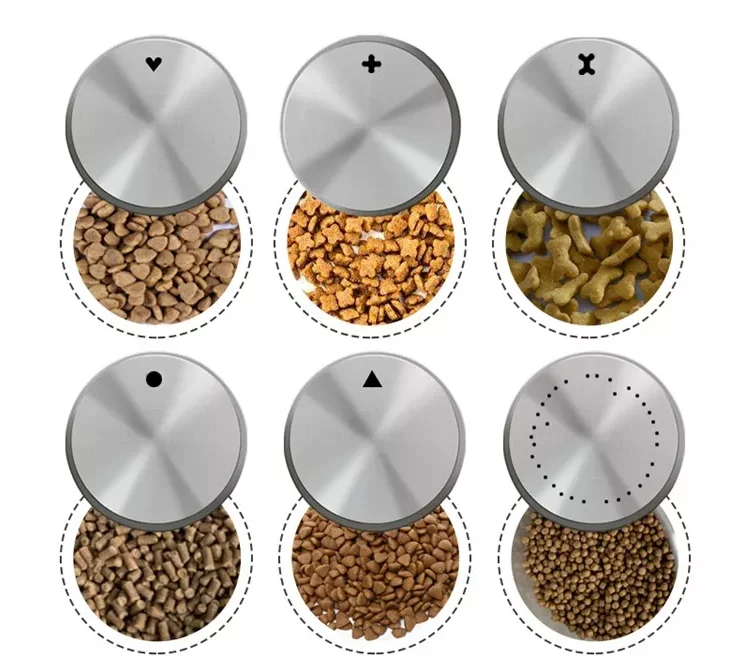

This fish feed extruder machine line using for aquaculture feed pellets making. For example: floating fish feed(Catfish,Tropical fish)、shrimp feed, Crab feed, dog /cat pet feed,tortoises, frogs and so on. Just change feed machine mould, can make many different shape pellets. also can make different size from 0.4mm-15mm , can feed from baby fish to big fish.

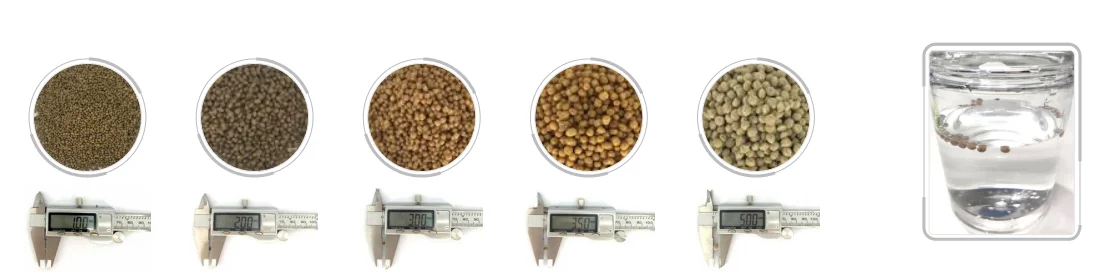

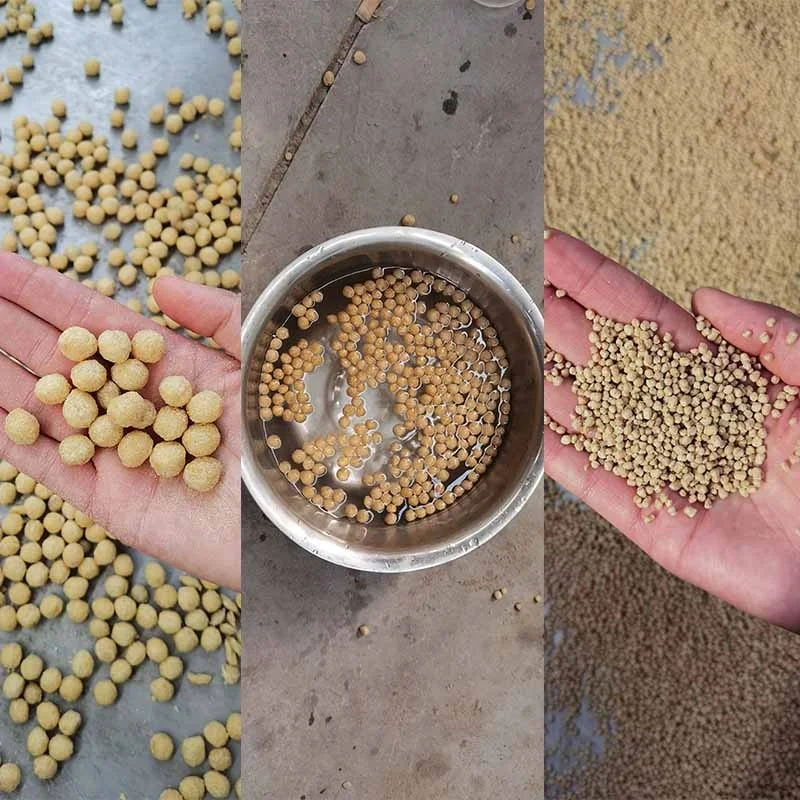

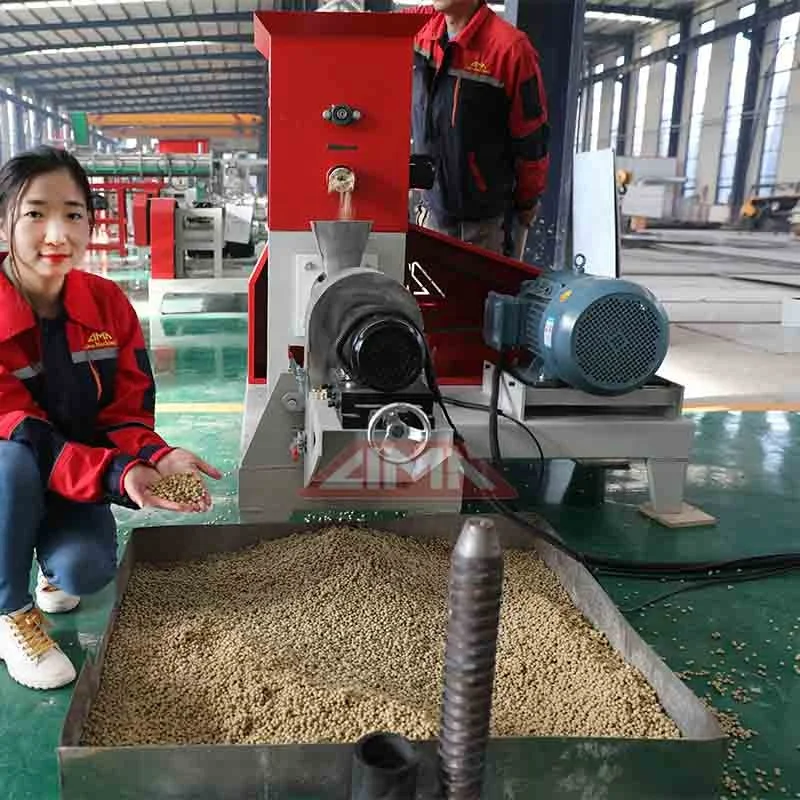

3. Floating Fish Feed Pellets Show
Floating fish feeds has very strong water stability (wouldn't apart within 16-32 hours), with little pollution on the water.
Spongy, porous floating pellet feed for pelagic fish floats in the water, which is easy to observe the fish feeding and growth,
conducive to scientific management.
Spongy, porous floating pellet feed for pelagic fish floats in the water, which is easy to observe the fish feeding and growth,
conducive to scientific management.
Fish Feed Production Line Solution

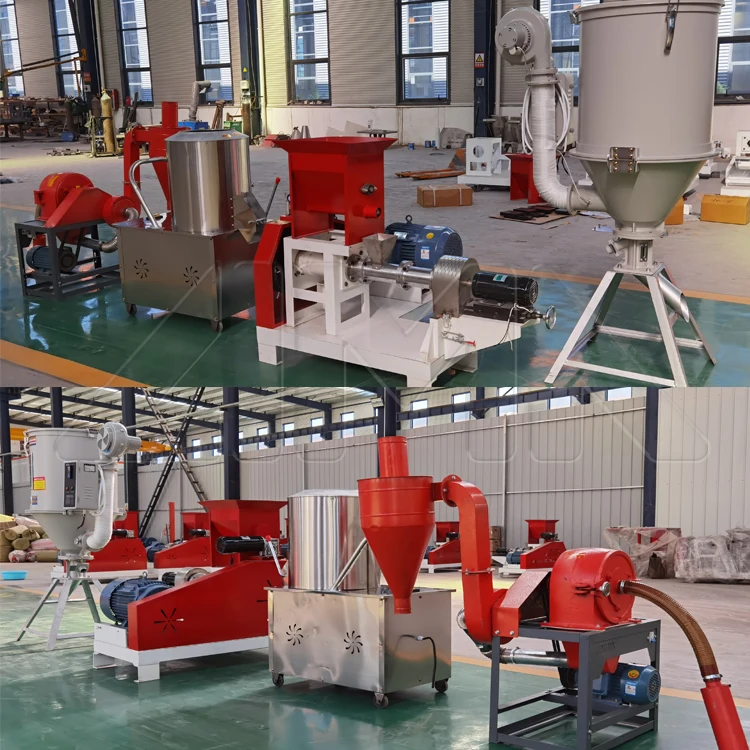

Solution1
40-300kg/h Aquatic/Pets Fish Feed Small Production Line
Farm Use

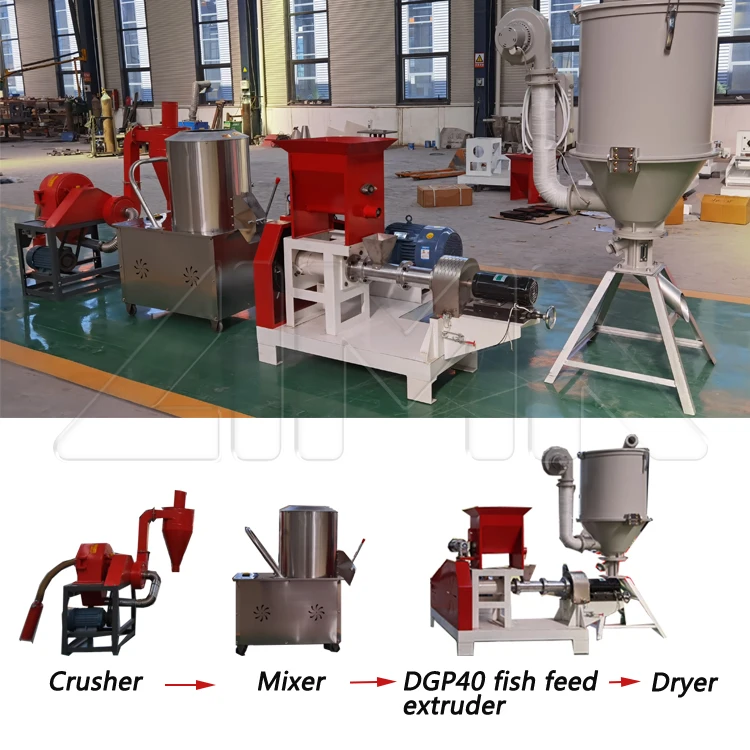

This small floating fish feed production line including: Crusher + Mixer + Feed pellet extruder + Dryer. Powered range: 16-68kw, Capacity range: 40-300kg/h, Which can produce floating fish feed pellets, dry cat/dog foods, shrimp feed and other Aquatic feed pellets.Suitable Fish farm or small feed shop
Capacity | 40-300kg/h |
Power | 16-68kw |
Range of application | Fish farm or small feed shop |
Product advantages | Cheap and simple operation,Easy to move,small size,Low transportation cost,pellet size could be chosen from 1-12mm |
Process flow | 1.Crusher -2.Mixer -3.Feed pellet extruder -4.Dryer |
Size for whole line | 5×2×3m |
Workers requirments | 2 people |
Shipment requirments | Wooden case package by LCL (4-7CBM) |
Solution 2

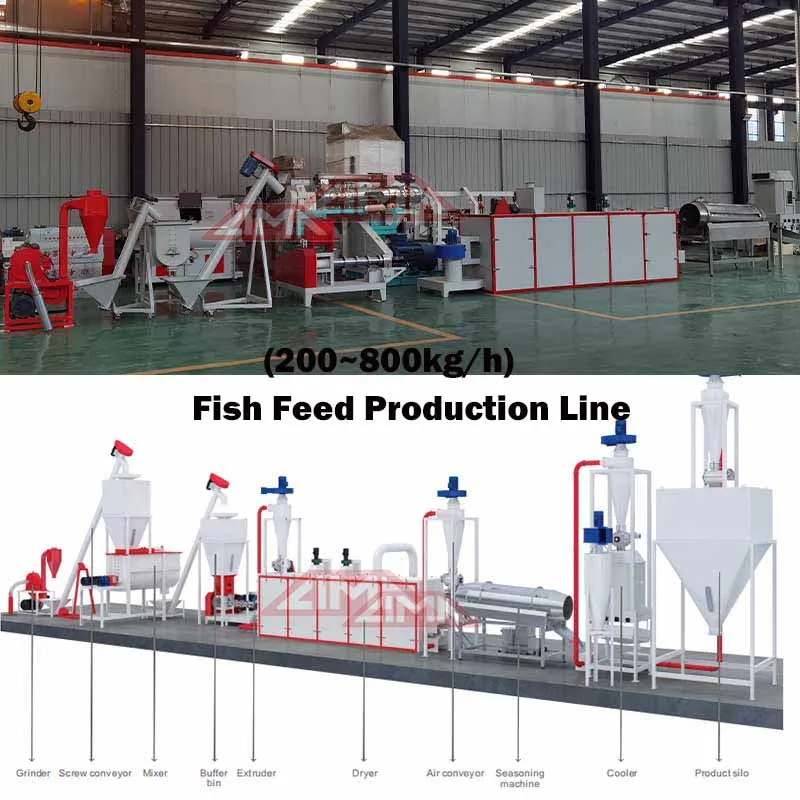

200-800kg/h Commercial use Aquatic/pets feed production line
This medium size fish feed production line including: Crusher + Conveyor + Mixer + Conveyor + Feed pellet extruder
-+ Air conveyor + Dryer + Air conveyor + Seasoning machine + Air conveyor + Cooler + Air conveyor + Finished product silo.
Capacity range: 200-800kg/h, Which can produce floating fish feed pellets, dry cat/dog foods, shrimp feed and other Aquatic feed pellets.Suitable for small/medium commerical Aquatic /pets feed factory,big farm
-+ Air conveyor + Dryer + Air conveyor + Seasoning machine + Air conveyor + Cooler + Air conveyor + Finished product silo.
Capacity range: 200-800kg/h, Which can produce floating fish feed pellets, dry cat/dog foods, shrimp feed and other Aquatic feed pellets.Suitable for small/medium commerical Aquatic /pets feed factory,big farm
Capacity | 200-800kg/h |
Power | 86-152kw |
Range of application | Good for small/medium commerical Aquatic /pets feed factory,big farm |
Product advantages | Stable output,high efficiency,continuous work,labor saving, can pack directly,pellet size could be chosen from 1-12mm |
Process flow | 1.Crusher -2.Conveyor -3.Mixer -4. Conveyor -5.Feed pellet extruder -6.Air conveyor -7.Dryer -8.Air conveyor -9.Seasoning machine -10.Air conveyor -11.Cooler -12. Air conveyor -13. Finished product silo |
Size for whole line | 25×3×6m |
Workers requirments | 2-3 people |
Shipment requirments | 40ft container |

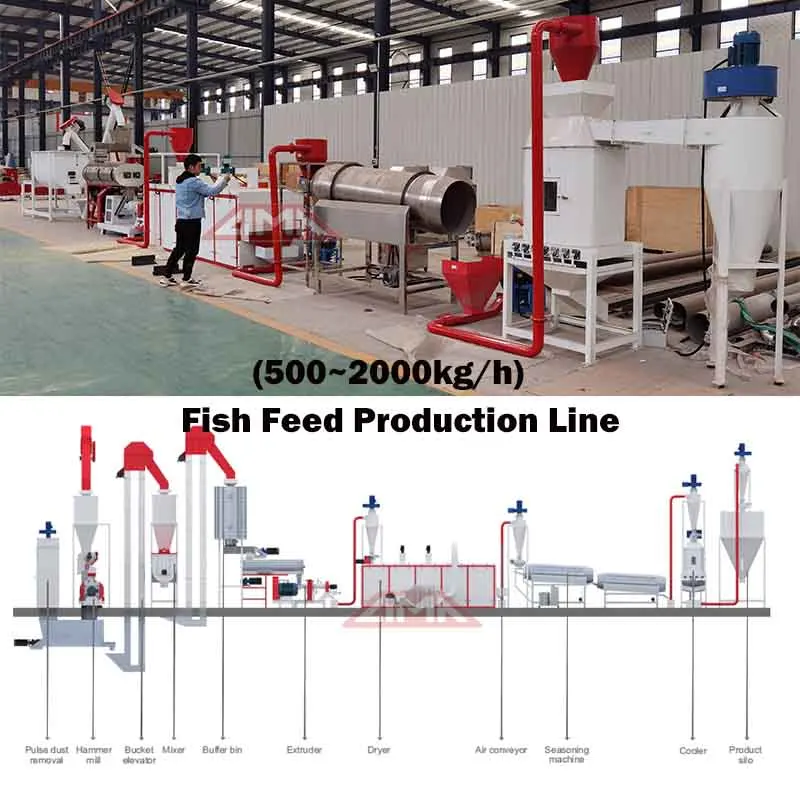

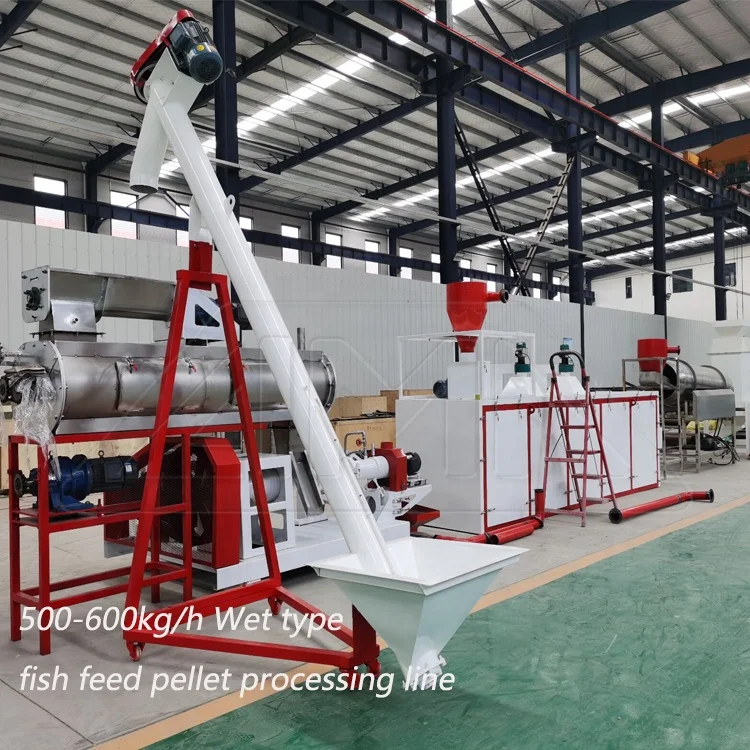

Solution 3
500-2000kg/h Commercial use Aquatic/pets feed production line
This medium size fish feed production line including: Bucket elevator + Buffer bin + Hammer mill + Bucket elevator + Buffer bin + Mixer + Bucket elevator + Broken arch bin + Wet way feed pellet extruder + Air conveyor + Dryer + Air conveyor + Seasoning machine + Air conveyor + Cooler + Air conveyor + Finished product silo. Capacity range: 500-2000kg/h, Which can produce floating fish feed pellets, dry cat/dog foods, shrimp feed and other Aquatic feed pellets.Suitable for medium/big commerical Aquatic /pets feed factory
Capacity | 500-2000kg/h |
Power | 94-217kw |
Range of application | Good for medium/big commerical Aquatic /pets feed factory |
Product advantages | Long working life,make high protein feed,Stable output,high efficiency, continuous work,labor saving,can pack directly,pellet size could be chosen from 1-12mm |
Process flow | 1.Bucket elevator -2.Buffer bin -3.Hammer mill -4.Bucket elevator -5.Buffer bin -6.Mixer -7.Bucket elevator -8.Broken arch bin -9.Wet way feed pellet extruder -10.Air conveyor -11.Dryer -12.Air conveyor -13.Seasoning machine -14.Air conveyor -15.Cooler -16.Air conveyor -17.Finished product silo |
Size for whole line | Length: 35m-50m Width: 6m Height: 8m |
Workers requirments | 3-5 Workers |
Shipment requirments | 2×40ft container |
Solution 4
3-4ton/h Commercial use Aquatic/pets feed production line
This medium size fish feed production line including: Bucket elevator + Buffer bin + Impeller feeder with iron removal device + Hammer mill with dust collector + Bucket elevator + Buffer bin + Mixer + Bucket elevator + Broken arch bin + Wet way feed pellet extruder + Air conveyor + Dryer + Bucket elevator + Seasoning machine + Bucket elevato + Cooler + Bucket elevator + Finished product silo + Packing and seal machine. Capacity range: 3~4ton/h, Which can produce floating fish feed pellets, dry cat/dog foods, shrimp feed and other Aquatic feed pellets.Suitable for large commerical Aquatic /pets feed factory
Capacity | 3-4ton/h |
Range of application | Suitable for large commerical Aquatic /pets feed factory |
Product advantages | Long working life,make high protein feed , stable output, high efficiency, continuous work, labor saving, can pack directly,pellet size could be chosen from 1-12mm |
Process flow | 1.Bucket elevator -2.Buffer bin -3.Impeller feeder with iron removal device -4.Hammer mill with dust collector -5.Bucket elevator -6.Buffer bin -7.Mixer -8.Bucket elevator -9.Broken arch bin -10.Wet way feed pellet extruder -11.Air conveyor -12.Dryer -13.Bucket elevator -14.Seasoning machine -15.Bucket elevato -16.Cooler -17.Bucket elevator -18.Finished product silo -19.Packing and seal machine |
Size for whole line | Length: 45m-50m Width: 8m Height: 10m |
Workers requirments | 4-6 Workers |
Shipment requirments | 4×40ft container |

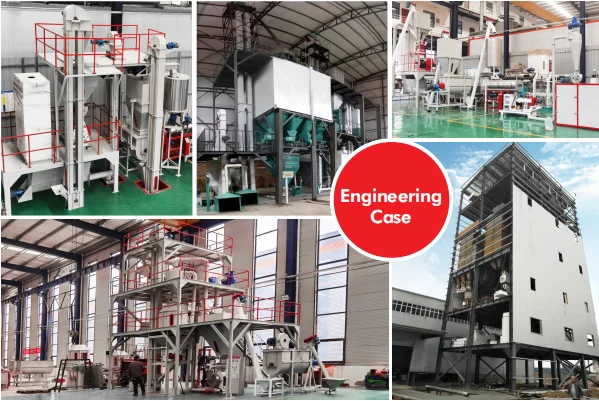

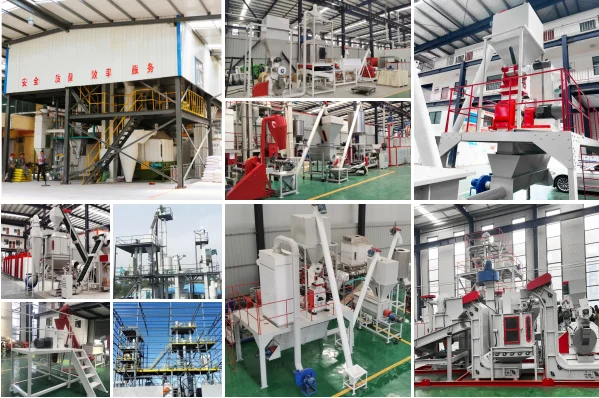

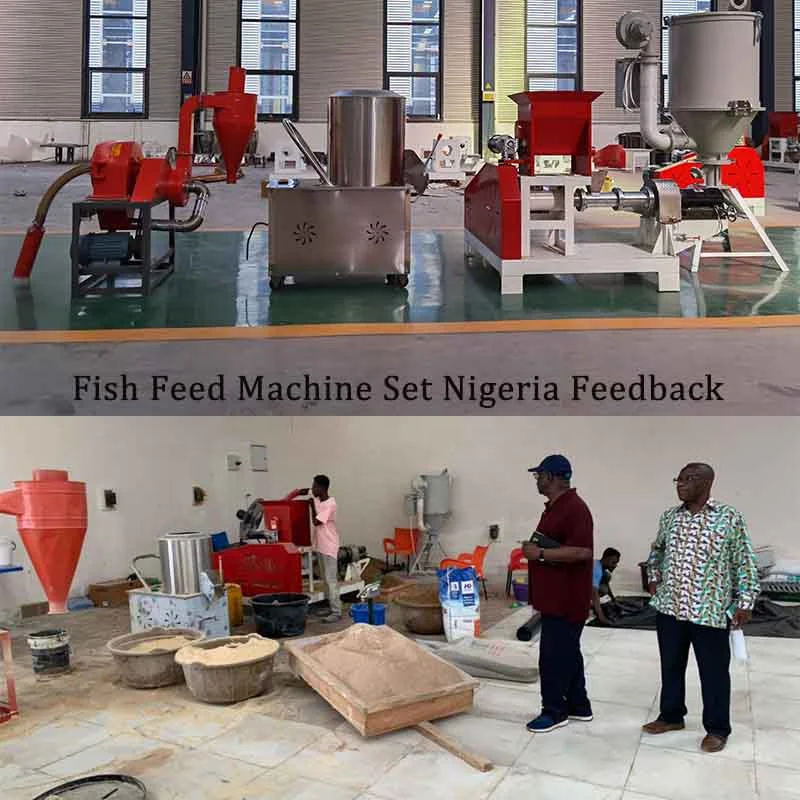

Production Line Project&Feedback
